A Transformational Approach to Resource Analysis with Typed-norms Inference
T0 review · 2 major / 4 minor · reviewed 2026-08-14 · deepseek-v4-flash
Pith's one-line read The paper proves that replacing data by typed-norm sizes in a rule-based program preserves the step-by-step shape of every trace, so upper and lower cost bounds computed on the abstract program are automatically valid for the original…
desk verdict The program transformation and its soundness theorem are solid, but the paper overstates the completeness of its relevant-types inference: Theorem 3 is not valid as written for non-recursive types whose constructors select different trace branches. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument

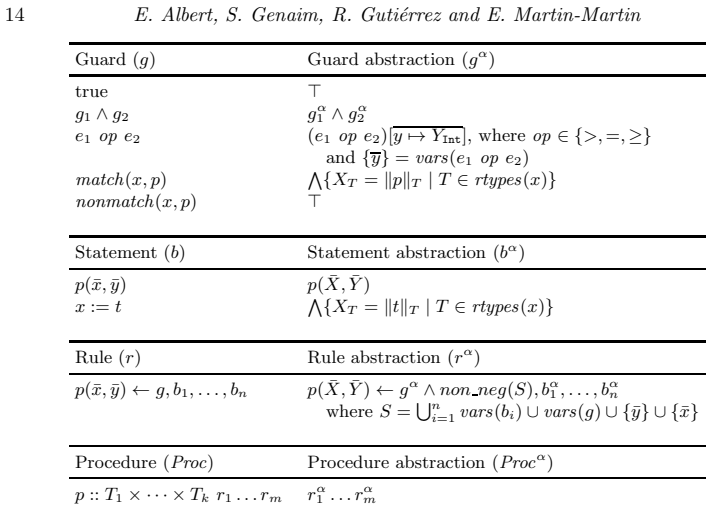

The central object is a symbolic typed-norm \|t\|_T and its sum variant, which count how many constructors of type T occur inside a term, using max when the term's own type differs. The abstraction function (·)^α rewrites guards and assignments into linear constraints over abstract size variables, and the data-flow functions gen_P, genS, and genG compute which types must be tracked by propagating type relevance through match guards and procedure calls; the least fixed point of gen_P yields the relevant types. What carries the argument is the trace-preservation theorem: the abstract operational semantics mimics every concrete step with identical decorations, so the subsequent cost-relation solver can be treated as a black box.
What would settle it
Run the paper's data-flow inference on a program where a nullary constructor of a non-recursive type selects between a terminating base rule and a recursive rule. Definition 17 declares that type useful because replacing the constructor changes the set of trace steps, while Section 4.1's match rule deliberately ignores non-recursive types, so the inference output will omit the type. Observing a concrete trace whose step count changes when only that constructor changes, with no typed-norm size changing, directly falsifies Theorem 3.
Extended reading notes
Core claim
The central claim is that typed-norm-based size abstraction can be made both sound and automatic. Given a rule-based program, the transformation replaces each variable x by one abstract integer variable X_T for each relevant type T in the constituent types of x, with equalities such as X_{IntList} = 1 + X'_{IntList} for a match on Cons. The soundness theorem shows that for every concrete trace there is an abstract trace with exactly the same step decorations and consistent size constraints, which transfers worst-case upper bounds and best-case lower bounds from the abstract program back to the original. The second claim is that the relevant typed-norms are computable: a monotone data-flow analysis over rules, guards, and calls reaches a least fixed point, and a soundness result states that every 'useful' type—one whose variation changes the set of trace steps—is included in the inferred relevant types. The paper also extends the framework to polymorphic types by monomorphisation and to context-sensitive norms by annotating non-recursive type occurrences with their positions.
Load-bearing premise
The proof that every useful type is inferred assumes that any change in program behavior that alters cost is reflected as a change in the size of some value under a typed-norm; a flag-like constructor that is never counted by a norm would violate this.
Editorial extensions
If this is right
- Any cost bound proven on the abstract program—upper on worst case or lower on best case—automatically holds for the original program, because every concrete trace has an abstract mirror with the same sequence of steps.

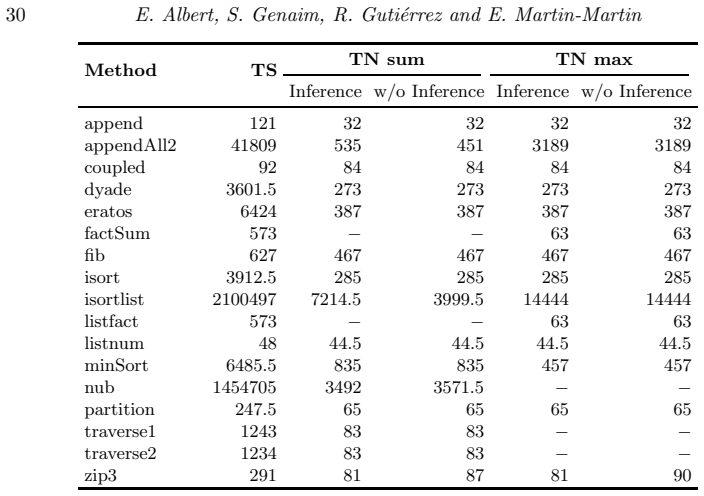

- Tracking several typed-norms per value yields materially tighter bounds than a single term-size norm: on list benchmarks the evaluated bounds are often an order of magnitude smaller, while total analysis time stays comparable.
- Discarding irrelevant typed-norms before solving does more than save time: by shrinking the number of size variables it can change which ranking functions the solver finds, so the inferred bound can differ and in the experiments is usually smaller.
- Because the framework is defined on a rule-based representation, the same transformation applies to functional, imperative, and logic programs; logic programs only need matching to be read as unification.
- Polymorphic procedures can be analyzed by instantiating each type variable to a fresh monomorphic type, and context-sensitive norms refine the bound when one non-recursive type appears in several positions of a data structure.
Reading between the lines
- Editorial inference: the proof of Theorem 3 appears to overreach—a nullary constructor of a non-recursive type can switch between a base rule and a recursive rule, changing trace steps while leaving every typed-norm size unchanged; restricting 'useful' to recursive and integer types, or counting branch-selecting constructors, would make the theorem valid as stated.
- Editorial inference: since the soundness theorem preserves full step sequences, not just total cost, the transformation is also a candidate front-end for amortized analyses, which need per-step potential rather than only aggregate bounds.
- Editorial inference: the position annotations for context-sensitive norms are a finite set of paths through a type tree; the same data-flow machinery might infer these paths automatically, making context sensitivity a derived feature rather than an input annotation.
Signed reviews
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper presents a transformational framework for resource analysis in which programs in a rule-based representation are abstracted to constraint programs using typed-norms. For each variable, the relevant types are inferred by a data-flow analysis, and the abstract program is generated with respect to these types. The authors prove soundness of the transformation (Theorem 1), prove termination and a so-called soundness of the relevant-type inference (Theorems 2 and 3), extend the framework to polymorphic types and context-sensitive norms, and evaluate it in the SACO system against RAML and sized-types benchmarks.
Significance. If the claims held, the paper would make a solid contribution: it provides a clean separation between the size-abstraction phase and the cost solver, formal proofs in Appendix A for the trace-preservation result, and an automatic method for pruning typed-norms that is validated on external benchmarks. The experimental comparison is honest and includes cases where the approach fails, such as hanoi. However, the completeness guarantee for relevant-type inference, which is a central advertised contribution, is not valid as stated: Definition 17 and the inference function genG in Section 4.1 are inconsistent for non-recursive discriminator types. The soundness of Theorem 1 is unaffected, but the 'smallest sets' claim and the inference soundness theorem need repair.
major comments (2)

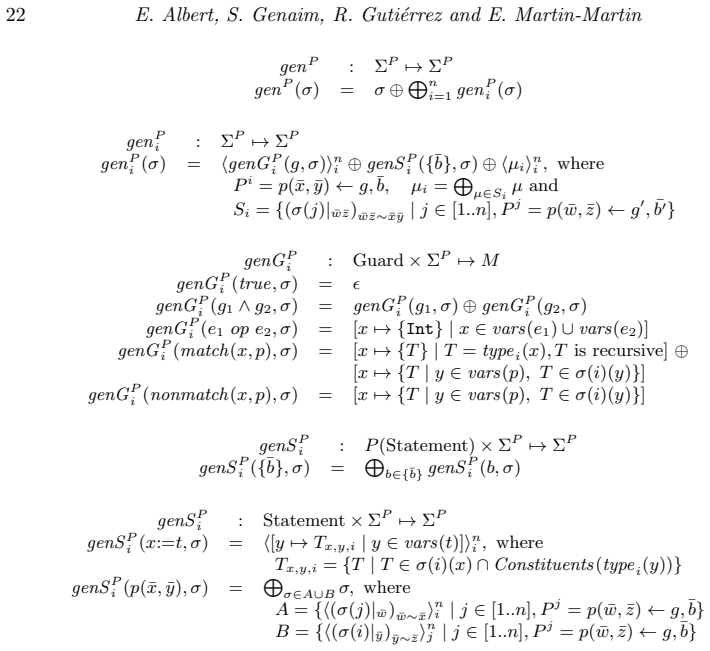

- [Section 4.1, Definition 17, Theorem 3] The inference function genG^P_i(match(x,p),sigma) in Figure 6 adds type_i(x) only when type_i(x) is recursive, and the surrounding text states that non-recursive types are ignored because they cannot directly affect the number of recursions. This is false for nullary constructors of non-recursive types. Consider data Dir = Up | Down and rules f(x) <- match(x,Up), base; f(x) <- match(x,Down), f(x). In the first rule, Dir is not recursive and the pattern has no variables, so lfp(gen_P)(1)(x) contains no Dir. Yet varying x from Up to Down changes the set of trace steps, so useful_Dir_1(x) holds by Definition 17. Theorem 3 therefore fails as written. The same issue arises for nonmatch(x,p), whose genG clause also omits type_i(x). The fix is either to restrict Definition 17 to types whose variation is observable by the typed norms, or to extend genG to track non-recursive types that discriminate between rules, and to update Theorem 3 accordingly.
- [Section 4.2, Definitions 16-17, Theorem 3] Even if the counterexample above were excluded, the theorem is stronger than what the algorithm can deliver because Definition 17 defines usefulness in terms of arbitrary value variations and trace sets, not in terms of changes in any typed-norm size. A value variation of a type T can change the control flow without changing any ||.||_T or ||.||+_T value, since Up and Down both have size 1. Because the abstraction in Section 3.2 only tracks numeric sizes, a type that is useful under Definition 17 may be invisible to the abstract program. Conversely, the algorithm may also infer types that are not useful under Definition 17, since genG adds every recursive type of x in match guards regardless of whether the procedure is recursive; the text acknowledges this in practice but the formal definition does not. The paper's claim that the inferred sets are the 'smallest sets' of relevant typed-norms that preserve precision is therefore not supported in either direction.
minor comments (4)
- [Definition 15] The definition of rule mapping combination contains the typo 'integerdividedom' in two places; it should be set difference.
- [Figure 8] Line 32 of Figure 8 writes 'main(<> x <r'>)' using a multiplication symbol instead of the angle-bracket separator used elsewhere; this is a typographical error.
- [Section 4.2] Theorem 3 is labeled 'Soundness', but it is a completeness statement: it says every useful type is inferred. The authors should rename it to avoid confusion with the soundness of the transformation in Theorem 1.
- [Section 3.2, after Example 7] The Dir/Up/Down example already shows that non-recursive discriminator types collapse in the abstraction; this observation should be reconciled with the claims of Section 4, since the mismatch is not merely a proof gap but a substantive overclaim.
Circularity Check
No significant circularity: the abstraction and relevant-type inference are proved independently of the experimental benchmarks, and no fitted parameter is relabeled as a prediction.
full rationale
The paper's central derivation chain is self-contained rather than circular. Section 3 fixes typed-norms in Definition 8 and the symbolic abstraction in Definition 9, then proves Theorem 1 by induction on the concrete operational semantics, explicitly constructing an abstract trace with the same step decorations and showing the accumulated constraints are satisfiable. The relevant-type inference in Section 4 is defined as a monotone data-flow analysis (Figure 6) and its soundness is argued in Section 4.2; the inferred rtypes are not obtained by fitting the experimental results, and the cost bounds are compared against external RAML and sized-types benchmarks in Section 6. The only self-citations are contextual: the removal of useless variables is credited to the authors' prior work (Albert et al. 2008) and the article extends the authors' LOPSTR 2013 paper, but the formal soundness proofs in this manuscript do not reduce to those citations. The skeptical observation about Theorem 3, concerning nullary constructors of non-recursive types being useful under Definition 17 yet never inferred, points to a possible correctness gap in the completeness statement, not to circularity: the theorem's conclusion is not definitionally equivalent to its assumptions, and the soundness of the cost abstraction (Theorem 1) does not depend on that completeness claim. Therefore no circular step meets the evidentiary standard required by the review rules.
Assumptions & free parameters
assumptions (4)
- domain assumption RBR programs are well-typed with monomorphic types and recursive types in direct recursive form.
- standard math The program is finite and type sets are finite, so the mapping lattice is finite and gen_P has a least fixed point.
- domain assumption Typed norms are compatible with term and guard evaluation, as stated in Lemmas 1 and 2.
- ad hoc to paper Non-recursive types cannot directly affect the number of recursions, so they are omitted in match guards.
Cite this review
Pith. "Pith review of A Transformational Approach to Resource Analysis with Typed-norms Inference." pith.science (2026). https://pith.science/paper/32GWBN37
@misc{pith2026190802078,
author = {Pith},
title = {Pith review of: A Transformational Approach to Resource Analysis with Typed-norms Inference},
year = {2026},
howpublished = {\url{https://pith.science/paper/32GWBN37}},
note = {Machine review of arXiv:1908.02078}
}
read the original abstract
In order to automatically infer the resource consumption of programs, analyzers track how data sizes change along program's execution. Typically, analyzers measure the sizes of data by applying norms which are mappings from data to natural numbers that represent the sizes of the corresponding data. When norms are defined by taking type information into account, they are named typed-norms. This article presents a transformational approach to resource analysis with typed-norms that are inferred by a data-flow analysis. The analysis is based on a transformation of the program into an intermediate abstract program in which each variable is abstracted with respect to all considered norms which are valid for its type. We also present the data-flow analysis to automatically infer the required, useful, typed-norms from programs. Our analysis is formalized on a simple rule-based representation to which programs written in different programming paradigms (e.g., functional, logic, imperative) can be automatically translated. Experimental results on standard benchmarks used by other type-based analyzers show that our approach is both efficient and accurate in practice. Under consideration in Theory and Practice of Logic Programming (TPLP).
