abstract

The European XFEL is an extremely brilliant Free Electron Laser Source with a very demanding pulse structure: trains of 2700 X-Ray pulses are repeated at 10 Hz. The pulses inside the train are spaced by 220 ns and each one contains up to $10^{12}$ photons of 12.4 keV, while being $\le 100$ fs in length. AGIPD, the Adaptive Gain Integrating Pixel Detector, is a hybrid pixel detector developed by DESY, PSI, and the Universities of Bonn and Hamburg to cope with these properties. It is a fast, low noise integrating detector, with single photon sensitivity (for $\text{E}_{\gamma} \ge 6$ keV) and a large dynamic range, up to $10^4$ photons at 12.4 keV. This is achieved with a charge sensitive amplifier with 3 adaptively selected gains per pixel. 352 images can be recorded at up to 6.5 MHz and stored in the in-pixel analogue memory and read out between pulse trains. The core component of this detector is the AGIPD ASIC, which consists of $64 \times 64$ pixels of $200 {\mu}\text{m} \times 200 {\mu}\text{m}$. Control of the ASIC's image acquisition and analogue readout is via a command based interface. FPGA based electronic boards, controlling ASIC operation, image digitisation and 10 GE data transmission interface AGIPD detectors to DAQ and control systems. An AGIPD 1 Mpixel detector has been installed at the SPB experimental station in August 2017, while a second one is currently commissioned for the MID endstation. A larger (4 Mpixel) AGIPD detector and one to employ Hi-Z sensor material to efficiently register photons up to $\text{E}_{\gamma} \approx 25$ keV are currently under construction.

Figures

Figures reproduced from arXiv: 1908.02103 by the authors.

Figure 1

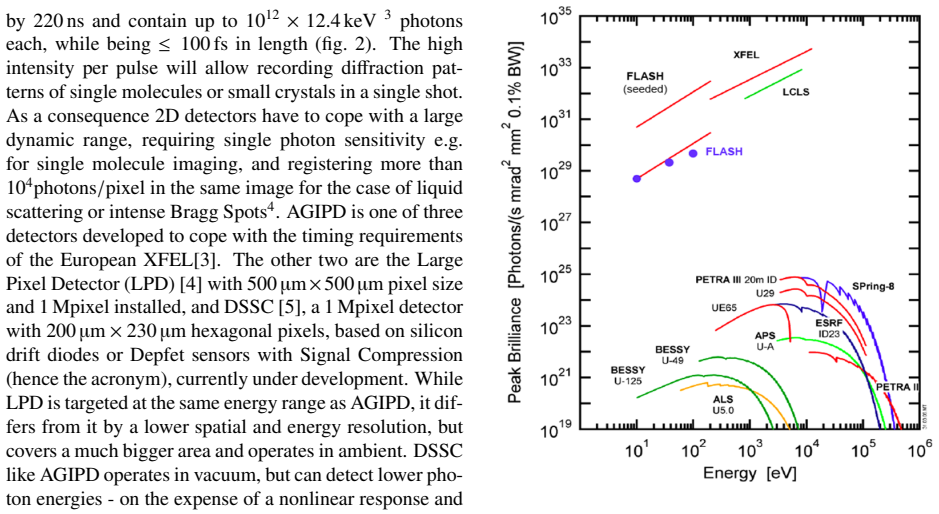

Figure 1. Brilliance of FELs and Synchrotron sources. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

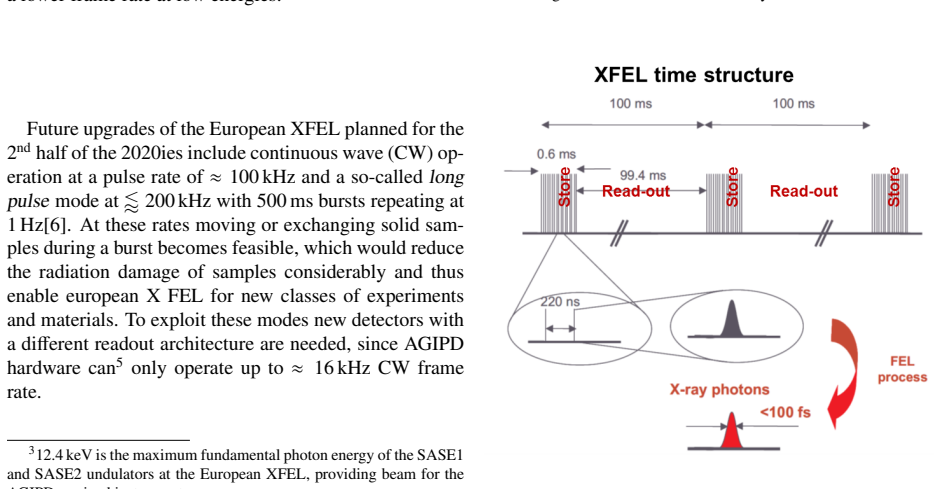

Figure 2. Time structure of the European XFEL source. [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Circuit schematic of the AGIPD 1.1 ASIC. [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (11 more)
Figure 4

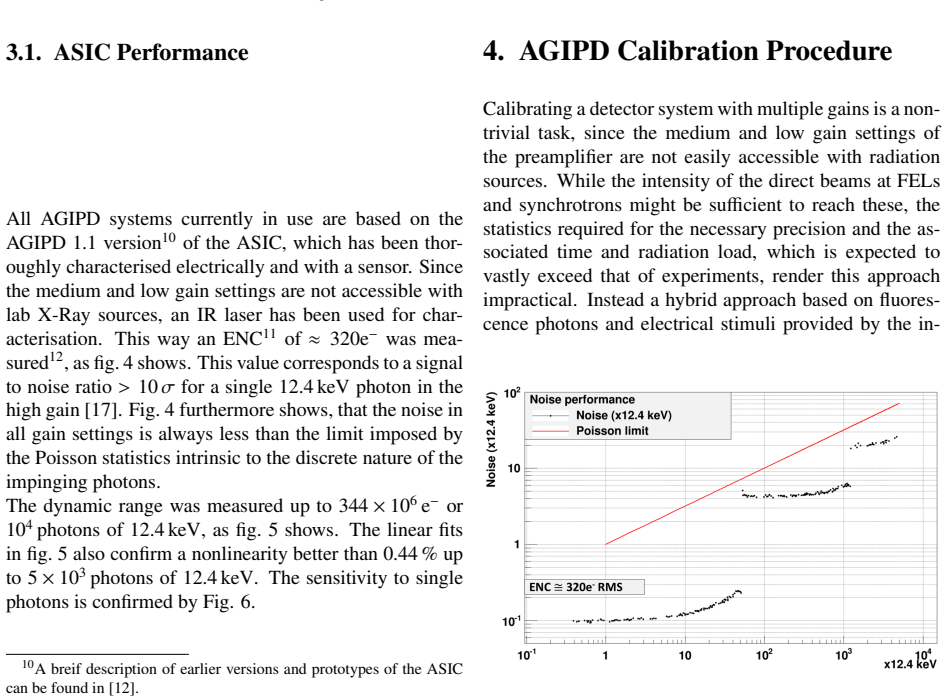

Figure 4. Figure 4: Noise performance of AGIPD [10]. An IR laser was used to ac [PITH_FULL_IMAGE:figures/full_fig_p004_4.png]
Figure 6

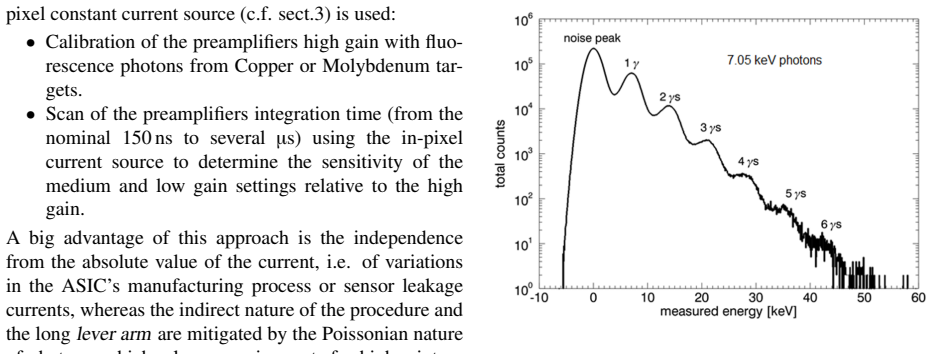

Figure 6. Figure 6: Spectrum of 7keV photons measured by AGIPD (data from [PITH_FULL_IMAGE:figures/full_fig_p005_6.png]
Figure 5

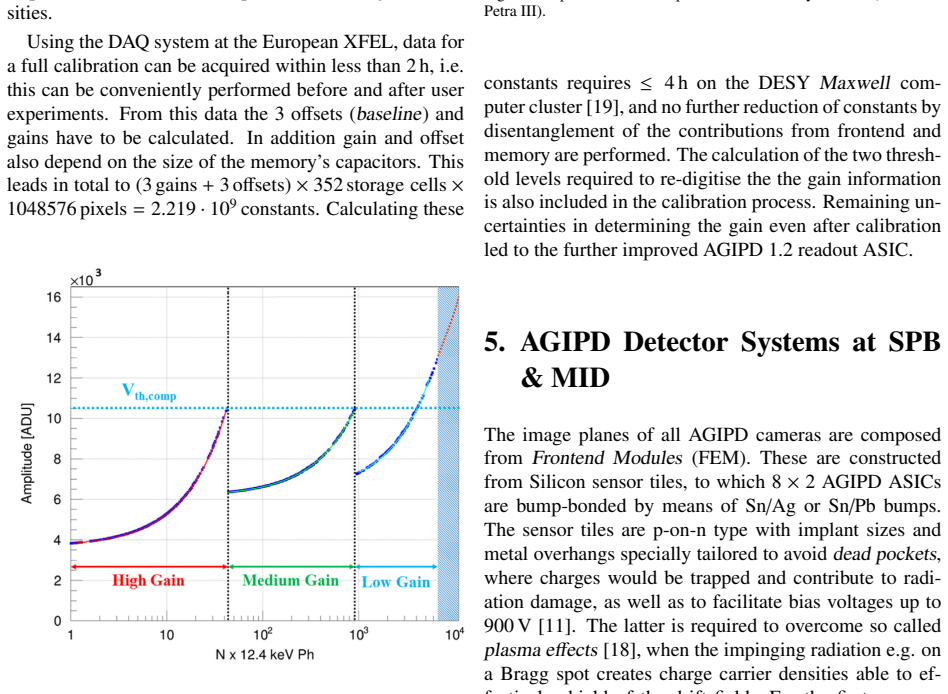

Figure 5. Figure 5: Transfer characteristics of AGIPD, including gain switching [PITH_FULL_IMAGE:figures/full_fig_p005_5.png]
Figure 7

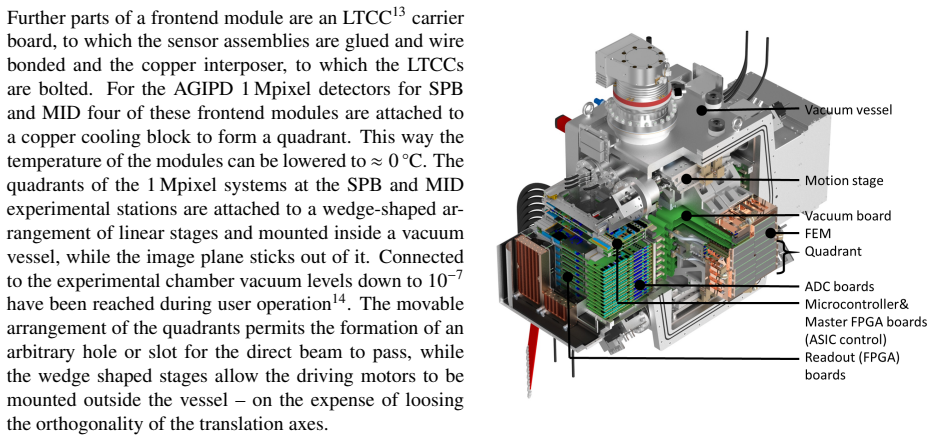

Figure 7. Figure 7: Rendering of the AGIPD 1 Mpixel detectors for the SPB and [PITH_FULL_IMAGE:figures/full_fig_p006_7.png]
Figure 8
Figure 8. Figure 8: The AGIPD 1 Mpixel camera at the MID experimental station. [PITH_FULL_IMAGE:figures/full_fig_p006_8.png]
Figure 9
Figure 9. Figure 9: Diffraction pattern from one of the lysozyme micro crystals injected with a liquid jet. It is part of a burst, i.e. an image series recorded at 1.1 MHz by the 1 Mpixel AGIPD at SPB. The diffraction spots and the water ring are nicely visible. The vertical stripes are m…
Figure 10
Figure 10. Figure 10: Powder diffraction pattern of Lithium Titanate (Li2TiO3). It shows the uncorrected amplitude data recorded by the 1 Mpixel AGIPD at SPB. Gain switching is visible as lower amplitudes (blue and white colour in between red lines) in the most intense parts of the diffrac…
Figure 11
Figure 11. Figure 11: Photograph of a readout board used in the AGIPD systems [PITH_FULL_IMAGE:figures/full_fig_p010_11.png]
Figure 12
Figure 12. Figure 12: Spectre Simulation results showing (from left to right) gain (×29 compared to ×19), frequency response (−3 dB at ≈ 500 MHz) and noise density of the preamplifier core of the electron collecting ecAGIPD ASIC (green) in comparison to the hole collecting AGIPD (red) [PI…
Figure 13
Figure 13. Figure 13: Circuit schematic of the ecAGIPD, the electron collecting version of the AGIPD ASIC. The yellow frames contain the components [PITH_FULL_IMAGE:figures/full_fig_p011_13.png]
Figure 14

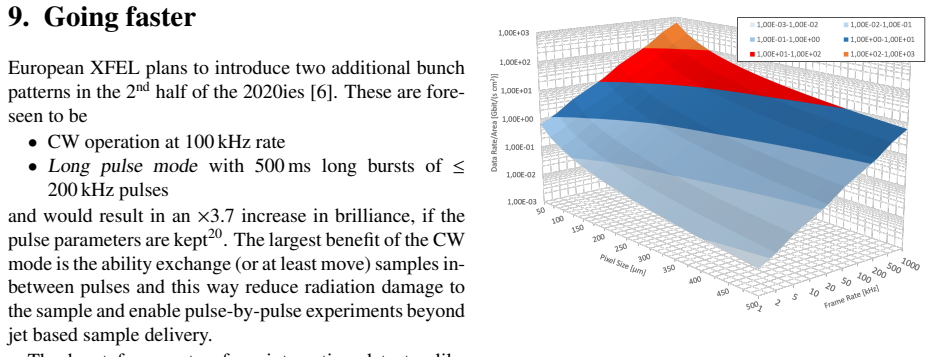

Figure 14. Figure 14: Data rate per area as a function of pixel size and frame speed, [PITH_FULL_IMAGE:figures/full_fig_p012_14.png]
