The Delicate Dance of Orbital Rendezvous

T0 review · 2 major / 4 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read For two spacecraft in nearby circular orbit, the Coriolis and tidal forces combine into a spring pulling toward the center of a drifting ellipse, so rendezvous trajectories are elliptical, not straight.

desk verdict Solid AJP-style teaching paper; the Apollo validation holds up when you don't mix first-order and exact expressions. read the letter →

arxiv 1908.02592 v1 pith:HEKI2ZOJ submitted 2019-08-05 physics.pop-ph

Bradley W. Carroll This is my paper · ORCID
classification physics.pop-ph
keywords orbitalrendezvousClohessy-WiltshireequationsHillrelativespacecraftmotionCoriolisforcetidalline-of-sighttargetingApollo11
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper argues that when two spacecraft are close together in a circular orbit, the relative motion seen from the target frame is a drifting ellipse, not a straight line. The combined Coriolis and tidal forces act as a Hooke's-law spring toward the instantaneous center of that ellipse, so the interceptor behaves as though it were attached to a moving point rather than aimed at the target itself. This picture makes the counter-intuitive rendezvous problem tractable: direct line-of-sight aiming works only within about 40 meters, and a stranded astronaut should fire her thruster along an angle below the line of sight. The same linearized equations quantitatively reproduce Apollo 11's Terminal Phase Initiation burn, giving a required velocity change of $7.44\,\mathrm{m/s}$ versus the flight plan's nominal $7.56\,\mathrm{m/s}$.

What carries the argument

The machinery is the set of linearized relative-motion equations known as the Hill equations, together with their closed-form solution as the Clohessy-Wiltshire equations. In the rotating target frame the out-of-plane motion decouples as a simple harmonic oscillator, while the in-plane motion is described by parametric ellipse solutions with center $(x_c,y_c)$, semimajor axis $a=2\sqrt{C^2+D^2}$, semiminor axis $a/2$, and drift velocity $v_{\text{drift}}=-(3/2)\omega_0 y_c$. The load-bearing identity is the summed force $\vec{F}_{\text{total}}=\vec{F}_{\text{Cor}}+\vec{F}_{\text{tidal}}=-\omega_0^2(\vec{r}-\vec{r}_c)$, where the 'tidal' term is the first-order difference between the gravitational acceleration at the target and at the interceptor. This identity does the work of converting a confusing acceleration balance into a simple spring picture that can be used for trajectory design.

What would settle it

Release a small interceptor at rest 40 meters ahead of a target in a known circular orbit, fire it at 1 m/s directly at the target, and measure the closest approach; the paper's equation $d_{\min}\simeq\omega_0 x_0^2/|\dot{x}_0|$ predicts roughly 1.8 meters within a few percent. A measured miss distance that is several times larger or smaller would falsify the linearized Hooke's-law picture.

Watch

Extended reading notes

Core claim

The central result is that, in the target's rotating frame and to first order in the small separation-to-orbit-radius ratio, the total force per unit mass on a coasting interceptor is $\vec{F}=-\omega_0^2(\vec{r}-\vec{r}_c)$, where $\vec{r}_c$ is the instantaneous center of the relative trajectory. The trajectory itself is a drifting ellipse: its along-track semimajor axis $a$ is twice the semiminor axis, its eccentricity is always $\sqrt{3}/2$, and its center drifts along the line $y=y_c$ with speed $v_{\text{drift}}=-(3/2)\omega_0 y_c$. Every coasting rendezvous in this regime is therefore motion around an ellipse whose center is the only point that exerts the effective spring pull, and that is why the intuitive straight-line chase fails.

Load-bearing premise

The entire derivation assumes the interceptor and target are so close that their separation divided by the orbital radius is tiny, namely $x/R_0, y/R_0, z/R_0 \ll 1$; all closed-form results depend on keeping only first-order terms in that ratio.

Editorial extensions

If this is right

  • A coasting interceptor with no thrust follows a drifting ellipse, never a straight line, so straight-line chase scenes in films and books are dynamically wrong.
  • Line-of-sight aiming becomes accurate only within about 40 meters: for an initial along-track distance $x_0$ and speed $|\dot{x}_0|=1\,\mathrm{m/s}$, the miss distance is $d_{\min}\simeq\omega_0 x_0^2/|\dot{x}_0|$, giving under 2 meters at 40 m and matching the 120-foot rule quoted in the paper.
  • A stranded astronaut starting at rest $100\sqrt{2}$ m from her ship should not thrust directly at the ship; a single $1.03\,\mathrm{m/s}$ burn at an aiming angle about $36.7^\circ$ below the negative $x$-axis returns her with a gentle arrival speed near $1\,\mathrm{m/s}$.
  • For Apollo 11, the linearized model gives a Terminal Phase Initiation velocity change of $7.44\,\mathrm{m/s}$ at an aiming angle of $19.8^\circ$, within $0.12\,\mathrm{m/s}$ of the flight plan's nominal $7.56\,\mathrm{m/s}$, while reproducing the slow, gently curving final approach.
  • When the lunar module's orbit height varies but the flight time and elevation angle are fixed, the required aiming angle is unchanged, so the astronauts always saw the command module at the same angular position at the same time.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A reader could infer a practical guidance rule for autonomous rendezvous: null the interceptor's velocity relative to the instantaneous ellipse center rather than relative to the target; autopilot implementation is not discussed in the paper.
  • Because the 40-meter threshold comes from $d_{\min}\simeq\omega_0 x_0^2/|\dot{x}_0|$, the same line-of-sight rule would shift at other orbital altitudes or around other bodies, so a small formation-flying mission could test the scaling by varying orbital radius and approach speed.
  • A natural extension not pursued in the paper is to use the drifting-ellipse solution as a planning tool for multi-burn fuel-optimal rendezvous, treating the ellipse center as a controllable virtual target that the interceptor is always oscillating about.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 4 minor

Summary. The paper considers two spacecraft in nearby circular orbits and derives the Hill/Clohessy-Wiltshire equations for their relative motion in the rotating target frame. It shows that for small separations the combined Coriolis and tidal forces are equivalent to a Hooke's-law force directed toward the instantaneous center of a drifting ellipse, which makes the counter-intuitive rendezvous trajectories easier to understand. Applications include a stranded astronaut returning to a spacecraft with one impulsive burn, line-of-sight targeting at ranges near 40 m, and a reconstruction of the Apollo 11 Terminal Phase Initiation maneuver, for which the paper computes a required Delta-v of 7.44 m/s versus the flight-plan nominal 7.56 m/s.

Significance. The central derivation is standard and appears correct, and the paper's main pedagogical contribution—interpreting the Coriolis-plus-tidal force as a Hooke's-law spring toward the ellipse center—is a genuinely useful way to present relative orbital motion. The closed-form CW solutions, the energy argument, and the application to Apollo 11 are valuable because they make the subject concrete. The paper is not purely expository: it makes a falsifiable quantitative claim (the Apollo 11 Delta-v) and a claimed explanation of Schirra's 40 m rule, and both need to be presented with appropriate caveats. With those caveats addressed, the paper would be a good addition to the pedagogical literature.

major comments (2)
  1. [Section V, Eqs. (70)-(74)] The claimed 1.6% agreement with the Apollo 11 flight-plan Delta-v depends on setting vpre,y approximately equal to zero in Eq. (72). The exact expression in Eq. (70) gives vpre,y = -(omega_LM - omega_0) x0 approximately +1.1 m/s for the stated Apollo numbers, which is 44% of the computed Delta-v_y = 2.53 m/s. Retaining this term (and evaluating vpre,x from Eq. (70) rather than the leading-order Eq. (71)) changes |Delta-v| from 7.44 m/s to approximately 7.0-7.1 m/s, so the disagreement with the nominal 7.56 m/s is about 6-8%, not 1.6%. Because the quantitative validation of the CW model is a headline result, the manuscript should either use the exact pre-thrust velocity or report the first-order result with the truncation error explicitly quantified.
  2. [Sections III and IV, Eqs. (54)-(60)] The 'within about 40 m' conclusion for line-of-sight targeting is not a parameter-free prediction. The success threshold is assumed to be 1.83 m in Eq. (60), and the analogous astronaut-reach threshold in Sec. III is also a chosen value; the 40.24 m result is obtained by solving for x0 with that threshold. The paper should state explicitly that the match to Schirra's quoted 40 m depends on these assumed thresholds and ideally show the sensitivity of the range to the threshold choice.
minor comments (4)
  1. [Eq. (45)] Equation (45) contains a sign typo: the semimajor-axis expression should contain (3y0 + 2 xdot0/omega_0)^2, matching the definition of C in Eq. (38), not (3y0 - 2 xdot0/omega_0)^2.
  2. [Section IV, text near Fig. 10] The statement that the lower trajectories 'use the same initial velocities as their counterparts in the upper part' conflicts with the immediately following statement that line-of-sight targeting sets ydot0 = 0; please clarify whether the comparison uses the same initial speed rather than the same velocity.
  3. [Abstract] In the abstract, 'must carefully the balance' should read 'must carefully balance'.
  4. [Section III] The spelling 'Shirra' in Sec. III should be 'Schirra' to match the rest of the paper and the quoted source.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the relative-motion derivation is self-contained and the Apollo 11 validation is compared against an external flight-plan number.

full rationale

The central derivation in Sec. II starts from Newton's second law in an inertial frame, applies the rotating-frame acceleration relation, linearizes under x,y,z << R0, and solves the resulting Hill/Clohessy-Wiltshire equations in closed form (Eqs. (33)-(37)). The Hooke's-law/'drifting ellipse' claims are direct algebraic consequences (Eqs. (42)-(50)), not renamed inputs or fitted outputs. The Apollo 11 TPI calculation in Sec. V uses historical initial conditions (x0 = -55.72 km, y0 = -27.78 km, tf = 42 min) and an independently documented flight-plan Delta-v = 7.56 m/s as a benchmark, so the agreement is not built in. The Sec. III and IV discussions of the 40 m range do use Schirra's quote as a point of comparison, but the success thresholds there (astronaut reach 1.77 m and highway lane half-width 1.83 m) are external physical/engineering standards, not fitted to the quote; those calculations are illustrative consistency checks rather than circular predictions. The only self-citation (Ref. 15, the author's textbook) supplies standard Kepler's third law and is not load-bearing. The dropped vpre,y in Eq. (72) is a disclosed first-order approximation; whether it weakens the numerical agreement is a quantitative accuracy concern, not circularity.

Assumptions & free parameters 2 free parameters · 5 assumptions · 0 invented entities

The paper relies on the standard assumptions of circular-orbit Hill/Clohessy-Wiltshire mechanics: small relative separation, planar motion after out-of-plane nulling, and impulsive burns followed by coasting. No new entities are introduced. The only ad hoc choices are the success thresholds used to turn the miss-distance formulas into the 40 m rules; these are listed as free parameters because they are chosen by hand to match Schirra's quote.

free parameters (2)
  • Successful rendezvous miss-distance threshold d_success = 1.83 m (half of a 12-ft U.S. highway lane)
    Introduced in Sec. IV to convert the line-of-sight miss-distance formula (Eq. 59) into the range x0 <= 40.24 m. The value is chosen so the result matches Schirra's quoted 40 m; it is not derived from physics.
  • Stranded-astronaut reach threshold = 1.77 m (height of a 5 ft 10 in astronaut)
    In Sec. III, the critical initial distance for a successful return is defined by setting the closest approach equal to the astronaut's height. This arbitrary criterion makes the 40 m initial distance critical; a different reach assumption would shift the range.
assumptions (5)
  • domain assumption The central body is spherically symmetric and the target follows a circular orbit; only Newtonian gravity acts.
    Invoked in Sec. II to derive the Hill equations (Eqs. 20-22) and to use Kepler's third law (Eq. 9). Real orbits are slightly elliptical and perturbed (J2, etc.), which is neglected.
  • domain assumption The interceptor-target separation is small compared with the orbit radius (x, y, z << R0), allowing linearization.
    Stated in Sec. II before Eq. (17); all closed-form solutions (Eqs. 33-37, 42-44) depend on first-order linearization.
  • domain assumption The out-of-plane (z) motion has been nulled by prior thruster burns, so the analysis is planar.
    Assumed at the end of Sec. II before the x-y solutions are used.
  • domain assumption For the Apollo 11 case, the CSM orbit is treated as circular at 60.0 nautical miles altitude and the LM is in the same orbital plane.
    Sec. V states the CSM orbit was actually slightly elliptical (56.6 x 62.5 nautical miles), but a circular orbit is adopted for the calculation.
  • domain assumption After each impulsive thruster burn, the non-gravitational forces are zero (F=0) while coasting.
    Used throughout Secs. III-V to apply the homogeneous Clohessy-Wiltshire solutions.

how reviews work

0 comments
Cite this review

Pith. "Pith review of The Delicate Dance of Orbital Rendezvous." pith.science (2026). https://pith.science/paper/HEKI2ZOJ

@misc{pith2026190802592,
  author       = {Pith},
  title        = {Pith review of: The Delicate Dance of Orbital Rendezvous},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/HEKI2ZOJ}},
  note         = {Machine review of arXiv:1908.02592}
}
read the original abstract

The meeting of two spacecraft in orbit around a planet or moon involves a delicate dance that must carefully the balance the gravitational, Coriolis, and centrifugal forces acting on the spacecraft. The intricacy of the relative motion between the two spacecraft caused problems for the Gemini missions in the mid-1960s. Although now mastered, the problem of how to bring two orbiting objects together continues to be misrepresented in popular movies and books. In this article, I will consider the case when the two spacecraft are in close proximity (compared with the radii of their orbits), and examine the counter-intuitive trajectories that are needed to bring them together. I will examine how a stranded astronaut might use an impulsive force to return to her ship in Earth orbit, how and when line-of-sight targeting may be used for a rendezvous, and how the Apollo 11 lunar module executed a Terminal Phase Initiation maneuver to rendezvous with the command/service module as they both circled the Moon.

Figures

Figures reproduced from arXiv: 1908.02592 by the authors.

Figure 1
Figure 1. FIG. 1: Inertial reference frame [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. FIG. 2: Several examples of stationary ellipses ( [PITH_FULL_IMAGE:figures/full_fig_p011_2.png] view at source ↗
Figure 3

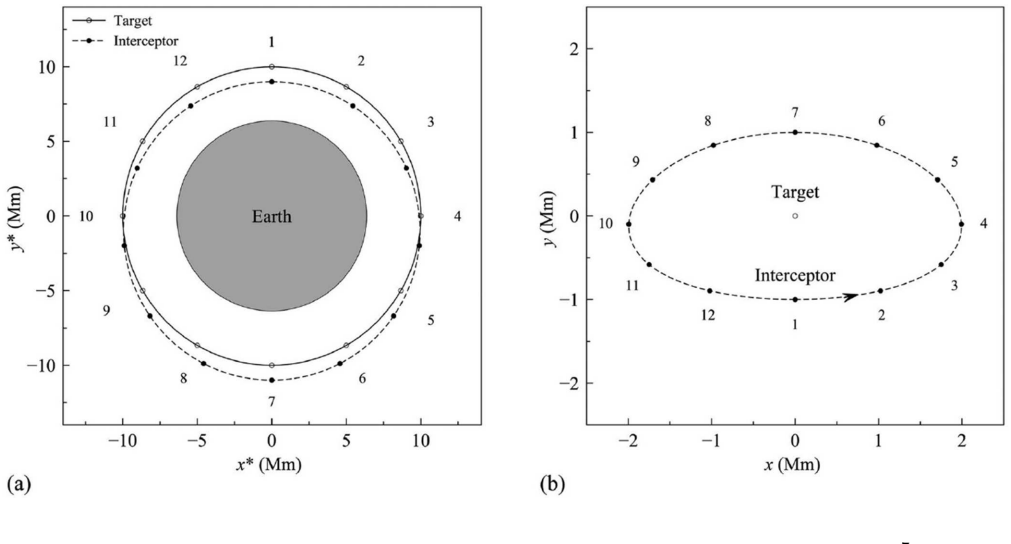

Figure 3. FIG. 3: (a) As viewed in inertial frame [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗
Figures from the paper (12 more)
Figure 4

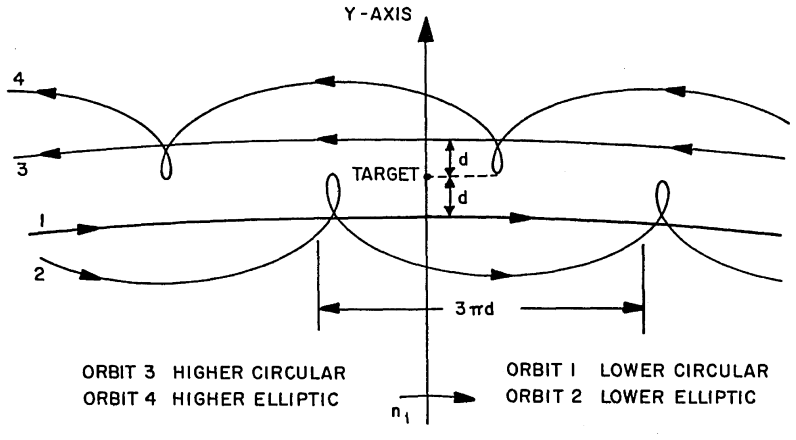

Figure 4. Figure 4: FIG. 4: This figure is adapted from Buzz Aldrin’s Ph.D. thesis and shows the interceptor’s motions [PITH_FULL_IMAGE:figures/full_fig_p013_4.png]
Figure 5
Figure 5. Figure 5: FIG. 5: The trajectory of an astronaut who starts at rest at [PITH_FULL_IMAGE:figures/full_fig_p015_5.png]
Figure 6

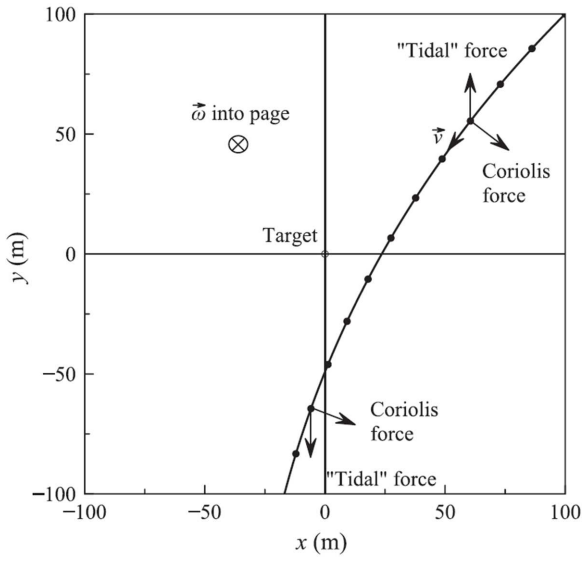

Figure 6. Figure 6: FIG. 6: The trajectory of an astronaut attempting to return to her target spacecraft from an [PITH_FULL_IMAGE:figures/full_fig_p016_6.png]
Figure 7

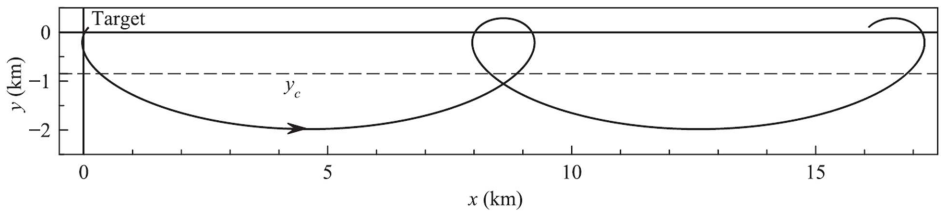

Figure 7. Figure 7: FIG. 7: The trajectory of an astronaut attempting to return to her target spacecraft from an initial [PITH_FULL_IMAGE:figures/full_fig_p017_7.png]
Figure 8

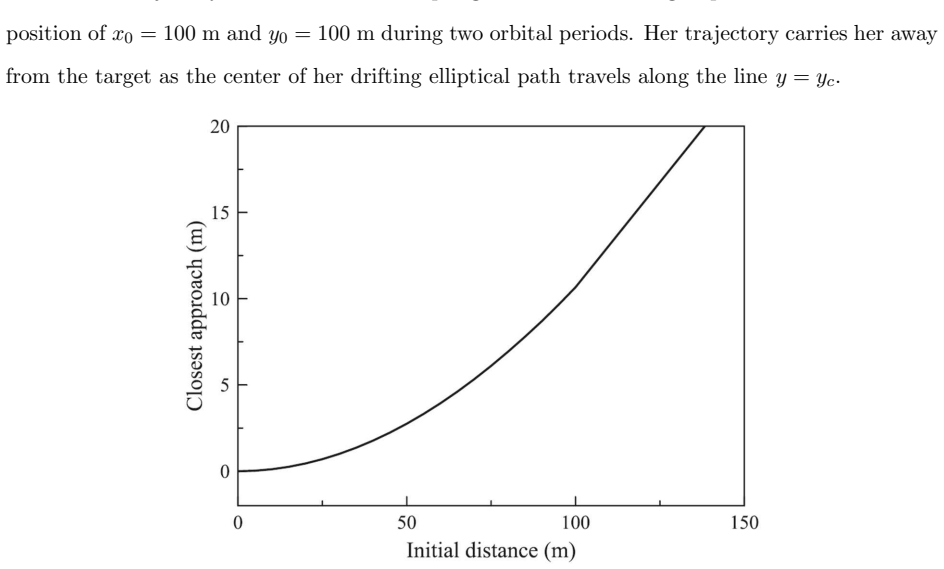

Figure 8. Figure 8: FIG. 8: The distance of closest approach of an astronaut to the target, starting at [PITH_FULL_IMAGE:figures/full_fig_p017_8.png]
Figure 9
Figure 9. Figure 9: FIG. 9: The astronaut’s successful and missed rendezvous with her target spacecraft from an initial [PITH_FULL_IMAGE:figures/full_fig_p018_9.png]
Figure 10
Figure 10. Figure 10: FIG. 10: Trajectories for [PITH_FULL_IMAGE:figures/full_fig_p019_10.png]
Figure 11
Figure 11. Figure 11: FIG. 11: The rendezvous of the Apollo 11 lunar module (LM) with the command/service module [PITH_FULL_IMAGE:figures/full_fig_p021_11.png]
Figure 12
Figure 12. Figure 12: FIG. 12: The final stages of Apollo 11’s rendezvous of the lunar module (LM) with the com [PITH_FULL_IMAGE:figures/full_fig_p022_12.png]
Figure 13
Figure 13. Figure 13: FIG. 13: The rendezvous of the lunar module (LM) with the command/service module (CSM) of [PITH_FULL_IMAGE:figures/full_fig_p023_13.png]
Figure 14

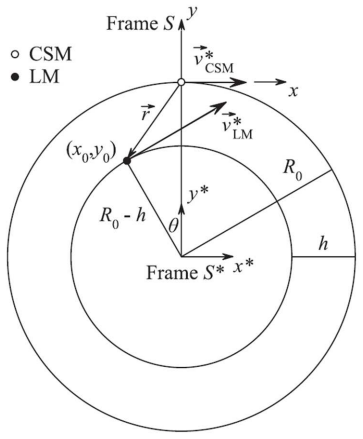

Figure 14. Figure 14: FIG. 14: The coordinate systems used to calculate the pre-thrust velocity of the LM as seen from [PITH_FULL_IMAGE:figures/full_fig_p024_14.png]
Figure 15
Figure 15. Figure 15: FIG. 15: The rendezvous of the lunar module (LM) with the command/service module (CSM) of [PITH_FULL_IMAGE:figures/full_fig_p026_15.png]

Discussion (0). Continue with ORCID to comment.

Reference graph

Works this paper leans on

13 extracted references · 13 canonical work pages

  1. [2]

    8 Integrating Eq

    can be solved subject to the usual initial conditions that at t = 0, x = x0 and ˙x = ˙x0, and similarly for the y initial conditions. 8 Integrating Eq. (20) with respect to time and applying the boundary conditions to evaluate the constant of integration produces ˙x =−2ω0y + ˙x0 + 2ω0y0. (32) This is used to replace ˙x in Eq. (21). The result is easily so...

    work page 1962

  2. [3]

    driving a car

    Shirra spoke of “driving a car” to rendezvous. The U.S. Interstate Highway System uses a 12 ft (3.66 m) standard lane width. Let us require for a successful rendezvous that the car’s center remain in its lane; that is, the distance by which the interceptor misses the target must satisfy dmin = ω0x2 0 | ˙x0| ≤ 1.83 m. (60) As before, ω0 = 1.13× 10−3 rad/s ...

    work page 1969

  3. [11]

    The rendezvous that was almost missed: Lunar orbit rendezvous and the Apollo program,

    The author is grateful for the continued support of the Physics Department at Weber State University. Published by the American Journal of Physics 87, 627 (2019); ⟨https://doi.org/10. 1119/1.5115341⟩. ∗ Electronic address: bcarroll@weber.edu 1 James R. Hansen, “The rendezvous that was almost missed: Lunar orbit rendezvous and the Apollo program,” NASA Fac...

    work page 2019

  4. [27]

    Simplified navigation for self- propelled astronauts,

    6 Roger A. Freedman, Ibrahim Helmy, and Peter D. Zimmerman, “Simplified navigation for self- propelled astronauts,” Am. J. Phys. 43, 438 – 440 (1975). 7 Eugene I. Butikov, “Relative motion of orbiting bodies,” Am. J. Phys. 69, 63 – 67 (2001). 8 Joseph C. Amato, “Flying in formation: The orbital mechanics of LISA’s three spacecraft,” Am. J. Phys. 87, 18 – 2...

    work page 1975

  5. [45]

    28 20 Michael Collins, Carrying the Fire (Farrar, Straus, and Giroux, New York, NY, 1974), p

    work page 1974

  6. [49]

    Researches in the Lunar Theory,

    16 G. W. Hill, “Researches in the Lunar Theory,” Am. J. Math. 1(1), 5 – 26 (1878). 17 W. H. Clohessy and R. S. Wiltshire, “Terminal Guidance System for Satellite Rendezvous,” J. Aerosp. Sci. 27(9), 653 – 658 (1960). 18 Jean Meeus, Astronomical Algorithms, 2nd ed. (Willmann-Bell, Inc., Richmond, VA, 1998), p

    work page 1960

  7. [89]

    Prussing and Bruce A

    5 John E. Prussing and Bruce A. Conway, Orbital Mechanics, 2nd ed. (Oxford U.P., Oxford, UK, 2013), p

    work page 2013

  8. [209]

    Reference frames and orbital rendezvous,

    21 Thomas R. Michalik, “Reference frames and orbital rendezvous,” Phys. Teach. 23, 253 – 254 (1985). 22 “Apollo Flight Journal,” ⟨https://www.history.nasa.gov/afj/ap11fj/ 19day6-rendezvs-dock.html⟩ (accessed May 1, 2019). 23 “Project Apollo: ’Lunar Orbit Rendezvous’ (1968) NASA Mission Planning and Analysis Divi- sion,”⟨https://www.youtube.com/watch?v=eo3...

    work page 1985

Show all 13 references
  1. [237]

    Line-of-Sight Guidance Techniques for Manned Orbital Rendezvous,

    19 Edwin E. Aldrin, “Line-of-Sight Guidance Techniques for Manned Orbital Rendezvous,” Ph.D. thesis (M.I.T., 1963), p

    1963

  2. [246]

    Hacker and James M

    3 Barton C. Hacker and James M. Grimwood,On the Shoulders of Titans, NASA SP-2403 (NASA Science and Technical Information Office, 1977), p

    1977

  3. [278]

    Carroll and Dale A

    15 Bradley W. Carroll and Dale A. Ostlie, An Introduction to Modern Astrophysics , 2nd ed. (Addison-Wesley, San Francisco, CA, 2007), p

    2007

  4. [288]

    Wiesel, Spaceflight Dynamics, 3rd ed

    27 4 William E. Wiesel, Spaceflight Dynamics, 3rd ed. (Aphelion Press, Beavercreek, OH, 2010), p

    2010

  5. [2019]

    Thousands of factors contributed to the ultimate success of Apollo, but no single factor was more essential than the concept of lunar-orbit rendezvous

    Abstract The meeting of two spacecraft in orbit around a planet or moon involves a delicate dance that must carefully the balance the gravitational, Coriolis, and centrifugal forces acting on the space- craft. The intricacy of the relative motion between the two spacecraft cau...
