Pith's one-line read Rigid graph alignment—alternating a topological aligner with a rigid-body fit—more than doubles edge overlap on HCP functional connectomes compared with topology alone, from about 20% to 53%.

desk verdict Rigid graph alignment is a genuinely new problem formulation with useful synthetic validation, but the headline HCP result is the algorithm optimizing its own score, and one line in the pseudocode may be a serious error. read the letter →

arxiv 1908.03201 v1 pith:6SWIQ5TL submitted 2019-08-09 cs.SI cs.DB

Vikram Ravindra , Huda Nassar , David F. Gleich , Ananth Grama This is my paper · ORCID

classification cs.SIcs.DB

keywords rigidgraphalignmentnetworkstructuralorthogonalProcrustesexpectation-maximizationfunctionalconnectomebrainfingerprintingspatialprior

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper is trying to establish that graphs with a spatial basis—rigid graphs—are best aligned by using connectivity and edge lengths together rather than either alone. It proposes a meta-algorithm that alternates an existing topological graph aligner with a rigid-body structural fit (rotation plus translation) inside an expectation-maximization loop, using spatial proximity to build the alignment prior. On functional brain connectomes from 20 HCP subjects, the paper reports that edge overlap rises from 20.18±4.2% after the first topological iteration to 53.05±12.5% after rigid graph alignment. The paper also argues that the residual structural error after alignment, which it calls the rigidity metric, separates same-subject from different-subject alignments better than edge overlap, making it a candidate fingerprint measure.

What carries the argument

The machinery is an expectation-maximization meta-algorithm: one step is any topological network aligner that accepts a prior, and the other is a rigid-body registration via the orthogonal Procrustes problem. The link between them is the prior matrix $L$, built from current coordinates by giving weight $\exp(-\|C_{Ai}-C_{Bj}\|_2^2)$ only to nearby candidate pairs. After the aligner produces a permutation $X$, the coordinates of graph B are permuted and transformed by $\hat{R}, \hat{t}$ that minimize $\|C_A - X C_B\Omega\|_F^2$, and the loop repeats. The algorithm is a meta-algorithm because either component can be swapped; the experiments use a message-passing aligner for topology and an SVD Procrustes solver for structure. The rigidity metric is the residual $\|C_A - X C_B\Omega\|_F$ normalized by vertex count, used as an alignment-quality score.

What would settle it

Register a set of connectomes to a common template with nonlinear warping, then run rigid graph alignment with the true node correspondence hidden; if edge overlap after convergence is no better than the topological aligner alone, or if the rigidity metric no longer separates intra-subject from inter-subject pairs, the reported gains are an artifact of global prestructure rather than of the rigid graph model.

Watch

Extended reading notes

Core claim

The central claim is that for rigid graphs, structural and topological information reinforce each other and should be optimized jointly. The paper formalizes rigid graph alignment as maximizing $\alpha L\cdot X + \beta A\cdot XBX^T - \gamma\|C_A - X C_B \Omega\|_F^2$ over a permutation $X$ and a rigid transformation $\Omega$, then solves it by alternating: fix $\Omega$, estimate a spatially restricted prior $L$ and run a topological aligner to get $X$; fix $X$, compute the best rotation and translation by an SVD-based solution to the orthogonal Procrustes problem; repeat until convergence. The demonstration is that this alternation substantially improves alignment: reported edge overlap on HCP functional connectomes increases from 20.18±4.2% to 53.05±12.5%, and on synthetic graphs node overlap stays near 97.67±1.21% under edge noise where topological alignment alone falls to 65.85±3.90%. The paper further claims the resulting rigidity metric better distinguishes intra-subject from inter-subject brain alignments than edge overlap.

Load-bearing premise

The load-bearing premise is that the two coordinate sets are related by a single rigid rotation plus translation, so that corresponding edge lengths are preserved and spatial proximity is a valid prior; if true brains are non-rigidly deformed relative to each other, the structural term and the prior are misspecified.

Editorial extensions

If this is right

For spatially embedded graph databases, node and edge correspondences can be improved by repeatedly alternating topology matching with a rigid-body fit, even when the topological aligner alone performs poorly.
The meta-algorithm is not bound to one aligner: similar edge-overlap improvements appear with a belief-propagation aligner, Klau's method, and IsoRank, so the gain is attributed to the alternating structure rather than to one topological subroutine.
In connectome analysis, the residual structural error after rigid alignment can serve as a brain fingerprint score: it distinguishes same-subject session pairs from different-subject pairs more cleanly than edge overlap.
Under edge noise with exact node positions, rigid graph alignment recovers nearly all true node correspondences (97.67±1.21%) on synthetic preferential-attachment graphs, whereas topological alignment drops to 65.85±3.90%; under node noise both degrade, but rigid alignment remains higher.
Runtime grows linearly in the number of EM iterations and is dominated by the chosen topological aligner, so the improvement is available at modest computational overhead.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

Editorial inference: the model assumes one global rigid transform for all corresponding nodes; for connectomes, which differ by non-rigid cortical deformation, the method's gains may depend on preprocessing already bringing subjects into rough alignment. A testable extension would replace the global Procrustes step with local or piecewise rigid fits.
Editorial inference: because the prior is built from coordinate distances, the method should also work on graphs with no native coordinates by first embedding them in a metric space, e.g. by spectral embedding; the rigidity assumption would then be an artifact of the embedding rather than physical edge lengths.
Editorial inference: allowing anisotropic scaling or affine transforms in the structural step would test whether the reported gains come from global rigidity or simply from letting coordinates move closer; this is a natural next experiment that the paper mentions but does not run.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

The useful thing here is the problem: rigid graph alignment, where you combine a topological network aligner with a rigid-body structural fit inside an EM-style loop. As far as the cited literature goes, that exact objective is new, and the sparse spatial prior built from the current transform is a practical idea. The synthetic experiments with ground truth are the honest core: they report node overlap, the method recovers most nodes under low to moderate noise, and they show the meta-algorithm works with several base aligners (netalignmbp, Klau, IsoRank). That part deserves credit.

The HCP claim of edge overlap jumping from 20% to 53% is weaker than it looks. Edge overlap is exactly the second term of the objective (Eq. 2 vs. Eq. 12), so the reported number is the same quantity the algorithm maximizes. The baseline is just the first iteration of the same pipeline, not a converged topology-only aligner. And the rigidity metric used for brain fingerprinting is the residual the method minimizes. There is no independent ground truth for real brains, so the real-world gain is not yet established.

More concerning: Algorithm 1 step 6 says B = XBX^T, overwriting the target adjacency matrix with the currently aligned version. If that is literal, the next iteration's overlap computation is partly self-fulfilling and could explain much of the reported jump. This is probably a presentation error, but with no code shipped it cannot be checked. The paper needs to fix the pseudocode or explain what the intended update is.

The rigid-transform assumption is also optimistic for HCP data: real brains differ by non-rigid deformation, and no cross-subject normalization is described. Synthetic graphs, by construction, follow exactly the rigid model assumed in Eq. (5), so those results validate the method under its own assumptions rather than under realistic deformations.

Minor issues: Eq. (14) to (15) drops constants and a factor of two; Eq. (21) and (22) have the argmax variables swapped; the brain fingerprint separation has no statistical test. These are cosmetic relative to the concerns above.

Who is this for: anyone working on spatially embedded graph alignment, connectomics, or chemoinformatics. It deserves a serious referee, not a desk reject, because the problem formulation is new and the synthetic results suggest the idea has merit. But a referee should ask for code or corrected pseudocode, an external validation on data with non-rigid deformations, and a better baseline before the HCP gains can be believed.

Referee Report

4 major / 7 minor

Summary. The paper introduces 'rigid graph alignment,' a problem formulation for graphs embedded in a metric space where node coordinates carry meaning. The proposed objective (Eq. 12) combines a prior term, a topological edge-overlap term, and a structural alignment term; the algorithm alternates between a network aligner and an SVD-based rigid-body transformation fit. The authors report that this meta-algorithm substantially increases edge overlap on HCP functional connectomes (from 20.18% ± 4.2% after the first iteration to 53.05% ± 12.5% after rigid graph alignment) and that it outperforms topological alignment on synthetic graphs with known ground truth. The paper also proposes a 'rigidity metric' for distinguishing intra-subject from inter-subject alignments.

Significance. The idea of jointly exploiting topological and geometric information for aligning spatially embedded graphs is timely and potentially useful for connectomics, molecular matching, and sensor-network applications. The meta-algorithm is modular, and the synthetic experiments with known ground truth are a genuine strength: they show that under the assumed rigid-plus-noise generative model, the method recovers a large fraction of correct node/edge correspondences. The HCP application is also potentially important. However, the central empirical claim rests on an evaluation metric that is part of the optimized objective, and the synthetic validation is conducted under the model's own assumptions. If independently validated, this would be a useful contribution; in its current form, the evidence for the headline 'better alignments' claim is incomplete.

major comments (4)

[Section 3.1.3, Eqs. (2) and (12)] The central HCP result reports edge overlap rising from 20.18% ± 4.2% to 53.05% ± 12.5%, but edge overlap A•XBX^T is exactly the second term of the objective F being maximized in Eq. (12). The baseline is the first iteration of the same algorithm, not an independently converged topological aligner, and Algorithm 1 rebuilds the spatial prior from transformed coordinates, which can increase the optimized overlap even when many new matches are incorrect. To support the abstract's claim of improved alignment quality, the paper needs an external measure of correspondence quality (e.g., known ground-truth correspondences, or downstream identification accuracy) and a comparison against a converged topological aligner that does not use a spatial prior.
[Section 2.1, Eq. (5); Algorithm 1, step 7; Section 3.1.2] The model assumes a single global rigid transformation (rotation plus translation) maps the coordinates of corresponding nodes in the two graphs. The HCP preprocessing described in Section 3.1.2 includes motion correction, skull stripping, and resampling, but it does not describe cross-subject registration into a common coordinate frame. Real brains differ by non-rigid deformation, so both the structural alignment term and the spatially restricted prior are potentially misspecified for the HCP experiments. The authors should clarify the coordinate frame used, or compare against a non-rigid registration baseline, before attributing the HCP gains to the rigid graph model.
[Section 3.2, synthetic graph generation] In the synthetic experiments, the second graph is generated by exactly the model assumed in Eq. (5): a global rotation and translation, followed by independent per-node perturbations and edge noise. The synthetic results therefore validate the method under its own assumptions, but they do not test the non-rigid deformations that separate real connectomes. Adding experiments with spatially varying or elastic deformations, and reporting node/edge recovery under those conditions, would materially strengthen the claim that the method is robust in the intended application domain.
[Section 3.1.4] The 'rigidity metric' used to distinguish intra-subject from inter-subject alignments is the residual of the structural term that Algorithm 1 minimizes. Reporting that this metric separates the two groups does not by itself show that the alignments are anatomically correct, because the metric is the optimized objective itself. An independent evaluation, such as identification accuracy on held-out pairs or comparison with residuals obtained after a fixed external registration, is needed to rule out circularity.

minor comments (7)

[Eqs. (14)-(15)] The derivation from Eq. (14) to Eq. (15) drops the constant terms CA•CA and CBΩ•CBΩ and drops a factor of 2 in the last term. Since γ is a free parameter, the omission does not change the optimizer, but the displayed objective is not exactly equivalent to Eq. (12) and should be corrected or explicitly described as absorbing constants.
[Algorithm 1] The algorithm's input includes α, β, and γ, but the pseudocode body does not show how these weights are used in the calls to align(A,B,L) and transform_coordinates(CA,CB,X). The authors should state explicitly how the weights enter the network alignment step and whether the structural residual is weighted by γ in the convergence check.
[Section 2.2] The method is described as 'based on expectation maximization,' but the alternating updates in Eqs. (21)-(22) are alternating maximization for a single objective, not a standard EM procedure. This terminology should be revised or qualified.
[Figure 3 caption] The caption states that the first-iteration result corresponds to a state-of-the-art network alignment technique, but the first iteration uses an initial prior derived from distance-profile correlation. This is not a purely topological alignment result, so the caption should be qualified to avoid overstating the baseline.
[Eqs. (16)-(18)] The conditions defining the prior entries appear to be typeset incorrectly; the text shows conditions such as 1/||CAi−CBj||^2 ≤ ε, which is dimensionally odd. The authors likely intend ||CAi−CBj||^2 ≤ ε (or ≤ d_k^i), and the equations should be corrected.
[Section 3.1.3] The robustness test with 100 random transformation matrices shows that the method is invariant to the initial orientation of the coordinates, but it is not a statistical significance test of the improvement over a topological aligner. The wording should be changed to reflect what the experiment actually demonstrates.
[Section 3.1.4] The rigidity metric is reported as 'normalized by the number of vertices' with values such as 1.52 ± 0.01%, but the units of a squared residual per vertex are not dimensionless percentages. Please clarify the normalization and the units.

Circularity Check

2 steps flagged · score 2.0 of 10

Central rigid-alignment method is independently tested on synthetic ground truth; the HCP 'quality' claims are self-referential because they use the optimized objective terms as metrics.

fitted input called prediction [Section 3.1.3, Equations (2) and (12)]
"For two adjacency matrices A andB, edge overlap is defined as A• XBXT . ... We find that the edge overlap at the end of first iteration is 20.18± 4.2%, whereas the edge overlap after rigid network alignment is 53.05± 12.5%."

Equation (12) defines the rigid graph alignment objective as F = max αL•X + βA•XBXT − γ||CA−XCBΩ||^2_F, and Algorithm 1 alternates to maximize this objective. The HCP improvement is therefore reported on the second term of the very objective being optimized, since edge overlap is exactly A•XBXT. The 20.18% baseline is the algorithm's own first iteration, and no independent ground-truth correspondence is used in the HCP experiment, so the 53.05% figure demonstrates objective maximization rather than externally measured alignment quality. The synthetic experiments do supply ground truth and independently support the method.
other [Section 3.1.4, Equation (7) and Algorithm 1]
"In such applications, where the position of the vertices are of importance, we show that the residual error in structural transformation, which we call “rigidity metric” (Equation 7) is a better indicator of quality of alignment."

The rigidity metric is ||CA−CBΩ||^2_F from Equation (7), which is exactly the structural term −γ||CA−XCBΩ||^2_F that Algorithm 1 minimizes in steps 7–8. Using this minimized residual to claim superior intra-versus-inter-subject distinguishability is thus an evaluation on the algorithm's own optimized loss. It may still be a useful descriptive metric, but the claim that it is a better indicator is not independently validated by ground-truth identity labels in the paper beyond the same optimized residual.

full rationale

Most of the derivation is self-contained and not circular. The objective in Equation (12) combines the standard network alignment objective (Equation 3) with the orthogonal Procrustes structural alignment problem (Equation 7), and Algorithm 1 alternately optimizes a prior-weighted network alignment and a rigid-body transformation. The rigid-body fitting step is a standard external method (Kabsch/SVD), not an assumption smuggled in via self-citation. The synthetic experiments provide the strongest independent check: the second graph is generated under the same rigid transform model, but node overlap and edge overlap are measured against known ground truth, so the central claim that the meta-algorithm improves over topological aligners is supported by externally falsifiable evidence. The self-referential issue is confined to the HCP evaluation: the reported edge-overlap gain and the rigidity-metric brain-fingerprint separation are values of the very objective terms the algorithm optimizes, so they do not by themselves establish that the 20.18% to 53.05% rise corresponds to genuinely better correspondences. No load-bearing self-citation or imported uniqueness theorem appears; the citation to netalignmbp [2] names a co-author but the method is an external published component rather than validation of the present claim. Overall, the paper's central method has independent content, with minor self-evaluative metrics in the real-data section.

Assumptions & free parameters 4 free parameters · 5 assumptions · 0 invented entities

The central algorithm relies on standard Procrustes math and several domain assumptions about rigid graphs. No invented entities are introduced. The main free parameters are user-set objective weights and prior sparsity choices, none of which are fitted to data, but the paper does not study their sensitivity.

free parameters (4)

alpha, beta, gamma (objective weights) = alpha=beta=gamma in HCP experiments; values for synthetic experiments not reported
User-defined tradeoffs in Eq (12) between prior, edge overlap, and structural error. No sensitivity analysis is provided.
k (nearest-neighbor count in prior) = not stated
Controls sparsity and quality of the prior L in Eq (18) and in the get_prior routine. Never reported, so the reader cannot reproduce the experiments.
convergence threshold = 0.1% edge overlap
Stopping criterion for Algorithm 1 in the HCP experiments; not varied.
top correlation percentile for HCP network edges = top 5%
Preprocessing threshold in Section 3.1.2 that determines network density; not varied across experiments.

assumptions (5)

standard math The SVD solution to the orthogonal Procrustes problem gives the optimal rigid transformation for fixed correspondences.
Invoked in Eq (4)-(11) and Algorithm 1 step 7; cited to Schonemann and Sabata et al.
domain assumption Corresponding nodes of the two rigid graphs are related by a single global rigid transformation.
This is the basis of the structural term and spatial prior, appearing in Eq (5)-(7) and Algorithm 1 step 7. It is most fragile for brain data.
domain assumption Node coordinates live in a common metric space so that Euclidean distances are meaningful across graphs.
Section 2.1 and the HCP preprocessing in Section 3.1.2 assume this; if coordinates are not co-registered, the spatial prior is uninformative.
domain assumption The network aligner netalignmbp produces a good matching for the current sparse spatial prior at each iteration.
Algorithm 1 step 5 uses netalignmbp, a message-passing approximation whose quality on general graphs is not guaranteed.
ad hoc to paper Match probabilities for pairs of nodes are independent in the expected-edge-overlap argument.
Eq (19)-(20) multiplies per-node match probabilities without normalization or dependence modeling; used only as motivation, not as a proof.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Rigid Graph Alignment." pith.science (2026). https://pith.science/paper/6SWIQ5TL

@misc{pith2026190803201,
  author       = {Pith},
  title        = {Pith review of: Rigid Graph Alignment},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/6SWIQ5TL}},
  note         = {Machine review of arXiv:1908.03201}
}

read the original abstract

Graph databases have been the subject of significant research and development. Problems such as modularity, centrality, alignment, and clustering have been formalized and solved in various application contexts. In this paper, we focus on databases for applications in which graphs have a spatial basis, which we refer to as rigid graphs. Nodes in such graphs have preferred positions relative to their graph neighbors. Examples of such graphs include abstractions of large biomolecules, functional connectomes of the human brain, and mobile device/ sensor communication logs. When analyzing such networks it is important to consider edge lengths; e.g., when identifying conserved patterns through graph alignment, it is important for conserved edges to have correlated lengths, in addition to topological similarity. In contrast to a large body of work on topological graph alignment, rigid graph alignment simultaneously aligns the network, as well as the underlying structure as characterized by edge lengths. We formulate the problem and present a meta-algorithm based on expectation-maximization that alternately aligns the network and the structure. We demonstrate that our meta-algorithm significantly improves the quality of alignments in target applications, compared to topological or structural aligners alone. We apply rigid graph alignment to functional brain networks derived from 20 subjects drawn from the Human Connectome Project (HCP) database, and show over a two-fold increase in quality of alignment over state of the art topological aligners. We evaluate the impact of various parameters associated with input datasets through a study on synthetic graphs, where we fully characterize the performance of our method. Our results are broadly applicable to other applications and abstracted networks that can be embedded in metric spaces -- e.g., through spectral embeddings.

Figures

Figures reproduced from arXiv: 1908.03201 by the authors.

**Figure 2.** Structural alignment of 4HHB.A (orange) and 4HHB.B (cyan) proteins. Such alignments must account both [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

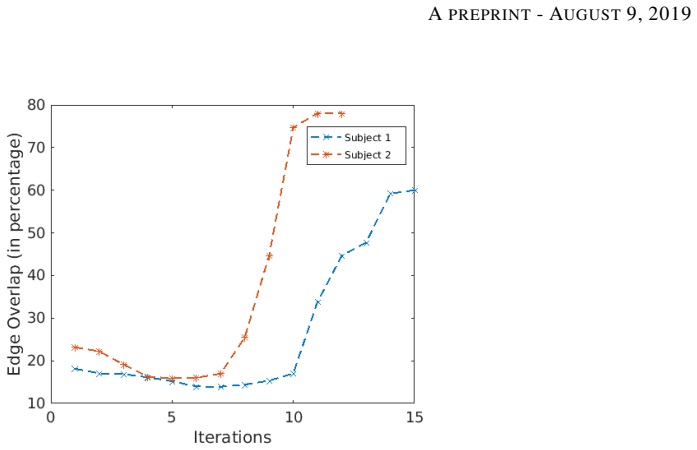

**Figure 3.** Increase in edge overlap score while aligning functional brain networks of two subjects with themselves (i.e., across sessions) in resting state functional MRI. These results show significant improvement in alignment quality over state of the art alignment techniques. Note that the alignment results after the first iteration correspond to that of state of the art network alignment technique. Subsequent iterations de… view at source ↗

Figures from the paper (15 more)

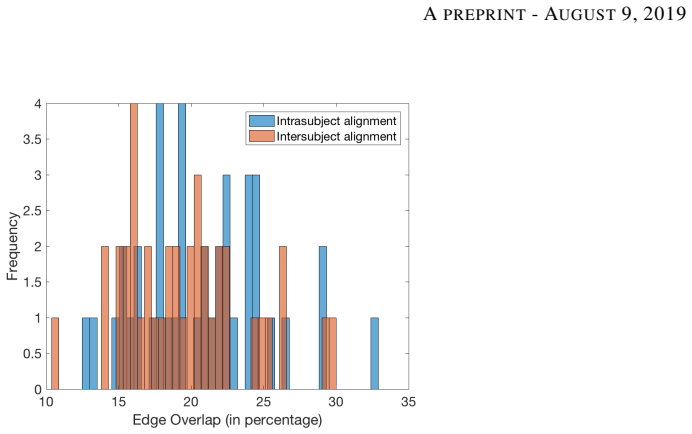

**Figure 4.** Figure 4: Histogram of edge overlap values, in both inter-subject and intra-subject alignments after first iteration. The [PITH_FULL_IMAGE:figures/full_fig_p009_4.png]

**Figure 5.** Figure 5: Histogram of rigidity values for inter-subject and intra-subject alignments. The values are significantly [PITH_FULL_IMAGE:figures/full_fig_p009_5.png]

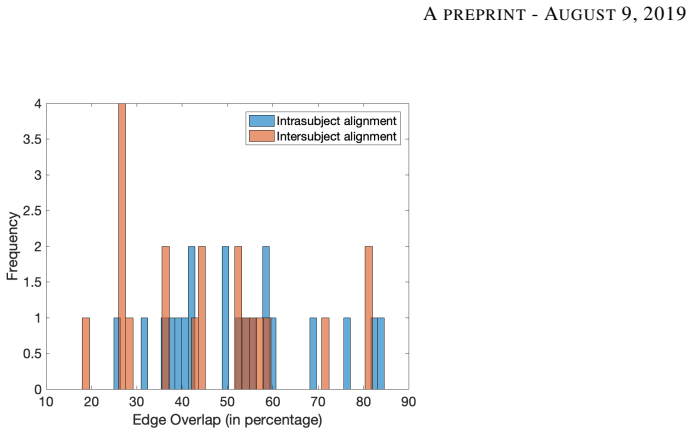

**Figure 6.** Figure 6: Histogram of edge overlap, after rigid graph alignment. The overlap has increased in both intra-subject and [PITH_FULL_IMAGE:figures/full_fig_p010_6.png]

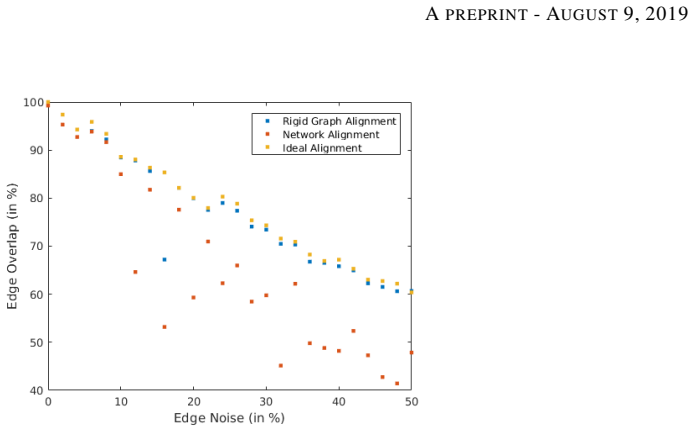

**Figure 7.** Figure 7: Change in edge overlap with an increase in edge noise in a preferential attachment network, while node noise is fixed to zero. It can be seen that the overlap in rigid graph alignment algorithm closely follows the true edge overlap, whereas edge overlap in regular netw…

**Figure 8.** Figure 8: Behaviour of node overlap with increase in edge noise in a preferential attachment network, while node noise is fixed to zero. This graph shows that edge noise has no impact on the correct identification of nodes for rigid graph alignment. However, for regular network …

**Figure 9.** Figure 9: Change in edge overlap with an increase in edge noise in a G(n, p) graph, while node noise is fixed to zero. The node overlap for rigid graph alignment is close to 100% because the spatial relationship between nodes are maintained. In fact, the improvement in edge over…

**Figure 10.** Figure 10: Behaviour of node overlap with increase in edge noise in a G(n, p) graph, while node noise is fixed to zero. The graph shows that node overlap for rigid graph alignment is not affected by edge noise, due to the fact that rigid body transformations can transform one ob…

**Figure 11.** Figure 11: Relationship between node overlap and node noise with zero edge noise in a preferential attachment network. Large perturbation to positions of nodes lead to inaccurate priors, which explains the decrease in node overlap. However, rigid body alignment increases similar…

**Figure 12.** Figure 12: Relationship between edge overlap and node noise with zero edge noise in a preferential attachment network. The drop in node overlaps corresponds to the drop in edge overlap [PITH_FULL_IMAGE:figures/full_fig_p013_12.png]

**Figure 13.** Figure 13: Node overlap for different perturbations in node positions in a G(n, p) network. The rigid graph alignment algorithm recovers most nodes for low noise, whereas both algorithms perform poorly with higher degrees of node noise. the efficacy of the correction made by rig…

**Figure 14.** Figure 14: Edge overlap for different perturbations to node positions in a G(n, p) network. The high node overlaps correspond to high edge overlap. However, as soon as the node overlap drops below 80%, edge overlap has a significant drop (a) (b) [PITH_FULL_IMAGE:figures/full_fi…

**Figure 15.** Figure 15: Heatmap showing edge overlaps for various degrees of edge and node perturbations in a preferential [PITH_FULL_IMAGE:figures/full_fig_p014_15.png]

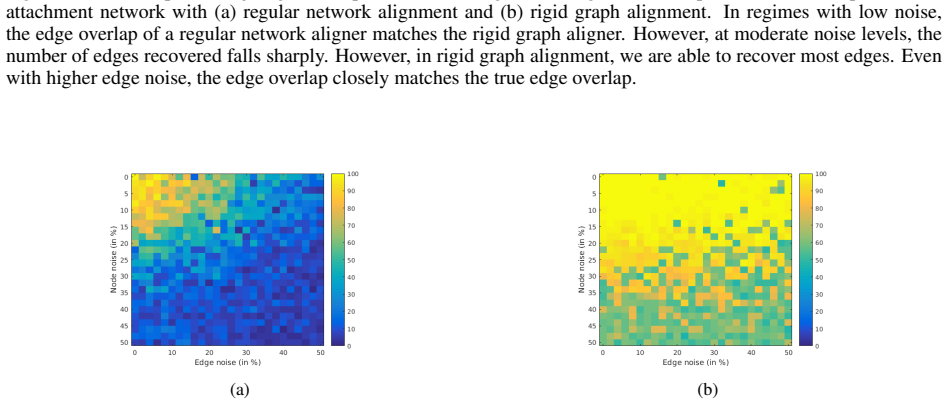

**Figure 16.** Figure 16: Heatmap showing node overlaps for various degrees of edge and node perturbations in preferential attach [PITH_FULL_IMAGE:figures/full_fig_p014_16.png]

**Figure 17.** Figure 17: Heatmap showing (a) edge overlap and (b) node overlap while using Klau et al. [23] for network alignment. [PITH_FULL_IMAGE:figures/full_fig_p015_17.png]

**Figure 18.** Figure 18: Heatmap showing (a) edge overlap and (b) node overlap while using Isorank as aligner for rigid graph [PITH_FULL_IMAGE:figures/full_fig_p015_18.png]
