Topological Run-time Monitoring for Complex Systems

T0 review · 5 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read This paper claims that plateaus in persistent entropy mined from component-level data can be turned into an automaton whose traces separate immune-memory successes from failures and yield bounded temporal-logic invariants.

desk verdict The formal PELTS/MPEA semantics is clean and worth preserving, but the paper's central empirical claim about immunization memory is not supported by the reported evidence. read the letter →

arxiv 1908.03489 v1 pith:BEZOHNLL submitted 2019-08-06 cs.LO cs.FLq-bio.TO

Matteo Rucco , Luca Tesei , Emanuela Merelli This is my paper · ORCID
classification cs.LOcs.FLq-bio.TO
keywords runtimeverificationpersistententropytopologicaldataanalysishomologyself-adaptivesystemsboundedLTLspecificationminingimmunesystemsimulation
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper proposes a way to turn streamed observations of a complex system into a small automaton that can be run against execution traces to detect whether the system is behaving as it should. The construction is data-driven: from each time sample the authors compute a topological summary—persistent entropy, a single number measuring how ordered the system's connectivity structure is—and mine steady states from plateaus in that series. Those steady states become the locations of a Persistent Entropy Automaton, and a labeled-transition-system semantics turns any trace into a word over atomic propositions and transition symbols. Applied to 1000 simulated immune-system runs, the monitor separates traces ending in a memory state from traces that never reach immunization, and yields bounded temporal-logic properties that successful runs satisfy. If the construction is sound, any complex system whose components produce observable interaction data can be monitored without a global model.

What carries the argument

The load-bearing object is the Persistent Entropy Automaton (PEA). Persistent entropy $H(t)$ is the Shannon entropy of the lengths of the bars in a persistence barcode; the PEA's states are equilibrium conditions expressed as boolean combinations of $H$ and its discrete derivative $\dot H$. The associated PELTS determines when the system stays in a steady state (Steady), leaves it (StartT), travels through intermediate observations (ContT), and settles into a next steady state (StopT). The Monitor PEA adds atomic propositions to steady states, so each execution yields a trace over $\{\text{virgin},\text{memory},\omega\}$, with $\omega$ marking the non-instantaneous transition phases; these traces are the objects on which bounded LTL formulas are evaluated.

What would settle it

Run the MPEA on a simulation with no antigen injection: if the persistent-entropy series ever shows a plateau with $H>0$ and $\dot H=0$, the monitor labels a never-immunized system as memory, falsifying the claimed invariant. Alternatively, delete the unobserved virgin self-loop and check whether any trace of the form $\{virgin\}^{+}\{\omega\}^{+}\{virgin\}^{+}$ survives.

Watch

Extended reading notes

Core claim

The central claim is that a Persistent Entropy Automaton, augmented with atomic propositions into a Monitor PEA (MPEA), can act as a run-time monitor mined entirely from component-level data. The paper formalizes the PEA by defining its semantics as a persistent entropy labelled transition system (PELTS) with four rules—steady, start transition, continue transition, stop transition—so that a time series of persistent entropy values induces a set of executions. On the Idiotypic Network case study, running 1000 simulated traces through the MPEA classifies 198 traces as ending in virgin, 780 as ending in memory, and 22 as ending inside a transition; the final class is read as a violation. From these trace classes the paper derives bounded LTL properties, such as 'an immunization phase that starts ends within 180 ticks,' that must hold if the system is to reach immunization memory.

Load-bearing premise

Everything hangs on the manually chosen equilibrium conditions—virgin is $H=0$ with $\dot H=0$, memory is $H>0$ with $\dot H=0$—read by eye from a smoothed persistent-entropy plot, together with automaton structure (a memory self-loop suggested by the two-peak shape and a virgin self-loop imported from biological knowledge though never observed).

Editorial extensions

If this is right

  • The same pipeline—coexistence matrix, persistent homology, persistent entropy, plateau extraction—produces a monitor for any time-evolving weighted graph, not only immune-system simulations.
  • Trace classes give an operational meaning to 'immunization memory': a run reaches memory exactly when the MPEA trace ends in $\{memory\}$, and the 22 traces ending in $\{\omega\}$ are detectable failures (insufficient antibody repertoire or too-short simulation).
  • The mined properties become checkable obligations: for example, every started immunization phase must end within 180 ticks, a bounded temporal-logic formula over the MPEA trace alphabet.
  • Because the MPEA is derived from data rather than from a hand-written model, it can be re-derived whenever the system changes, giving a run-time verification layer for self-adaptive systems.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A natural next step the paper leaves open is online monitoring: because the PELTS marks transition phases with $\omega$, an alarm could be raised the moment a trace enters $\omega$ and stays there beyond the 180-tick bound used in the mined properties, rather than only after the trace ends.
  • The reported trace counts (780 successes against 22 violations out of 1000) imply the monitor could be calibrated as a probabilistic statement about simulator configurations—for instance, how large the antibody repertoire must be—but the paper does not run that statistical analysis.
  • If the equilibrium conditions were replaced by a statistical rule for plateau detection, the entire pipeline would become parameter-free; that would let the method transfer to other streams (network traffic, sensor logs) without case-by-case human judgment.
  • The paper does not report a negative control; shuffling the time order of persistent entropy values and re-deriving the PEA would test whether the virgin/memory split is an artifact of the smoothing.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

5 major / 5 minor

Summary. The paper proposes a data-driven runtime monitoring framework for complex systems. It defines Persistent Entropy Automata (PEA) and their operational semantics as Persistent Entropy Labelled Transition Systems (PELTS), then augments PEAs into Monitor PEAs (MPEAs) that consume time-stamped persistent-entropy traces and emit traces of atomic propositions. The method is applied to simulated data from the C-ImmSim immune-system model, where the authors report that MPEA execution over 1000 traces yields three trace groups (198 ending in virgin, 780 ending in memory, 22 ending in an incomplete transition), and they list three bounded-LTL properties as examples of invariants that could be verified. The abstract claims that the monitor 'reveals temporal properties that should be satisfied in order to reach immunization memory.' The formal PELTS semantics is the paper's main technical contribution; the empirical support for the central claim is the main weakness.

Significance. If the empirical claim were established, the paper would offer a genuinely useful bridge between topological data analysis and runtime verification: component-level observations, summarized by persistent entropy, are used to build an automaton-level monitor for a global system property. The formal definitions of PELTS and MPEA are largely coherent and provide a reusable semantic basis for this idea. The paper also honestly exposes its own construction choices, including a self-loop added from domain knowledge. However, the load-bearing empirical demonstration is not currently supported: the PEA states are hand-assigned from a smoothed plot, no ground-truth comparison is made with C-ImmSim's own immune-memory indicators, and the proposed LTL properties are presented only as examples rather than as statistically mined and verified invariants. The formal framework also contains a codomain error for persistent entropy values. These issues can, in principle, be repaired with additional experiments and a tightened specification, so the paper warrants revision rather than outright rejection.

major comments (5)
  1. [Section 4.1 and 5.1] The MPEA states and transitions are not mined in a reproducible way. Section 4.1 fixes the virgin condition H=0 ∧ Hdot=0 and the memory condition H>0 ∧ Hdot=0 by visual inspection of a smoothed PE plot, and it adds the virgin self-loop 'even if we did not observe it in our simulation' from domain knowledge. Since the entire trace classification of Section 5.1 (198/780/22) is generated by executing this MPEA, any mis-specification of these equilibrium conditions propagates directly into all group counts and all example properties. The paper should replace these hand-assigned conditions with an explicit algorithmic plateau-detection and steady-state identification procedure, including its parameters, or the empirical claims cannot be audited.
  2. [Section 5.1 / 3.2] No independent ground truth is used to validate the MPEA verdicts. Section 3.2 states that C-ImmSim implements immune memory as a cell state with increased half-life, which provides direct indicators (e.g., memory-cell counts or secondary-response kinetics), but the paper never compares the MPEA classifications with any such indicator. Without this comparison, the abstract's claim that the monitor 'reveals temporal properties that should be satisfied in order to reach immunization memory' is not established. At minimum, the authors should report the agreement between MPEA trace groups and C-ImmSim's own memory markers, e.g., precision and recall of the memory classification.
  3. [Section 5.1] The three bounded-LTL formulas are introduced as 'examples of properties that could be run-time verified' and as 'possible properties', not as invariants mined from the 1000 traces with statistical support. The paper does not report satisfaction rates per trace group, confidence intervals, or any test of whether the properties separate groups I, II, and III. The central claim requires actually evaluating the inferred properties on all traces and showing that they hold on memory traces and fail on non-memory traces. As written, no property is evaluated on any trace.
  4. [Definitions 4.4 and 4.5] Definitions 4.4 and 4.5 place PE values in the interval R[0,1], but the persistent entropy of Definition 2.1 ranges over [0, log n] and the paper itself reports H=2.87 in Section 4.1. The PELTS state space and label alphabet therefore exclude the very values the monitor is required to process. Replace R[0,1] by R_{\ge 0} throughout the formal definitions, or explicitly introduce and apply a normalization step.
  5. [Section 4.1] The TDA pipeline is under-specified. The text states that persistent homology was computed with jHoles using the weighted rank clique homology algorithm, but it does not specify the filtration thresholds, the weighting scheme used to turn the coexistence matrix into a filtered simplicial complex, how the β0 and β1 barcodes are combined into the PE values, or how the 'average sequence' in Figure 4 is computed over simulations. These details are necessary to reproduce the PETs and to assess whether the two plateaus are robust features rather than artifacts of smoothing or parameter choice.
minor comments (5)
  1. [Section 3.2] Section 3.2 states that 'several (in the order of hundreds) simulations' were executed, while Section 5.1 reports 1000 simulations; please align the two numbers.
  2. [Section 4] The word 'typycally' before the discussion of state-based traces should be corrected to 'typically'.
  3. [Figure 4] The caption says 'PE of IS computed from a simulation', but the surrounding text describes the average sequence of PE values; clarify which quantity is actually plotted.
  4. [Definition 4.7] Definition 4.7 uses abbreviated path notation such as ((·,·,ϵ))+ without defining the shorthand; please expand the notation or add a sentence explaining the regular-expression-like operators.
  5. [Section 5.1] The bounded-LTL formulas use symbols like 2≤30 and © without a semantics table; since the paper targets runtime verification, define the bounded operators and the next operator for finite traces.

Circularity Check

2 steps flagged · score 4.0 of 10

The monitor's 'memory' label is defined by the same PE-plateau condition used to classify traces, and the self-loop additions are hand-fitted; the claimed revelation of immunization-memory properties is therefore partly a restatement of the model's construction.

  1. self definitional [Section 4.1 (PEA construction) and Section 5.1 (trace classification)]
    "The memory steady state corresponds to a plateau in the chart and it is characterized by the equilibrium condition H > 0 ∧ ̇H = 0. ... We could classify the obtained traces into three groups ... II 780 traces terminated with {memory}"

    The MPEA uses L(Memory) = (H > 0 ∧ Hdot = 0) to decide whether a PET's final plateau is the memory state. Thus 'terminated with {memory}' is true exactly when the trace ends in a positive PE plateau. The abstract's claim that the monitor 'reveals temporal properties that should be satisfied in order to reach immunization memory' is therefore a restatement of the equilibrium condition used to define the memory state: any trace reaching that plateau is labeled memory by construction. No independent C-ImmSim marker of immune memory (e.g., memory-cell half-life or secondary-response success) is used to validate the label, so the classification cannot confirm the biological claim.

  2. fitted input called prediction [Section 4.1 (self-loop addition) and Section 5.1 (group II.a interpretation)]
    "By analyzing the chart it is evident that two peaks are present. This reflects the fact that the system was stimulated twice and, thus, entered a critical transition followed by an adaptation phase from state memory to itself. This then suggests that a self-transition should be added to the state memory in the PEA. ... The traces in group II.a belong to systems that were stimulated multiple times."

    The memory self-loop is inserted into the PEA because the authors already know the system was stimulated twice. The monitor then classifies the 429 traces of the form {virgin}+({ω}+{memory}+)+ as 'systems that were stimulated multiple times' (group II.a). The output pattern is an artifact of the input transition: without the hand-added self-loop, that trace shape could not arise. The paper also adds a virgin self-loop explicitly 'even if we did not observe it in our simulation', further showing that the trace taxonomy is shaped by prior assumptions rather than discovered.

full rationale

The formal PELTS semantics in Section 4 is coherent and self-contained: the labelled transition system, the equilibrium-condition rules, and the induced PET definitions are genuine mathematical contributions and are not circular. The circularity is confined to the empirical validation. The two steady states are fixed by visual inspection of the same PE plot that the monitor later consumes: 'virgin' is H=0∧Hdot=0 and 'memory' is H>0∧Hdot=0, so any PET ending in a positive plateau is automatically 'memory' by definition. The claimed 'revealing' of temporal properties for reaching immunization memory is therefore partly a recoding of the state definitions rather than an independent discovery. The LTL formulas in Section 5.1 are explicitly presented as 'examples of properties that could be run-time verified', not as statistically mined invariants from the 1000 traces, so they do not substantiate the abstract's stronger wording. The added memory self-loop is derived from the known double-stimulation design and then used to interpret repeated-memory traces as multiple stimulations, which is fitting the model to the data and reading the same structure back out. The unobserved virgin self-loop, inserted from domain knowledge, further weakens the claim that the trace taxonomy is data-mined. These issues are partial rather than total: the automaton construction, the PELTS semantics, and the monitoring framework have independent content, but the central empirical claim about immunization memory is in-sample and partly definitional, justifying a moderate circularity score of 4.

Assumptions & free parameters 4 free parameters · 4 assumptions · 0 invented entities

No new physical entities are introduced. The load-bearing assumptions are the manual assignment of equilibrium conditions, the comparability of PE across time, and the fidelity of C-ImmSim. The formal automata PEA and MPEA are the paper's own constructions, so they are counted as part of the formal contribution rather than as external postulates.

free parameters (4)
  • Equilibrium conditions for PEA states (virgin and memory) = virgin: H=0 and Hdot=0; memory: H>0 and Hdot=0 (plateau value about 2.87 in Figure 4)
    Assigned by hand in Section 4.1 from visual inspection of the PE plot and domain knowledge, not learned from data; these conditions determine the states used by the monitor.
  • Plateau detection tolerance for first derivative of PE = not specified
    Section 4 step 7 says to identify segments where the first derivative of PE is zero, but no numerical tolerance is given; different tolerances would yield different steady states and therefore different automata.
  • Infinite-interval truncation bound m = m = tmax + 1
    Section 2.1 replaces infinite bars [xi, +infinity) with [xi, m); this choice changes the PE values that the entire pipeline depends on.
  • Second antigen injection time = random, distribution not specified
    Section 3.2 states that the second injection occurs after an unknown, random period; without the distribution, the trace classification is not reproducible.
assumptions (4)
  • standard math Standard definitions and stability properties of persistent homology, persistence barcodes, and persistent entropy
    Section 2.1 relies on [18], [44], and [45] for the definitions and the stability theorem; these are taken as background results.
  • domain assumption Persistent entropy values are comparable across time in the C-ImmSim simulation
    The stability condition in [45] requires the same number of 0-simplices, but cell populations vary over time in C-ImmSim; the paper does not address why PE values remain comparable when building the PE time series.
  • domain assumption C-ImmSim faithfully models the human immune system and the Idiotypic Network
    Section 3.2 uses C-ImmSim as the source of all experimental data; the biological interpretation of the results depends on this fidelity.
  • ad hoc to paper The two PE plateaus correspond to the biological virgin and memory states
    Section 4.1 maps plateaus to states using domain knowledge rather than deriving the mapping from the data; a self-loop on memory is added even though the authors state it was not observed in the simulations.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Topological Run-time Monitoring for Complex Systems." pith.science (2026). https://pith.science/paper/BEZOHNLL

@misc{pith2026190803489,
  author       = {Pith},
  title        = {Pith review of: Topological Run-time Monitoring for Complex Systems},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/BEZOHNLL}},
  note         = {Machine review of arXiv:1908.03489}
}
read the original abstract

In this paper we introduce a new data-driven run-time monitoring system for analysing the behaviour of time evolving complex systems. The monitor controls the evolution of the whole system but it is mined from the data produced by its single interacting components. Relevant behavioural changes happening at the component level and that are responsible for global system evolution are captured by the monitor. Topological Data Analysis is used for shaping and analysing the data for mining an automaton mimicking the global system dynamics, the so-called Persistent Entropy Automaton (PEA). A slight augmented PEA, the monitor, can be used to run current or past executions of the system to mine temporal invariants, for instance through statistical reasoning. Such invariants can be formulated as properties of a temporal logic, e.g. bounded LTL, that can be run-time model-checked. We have performed a feasibility assessment of the PEA and the associated monitoring system by analysing a simulated biological complex system, namely the human immune system. The application of the monitor to simulated traces reveals temporal properties that should be satisfied in order to reach immunization memory.

Figures

Figures reproduced from arXiv: 1908.03489 by the authors.

Figure 1

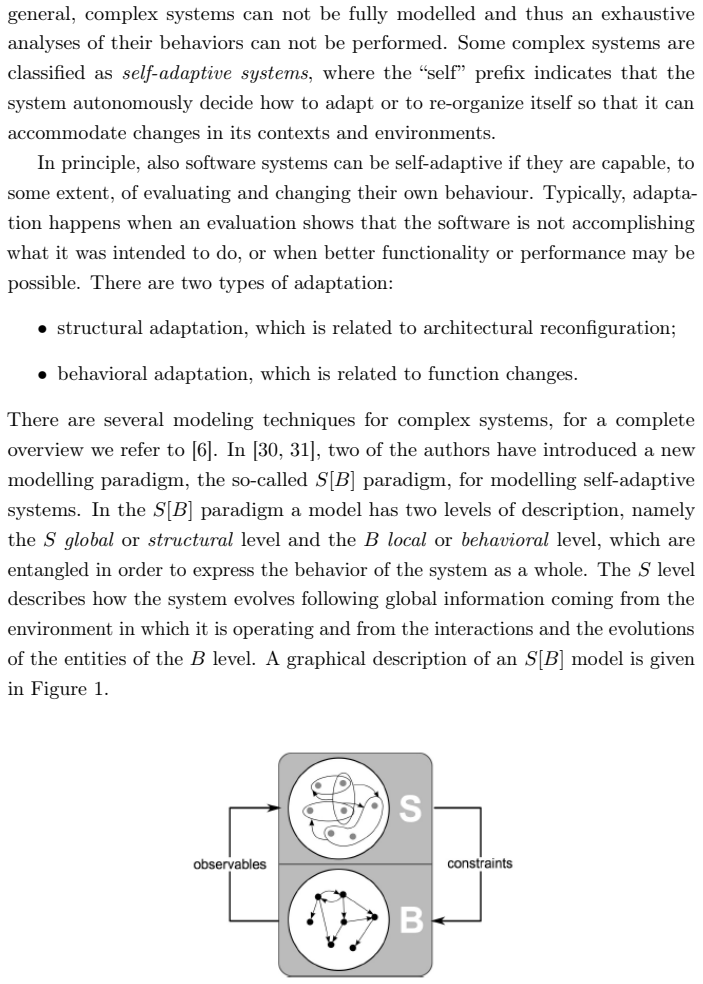

Figure 1. S[B] model. The picture is extracted from [32] In the S[B] paradigm, the B-level adapts itself according to the higher level rules. The S-level constraints the B-level. On the behavioral level, adaptation is expressed by firing a higher-order transition, meaning that the S-level switches to a different set of constraints and the B-level has adapted its behavior by reaching 2 [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

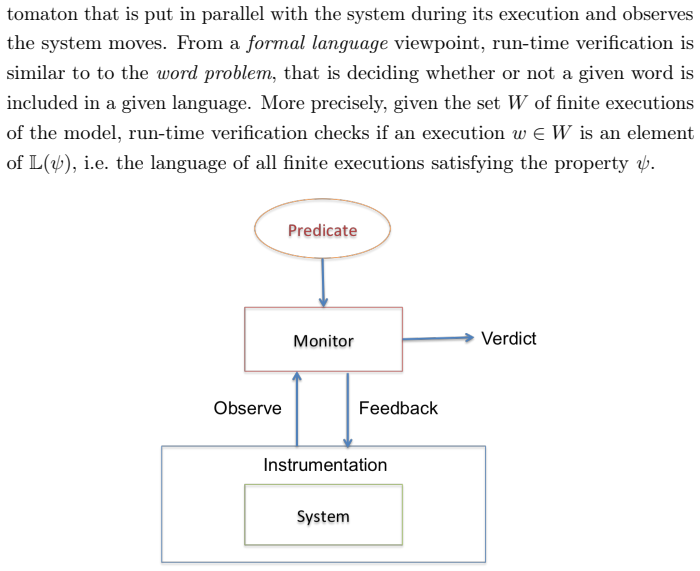

Figure 2. Overview of the run-time verification process. [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3

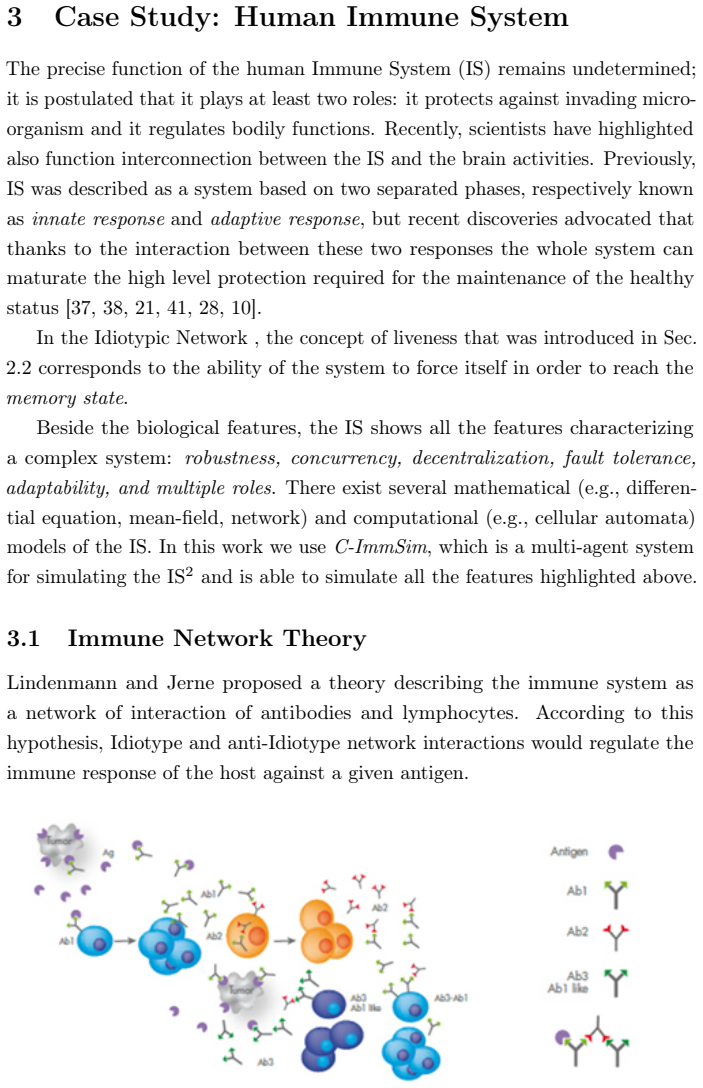

Figure 3. Example of Idiotypic Network [27]. 2The authors kindly acknwoledge Dr. Filippo Castiglione. 8 [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figures from the paper (2 more)
Figure 4
Figure 4. Figure 4: PE of IS computed from a simulation of the Idiotypic Network . For [PITH_FULL_IMAGE:figures/full_fig_p017_4.png]
Figure 5
Figure 5. Figure 5: PEA derived from simulated data for the Idiotypic Network. [PITH_FULL_IMAGE:figures/full_fig_p018_5.png]

Discussion (0). Continue with ORCID to comment.
