The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper shows that the subspaces of $\mathbb{R}^n$ obtained by forcing certain coordinates to be equal—the synchrony subspaces—and preserved by every matrix in a finite set form a lattice, and that this lattice can be computed in practice. The main contribution is the split and cir algorithm: a color-refinement iteration that provably returns the coarsest invariant refinement of any partition, combined with a recursive splitting step that visits every invariant partition. The same machinery extends to non-square matrices, where the invariant objects are the tactical decompositions of incidence structures. This unifies computations for equitable and almost equitable graph partitions, balanced and exo-balanced coupled-cell partitions, and coset partitions of Cayley graphs.

What carries the argument

The load-bearing objects are the characteristic matrix $P(A)$ of a partition (columns are the indicator vectors of its classes) and the induced partition $\psi(Q)$ that identifies rows that are equal in a matrix $Q$. Corollary 6.5 provides the row-equality test that makes the algorithm work: $A$ is invariant under $M$ if and only if $A$ is finer than the partition induced by the rows of $[M_1P(A)\ \cdots\ M_rP(A)]$. The cir iteration applies this test repeatedly, producing a descending chain in the finite partition lattice, and the test guarantees that the terminal partition actually is invariant. In implementation the algorithm works directly with coloring vectors and computes $MP(A)$ by adding matrix entries into color classes, avoiding explicit matrix multiplication.

What would settle it

Take a small digraph, for instance the 7-vertex example of Section 8.1, run the split-and-cir code, and compare its output against an exhaustive check of all 877 partitions of 7 elements: any missing invariant partition, or any returned partition $A$ with $M\,\mathrm{sys}(A)\not\subseteq \mathrm{sys}(A)$, would refute the completeness claim. A more direct test would be to pick random partitions and matrices and brute-force check the equivalence $A\in\Pi_M \iff A\le \psi([M_1P(A)\ \cdots\ M_rP(A)])$.

Watch

Extended reading notes

Core claim

The central claim is that, for any finite set of matrices $M=\{M_1,\ldots,M_r\}\subseteq \mathbb{R}^{n\times n}$, a partition $A$ is $M$-invariant exactly when $A\le \psi([M_1P(A)\ \cdots\ M_rP(A)])$, where $P(A)$ is the characteristic matrix of the partition and $\psi(Q)$ groups equal rows of $Q$. Proposition 7.3 turns this characterization into an algorithm: starting from any partition, iterate $A_{k+1} = A_k \wedge \psi([M_1P(A_k)\ \cdots\ M_rP(A_k)])$ until it stabilizes; the fixed point is the coarsest $M$-invariant refinement. Section 8 combines this cir map with class splitting to enumerate the whole lattice of invariant partitions without brute-force over all partitions. For non-square matrices the analogous iteration (Proposition 10.3) converges to the coarsest tactical decomposition. If these results are correct, the algorithm gives an exact, integer-only method for a problem previously approached by exponential brute force.

Load-bearing premise

The load-bearing premise is the row-equality characterization—a partition is invariant exactly when its classes match the row-equality classes of $[M_1P(A)\ \cdots\ M_rP(A)]$—so if that equivalence failed, the iteration could stop at a non-invariant partition.

Editorial extensions

If this is right

For any finite set of square matrices, the lattice of invariant synchrony subspaces can be enumerated exactly, with no need to check every Bell-many partition.
Equitable partitions of a graph are exactly the adjacency-matrix-invariant partitions, and almost equitable partitions are the Laplacian-invariant ones, so the algorithm computes both from a single procedure.
Balanced partitions of a coupled cell network are exactly the robustly polysynchronous partitions, so the algorithm lists all possible robust cluster patterns.
For non-square matrices the same approach computes all tactical decompositions, giving a computational handle on incidence structures and design theory.
The observed running time scales roughly exponentially in the size of the coarsest invariant partition, so the method is practical when refinement does substantial work and degrades to brute force (e.g., complete graphs).

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

The row-equality characterization suggests a symbolic variant: for matrices whose entries are polynomials in parameters, the same iteration could compute parameter-dependent invariant subspaces, which would be useful in bifurcation problems.
Because the algorithm operates on coloring vectors, the queue of splits can be processed in parallel, potentially scaling to very large grids or networks where the full Bell number is intractable.
The non-square version could be applied directly to bipartite graphs and hypergraphs, where equitable partitions of the two sides are coupled; this would give a unified way to compute equitable partitions of incidence structures.
The authors' observation that cell-type partitions can be replaced by loop arrows suggests a simple preprocessing step that lets network-control analysis use the multi-matrix algorithm unchanged.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

The thing to know: this is a solid, useful paper. The split-and-cir algorithm for enumerating all invariant synchrony subspaces for finite sets of matrices is the actual contribution, and the main convergence proofs hold up. The non-square/tactical-decomposition extension is genuinely new, as is the recursive split-and-cir combination for multiple matrices. The authors are also honest about what is inherited: the cir step is a slight generalization of color refinement in [22,49], and [27] already computed lattices by brute force with cir.

What the paper does well: the algebraic core is clean. Corollary 6.5's row-equality characterization is correct, and the induction in Proposition 7.3 is explicit enough to follow. I checked the step where sys(cirM(A)) contains M_i sys(A_k): it works because invariance gives M_i sys(cirM(A)) subset sys(cirM(A)) and linear images preserve the already known inclusion. The applications section is broad without being padded; balanced/exo-balanced partitions, Cayley coset partitions, Laplacian almost-equitable partitions, and the controllability connection are placed in one framework. That is worth having.

The soft spot is real but mechanical. The pseudocode in Figure 8.1 never adds the popped invariant partition to invPartitions. It pushes cir(singleton), pops it, and only adds cir(B) for lower covers B. So the coarsest invariant partition, the root of the lattice, is missing from the output. With n=2 and M=[[0,1],[0,0]], the only invariant partition is 1|2, which has no lower covers; the printed algorithm returns the empty set. The same root omission appears in the tactical-decomposition description in Section 11. This is not a flaw in the mathematics, but it is a flaw in the statement of the central algorithm. It needs a one-line fix and a regression test.

The other soft spot is that Section 8 gives no explicit completeness theorem for split-and-cir. The paper says the queue process finds all invariant partitions but does not prove it. The missing argument is short: if C is invariant and A is a current invariant partition above C, split a class of A into two unions of C-classes to get a lower cover B with C <= B < A; then cir(B) is invariant, coarser than B, and still above C. Induction gives C. I would want that written down.

Minor: there are placeholder [?] citations and the companion URL contains a comma. Those are copyedit level. The claimed running times are empirical; the paper does not oversell them.

Who for: anyone computing equitable partitions, working on coupled cell networks, or needing to enumerate invariant synchrony subspaces. The paper deserves a serious referee and, after a short revision, acceptance. The central claims are sound; the defects are presentational and easily fixed.

Referee Report

3 major / 5 minor

Summary. The paper develops the theory of synchrony subspaces invariant under a finite set of square matrices, identifying these subspaces with partitions of {1,...,n} that are invariant under each matrix. It proves that the invariant partitions form a lattice, surveys a broad range of applications (equitable and almost equitable graph partitions, balanced and exo-balanced cell-network partitions, Cayley graphs, weighted networks, network controllability, and finite-difference PDE discretizations), and introduces the cir algorithm for computing the coarsest invariant refinement of a given partition (Proposition 7.3) together with the split-and-cir algorithm for computing the full lattice of invariant partitions (Section 8). The framework is then extended to non-square matrices, where the analogue is the lattice of tactical decompositions, with matching algorithms in Sections 9--11.

Significance. The algebraic core of the paper is sound and valuable. Corollary 6.5 gives a clean row-equality characterization of invariance, and Propositions 7.3 and 10.3 provide explicit, checkable convergence proofs for the cir iteration. The applications section successfully unifies several independently studied notions under a single lattice-theoretic umbrella, and the companion website and examples give concrete evidence that the algorithms are usable. However, the central algorithmic contribution as printed in Figure 8.1 and Section 11 has load-bearing presentation gaps: the pseudocode omits the coarsest invariant partition from the output, does not guard against revisiting already-processed partitions, and Section 8 gives no explicit completeness proof for the split-and-cir traversal. These issues are local and readily fixable, but they must be corrected before the claimed 'split and cir algorithm finds this lattice' can be accepted as stated.

major comments (3)

[§8, Figure 8.1] The pseudocode never inserts the coarsest invariant partition into invPartitions. The queue is initialized with cir(A), and the loop only adds cir(B) for lower covers B; the popped partition A is not added to invPartitions. Thus the top element of the lattice is omitted from the output. In a case where the coarsest invariant partition is the only invariant partition (for example, n=2 with M=[[0,1],[0,0]]), the printed algorithm returns an empty set. The same omission occurs in the tactical-decomposition version described in Section 11, where the initial cirM(A,A) is never added to the output. The fix is to add the popped partition to invPartitions when it is processed, or to add the initial cir(A) to invPartitions before the loop.
[§8, Figure 8.1] The guard 'if B is not in queue' is not sufficient to prevent duplicate processing or non-termination. If the same invariant partition is generated from two different parents, it may be added to invPartitions and pushed onto the queue twice. Once it has been popped and processed, it is no longer in the queue; if it is generated again later, the condition 'B is not in queue' is true and the partition is added and pushed again, potentially leading to duplicate output or an infinite loop. The algorithm needs a visited/discovered set, for example testing membership in invPartitions as well as in the queue, before adding and pushing B.
[§8] There is no explicit completeness theorem stating that repeated splitting plus cir visits every M-invariant partition. The prose in Section 8 argues this informally, but the central claim of the paper is that the algorithm finds the full lattice. A short inductive proof should be supplied: for any target invariant partition Q and any current invariant partition A with Q <= A, if Q is not equal to A then some class of A is split in Q, giving a lower cover B of A with Q <= B; since Q is invariant and Q <= B, Q <= cir(B); one then continues inductively inside the down-set of cir(B). The base case is the root cir(singleton). Adding this argument, with a corresponding statement for the tactical-decomposition algorithm in Section 11, would make the algorithmic claim precise.

minor comments (5)

[§5.1 and §8.3] The text contains unresolved citation placeholders '[?]' in Conjecture 5.6 and in the discussion after Example 8.3; these should be replaced with actual references or removed.
[References] Reference [31] contains a typo: 'Unversity' should be 'University'.
[§1] The phrase 'NP-complete problem of finding the lattice of invariant partitions' is stated without a citation or proof. If this complexity claim is intended, it should be substantiated; otherwise it should be softened.
[§11, Example 11.2] The two-line permutation notation used to describe the self-duality is not introduced; a sentence explaining the notation would improve readability.
[Throughout] The symbol 'Pm @Pn' appears to be a rendering artifact for the Cartesian product; it would be clearer to use the standard notation Pm □ Pn consistently.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the cir convergence proof is self-contained, and self-citations are motivational only.

full rationale

The paper's load-bearing mathematical claim is Proposition 7.3, which proves that the iterated refinement A_{k+1} = psi([P(A_k) | M_1 P(A_k) ... M_r P(A_k)]) converges to cir_M(A) = join(Π_M(n) ∩ downset(A)). The proof is a direct argument from the row-equality characterization in Corollary 6.5, Proposition 6.1, and Lemma 6.2, all of which are proved in the text rather than imported from the authors' prior work. No parameter is fitted and no output quantity is an input by construction. The characterization in Corollary 6.5 is derived from Proposition 6.4, whose proof is included. Self-citations [34]-[37] and [39] appear only as motivation and application context in Sections 5.5 and 5.7, and do not support the convergence or correctness of the main algorithm. The closest algorithmic antecedent, [49], is external work by other authors and is explicitly credited as an inspiration rather than used as a black-box justification. The split-and-cir lattice search in Section 8 combines splitting with cir recursively; even if the printed pseudocode has a presentation gap concerning the root invariant partition, that is a correctness or completeness issue, not circularity. The mathematical derivation of the cir algorithm is self-contained and does not reduce to its own inputs by definition or through a self-citation chain.

Assumptions & free parameters 0 free parameters · 4 assumptions · 0 invented entities

No free parameters are fitted and no new entities are postulated. The central claims rest on standard lattice-theoretic and linear-algebra facts, mostly cited explicitly. The imported cell-network theorem [25, Theorem 4.3] is a domain assumption linking the formalism to applications, but the algorithm proofs do not depend on it.

assumptions (4)

standard math Every finite poset in which all joins exist is a complete lattice.
Used in Propositions 4.5 and 9.7 to derive lattice structure from closure under joins; cited to [26, Lemma 34].
standard math sys(⋁S) = ∩_{A∈S} sys(A) for collections of partitions.
Used in Propositions 3.5, 4.3, and 7.1 to show joins of invariant partitions remain invariant; imported from [48, Lemma 2].
domain assumption Balanced partitions of coupled cell networks are exactly robustly polysynchronous partitions.
Connects the matrix-invariance formalism to network synchrony in Section 5.2; cited to [25, Theorem 4.3].
standard math The row-equality and column-inclusion criteria in Proposition 6.4 and Lemma 6.2 characterize M-invariance.
This is proved in the paper with an elementary RREF argument; it is the algebraic foundation of the cir algorithm.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Invariant synchrony subspaces of sets of matrices." pith.science (2026). https://pith.science/paper/6D36NFCM

@misc{pith2026190805797,
  author       = {Pith},
  title        = {Pith review of: Invariant synchrony subspaces of sets of matrices},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/6D36NFCM}},
  note         = {Machine review of arXiv:1908.05797}
}

read the original abstract

A synchrony subspace of R^n is defined by setting certain components of the vectors equal according to an equivalence relation. Synchrony subspaces invariant under a given set of square matrices form a lattice. Applications of these invariant synchrony subspaces include equitable and almost equitable partitions of the vertices of a graph used in many areas of graph theory, balanced and exo-balanced partitions of coupled cell networks, and coset partitions of Cayley graphs. We study the basic properties of invariant synchrony subspaces and provide many examples of the applications. We also present what we call the split and cir algorithm for finding the lattice of invariant synchrony subspaces. Our theory and algorithm is further generalized for non-square matrices. This leads to the notion of tactical decompositions studied for its application in design theory.

Figures

Figures reproduced from arXiv: 1908.05797 by the authors.

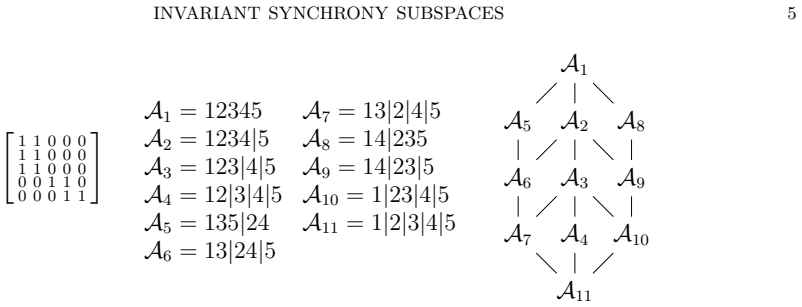

**Figure 4.1.** A matrix M and the lattice of M-invariant partitions. 1 2 3 4 5 a b a b a a b b a b a b c d c A5 A8 A5 ∧ A8 balanced balanced not balanced [PITH_FULL_IMAGE:figures/full_fig_p005_4_1.png] view at source ↗

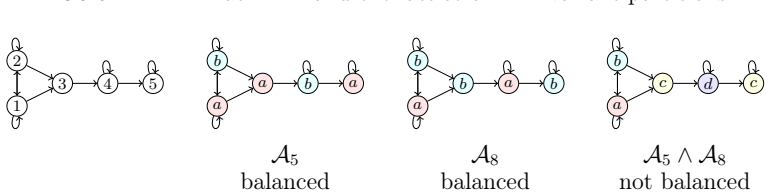

**Figure 4.2.** Balanced partitions whose infimum in Π is not balanced. Proof. We verify the conditions of Proposition 4.4. The discrete partition is invariant under any M, so it is the bottom element of ΠM(n). Let ∅ 6= S ⊆ ΠM(n) and W S be the supremum of S taken in the lattice Π(n). Then W S ∈ ΠM(n) by Proposition 4.3. So the supremum of S in ΠM(n) is W S. Example 4.6 [PITH_FULL_IMAGE:figures/full_fig_p005_4_2.png] view at source ↗

**Figure 4.** shows a matrix [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

Figures from the paper (27 more)

**Figure 5.1.** Figure 5.1: (i) Graph G. (ii) The coarsest equitable partition A1 of G. (iii) The quotient digraph G/A1. equitable partitions are of this type. Equitable partitions can be used to create quotient digraphs. If i is a vertex of a digraph, then the neighborhood of i is denoted by N…

**Figure 5.** Figure 5: (ii) shows the coarsest of the eight equitable partitions of the graph [PITH_FULL_IMAGE:figures/full_fig_p006_5.png]

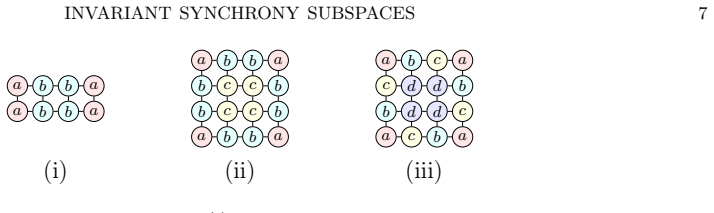

**Figure 5.2.** Figure 5.2: Equitable partitions. (i) The coarsest equitable partition of P4@ P2. (ii) The coarsest equitable partition of P4 @ P4 . (iii) The orbit partition of the Z4 action on P4 @ P4. partitions is isomorphic to the lattice of subgroups exactly when there is a vertex with tr…

**Figure 5.3.** Figure 5.3: (i) A coupled cell network. (ii) Balanced partitions. (iii) Lattice of balanced partitions. Example 5.7. The matrix of Example 4.6 shown in [PITH_FULL_IMAGE:figures/full_fig_p008_5_3.png]

**Figure 5.** Figure 5: shows the balanced partitions of a cell network with a single [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]

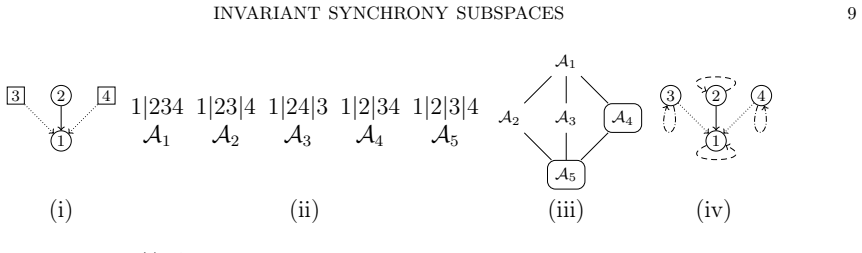

**Figure 5.4.** Figure 5.4: (i) A coupled cell network with two cell types and two arrow types. (ii) M-invariant partitions. (iii) Lattice of M-invariant partitions, with the balanced partitions for the network circled. (iv) Another coupled cell network with only one cell type and four arrow ty…

**Figure 5.** Figure 5: (iv) shows another coupled cell network whose balanced partitions are also [PITH_FULL_IMAGE:figures/full_fig_p009_5.png]

**Figure 5.5.** Figure 5.5: (i) The Cayley color digraph Cay{i,j} (Q8) of the quaternion group Q8 and its lattice of subgroups. A solid arrow of the Cayley digraph is colored with i while a dotted arrow is colored with j. (ii) The balanced partitions of the cell network. (iii) The corresponding…

**Figure 5.6.** Figure 5.6: A graph and its almost equitable partitions. The boxed partitions are equitable. gig −1 j along the edges colored with s1, . . . , sk respectively leads to gig −1 j s1 · · · sk = gi . Since [gi ] = [gj ], the repeated application of Lemma 5.18 implies that [e] = [gj…

**Figure 5.** Figure 5: shows a graph with its almost equitable partitions. Only par [PITH_FULL_IMAGE:figures/full_fig_p011_5.png]

**Figure 5.7.** Figure 5.7: Three of the 13 almost equitable, but not equitable, partitions of P4P4. 1 2 3 123 12|3 1|2|3 A1 A2 A3 [PITH_FULL_IMAGE:figures/full_fig_p012_5_7.png]

**Figure 5.** Figure 5: shows a coupled cell network and its exo-balanced partitions. [PITH_FULL_IMAGE:figures/full_fig_p012_5.png]

**Figure 5.9.** Figure 5.9: (i) Weighted cell network G. Weights of 1 are not printed. (ii) Weighted cell network GL. (iii) Balanced partitions of GL and exo-balanced partitions of G. Definition 5.34. Consider a weighted coupled cell network with weighted adjacency matrix W. A cell partition A …

**Figure 5.** Figure 5: (i) shows a weighted cell network [PITH_FULL_IMAGE:figures/full_fig_p015_5.png]

**Figure 7.1.** Figure 7.1: Efficient computation of MP(A) using c(A) avoiding the computation of P(A). k Ak c(Ak) P(Ak) [PITH_FULL_IMAGE:figures/full_fig_p019_7_1.png]

**Figure 7.2.** Figure 7.2: The steps of the cir algorithm, starting with A0 = 14|235. The third and fifth rows of [c(A2) | Q2] are equal, so A2 = A3 = cir(A0). If the matrices in M are sparse, then a further speedup is possible with a modification of the code segment that uses sparse matrix re…

**Figure 7.** Figure 7: shows the steps for finding [PITH_FULL_IMAGE:figures/full_fig_p019_7.png]

**Figure 8.1.** Figure 8.1: The split and cir algortihm for finding the M-invariant partitions. 8. The split and cir algorithm for finding the lattice of invariant partitions Proposition 2.3 and the cir algorithm can be combined into a split and cir algorithm to find all M-invariant partitions …

**Figure 8.** Figure 8: shows the steps of our algorithm to find the 4 balanced partitions [PITH_FULL_IMAGE:figures/full_fig_p020_8.png]

**Figure 8.2.** Figure 8.2: (i) A cell network and its in-adjacency matrix. (ii) Steps in the split and cir algorithm for finding the lattice of balanced partitions. Straight arrows point to lower covers, corresponding to splits. Squiggly arrows show the steps from Ak to Ak+1 in the cir algorit…

**Figure 9.1.** Figure 9.1: (i) The star graph K1,3 and its incidence graph. (ii) The tactical decompositions of the incidence matrix. (iii) Lattice of tactical decompositions. partition is the discrete partition, then our algorithm does no splitting. Our split and cir algorithm performs best …

**Figure 9.** Figure 9: (i) shows the star graph [PITH_FULL_IMAGE:figures/full_fig_p022_9.png]

**Figure 9.2.** Figure 9.2: (i) Edge colored incidence graph of an incidence structure. (ii) Tactical decompositions of M = {M1, M2}. (iii) Lattice of tactical partitions. 1 2 1 2 [ 1 0 0 1 ] [ 0 1 1 0 ] 12 12 (A1, B1) 1|2 1|2 (A2, B2) (A2,B2) (A1,B1) 1 2 3 4 0 0 1 0 0 0 0 1 1 0 0 0 0 1 0 0 …

**Figure 9.3.** Figure 9.3: (i) Edge colored incidence graph K2,2. (ii) Tactical decompositions. (iii) Lattice of tactical decompositions. (iv) Cell network on K2,2 with two cell and arrow types. (v) M-invariant partitions. (vi) Lattice of M-invariant partitions with balanced partitions circle…

**Figure 11.1.** Figure 11.1: (i) The Fano plane. (ii) The incidence matrix M. (iii) The incidence graph of the Fano plane. a b b c a a a 1234567 1234567 1234|56|7 16|2345|7 12|34|56|7 1|2345|6|7 (A1, B1) (A4, B4) (A7, B7) 123456|7 167|2345 1234|5|6|7 16|25|34|7 12|34|5|6|7 1|25|34|6|7 (A2, B2) …

**Figure 11.2.** Figure 11.2: (i) The tactical decomposition (A4, B4). (ii) Orbit representatives of the tactical decompositions of M. (iii) The tactical decomposition (A4, B4) on the incidence graph. 11. Finding the lattice of tactical decompositions An element (C, D) of Π(m, n) covers another…

**Figure 11.** Figure 11: (iii) [PITH_FULL_IMAGE:figures/full_fig_p027_11.png]
