Topological expansion in isomorphism theorems between matrix-valued fields and random walks

T0 review · 0 major / 4 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read This paper establishes exact random-walk isomorphisms for matrix-valued Gaussian free fields, organized by ribbon-graph pairings, and shows that twisting the field by a connection replaces each power of $n$ with a product of Wilson-loop…

desk verdict Genuine extension of BFS-Dynkin to matrix-valued and twisted fields, but the displayed ν=(2) examples have a holonomy-orientation typo that needs fixing before I would rely on the details. read the letter →

arxiv 1908.06732 v3 pith:QNFLKEGV submitted 2019-08-19 math.PR

Titus Lupu (CNRS , INSMI , LPSM (UMR_8001)) This is my paper · ORCID
classification math.PR MSC 60G1581T1881T2515B5260J55
keywords Gaussianfreefieldrandomwalkisomorphismtheoremsmatrix-valuedfieldsribbongraphstopologicalexpansionWilsonloopsholonomyelectricalnetworks
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper proves a family of exact identities between matrix-valued Gaussian free fields on an electrical network and signed measures on random-walk paths. The coefficients of the measures are ribbon-graph weights, so the expansion in the matrix size $n$ is a topological expansion: each power of $n$ counts a boundary cycle of a ribbon pairing. When the field is twisted by an orthogonal, unitary, or symplectic connection, each such power is replaced by a product of Wilson-loop traces, one per boundary cycle. The result extends the classical random-walk representation of the scalar Gaussian free field to fields whose values are real symmetric, complex Hermitian, or quaternionic Hermitian random matrices, and it ties the gauge-invariant observables of the twisted field to holonomies along random-walk loops.

What carries the argument

The load-bearing object is the ribbon-pairing expansion of the path measure: ribbon half-edges are paired either straight or twisted, and the boundary cycles of the resulting ribbon graph govern both the power of $n$ and, in the twisted setting, the number of Wilson loops. The proof proceeds by induction on the number of ribbon edges: it contracts one ribbon edge, takes a conditional expectation with respect to the last GOE/GUE/GSE-type matrix, and checks by hand the weight recurrences in every geometric case, including degree-one and degree-two degenerate vertices. This induction converts the scalar random-walk isomorphism into matrix-valued identities and carries over to the connection-twisted case.

What would settle it

Compute both sides of Theorem 3.4 numerically for a two-vertex network with a nontrivial connection, choose $\nu=(2,2)$, random $A$-matrices, $\beta \in \{1,2,4\}$, and $F=1$; if the equality fails beyond numerical precision for any $\beta$, the weight recurrences or signs are wrong. Alternatively, re-run the Appendix A recurrences symbolically for all pairings up to $|\nu|=6$ and compare the resulting coefficients.

Watch

Extended reading notes

Core claim

The central identity is Theorem 3.4: for $\beta \in \{1,2\}$, and with real parts taken for $\beta=4$, the expectation of a product of traces of products of the twisted matrix-valued Gaussian free field $\Phi$ against a bounded function $F$ of $\operatorname{Tr}(\Phi^2)/2$ equals the integral of the same $F$, shifted by the occupation fields of $|\nu|/2$ random walks, against a signed path measure $\mu_{\nu,\beta,n,A,U}$. That measure is a sum over ribbon pairings of ribbon-graph weights times products of traces built from intertwiners $A$ and holonomies of the connection, pushed forward by the random-walk bridge measures. Corollary 3.8 states the replacement rule that gives the paper its title: in the untwisted expansion each term carries a factor $n^{f_\nu(\rho)}$ with $f_\nu(\rho)$ the number of boundary cycles of the ribbon pairing $\rho$; after twisting by a connection, this factor becomes a product of $f_\nu(\rho)$ Wilson-loop traces, one per boundary cycle, taken along loops formed by concatenating the random-walk paths.

Load-bearing premise

The argument's load-bearing premise is that the hand-checked induction step — relating ribbon-graph weights before and after contracting an edge and averaging over one random matrix, in every straight, twisted, and degenerate case — has the correct signs and coefficients in all cases.

Editorial extensions

If this is right

  • Correlations of traces and eigenvalue polynomials of the matrix-valued field reduce to integrals over independent random-walk bridges with explicitly signed ribbon-graph coefficients.
  • For a trivial connection, the twisted identity reduces to the untwisted one, so the topological expansion is consistent with gauge invariance.
  • With a nontrivial connection, the dependence on the connection factors entirely through Wilson-loop traces, making the isomorphism a discrete version of a gauge-theory observable expansion.
  • The scalar field $\operatorname{Tr}(\Phi)$ is independent of the connection and its two-point function is $n$ times the network Green's function, so the topological expansion isolates the gauge-invariant sector.
  • The $\beta=4$ case requires taking real parts of traces, reflecting the noncommutativity of quaternionic Hermitian products.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • One could test whether the same ribbon-pairing substitution survives for other matrix ensembles: the combinatorial scaffolding is generic, but the straight/twisted and degenerate weight recurrences would need to be re-derived for each ensemble.
  • Taking a large-$n$ limit should select planar ribbon pairings, so the Euler-characteristic grading gives a natural route from these identities to a loop-soup or discrete-gauge-theory description of the planar sector.
  • Because the identity holds for a bounded measurable $F$, smoothing or differentiating in $F$ should yield joint moment identities for occupation fields and eigenvalues, which are not stated in the paper but follow directly from its framework.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

0 major / 4 minor

Summary. This paper proves topological expansions for BFS-Dynkin isomorphisms between matrix-valued Gaussian free fields (GOE/GUE/GSE type) and random walks on electrical networks. For β∈{1,2,4}, it introduces measures μ_{ν,β,n} on families of paths with coefficients given by ribbon-graph weights times powers of the matrix size n, and shows (Theorems 3.1 and 3.3) that expectations of products of traces of the matrix field against F(Tr(Φ^2)/2) equal an integral of F shifted by occupation fields against these measures. For fields twisted by an orthogonal, unitary, or symplectic connection, the powers of n are replaced by traces of holonomies along the boundary cycles of the ribbon graphs (Theorem 3.4 and Corollary 3.8). The proofs expand the traces, apply the scalar/vector BFS-Dynkin isomorphism, and compute Gaussian matrix moments by induction on ribbon edges, with details in Appendix A and a quaternionic Wick formula in Appendix B.

Significance. The result connects isomorphism theorems for Gaussian free fields with the 't Hooft topological expansion of random matrix integrals, and the Wilson-loop replacement in Corollary 3.8 is a clean and novel conceptual statement. The paper is careful with the algebraic structure of the three symmetry classes, and the proof strategy is credible: the main identities reduce to a bookkeeping of ribbon-graph weights and holonomy orientations. The appendices provide substantial supporting detail, including explicit edge-contraction recurrences and a quaternionic Wick formula. The main theorem appears sound, but the manuscript contains several concrete errors in the orientation bookkeeping, detailed in the minor comments, that must be fixed; none of these errors is load-bearing for the central proof, but they affect the reliability of the presentation.

minor comments (4)
  1. [Section 3.2, examples for ν=(2)] The displayed measures for ν=(2), β=1 and β=4 contain an orientation error in the twisted contribution: the last holonomy factor is printed as hol_U(γ) but the computation via Lemma 4.6 with Lemma 4.3(4.2) and (4.6) gives hol_U(γ)^* in both cases. Concretely, the twisted terms should read 1/2 Tr(A(1,2) H* A(2,1)^T H*) and -Re(Tr(rA(1,2) H* rA(2,1)^* H*)) with H=hol_U(γ). The general gluing rule in the same subsection (k>k' ↦ hol^*) is consistent with the corrected expressions, so the error appears to be confined to these examples.
  2. [Appendix B, Proposition B1] The definition of R_{ν,η} states the condition η_k = η_{k'} for both straight and twisted ribbon edges. As written, the base case |ν|=2 fails: for η_1=η_2=ξ and q(1,2)=q(2,1)=1, the left side of (4.9) is E[Re(ξ^2)] = -2, while the right side equals 2. The condition must distinguish the two types of edges, e.g. η_k = \bar{η}_{k'} for straight edges and η_k = η_{k'} for twisted edges; with this correction the base case reproduces Lemma 4.2. Please correct the statement and re-verify the induction.
  3. [Section 3.1, definition of μ_{ν,β,n}] The measure is described as 'positive,' but for β=4 the weights w_{ν,β=4}(ρ) take both signs (for instance the twisted pairing in ν=(2) carries weight -n, and the ν=(4) example in the same section has a negative coefficient -2n^2+3n on one pairing). The term 'signed measure' should be used in the β=4 case, as is already done in Section 3.2.
  4. [Section 2.6, weight w_{ν,β=4}] The displayed formula for w_{ν,β=4}(ρ) is typographically hard to parse; please write (-2)^{χ_ν(ρ)} 2^{-2m(ν)+|ν|/2} explicitly, since the current notation 'p´ 2qχνpρq2´2mpνq`|ν|{2' obscures the exponent.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the central isomorphism is derived from external BFS-Dynkin, Kassel-Levy, and Bryc-Pierce inputs, with no fitted or self-referential step.

full rationale

The paper's central identity (Theorem 3.4, equations (3.6) and (3.7)) is proven, not assumed. The proof starts from the BFS-Dynkin isomorphism (Theorem 2.1) and the Kassel-Levy twisted-vector isomorphism (Theorem 2.2 / Lemma 2.3), both external to this paper, and reduces the matrix moments to explicit Gaussian second-moment formulas (Lemma 4.3) and the Bryc-Pierce quaternionic moment identities (Lemma 4.2). Lemma 4.4 then evaluates the resulting product-of-traces expectations by induction on ribbon edges, with the weight recurrences checked case by case in Appendix A. The measures on the right-hand side of (3.6)/(3.7) are constructed from the same ribbon-graph weights and trail combinatorics that Lemma 4.4 derives for the moments, so the equality is a proved combinatorial identity rather than a definition of the left-hand side. There are no fitted parameters, no subset of data used for calibration, and no renamed input presented as a prediction. No load-bearing claim is justified solely by a self-citation: the cited results of Brydges-Frohlich-Spencer, Dynkin, Kassel-Levy, Bryc-Pierce, Brezin-Itzykson-Parisi-Zuber, and Mulase-Waldron are independent prior theorems, and the present author's own prior work is not invoked to carry an assumption. The suspected orientation mismatch in the Section 3.2 examples for nu=(2) (holonomy H versus H^* in the twisted term) is an internal consistency or bookkeeping concern, not circularity: the general definition of the measure uses the rule k>k' maps to hol^* and the proof follows Lemmas 4.3 and 4.4, so an example typo does not make the derivation equivalent to its input. The derivation is self-contained once the cited external facts are granted.

Assumptions & free parameters 0 free parameters · 4 assumptions · 0 invented entities

No numbers are fitted; n, beta, conductances, killing measure and connection U are inputs. The paper introduces new combinatorial objects such as trails, oriented trails and signed path measures, and a new quaternionic Wick formula, but no new physical entities, particles, forces or dimensions. The only external axioms are standard theorems from prior literature.

assumptions (4)
  • standard math BFS-Dynkin isomorphism theorem (Theorem 2.1)
    Used as the starting point for the matrix-field isomorphism; cited to BFS82 and Dynkin84.
  • standard math Kassel-Levy twisted vector GFF isomorphism (Theorem 2.2 and Lemma 2.3)
    Supplies the entrywise isomorphism used in the twisted case; cited to KL16.
  • standard math Matrix integral topological expansion (Theorem 2.4)
    Defines the ribbon weights w_{nu,beta} used in the path measures; cited to BIPZ78 and MW03.
  • standard math Bryc-Pierce quaternionic Gaussian moment identities (Lemma 4.2)
    Used in Lemma 4.3 to compute GSE moments; drawn from BP09.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Topological expansion in isomorphism theorems between matrix-valued fields and random walks." pith.science (2026). https://pith.science/paper/QNFLKEGV

@misc{pith2026190806732,
  author       = {Pith},
  title        = {Pith review of: Topological expansion in isomorphism theorems between matrix-valued fields and random walks},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/QNFLKEGV}},
  note         = {Machine review of arXiv:1908.06732}
}
read the original abstract

We consider Gaussian fields of real symmetric, complex Hermitian or quaternionic Hermitian matrices over an electrical network, and describe how the isomorphisms between these fields and random walks give rise to topological expansions encoded by ribbon graphs. We further consider matrix-valued Gaussian fields twisted by an orthogonal, unitary or symplectic connection. In this case the isomorphisms involve traces of holonomies of the connection along random walk loops parametrized by boundary cycles of ribbon graphs.

Figures

Figures reproduced from arXiv: 1908.06732 by the authors.

Figure 1
Figure 1. Ribbon half-edges in the case of ν “ p4, 3, 1q. Since the total number of half-edges, |ν|, is even, one can pair them to obtain a ribbon graph (not necessarily connected), with mpνq vertices and |ν|{2 ribbon edges. Each time we pair two half-edges, we can glue the corresponding ribbons in two different ways. Either the orientations of the two ribbon half-edges match, or are opposite. In the first case we get a strai… view at source ↗
Figure 2
Figure 2. A straight ribbon edge on the left and a twisted ribbon edge on the right [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3
Figure 3. displays an example of a ribbon pairing with only straight edges, and [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figures from the paper (7 more)
Figure 4
Figure 4. Figure 4: A ribbon pairing in the case of ν “ p4, 3, 1q with straight and twisted edges. The induced partition in pairs pν pρq is the same as on [PITH_FULL_IMAGE:figures/full_fig_p008_4.png]
Figure 5
Figure 5. Figure 5: The case when the ribbon half-edges a|ν|{2 and b|ν|{2 are adjacent to the same vertex. Only the relevant vertex is represented. We start with the case of one vertex. Recall that ρ denotes a ribbon pairing of t1, . . . , |ν|u and ρq the induced ribbon pairing of t1, . .…

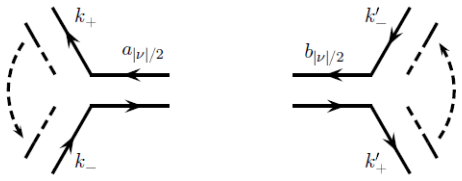

Figure 6
Figure 6. Figure 6: The case when the ribbon half-edges a|ν|{2 and b|ν|{2 are adjacent to two different vertices. Only the two relevant vertices are represented. corresponds to not having transposes or adjoints in the first term on the right-hand side in equations (4.2), (4.4) and (4.6). …

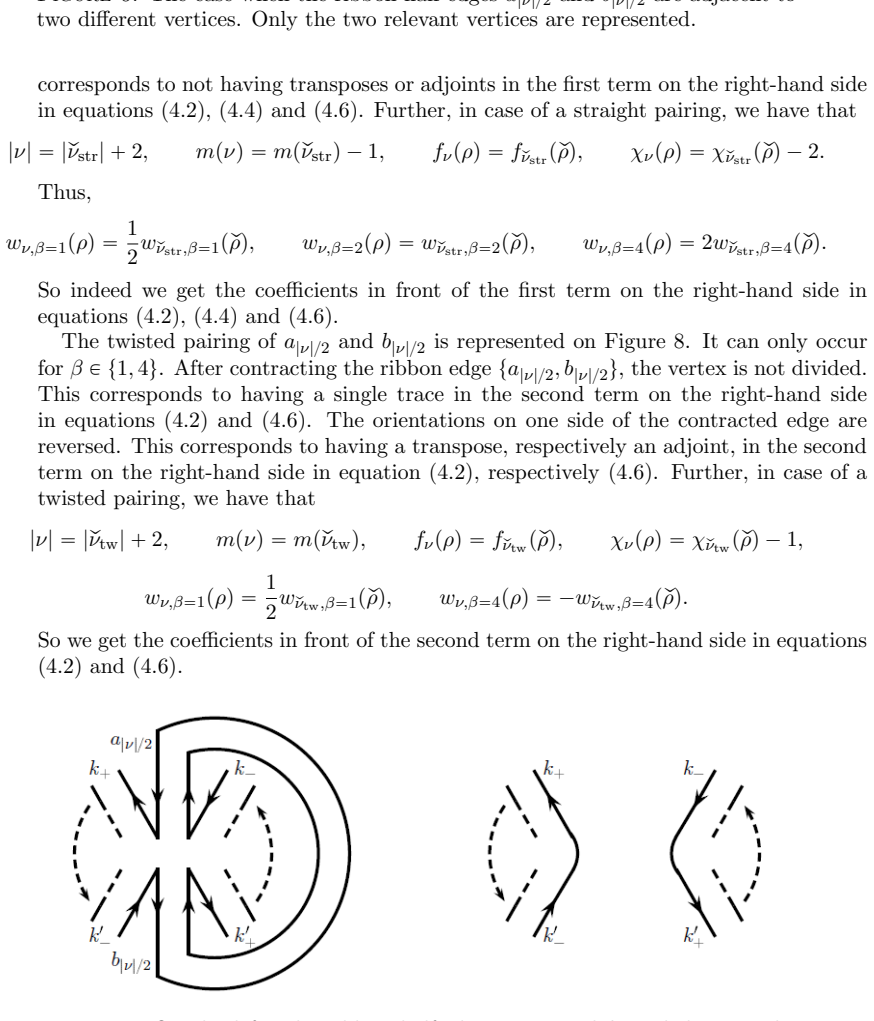

Figure 7
Figure 7. Figure 7: On the left: the ribbon half-edges a|ν|{2 and b|ν|{2 belong to the same vertex and are paired in a straight way. On the right: the result of the contraction of the corresponding straight ribbon edge. The vertex is split into two. All the orientations are preserved. 24 …
Figure 8
Figure 8. Figure 8: On the left: the ribbon half-edges a|ν|{2 and b|ν|{2 belong to the same vertex and are paired in a twisted way. On the right: the result of the contraction of the corresponding twisted ribbon edge. The vertex is not divided. The orientations on one side of the contract…
Figure 9
Figure 9. Figure 9: On the left: the ribbon half-edges a|ν|{2 and b|ν|{2 belong to two different vertices and are paired in a straight way. On the right: the result of the contraction of the corresponding straight ribbon edge. The two vertices are merged into one. All the orientations are…
Figure 10
Figure 10. Figure 10: On the left: the ribbon half-edges a|ν|{2 and b|ν|{2 belong to two different vertices and are paired in a twisted way. On the right: the result of the contraction of the corresponding twisted ribbon edge. The two vertices are merged into one. The orientations on one o…
