Pith's one-line read The paper proves two point-weighting finite-difference stencils are fourth-order consistent with the Helmholtz equation with PML, fixing the earlier 17-point scheme's inconsistency.

desk verdict A genuinely new 17-point point-weighting stencil for Helmholtz-PML with solid interior convergence, but the PML consistency proof assumes smoothness the paper's own damping profile does not have. read the letter →

arxiv 1908.07403 v1 pith:VRX7LB2U submitted 2019-08-20 math.NA cs.NA

Hatef Dastour , Wenyuan Liao This is my paper · ORCID

classification math.NAcs.NA MSC 65N0665M0635J05

keywords Helmholtzequationperfectlymatchedlayerpoint-weightingschemefourth-orderaccuracynumericaldispersion17-point25-pointwavenumbererror

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper seeks a general way to build fourth-order finite-difference schemes for the two-dimensional Helmholtz equation equipped with perfectly matched layer (PML) absorbing boundaries. Its main constructions are two point-weighting stencils, an optimal 25-point and an optimal 17-point scheme, in which off-center grid values are replaced by weighted averages before the difference operator is applied. The central result is that both stencils are pointwise consistent with the Helmholtz-PML equation and fourth-order accurate, and that the 17-point version repairs an inconsistency in the authors' earlier 17-point scheme while also working when grid spacings differ in the two directions. The authors also derive the numerical-wavenumber error, choose weights by minimizing dispersion over a user-specified range of grid points per wavelength, and demonstrate the benefit in layered-model examples.

What carries the argument

The central mechanism is the point-weighting substitution: before applying the fourth-order difference operator, each off-center grid value is replaced by a weighted arithmetic average of neighboring values, with the weights required to sum to one. The 25-point scheme uses the substitutions in (12)-(13); the 17-point scheme uses (23)-(24). These substitutions preserve the $O(h^4)$ Taylor expansion of the operator while coupling the stencil in the transverse direction, which is what restores consistency for the PML equation and permits unequal spacings $\Delta x \neq \Delta z$. The mass term $k^2 C p$ is approximated by the operators $I^{(j)}$ with weights $c_j$ and $d_j$ that also sum to one. Least-squares minimization of the numerical-dispersion functional over propagation angle and grid-points-per-wavelength interval then fixes the free weights.

What would settle it

Run a convergence study for the refined point-weighting 17-point scheme on a manufactured solution with the wavefield supported inside the PML, where the damping profiles (2)-(3) are active; if the C-norm error over the layer does not shrink by roughly a factor of 16 when the grid is halved, the fourth-order claim fails exactly where the PML matters.

Watch

Extended reading notes

Core claim

On its own terms, the paper's discovery is that a fourth-order finite-difference discretization of the PML-modified Helmholtz equation can be made pointwise consistent by replacing individual grid values in the difference operator with weighted averages of neighboring values, and that this repairs the inconsistency of the authors' earlier 17-point scheme. The two resulting stencils, optimal point-weighting 25p and optimal point-weighting 17p, satisfy the Helmholtz-PML equation up to $O(h^4)$ error terms for essentially arbitrary weights, provided the relevant weights sum to one; the numerical wavenumber obeys $(k_N)^2 = k^2(1+O(k^6h^6))$. The authors present the 17-point version as a practical replacement for the inconsistent 17-point scheme, with a smaller matrix bandwidth and support for unequal spacings $\Delta x \neq \Delta z$.

Load-bearing premise

The fourth-order proof expands $p$ and the PML coefficients $A$, $B$, $C$ by Taylor's theorem at every grid point, so it assumes these fields are smooth everywhere, but the damping profiles used in the numerical examples are only piecewise smooth inside the PML.

Editorial extensions

If this is right

The refined point-weighting 17-point scheme can be used in place of the earlier 17-point scheme for PML problems, keeping a narrower matrix bandwidth than the 25-point scheme while restoring consistency.
Both stencils keep fourth-order accuracy when the step sizes in the two coordinate directions differ, removing the earlier 17-point scheme's restriction to equal spacing.
With weights tuned on a given grid-point-per-wavelength interval, the schemes' normalized phase and group velocity curves stay close to one, so fewer grid points per wavelength are needed than with conventional second-order stencils.
The wavenumber error relation $(k_N)^2 = k^2(1+O(k^6h^6))$ means the pollution error at fixed $kh$ is reduced by two orders relative to second-order schemes.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

Because the Taylor proof assumes smoothness of the PML coefficients, the observed order may drop to less than four inside the absorbing layer, where the damping profiles in (2)-(3) are only piecewise smooth; the paper does not report a separate convergence test restricted to the layer.
The construction's parameter freedom suggests a natural stress test: fix the weights with the refined strategy on one velocity and frequency range, then evaluate the schemes outside that range, where the dispersion curves imply accuracy may degrade more sharply.
The same point-weighting template should extend to three dimensions, as the authors list as future work, but the wider stencil and corner regions where both damping profiles vary will make the smoothness issue more pronounced.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

Briefly: the new 17-point point-weighting scheme is a real contribution. The prior 17p scheme from [25] was known to be inconsistent with PML; this paper shows that the point-weighting variant restores consistency, at least formally, and the bandwidth saving vs 25p is real. The interior error tables (Example 1) show clean fourth-order behavior, and the dispersion analysis is standard but careful. I'd give credit for the basic construction and for demonstrating the practical difference between the old and new 17p in the layered example.

The soft spots are not minor, though. Proposition 2.1 is proved by Taylor expanding A and B and keeping derivatives up to fifth/sixth order in the remainders (Eqs. 37, 39). But the PML profile in (2)-(3) is only C^1 at the interface—the second derivative of sigma jumps. So A and B do not have the derivatives the proof needs, and the Taylor remainder is not under control for stencils crossing the PML boundary. The proposition as stated is therefore unproven in exactly the regime the paper is about. The paper does not flag this, and none of the numerical experiments isolate the PML layer: Example 1 has no PML, Example 2 uses one grid size, Example 3 is qualitative. I would not say the scheme is wrong; but the central fourth-order claim for the Helmholtz-PML equation is not established.

There are also smaller issues: Eq. (6) has a sign/index typo, Eq. (32) uses b1 where a1 is meant, and Proposition 3.1 states (k_N)^2 = k^2(1 + O(k^6 h^6)) while its own expansion (61) gives a leading k^6 h^4 term—so the stated dispersion order is off by a power of h. The fitted weights used in the experiments are not reported, and no code is provided, so the numerical section is not independently reproducible.

Who is this for? Someone working on frequency-domain finite differences for wave propagation who wants a low-bandwidth fourth-order stencil and is willing to verify the PML behavior themselves. The construction is worth knowing; the analysis is not the last word. I would send it to a serious referee, but with a request to fix the smoothness issue, add a convergence study with PML active, and report the parameters.

I would not cite it as it stands for the PML consistency claim, though I might mention the stencil as a lead to follow.

Referee Report

2 major / 6 minor

Summary. The paper develops a point-weighting strategy for constructing fourth-order finite difference schemes for the two-dimensional Helmholtz equation with a perfectly matched layer (PML). Two schemes are proposed: an optimal point-weighting 25-point scheme and an optimal point-weighting 17-point scheme. Proposition 2.1 claims that both schemes are pointwise consistent with the Helmholtz-PML equation and are fourth-order accurate under only the sum constraints on the weighting parameters. A dispersion analysis is then used to select the free parameters by minimizing the numerical dispersion, giving the 'refined PW 25p' and 'refined PW 17p' schemes. Numerical experiments compare these schemes with existing rotated 9p, 17p, and 25p methods, and a layered-model example is used to argue that the new 17-point scheme removes the PML inconsistency of the earlier 17-point scheme of Dastour and Liao.

Significance. If the central claim is established, the refined 17-point scheme is a practically valuable contribution: it offers a narrower matrix bandwidth than the 25-point scheme while retaining fourth-order accuracy and PML consistency, which is important for large frequency-domain seismic modeling. The paper provides explicit stencils, dispersion relations, parameter-selection algorithms, and numerical comparisons, and the non-PML convergence experiments in Tables 1-4 show the expected roughly 16-fold error reduction on halving the mesh size. The main gap is that the consistency proof for the PML setting assumes more smoothness than the PML profile specified in the paper actually has, and the numerical examples do not provide a PML-specific convergence study. With that gap addressed, the contribution would justify publication.

major comments (2)

[Section 2, Proposition 2.1 and Eqs. (33)-(39)] The Taylor-expansion proof of Proposition 2.1 assumes that p, A, B, and C are sufficiently smooth for the stated h^4 remainders to be controlled; Eqs. (37) and (39) contain derivatives of A and B up to order five and six (e.g., partial^5_x A and partial^6_x A). However, the PML damping profiles in Eqs. (2)-(3) are only C^1 at the interfaces l_x=0 and l_z=0, since the second derivative of sigma_x and sigma_z jumps from a nonzero value inside the layer to zero outside. Therefore A=sz/sx and B=sx/sz are not C^5 across the interface, and for any grid point whose 17-point or 25-point stencil includes points on both sides of a PML interface, the Taylor remainders in the proof are not bounded. Proposition 2.1 thus does not establish pointwise consistency or fourth-order accuracy in the PML setting that motivates the paper, unless the proof adds a smoothness hypothesis, treats interface-crossing stencils separately, or the PML profile is replaced by a smooth one.
[Section 4, Tables 1-4 and Examples 4.2-4.3] The numerical evidence does not yet fill the smoothness gap in the PML case. Example 4.1, which produces the convergence rates in Tables 1-4, uses Dirichlet boundary conditions with no PML, so the observed fourth-order error reduction does not test the PML claim. Example 4.2 uses a single grid size (nx=nz=51) with no refinement study, and Example 4.3 provides only qualitative wavefield snapshots. To support the central claim, the authors should report a convergence study for the Helmholtz-PML problem with the profile (2)-(3), for example by comparing against a known solution on a truncated domain with PML and measuring the C-norm error as h is halved.

minor comments (6)

[Section 2, Eq. (6)] The fourth term on the right-hand side of Eq. (6) is evaluated at x_{m-3\Delta x/2}, but it should be x_{m+3\Delta x/2}; as written the formula is incorrect.
[Section 2, Eq. (32) and Proposition 2.1 proof] The Taylor expansion for p^*_{m-2,n} in Eq. (32) uses b1 instead of a1; since this expansion is for the 25-point scheme, the coefficient should be a1.
[Section 3, Eqs. (61) and (66)] The symbol 'g' appears in place of 'gamma' in several places, for example '(g4 + 1)' in Eq. (61) and '(g − 1)(g + 1)' in Eq. (66).
[Section 3, Algorithm 2] The 'Result' line of Algorithm 2 says 'a1, . . . ,c4', but the algorithm solves for b1, d2, d3; this should be corrected.
[Section 4.2] The sentence 'From [? ], the analytical solution of this homogeneous model is available' contains a missing citation placeholder; the reference should be supplied.
[Section 2, after Eq. (42)] The discussion states that 'zeta and eta depend on k, A and B' where eta was previously defined as 1+1/gamma^2; the intended quantities are likely zeta and xi, the h^4 coefficients in Eqs. (41)-(42).

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the consistency and fourth-order results are derived by direct Taylor expansion, the parameter optimization is explicit rather than disguised, and the numerical comparisons are external benchmarks.

full rationale

The paper's central derivation, Proposition 2.1, proves consistency and fourth-order accuracy for the point-weighting 25-point and 17-point schemes by expanding the stencil coefficients with Taylor's theorem and showing the truncation error is O(h^4) whenever the parameter normalization conditions hold. This is a direct mathematical derivation, not a restatement of an input or a fitted quantity. The later minimization of the numerical-dispersion functionals is explicitly presented as parameter selection by least squares, so the favorable dispersion curves and reduced phase errors in the examples are consequences of an announced optimization, not hidden fits renamed as predictions. The self-citations to the authors' prior work, especially [25], are used to motivate the new 17-point scheme and to explain why the older 17-point scheme is inconsistent in the PML; however, the new scheme's consistency proof does not depend on those results, so the self-citations are not load-bearing. The reviewer-flagged lack of smoothness of the PML damping profile is a legitimate correctness concern about the domain of validity of the Taylor-based proof, but it is not circularity: the proof would be invalid or incomplete in the PML region if the required derivatives do not exist, yet that does not make the claim equivalent to its inputs by construction. Because the central consistency and accuracy statements are derived from first principles and the parameter-fitting step is explicit and benchmarked against external exact solutions and existing schemes, the paper exhibits no significant circularity.

Assumptions & free parameters 8 free parameters · 4 assumptions · 0 invented entities

The central claims rest on Taylor-expansion smoothness of the solution and PML coefficients, on the standard PML damping model, and on the homogeneous-medium plane-wave model used for dispersion optimization. The fitted weights are numerical coefficients, not physical constants, and are not reported.

free parameters (8)

a1 (25p point-weighting parameter) = not reported; solve least-squares system (76)
Blends axis and off-axis values in the 25p Laplacian stencil; chosen by minimizing dispersion functional J* over IG x Itheta. The paper never lists the value used in the examples.
b1 (17p point-weighting parameter) = not reported; solve least-squares system (77)
Blends axis and off-axis values in the 17p Laplacian stencil; chosen by minimizing J-tilde. Value not listed.
c2 (25p interpolation weight) = not reported
Weight for I(2) in the 25p mass-matrix approximation; c1 = 1 - c2 - c3 - c4; optimized in (82).
c3 (25p interpolation weight) = not reported
Weight for I(3) in the 25p mass-matrix approximation; c1 = 1 - c2 - c3 - c4; optimized in (82).
c4 (25p interpolation weight) = not reported
Weight for I(4) in the 25p mass-matrix approximation; c1 = 1 - c2 - c3 - c4; optimized in (82).
d2 (17p interpolation weight) = not reported
Weight for I(2) in the 17p mass-matrix approximation; d1 = 1 - d2 - d3; optimized in (83).
d3 (17p interpolation weight) = not reported
Weight for I(3) in the 17p mass-matrix approximation; d1 = 1 - d2 - d3; optimized in (83).
IG = [Gmin, Gmax] (optimization interval) = fixed bands such as [2,2.5], [4,5], [10,400], or a priori intervals from Eq. (81)
The optimized weights and all dispersion curves depend on this interval; changing the a priori velocity or frequency range changes the scheme. The paper does not state the least-squares sampling counts l and r.

assumptions (4)

domain assumption Taylor's theorem and sufficient smoothness of p, A, B, C for the expansions in Proposition 2.1
The consistency proof in Eqs. (32)-(42) requires smoothness at least up to the derivatives appearing in the h^4 coefficients; the PML profiles in Eqs. (2)-(3) are only C^1 at the interface, so this assumption is not guaranteed.
domain assumption PML damping profiles from Eqs. (2)-(3) with a0 = 1.79 taken from [26]
The central claim concerns the Helmholtz-PML equation with these specific damping functions; the value a0 is imported from prior literature and not re-derived.
domain assumption Infinite homogeneous medium with plane wave solution for dispersion analysis
The parameter selection in Section 3 minimizes dispersion for constant velocity and A = B = C = 1; the resulting weights are assumed to transfer to heterogeneous and PML regions.
standard math Least-squares solution of the overdetermined systems (76) and (77) yields parameters that minimize J* and J-tilde
The optimization step relies on standard linear algebra; the paper does not address uniqueness, local minima, or sensitivity of the least-squares problem.

how reviews work

0 comments

Cite this review

Pith. "Pith review of A generalized optimal fourth-order finite difference scheme for a 2D Helmholtz equation with the perfectly matched layer boundary condition." pith.science (2026). https://pith.science/paper/VRX7LB2U

@misc{pith2026190807403,
  author       = {Pith},
  title        = {Pith review of: A generalized optimal fourth-order finite difference scheme for a 2D Helmholtz equation with the perfectly matched layer boundary condition},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/VRX7LB2U}},
  note         = {Machine review of arXiv:1908.07403}
}

read the original abstract

A crucial part of successful wave propagation related inverse problems is an efficient and accurate numerical scheme for solving the seismic wave equations. In particular, the numerical solution to a multi-dimensional Helmholtz equation can be troublesome when the perfectly matched layer (PML) boundary condition is implemented. In this paper, we present a general approach for constructing fourth-order finite difference schemes for the Helmholtz equation with PML in the two-dimensional domain based on point-weighting strategy. Particularly, we develop two optimal fourth-order finite difference schemes, optimal point-weighting 25p and optimal point-weighting 17p. It is shown that the two schemes are consistent with the Helmholtz equation with PML. Moreover, an error analysis for the numerical approximation of the exact wavenumber is provided. Based on minimizing the numerical dispersion, we implement the refined choice strategy for selecting optimal parameters and present refined point-weighting 25p and refined point-weighting 17p finite difference schemes. Furthermore, three numerical examples are provided to illustrate the accuracy and effectiveness of the new methods in reducing numerical dispersion.

Figures

Figures reproduced from arXiv: 1908.07403 by the authors.

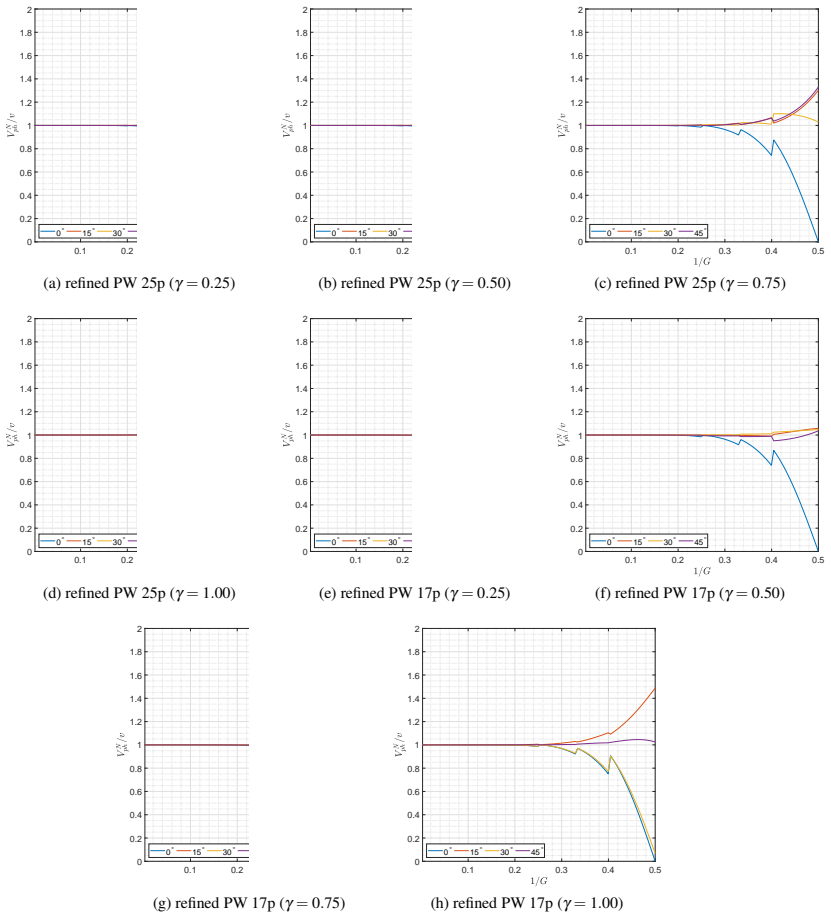

**Figure 2.** Normalized group velocity curves for various sche [PITH_FULL_IMAGE:figures/full_fig_p020_2.png] view at source ↗

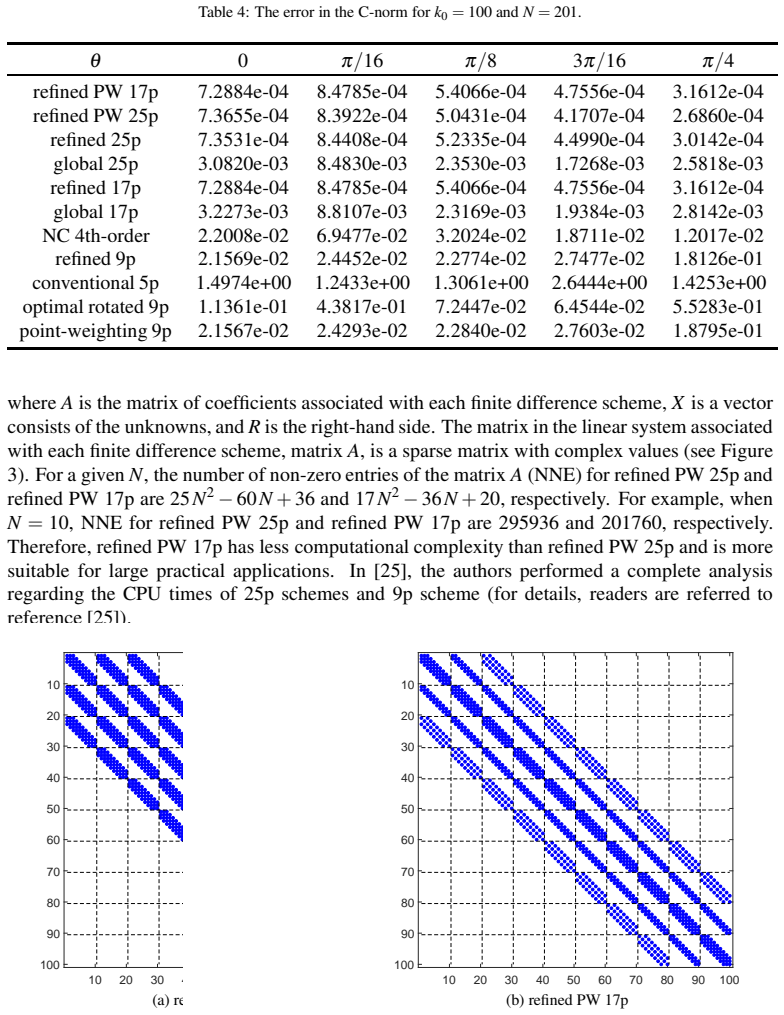

**Figure 3.** The matrix in the linear systems with N = 10. The results of this example can be summarized as follows. The two new schemes, refined PW 25p, and refined PW 17p have shown a comparable level of accuracy with that of available 24 [PITH_FULL_IMAGE:figures/full_fig_p024_3.png] view at source ↗

Figures from the paper (6 more)

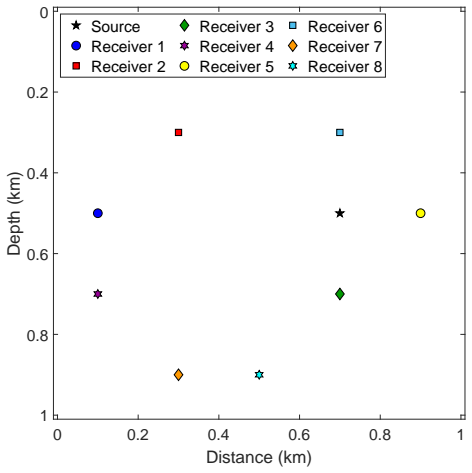

**Figure 4.** Figure 4: Source and Receiver locations [PITH_FULL_IMAGE:figures/full_fig_p026_4.png]

**Figure 5.** Figure 5: Exact and numerical solutions for Receivers 1,2,3 [PITH_FULL_IMAGE:figures/full_fig_p027_5.png]

**Figure 6.** Figure 6: Exact and numerical solutions for Receivers 5,6, 7 [PITH_FULL_IMAGE:figures/full_fig_p028_6.png]

**Figure 7.** Figure 7: The monofrequency wavefield (real part) for [PITH_FULL_IMAGE:figures/full_fig_p029_7.png]

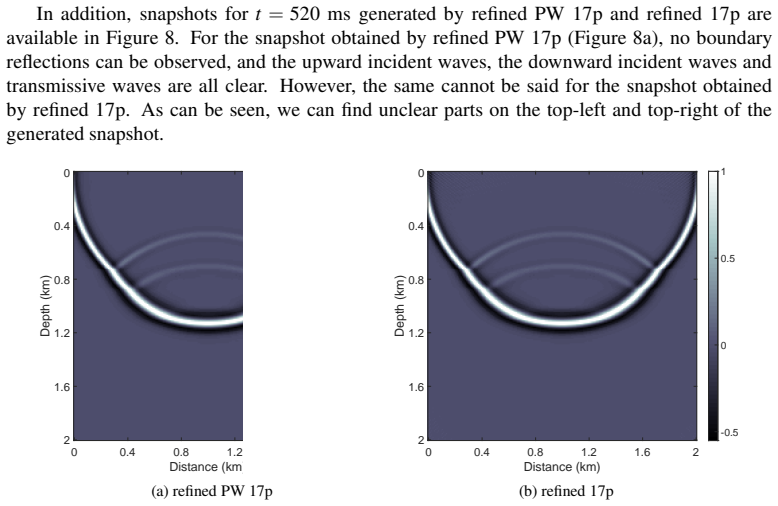

**Figure 8.** Figure 8: Snapshots for t = 520 ms generated by various schemes We have also placed a receiver at (xr ,zr) = (500,0) (See Figure 7b) and plotted the corresponding numerical solution computed by refined PW 17p and refined 17p in [PITH_FULL_IMAGE:figures/full_fig_p030_8.png]

**Figure 9.** Figure 9: The numerical solution by various schemes [PITH_FULL_IMAGE:figures/full_fig_p030_9.png]
