Peripheral convex expansions of resonance graphs

Zhongyuan Che

REVIEW 3 major objections 5 minor 16 references

Peripheral convex expansions of resonance graphs

T0 review · 3 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Resonance graphs of plane elementary bipartite graphs grow from a single edge by peripheral convex expansions exactly when the infinite face is forcing.

desk verdict A clean characterization of resonance graphs that genuinely generalizes known results, but the proof carries a citation-scope gap that a referee should pin down before the theorem is trusted. read the letter →

arxiv 1908.09342 v1 pith:IAKR42Q7 submitted 2019-08-25 math.CO

Zhongyuan Che This is my paper · ORCID

classification math.CO MSC 05C7005C1005C75

keywords resonancegraphperipheralconvexexpansionreduciblefacedecompositionforcingplaneelementarybipartitedistributivelatticemedianZ-transformation

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper proves a characterization of when a resonance graph can be assembled from a single edge. For a plane elementary bipartite graph $G$, the resonance graph $Z(G)$ — whose vertices are perfect matchings of $G$ and whose edges join two matchings that differ exactly around one finite face — can be obtained from an edge by a sequence of peripheral convex expansions following a reducible face decomposition of $G$ if and only if the infinite face of $G$ is forcing. A forcing infinite face means its boundary is an even cycle whose removal leaves at most one perfect matching. The result matters because it reduces a global structural question about a potentially large graph of matchings to a local, checkable condition on one face, and it gives an explicit construction of the whole resonance graph from that condition.

What carries the argument

The load-bearing object is the resonance graph $Z(G)$ and the expansion operation that builds it. A peripheral convex expansion is a convex expansion in which one of the two isometric subgraphs is the whole starting graph and the other is a convex subgraph; the new graph is formed by taking disjoint copies of the two subgraphs and adding an edge between corresponding vertices of their intersection. A reducible face decomposition builds $G$ face by face, each step adding one finite face by an odd-length boundary path. The proof's central mechanism is Lemma 3.2, which converts the expansion into a one-step lattice-height statement: $Z(G)$ is a peripheral convex expansion of $Z(H)$ if and only if $\operatorname{height}(M(G)) = \operatorname{height}(M(H)) + 1$. The height formula (1), summing the face contributions $\varphi_{\hat M_1}(f)$, ties this lattice height back to the geometry of alternating cycles and forces the all-contributions-equal-one condition.

What would settle it

Compute a plane elementary bipartite graph with a non-hexagonal finite face and test whether $d_{Z(G)}(\hat M_1,\hat M_0) = \sum_{f\in F} \varphi_{\hat M_1}(f)$; any inequality would falsify the imported height formula and therefore the necessity proof. More directly, find a graph whose infinite face is forcing but whose resonance graph cannot be assembled from an edge by peripheral convex expansions along any reducible face decomposition, which would disprove Theorem 3.3.

Watch

Extended reading notes

Core claim

The central claim is Theorem 3.3: $Z(G)$ is constructible from an edge by peripheral convex expansions with respect to a reducible face decomposition of $G$ exactly when the infinite face of $G$ is forcing. The proof works through the distributive lattice of perfect matchings. It uses the height formula $\operatorname{height}(M(G)) = \sum_{f\in F} \varphi_{\hat M_1}(f)$, where $\varphi_{\hat M_1}(f)$ counts the $(\hat M_1,\hat M_0)$-alternating cycles whose interior contains the finite face $f$, and shows via Lemma 3.2 that each peripheral convex expansion over a reducible face raises the lattice height by exactly one. Hence a graph built from an edge in $n$ steps has height $n$, and the forcing condition is exactly what makes every finite face contribute one to the height; a non-forcing infinite face forces some face to contribute at least two, which blocks the construction.

Load-bearing premise

The necessity proof assumes that the height formula and Lemmas 2.4 and 2.5 from reference [13], originally proved for benzenoid systems, hold for every plane elementary bipartite graph; if those results are limited to hexagonal systems, the contradiction argument that every finite face contributes exactly one to the height collapses.

Editorial extensions

If this is right

If the infinite face of $G$ is forcing, Theorem 3.3 supplies an explicit inductive construction of the entire resonance graph $Z(G)$ starting from a single edge.
For a plane elementary bipartite graph with $n$ finite faces, constructibility is equivalent to $\operatorname{height}(M(G)) = n$ and to $\varphi_{\hat M_1}(f) = 1$ for every finite face $f$.
The paper's Corollary 3.4 says that if every finite face of $G$ has a vertex on the outer boundary, then $Z(G)$ is constructible from an edge.
The constructibility condition does not by itself force the graph $\Theta(Z(G))$ to be isomorphic to the inner dual of $G$; the paper gives two examples and leaves that stronger characterization as Question 3.1.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

Inference: The imported height formula (1) is the true bottleneck of the proof; verifying it on a non-benzenoid plane elementary bipartite graph would show whether the characterization extends, needs a different proof, or fails outside the hexagonal setting.
Inference: Because forcing of the infinite face is equivalent to $\hat M_0 \oplus \hat M_1 = \partial G$, the theorem yields a polynomial-time certificate for constructibility: check that the symmetric difference of the two extremal perfect matchings is exactly the outer boundary.
Inference: Since resonance graphs are median graphs, the expansion description suggests that constructible resonance graphs are exactly those median graphs whose $\Theta$-classes can be ordered level by level to match a reducible face decomposition; this is a testable structural conjecture, not a claim of the paper.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

Quick take: Theorem 3.3 is a real advance over the outerplane and catacondensed results, and the equivalence with "the infinite face is forcing" is a clean, memorable criterion. The proof route — height formula plus the cover lemma — is coherent, and the sufficiency argument is elegant once Lemma 3.2 is granted. I think the paper deserves a serious referee, but the referee should press hard on one thing: the unqualified use of [13].

The novelty is genuine. The characterization is not contained in the earlier work, and the class of plane elementary bipartite graphs is substantially wider than benzenoid systems. The author is careful to distinguish the new result from [3] and [11] in the final section.

The main soft spot is the citation transfer. Formula (1) and Lemmas 2.4 and 2.5 are taken from a paper whose title says "benzenoid systems." The present manuscript never argues that those results, or their proofs, hold for arbitrary plane elementary bipartite graphs. The necessity direction of Theorem 3.3 leans on this: the chain φ_{M̂1}(s) ≥ φ_{M'1}(s) ≥ 2 is built on the difference lemma and the cover criterion. If those lemmas are in fact restricted to hexagonal systems, the only-if direction does not go through. This is not a demonstrated error; it is an unstated assumption. A referee can ask for a proof or a broader citation, and it may well be that the lemmas generalize without new ideas. But the burden is on the author.

The other terse steps are less worrying. The unique extension of a perfect matching of H to one of G in M(G;P−) is a short parity/path argument. The "choose x as the minimum" in Lemma 3.2 is a bit hand-wavy but can be justified by taking a path that goes through the minimum of the sublattice before crossing the face-label edge. Those are presentation gaps.

Bottom line: this is a paper for the resonance graph and mathematical chemistry crowd, not a broad-audience result. It deserves peer review. I'd recommend asking the author to clarify the scope of the cited results and clean up Lemma 3.2. My own verdict would hinge on the answer to the [13] question.

Referee Report

3 major / 5 minor

Summary. The paper characterizes, for a plane elementary bipartite graph G, when the resonance graph Z(G) can be obtained from a single edge by a sequence of peripheral convex expansions with respect to a reducible face decomposition. The main result (Theorem 3.3) states that this happens exactly when the infinite face of G is forcing. The proof works with the distributive lattice of perfect matchings of G, uses a height formula expressing the lattice height as a sum over finite faces of a function φ, and then relates equality in that height formula to the forcing-face condition and to the possibility of building Z(G) by peripheral convex expansions.

Significance. If the proof is made fully rigorous, the result is a clean and natural characterization that generalizes earlier work on outerplane bipartite graphs and catacondensed hexagonal systems. The connection between forcing faces and convex expansion structure is elegant, and the paper gives useful examples showing that the associated Θ-graph need not be a tree. The main proof strategy, reducing the problem to a height computation in the perfect-matching lattice, is well chosen. However, the correctness of the central implication depends on the applicability of several results from a cited paper whose title targets benzenoid systems, and on a few terse steps in the proof that need to be spelled out.

major comments (3)

[Section 3, Theorem 3.3, formula (1) and necessity direction] The proof relies on Theorem 3.2 and Lemmas 2.4 and 2.5 of [13] to establish the height formula (1) and the inequalities φ_{M'_1}(s) − φ_{M'_2}(s) = ψ_{M'_1M'_2}(s) and φ_{M̂1}(s) ≥ φ_{M'_1}(s). The cited paper is titled "Resonance graphs and a binary coding for the 1-factors of benzenoid systems," and the present manuscript gives no argument that its statements, or their proofs, apply to the strictly larger class of all plane elementary bipartite graphs. Since this class includes non-hexagonal examples such as rectangular grids, the "only if" direction of Theorem 3.3 collapses if those results are in fact restricted to benzenoid systems. Please either quote the exact theorems from [13] confirming that they hold for all plane elementary bipartite graphs, or provide self-contained proofs of the needed statements.
[Lemma 3.2 and sufficiency direction of Theorem 3.3] The statement of Lemma 3.2 gives an equivalence with the equality height(M(G)) = height(M(H)) + 1, but the proof of Theorem 3.3 uses the stronger assertion that height(M(G_i)) ≥ height(M(G_{i-1})) + 1 for every reducible face decomposition, with equality exactly in the peripheral-expansion case. This inequality is not part of the lemma as stated, even though the proof of Lemma 3.2 suggests it. In addition, in the sufficiency proof of Lemma 3.2 the sentence "In particular, we can choose x as the minimum element of the sublattice (M(G;P^−), ≤)" is not justified as written: an arbitrary directed path's crossing edge need not have the minimum element as an endpoint, and one must show that a directed path can be chosen whose F-edge starts at that minimum and that the partner vertex in M(G;P^+,∂s) is not M̂0. Please state the inequality explicitly and supply the missing argument.
[Theorem 3.3, necessity direction, extension of M1 and M2] The proof says "It is clear that M1 (resp., M2) can be extended to a perfect matching M'_1 (resp., M'_2) of G such that both C and ∂G are proper M'_1-alternating and improper M'_2-alternating, and C is not contained in any (M'_1,M'_2)-alternating cycles other than ∂G." This extension step is load-bearing because it is used to produce a face s with ψ_{M'_1M'_2}(s) ≥ 2 and hence φ_{M'_1}(s) ≥ 2. The existence of such an extension is not immediate from the hypotheses, especially for an arbitrary perfect matching M1 of G − V(∂G), and the orientation compatibility with ∂G needs a proof. Please either prove this extension lemma or give a precise reference.

minor comments (5)

[Introduction, first paragraph] There is a typo: "The we obtain a graph" should read "Then we obtain a graph."
[Abstract and Introduction] The abstract contains a spacing typo in "elem entary"; the same word is also broken across lines in the introduction. Please fix the formatting.
[Section 2, notation for M(G;P^−,∂s)] The notation M(G;P^-, \overline{\partial s}) is introduced without defining the overline notation. Please define it explicitly as the complement of the set M(G;P^-,∂s).
[Proof of Theorem 3.3] The sentence "By Theorem 3.2 in [13] states that ..." is grammatically awkward and should be rewritten as "By Theorem 3.2 of [13], ... ."
[Lemma 3.2] Since the proof of Theorem 3.3 uses the strict inequality height(M(G_i)) > height(M(G_{i-1})) + 1 in the non-peripheral case, it would be clearer to incorporate this inequality into the statement of Lemma 3.2 or to state it as a separate corollary.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: the characterization in Theorem 3.3 is derived from independent lattice, median-graph, and external results, with no step reducing to its own input.

full rationale

Theorem 3.3 characterizes when Z(G) is obtained from an edge by peripheral convex expansions with respect to a reducible face decomposition in terms of the infinite face being forcing. The two notions are not defined in terms of each other: forcing faces are defined by unique perfect matchings after removing boundary vertices, while peripheral convex expansions are defined via isometric/convex subgraphs and Θ-classes. The proof's height formula (1), height(M(G)) = Σ φ_{M̂1}(f), is imported from Theorem 3.2 of [13], an external published result on resonance graphs, and the φ_M(f) quantities count alternating cycles containing faces in their interiors; they are not defined by the expansion structure or by the forcing-face property. The necessity direction then uses the assumed expansion sequence via Lemma 3.2 to obtain height = |F|, deduces φ_{M̂1}(f)=1, and reaches a contradiction if the infinite face is not forcing; the contradiction uses Lemmas 2.4 and 2.5 of [13] about differences of φ-values and cover relations in the distributive lattice of perfect matchings. None of these steps is equivalent to the statement being proved. The author's earlier Theorem 2.2 from [2] is used structurally in Lemmas 3.1 and 3.2, but it is a separate published result about reducible face decompositions of plane elementary bipartite graphs and is not a restatement of the forcing-face characterization. The only substantive concern is whether the lemmas and height formula from [13], whose title addresses benzenoid systems, extend without modification to all plane elementary bipartite graphs; if they do not, the proof has a completeness gap, but that is a correctness risk, not a circularity. No fitted parameters are renamed as predictions, no uniqueness theorem is imported from the present authors to force a choice, and no ansatz is smuggled in via citation. The derivation chain is self-contained relative to its cited external results, and no circular reduction is exhibited.

Assumptions & free parameters 0 free parameters · 4 assumptions · 0 invented entities

Pure mathematics proof; no fitted parameters and no new entities. The load-bearing inputs are cited theorems plus several unproven assertions about extension and scope; the ledger highlights the assertions that a reader cannot verify without leaving the paper.

assumptions (4)

domain assumption height(M(G)) = Σ_{f∈F} φ_{M̂1}(f) for every plane elementary bipartite graph G.
Formula (1) in the proof of Theorem 3.3, cited from [13] without proof; [13] targets benzenoid systems and the paper does not justify extending the formula to all plane elementary bipartite graphs.
domain assumption Lemmas 2.4 and 2.5 of [13] hold for all plane elementary bipartite graphs.
Used in the necessity direction of Theorem 3.3; same scope issue as the height formula.
ad hoc to paper Any two perfect matchings of G - V(∂G) extend to perfect matchings of G making C and ∂G proper/improper alternating as claimed.
Stated as 'It is clear' in Theorem 3.3 necessity; no proof is supplied and the claim is load-bearing.
ad hoc to paper For every reducible face decomposition, height(M(G_i)) ≥ height(M(G_{i-1})) + 1.
Invoked in the sufficiency direction of Theorem 3.3 without being explicitly stated or derived; follows only implicitly from the proof of Lemma 3.2.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Peripheral convex expansions of resonance graphs." pith.science (2026). https://pith.science/paper/IAKR42Q7

@misc{pith2026190809342,
  author       = {Pith},
  title        = {Pith review of: Peripheral convex expansions of resonance graphs},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/IAKR42Q7}},
  note         = {Machine review of arXiv:1908.09342}
}

abstract

In this paper, we show that the resonance graph of a plane elementary bipartite graph $G$ can be obtained from an edge by a sequence of peripheral convex expansions with respect to a reducible face decomposition of $G$ if and only if the infinite face of $G$ is forcing.

Figures

Figures reproduced from arXiv: 1908.09342 by the authors.

**Figure 1.** An Example for Theorem 3.3. Proof. Let (M(G), ≤) be the finite distributive lattice on the set of all perfect matchings of G with the maximum Mb1 and the minimum Mb0 . Let ∂G denote the boundary of G. By [10], ∂G is both Mb0 -alternating and Mb1 -alternating. Then ∂G is an (Mb1 , Mb0 )-alternating cycle. Let F be the set of all finite faces of G and f ∈ F. Define φM(f) as the number of (M, Mb0 )-alternating cycles i… view at source ↗

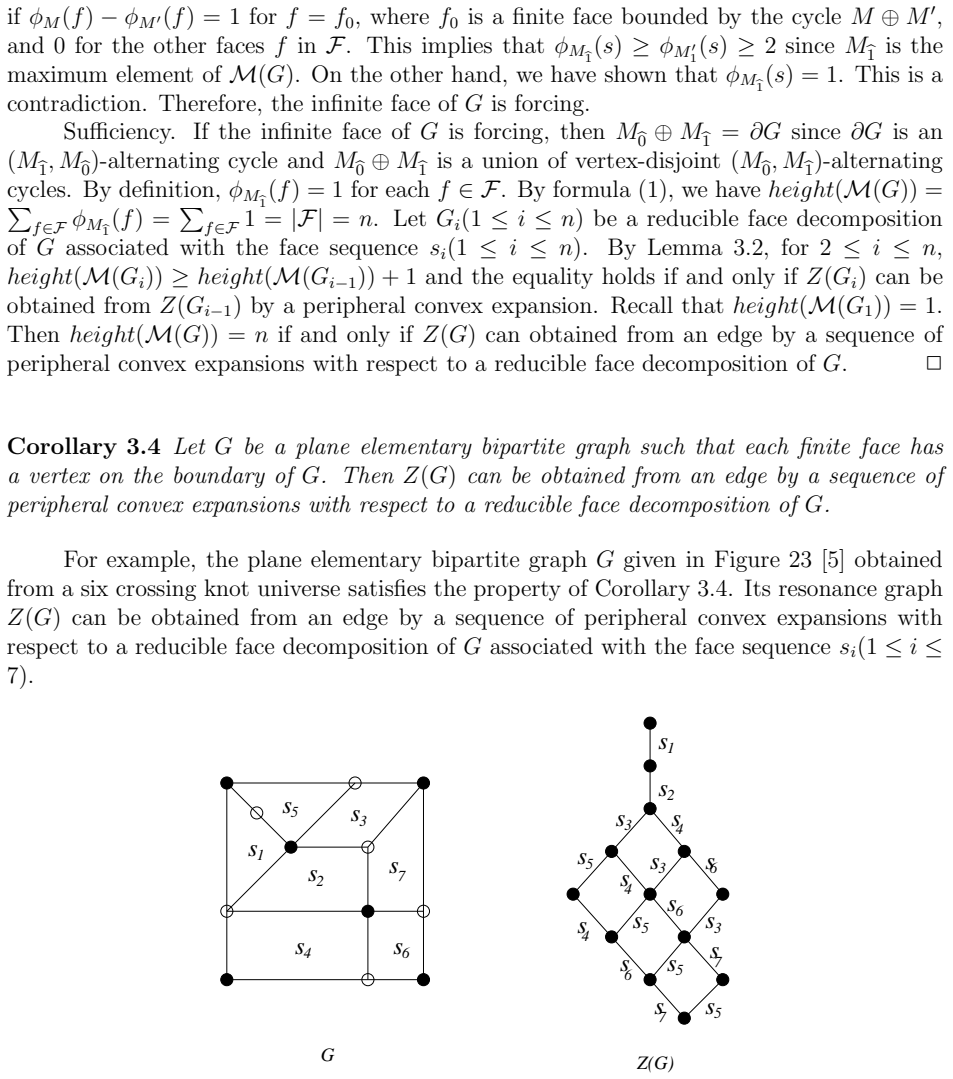

**Figure 2.** An example for Corollary 3.4 from Figure 23 in [5]. [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
