Partitioned Exponential Methods for Coupled Multiphysics Systems

T0 review · 3 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Partitioned exponential methods hit third order for multiphysics ODEs

desk verdict New partitioned exponential families with genuine B-series order-conditions work, but the practical third-order claim only holds in the non-stiff regime and the stiff tests undermine the headline. read the letter →

arxiv 1908.09434 v2 pith:BPJRY7FA submitted 2019-08-26 math.NA cs.CEcs.NA

Mahesh Narayanamurthi , Adrian Sandu This is my paper · ORCID
classification math.NAcs.CEcs.NA MSC 65L0565L0665M20
keywords partitionedexponentialintegratorsmultiphysicssystemstimeintegrationorderconditionsB-seriesrootedtreesreaction-diffusionW-methods
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper proposes a new way to time-step coupled multiphysics systems: split the right-hand side into two physical processes and integrate each process with its own exponential integrator, exchanging information between partitions through coupling terms. It develops a B-series order-conditions theory for such partitioned exponential schemes using a new class of rooted trees, the TPS-trees, and uses that theory to construct several practical third-order methods, PEXPW3A/B and PEPIRKW3A/B. The payoff is that matrix-exponential products can be evaluated on each partition's Jacobian separately, which is cheaper when those Jacobians have block structure, as in reaction-diffusion systems. The experiments show these methods can beat unpartitioned exponential integrators on some problems, but also reveal order reduction and failure on stiffer tests.

What carries the argument

TPS-trees are the central object: a four-node-type generalization of Butcher's rooted trees, with square nodes representing the approximate Jacobians of the two partitions and round nodes representing the two component functions. Along with B-series operations for composing functions, multiplying by matrices, and applying matrix functions, the TPS-trees reduce the derivation of order conditions to matching B-series coefficients tree by tree. The generalized additive stage formulation is what lets each partition carry its own stages while coupling terms exchange information.

What would settle it

Measure the empirical convergence order of PEXPW3A on a stiff semilinear parabolic problem with a known exact solution down to machine precision; if the error decays as $h^3$ the central practical claim is supported, whereas the paper's reported orders of about 1.3 to 1.7 would indicate that the classical order conditions do not carry over to the stiff regime.

Watch

Extended reading notes

Core claim

The paper claims that a partitioned exponential integrator, in which each physical partition is evolved with its own exponential scheme and partitions exchange information through a generalized additive Runge-Kutta-like stage structure, can be built to have classical third-order accuracy. The order conditions are captured by TPS-trees and B-series: a W-type partitioned exponential method has order p exactly when its B-series coefficients match the exact solution on every TPS-tree of order at most p. Using this machinery, the paper constructs several explicit third-order methods with embedded second-order schemes, and proves that a direct partitioned sEPIRK formulation cannot exceed first order. On the Lorenz-96 system the new methods show full third-order convergence; on reaction-diffusion problems the PEXPW methods show reduced order but remain more efficient than unpartitioned alternatives in several regimes.

Load-bearing premise

The load-bearing premise is that classical non-stiff order conditions, matching Taylor expansion coefficients in powers of the step size, are the right design criterion for these integrators even when the underlying partitions are stiff, so that a method satisfying the TPS-tree conditions will actually converge at third order on stiff multiphysics problems.

Editorial extensions

If this is right

  • PEXPW3A and PEXPW3B achieve their full third-order rate on the non-stiff Lorenz-96 test, confirming that the new B-series machinery produces working methods in the classical setting.
  • On moderately stiff Allen-Cahn problems and on a reversible Gray-Scott system, the partitioned exponential methods can be more stable and more efficient than unpartitioned EPIRKW methods, making them attractive for reaction-diffusion simulations.
  • Evaluating matrix functions on individual Jacobians enables block-parallel and permutation-based optimizations; the paper reports a parallel variant of PEXPW3A that runs about twice as fast as its serial version on Gray-Scott.
  • On very stiff Allen-Cahn problems with reaction coefficient 1000, the partitioned methods fail to produce a solution while an unpartitioned method succeeds, so unpartitioned methods remain necessary in the most stiff regimes.
  • The PEPIRKW3A/B methods, although third order on Lorenz-96, fail on the stiff parabolic and Allen-Cahn tests, indicating that the EPIRK-type partitioned family is not yet practical for stiff reaction-diffusion problems.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The order reduction seen in the paper's stiff tests suggests that stiff-order conditions, rather than classical non-stiff ones, are needed before these methods can claim third-order accuracy on the reaction-diffusion applications they target.
  • A natural next step is to extend the TPS-tree machinery to fourth-order methods or to embedded pairs with stiff error estimators, since the paper's construction is limited to third order by its stage counts.
  • When the W matrices vanish, the partitioned exponential structure degenerates to a generalized additive Runge-Kutta method, so stability and convergence results from partitioned Runge-Kutta theory could be used to design coupling coefficients that behave well beyond the weak-interaction regime.
  • For large chemical systems, the block-diagonal reaction Jacobian should permit further parallel speedups if the permutation and block evaluations are parallelized; the paper only parallelized the diffusion part.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper proposes a new family of partitioned exponential time integrators for systems of ODEs whose right-hand side is a sum of two component functions, such as reaction-diffusion and other multiphysics problems. For each partition, the method evolves its own exponential integrator (of EXP or EPIRK type) and exchanges information through GARK-like coupling coefficients. The theoretical core is a B-series framework based on TPS-trees, from which classical (non-stiff) order conditions are derived and several third-order methods (PEXPW3A/B, PEPIRKW3A/B, and a PSEPIRK variant) are constructed. The paper includes implementation optimizations for reaction-diffusion systems and numerical experiments. The Lorenz-96 test confirms the designed third order, but on stiff semilinear parabolic and Allen-Cahn problems the PEXPW methods show order reduction (to about 1.3 and 1.8, respectively), and the PEPIRKW methods fail to return a solution; at high stiffness (γ=1000) PEXPW also fails.

Significance. The order-conditions machinery is a substantial theoretical contribution: the TPS-tree/B-series analysis is carried out in detail, concrete methods with explicit coefficients are presented, and the implementation optimizations (permuted reaction Jacobians, block-diagonal structure, adaptive Krylov dimension) are practical and well motivated. The Lorenz-96 experiment provides a clean confirmation of the classical order. However, the practical significance for stiff multiphysics problems is not established. The paper's own experiments show that the methods do not retain third order in the stiff regime, and the absence of stiff-order or stability analysis leaves the central practical claim unsupported. The presented methodology is nevertheless a novel and potentially useful step toward partitioned exponential integrators, provided the claims are properly scoped.

major comments (3)
  1. [Section 7.3, Table 3] Table 3 (Fixed Timestep Experiments, Semilinear Parabolic and Allen-Cahn rows) shows that PEXPW3A/3B exhibit empirical convergence orders of about 1.31–1.32 and 1.77–1.88, respectively, while PEPIRKW3A/3B produce no solution on either problem. This directly contradicts the abstract and Section 5, which describe these methods as 'practical methods of third order.' The numerical evidence supports third order only for the non-stiff Lorenz-96 problem (orders ≈ 3.0) and, in the adaptive setting, for the reversible Gray-Scott problem (PEXPW3A order 2.99). The claim of practical third-order performance on stiff multiphysics problems is therefore not sustained by the experiments.
  2. [Section 4.5, Theorem 4.4] The order conditions in Theorem 4.4 are purely classical (non-stiff), with the W matrices treated as arbitrary and all W-dependent B-series coefficients forced to vanish. No stiff-order conditions, no convergence analysis in the stiff limit, and no linear stability analysis of the partitioned coupling are provided. The order reduction observed in Section 7.3 is the expected consequence of this gap: explicit coupling between partitions and the arbitrary nature of W prevent the methods from retaining their designed order when the linear parts are stiff. The authors should either add a stiff-order analysis (e.g., extending Hochbruck-Ostermann-type conditions to the partitioned setting) or explicitly restrict the third-order claim to non-stiff or weakly coupled partitions.
  3. [Section 7.4, Figure 7] At γ=1000 in the Allen-Cahn adaptive experiments, PEXPW methods fail to return a solution, confirming the stability limitation acknowledged in Section 8. The paper's broad framing as a method family for coupled multiphysics systems would be better balanced by a clear statement in the abstract and introduction that the methods are intended for problems in which the stiff partitions interact weakly, and that for strongly coupled stiff problems unpartitioned exponential integrators remain preferable.
minor comments (5)
  1. [Section 6] In the paragraph on block-diagonal Jacobians, 'These properties do not hols' should read 'do not hold' (typo).
  2. [Section 7.4] In the reversible Gray-Scott paragraph, 'PEXP3WA' should be 'PEXPW3A'.
  3. [Theorem 4.4] The theorem states that a method 'has order p only if' the B-series coefficient conditions hold; for B-series methods these conditions are also sufficient in the non-stiff setting, so the statement should likely read 'if and only if' or 'if' to justify their use as a construction tool.
  4. [Appendix E] The order-condition tables run to over a hundred pages; consider moving the full tables to an electronic supplement and keeping in the paper a compact algebraic formulation or a short table of independent conditions.
  5. [Definition 4.2] The symbolic notation for the four TPS-tree node types is difficult to parse; a figure showing the node shapes and examples of admissible trees would improve readability.

Circularity Check

0 steps flagged · score 1.0 of 10

No significant circularity: the methods are constructed by solving classical B-series order conditions and validated against independent ode45/ode15s reference solutions; self-citations provide prior frameworks, not the target result.

full rationale

The paper's central derivation is self-contained against an external standard. The order conditions are not fitted to benchmark data but are obtained by equating the B-series of the numerical solution to that of the exact solution: Section 4.5 states 'Order conditions are constructed for each method by equating the coefficients of the B-series expansion y_{n+1} of the numerical solution to those of the exact solution y(t_n + h) up to the desired order of accuracy,' and Theorem 4.4 formalizes the matching conditions. Section 5 then describes solving these algebraic equations with Mathematica to obtain coefficients for PEXPW3A/B and PEPIRKW3A/B. The claimed order is explicitly classical (non-stiff), and the numerical checks compare against independent reference solutions produced by ode45 and ode15s with tight tolerances, so the convergence results are not predetermined by the construction. The paper's self-citations to GARK, EPIRK-W, and Exponential-Krylov work are used as methodological scaffolding and for the B# operator, but the order-condition derivation and the concrete coefficient tables are presented in this manuscript rather than imported as a black-box theorem. The authors' own admission that the methods suffer order reduction on stiff problems (e.g., PEXPW order near 1.3 on the semilinear parabolic problem and PEPIRKW failures) is a stability/accuracy limitation in the stiff regime, not circularity, because the stated order guarantee is confined to the classical non-stiff setting. No load-bearing claim reduces by definition to its inputs, and no fitted parameter is renamed as a prediction.

Assumptions & free parameters 2 free parameters · 4 assumptions · 0 invented entities

No empirical free parameters are fitted to benchmark outputs; method coefficients are solved from exact order conditions, and the only tunable choices are user-supplied W approximations and Krylov tolerances. The central fragility is the use of classical non-stiff order conditions for stiff problems, as acknowledged by the observed order reduction.

free parameters (2)
  • PEPIRKW g coefficients (undetermined scaling factors) = Values reported in Appendix C, including 0.1 entries
    After solving the order-condition family, remaining g coefficients were optimized for small magnitude in Section 6. This is a design choice for efficiency, not a fit to benchmark data, and it does not affect the claimed order.
  • Partition Jacobian approximations W^1 and W^2 = Problem-dependent matrices from Table 4, e.g., full J, diagonal J, diffusion Jacobian
    W-type methods allow arbitrary W, but stability depends on W being close to the true Jacobian. The paper provides no general prescription for choosing W, so practical performance relies on this user-supplied choice.
assumptions (4)
  • standard math Standard B-series and rooted-tree formalism for order conditions
    Invoked throughout Section 4 and Appendix E from Butcher, Hairer, Wanner, and prior exponential integrator literature.
  • domain assumption Each partition can be written as f^m(y) = L^m y + N^m(y), with L^m capturing stiffness
    Equation (2) in Section 2; the entire splitting strategy requires the linear part to carry the stiffness and the nonlinear remainder to be handled by coupling and interpolation.
  • standard math W-method order theory permits replacing exact Jacobians by arbitrary matrices W^m while preserving classical order
    Adopted from Steihaug and Wolfbrandt and Hairer and Wanner; the accuracy claim holds for any W, while stability requires W near the Jacobian.
  • domain assumption Classical non-stiff order conditions govern the accuracy of these methods on stiff multiphysics problems
    Theorem 4.4 derives only classical order conditions. Section 7.3 shows order reduction on stiff PDEs, so this assumption is the main fragility of the practical third-order claim.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Partitioned Exponential Methods for Coupled Multiphysics Systems." pith.science (2026). https://pith.science/paper/BPJRY7FA

@misc{pith2026190809434,
  author       = {Pith},
  title        = {Pith review of: Partitioned Exponential Methods for Coupled Multiphysics Systems},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/BPJRY7FA}},
  note         = {Machine review of arXiv:1908.09434}
}
read the original abstract

Multiphysics problems involving two or more coupled physical phenomena are ubiquitous in science and engineering. This work develops a new partitioned exponential approach for the time integration of multiphysics problems. After a possible semi-discretization in space, the class of problems under consideration is modeled by a system of ordinary differential equations where the right-hand side is a summation of two component functions, each corresponding to a given set of physical processes. The partitioned-exponential methods proposed herein evolve each component of the system via an exponential integrator, and information between partitions is exchanged via coupling terms. The traditional approach to constructing exponential methods, based on the variation-of-constants formula, is not directly applicable to partitioned systems. Rather, our approach to developing new partitioned-exponential families is based on a general-structure additive formulation of the schemes. Two method formulations are considered, one based on a linear-nonlinear splitting of the right hand component functions, and another based on approximate Jacobians. The paper develops classical (non-stiff) order conditions theory for partitioned exponential schemes based on particular families of T-trees and B-series theory. Several practical methods of third order are constructed that extend the Rosenbrock-type and EPIRK families of exponential integrators. Several implementation optimizations specific to the application of these methods to reaction-diffusion systems are also discussed. Numerical experiments reveal that the new partitioned-exponential methods can perform better than traditional unpartitioned exponential methods on some problems.

Figures

Figures reproduced from arXiv: 1908.09434 by the authors.

Figure 1
Figure 1. Structure of the Jacobians of the different operators in a two-species reaction-diffusion system. Note that the each of the blocks of the diffusion Jacobian has (an almost) sparse diagonal structure with the number of diagonals dependent on the spatial discretization. We can then approximate the Jacobian of reaction-diffusion systems by choosing from any of the four components in [PITH_FULL_IMAGE:figures/full_fig_p… view at source ↗
Figure 3
Figure 3. PEPIRKW methods fail to solve the problem. PEXPW methods show order reduction (Table [PITH_FULL_IMAGE:figures/full_fig_p022_3.png] view at source ↗
Figure 2
Figure 2. Fixed timestep experiment on the Lorenz-96 system (13). All methods show full convergence order. Allen-Cahn results. We numerically solve a two dimensional version of the PDE (15), semi-discretized using standard second-order finite differences on a 150 × 150 grid, with the diffusion coefficient α = 1, and the reaction coefficient γ = 10. The ODE system obtained after semi-discretization is integrated in time from t… view at source ↗
Figures from the paper (7 more)
Figure 3

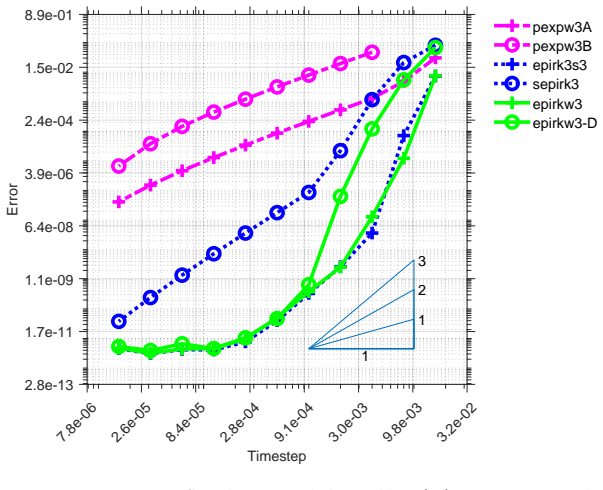

Figure 3. Figure 3: Fixed timestep experiment on 1-D Semi-linear Parabolic Problem (14). PEPIRKW methods did not produce a solution, PEXPW methods show order ≈ 1.3. Convergence order of other methods are shown in [PITH_FULL_IMAGE:figures/full_fig_p024_3.png]
Figure 5

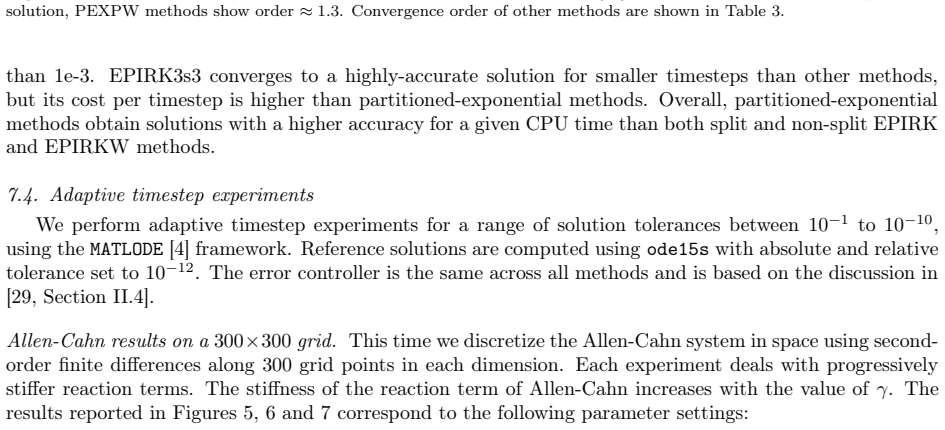

Figure 5. Figure 5 [PITH_FULL_IMAGE:figures/full_fig_p024_5.png]
Figure 4
Figure 4. Figure 4: Fixed timestep experiment on 2-D Allen-Cahn Problem (15) on 150×150 grid. PEXPW methods show order ≈ 1.7, PEPIRKW methods did not produce a solution, EPIRKW3 shows order ≈ 3. • Unpartitioned methods may need the full Jacobian or a very close approximation of it when bo…
Figure 5
Figure 5. Figure 5: Adaptive timestep experiments using Allen-Cahn (15), 300 × 300 grid (I). α = 1, γ = 10 26 [PITH_FULL_IMAGE:figures/full_fig_p026_5.png]
Figure 6
Figure 6. Figure 6: Adaptive timestep experiments using Allen-Cahn (15), 300 × 300 grid (II). α = 1, γ = 100 Reversible Gray-Scott results [PITH_FULL_IMAGE:figures/full_fig_p027_6.png]
Figure 7

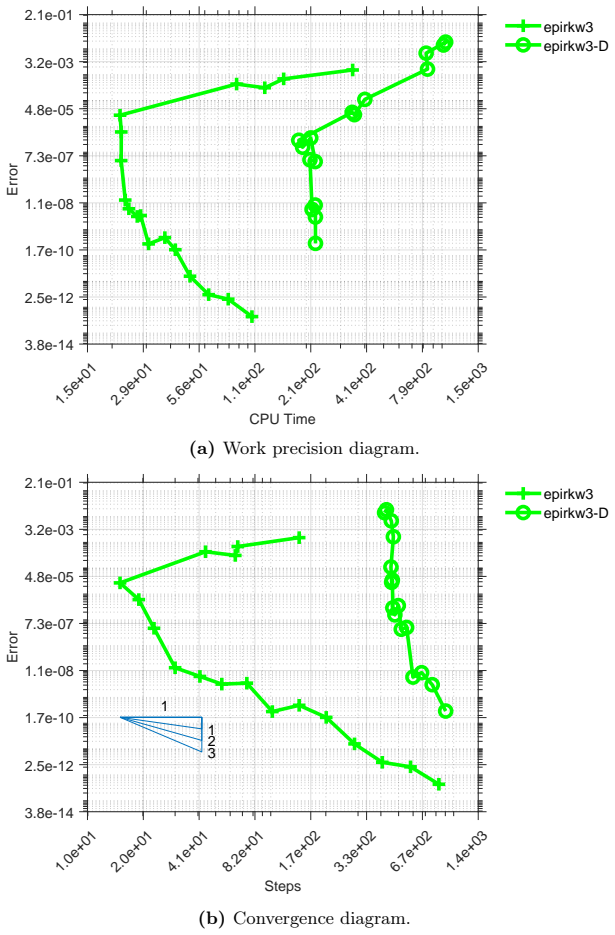

Figure 7. Figure 7: Adaptive timestep experiments using Allen-Cahn (15), 300 × 300 grid (III). α = 1, γ = 1000 As is clear from the figure, PEXP3WA is more stable and efficient than the unpartitioned EPIRKW3 method on this test problem. We even test a variant of EPIRKW3 with a different s…
Figure 8
Figure 8. Figure 8: Adaptive timestep experiments using Reversible Gray-Scott (16) on 100 × 100 grid. DU = 2, DV = 1, DP = 0.1, k1 = 1, k2 = 0.055, k−1 = 0.001, k−2 = 0.001, f = 0.028 29 [PITH_FULL_IMAGE:figures/full_fig_p029_8.png]
