Observation of stimulated Brillouin scattering in silicon nitride integrated waveguides

T0 review · 3 major / 4 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read First measurement of backward stimulated Brillouin scattering in silicon nitride waveguides reports a 25 GHz gain peak, a photoelastic constant of |p12| = 0.047 ± 0.004, and an SBS threshold near 87 kW.

desk verdict First credible backward SBS measurement in Si3N4 waveguides, but the headline photoelastic constant and intrinsic gain are fitting outputs with unquantified model error. read the letter →

arxiv 1908.09815 v1 pith:XJK6ISQP submitted 2019-08-26 physics.optics physics.app-ph

Flavien Gyger , Junqiu Liu , Fan Yang , Jijun He , Arslan S. Raja , Rui Ning Wang , Sunil A. Bhave , Tobias J. Kippenberg
show 1 more author
Luc Thévenaz
This is my paper · ORCID
classification physics.opticsphysics.app-ph
keywords stimulatedBrillouinscatteringsiliconnitrideintegratedphotonicsphotoelasticconstanthigh-overtonebulkacousticresonancesgainnonlinearopticsacousto-opticinteraction
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper reports the first observation of backward stimulated Brillouin scattering (SBS) in silicon nitride (Si3N4) waveguides fully cladded in silica. It measures the Brillouin gain spectrum and finds an unusual multi-peak structure caused by the hybridization of the acoustic mode with high-overtone bulk acoustic resonances of the silica cladding. It estimates the intrinsic Si3N4 Brillouin gain at 25 GHz as 7×$10^{-13}$ m/W and the photoelastic constant magnitude |p12| = 0.047 ± 0.004. Because SBS normally limits optical power, the high SBS threshold of about 87 kW explains why Si3N4 waveguides can handle high optical power, which is central for integrated nonlinear photonics such as soliton microcombs.

What carries the argument

The load-bearing machinery is a triple intensity modulation (TIM) measurement technique combined with 3D finite-element simulations of the acoustic eigenmodes. TIM cancels the Fabry-Perot cavity noise, Kerr-effect-induced background, and Raman background by using two counter-propagating, π-phase-shifted pump beams locked to a multiple of the cavity free spectral range, so that only the pump that is resonant with the probe contributes Brillouin gain. The simulations include the full waveguide cross-section with silica-air and silica-silicon boundaries and a perfectly matched layer, and they reproduce the multi-peak spectrum as hybridization with high-overtone bulk acoustic resonances (HBARs) of the silica cladding; the simulated eigenfrequencies are shifted by 220 MHz to match the measured spectrum.

What would settle it

Measure the Brillouin gain spectrum of a Si3N4 waveguide in which the top silica-air boundary is removed (e.g., a suspended or differently capped waveguide) or the cladding thickness is varied; if the multi-peak structure persists without the reflecting boundaries, the HBAR interpretation is wrong, and if the fitted |p12| changes with cladding, the photoelastic constant estimate is not intrinsic. Alternatively, measure the Si3N4 acoustic velocity independently (e.g., by picosecond ultrasonics) and check whether the 220 MHz simulation shift vanishes when using the measured sound velocity.

Watch

Extended reading notes

Core claim

The central claim is that backward SBS occurs in the Si3N4 material itself, not in the silica cladding, and that its gain spectrum carries fingerprints of the cladding's finite thickness. The measured main Brillouin gain peak of (8±1)×$10^{-14}$ m/W at 25 GHz corresponds to an acoustic velocity of 10.5 km/s, consistent with literature values for Si3N4. The multi-peak structure is reproduced by finite-element simulations that treat the entire chip cross-section, showing that each peak is an acoustic supermode formed by hybridization with high-overtone bulk acoustic resonances reflecting from the top silica-air and bottom silica-silicon boundaries. Fitting the simulated peak heights to the measured spectrum yields |p12| = 0.047 ± 0.004, and the derived intrinsic gain of 7×$10^{-13}$ m/W is about 30 times smaller than silica's.

Load-bearing premise

The finite-element simulation relies on literature values for Si3N4's Young's modulus (280 GPa) and density (3100 kg/m3) and is shifted by 220 MHz to match the measured spectrum; if those acoustic parameters are wrong for this film, the mode assignment, the fitted |p12|, and the derived gain would be wrong.

Editorial extensions

If this is right

  • Because the SBS threshold in Si3N4 is estimated at 87 kW, silicon nitride waveguides can handle much higher optical powers than silica fibers, supporting applications like soliton microcombs and supercontinuum generation.
  • The measured 25 GHz Brillouin shift is the largest reported on integrated platforms, offering a distinctive frequency scale for on-chip microwave photonics.
  • The reported photoelastic constant |p12| = 0.047 ± 0.004 provides the first reference for Si3N4 photoelasticity, enabling quantitative simulation of acousto-optic interactions in future Si3N4 devices.
  • The multi-peak gain structure arising from cladding boundaries implies that the Brillouin response of Si3N4 waveguides is not an intrinsic material property alone but is engineered by the surrounding cladding geometry.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The cladding-dependent HBAR hybridization suggests a design lever: by changing the SiO2 cladding thickness or the substrate boundary, one could tune the Brillouin spectrum to a single dominant line or suppress SBS entirely, which is not explicitly proposed by the paper.
  • The triple intensity modulation technique could be applied to other low-gain integrated platforms where Fabry-Perot and Kerr backgrounds mask weak Brillouin signals.
  • If the photoelastic constant is confirmed by an independent method, the 33-fold reduction relative to silica implies that materials engineering of p12, rather than just acoustic confinement, dominates SBS gain suppression in Si3N4.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. The manuscript reports the first observation of backward stimulated Brillouin scattering (SBS) in fully cladded Si3N4 waveguides. Using a triple-intensity-modulation scheme to suppress Fabry-Pérot cavity noise, Kerr-induced probe modulation, and Raman background from fiber patchcords, the authors measure a Brillouin gain spectrum near 25 GHz with a main peak of (8±1)×10^-14 m/W and a linewidth of 390 MHz. They attribute the multi-peak structure to hybridization of the waveguide acoustic mode with high-overtone bulk acoustic resonances (HBARs) of the silica cladding, supported by FEM simulations. From fits of the simulated gain to the measured spectrum, they estimate the Si3N4 photoelastic constant |p12| = 0.047±0.004, and from Eq. (3) they estimate an intrinsic Si3N4 Brillouin gain of 7×10^-13 m/W and an SBS threshold of 87 kW in the 5-mm waveguide.

Significance. If the central claims hold, this is a valuable first measurement of backward SBS in a technologically important platform. The measurement technique itself is a notable experimental contribution: the TIM scheme quantitatively addresses three distinct noise sources that would otherwise bury the small Brillouin signal, and the direct comparison with silica-patchcord SBS provides an internal calibration. The derived quantities, however, are more model-dependent than the abstract suggests: |p12| is obtained by fitting an FEM model whose acoustic parameters are taken from the literature and whose eigenfrequencies require a 220 MHz correction, and the 'intrinsic' gain relies on an assumed splitting of the measured linewidth into material damping and phonon leakage. These caveats do not undermine the observation, but they need to be propagated into the error bars and clearly stated in the abstract and conclusions.

major comments (3)
  1. [Supplementary S3 and S4] The reported uncertainty |p12| = 0.047 ± 0.004 is propagated only from experimental parameters (PS, PP, ρpd, L), while Supplementary S3 explicitly states that 'the additional error caused by the simulation as well as the estimation of acoustic Q-factor ... is negligible.' This assumption is load-bearing because |p12| is extracted by adjusting the FEM-simulated Brillouin gain to the measured spectrum. Supplementary S4 further states that the simulated spectrum had to be shifted by 220 MHz because of 'a slight mismatch of parameters in the simulation, such as Young's modulus or density.' The authors should either quantify how uncertainties in the acoustic parameters propagate into |p12| and the intrinsic gain, or explicitly reframe these values as model-dependent estimates rather than measurement results.
  2. [Discussion, Eq. (3)] The intrinsic Si3N4 Brillouin gain of 7×10^-13 m/W is not directly measured. It is obtained by inserting the fitted |p12| into Eq. (3) together with the assumed material damping ΓM,Si3N4 = 5 ΓM,SiO2 and an overlap of η = 1. The measured linewidth of 390 MHz only determines the total damping ΓM + ΓL; the partition into equal material and leakage contributions relies on the ν_B^2 scaling relation and is not independently verified for this LPCVD film. If the film's acoustic damping differs from silica-scaled values, the estimated intrinsic gain changes accordingly. Please state this dependence explicitly or provide a sensitivity analysis over plausible ΓM values.
  3. [Fig. 3(b) and Supplementary S4] The mode assignment underlying the HBAR interpretation rests on a single uniform 220 MHz frequency shift applied to the simulated spectrum. If the true Young's modulus or density of the Si3N4 film differs from the literature values used in the simulation, the relative spacings and ordering of the hybridized peaks A–D would change non-uniformly, so the peak-to-eigenmode matching used to fit |p12| is not uniquely constrained. A concrete robustness test—repeating the eigenmode calculation and p12 fit for, e.g., ±5% variations in E and ρ—would materially strengthen the central claim.
minor comments (4)
  1. [Abstract] The sentence 'the Brillouin gain spectrum exhibits an unusual multi-peak structure resulting from hybridization with with high-overtone bulk acoustic resonances' contains a duplicated 'with' that should be removed.
  2. [Eq. (2)] The symbol L is used both for the waveguide length and for the lineshape function L(ν∆), which is confusing; consider using L_wg for the length or a different symbol for the lineshape.
  3. [Fig. 3 caption] The caption states that simulation results show 'eigenfrequency and gain for each eigenmode,' but the simulated spectrum is shifted by 220 MHz relative to the measurement; mentioning this shift in the main text and caption would improve transparency.
  4. [Supplementary S3] In the uncertainty table, the entry for L is described as 'waveguide effective length, including inverse nanotapers' with value '5 +0/−0.3 mm'; defining this quantity as L_eff in Eq. (12) would avoid ambiguity with the waveguide physical length.

Circularity Check

1 steps flagged · score 4.0 of 10

The SBS observation is independent, but the paper's p12 fit is recycled into a 'theoretical' gain-reduction agreement, making that consistency check partly circular.

  1. fitted input called prediction [Discussion, Eq. (3) and Eq. (4); Supplementary S4]
    "By fitting the peak heights of the FEM simulation results to the measured gain spectrum, the estimated photoelastic constant magnitude |p12|, is obtained: |p12| = 0.047± 0.004 ... By substituting all these contributions to Eq. 3, we obtain a theoretical 342-times gain reduction in Si3N4 waveguides compared to single-mode fibers. The Brillouin gain value measured in our Si3N4 waveguide, in units m/W, is 250-times smaller than the silica intrinsic gain ... in agreement with the theoretical value derived above."

    Supplementary S4 states that 'The Si3N4 photoelastic constant p12 is adjusted to match the Brillouin gain obtained from our simulations to the measurement data.' Thus |p12| is a free parameter chosen so that the FEM peak heights reproduce the measured spectrum. Eq. 3 is then evaluated with that same fitted |p12| to produce a 'theoretical' 342x gain reduction, and this number is compared with the measured 250x reduction as if it were an independent check. The agreement is not independent: the fitted parameter was selected on the same spectrum, so the 'theoretical' gain reduction is constrained by the measured gain by construction.

full rationale

The central experimental claim — first observation of backward SBS near 25 GHz in fully cladded Si3N4 waveguides with a multi-peak HBAR spectrum — is self-contained and supported by the TIM measurement, the separation from the silica patchcord peak, and quantified noise budgets. The extracted |p12| is presented transparently as a fit, not as a prediction, so fitting alone is not circular. The genuine circular step is the consistency check: after adjusting p12 so the FEM gain matches the measured spectrum, the paper uses Eq. 3 with that same p12 to 'derive' a 342x gain reduction and finds it 'in agreement' with the measured 250x reduction. That agreement is partly forced by the fit. The intrinsic gain estimate, while model-dependent (it assumes ΓM,Si3N4 = 5 ΓM,SiO2 and eta=1), is better viewed as a corrected version of the measured waveguide gain rather than a re-expression of the fitted p12. The main unresolved risk is model uncertainty, not circularity: Supplementary S3 explicitly assumes simulation and acoustic-Q error are negligible, and Supplementary S4 applies a 220 MHz uniform frequency shift to align eigenmodes, attributing it to uncertain Young's modulus/density. These are correctness/robustness limitations and do not by themselves make the derivation circular. No load-bearing self-citation chain or uniqueness theorem is involved; citations to prior work are contextual. Score 4 reflects one in-sample fitted-parameter agreement while the core observation and spectrum remain independent.

Assumptions & free parameters 2 free parameters · 5 assumptions · 0 invented entities

No new physical entities are postulated. The main derived quantities (|p12| and intrinsic gain) rest on two fitted parameters: p12 and the 220 MHz simulation shift, plus literature acoustic properties and damping models. The central observation itself does not depend on these fits, but the quantitative interpretation does.

free parameters (2)
  • photoelastic constant |p12| = 0.047 +/- 0.004
    Adjusted in FEM simulations so that the simulated Brillouin gain matches the measured gain spectrum (Supplementary S4; Eq. 4 in main text).
  • simulation frequency shift = 220 MHz
    Applied to shift simulated eigenmode frequencies to match the measured spectrum (Supplementary S4). Likely compensates for uncertainty in Young's modulus or density.
assumptions (5)
  • domain assumption Si3N4 acoustic properties can be represented by literature values (ESi3N4=280 GPa, rhoSi3N4=3100 kg/m3, and corresponding SiO2 values).
    FEM simulations in Supplementary S4 use these handbook values; the 220 MHz adjustment indicates uncertainty. The extracted p12 and HBAR mode attribution depend on them.
  • domain assumption Material damping in Si3N4 follows Gamma_M proportional to nu_B^2 relative to silica (Auld, Ref. [60]).
    Used in the Discussion to separate material damping from phonon leakage (Gamma_M,Si3N4 = 5 * Gamma_M,SiO2). If this scaling is wrong, the leakage estimate and intrinsic gain change.
  • domain assumption The measured 390 MHz linewidth is entirely due to the combined damping Gamma = Gamma_M + Gamma_L.
    Used to set Gamma in Eq. 3; assumes no significant inhomogeneous broadening or measurement artifact.
  • domain assumption The optical mode can be approximated as a transverse mode so that Eq. 3 with a single p12 applies.
    Stated in the Discussion before Eq. 3.
  • standard math Standard equations of elasticity and Maxwell's equations underpin the COMSOL FEM simulations.
    Unproved background used in all simulations.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Observation of stimulated Brillouin scattering in silicon nitride integrated waveguides." pith.science (2026). https://pith.science/paper/XJK6ISQP

@misc{pith2026190809815,
  author       = {Pith},
  title        = {Pith review of: Observation of stimulated Brillouin scattering in silicon nitride integrated waveguides},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/XJK6ISQP}},
  note         = {Machine review of arXiv:1908.09815}
}
read the original abstract

Silicon nitride (Si3N4) has emerged as a promising material for integrated nonlinear photonics and has been used for broadband soliton microcombs and low-pulse-energy supercontinuum generation. Therefore understanding all nonlinear optical properties of Si3N4 is important. So far, only stimulated Brillouin scattering (SBS) has not been reported. Here we observe, for the first time, backward SBS in fully cladded Si3N4 waveguides. The Brillouin gain spectrum exhibits an unusual multi-peak structure resulting from hybridization with with high-overtone bulk acoustic resonances (HBARs) of the silica cladding. The reported intrinsic Si3N4 Brillouin gain at 25 GHz is estimated as 7x10^-13 m/W. Moreover, the magnitude of the Si3N4 photoelastic constant is estimated as |p12| = 0.047 +/- 0.004. Since SBS imposes an optical power limitation for waveguides, our results explain the capability of Si3N4 to handle high optical power, central for integrated nonlinear photonics.

Figures

Figures reproduced from arXiv: 1908.09815 by the authors.

Figure 1
Figure 1. On-chip SBS in a Si3N4 waveguide. (a) Artist’s view of SBS in a Si3N4 waveguide. Note that the length of the inverse tapers is exaggerated for illustrative pur￾pose. The actual taper length is 300 µm, while the full length of the Si3N4 waveguide is 5 mm. White and blue shading rep￾resents the material density variation generated by SBS when the pump and probe beams overlay. Inset: false-color SEM of the waveguide cr… view at source ↗
Figure 2

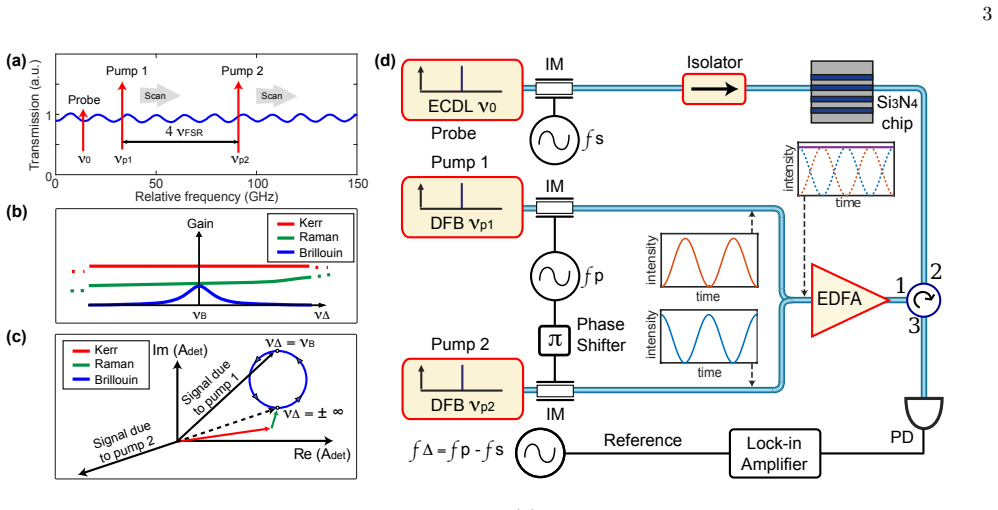

Figure 2. High sensitivity SBS gain measurement scheme. (a) Measured waveguide transmission spectrum in function of the relative frequency starting at 193.55 THz. The frequency difference of the two pumps, νp2 − νp1, is a multiple of the chip FP cavity’s FSR (4 · νFSR). The two pumps are scanned together while the probe frequency ν0 is fixed. (b) Illustration of the gains due to Kerr effect (phase-to-intensity conversion) and… view at source ↗
Figure 3

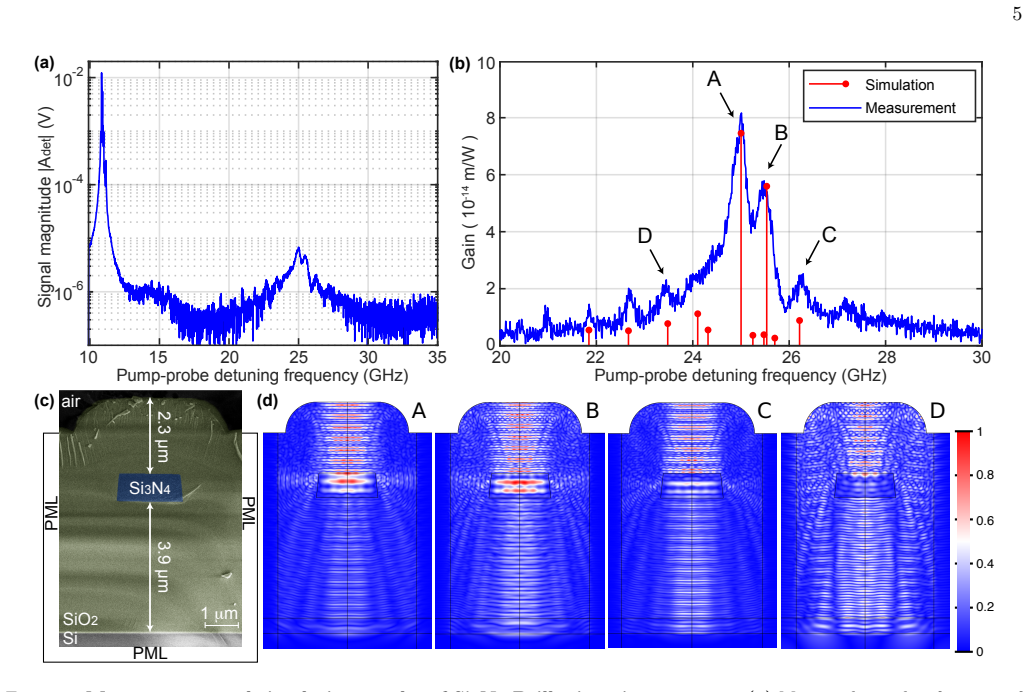

Figure 3. Measurement and simulation results of Si3N4 Brillouin gain spectrum. (a) Measured signal in function of the pump-probe detuning frequency in logarithmic scale, showing the 1-m-long silica patchcord SBS to the left and Si3N4 SBS at 25 GHz, with more than three orders of magnitude difference. (b) Measured Si3N4 SBS gain spectrum, in agreement with the simulated eigenmodes (eigenfrequency and gain for each eigenmode). … view at source ↗
