Phonon condensation and cooling via nonlinear feedback

Pith reviewed 2026-05-24 12:21 UTC · model grok-4.3

classification ⚛️ physics.app-ph
keywords phonon condensationnonlinear feedbackmechanical modesphonon lasingmode suppressionlinewidth narrowingFröhlich condensationphase coherence
0
0 comments X

The pith

A nonlinear feedback loop channels energy into the lowest-frequency mechanical vibration mode while suppressing all others.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that a single nonlinear feedback force can redistribute energy across multiple vibration modes in a mechanical system. The force is designed with low-pass gain that boosts the fundamental mode and high-pass loss that damps higher modes, producing a steady state where energy concentrates in the lowest-frequency mode. This creates a phase-space distribution resembling a phonon laser, with a ring shape and amplitude squeezing, plus an order-of-magnitude reduction in linewidth. The result is enhanced phase coherence without requiring optical gain media or material nonlinearities.

Core claim

The designed feedback force combines low-pass gain and high-pass loss to amplify the fundamental vibrational mode while suppressing higher-order modes, channeling energy into the lowest-frequency mode and producing a phonon-laser-like state with ring-shaped phase-space distribution, amplitude squeezing, and linewidth narrowed by an order of magnitude.

What carries the argument

The nonlinear feedback force that applies low-pass gain to the fundamental mode and high-pass loss to higher modes.

If this is right

  • The fundamental mode reaches a ring-shaped phase-space distribution with amplitude squeezing.
  • The linewidth of the fundamental mode narrows by an order of magnitude, increasing phase coherence.
  • Coherent mechanical states and phonon lasing become possible without optical gain media or intrinsic material nonlinearities.
  • Energy redistribution mimics Fröhlich condensation but occurs through engineered feedback rather than material properties.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The scheme could be tested by driving a multimode nanomechanical resonator with a tailored electronic or optical feedback circuit and checking mode amplitudes.
  • If successful, the same feedback principle might extend to controlling energy distribution in other multimode oscillators such as coupled pendulums or acoustic cavities.
  • Linewidth narrowing would directly improve frequency stability, which could be measured as reduced phase noise in a driven resonator.

Load-bearing premise

A practical nonlinear feedback force can be realized that supplies exactly the required low-pass gain and high-pass loss across all modes without adding noise or instabilities.

What would settle it

Applying the feedback and measuring no suppression of higher modes or no narrowing of the fundamental-mode linewidth would falsify the central claim.

Figures

Figures reproduced from arXiv: 2201.00251 by Baowen Li, Xu Zheng.

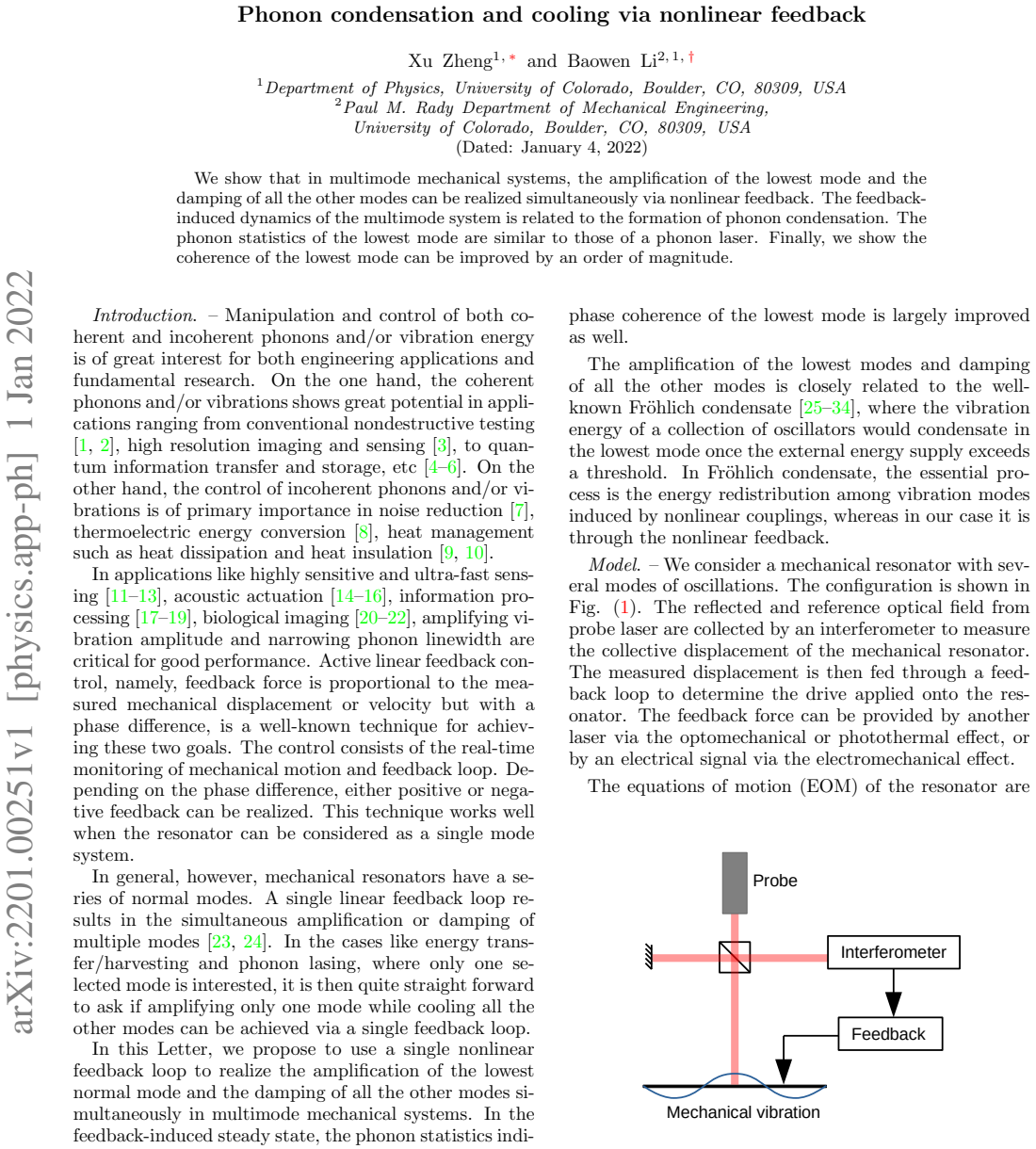

Figure 1
Figure 1. Figure 1: FIG. 1. Sketch of the multimode system considered. The [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. (color online). Phonon statistics of the lowest mode at [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. (color online). Noise power spectral density of the [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
read the original abstract

We propose a method to control the energy distribution in multimode mechanical systems using a single nonlinear feedback loop. We demonstrate that this feedback mechanism simultaneously amplifies the fundamental vibrational mode while suppressing all higher-order modes, effectively channeling energy into the lowest-frequency mode. This process mimics the energy redistribution of Fr\"{o}hlich condensation but is achieved here through a designed feedback force that combines a ``low-pass gain'' and a ``high-pass loss''. In the feedback-induced steady state, the fundamental mode exhibits a phase-space distribution similar to that of a phonon laser, characterized by a ring shape and amplitude squeezing. Additionally, we show that the linewidth of the fundamental mode is narrowed by an order of magnitude, corresponding to a significant enhancement in phase coherence. This scheme offers a robust approach to generating coherent mechanical states and phonon lasing without the need for optical gain media or intrinsic material nonlinearities.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes a nonlinear feedback scheme for multimode mechanical resonators in which a single feedback force applies low-pass gain to the fundamental mode and high-pass loss to higher modes, channeling energy into the lowest-frequency mode to produce Fröhlich-like condensation, a ring-shaped phase-space distribution, amplitude squeezing, and an order-of-magnitude linewidth narrowing.

Significance. If the ideal feedback transfer function can be realized, the scheme would supply a practical route to coherent mechanical states and phonon lasing that does not require optical gain media or intrinsic material nonlinearities; the absence of any supporting derivation, simulation, or stability analysis, however, leaves the practical significance undetermined.

major comments (2)
  1. [Abstract] Abstract: the claim that the feedback 'simultaneously amplifies the fundamental vibrational mode while suppressing all higher-order modes' and produces 'ring shape and amplitude squeezing' is presented without any equations of motion, transfer-function derivation, or numerical evidence, so the central energy-channeling assertion lacks quantitative support.
  2. The assumption that a practical nonlinear feedback force can be implemented to deliver exactly the required low-pass gain and high-pass loss across all modes without phase lags, sensor noise, actuator dynamics, or parasitic couplings is load-bearing for the linewidth-narrowing and condensation claims, yet the manuscript supplies no analysis of these real-world deviations.
minor comments (1)
  1. Clarify whether the 'high-pass loss' term is linear or nonlinear and how it is combined with the low-pass gain inside the single feedback loop.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading and constructive comments on our manuscript. We address each major comment below and outline the revisions we will make.

read point-by-point responses
  1. Referee: [Abstract] Abstract: the claim that the feedback 'simultaneously amplifies the fundamental vibrational mode while suppressing all higher-order modes' and produces 'ring shape and amplitude squeezing' is presented without any equations of motion, transfer-function derivation, or numerical evidence, so the central energy-channeling assertion lacks quantitative support.

    Authors: The manuscript body (Sections II and III) derives the equations of motion for the multimode resonator under nonlinear feedback, obtains the effective low-pass/high-pass transfer function, and presents numerical simulations of the resulting steady-state distributions, squeezing, and linewidth narrowing. To make the quantitative support more immediately visible, we will revise the abstract to reference these derivations and add a summary figure of the numerical evidence for energy channeling and phase-space features. revision: yes

  2. Referee: The assumption that a practical nonlinear feedback force can be implemented to deliver exactly the required low-pass gain and high-pass loss across all modes without phase lags, sensor noise, actuator dynamics, or parasitic couplings is load-bearing for the linewidth-narrowing and condensation claims, yet the manuscript supplies no analysis of these real-world deviations.

    Authors: We agree that the manuscript focuses on the ideal transfer function and does not analyze deviations from it. In the revised manuscript we will add a new section that examines the effects of phase lags, sensor noise, actuator dynamics, and parasitic couplings on the condensation threshold, ring-shaped distributions, and linewidth narrowing, including a basic stability analysis under small perturbations. revision: yes

Circularity Check

0 steps flagged

New feedback mechanism proposed without reduction to self-cited results or fitted predictions

full rationale

The manuscript presents a designed nonlinear feedback force combining low-pass gain and high-pass loss to achieve mode channeling and linewidth narrowing. No equations are shown that define a quantity in terms of itself, rename a fitted parameter as a prediction, or rely on a load-bearing self-citation chain whose prior result is itself unverified. The central claim rests on the realizability of the ideal transfer function rather than on any internal definitional loop or imported uniqueness theorem from the same authors. This is a standard non-circular proposal of a control scheme.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no free parameters, axioms, or invented entities are identifiable or quantified.
