On the Diffusion Time Evolution of Folding Chains in the Heteropolymer Model

Okezue Bell This is my paper

Pith reviewed 2026-05-24 11:26 UTC · model grok-4.3

classification 🧮 math.DS q-bio.QM
keywords heteropolymer modelprotein foldingdiffusionpower lawLennard-Jones potentialrandomnesstime evolution
0
0 comments X

The pith

Folding amino acid chains in the heteropolymer model follow a power-law diffusion D ∼ t^ν, with the exponent dropping from two-thirds to one-half as Lennard-Jones coupling randomness increases.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that Iori et al.'s heteropolymer model produces a scaling law for the time evolution of folding chains. Diffusion distance grows as a power of time, and the exponent itself depends on how random the interaction strengths are. A reader would care because this turns a complex folding process into a simple, tunable scaling relation that can be checked in simulations. The result links the degree of disorder in the potential directly to the speed of structural relaxation.

Core claim

In the heteropolymer model, the folding amino acid chain evolves according to a power law D ∼ t^ν. The power ν decreases from 0.66̅ to 0.5 when the randomness of the coupling constants in the Lennard-Jones potential increases.

What carries the argument

The heteropolymer model with a Lennard-Jones potential whose coupling constants have tunable randomness, used to track the diffusion distance D of the folding chain over time.

If this is right

  • The power-law form persists across the full range of coupling randomness examined.
  • Higher randomness systematically lowers the effective diffusion exponent.
  • The model supplies a direct mathematical relation between potential disorder and folding time scale.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the scaling survives in more detailed force fields, folding times for real sequences could be estimated from a single randomness parameter.
  • The 0.5–0.66̅ window might be compared with anomalous diffusion exponents measured in other disordered polymer systems.
  • Varying the temperature or chain length in the same model would test whether the exponent remains pinned to the randomness parameter.

Load-bearing premise

The heteropolymer model from Iori et al. captures the essential dynamics of real protein folding and the reported power law is not produced by the choice of simulation parameters or numerical method.

What would settle it

A simulation run with the same model but different integration step size, potential cutoff, or random seed sequence that yields an exponent outside the 0.5–0.66̅ interval or no power law at all.

Figures

Figures reproduced from arXiv: 2208.11805 by Okezue Bell.

Figure 1
Figure 1. Figure 1: Two comparative D4(t) calculation plots. Here, tMC is the number of full Monte Carlo sweeps of the chain, the scattered dots are the purely harmonic chain, Langevin dynamics normal mode expansion of Equation 7 is the continuous curve. We encounter an exclusion principle due to the discontinuous dynamics of the Metropolis algorithm: when it is known that the correct asymptotic equilibrium distribution is ob… view at source ↗
Figure 2

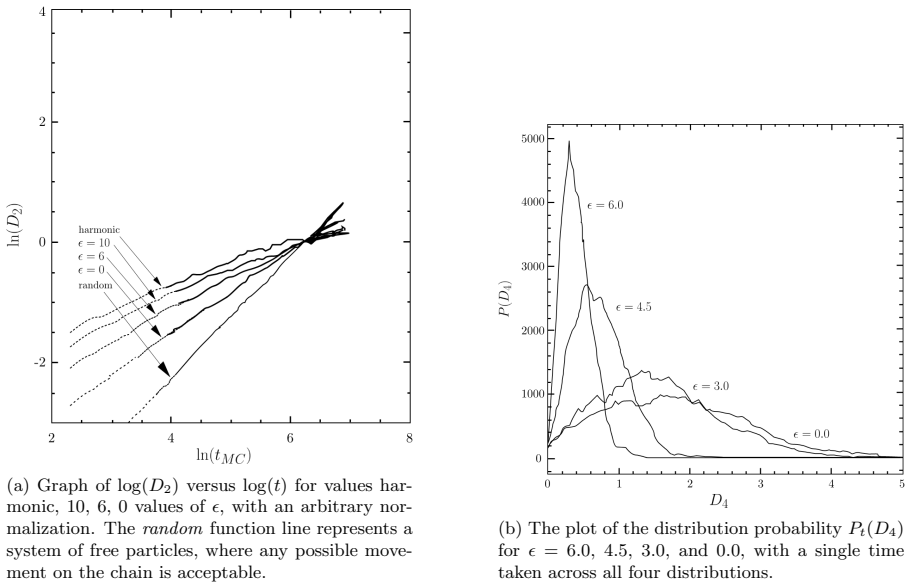

Figure 2. Figure 2: Distribution plots highlighting key features in quenched noise realizations in varying [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
read the original abstract

In this paper, we mathematically describe the time evolution of protein folding features via Iori et al.'s heteropolymer model. More specifically, we identify that the folding amino acid chain evolve according to a power law $D \sim t^{\nu}$. The power $\nu$ decreases from $0.\overline{66}$ to $0.5$ when the randomness of the coupling constants in the Lennard-Jones potential increases.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript applies Iori et al.'s heteropolymer model to the time evolution of folding amino-acid chains. It reports that the diffusion quantity D obeys the power-law scaling D ∼ t^ν, with the exponent ν decreasing from 2/3 to 1/2 as the randomness of the Lennard-Jones coupling constants is increased.

Significance. If the scaling regime is robust and the exponent extraction is insensitive to numerical parameters, the result would supply a concrete, disorder-dependent characterization of anomalous diffusion within a standard heteropolymer model. This could be of interest to mathematical biology and dynamical systems provided the derivation or simulation protocol is fully documented.

major comments (2)
  1. The manuscript provides no description of the fitting procedure used to extract ν, the time interval over which the power law is observed, or any error estimates on the reported values 2/3 and 1/2. Because the central claim is the specific dependence of ν on randomness, the absence of these details makes it impossible to assess whether the quoted exponents reflect a genuine asymptotic regime.
  2. No controls are reported for the sensitivity of the observed scaling to integration timestep, total trajectory length, chain length N, or the number of disorder realizations. The claim that ν drops from 2/3 to 1/2 therefore rests on unverified numerical stability.
minor comments (2)
  1. The abstract uses the non-standard notation 0.66̅; a conventional decimal or fraction (2/3) would improve readability.
  2. The symbol D is introduced without an explicit definition (e.g., mean-squared displacement of which coordinate).

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed report and the opportunity to clarify our numerical procedures. We address each major comment below and will revise the manuscript to incorporate the requested documentation and controls.

read point-by-point responses

  1. Referee: The manuscript provides no description of the fitting procedure used to extract ν, the time interval over which the power law is observed, or any error estimates on the reported values 2/3 and 1/2. Because the central claim is the specific dependence of ν on randomness, the absence of these details makes it impossible to assess whether the quoted exponents reflect a genuine asymptotic regime.

    Authors: We agree that the original manuscript lacked a sufficient description of the fitting procedure, time windows, and error estimates. In the revised version we will add an explicit subsection in the Methods that details the linear regression performed on log-log plots of D(t), the precise time intervals over which the power-law regime is fitted for each disorder strength, and the error estimates derived from the variance across independent realizations. This will allow direct evaluation of whether the quoted values of ν correspond to an asymptotic regime. revision: yes

  2. Referee: No controls are reported for the sensitivity of the observed scaling to integration timestep, total trajectory length, chain length N, or the number of disorder realizations. The claim that ν drops from 2/3 to 1/2 therefore rests on unverified numerical stability.

    Authors: The original submission did not include explicit sensitivity tests. We will add a new appendix or subsection presenting additional simulation results that vary the integration timestep, extend total trajectory lengths, consider multiple chain lengths N, and increase the number of disorder realizations. These controls will be used to verify that the reported decrease in ν remains stable within the stated precision. revision: yes

Circularity Check

0 steps flagged

No circularity detected; derivation is observational from model.

full rationale

The provided abstract and context present the power-law claim as an identification from the Iori et al. heteropolymer model simulations rather than a derivation that reduces to fitted inputs or self-citations by construction. No equations, self-citations, or ansatzes are quoted that would make the exponent ν equivalent to its inputs. The central claim remains an empirical observation from dynamics, with no load-bearing step shown to collapse into a fit or prior author result. This is the normal case of a self-contained numerical study.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the validity of the heteropolymer model from prior work and the numerical identification of the power-law scaling; no new entities are introduced.

free parameters (1)
  • randomness level of coupling constants
    The degree of randomness is varied as a control parameter whose effect on ν is reported.
axioms (1)
  • domain assumption The heteropolymer model equations from Iori et al. govern the system dynamics.
    The paper builds directly on this model without re-deriving it.
