Maximum Centre-Disjoint Mergeable Disks

Ali Gholami Rudi This is my paper

Pith reviewed 2026-05-24 10:35 UTC · model grok-4.3

classification 💻 cs.CG
keywords NP-hardnessdisk selectioncentre-disjointmergeable disksmap labellinginteger linear programmingcollinear centerscomputational geometry
0
0 comments X

The pith

The maximum centre-disjoint mergeable disks problem is NP-hard.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that selecting the largest subset of disks such that no selected disk contains the center of another, and every unselected disk can merge into a selected one by radius growth, cannot be solved in polynomial time unless P equals NP. A reader cares because the model directly captures label placement on rotating maps and entity visualization on static maps, where labels must avoid overlapping centers yet expand to cover nearby points. The authors establish hardness through a reduction, supply an integer linear program that finds optimal subsets for moderate instances, and give an efficient algorithm when all disk centers lie on one line.

Core claim

The central claim is that the maximum centre-disjoint mergeable disks problem is NP-hard. The authors prove this hardness result, present an integer linear programming formulation that computes an optimal subset, and describe a polynomial-time algorithm that works when every disk center lies on a straight line.

What carries the argument

The centre-disjoint mergeable subset: a largest collection of disks whose interiors are pairwise center-disjoint and where every omitted disk has at least one selected disk whose radius can be increased to contain it without violating the center-disjoint condition.

If this is right

  • No polynomial-time exact algorithm exists for the general problem unless P=NP.
  • The integer linear program yields optimal solutions on instances of moderate size.
  • When all centers are collinear, the maximum subset can be found in polynomial time.
  • Map-labelling applications can therefore use the ILP for small maps and the line algorithm when centers align.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The collinear algorithm may extend to other low-dimensional restrictions such as centers on a circle or in a narrow strip.
  • Practical map-labelling systems will likely need approximation or heuristic methods once instance size exceeds what the ILP can handle.
  • The mergeability condition may be relaxed to allow limited radius increases, potentially changing both hardness and algorithmic results.

Load-bearing premise

Every disk outside the chosen subset can always be absorbed by increasing the radius of some nearby chosen disk while the chosen subset remains center-disjoint.

What would settle it

A polynomial-time algorithm that computes the maximum centre-disjoint mergeable subset for arbitrary disk positions in the plane.

Figures

Figures reproduced from arXiv: 2301.04350 by Ali Gholami Rudi.

Figure 1
Figure 1. Figure 1: An example rotating map with 4 labels. (a) The initi [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: The distribution of schools in Munich; disks corre [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: An example set of disks with two proper assignments [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: An example set of disks with no proper assignment. E [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

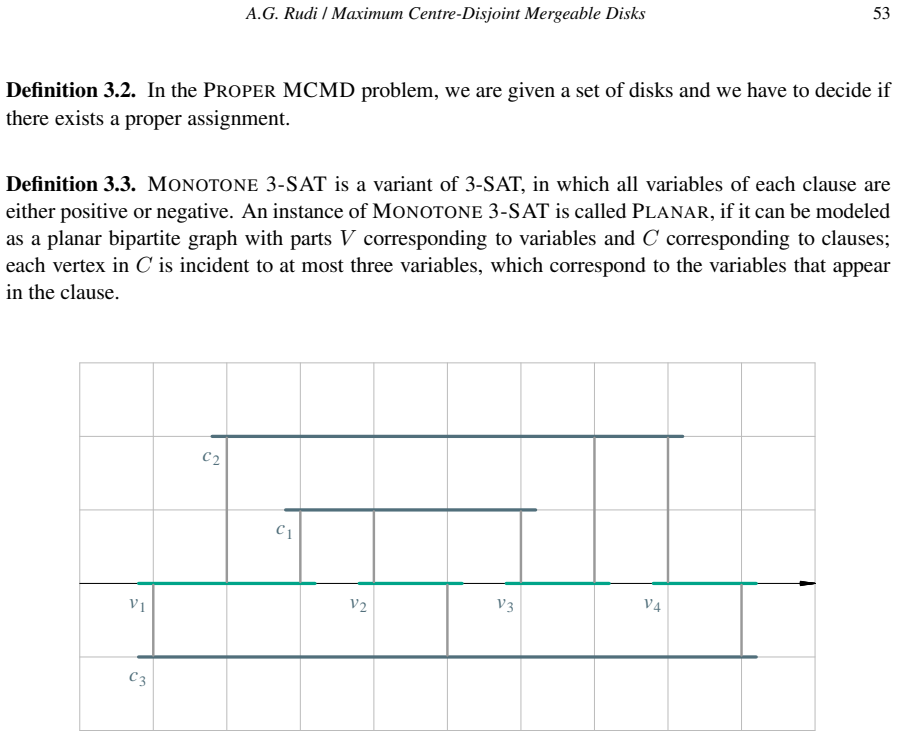

Figure 5
Figure 5. Figure 5: A monotone rectilinear representation of a P [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

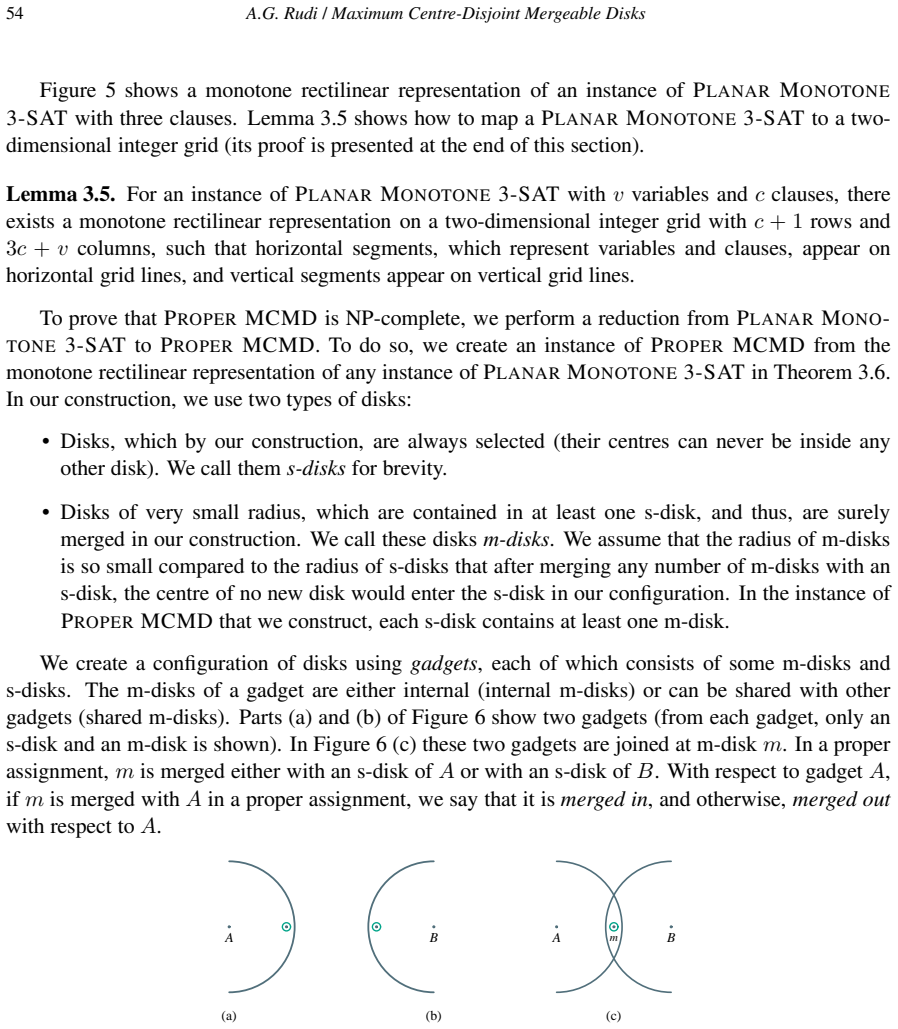

Figure 6
Figure 6. Figure 6: Two gadgets (Parts (a) and (b)), joined at one of the [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Gadgets used in the proof of Theorem 3.6; [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗

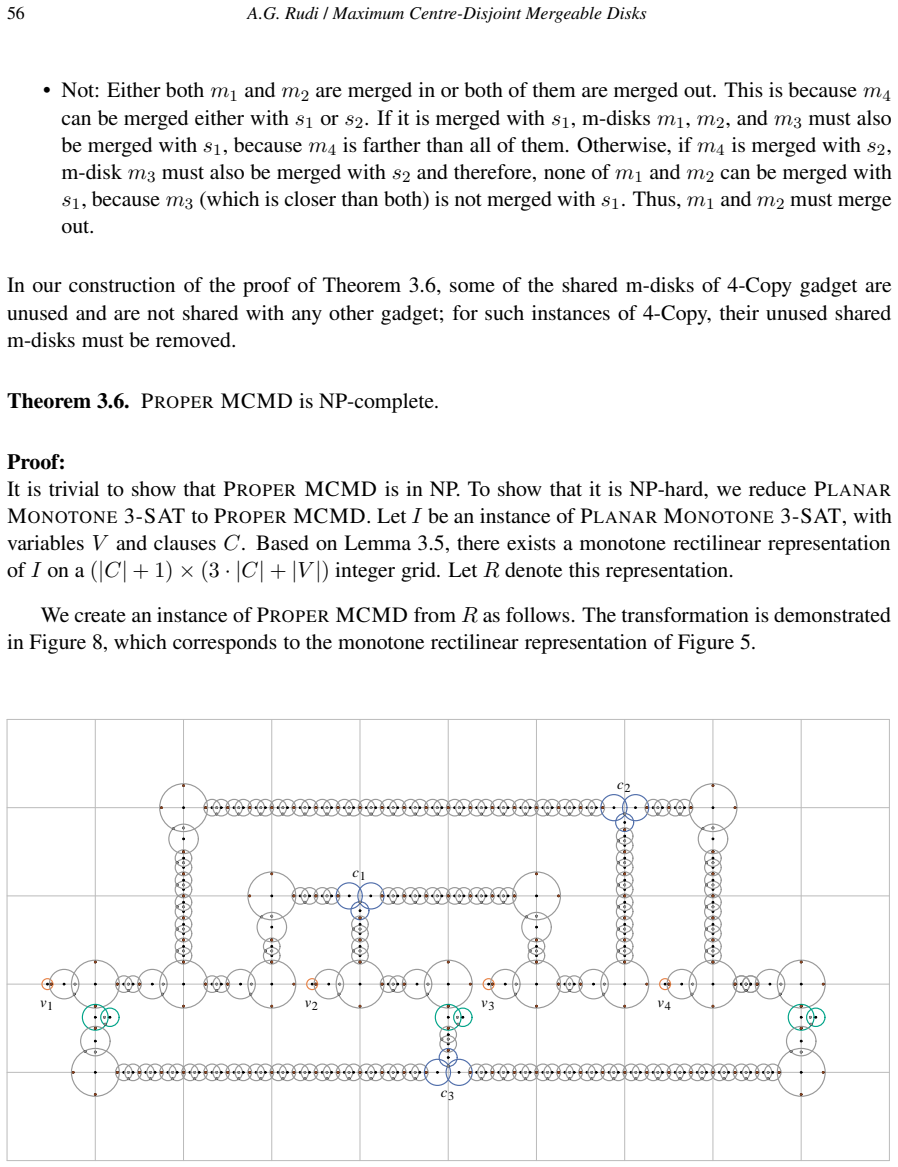

Figure 8
Figure 8. Figure 8: A PROPER MCMD instance obtained from the PLANAR MONOTONE 3-SAT instance of [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: The construction in the proof of Theorem 3.12. Only [PITH_FULL_IMAGE:figures/full_fig_p014_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Demonstrating the symbols used in Theorem 4.4. [PITH_FULL_IMAGE:figures/full_fig_p018_10.png] view at source ↗
read the original abstract

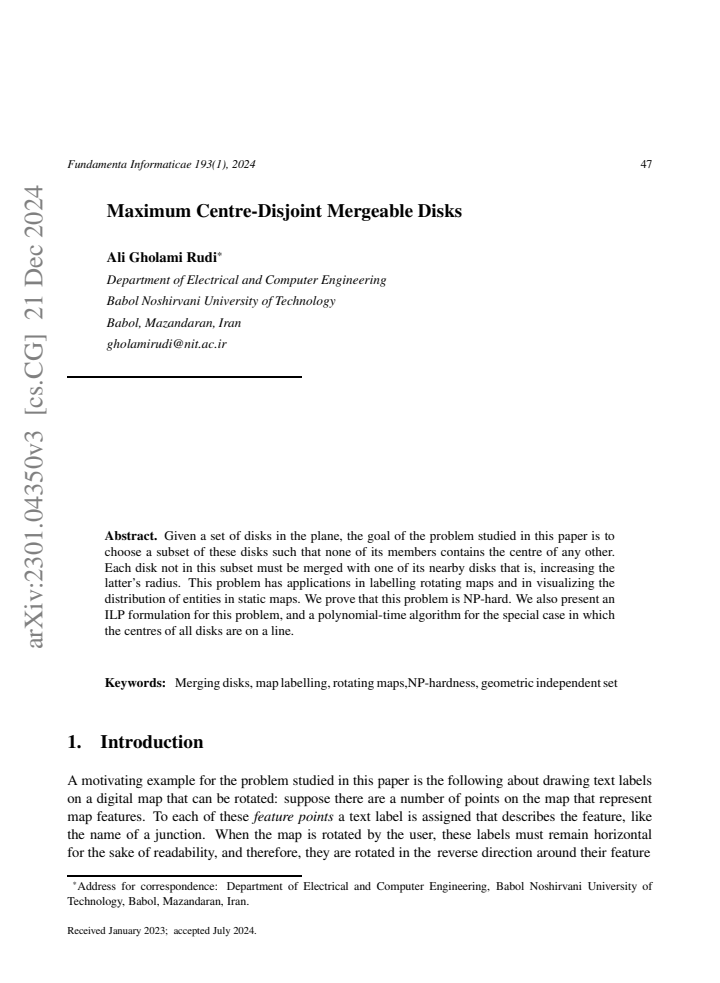

Given a set of disks in the plane, the goal of the problem studied in this paper is to choose a subset of these disks such that none of its members contains the centre of any other. Each disk not in this subset must be merged with one of its nearby disks that is, increasing the latter's radius. This problem has applications in labelling rotating maps and in visualizing the distribution of entities in static maps. We prove that this problem is NP-hard. We also present an ILP formulation for this problem, and a polynomial-time algorithm for the special case in which the centres of all disks are on a line.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The paper defines the Maximum Centre-Disjoint Mergeable Disks problem: given disks in the plane, select a maximum subset S such that no disk in S contains the center of another disk, and every disk outside S can be merged into a nearby disk in S by increasing the radius of the disk in S. The authors claim to prove NP-hardness, supply an ILP formulation, and give a polynomial-time algorithm when all centers are collinear. Applications to rotating map labelling and static map visualization are noted.

Significance. If the NP-hardness result and algorithms hold under a non-trivial merge definition, the work introduces a geometrically constrained variant of independent set with direct applications in cartography. The explicit ILP and the special-case polynomial algorithm constitute concrete contributions that could be built upon.

major comments (3)
  1. [§2] §2 (problem definition): The formal condition for a disk D to be 'mergeable' into a selected disk S (via radius increase of S while preserving centre-disjointness of the selected set) is not stated with an explicit distance or radius bound. The abstract's reference to 'nearby' disks leaves open whether the merge condition is always satisfiable for any centre-disjoint S; if so, the problem reduces to maximum centre-disjoint set and the claimed NP-hardness requires an explicit reduction that encodes the bound.
  2. [§3] §3 (NP-hardness): The reduction establishing NP-hardness must be checked against the precise merge predicate; if the predicate permits unbounded radius growth, the reduction would need to force the bound via gadget geometry, yet no such detail is visible in the high-level claim.
  3. [§4] §4 (line case): The polynomial-time algorithm for collinear centers must be shown to exploit the merge condition rather than merely solving maximum centre-disjoint set on an interval graph; the running time and correctness argument should be stated explicitly with respect to the merge definition.
minor comments (1)
  1. [Abstract] The abstract states the three main results but supplies no section pointers; adding 'see §3', 'see §4', etc., would improve readability.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the constructive comments. We address each major comment below.

read point-by-point responses

  1. Referee: [§2] §2 (problem definition): The formal condition for a disk D to be 'mergeable' into a selected disk S (via radius increase of S while preserving centre-disjointness of the selected set) is not stated with an explicit distance or radius bound. The abstract's reference to 'nearby' disks leaves open whether the merge condition is always satisfiable for any centre-disjoint S; if so, the problem reduces to maximum centre-disjoint set and the claimed NP-hardness requires an explicit reduction that encodes the bound.

    Authors: We agree that the merge condition should be stated with greater formality. The manuscript defines mergeability via a radius bound that depends on distances to other selected centers in order to preserve centre-disjointness; this bound is not always satisfiable for an arbitrary centre-disjoint set. We will revise §2 to include an explicit mathematical statement of the predicate. revision: yes

  2. Referee: [§3] §3 (NP-hardness): The reduction establishing NP-hardness must be checked against the precise merge predicate; if the predicate permits unbounded radius growth, the reduction would need to force the bound via gadget geometry, yet no such detail is visible in the high-level claim.

    Authors: The reduction is constructed so that gadget geometry enforces the merge bounds. We will expand the presentation in the revised §3 to make the interaction between the reduction and the merge predicate explicit. revision: yes

  3. Referee: [§4] §4 (line case): The polynomial-time algorithm for collinear centers must be shown to exploit the merge condition rather than merely solving maximum centre-disjoint set on an interval graph; the running time and correctness argument should be stated explicitly with respect to the merge definition.

    Authors: The linear-time algorithm incorporates the merge condition by tracking allowable radius extensions constrained by selected centers on the line. We will revise §4 to state the running time explicitly and to include a correctness argument written directly in terms of the merge predicate. revision: yes

Circularity Check

0 steps flagged

No circularity: standard NP-hardness and algorithmic results

full rationale

The paper states it proves NP-hardness, gives an ILP, and gives a poly-time algorithm for the collinear-centers case. These are presented as conventional complexity and algorithmic results with no self-definitional steps, no fitted parameters renamed as predictions, and no load-bearing self-citations. The problem definition (centre-disjoint subset plus mergeability of outsiders) is given directly; nothing in the abstract or described claims reduces the hardness proof or algorithm to its own inputs by construction. The derivation is therefore self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available; no information is given on any free parameters, axioms, or invented entities.
