arxiv: 2302.13924 · v4 · submitted 2023-02-27 · ⚛️ physics.plasm-ph

Periodic Korteweg-de Vries soliton potentials generate quasisymmetric magnetic fields

W. Sengupta , N. Nikulsin , S. Buller , R. Madan , E.J. Paul , R. Nies , A.A. Kaptanoglu , S.R.Hudson
show 1 more author
A. Bhattacharjee
This is my paper

Pith reviewed 2026-05-24 10:03 UTC · model grok-4.3

classification ⚛️ physics.plasm-ph
keywords quasisymmetrystellaratorsKorteweg-de Vries equationsolitonsmagnetic field strengthPainleve propertyplasma equilibriaGardner equation
0
0 comments X

The pith

Quasisymmetric magnetic fields on flux surfaces reduce to periodic Korteweg-de Vries soliton potentials.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper links quasisymmetry in stellarator plasmas to the underlying symmetry of solitons by showing that the magnetic field strength B on a flux surface obeys equations from soliton theory. Near the outermost surface, B takes the exact form of the one-soliton reflectionless potential. A non-perturbative argument based on single-valuedness of B directly produces the Painleve property and yields the KdV and Gardner equations. Machine learning applied to many numerically optimized quasisymmetric configurations recovers the same equations from the data.

Core claim

Quasisymmetry arises because the magnetic field strength B on each flux surface satisfies the Korteweg-de Vries and Gardner equations; this follows from the requirement that B remain single-valued, which forces the Painleve property, and is confirmed by the approach of B to the one-soliton reflectionless potential near the outermost surface.

What carries the argument

Single-valuedness of B on a flux surface, which directly enforces the Painleve property and reduces the governing equation for B to the Korteweg-de Vries and Gardner equations.

If this is right

  • The magnetic field strength B possesses a hidden lower dimensionality on each flux surface.
  • An upper bound on the maximum volume of quasisymmetric toroidal plasma can be derived from properties of B alone.
  • The connection length diverges at the outermost surface, indicating a possible X-point or cusp usable for divertor design.
  • Machine learning trained on optimized stellarators consistently recovers the KdV and Gardner equations.
  • Quasisymmetry is generated by the same symmetry principle that permits soliton solutions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Stellarator optimization could be performed in a reduced space by solving the KdV equation on each surface rather than optimizing the full three-dimensional field.
  • The same single-valuedness argument might uncover analogous integrable structures in other plasma confinement symmetries.
  • The divergence of connection length suggests a natural location for magnetic islands or divertor structures without additional engineering.
  • The verified match in the Landreman-Paul configuration indicates the reduction may hold across a broad class of numerically found quasisymmetric equilibria.

Load-bearing premise

Single-valuedness of the magnetic field strength B on a flux surface is enough to force the Painleve property and thereby the KdV and Gardner equations.

What would settle it

Numerical evaluation of B on flux surfaces of a known quasisymmetric stellarator to test whether its functional form near the outermost surface exactly matches the one-soliton reflectionless potential.

Figures

Figures reproduced from arXiv: 2302.13924 by A.A. Kaptanoglu, A. Bhattacharjee, E.J. Paul, N. Nikulsin, R. Madan, R. Nies, S. Buller, S.R.Hudson, W. Sengupta.

Figure 1
Figure 1. Figure 1: FIG. 1. The value of ( [PITH_FULL_IMAGE:figures/full_fig_p010_1.png] view at source ↗
Figure 2

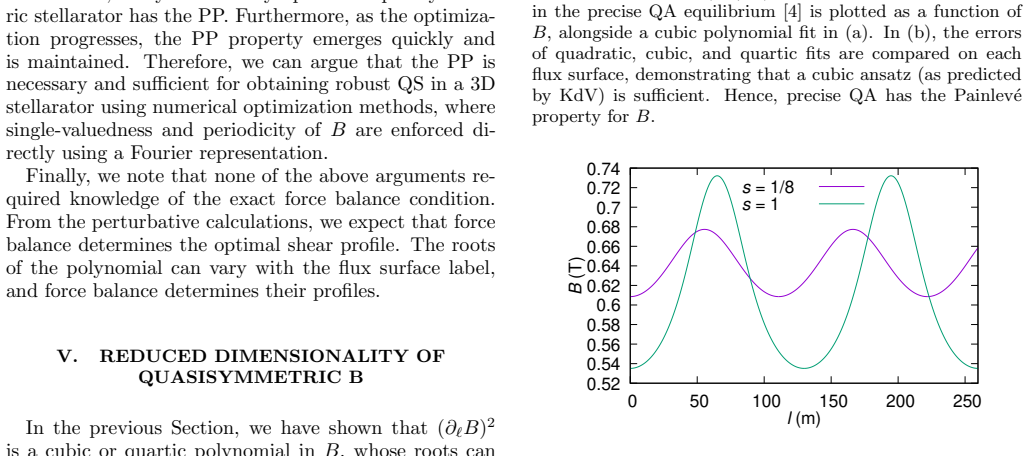

Figure 2. Figure 2: FIG. 2. The value of [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗
Figure 3

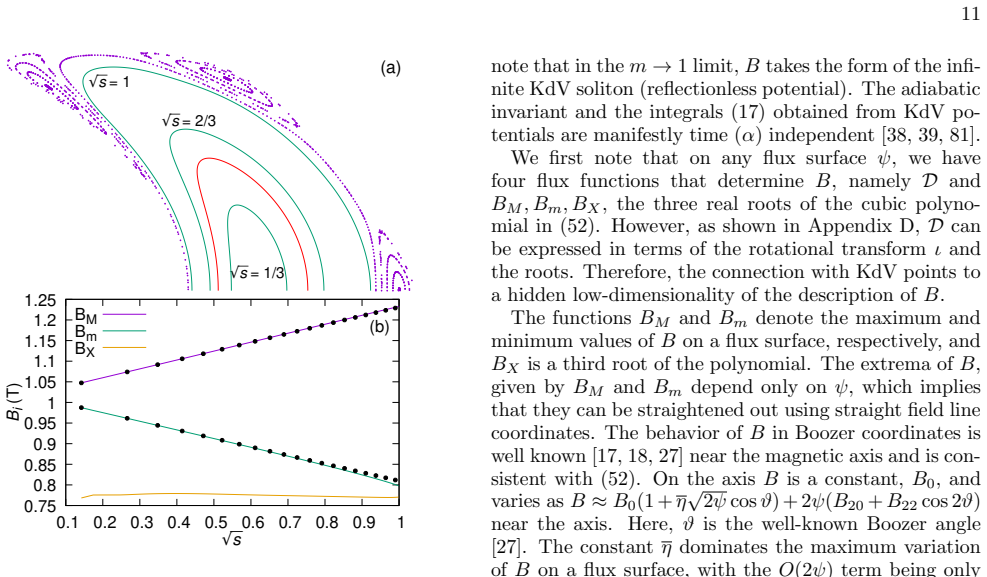

Figure 3. Figure 3: FIG. 3. Prediction of maximum toroidal volume that can be [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
Figure 5

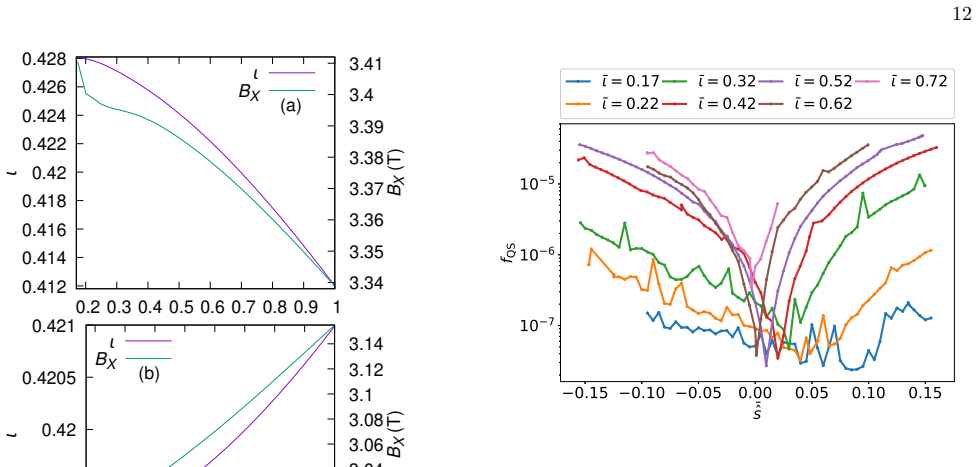

Figure 5. Figure 5: FIG. 5. Radially-summed two-term QS error, [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
Figure 6

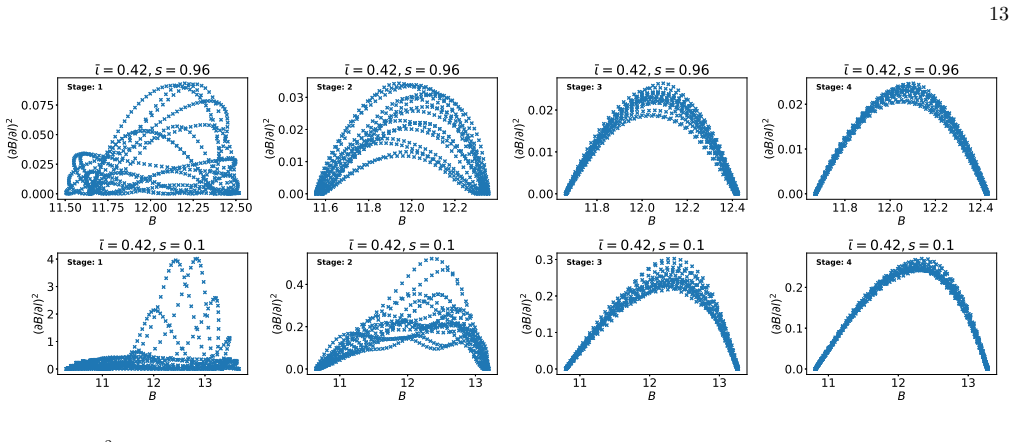

Figure 6. Figure 6: FIG. 6. ( [PITH_FULL_IMAGE:figures/full_fig_p013_6.png] view at source ↗
Figure 7

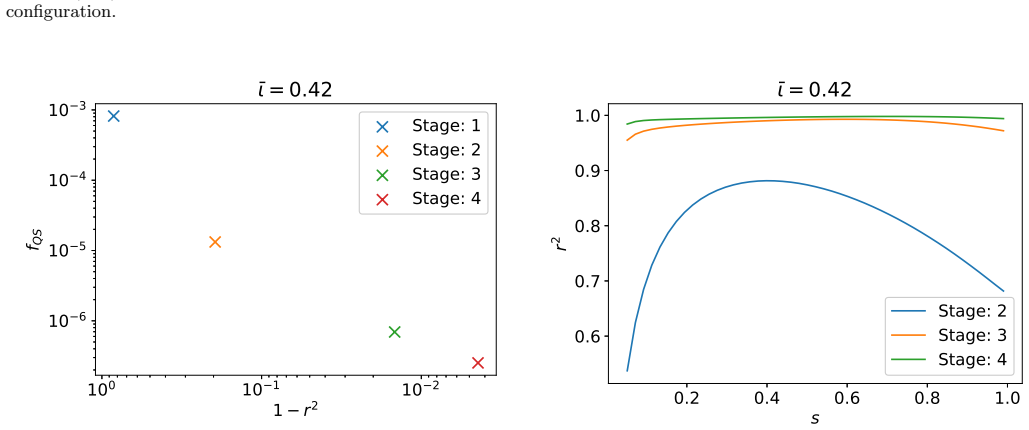

Figure 7. Figure 7: FIG. 7. The two-term QS error, summed over the surfaces, [PITH_FULL_IMAGE:figures/full_fig_p013_7.png] view at source ↗
Figure 9

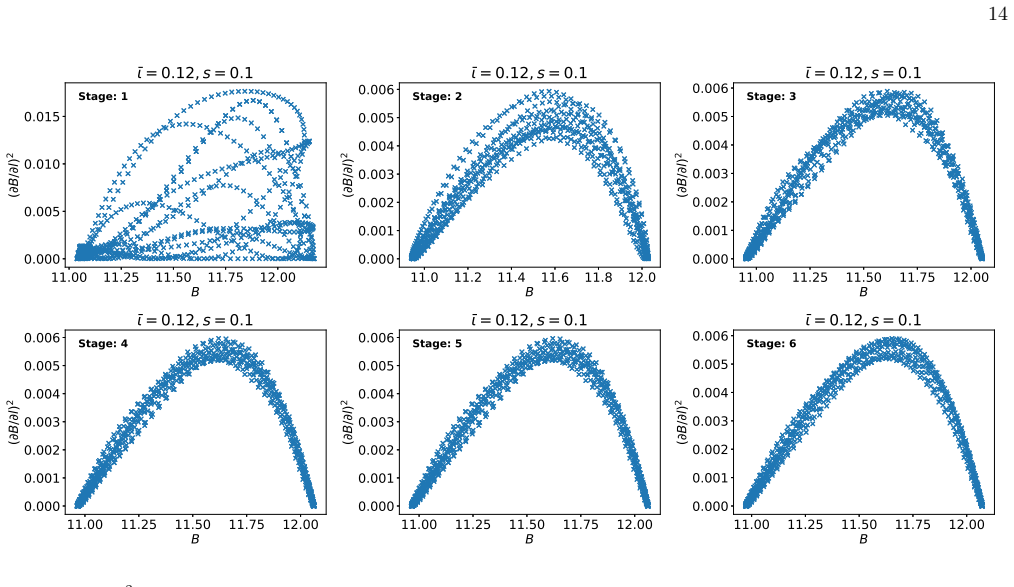

Figure 9. Figure 9: FIG. 9. ( [PITH_FULL_IMAGE:figures/full_fig_p014_9.png] view at source ↗
Figure 10

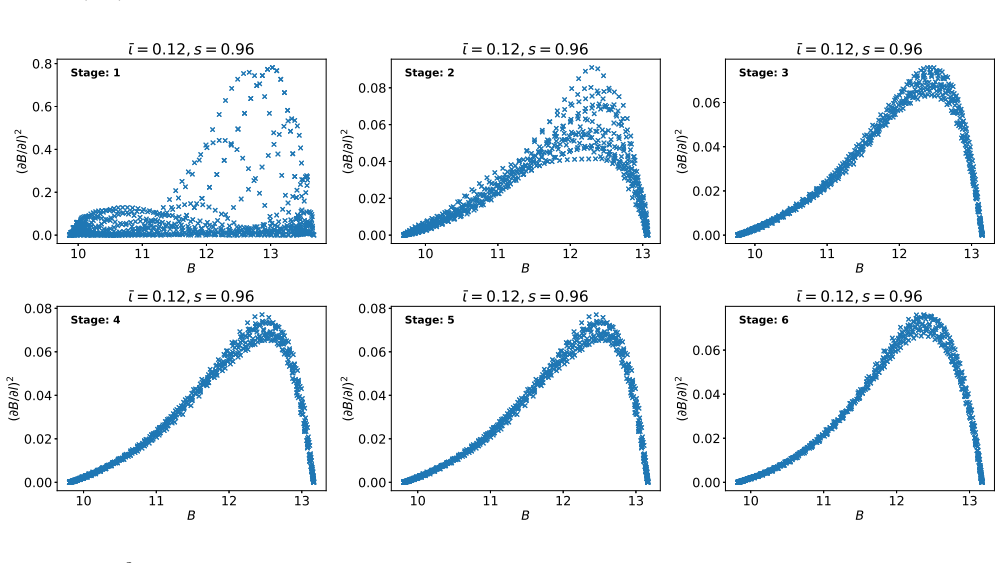

Figure 10. Figure 10: FIG. 10. ( [PITH_FULL_IMAGE:figures/full_fig_p014_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: FIG. 11. The two-term QS error, summed over the surfaces, [PITH_FULL_IMAGE:figures/full_fig_p015_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: FIG. 12. For a quartic best fit, we plot the coefficient of de [PITH_FULL_IMAGE:figures/full_fig_p015_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: FIG. 13 [PITH_FULL_IMAGE:figures/full_fig_p016_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: FIG. 14. ( [PITH_FULL_IMAGE:figures/full_fig_p016_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: FIG. 15. ( [PITH_FULL_IMAGE:figures/full_fig_p017_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: FIG. 16. The coefficient of determination on the outermost [PITH_FULL_IMAGE:figures/full_fig_p017_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: FIG. 17. The coefficient of determination as a function of the surface, for three different mean rotational transforms, for [PITH_FULL_IMAGE:figures/full_fig_p018_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: FIG. 18. 200 pySINDy models for each shown configuration [PITH_FULL_IMAGE:figures/full_fig_p018_18.png] view at source ↗
Figure 19
Figure 19. Figure 19: FIG. 19. ( [PITH_FULL_IMAGE:figures/full_fig_p019_19.png] view at source ↗
Figure 21
Figure 21. Figure 21: FIG. 21. The value of ( [PITH_FULL_IMAGE:figures/full_fig_p025_21.png] view at source ↗
Figure 23

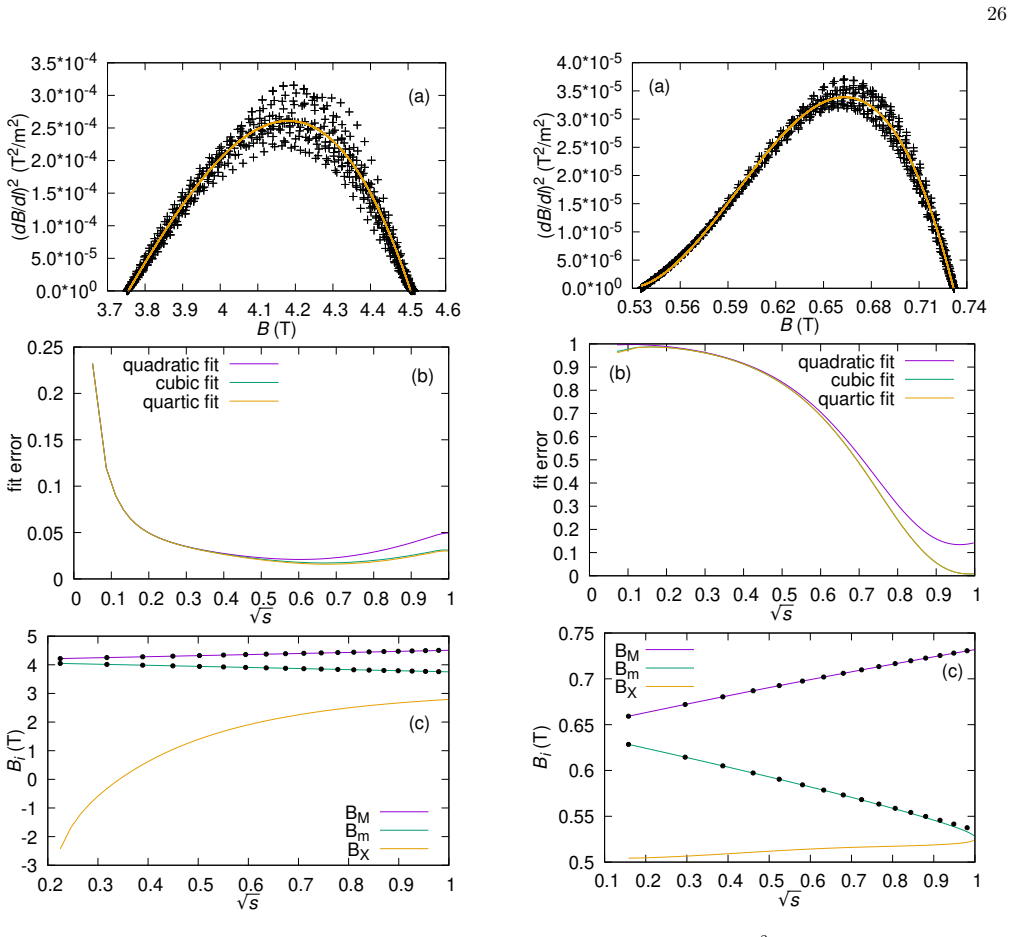

Figure 23. Figure 23: FIG. 23. The value of ( [PITH_FULL_IMAGE:figures/full_fig_p026_23.png] view at source ↗
Figure 24
Figure 24. Figure 24: FIG. 24. The value of ( [PITH_FULL_IMAGE:figures/full_fig_p027_24.png] view at source ↗
read the original abstract

Quasisymmetry (QS) is a hidden symmetry of the magnetic field strength, B, that effectively confines charged particles in a three-dimensional toroidal plasma equilibrium. Here, we show that QS has a deep connection to the underlying symmetry that makes solitons possible. Our approach uncovers a hidden lower dimensionality of B on a magnetic flux surface, which could make stellarator optimization schemes significantly more efficient. Recent numerical breakthroughs (M. Landreman and E. Paul, Phys. Rev. Lett. 128, 035001 (2022)) have yielded configurations with excellent volumetric QS and surprisingly low magnetic shear. Given B, it may be possible to deduce an upper bound on the maximum quasisymmetric toroidal volume which depends only on the properties of B. This has been verified for the Landreman-Paul precise quasiaxisymmetric (QA) stellarator configuration. In the neighborhood of the outermost surface, we show that B approaches the form of the 1-soliton reflectionless potential (I. Gjaja and A. Bhattacharjee, Phys. Rev. Lett. 68, 2413 (1992)). The connection length diverges, indicating the possible presence of an X-point or cusp that could potentially be used as a basis for a divertor. We present a non-perturbative approach based on ensuring single-valuedness of B, which directly leads to its Painleve property and the KdV and Gardner's equations. Finally, we use an approach based on machine learning, trained on a large dataset of numerically optimized quasisymmetric stellarators. We robustly recover the KdV and Gardner's equations from the data.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper claims that quasisymmetric magnetic fields arise from periodic KdV soliton potentials. It shows that B approaches the 1-soliton reflectionless potential near the outermost flux surface, that single-valuedness of B non-perturbatively implies the Painlevé property and thus the KdV and Gardner equations, and that machine learning trained on numerically optimized QS stellarators recovers these equations. The approach is verified on the Landreman-Paul precise QA configuration and is argued to imply an upper bound on QS toroidal volume and possible X-points for divertors.

Significance. If the claimed reduction holds, the work would provide an analytical route to QS stellarator design that lowers the effective dimensionality of B on flux surfaces, potentially improving optimization efficiency. The verification against the Landreman-Paul configuration and the ML recovery of the integrable equations constitute reproducible elements that could yield falsifiable predictions for new equilibria.

major comments (2)
  1. [Non-perturbative approach] Non-perturbative approach (abstract and corresponding section): the statement that single-valuedness of B on a flux surface 'directly leads to its Painlevé property and the KdV and Gardner's equations' supplies no intermediate identities. Single-valuedness is satisfied by any smooth toroidal scalar; the derivation must exhibit the precise reduction (via the QS condition |B| = |B|(ψ,θ,ϕ) or an implicit ODE) that selects the integrable hierarchy. This step is load-bearing for the central non-perturbative claim.
  2. [Machine learning section] Machine-learning recovery section: the training set consists of numerically optimized QS stellarators whose construction may already embed symmetry assumptions akin to those recovered. The paper must demonstrate that the recovered KdV/Gardner forms are independent of the optimization priors, e.g., by reporting cross-validation error, out-of-distribution test performance, or an explicit statement that the dataset was generated without KdV-type constraints.
minor comments (1)
  1. [Abstract] The phrase 'the connection length diverges' is stated without identifying the surface or coordinate; a parenthetical reference to the relevant flux-surface label would remove ambiguity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and constructive comments on our manuscript. We respond to each major comment below.

read point-by-point responses

  1. Referee: [Non-perturbative approach] Non-perturbative approach (abstract and corresponding section): the statement that single-valuedness of B on a flux surface 'directly leads to its Painlevé property and the KdV and Gardner's equations' supplies no intermediate identities. Single-valuedness is satisfied by any smooth toroidal scalar; the derivation must exhibit the precise reduction (via the QS condition |B| = |B|(ψ,θ,ϕ) or an implicit ODE) that selects the integrable hierarchy. This step is load-bearing for the central non-perturbative claim.

    Authors: We agree that the current manuscript states the connection from single-valuedness to the Painlevé property and integrable equations without spelling out all intermediate identities. The reduction proceeds by imposing the QS condition |B| = |B|(ψ, θ, ϕ) together with single-valuedness on the toroidal surface, which yields an implicit ODE whose solutions must satisfy the Painlevé property and hence belong to the KdV/Gardner hierarchy. We will revise the relevant section to display these steps explicitly. revision: yes

  2. Referee: [Machine learning section] Machine-learning recovery section: the training set consists of numerically optimized QS stellarators whose construction may already embed symmetry assumptions akin to those recovered. The paper must demonstrate that the recovered KdV/Gardner forms are independent of the optimization priors, e.g., by reporting cross-validation error, out-of-distribution test performance, or an explicit statement that the dataset was generated without KdV-type constraints.

    Authors: The stellarator equilibria in the training set were generated by standard numerical optimization for quasisymmetry without any explicit KdV or Gardner constraints. To address the concern about possible embedded priors, we will add to the revised manuscript both an explicit statement confirming the absence of such constraints in the dataset generation and quantitative results on cross-validation error together with out-of-distribution test performance. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation self-contained

full rationale

The paper presents a non-perturbative derivation from single-valuedness of B on a flux surface to the Painlevé property and KdV/Gardner equations, plus an ML recovery of those equations from a dataset of numerically optimized QS stellarators. No quoted step reduces by construction to a fitted parameter, self-definition, or unverified self-citation chain. The cited 1992 soliton result is used only to identify the limiting form of B, not to justify the central QS-KdV link. The ML step discovers structure in external data rather than renaming a fit. The derivation chain therefore retains independent content against the stated assumptions.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on domain assumptions about toroidal equilibria and single-valuedness of B; no free parameters or invented entities are explicitly introduced in the abstract.

axioms (1)
  • domain assumption Magnetic field strength B must be single-valued on each flux surface
    Invoked to derive the Painleve property and KdV/Gardner equations in the non-perturbative approach
