arxiv: 2310.09109 · v6 · submitted 2023-10-13 · 💻 cs.LO

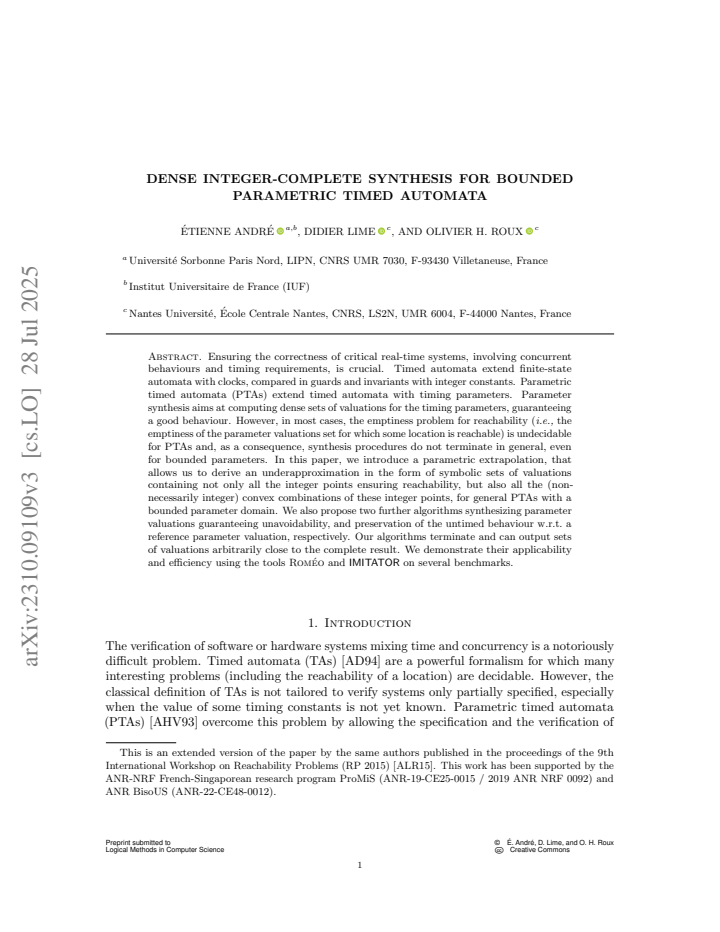

Dense Integer-Complete Synthesis for Bounded Parametric Timed Automata

\'Etienne Andr\'e , Didier Lime , Olivier H. Roux This is my paper

Pith reviewed 2026-05-24 06:36 UTC · model grok-4.3

classification 💻 cs.LO
keywords parametric timed automataparameter synthesisunderapproximationreachabilityextrapolationunavoidabilitytimed automata
0
0 comments X

The pith

Parametric extrapolation produces symbolic sets containing all integer reachability solutions and their convex combinations for bounded parametric timed automata.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a synthesis technique for finding timing parameter values that make certain locations reachable in parametric timed automata. It focuses on bounded parameter domains and uses a new extrapolation step to generate underapproximations that are dense: they include every integer valuation that works and every convex combination of those integers. This matters because most synthesis problems for these models are undecidable and do not terminate, yet the new operator yields terminating procedures that can get arbitrarily close to the full solution set. The same framework also produces algorithms for unavoidability and for preserving untimed behavior relative to a reference valuation.

Core claim

A parametric extrapolation operator applied to bounded parametric timed automata yields symbolic sets of parameter valuations that contain every integer point ensuring reachability together with every convex combination of those integer points, thereby forming a dense integer-complete underapproximation of the solution set.

What carries the argument

The parametric extrapolation operator, which lifts the classical extrapolation of timed automata to the parametric case so that the resulting symbolic sets are closed under convex combination of integer solutions.

If this is right

  • Terminating synthesis becomes possible for reachability in any bounded parametric timed automaton.
  • The same operator produces terminating algorithms that synthesize parameters guaranteeing unavoidability of a location.
  • The operator also yields terminating synthesis for parameter valuations that preserve the untimed behavior of a reference valuation.
  • The returned symbolic sets can be refined to approximate the complete solution set to any desired precision.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The density property may allow direct use of the output sets inside convex optimization routines without further discretization.
  • The method could be combined with existing semi-algorithms for unbounded domains by first restricting to a large enough box and then checking boundary behavior.
  • Because the result is closed under convex combination, any linear objective over the parameter space can be optimized directly on the returned symbolic sets.

Load-bearing premise

The timing parameters must lie inside an explicitly bounded domain.

What would settle it

A concrete bounded parametric timed automaton together with an integer valuation that ensures reachability yet is excluded from the symbolic set returned by the extrapolation.

Figures

Figures reproduced from arXiv: 2310.09109 by Didier Lime, \'Etienne Andr\'e, Olivier H. Roux.

Figure 1

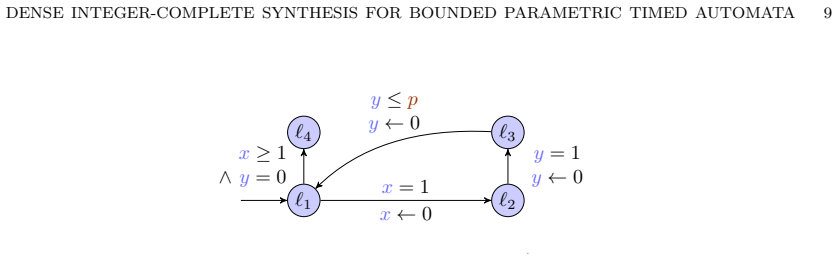

Figure 1. Figure 1: Motivating PTA the number of possible symbolic states. Let us first show that this does not hold anymore over rational-valued parameters, which motivates the use of an extrapolation. Example 2. Consider the PTA in [PITH_FULL_IMAGE:figures/full_fig_p009_1.png] view at source ↗
Figure 2

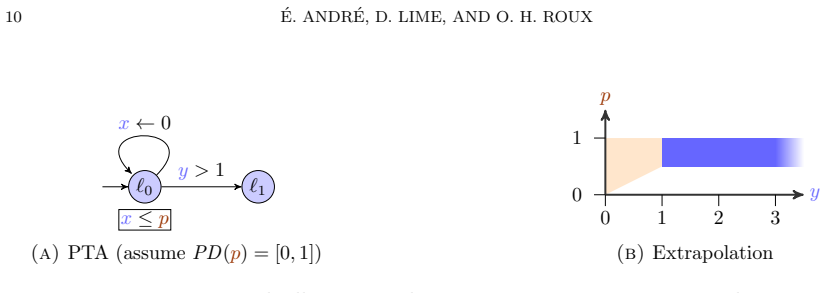

Figure 2. Figure 2: Example illustrating the non-convex parametric extrapolation consists in unconstraining variable ν. The result Cylν (C) for a polyhedron C is a polyhedron: one just need to project out variable ν (e.g., with the Fourier-Motzkin algorithm), and then add it back unconstrained. 3.1.1. Defining extrapolation. Let us first introduce our concept of (M, x)-extrapolation for a single clock. Definition 7 ((M, x)-ex… view at source ↗
Figure 3

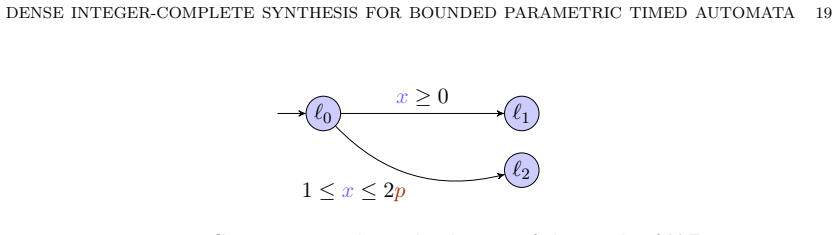

Figure 3. Figure 3: Counter-example to the density of the result of IAF. The first case must happen at least once, otherwise by Lemma 1 we have a deadlocked run in v(A) never reaching G. Therefore we have v ∈ Klive at the end of the foreach loop, and for all successors we have v either in Kgood or in Kblock . It follows that v is in the returned value of K. Example 7. Consider the PTA in [PITH_FULL_IMAGE:figures/full_fig_p01… view at source ↗
Figure 4

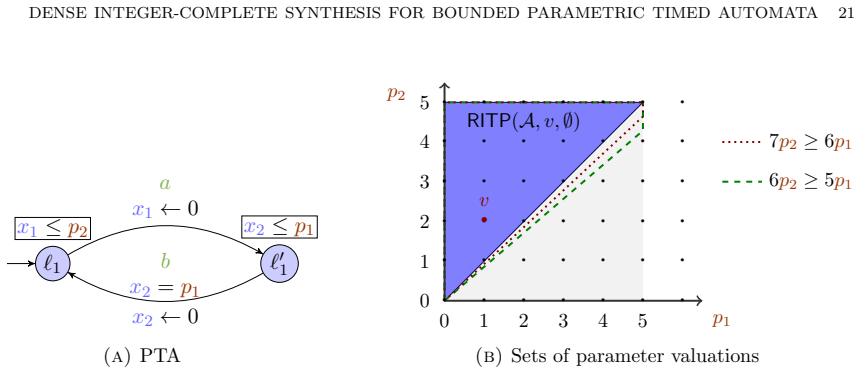

Figure 4. Figure 4: Example for which RITP terminates but not TP ℓ1 ℓ2 ℓ3 x ≤ 2p x = 1 x ← 0 x = 1 ∧ x ≤ p x ← 0 p = x = q − 1 [PITH_FULL_IMAGE:figures/full_fig_p021_4.png] view at source ↗
Figure 5

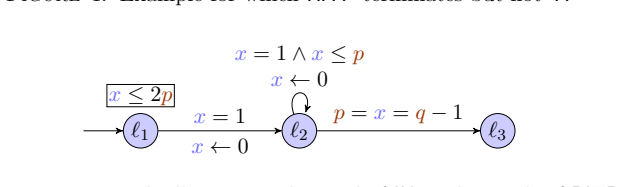

Figure 5. Figure 5: Example illustrating the need of IH in the result of RITP needed, because both clocks are always ≤ 5 due to the invariants and the bounded parameter domain); in Fig. 4b, we give two such sets of parameter valuations, i.e., 6p2 ≥ 5p1 and 7p2 ≥ 6p1, that indeed contain the same set of integer points within [0, 5]2 , and hence the integer hull (of their extrapolation) is equal.5 Eventually, RITP returns 0 ≤ p… view at source ↗
Figure 6
Figure 6. Figure 6: Example illustrating the need for an integer valuation in RITP When visiting ℓ2 for the second time (via the self-loop over ℓ2), the associated set of valuations C′ 2 is: 1 ≤ p ≤ 2. Observe that IH(C2) = IH(C′ 2 ). Therefore, RITP does not explore the successors of C′ 2 ; if RITP returned C↓P at line 3, then the result would be q = p + 1 ∧ 1 2 ≤ p ≤ 1—which is wrong. Now, RITP actually returns  IH ExtM X … view at source ↗
Figure 7

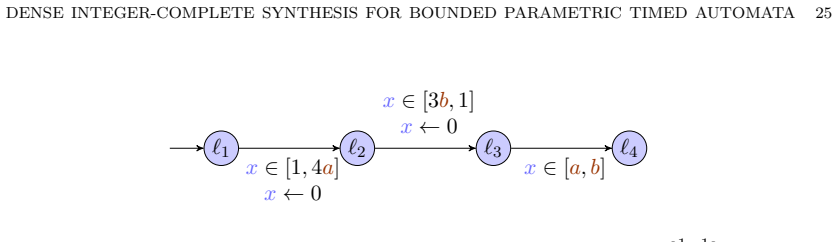

Figure 7. Figure 7: A PTA s.t. IEF ℓ4 is false and EF and RIEF give a ∈ [ 1 4 , 1 3 ] and b ∈ [ 1 4 , 1 3 ] and b ≥ a that the system does not reach a deadline violation.6 Algorithm EF does not terminate. Algorithm IEF produces the set of parameter valuations a ≥ 34∧b ≥ 10∧a−b ≥ 24 in 13.5 s, while algorithm RIEF produces the set of parameter valuations a > 562 17 ∧b ≥ 10∧a−b > 392 17 in 14.3 s. As illustrated here, the resul… view at source ↗
read the original abstract

Ensuring the correctness of critical real-time systems, involving concurrent behaviours and timing requirements, is crucial. Timed automata extend finite-state automata with clocks, compared in guards and invariants with integer constants. Parametric timed automata (PTAs) extend timed automata with timing parameters. Parameter synthesis aims at computing dense sets of valuations for the timing parameters, guaranteeing a good behaviour. However, in most cases, the emptiness problem for reachability (i.e., the emptiness of the parameter valuations set for which some location is reachable) is undecidable for PTAs and, as a consequence, synthesis procedures do not terminate in general, even for bounded parameters. In this paper, we introduce a parametric extrapolation, that allows us to derive an underapproximation in the form of symbolic sets of valuations containing not only all the integer points ensuring reachability, but also all the (non-necessarily integer) convex combinations of these integer points, for general PTAs with a bounded parameter domain. We also propose two further algorithms synthesizing parameter valuations guaranteeing unavoidability, and preservation of the untimed behaviour w.r.t. a reference parameter valuation, respectively. Our algorithms terminate and can output sets of valuations arbitrarily close to the complete result. We demonstrate their applicability and efficiency using the tools Rom\'eo and IMITATOR on several benchmarks.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper claims that a parametric extrapolation yields a terminating algorithm producing a dense integer-complete underapproximation (symbolic sets containing all integer valuations ensuring reachability together with all their convex combinations) for general PTAs over bounded parameter domains. It further claims two additional terminating algorithms for unavoidability synthesis and untimed-behavior preservation, with outputs refinable to arbitrary closeness, and demonstrates the approach on benchmarks via Romeo and IMITATOR.

Significance. If the claims hold, the result is significant: it supplies sound, terminating underapproximations with a strong density guarantee (integer points plus convex hull) precisely where full synthesis is undecidable, while respecting the explicit bounded-domain prerequisite. Credit is due for the algorithmic construction that avoids circularity, the termination guarantee, and the reproducible tool-based evaluation.

minor comments (3)
  1. [§3] §3 (parametric extrapolation definition): the transition from the integer-point set to the symbolic convex-combination representation would benefit from an explicit small example immediately after the formal definition to improve readability.
  2. [Table 1] Table 1 (benchmark results): the column reporting distance to the exact set should include the precise metric used (e.g., Hausdorff distance on the parameter space) rather than a qualitative label.
  3. [§4] The proof of termination for the extrapolation operator (likely in §4) relies on the boundedness assumption; a short remark on why the same construction fails without boundedness would clarify the scope without lengthening the text.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary, recognition of the significance of the result, and recommendation of minor revision. No specific major comments appear in the report.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper introduces a parametric extrapolation operator as an algorithmic construction for bounded PTAs, deriving terminating synthesis procedures that produce sound underapproximations containing integer points and their convex combinations. No equations or claims reduce the result to a fitted quantity defined from the same data, a self-citation chain, or a renamed known result; the central claims rest on the explicit definition of the extrapolation and its termination properties within the stated bounded-domain scope, making the derivation self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The approach rests on the assumption that the parameter domain is bounded; no free parameters or invented entities are mentioned in the abstract.

axioms (1)
  • domain assumption Parameter domain is bounded
    Required for the extrapolation to guarantee the dense integer-complete underapproximation.

pith-pipeline@v0.9.0 · 5764 in / 1063 out tokens · 20122 ms · 2026-05-24T06:36:31.045503+00:00 · methodology
