arxiv: 2311.05007 · v2 · submitted 2023-11-08 · ⚛️ physics.flu-dyn

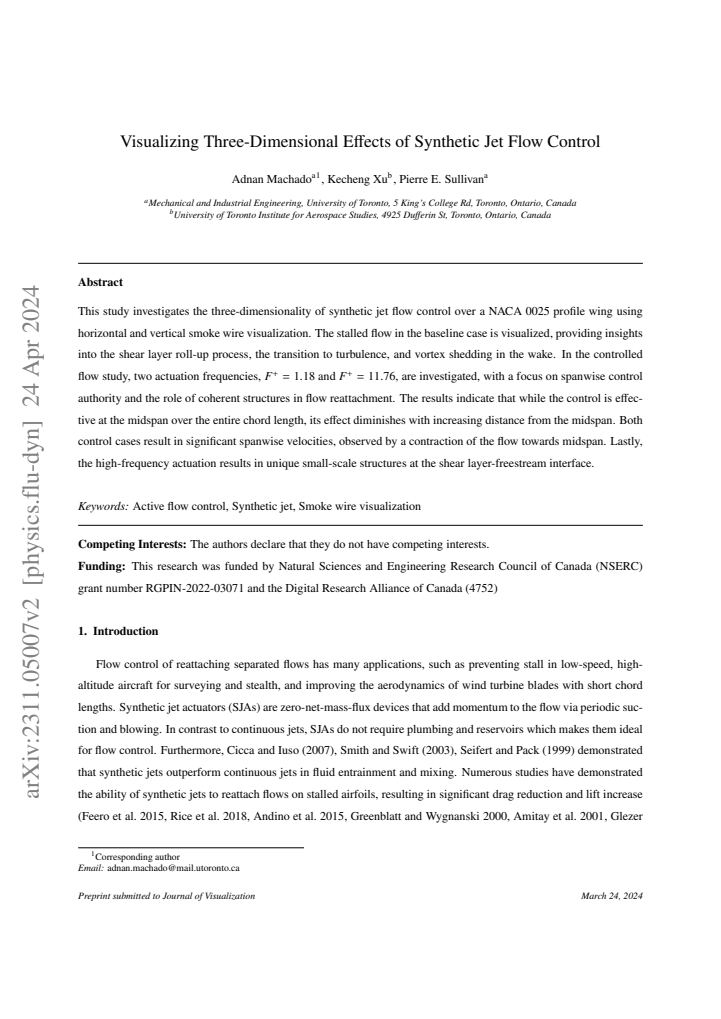

Visualizing Three-Dimensional Effects of Synthetic Jet Flow Control

Adnan Machado , Kecheng Xu , Pierre E. Sullivan This is my paper

Pith reviewed 2026-05-24 05:26 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn
keywords synthetic jetsflow controlthree-dimensional flowsmoke wire visualizationNACA 0025 airfoilspanwise effectsflow reattachmentcoherent structures
0
0 comments X

The pith

Synthetic jet control reattaches stalled flow over a wing's full chord at midspan but weakens away from the center line, with both actuation frequencies inducing inward spanwise flow.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines the three-dimensional character of synthetic jet flow control on a stalled NACA 0025 wing through smoke wire visualizations at two actuation frequencies. It establishes that control works across the entire chord length at the midspan yet tapers off with distance from that plane, while producing clear contraction of the flow toward the midspan. High-frequency actuation further creates small-scale structures at the shear layer boundary. These spanwise variations matter for applying flow control to real finite wings where two-dimensional assumptions often fail.

Core claim

Using horizontal and vertical smoke wires, the visualizations demonstrate that synthetic jet actuation at both F+ = 1.18 and F+ = 11.76 reattaches the flow effectively along the full chord at the midspan, with effectiveness declining at increasing spanwise distances. Both frequencies generate notable spanwise velocities that contract the flow toward the midspan. The higher frequency case additionally produces unique small-scale structures at the shear layer-freestream interface.

What carries the argument

Smoke wire visualization in horizontal and vertical planes to reveal spanwise variations in controlled and baseline stalled flow over the wing.

If this is right

  • The control effect is strongest and most uniform at the midspan location.
  • Spanwise contraction occurs regardless of the specific actuation frequency tested.
  • High-frequency actuation introduces additional small-scale flow features absent in the lower frequency case.
  • Baseline stalled flow exhibits shear layer roll-up followed by transition and wake vortex shedding.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Designers of synthetic jet systems for wings may need to vary actuator strength or frequency along the span to achieve more uniform reattachment.
  • The observed 3D contraction could interact with tip vortex effects on finite aspect ratio wings.
  • Similar visualization approaches might uncover comparable spanwise non-uniformities in other flow control techniques.

Load-bearing premise

The smoke wire method produces visualizations that faithfully represent the actual three-dimensional flow structures without major distortion from the technique itself.

What would settle it

A quantitative measurement technique such as stereoscopic PIV at multiple spanwise stations showing uniform control effectiveness across the span or absence of inward flow motion would falsify the reported spanwise diminution and contraction.

read the original abstract

This study investigates the three-dimensionality of synthetic jet flow control over a NACA 0025 profile wing using horizontal and vertical smoke wire visualization. The stalled flow in the baseline case is visualized, providing insights into the shear layer roll-up process, the transition to turbulence, and vortex shedding in the wake. In the controlled flow study, two actuation frequencies, $F^+=1.18$ and $F^+=11.76$, are investigated, with a focus on spanwise control authority and the role of coherent structures in flow reattachment. The results indicate that while the control is effective at the midspan over the entire chord length, its effect diminishes with increasing distance from the midspan. Both control cases result in significant spanwise velocities, observed by a contraction of the flow towards midspan. Lastly, the high-frequency actuation results in unique small-scale structures at the shear layer-freestream interface.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript uses horizontal and vertical smoke-wire visualizations to examine the three-dimensional flow over a stalled NACA 0025 wing, both in the baseline case and under synthetic-jet actuation at reduced frequencies F+=1.18 and F+=11.76. It reports that control remains effective at the midspan across the chord but weakens away from the midspan, that both actuation cases produce spanwise contraction toward the midspan, and that the higher frequency generates distinct small-scale structures at the shear-layer/freestream interface.

Significance. If the visualizations faithfully capture the controlled flow without method-induced artifacts, the work supplies qualitative evidence of spanwise variation in synthetic-jet authority and of frequency-dependent changes in near-interface structures. Such observations could help guide the design of three-dimensional flow-control strategies on finite-span wings, particularly where spanwise end effects or contraction influence reattachment.

major comments (2)
  1. [Abstract / Visualization results] The central claims (midspan effectiveness, spanwise contraction, and high-frequency small-scale structures) rest entirely on interpreting smoke-wire patterns as faithful representations of the flow. No comparison to non-intrusive measurements (PIV, hot-wire traverses, or surface pressure) is described that would separate possible spanwise disturbances generated by the wire wake from the actuation-induced motion. This validation gap directly affects the reliability of all reported three-dimensional effects.
  2. [Abstract / Controlled-flow observations] The statements that control “is effective at the midspan over the entire chord length” and that its effect “diminishes with increasing distance from the midspan” are presented without any quantitative metric (e.g., reattachment location versus spanwise station, or integrated momentum thickness) or repeatability statement, making it impossible to judge the strength or statistical significance of the spanwise variation.
minor comments (2)
  1. [Abstract] The abstract does not state the Reynolds number, freestream velocity, or chord-based reduced frequency definition, all of which are needed to place the two actuation frequencies in context.
  2. [Figure captions] Figure captions and text should explicitly note the orientation (horizontal vs. vertical) of each smoke wire and the viewing angle for every image so that readers can reconstruct the three-dimensional geometry.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thoughtful review and the recommendation for major revision. The comments highlight important limitations of relying solely on smoke-wire visualizations for claims about three-dimensional control effects. We address each point below and will revise the manuscript to better qualify the qualitative nature of the observations while defending the value of the visualizations for identifying spanwise trends.

read point-by-point responses

  1. Referee: [Abstract / Visualization results] The central claims (midspan effectiveness, spanwise contraction, and high-frequency small-scale structures) rest entirely on interpreting smoke-wire patterns as faithful representations of the flow. No comparison to non-intrusive measurements (PIV, hot-wire traverses, or surface pressure) is described that would separate possible spanwise disturbances generated by the wire wake from the actuation-induced motion. This validation gap directly affects the reliability of all reported three-dimensional effects.

    Authors: We agree that smoke-wire visualization is an intrusive technique whose wake can introduce spanwise disturbances, and the manuscript does not include comparisons to non-intrusive data such as PIV. This is a genuine limitation of the current study, which was designed as a visualization investigation. In the revised manuscript we will add an explicit discussion of method limitations, potential artifacts, and the qualitative character of the reported three-dimensional effects. We maintain that the observed contraction toward midspan and the frequency-dependent small-scale structures are consistent with the actuation and appear in both horizontal and vertical wire orientations, but we will not claim they are free of method influence. revision: partial

  2. Referee: [Abstract / Controlled-flow observations] The statements that control “is effective at the midspan over the entire chord length” and that its effect “diminishes with increasing distance from the midspan” are presented without any quantitative metric (e.g., reattachment location versus spanwise station, or integrated momentum thickness) or repeatability statement, making it impossible to judge the strength or statistical significance of the spanwise variation.

    Authors: The referee is correct that the manuscript presents these statements without quantitative metrics or repeatability data. The work is strictly qualitative and does not contain reattachment locations, momentum thickness, or statistical measures. We will revise the abstract and main text to remove or qualify absolute phrasing (e.g., “effective over the entire chord length”) and to state clearly that the observations are visual indications of relative control authority and spanwise variation. No new quantitative data will be added, as none were acquired. revision: yes

Circularity Check

0 steps flagged

No circularity: purely observational experimental study

full rationale

The paper reports smoke-wire visualizations of baseline and controlled flow over a wing, with claims based solely on direct observation of patterns (e.g., shear-layer roll-up, spanwise contraction, small-scale structures). No mathematical derivations, models, predictions, fitted parameters, or first-principles results are present. No equations, ansatzes, or self-citations are invoked as load-bearing steps. The derivation chain is therefore empty and self-contained; all reported effects are empirical observations rather than reductions of outputs to inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities as the work is experimental visualization without mathematical modeling.
