arxiv: 2401.01884 · v3 · submitted 2024-01-03 · 💻 cs.LO

A rewriting-logic-with-SMT-based formal analysis and parameter synthesis framework for parametric time Petri nets

Jaime Arias , Kyungmin Bae , Carlos Olarte , Peter Csaba \"Olveczky , Laure Petrucci This is my paper

Pith reviewed 2026-05-24 04:16 UTC · model grok-4.3

classification 💻 cs.LO
keywords parametric time Petri netsrewriting logicSMT solvingparameter synthesisformal verificationbisimulationreachability analysisLTL model checking
0
0 comments X

The pith

A bisimilar rewriting-logic semantics for parametric time Petri nets enables sound and complete analysis plus parameter synthesis inside Maude with SMT solvers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper defines both a concrete and a symbolic rewriting-logic semantics for parametric time Petri nets that include inhibitor arcs and parameters in firing bounds. It proves these semantics are bisimilar to the accepted standard semantics of such nets. Because of the bisimulation, any reachability or LTL result obtained in Maude with SMT solvers transfers directly back to the original net without loss of soundness or completeness. A new general folding technique for symbolic states guarantees that the Maude analysis terminates exactly when the net's parametric state-class graph is finite. The same encoding also supports synthesis from parametric initial markings and user-defined execution strategies, reproducing nearly all features of the Romeo tool while adding LTL model checking.

Core claim

The authors construct concrete and symbolic rewriting-logic semantics for PITPNs, prove bisimilarity to the standard semantics, and introduce a folding method for symbolic reachability so that Maude-with-SMT analyses are sound, complete, and terminating on finite state-class graphs; this encoding transfers all supported Romeo analyses plus full LTL checking and strategy-based exploration to the Maude framework.

What carries the argument

The bisimilar rewriting-logic semantics for PITPNs, which transfers verification properties from Maude to the original model via equivalence.

If this is right

  • Reachability and parameter synthesis queries on PITPNs become executable inside Maude whenever the parametric state-class graph is finite.
  • Full LTL model checking and analysis under user-defined execution strategies become available for these nets.
  • Parameter synthesis is possible even when initial markings contain parameters.
  • Almost every analysis method previously available only in Romeo can now be performed inside the Maude environment.
  • The Maude implementation outperforms Romeo on many benchmark instances.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same bisimulation technique could be reused to import other Maude capabilities, such as statistical model checking, into the PITPN setting.
  • The folding approach may generalize to other parametric timed formalisms whose state-class graphs admit finite representations.
  • User-defined strategies in Maude could be employed to prune exploration in very large parametric nets before full state-class construction.

Load-bearing premise

Bisimilarity between the rewriting-logic encoding and the standard PITPN semantics is enough to preserve every property needed for reachability, LTL satisfaction, and parameter synthesis.

What would settle it

A concrete PITPN example on which Maude with SMT reports a reachable marking or a synthesized parameter interval that differs from the result of the standard parametric state-class graph algorithm.

Figures

Figures reproduced from arXiv: 2401.01884 by Carlos Olarte, Jaime Arias, Kyungmin Bae, Laure Petrucci, Peter Csaba \"Olveczky.

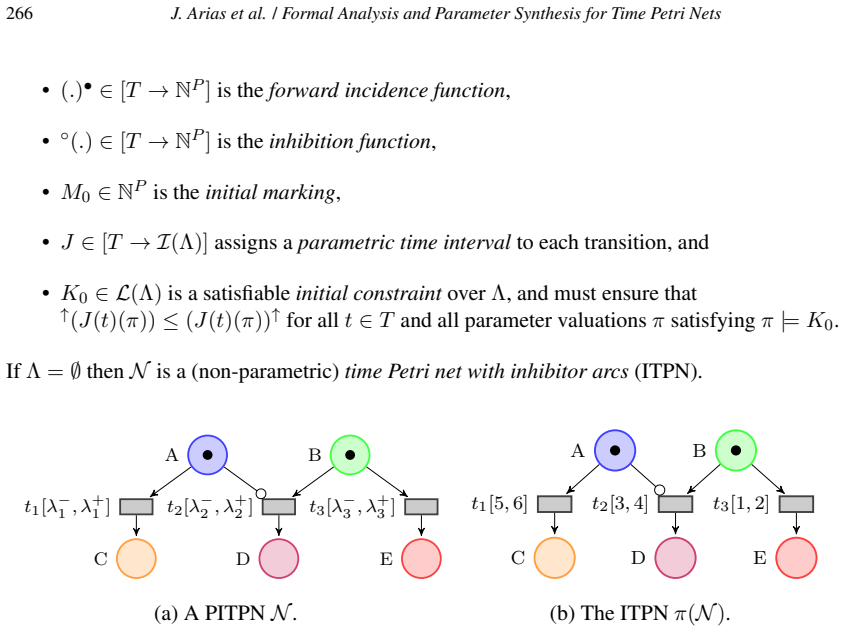

Figure 1
Figure 1. Figure 1: A PITPN and its valuation. A transition firing interval endpoint should typically either be a non-negative rational number, the infinity value ∞, or a single parameter [3]. However, for convenience we also allow more complex endpoints as e.g., [2a, 2a] where a is a parameter (see [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗

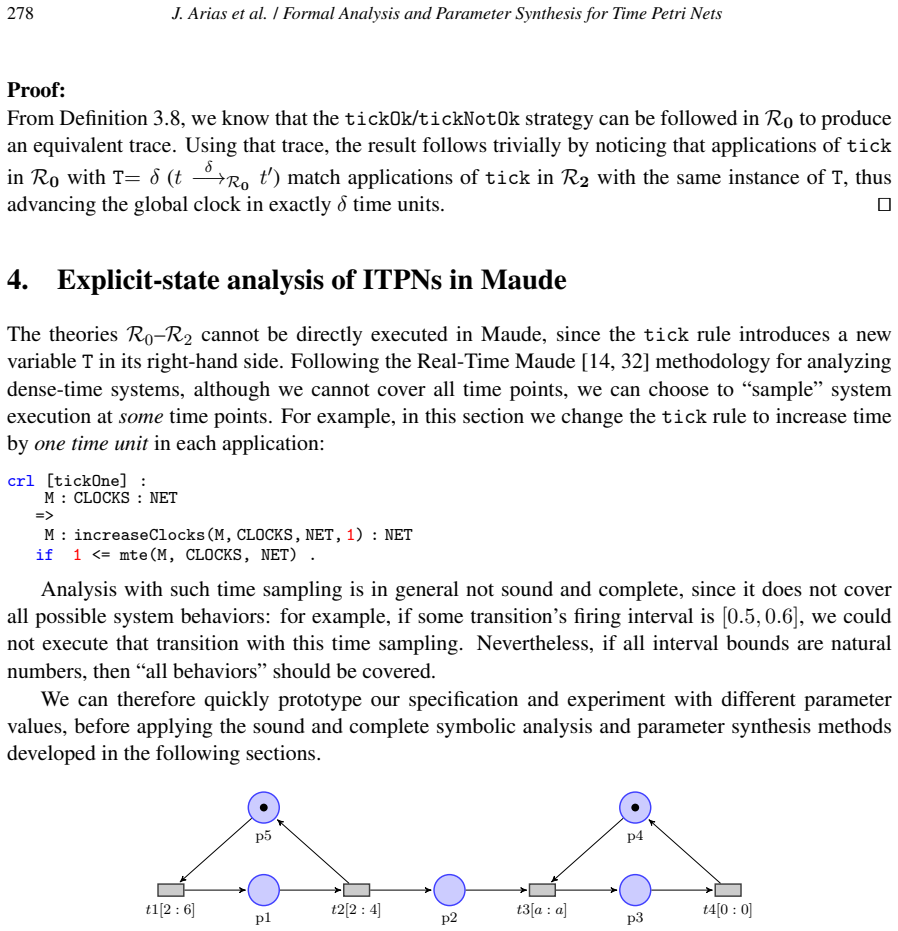

Figure 2
Figure 2. Figure 2: A simple production-consumption system taken from [42]. The term net3(l,u) represents an instance of a more general version of the net in [PITH_FULL_IMAGE:figures/full_fig_p018_2.png] view at source ↗

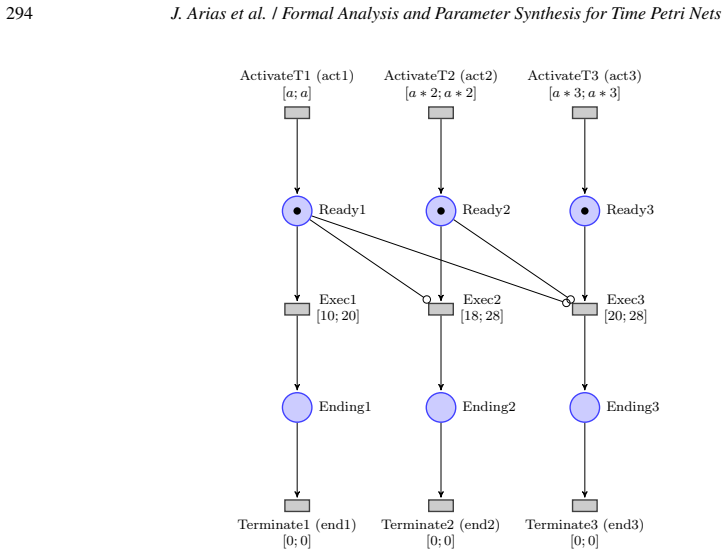

Figure 3
Figure 3. Figure 3: The scheduling case study taken from [46]. values of the parameter a making the net 1-safe, subject to initial constraint ϕ = 30 ≤ a ≤ 70. The same query can be answered in Maude: Maude> red AG-synthesis in ’MODEL : (net, m0, ϕ) s.t. k-bounded(1) . result BoolExpr: 48 < rr("A") and rr("A") <= 70 The first counterexample found assumes that a ≤ 48. If a > 48, folding does not find any state not satisfying k-… view at source ↗
Figure 4

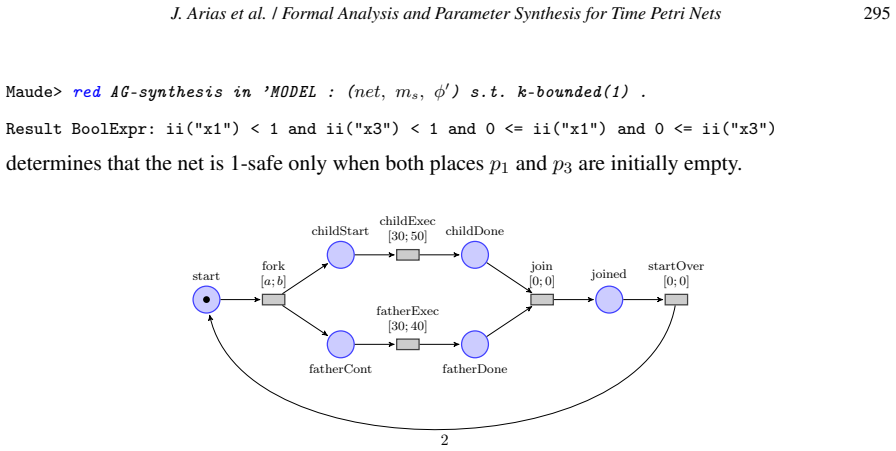

Figure 4. Figure 4: The tutorial case study. Example 6.4. Consider the PITPN tutorial in [PITH_FULL_IMAGE:figures/full_fig_p035_4.png] view at source ↗

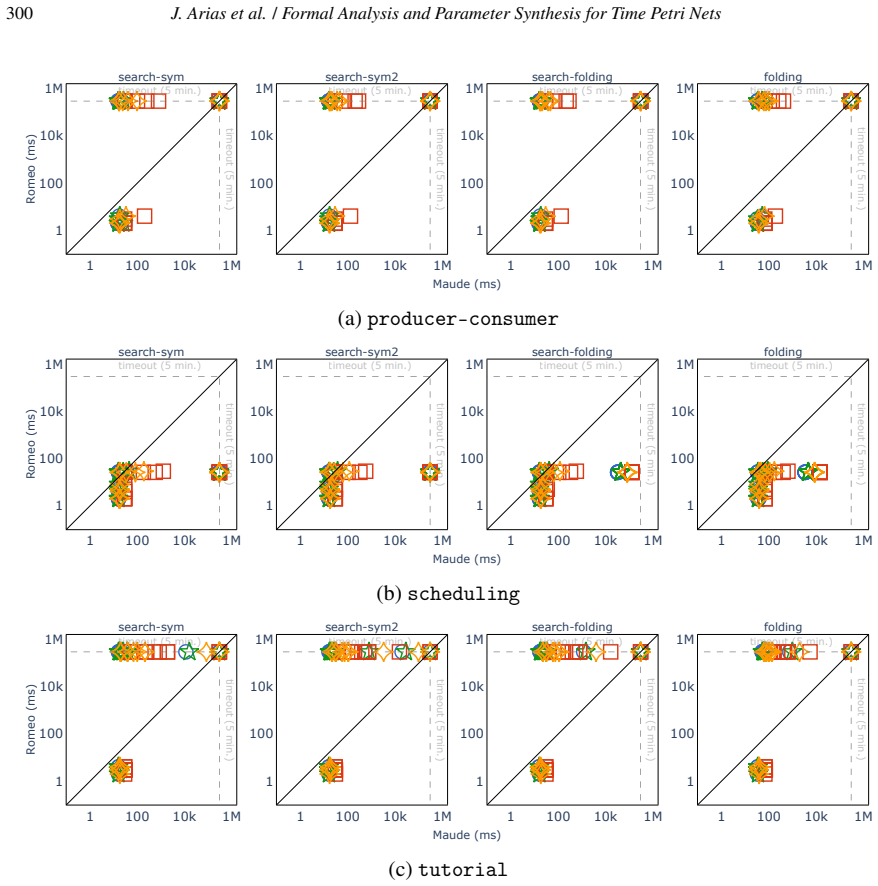

Figure 5
Figure 5. Figure 5: EF-Synthesis. Execution times in log-scale for Roméo and Maude connected with Yices2 (#), Maude-SE with Yices2 (⋆), Z3 (□), and CVC4 (♢). reduction of the search space (folding states in different branches of the search tree) allows folding to solve some instances faster in the scheduling benchmark (see the three items on the right in Fig. 8b). We have also compared the performance of the folding analysis … view at source ↗
Figure 6
Figure 6. Figure 6: EF-Synthesis. Execution times in log-scale for Roméo and Maude connected with Yices2 (#), Maude-SE with Yices2 (⋆), Z3 (□), and CVC4 (♢) [PITH_FULL_IMAGE:figures/full_fig_p041_6.png] view at source ↗

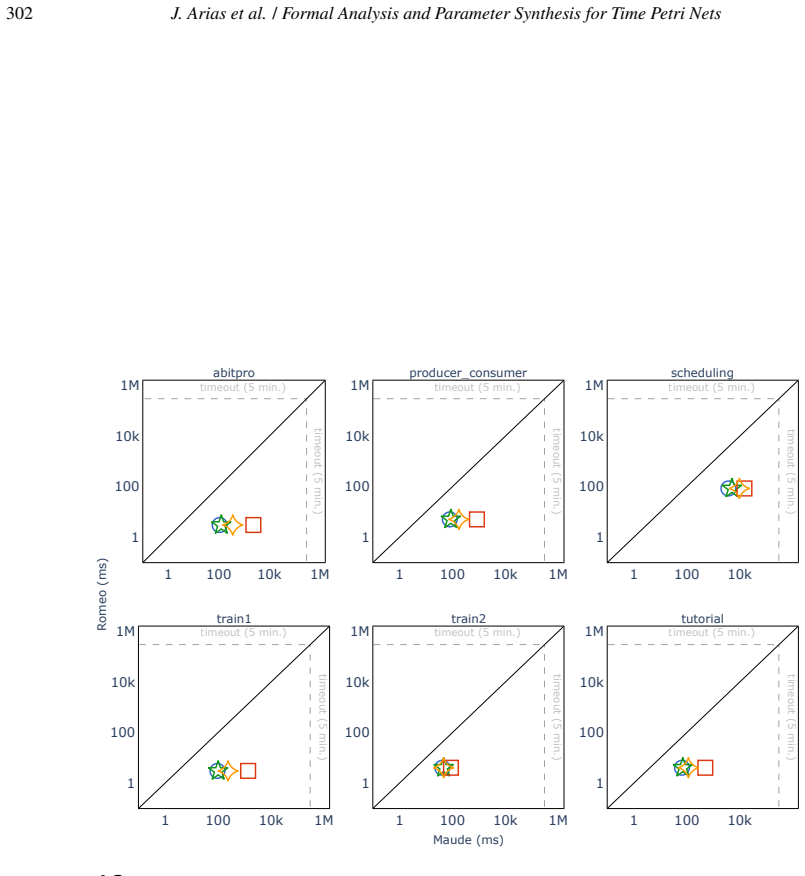

Figure 7
Figure 7. Figure 7: AG-Synthesis. Execution times in log-scale for Roméo and Maude connected with Yices2 (#), Maude-SE with Yices2 (⋆), Z3 (□), and CVC4 (♢) [PITH_FULL_IMAGE:figures/full_fig_p042_7.png] view at source ↗

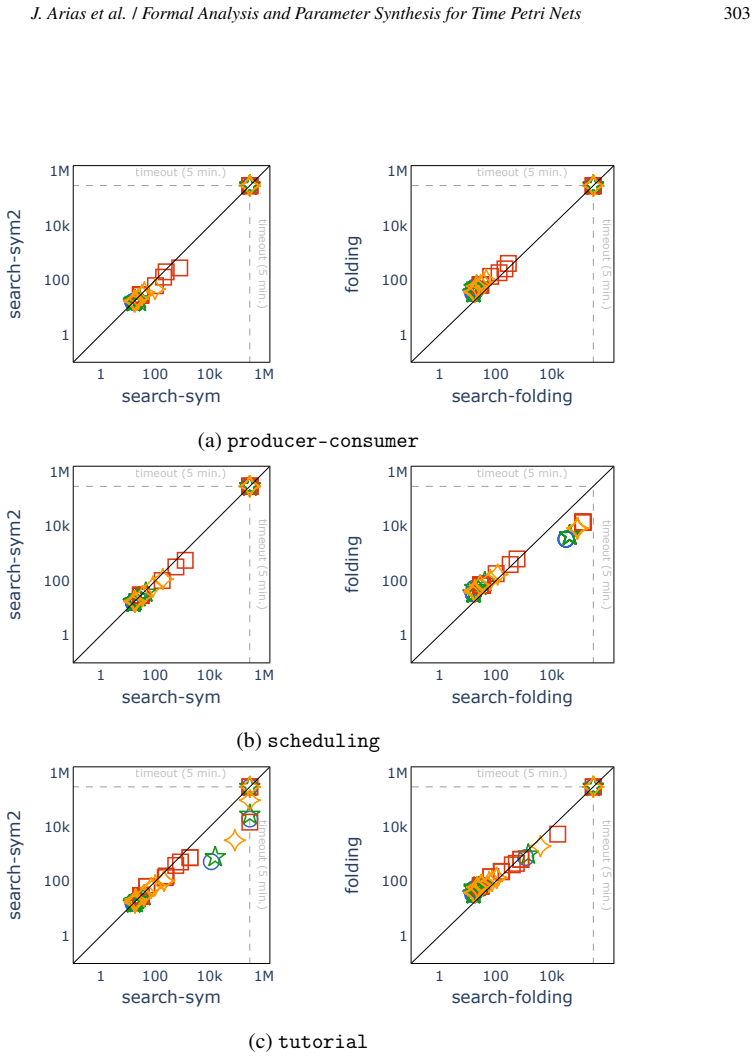

Figure 8
Figure 8. Figure 8: Comparison of the different Maude commands in log-scale. Maude with Yices2 ( [PITH_FULL_IMAGE:figures/full_fig_p043_8.png] view at source ↗

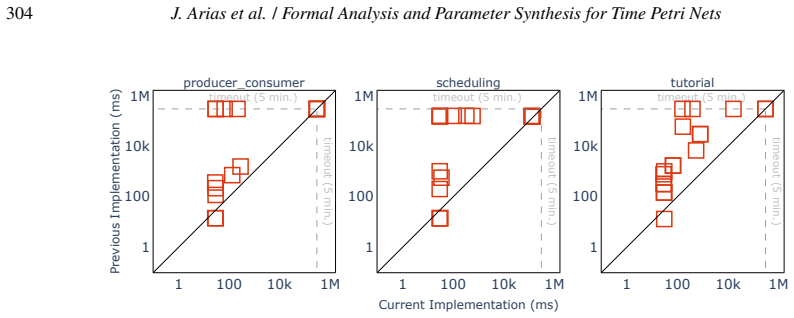

Figure 9
Figure 9. Figure 9: Comparison of the implementation reported in this paper and the one in [35]. [PITH_FULL_IMAGE:figures/full_fig_p044_9.png] view at source ↗
read the original abstract

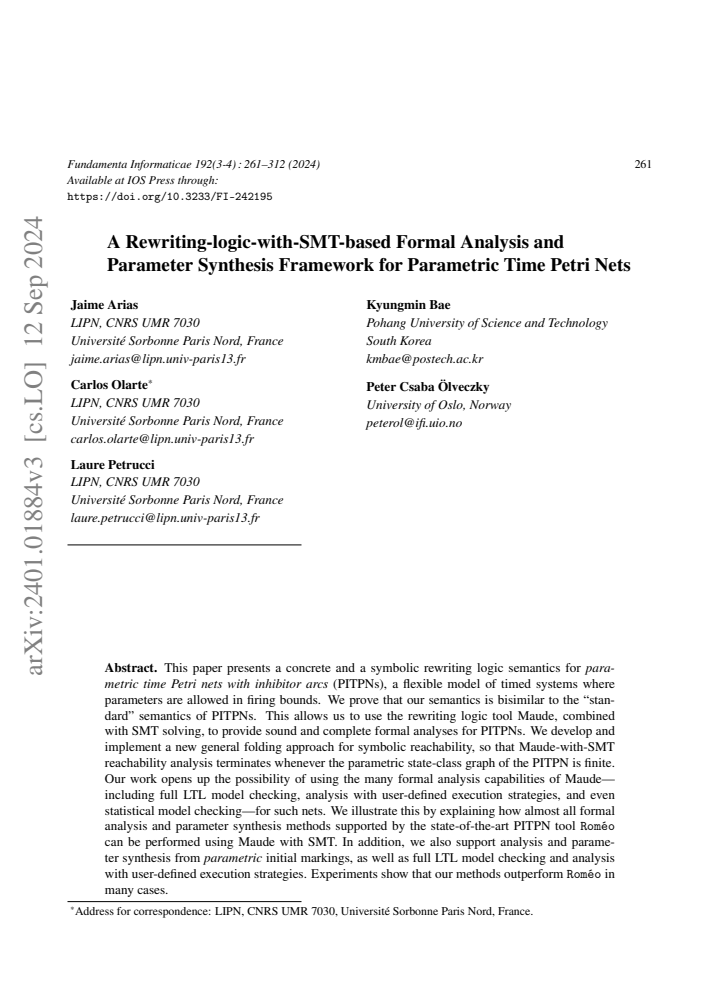

This paper presents a concrete and a symbolic rewriting logic semantics for parametric time Petri nets with inhibitor arcs (PITPNs), a flexible model of timed systems where parameters are allowed in firing bounds. We prove that our semantics is bisimilar to the "standard" semantics of PITPNs. This allows us to use the rewriting logic tool Maude, combined with SMT solving, to provide sound and complete formal analyses for PITPNs. We develop and implement a new general folding approach for symbolic reachability, so that Maude-with-SMT reachability analysis terminates whenever the parametric state-class graph of the PITPN is finite. Our work opens up the possibility of using the many formal analysis capabilities of Maude -- including full LTL model checking, analysis with user-defined analysis strategies, and even statistical model checking -- for such nets. We illustrate this by explaining how almost all formal analysis and parameter synthesis methods supported by the state-of-the-art PITPN tool Romeo can be performed using Maude with SMT. In addition, we also support analysis and parameter synthesis from parametric initial markings, as well as full LTL model checking and analysis with user-defined execution strategies. Experiments show that our methods outperform Romeo in many cases.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript presents concrete and symbolic rewriting-logic semantics for parametric time Petri nets with inhibitor arcs (PITPNs). It asserts a bisimulation proof between these semantics and the standard PITPN state-class semantics. This is used to justify employing Maude combined with SMT solving for sound and complete analyses (reachability, LTL model checking, parameter synthesis), including from parametric initial markings. A new general folding operator for symbolic reachability is introduced so that analysis terminates whenever the underlying parametric state-class graph is finite. The work claims to replicate nearly all Romeo analyses while adding LTL, user-defined strategies, and statistical model checking, with experiments indicating outperformance over Romeo in many cases.

Significance. If the bisimulation is a strong relation that exactly preserves enabledness, firing intervals, and symbolic parameter constraints, and if the folding operator is proven to preserve LTL obligations, the result would allow Maude's full suite of analyses to be applied soundly to PITPNs. This would be a useful addition to the parametric timed-systems verification toolbox, particularly for the added support of parametric initial markings and custom execution strategies.

major comments (3)
  1. [Abstract and §4] Abstract and §4 (Bisimilarity): the central claim that the Maude encoding is bisimilar to the standard PITPN semantics (and therefore transfers soundness and completeness for LTL and parametric synthesis) is asserted without any proof sketch, key lemmas, or explicit definition of the bisimulation relation; this prevents verification that the relation is strong and handles inhibitor arcs plus parametric initial markings without precision loss.
  2. [§5] §5 (Folding approach): the new general folding operator is claimed to guarantee termination precisely when the parametric state-class graph is finite and to preserve reachability; however, neither the formal definition of the operator nor the argument that it does not merge states differing on future LTL obligations is supplied, which is load-bearing for the completeness claim.
  3. [§6] §6 (Experiments): the reported outperformance over Romeo is stated without benchmark descriptions, instance sizes, or raw metrics (e.g., number of states explored, synthesis times), making it impossible to assess whether the folding and SMT encoding deliver the claimed gains on the same problems.
minor comments (2)
  1. [§3] Notation for parametric constraints and state-class representations should be introduced once and used consistently across the semantics and folding sections.
  2. A short comparison table listing which Romeo features are reproduced and which additional Maude features are newly supported would improve readability.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the detailed and constructive report. We address each major comment below and will strengthen the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract and §4] Abstract and §4 (Bisimilarity): the central claim that the Maude encoding is bisimilar to the standard PITPN semantics (and therefore transfers soundness and completeness for LTL and parametric synthesis) is asserted without any proof sketch, key lemmas, or explicit definition of the bisimulation relation; this prevents verification that the relation is strong and handles inhibitor arcs plus parametric initial markings without precision loss.

    Authors: We agree that an explicit definition of the bisimulation relation together with a proof sketch and key lemmas is needed in §4 to make the strength of the relation and its handling of inhibitor arcs and parametric initial markings fully verifiable. We will add these elements in the revision. revision: yes

  2. Referee: [§5] §5 (Folding approach): the new general folding operator is claimed to guarantee termination precisely when the parametric state-class graph is finite and to preserve reachability; however, neither the formal definition of the operator nor the argument that it does not merge states differing on future LTL obligations is supplied, which is load-bearing for the completeness claim.

    Authors: We acknowledge that the formal definition of the folding operator and the argument establishing that it preserves LTL obligations (by not merging states with differing future behaviors) must be supplied. We will include both in the revised §5. revision: yes

  3. Referee: [§6] §6 (Experiments): the reported outperformance over Romeo is stated without benchmark descriptions, instance sizes, or raw metrics (e.g., number of states explored, synthesis times), making it impossible to assess whether the folding and SMT encoding deliver the claimed gains on the same problems.

    Authors: We will expand §6 with benchmark descriptions, instance sizes, and raw metrics (states explored, synthesis times) so that the performance comparison can be assessed directly. revision: yes

Circularity Check

0 steps flagged

No circularity: bisimilarity is a new proof to external standard semantics

full rationale

The paper constructs a rewriting-logic semantics for PITPNs, states a bisimilarity theorem to the independently defined standard state-class semantics of PITPNs, and uses that theorem to justify Maude+SMT analyses. No equation, definition, or claim reduces a derived result to its own inputs by construction; the bisimulation is not obtained by fitting, renaming, or self-citation load-bearing. The derivation chain therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The framework rests on standard properties of rewriting logic, bisimulation, and SMT solvers; the main additions are the concrete PITPN encoding and the folding operator.

axioms (2)
  • domain assumption Bisimilarity between the Maude semantics and the standard PITPN semantics preserves reachability, LTL properties, and parameter synthesis results.
    Invoked to claim soundness and completeness of all analyses performed in Maude.
  • domain assumption The parametric state-class graph being finite is a sufficient condition for termination of the symbolic reachability procedure.
    Directly stated as the termination condition for the new folding approach.

pith-pipeline@v0.9.0 · 5765 in / 1474 out tokens · 35308 ms · 2026-05-24T04:16:34.999353+00:00 · methodology
