arxiv: 2408.15701 · v1 · submitted 2024-08-28 · 📊 stat.ME · stat.CO

Robust discriminant analysis

Mia Hubert , Jakob Raymaekers , Peter J. Rousseeuw This is my paper

Pith reviewed 2026-05-23 22:25 UTC · model grok-4.3

classification 📊 stat.ME stat.CO
keywords discriminant analysisrobust statisticsoutliersmislabeled datalocation and scatterclassificationgraphical diagnostics
0
0 comments X

The pith

Standard discriminant analysis fails under outliers or label errors, but robust versions using resistant location and scatter estimates stay reliable.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Discriminant analysis classifies observations by modeling the center and spread of each group. Classical versions rely on the sample mean and covariance, which shift dramatically when even a few points are outliers or carry wrong labels. The paper shows this sensitivity with examples and then surveys robust alternatives that substitute estimators designed to resist such contamination. These replacements produce decision rules whose performance holds up better on contaminated data. The review also includes diagnostic plots to spot the influential cases.

Core claim

The paper establishes that classical discriminant analysis uses non-robust estimators of location and scatter for each class, rendering it sensitive to outliers and mislabeled observations, and reviews a range of robust discriminant analysis methods that substitute resistant estimators of location and scatter to obtain classifications that remain reliable in the presence of deviating cases, together with graphical tools for visualizing results.

What carries the argument

Robust estimates of location and scatter computed separately for each class, which replace the arithmetic mean and sample covariance matrix when forming the discriminant rules.

If this is right

  • Classifications obtained from robust discriminant analysis stay stable when a moderate fraction of the data are outliers.
  • Mislabeled observations exert reduced influence on the estimated class boundaries.
  • Graphical diagnostic tools allow identification of the suspicious points that affect the analysis.
  • Both linear and quadratic forms of discriminant analysis can be made robust by the same replacement of estimators.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same substitution of robust estimators could be tested in related supervised methods such as logistic regression to check for similar gains.
  • In high-dimensional settings the robust estimators would need dimension-reduction steps first, an extension the paper does not address.
  • Benchmark comparisons on public datasets with known contamination levels would give quantitative evidence of the improvement over classical rules.
  • The approach suggests that any classification procedure relying on second-moment summaries could benefit from analogous robust replacements.

Load-bearing premise

Robust estimators of location and scatter can be computed for each class and will yield classifications that remain reliable when the data contain outliers or label errors.

What would settle it

A controlled experiment on data with 5-10 percent added outliers or swapped labels where the robust methods produce higher misclassification rates than classical discriminant analysis would refute the reliability claim.

Figures

Figures reproduced from arXiv: 2408.15701 by Jakob Raymaekers, Mia Hubert, Peter J. Rousseeuw.

Figure 1

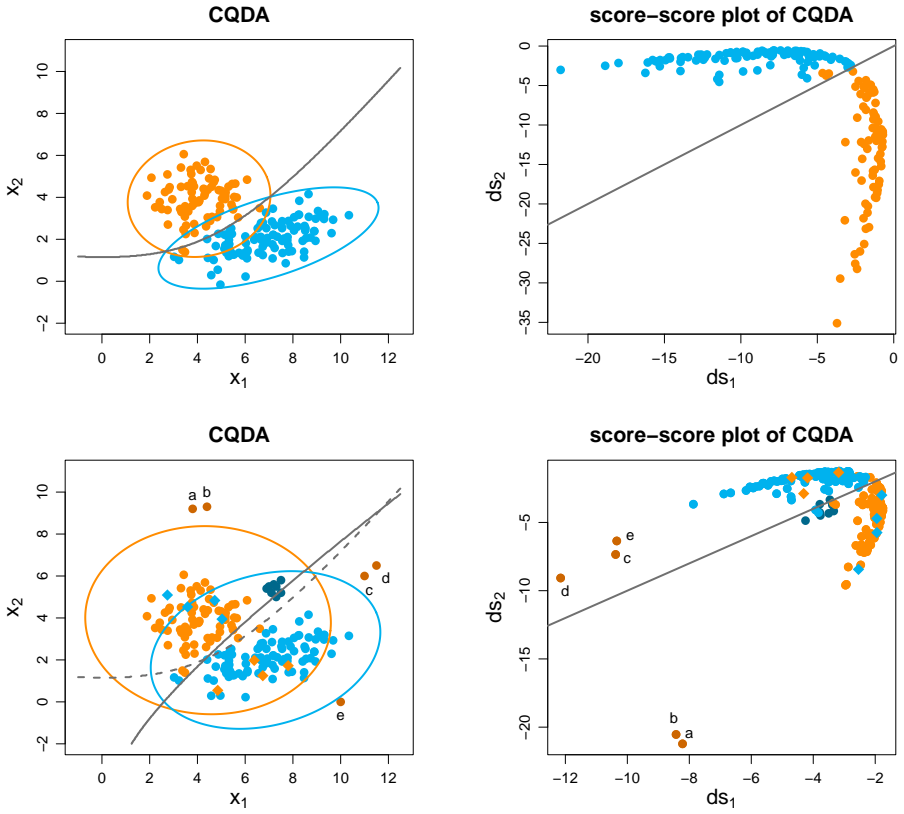

Figure 1. Figure 1: The effect of label and measurement noise on CQDA. Top row: two uncontaminated [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

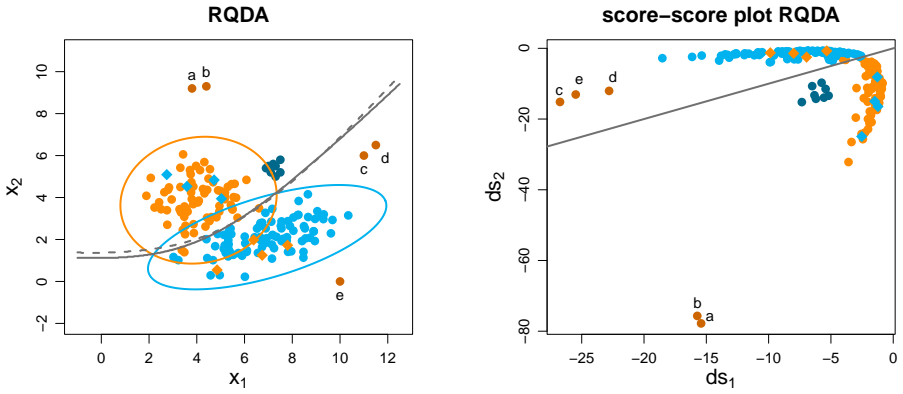

Figure 2. Figure 2: The effect of label and measurement noise on robust QDA. The solid curve in the [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Stacked plot of the data in Figure [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4

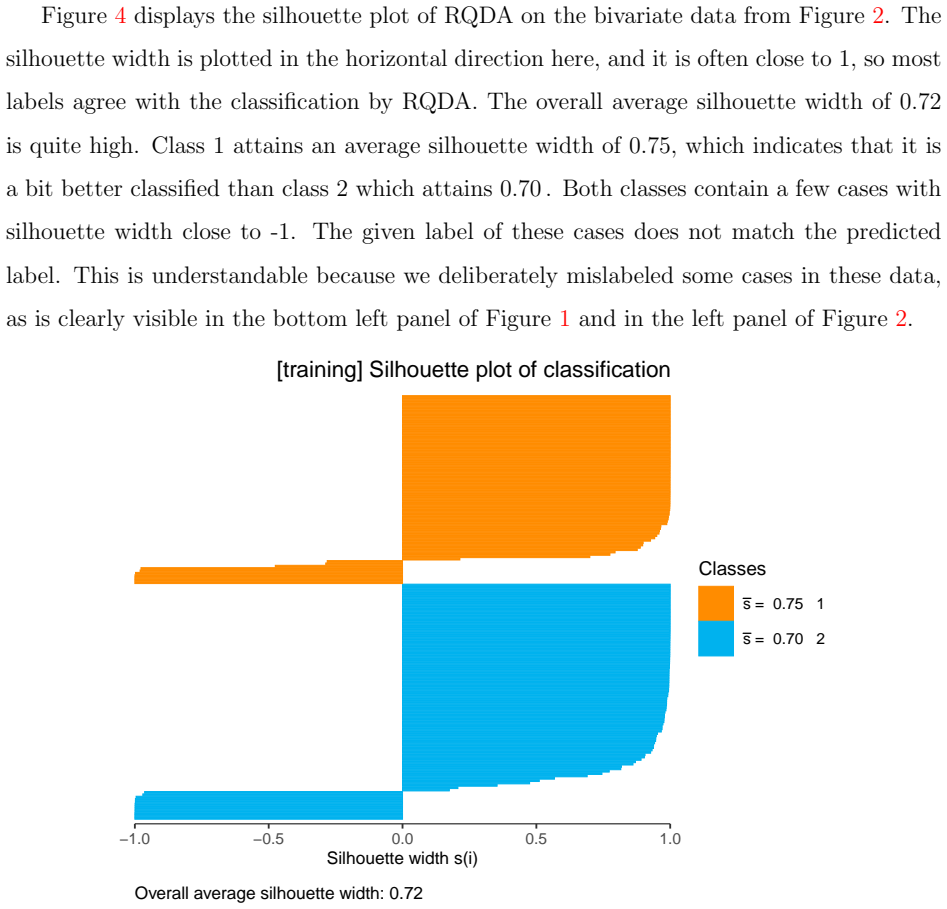

Figure 4. Figure 4: RQDA silhouette plot of the bivariate data from Figure [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗
Figure 5

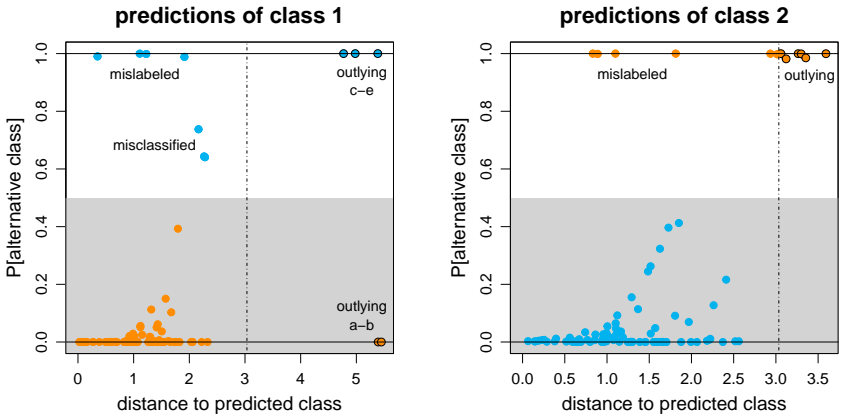

Figure 5. Figure 5: Quasi residual plot with the distance to the predicted class on the horizontal axis. [PITH_FULL_IMAGE:figures/full_fig_p013_5.png] view at source ↗
Figure 6

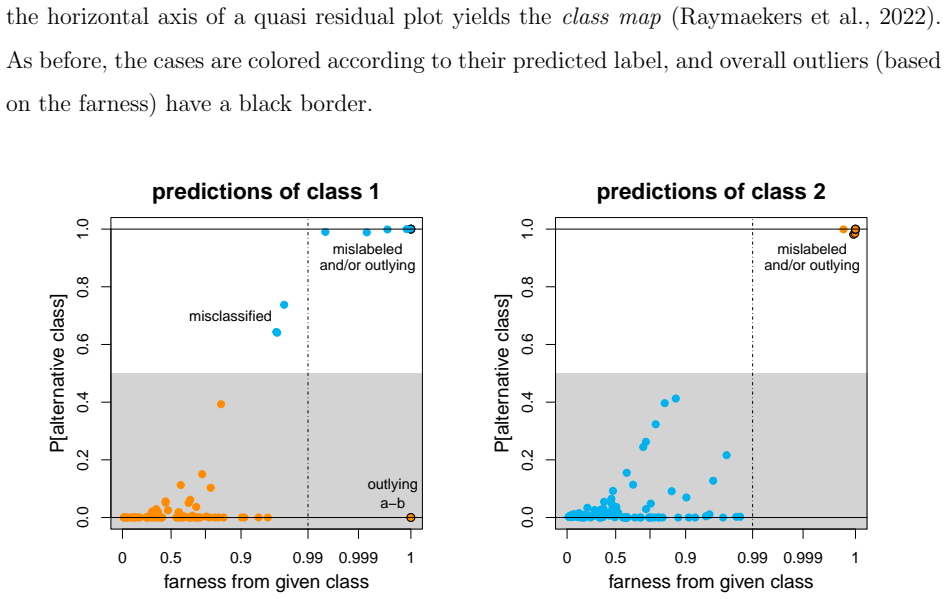

Figure 6. Figure 6: Class maps of the simulated data of Figure [PITH_FULL_IMAGE:figures/full_fig_p013_6.png] view at source ↗
Figure 7

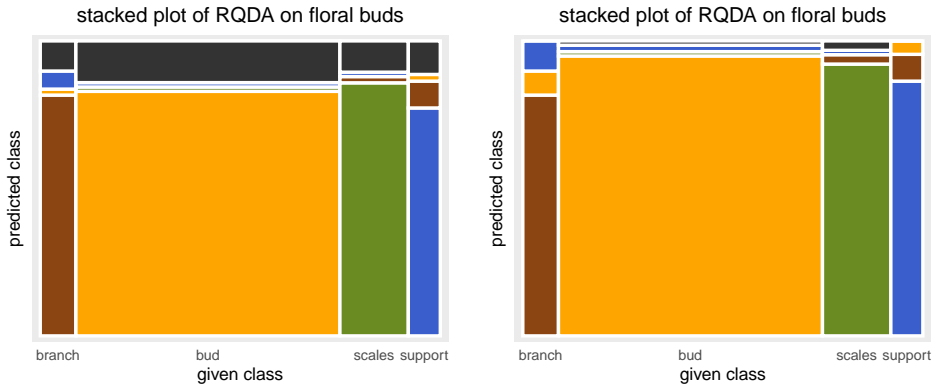

Figure 7. Figure 7: Stacked plots of the floral buds data where the outlier class is defined (left) through [PITH_FULL_IMAGE:figures/full_fig_p015_7.png] view at source ↗
Figure 8

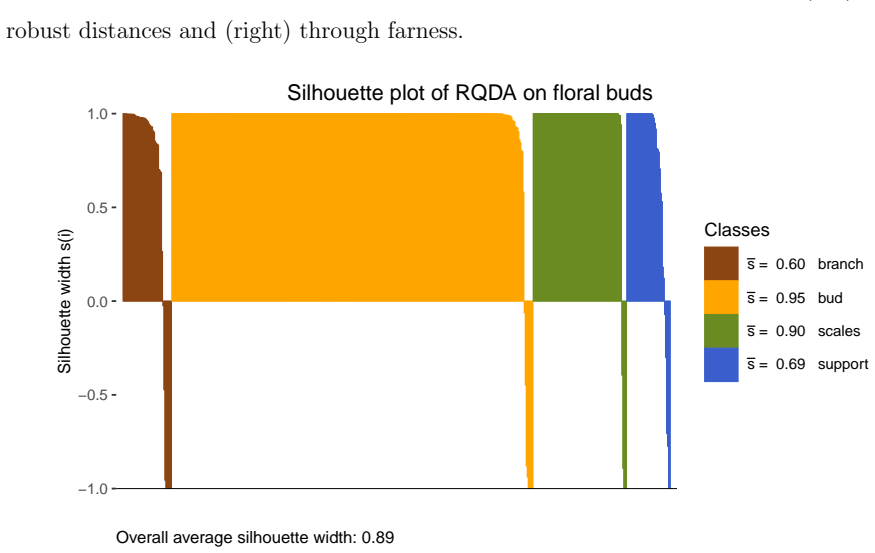

Figure 8. Figure 8: Silhouette plot of the floral bud data. To understand this difference, look at the plot of the squared robust distances of the buds versus quantiles of the χ 2 6 distribution in [PITH_FULL_IMAGE:figures/full_fig_p015_8.png] view at source ↗
Figure 9

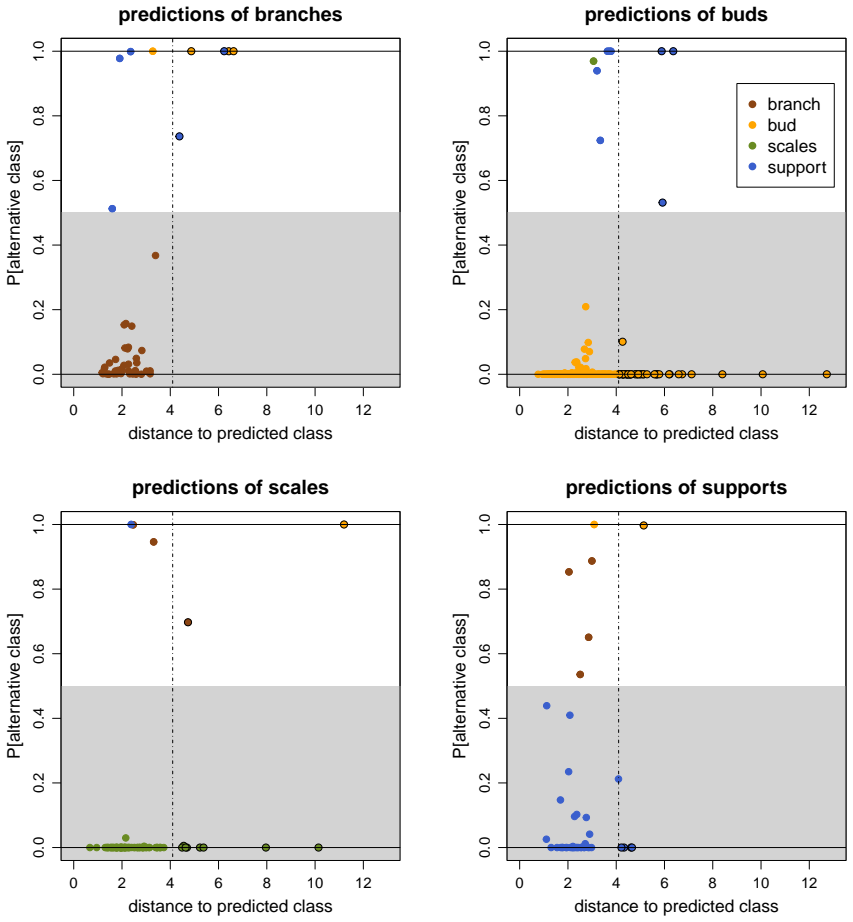

Figure 9. Figure 9: Quasi residual plots of the floral bud data, with the distance to the predicted class [PITH_FULL_IMAGE:figures/full_fig_p016_9.png] view at source ↗
Figure 10

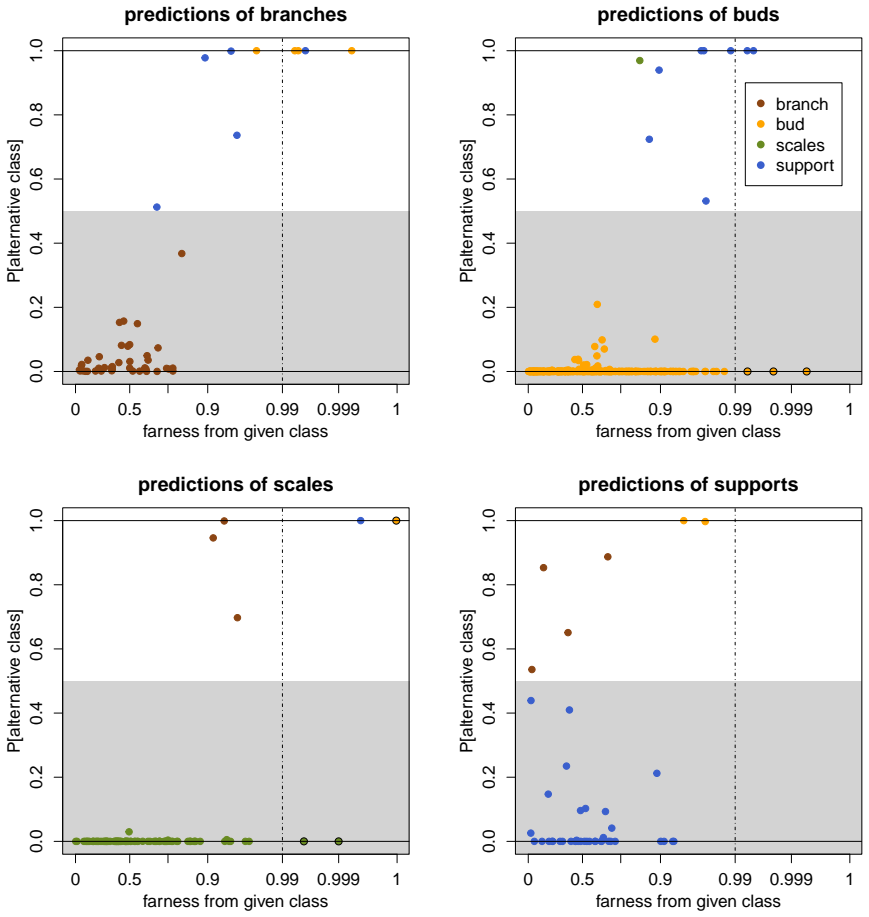

Figure 10. Figure 10: Class maps of the floral bud data [PITH_FULL_IMAGE:figures/full_fig_p017_10.png] view at source ↗
Figure 11

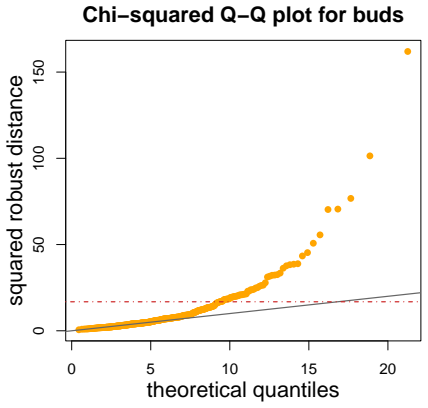

Figure 11. Figure 11: Chi-squared Q-Q plot of the squared robust distances of the bud class. The gray [PITH_FULL_IMAGE:figures/full_fig_p018_11.png] view at source ↗
Figure 12

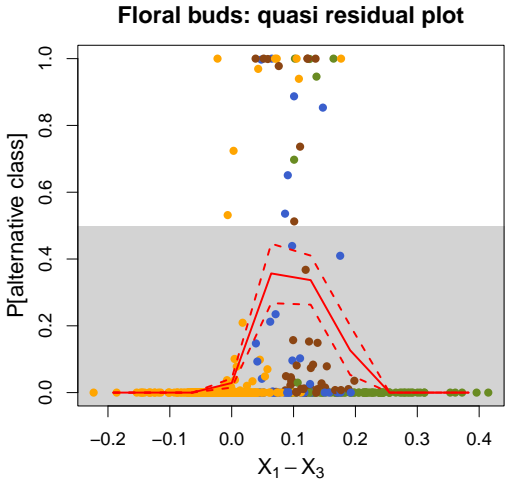

Figure 12. Figure 12: Quasi residual plot of the floral bud data with the difference between variables 1 [PITH_FULL_IMAGE:figures/full_fig_p019_12.png] view at source ↗
read the original abstract

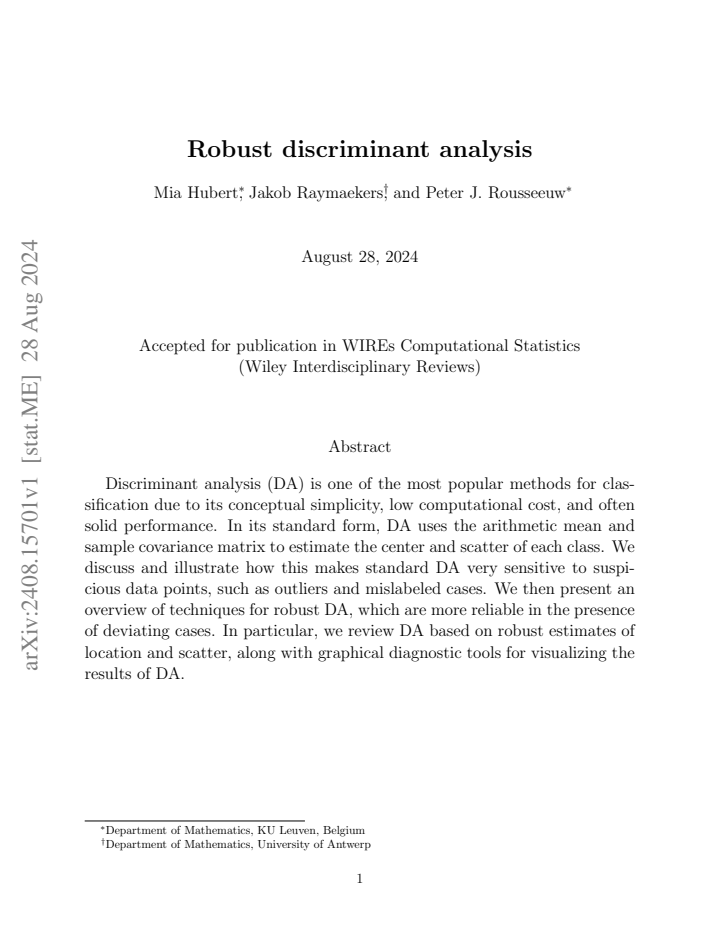

Discriminant analysis (DA) is one of the most popular methods for classification due to its conceptual simplicity, low computational cost, and often solid performance. In its standard form, DA uses the arithmetic mean and sample covariance matrix to estimate the center and scatter of each class. We discuss and illustrate how this makes standard DA very sensitive to suspicious data points, such as outliers and mislabeled cases. We then present an overview of techniques for robust DA, which are more reliable in the presence of deviating cases. In particular, we review DA based on robust estimates of location and scatter, along with graphical diagnostic tools for visualizing the results of DA.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript reviews how classical discriminant analysis (DA), which relies on the arithmetic mean and sample covariance for each class, is highly sensitive to outliers and mislabeled observations. It then surveys robust DA approaches that substitute robust estimators of location and scatter, and discusses associated graphical diagnostic tools for visualizing results under contamination.

Significance. As a descriptive review rather than a source of new theorems or algorithms, the paper's value lies in consolidating known results from robust statistics literature and illustrating the practical limitations of standard DA. If the survey is balanced and cites the key references accurately, it could serve as a useful entry point for practitioners, but it does not advance novel methodology or provide original empirical validation.

minor comments (3)
  1. The abstract states that robust DA techniques 'are more reliable in the presence of deviating cases' but does not specify the contamination models or breakdown points considered; adding a brief qualification would improve precision without altering the review character.
  2. The description of standard DA sensitivity would benefit from a short numerical illustration (e.g., a small contaminated dataset) early in the text to make the claim concrete before moving to the overview of robust methods.
  3. Ensure that all cited robust estimators (e.g., MCD, M-estimators) are accompanied by at least one key reference in the first mention to allow readers to locate the original methodological papers.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive evaluation and recommendation of minor revision. The report provides no specific major comments to address point-by-point, and we agree with the characterization of the manuscript as a descriptive review consolidating existing results rather than introducing new methodology.

Circularity Check

0 steps flagged

Review paper with no derivation chain or predictions

full rationale

This manuscript is an overview article surveying standard discriminant analysis sensitivity to outliers and existing robust alternatives based on robust location/scatter estimators. No new theorems, derivations, fitted parameters, or predictions are advanced; the text reviews prior techniques and diagnostics from the robust statistics literature without introducing self-referential steps or reducing claims to inputs by construction. The central claims are descriptive restatements of established properties, with no load-bearing self-citations or ansatzes that could create circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is a review paper; the abstract introduces no new free parameters, axioms, or invented entities.
