arxiv: 2411.09898 · v1 · submitted 2024-11-15 · 🧮 math.NA · cs.NA

A Natural Deep Ritz Method for Essential Boundary Value Problems

Haijun Yu , Shuo Zhang This is my paper

Pith reviewed 2026-05-23 17:31 UTC · model grok-4.3

classification 🧮 math.NA cs.NA
keywords deep ritz methodessential boundary conditionspoisson problemsintrinsic structuresneural networksvariational formulationboundary value problemspartial differential equations
0
0 comments X

The pith

An intrinsic structure-inspired framework enforces essential boundary conditions directly in the deep Ritz method for Poisson problems.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Neural network methods for partial differential equations often struggle to enforce essential boundary conditions, leading to reliance on penalty approaches that demand hyper-parameter tuning and can create artificial stiffness during optimization. This paper introduces a novel intrinsic framework, drawing from structural properties, to incorporate these conditions naturally into the formulation. It applies this to the deep Ritz method on Poisson problems and provides numerical evidence of improved efficiency and robustness. A sympathetic reader would value this because it removes common practical barriers in training such models. The work suggests the approach could extend to other equations and neural PDE techniques.

Core claim

The paper claims that a framework inspired by intrinsic structures can impose essential boundary conditions inherently within the deep Ritz variational formulation for Poisson problems, avoiding the tuning and stiffness issues of penalty methods while maintaining accuracy and optimization ease, as supported by numerical demonstrations of efficiency and robustness.

What carries the argument

The framework inspired by intrinsic structures, which modifies the deep Ritz energy functional to satisfy essential boundary conditions intrinsically.

If this is right

  • Essential boundary conditions are satisfied without any penalty parameter tuning or associated stiffness.
  • The optimization landscape for the neural network remains free of artificial complications from boundary enforcement.
  • The method achieves comparable or better accuracy on Poisson problems while simplifying implementation.
  • The framework has potential for direct extension to more general PDEs and other deep learning PDE solvers.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar intrinsic modifications could stabilize training in neural solvers for a wider range of boundary value problems.
  • The approach might reduce sensitivity to network architecture choices when boundaries are involved.
  • It could enable more reliable scaling to higher-dimensional or geometrically complex domains.

Load-bearing premise

That a framework inspired by intrinsic structures can be constructed and applied to the deep Ritz method for Poisson problems in a way that inherently satisfies essential boundary conditions without introducing new optimization difficulties or accuracy losses.

What would settle it

Numerical tests on Poisson problems with essential boundary conditions where the method produces solutions with boundary errors comparable to or larger than those from tuned penalty methods, or where optimization fails to converge reliably.

Figures

Figures reproduced from arXiv: 2411.09898 by Haijun Yu, Shuo Zhang.

Figure 1

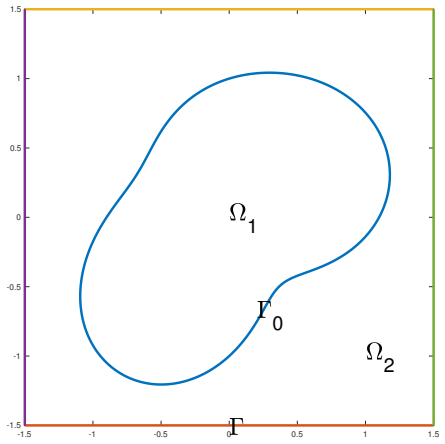

Figure 1. Figure 1: Illustration of the domain and the interface [PITH_FULL_IMAGE:figures/full_fig_p007_1.png] view at source ↗
Figure 2

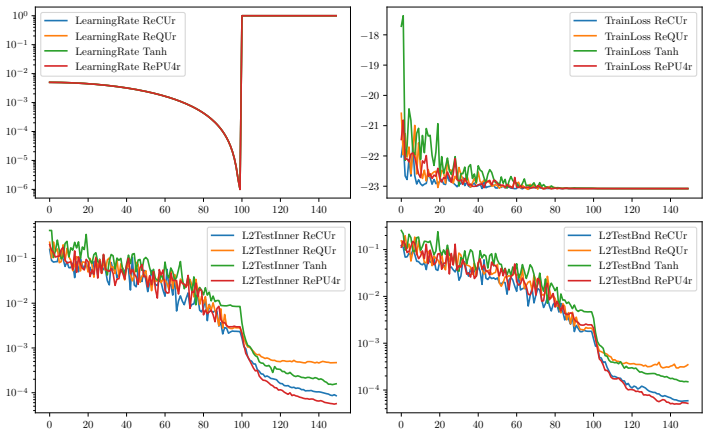

Figure 2. Figure 2: Training results : The learning rate (top-left), training loss (top-right) [PITH_FULL_IMAGE:figures/full_fig_p013_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The exact solution and learned solution for Example 1 using New method [PITH_FULL_IMAGE:figures/full_fig_p014_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Training results : The learning rate (top-left), training loss (top-right) [PITH_FULL_IMAGE:figures/full_fig_p014_4.png] view at source ↗
Figure 5

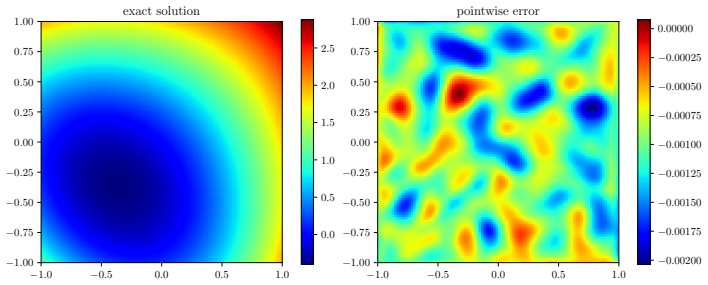

Figure 5. Figure 5: The exact solution and learned solution for for Example 1 using Deep Ritz method [PITH_FULL_IMAGE:figures/full_fig_p015_5.png] view at source ↗
Figure 6

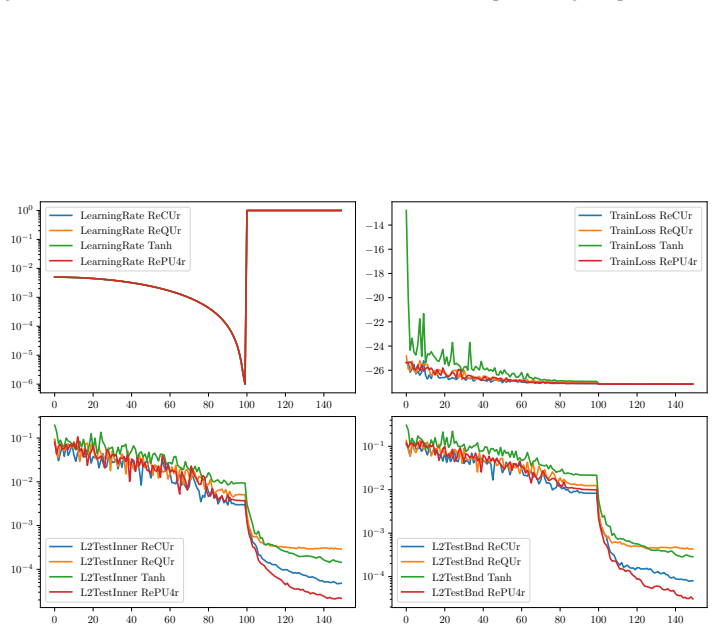

Figure 6. Figure 6: Training results : The learning rate (top-left), training loss (top-right) [PITH_FULL_IMAGE:figures/full_fig_p015_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: The exact solution and learned solution using RePUr neural networks for Example 2 using New [PITH_FULL_IMAGE:figures/full_fig_p016_7.png] view at source ↗
Figure 8

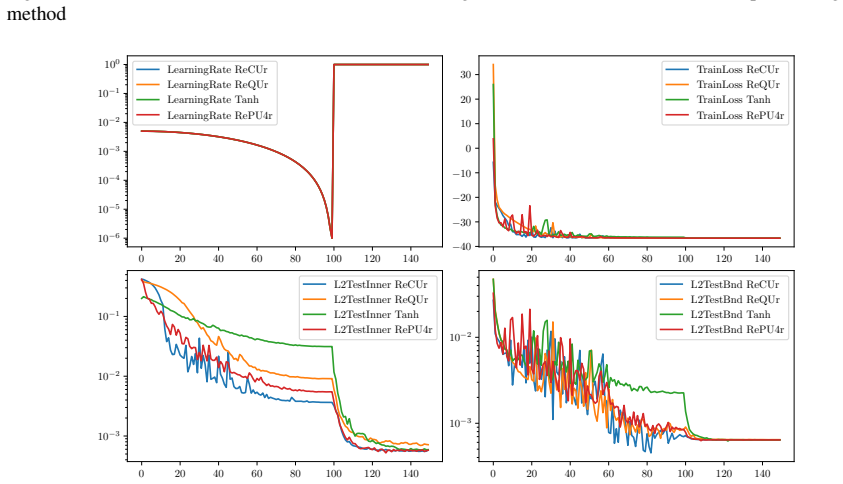

Figure 8. Figure 8: Training results : The learning rate (top-left), training loss (top-right) [PITH_FULL_IMAGE:figures/full_fig_p016_8.png] view at source ↗
Figure 9

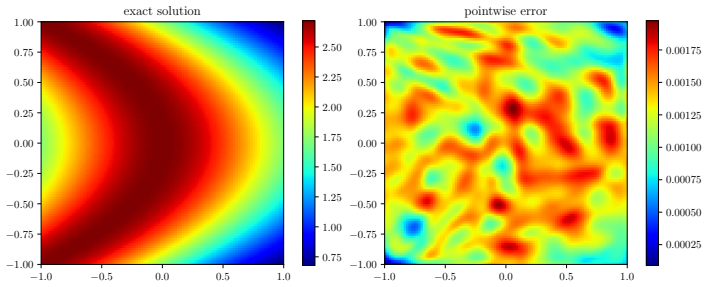

Figure 9. Figure 9: The exact solution and learned solution using RePUr neural networks for Example 2 using Deep [PITH_FULL_IMAGE:figures/full_fig_p017_9.png] view at source ↗
Figure 10

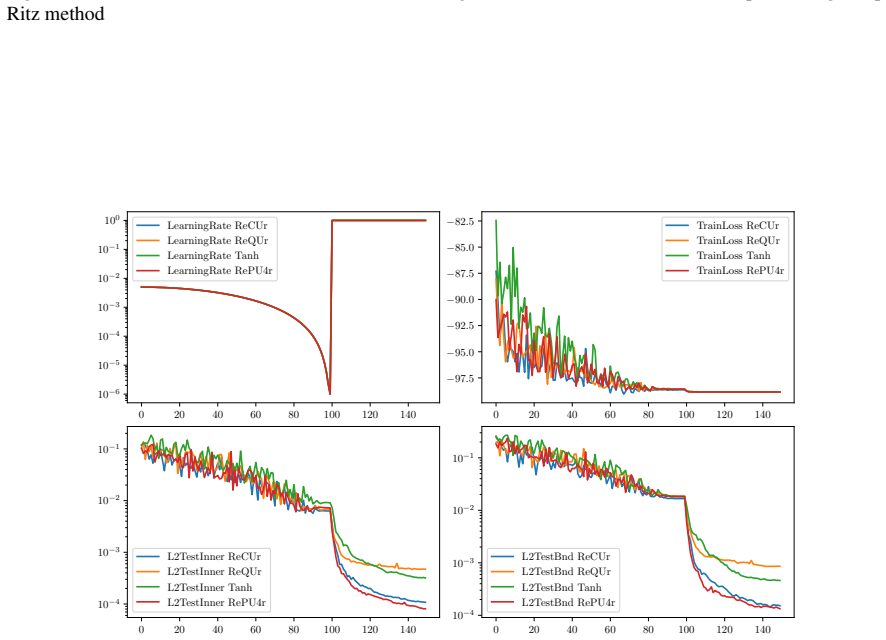

Figure 10. Figure 10: Training results : The learning rate (top-left), training loss (top-right) [PITH_FULL_IMAGE:figures/full_fig_p017_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: The exact solution and learned solution using RePUr neural networks for Example 3 using New [PITH_FULL_IMAGE:figures/full_fig_p018_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Training results : The learning rate (top-left), training loss (top-right) [PITH_FULL_IMAGE:figures/full_fig_p018_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: The exact solution and learned solution using RePUr neural networks for Example 4 using New [PITH_FULL_IMAGE:figures/full_fig_p019_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: The exact solution and learned solution for Example 4 using PINN. [PITH_FULL_IMAGE:figures/full_fig_p019_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Training results : The learning rate (top-left), training loss (top-right) [PITH_FULL_IMAGE:figures/full_fig_p020_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: The exact solution and learned solution using RePUr neural networks for Example 4 using New [PITH_FULL_IMAGE:figures/full_fig_p020_16.png] view at source ↗

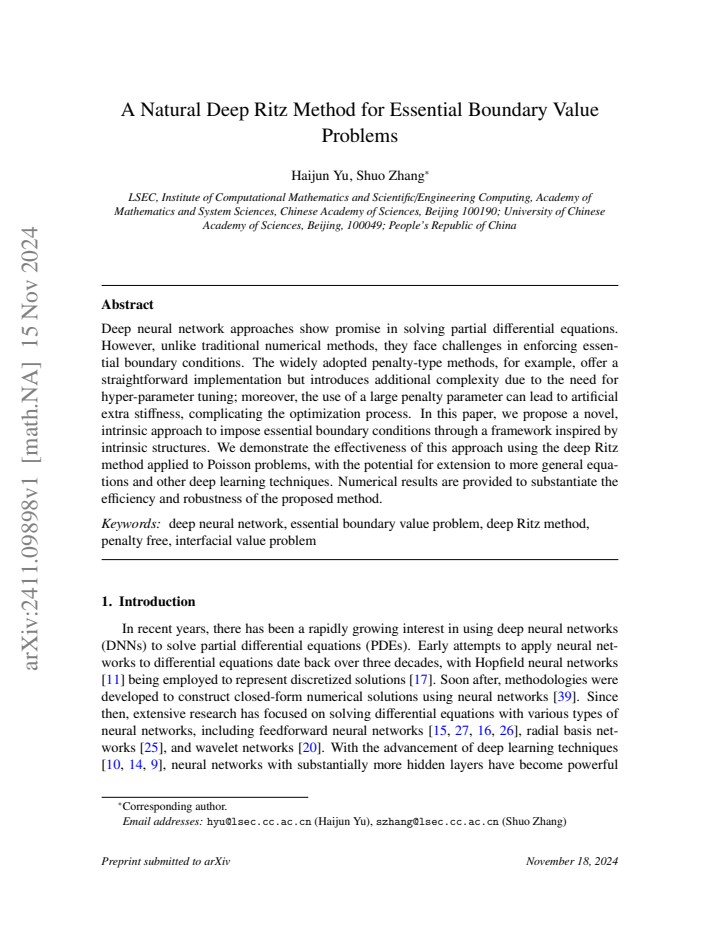

read the original abstract

Deep neural network approaches show promise in solving partial differential equations. However, unlike traditional numerical methods, they face challenges in enforcing essential boundary conditions. The widely adopted penalty-type methods, for example, offer a straightforward implementation but introduces additional complexity due to the need for hyper-parameter tuning; moreover, the use of a large penalty parameter can lead to artificial extra stiffness, complicating the optimization process. In this paper, we propose a novel, intrinsic approach to impose essential boundary conditions through a framework inspired by intrinsic structures. We demonstrate the effectiveness of this approach using the deep Ritz method applied to Poisson problems, with the potential for extension to more general equations and other deep learning techniques. Numerical results are provided to substantiate the efficiency and robustness of the proposed method.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 1 minor

Summary. The paper introduces a natural deep Ritz method for essential boundary value problems by constructing a modified trial space that satisfies essential boundary conditions exactly by construction, inspired by intrinsic structures. Applied to the Poisson equation, it derives the corresponding variational formulation without penalty terms and reports numerical experiments demonstrating machine-precision boundary errors, efficiency, and robustness, with potential extension to other equations and methods.

Significance. If the central construction holds, the result is significant for neural-network PDE solvers because it provides a parameter-free, exact enforcement of essential BCs that avoids hyperparameter tuning and artificial stiffness from penalties. The explicit construction of the trial space (Section 3), derivation of the variational form, and reproducible numerical evidence of machine-precision boundary accuracy constitute clear strengths.

minor comments (1)
  1. The abstract could more explicitly state the dimension of the Poisson problems tested and the network architectures used to allow readers to assess generality at a glance.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive assessment of the manuscript and for recommending acceptance. The referee's summary correctly identifies the core contribution: an intrinsic construction of the trial space that enforces essential boundary conditions exactly, yielding a penalty-free variational formulation with machine-precision boundary accuracy in the numerical experiments.

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper constructs a modified trial space that exactly enforces essential boundary conditions by design in Section 3, derives the associated variational formulation, and validates it via numerical experiments on Poisson problems. This construction is the explicit goal of the method rather than a hidden reduction; boundary errors reaching machine precision follow directly from the exact enforcement and do not constitute a fitted prediction or self-referential result. No load-bearing self-citations, ansatzes smuggled via prior work, or uniqueness theorems imported from the authors appear in the provided text. The central claim therefore rests on an independent variational derivation and reproducible numerical checks rather than circular equivalence to its inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract supplies no information on free parameters, background axioms, or newly postulated entities.
