Investigation of the non-thermal X-ray emission from the supernova remnant CTB 37B hosting the magnetar CXOU J171405.7$-$381031

(2) Columbia Astrophysics Laboratory; (3) NC State University; (4) University of Manitoba; (5) Michigan State University); Chanho Kim (1); Hongjun An (1); Jaegeun Park (1); Kaya Mori (2); Samar Safi-Harb (4); Shuo Zhang (5) ((1) Chungbuk National University

REVIEW 3 major objections 4 minor 1 cited by

Investigation of the non-thermal X-ray emission from the supernova remnant CTB 37B hosting the magnetar CXOU J171405.7$-$381031

T0 review · 3 major / 4 minor · reviewed 2026-08-12 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read The X-ray spectrum of CTB 37B's source S1 is best described by a broken power law with a break near 5.6 keV, a signature that points to non-thermal bremsstrahlung from sub-relativistic electrons.

desk verdict A careful, honest reanalysis of S1 in CTB 37B that finds a possible spectral break, but the break's statistical significance is not yet solid because the F-test ignores the non-identifiable break energy and the XMM/NuSTAR cross-calibration may be driving the apparent steepening. read the letter →

arxiv 2411.09902 v1 pith:KYZIY4RN submitted 2024-11-15 astro-ph.HE

Chanho Kim (1) , Jaegeun Park (1) , Hongjun An (1) , Kaya Mori (2) , Stephen P. Reynolds (3) , Samar Safi-Harb (4) , Shuo Zhang (5) ((1) Chungbuk National University , (2) Columbia Astrophysics Laboratory

show 3 more authors

(3) NC State University (4) University of Manitoba (5) Michigan State University)

This is my paper · ORCID

classification astro-ph.HE

keywords supernovaremnantsnon-thermalbremsstrahlungX-rayspectroscopybrokenpowerlawCTB37Bmagnetarparticleaccelerationpulsarwindnebula

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper reanalyzes X-ray observations of S1, a compact non-thermal X-ray source inside the supernova remnant CTB 37B, using combined XMM-Newton and NuSTAR data. It argues that the spectrum is better described by a broken power law — hard below a break near 5.6 keV and softer above — than by a single power law or by synchrotron emission from a shock. The absorbing column inferred for S1 matches that of the remnant and its magnetar, suggesting S1 is physically associated with CTB 37B. The authors show that an evolutionary non-thermal bremsstrahlung model, in which sub-relativistic electrons accelerated by the shock cool via Coulomb losses, can reproduce the observed spectrum and break. If correct, S1 is a site of ongoing particle acceleration in the remnant, with implications for the gamma-ray emission and for how supernova shocks energize electrons.

What carries the argument

The analysis turns on a broken power-law fit to the combined XMM-Newton and NuSTAR spectra, and on an evolutionary non-thermal bremsstrahlung (NTB) model used to interpret it. In the NTB picture, suprathermal electrons with energies well above the thermal background radiate bremsstrahlung photons up to their kinetic energy; because the photon spectrum tracks the electron distribution, Coulomb energy losses carve a break into the spectrum that moves upward in energy as the source ages. The model integrates the evolving electron distribution over discrete shocked-volume slices behind a 900 km/s shock, using an analytic Coulomb-loss formula $E_{\rm ke}(t)^{1.5} = E_{\rm ke}(0)^{1.5} - 1.16 \times 10^{-5} \lambda_{ee} n_{e,b} t$ and an energy budget $W_{e,\rm S1} \approx 1.3 \times 10^{48}$ erg from a fraction of the supernova energy. Matching the observed 5.6 keV break fixes the product $n_{e,b} \tau_{\rm age} \approx 3300$ cm$^{-3}$ yr, and reproducing the flux in a high-density ($n_i \approx 100$ cm$^{-3}$) environment forces the short age of about 55 years. The alternative models — a single power law (background pulsar wind nebula) and the srcut synchrotron model (SNR shock with unusually efficient acceleration) — are carried through the same data to show what each would require.

What would settle it

Measure the Fe Kα line flux from S1 with a high-resolution X-ray spectrometer such as XRISM: the NTB model predicts detectable line emission from excitation by the same ~10–100 keV electrons that make the continuum, so a stringent non-detection would falsify the NTB scenario, while the model also predicts a decline in the 2–10 keV flux over the next decades that continued monitoring can test.

Watch

Extended reading notes

Core claim

The central claim is that the X-ray spectrum of S1 steepens around $5.57 \pm 0.52$ keV, with photon indices $\Gamma_1 = 1.23 \pm 0.23$ below and $\Gamma_2 = 2.24 \pm 0.16$ above the break, and that the inferred column density $N_{\rm H} = (4.08 \pm 0.72) \times 10^{22}$ cm$^{-2}$ is consistent with the column toward the SNR shell and the magnetar J1714. F-tests favor this broken power law over a straight power law and over the srcut synchrotron model at probabilities $5 \times 10^{-4}$ and $5 \times 10^{-3}$, although those simple models are not definitively excluded. The break of $\Delta \Gamma \approx 1$ and the hard low-energy index are interpreted as the signature of non-thermal bremsstrahlung from a population of sub-relativistic (roughly 30–120 keV) electrons injected by the SNR shock. An evolutionary model in which these electrons cool only by Coulomb collisions reproduces the spectrum, but requires nearly all of the available supernova energy in S1 to go into electrons and implies a source age of only about 55 years, far shorter than the remnant age of 650–6200 years; the authors therefore present the NTB scenario as favored but not unique, with an unassociated pulsar wind nebula and unusually efficient shock acceleration as alternatives.

Load-bearing premise

The model assumes that nearly all of the supernova energy directed at S1 went into accelerating electrons and that those electrons then cool only by Coulomb collisions, which forces the source to be only about 55 years old even though the remnant is hundreds to thousands of years old.

Editorial extensions

If this is right

If the BPL fit is correct, S1 is likely a physically associated part of CTB 37B, making it a candidate site where the SNR shock accelerates electrons in a dense interaction region.
The NTB interpretation implies a population of sub-relativistic (tens of keV) electrons inside S1; such electrons should excite atomic lines, most prominently Fe Kα near 6.4 keV, which XRISM could detect or constrain.
The Coulomb-cooling model predicts that the X-ray flux of S1 should decline over the coming decades on a timescale set by the ~55-year source age, a testable prediction.
The comparison of models indicates that if S1 is instead an unrelated PWN, a central pulsar should be detectable in deeper Chandra images.
Under any of the three scenarios S1 could contribute to TeV emission, and future CTA observations might resolve it as a distinct high-energy source within the larger TeV shell.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

The parameter degeneracy in the NTB model (flux scales with $n_i$ but cooling shortens with $n_{e,b}$) means the 55-year age is not a unique outcome: environments with lower density or additional turbulent reacceleration would allow an older source, easing the tension with the remnant age while preserving the spectral break.
If the NTB scenario is correct, similar compact hard-X-ray regions with $\Delta \Gamma \approx 1$ breaks may be hiding in archival XMM-Newton and NuSTAR data of other middle-aged SNRs associated with molecular clouds; a systematic search could reveal a class of sub-relativistic electron acceleration sites.
The model's assumed injection index $s = 3/2$ (test-particle diffusive shock acceleration) predicts a specific radio-to-X-ray spectral relationship; measuring the radio spectrum of S1 alone, rather than the whole SNR, could test whether the injected electron distribution is really that flat.
Because the paper's energy budget assigns all of the available shock energy in S1 to electrons, an asymmetric explosion could substantially reduce $W_{e,\rm S1}$; if so, the required source age drops further, making flux-monitoring an even sharper test.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

This paper reanalyzes the disputed non-thermal X-ray source S1 in CTB 37B with more XMM-Newton PN and NuSTAR data than before. The new observational results are real: the joint spectrum is better described by a broken power law (BPL) than by a single PL or srcut, with break at ~5.6 keV and ΔΓ≈1, and the BPL absorbing column is consistent with the SNR. The authors are careful with backgrounds, check bad pixels, and are transparent that PL and srcut cannot be definitively excluded. That honesty extends to their own NTB model, which they admit requires an implausibly short source age (~55 yr) and assumes essentially all SN energy goes into electrons.

The main soft spot is the statistical basis for the BPL. The reported F-test p-values (5e-4, 5e-3) assume Wilks regularity, but under the null the break energy is not identifiable, so those p-values are likely too aggressive without simulations. This is a known trap in X-ray spectral fitting. Moreover, the XMM and NuSTAR data alone favor different photon indices at fixed NH (1.35 vs 2.06), so the apparent steepening could be partly a cross-instrument calibration effect. The paper motivates the BPL from that discrepancy but does not calibrate the null distribution. That is load-bearing, because the NTB interpretation and the NH-consistency argument hang on the reality of the break.

The NTB model in Section 3 is best read as an existence proof, not a strong claim. Eke,max is chosen to produce the break, and the densities and age are tuned to match flux. The authors say this, but the model's success is partly by construction. The 55-yr age tension with the remnant age (650–6200 yr) is severe, and they do not overstate it.

Even with these reservations, the paper deserves a serious referee. It brings new data to a disputed source, lays out three interpretations fairly, and gives testable predictions (flux decline, Fe Kα with XRISM). The right fix is to add null-hypothesis simulations for the F-test and to fit XMM and NuSTAR with cross-calibration systematics explicitly. As it stands, I would accept it after moderate revision, mainly to shore up the statistical claim.

Referee Report

3 major / 4 minor

Summary. The paper presents a detailed X-ray spectral and imaging analysis of the non-thermal source S1 in the supernova remnant CTB 37B, using archival and newly acquired XMM-Newton and NuSTAR data. The authors report that a broken power-law (BPL) model is preferred over a single power law (PL) and the srcut model by F-tests, with a spectral break at about 5.6 keV and a photon-index difference of about 1. They interpret this break as evidence for non-thermal bremsstrahlung from sub-relativistic electrons, and construct an evolutionary NTB model constrained by the SN energy budget that reproduces the spectrum. They also discuss alternative explanations (an unrelated pulsar wind nebula or synchrotron emission from the SNR shock) and conclude that all three scenarios have significant difficulties, with the PWN scenario 'probably having the fewest flaws.'

Significance. The paper makes good use of additional XMM-Newton PN and NuSTAR data to improve the S1 spectrum, and it carefully checks background systematics. The explicit evolutionary NTB model is a useful framework for interpreting such hard, broken spectra in SNRs, and the paper is suitably cautious in acknowledging that none of the three scenarios is definitive. If the BPL interpretation and NTB model hold, S1 would be a rare site of sub-relativistic electron acceleration associated with CTB 37B, with testable predictions (flux decline, Fe Kα emission). However, the statistical foundation for the spectral break is less robust than the reported F-test probabilities imply, and the NTB model's success is partly built into its parameter choices.

major comments (3)

[Section 2.4] The F-test probabilities of 5e-4 (BPL vs PL) and 5e-3 (BPL vs srcut) are used to claim the BPL is favored. These probabilities assume that the likelihood-ratio test statistic is asymptotically chi-squared with 2 degrees of freedom. However, under the null hypothesis the break energy Ebrk is not identifiable, violating Wilks' theorem regularity conditions; such F-test p-values are known to be over-optimistic (Protassov et al. 2002). Because the reality of the break is the empirical foundation for the NTB interpretation and for the NH-based association with the SNR, the authors should calibrate the null distribution via simulations (e.g., generating fake PL spectra with the same fit procedure) or use an alternative model-comparison approach that is valid for non-identifiable parameters. Without such calibration, the 'favor' claim is not statistically supported at the reported confidence.
[Section 2.4 (independent XMM/NuSTAR fits)] The independent fits give Gamma = 1.35 +/- 0.17 for XMM-Newton and Gamma = 2.06 +/- 0.09 for NuSTAR at a fixed NH of 4.38e22 cm^-2. The joint BPL fit primarily exploits this spectral difference between the two instruments. The cross-normalization factors are reported to be consistent with 1, but a cross-instrument calibration mismatch in effective area or background modeling could mimic a real spectral break. The authors should test whether the BPL improvement persists when fitting the XMM and NuSTAR spectra separately with a BPL (or when allowing a smooth, energy-dependent cross-calibration correction). This would strengthen the case that the steepening is intrinsic to S1 rather than an artifact of combining two instruments.
[Section 3.2 and Table 3] The NTB model is constructed so that the initial maximum electron energy Eke,max is chosen so that Coulomb cooling produces a break at the observed ~6 keV, and ne, ni, and tau_age are adjusted to match the observed intensity and flux stability. As the authors acknowledge, the model's success is therefore partly by construction, and alternative parameter choices can also fit. To make the NTB interpretation falsifiable and quantitative, the paper should present predictions that are not used as inputs, such as the expected X-ray flux decline rate over the next decades, the Fe K-alpha line flux, or the relation between the break energy and the source age. A goodness-of-fit or a clear statement of which data points constrain each parameter would help the reader assess how strongly the data support this scenario.

minor comments (4)

[Abstract] The abstract contains a typo: 'naturlly' should be 'naturally'.
[Section 2.4] In the sentence 'The PL model prefers a large Γ of 1.95 ± 0.09 with a high NH = 6.52 ± 0.52 cm−2', the units for NH should be 10^22 cm^-2, as in Table 2.
[Equation (3)] The units of the time variable t in Eq. (3) should be stated explicitly (years or seconds), since the numerical coefficient implies a specific unit choice.
[Section 2.4, srcut model] The text says the srcut model uses a radio spectral index alpha = 0.3 'as previously reported', but it would be helpful to state explicitly that this value is for the integrated SNR emission (Kassim et al. 1991) and to clarify how the fixed alpha affects the derived Ebrk uncertainty.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the spectral comparison is an empirical fit to the data, and the NTB model is an openly tuned interpretation rather than an independent prediction.

full rationale

The paper's central claim is an empirical spectral comparison: PL, srcut, and BPL are independently parameterized models fitted to the same XMM-Newton and NuSTAR spectra, with the BPL preferred by an F-test on Δχ². The best-fit BPL parameters are not derived from the NTB model, and no fitted spectral quantity is reinserted as an input to the fitting procedure; thus the PL-versus-BPL comparison is not circular. The evolutionary NTB model in Section 3.2 is not presented as a parameter-free first-principles prediction. The paper explicitly states that parameters were optimized to reproduce the observed X-ray spectrum: 'To reproduce the observed X-ray break, the initially most energetic electrons (having Eke,max(0)=120 keV; Table 3) should cool to ~30 keV. Equation (3) then gives ne,b τage ∼ 3300 cm−3 yr,' and 'We optimized model parameters to reproduce the X-ray spectrum.' This is model fitting and interpretation, not a hidden reduction of the prediction to its inputs; the model's success does not independently confirm the BPL, and the paper acknowledges covariance and alternative acceptable parameter choices. It also candidly lists serious difficulties with the NTB scenario, including an unrealistically short source age and energy-budget problems, and it does not rule out PL or srcut interpretations. The uncalibrated F-test p-value due to non-identifiability of the break energy under the null is a legitimate statistical robustness concern, but it is not a circularity. No load-bearing self-citation chain or imported uniqueness argument is present; the srcut and Coulomb-loss formulae are standard external results. Overall, the derivation chain is self-contained at the observational level, and the interpretive model is clearly labeled as one of several possible scenarios.

Assumptions & free parameters 9 free parameters · 7 assumptions · 0 invented entities

The central spectral claim rests on four fitted BPL parameters. The NTB interpretation then adds several chosen parameters (Eke,max, ne, ni, ne,b, tau_age) that are adjusted to reproduce the observed spectrum, plus a set of assumptions about energy partition and the identity of the break. The model's agreement with data is therefore partly a consequence of the fitting.

free parameters (9)

NH (BPL absorbing column) = (4.08 +/- 0.72) x 10^22 cm^-2
Fitted to the joint XMM-Newton and NuSTAR spectra; drives the association argument.
Gamma_1 (BPL photon index below break) = 1.23 +/- 0.23
Fitted to the joint spectra.
Ebrk (break energy) = 5.57 +/- 0.52 keV
Fitted; the NTB model is tuned to reproduce this break.
Gamma_2 (BPL photon index above break) = 2.24 +/- 0.16
Fitted to the joint spectra.
Eke,max (initial maximum electron energy in NTB model) = 120 keV
Chosen so that Coulomb cooling produces the observed break at ~6 keV (Section 3.2).
ne (initial injected electron density) = 39.1 cm^-3
Optimized to reproduce the observed X-ray flux along with ni and tau_age.
ni (background ion density) = 100 cm^-3
Flexible parameter; adjusted to match flux, interacting with ne,b through Eq. 1.
tau_age (S1 age) = 55 yr
Set by the requirement ne,b * tau_age ~ 3300 cm^-3 yr from the break energy; implies a very young source.
ne,b (background electron density) = 80.9 cm^-3 (initial)
Derived from ni and ne via charge neutrality; determines Coulomb loss timescale.

assumptions (7)

domain assumption Test-particle diffusive shock acceleration gives a particle index s = 3/2 for a strong shock
Invoked in Section 3.2 to fix the injected electron distribution; assumes the shock is strong and particles are test particles.
domain assumption Coulomb energy loss formula Eke(t)^1.5 = Eke(0)^1.5 - 1.16e-5 lambda_ee n_e,b t (Eq. 3)
Used to evolve the electron distribution; taken from Vink (2008) for non-relativistic electrons.
domain assumption Charge neutrality ne + ne,b = 1.2 ni (Eq. 1)
Connects electron and ion densities in the plasma; standard but assumed for the background plasma.
domain assumption The NTB radiation efficiency is ~1e-5 of electron energy
Borrowed from Petrosian (2001); sets the energy budget problem for the NTB scenario.
domain assumption Assumed distance of 9 kpc and shock velocity of 900 km/s
Used to convert angular size to physical volume and to set the electron acceleration timescale; from Blumer et al. (2019).
ad hoc to paper All available SN energy for S1 is assumed to go into accelerating electrons (eta = 0.1, f_Omega = 0.013, ESN = 1e51 erg)
These values are chosen to make the model work; the paper acknowledges the age becomes unrealistically short.
ad hoc to paper The observed spectral break in the BPL is identified with the Coulomb cooling break in the electron distribution
Core identification in Section 3.2 that turns the fitted Ebrk into a physical parameter.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Investigation of the non-thermal X-ray emission from the supernova remnant CTB 37B hosting the magnetar CXOU J171405.7$-$381031." pith.science (2026). https://pith.science/paper/KYZIY4RN

@misc{pith2026241109902,
  author       = {Pith},
  title        = {Pith review of: Investigation of the non-thermal X-ray emission from the supernova remnant CTB 37B hosting the magnetar CXOU J171405.7$-$381031},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/KYZIY4RN}},
  note         = {Machine review of arXiv:2411.09902}
}

abstract

We present a detailed X-ray investigation of a region (S1) exhibiting non-thermal X-ray emission within the supernova remnant (SNR) CTB 37B hosting the magnetar CXOU J171405.7$-$381031. Previous analyses modeled this emission with a power law (PL), inferring various values for the photon index ($\Gamma$) and absorbing column density ($N_{\rm H}$). Based on these, S1 was suggested to be the SNR shell, a background pulsar wind nebula (PWN), or an interaction region between the SNR and a molecular cloud. Our analysis of a larger dataset favors a steepening (broken or curved PL) spectrum over a straight PL, with the best-fit broken power-law (BPL) parameters of $\Gamma=1.23\pm0.23$ and $2.24\pm0.16$ below and above a break at $5.57\pm0.52$ keV, respectively. However, a simple PL or srcut model cannot be definitively ruled out. For the BPL model, the inferred $N_{\rm H}=(4.08\pm0.72)\times 10^{22}\rm \ cm^{-2}$ towards S1 is consistent with that of the SNR, suggesting a physical association. The BPL-inferred spectral break $\Delta \Gamma \approx 1$ and hard $\Gamma$ can be naturally explained by a non-thermal bremsstrahlung (NTB) model. We present an evolutionary NTB model that reproduces the observed spectrum, which indicates the presence of sub-relativistic electrons within S1. However, alternate explanations for S1, an unrelated PWN or the SNR shock with unusually efficient acceleration, cannot be ruled out. We discuss these explanations and their implications for gamma-ray emission from CTB 37B, and describe future observations that could settle the origin of S1.

Figures

Figures reproduced from arXiv: 2411.09902 by the authors.

**Figure 1.** A composite image of combined SUMSS (843 MHz; white contours), Herschel SPIRES (red), XMM-Newton (1–8 keV; green) and NuSTAR (3–20 keV; blue) data of CTB 37B. The magnetar is marked as J1714 (cyan cross), and our main target “S1” is denoted by a white ellipse. The NuSTAR image was truncated to remove stray-light contamination (e.g., [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

**Figure 2.** (a) 3–20 keV NuSTAR FPMA (left) and FPMB (right) images made with the 2023 observation. While J1714 appears to be heavily contaminated by stray light in the FPMB image, it was detected outside the contamination in FPMA. We smoothed and logarithmically scaled the images to enhance legibility. (b and c) Result of our pulsation search (b) and backgroundsubtracted 1.6–5 keV pulse profile (c) of J1714 measured using t… view at source ↗

**Figure 3.** 1–20 keV X-ray spectra of the S1 region measured by XMM-Newton (black) and NuSTAR (red), and the best-fit PL (a), srcut (b), and BPL models (c). The bottom panels display residuals after subtracting the best-fit model from the data [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

Figures from the paper (1 more)

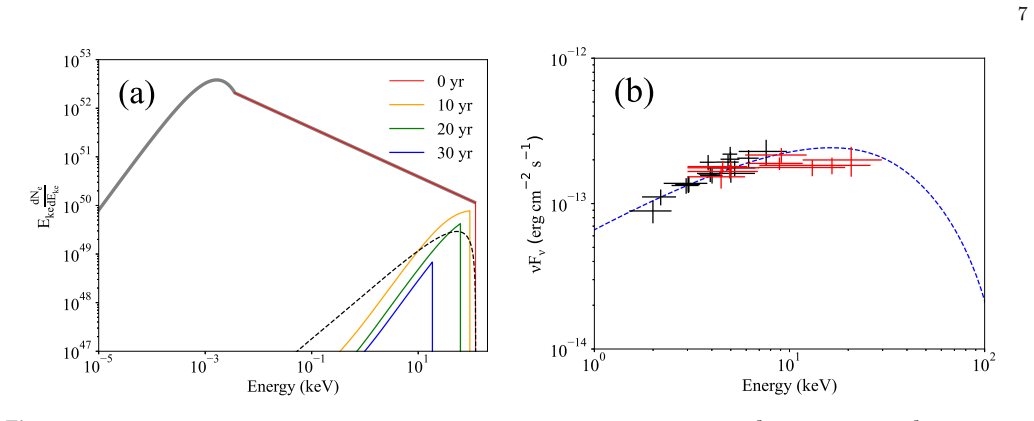

**Figure 4.** Figure 4: (a) Evolution of an electron distribution over 55 yr for s = 1.5, and initial ne = 39 cm−3 and ne,b = 81 cm−3 ( [PITH_FULL_IMAGE:figures/full_fig_p007_4.png]
