Pro-Prophet: A Systematic Load Balancing Method for Efficient Parallel Training of Large-scale MoE Models

T0 review · 3 major / 6 minor · reviewed 2026-08-12 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read The paper argues that by predicting one iteration ahead, MoE load balancing can be reduced to lightweight expert replication and hidden communication, achieving up to 2.66x end-to-end speedup.

desk verdict A solid MoE load-balancing system with a genuinely new placement-plus-overlap combination, whose abstract overstates and whose locality assumption needs stress-testing. read the letter →

arxiv 2411.10003 v2 pith:DCBNNXXP submitted 2024-11-15 cs.DC

Wei Wang , Zhiquan Lai , Shengwei Li , Weijie Liu , Keshi Ge , Ao Shen , Huayou Su , Dongsheng Li This is my paper · ORCID
classification cs.DC
keywords Mixture-of-Expertsexpertparallelismdynamicloadimbalancelightweightplacementcommunication-computationoverlapblock-wiseschedulingdistributedtrainingMoEmodel
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tries to establish that dynamic load imbalance in large-scale Mixture-of-Experts training can be fixed at the system level without paying the usual costs of moving whole model states or disrupting model convergence. It relies on an observed locality: the distribution of tokens among experts in one iteration closely resembles the next iteration's distribution. On that basis, a planner finds a lightweight expert placement, replicating only the busy experts' parameters to the devices that need them, and a scheduler prefetches those parameters and hides balancing communication behind ordinary forward and backward computation. If correct, this would let MoE models scale to more experts without throughput collapsing from skewed routing; the reported experiments claim end-to-end speedups of up to 2.66x against established MoE training systems and up to 11.01x better load balance.

What carries the argument

The central object is the lightweight expert placement: each expert is mapped independently to one or more devices, and only its parameters (forward Trans) and gradients (backward Agg) move among those devices, rather than whole model states. The planner's performance model estimates a MoE layer's time as $T' = 4T_{A2A}(R)+3T_{FEC}(H)+T_{Trans}(s,n)+T_{Agg}(s,n)$, with the last two terms replaced by their optimally overlapped versions after scheduling, and a locality-based greedy algorithm iteratively moves the most-loaded experts' parameters to the devices holding the most of their inputs until the load spread satisfies $\max(H)-\min(H)<\alpha I/E$. The scheduler's block-wise strategy partitions Trans and Agg into sub-operators and launches them in parallel with the forward expert and non-expert computations and the backward non-expert and expert computations of the neighboring block, while Plan is precomputed during the previous iteration's all-to-all communication.

What would settle it

Feed a MoE model inputs whose routing is deliberately perturbed every few iterations so that adjacent-iteration expert-load vectors have high divergence, and measure Pro-Prophet's per-iteration time; if it degrades toward the no-overlap baseline and planning or prefetch corrections dominate, the locality assumption is falsified. Quantitatively, compute the Jensen-Shannon divergence between consecutive iterations' expert-load distributions; Pro-Prophet's speedup should decrease monotonically as this divergence increases.

Watch

Extended reading notes

Core claim

Pro-Prophet's central claim is that the dynamic device load imbalance that plagues expert-parallel training of Mixture-of-Experts models can be corrected cheaply instead of expensively. The paper observes that the per-expert input distribution of a MoE layer changes little between adjacent training iterations, and builds two components on this locality. The planner searches over lightweight expert placements, placements where each expert is replicated to exactly the subset of devices that currently receives its tokens and only that expert's parameters and gradients are communicated, using a performance model and a greedy search to produce a communication-efficient placement. The scheduler then moves the three data-dependent load-balancing primitives, planning, parameter transfer, and gradient aggregation, off the critical path by computing the plan one iteration ahead, prefetching expert parameters, and splitting transfers into sub-operators overlapped with neighboring blocks' forward and backward computations. The paper reports end-to-end speedups of 1.18-2.66x over the main baseline and 1.01-1.50x over the dynamic-shadowing baseline across four clusters and five MoE-GPT variants, with up to 11.01x improvement in its load-balance metric.

Load-bearing premise

The scheduling rests on locality, the premise that each expert's share of inputs changes slowly between adjacent training iterations, and the paper tests this only in the first 100 iterations, where the distribution is still stabilizing; a sharp shift in routing would make the precomputed plan and prefetched parameters stale.

Editorial extensions

If this is right

  • If Pro-Prophet's central claim holds, system-level load balancing for MoE training no longer requires moving whole model states: replicating only the parameters and gradients of selected experts to a subset of devices is enough to even out device load.
  • The locality of expert input distributions implies the load-balancing plan can be computed one iteration ahead and expert parameters prefetched, so balancing overhead is largely removed from the critical path.
  • Splitting communication primitives into sub-operators and overlapping them with forward and backward computation of neighboring MoE blocks can hide most remaining balancing communication, improving device utilization without changing model convergence behavior.
  • Across four clusters of 8-32 GPUs and five MoE-GPT model sizes, the method reports end-to-end speedups of 1.18-2.66x over the primary baseline, up to 1.50x over the dynamic-shadowing baseline, and up to 11.01x improvement in its load-balance metric.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Beyond the paper: the same one-iteration-ahead prediction could be applied to expert-parallel inference serving, where request routing is also temporally correlated, so prefetching expert weights to the devices that will receive the next batch could hide much of the serving latency.
  • Beyond the paper: the scheduler uses a static offline split of Trans and Agg based on fixed non-MoE computation durations; making the split adaptive to measured per-iteration load divergence is a natural testable extension that would also stress the locality assumption.
  • Beyond the paper: the performance model prices communication with a fixed average bandwidth, so on clusters where achievable bandwidth depends on which device pairs communicate, the placement search would likely benefit from topology-aware communication costs.
  • Beyond the paper: the planner's search space grows with the number of experts per layer, so the method's advantage should be largest in the regime MoE models are headed toward, many more experts than devices.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. The paper proposes Pro-Prophet, a system-level load-balancing method for training large-scale Mixture-of-Experts (MoE) models. It consists of a planner, which searches over 'lightweight expert placements' using a cost model and a greedy algorithm, and a scheduler, which exploits the observed locality of input distributions across adjacent iterations to precompute placement plans and to overlap parameter/gradient communication with expert and non-expert computation. The authors evaluate Pro-Prophet on four clusters of up to 32 GPUs with five MoE-GPT model variants and report end-to-end speedups of up to 2.66x over Deepspeed-MoE and up to 1.50x over FasterMoE, together with a load-balancing improvement of up to 11.01x over FasterMoE.

Significance. If the reported speedups are robust, Pro-Prophet would be a useful systems contribution: it addresses a real bottleneck in MoE training and combines two mechanisms (placement search and communication-computation overlap) that are usually treated separately. The paper gives a concrete performance model, a greedy planner, a block-wise scheduling strategy, and an ablation study separating the contribution of the planner and the scheduler. The evaluation covers multiple clusters, models, and top-k settings, which is a reasonable breadth for a systems paper. However, the central claim depends on an inter-iteration locality assumption whose empirical support is currently narrow, and the measurement methodology lacks variance information and a released artifact. These issues are load-bearing because the scheduler's precomputation and early parameter transfer are only beneficial if the next iteration's routing distribution is predictable.

major comments (3)
  1. [Section V-A and Section VI (Default settings)] The load-bearing assumption of the scheduler is the locality property: the input distribution of iteration j+1 is estimated from iteration j, so Plan_{i}^{j+1} is launched during A2A_i^j and Trans is started early (Algorithm 2, line 5). However, the only evidence for this property is Fig. 4, which shows a qualitative plot for iterations 2500-2600 of the second MoE layer, while the default evaluation is explicitly restricted to the first 100 iterations. The paper does not quantify how similar adjacent-iteration distributions are in the first 100 iterations, nor does it test a scenario with an abrupt distribution shift (e.g., changed data order, checkpoint restart, or altered batch composition). Because there is no described fallback if the predicted Plan or early Trans is stale, the reported end-to-end speedups may be confined to a regime where the locality assumption happens to hold. Please add locality measurements within the evaluation window itself and a stress test with a distribution shift, or describe a recovery mechanism.
  2. [Section VI (Figs. 10-12, Tables IV-V)] All speedup results are reported as single numbers without error bars, standard deviations, or the number of repeated runs. The headline ranges (e.g., 1.47-2.66x vs. Deepspeed-MoE, 1.01-1.48x vs. FasterMoE) are therefore not yet distinguished from run-to-run noise. In addition, Fig. 12 shows per-iteration times only for iterations 62-70, even though the evaluation is said to cover the first 100 iterations; a complete time curve or an average over the full window would be more convincing. I ask for at least three repeated runs per configuration and reporting of the mean and spread, together with the average throughput over the full 100-iteration window.
  3. [Section IV-B and Section V-C] The performance model uses constants B (average communication bandwidth) and t (computation throughput) in Eqs. (1)-(5), and the scheduler's split of Trans/Agg in Algorithm 2 relies on pre-training estimates of FNEC and BNEC duration. The paper does not state how these constants are obtained, whether they are re-measured for each cluster, or how sensitive the planner's chosen placement is to their values. Since the planner's greedy search uses this model to select the placement, and the scheduler's split depends on static estimates, the portability of the method to a new cluster is not yet demonstrated. Please report the calibration procedure and, if possible, a sensitivity analysis over B and t.
minor comments (6)
  1. [Abstract and Introduction] The abstract and introduction state that Pro-Prophet achieves 'up to 2.66x speedup compared to Deepspeed-MoE and FasterMoE,' but the measured speedups against FasterMoE are at most about 1.50x. Please rephrase to avoid implying that 2.66x was obtained against both baselines.
  2. [Section VI (Default settings)] The sentence 'We evaluate Pro-Prophet within the first 100 iterations as the input distribution tends to stabilize with the training process' is ambiguous: it could mean the first 100 iterations are chosen because the distribution is stabilizing, or that the distribution only stabilizes later. Please clarify the intended meaning, since it bears directly on the locality assumption.
  3. [Section VI-B (Single-iteration speedups)] The text introducing Fig. 12 says 'We also evaluate the single-layer performance of Pro-Prophet' but the experiment measures per-iteration time; this should read 'single-iteration performance.'
  4. [Eqs. (4)-(5)] The denominator in T_Trans(s,n) and T_Agg(s,n) is D*B, but only D-n devices participate in the communication. If the intended model is aggregate bandwidth across D devices, please justify this; otherwise the denominator should presumably involve D-n.
  5. [Algorithm 1 and Section IV-C] The pseudocode uses the variable i both for the index of the heaviest device (line 6) and for 'expert-i' in the comment on line 11; since a lightweight placement maps experts to subsets of devices, please disambiguate the notation so the mapping between devices and experts is clear.
  6. [General] No code or artifact release is mentioned. For a systems paper whose claims rest on careful implementation details (e.g., the split of Trans into sub-primitives), releasing the implementation or at least a detailed reproducibility appendix would substantially strengthen the paper.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the end-to-end speedup claims are measured against external baselines, and the performance model and locality assumption are internal heuristics with independent validation.

full rationale

The paper's central claim—end-to-end training speedups of 1.36–2.66x over Deepspeed-MoE and 1.01–1.50x over FasterMoE—is established by direct measurement on four clusters, not by derivation from the paper's own model. The performance model (Eqs. 1–6 and 8) is used internally to guide the greedy placement search; its accuracy is checked against measured operation times in Fig. 13, and the final speedups are external end-to-end comparisons, so no fitted constant is renamed as a prediction. The locality assumption (Section II-B and V-A) is an empirical premise that the input distribution of adjacent iterations is similar; it is load-bearing for the scheduler, but it is not defined in terms of the claimed speedup, and a failure of locality would be a validation gap rather than a circular derivation. Self-citations (e.g., Merak [37], AutoPipe [47], and the communication-scheduling work [58]) appear only in related-work surveys and do not supply the load-bearing result; no uniqueness theorem or prior ansatz is imported to force the design. Thus the derivation chain is self-contained with respect to its external benchmarks, and no circular step can be exhibited from the paper's equations or citations.

Assumptions & free parameters 4 free parameters · 4 assumptions · 0 invented entities

The system is an engineering design whose main cost is the locality and linear-cost assumptions. These are plausible for steady-state training but are not demonstrated beyond 100 iterations or against several related baselines. No new physical or model entities are introduced.

free parameters (4)
  • alpha (balance threshold) = not stated
    In Eq. 7, max(H)-min(H) < alpha*I/E defines the condition for a balanced load. The coefficient alpha is described as regulable, but no value or tuning procedure is reported, and it directly controls when the greedy search stops.
  • n (number of devices an expert avoids) = not stated
    Input to Algorithm 1; BottomK(gating, n) chooses the n devices with fewest inputs for an expert. No default or search range over n is reported, though it determines placement and communication volume.
  • Planner launch frequency = not stated
    Section IV-C says users can adjust the frequency of the search algorithm flexibly and that the locality-based version reduces it, but no policy or default value is given.
  • Trans/Agg split ratios in block-wise scheduling = not stated
    Algorithm 2 partitions Trans and Agg into two sub-operations; Section V-B says the split is estimated from static FNEC/BNEC durations, but the exact rule is not specified.
assumptions (4)
  • domain assumption Input routing distributions of adjacent training iterations are similar (locality).
    Used in Section II-B and Fig. 4 to motivate predicting the upcoming iteration's distribution; Section V-A relies on it to move Plan and Trans earlier. The paper gives no quantitative similarity threshold and tests only the first 100 iterations.
  • domain assumption Execution times combine linearly according to Eqs. 1-5 with fixed bandwidth and compute throughput.
    The greedy planner selects placements using this performance model. Real GPUs have kernel launch overhead, contention, and nonlinear bandwidth effects that the model ignores.
  • domain assumption Plan for iteration j+1 can be computed from iteration j's distribution, and Agg can be shifted within the iteration without breaking correctness.
    Core to the scheduler's overlapping design in Section V-A. It depends on locality and on the parameter update scheme, and the paper only handles Trans inside one iteration for universality.
  • domain assumption A device can store parameters of several experts at once in lightweight placements.
    The lightweight placement maps each expert to a subset of devices and may place multiple experts on one device. Memory capacity is a constraint the paper acknowledges when reducing tokens on LPWNV clusters.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Pro-Prophet: A Systematic Load Balancing Method for Efficient Parallel Training of Large-scale MoE Models." pith.science (2026). https://pith.science/paper/DCBNNXXP

@misc{pith2026241110003,
  author       = {Pith},
  title        = {Pith review of: Pro-Prophet: A Systematic Load Balancing Method for Efficient Parallel Training of Large-scale MoE Models},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/DCBNNXXP}},
  note         = {Machine review of arXiv:2411.10003}
}
read the original abstract

The size of deep learning models has been increasing to enhance model quality. The linear increase in training computation budget with model size means that training an extremely large-scale model is exceedingly time-consuming. Recently, the Mixture of Expert (MoE) has drawn significant attention as it can scale models to extra-large sizes with a stable computation budget. However, inefficient distributed training of large-scale MoE models hinders their broader application. Specifically, a considerable dynamic load imbalance occurs among devices during training, significantly reducing throughput. Several load-balancing works have been proposed to address the challenge. System-level solutions draw more attention for their hardware affinity and non-disruption of model convergence compared to algorithm-level ones. However, they are troubled by high communication costs and poor communication-computation overlapping. To address these challenges, we propose a systematic load-balancing method, Pro-Prophet, which consists of a planner and a scheduler for efficient parallel training of large-scale MoE models. To adapt to the dynamic load imbalance, we profile training statistics and use them to design Pro-Prophet. For lower communication volume, Pro-Prophet planner determines a series of lightweight load-balancing strategies and efficiently searches for a communication-efficient one for training based on the statistics. For sufficient overlapping of communication and computation, Pro-Prophet scheduler schedules the data-dependent operations based on the statistics and operation features, further improving the training throughput. Experimental results indicate that Pro-Prophet achieves up to 2.66x speedup compared to Deepspeed-MoE and FasterMoE. Additionally, Pro-Prophet achieves a load-balancing enhancement of up to 11.01x when compared to FasterMoE.

Figures

Figures reproduced from arXiv: 2411.10003 by the authors.

Figure 1
Figure 1. The structure of a MoE model and MoE layer. The MoE model [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. A workflow of Expert Parallelism (EP) in a MoE layer. Following [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 4
Figure 4. The locality of input distributions. The discrepancies between the [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figures from the paper (10 more)
Figure 6
Figure 6. Figure 6: The comparison of a traditional and lightweight expert placement. The load is imbalanced in traditional expert placement. In a lightweight one, each [PITH_FULL_IMAGE:figures/full_fig_p005_6.png]
Figure 7
Figure 7. Figure 7: The device state of operators in a MoE block. FEC and BEC are [PITH_FULL_IMAGE:figures/full_fig_p007_7.png]
Figure 8
Figure 8. Figure 8: Scheduling space. The subscript denotes the index of the MoE block and the superscript denotes that of the iteration. For example, [PITH_FULL_IMAGE:figures/full_fig_p008_8.png]
Figure 9
Figure 9. Figure 9: Different scheduling strategies for a T rans primitive. improves the utilization of overlapping space and reduces the communication overhead. A dynamic scheduling strategy is beneficial as the load of devices fluctuates with the training process. However, the non￾negli…
Figure 10

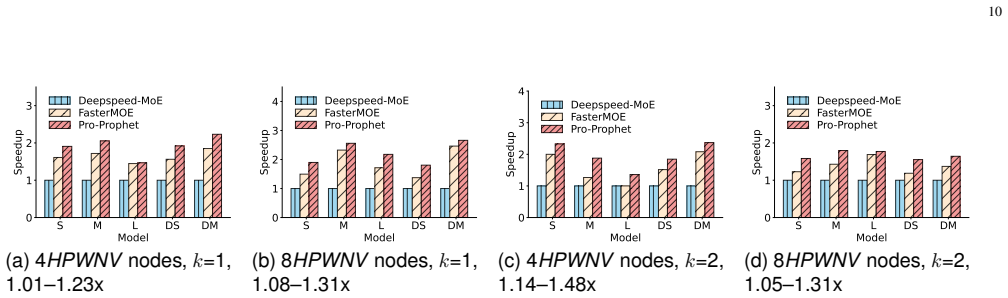

Figure 10. Figure 10: End-to-end performance. The numbers in the captions denote speedups achieved by Pro-Prophet over the best baseline. [PITH_FULL_IMAGE:figures/full_fig_p010_10.png]
Figure 12
Figure 12. Figure 12: Per-iteration execution time in the MoE-GPT-M model when [PITH_FULL_IMAGE:figures/full_fig_p010_12.png]
Figure 11
Figure 11. Figure 11: Speedups across different layers over the Deepspeed-MoE in the [PITH_FULL_IMAGE:figures/full_fig_p010_11.png]
Figure 14
Figure 14. Figure 14: The effectiveness of components. The baseline is Pro-Prophet without [PITH_FULL_IMAGE:figures/full_fig_p011_14.png]
Figure 15
Figure 15. Figure 15: The iteration latency of different policies in the MoE-GPT-M model. [PITH_FULL_IMAGE:figures/full_fig_p011_15.png]
Figure 16

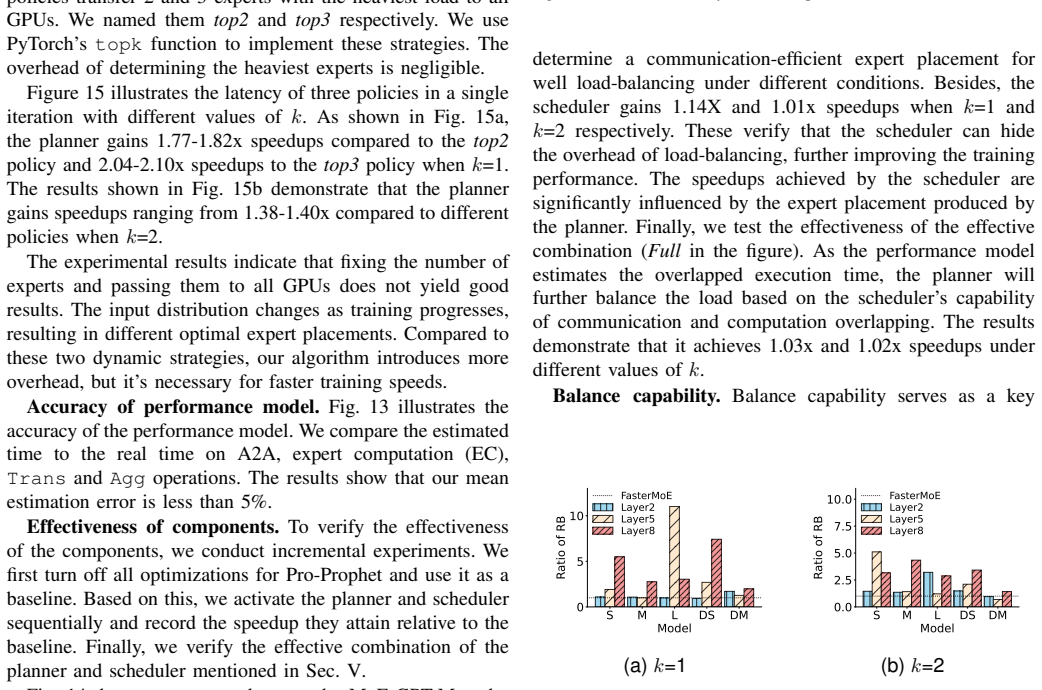

Figure 16. Figure 16: The ratio of RB of the planner to FasterMoE in different models and k. The balance degree is the standard deviation of the input distribution tensor. The ratio of the balance degree before and after employing a load￾balancing solution is RB of the solution. The planne…
