The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper argues that generating structured diagrams—flowcharts, model architectures, mind maps, and similar—should be treated as a code-generation problem with an explicit edit loop, not as a text-to-image problem. To support this, it contributes a new benchmark with human-like instructions, code, and images for eight diagram categories, plus a four-agent framework that plans, writes diagram code, checks it, and converts diagrams back into code. The authors claim that this framework outperforms 16 existing text-to-code and vision-language baselines on accuracy, structural coherence, and modifiability, with the largest gains in the editing task. If correct, the work gives the research community a standardized task definition and a strong baseline for building editable, logically coherent diagram generators.

What carries the argument

The load-bearing mechanism is the four-agent loop: Plan Agent (query expansion via LLM), Code Agent (a fine-tuned open-weight code model generating TikZ or DOT), Check Agent (compiler-based debugging plus LLM-based verification), and Diagram-to-Code Agent (a vision-language model turning diagram images back into code). The Check Agent's compiler feedback loop is what converts raw code generation into a self-correcting process, and the inverse Diagram-to-Code Agent is what makes editing possible by recovering editable source from a rendered diagram.

What would settle it

Collect a held-out set of diagram requests written independently by human users (not derived from the target code), run DiagramAgent on them, and have those same users rate whether the output matches their intended diagram. If Pass@1 and human scores drop substantially on human-authored requests while staying high on the benchmark's auto-generated queries, the central claim of superior general text-to-diagram ability would be falsified.

Watch

Extended reading notes

Core claim

The central claim is that diagram generation reduces to two inverse code mappings: generation as $D_{\mathrm{gen}} = f_{\mathrm{img}}(f_{\mathrm{code}}(x_{\mathrm{ins}}))$ and editing as $D_{\mathrm{mod}} = f_{\mathrm{img}}(f_{\mathrm{mod}}(f_{\mathrm{code}}^{-1}(D_{\mathrm{ori}}), x_{\mathrm{edit}}))$. The paper's DiagramAgent implements these mappings with four cooperating modules: a Plan Agent that expands incomplete instructions, a Code Agent fine-tuned to emit compilable LaTeX/TikZ or DOT code, a Check Agent that compiles code and uses a large language model to verify completeness, and a Diagram-to-Code Agent that converts an existing diagram image back into code. On the introduced DiagramGenBenchmark, the authors report that this pipeline beats all compared baselines on the generation, coding, and editing tasks, with human evaluation aligning with the objective metrics.

Load-bearing premise

The benchmark's ground truth is valid: the natural-language queries, expanded complete queries, and edit instructions were auto-generated by a large language model, and the edited codes were produced by another model and then filtered for compilability, so if these references do not match real user intent, every reported score measures alignment with an automatic pipeline's output distribution rather than general diagram-generation ability.

Editorial extensions

If this is right

  • If the reported results hold, fine-tuned code-generation models with a compile-and-verify loop become the practical route to producing editable, logically coherent diagrams from text.
  • The benchmark provides a standardized set of 8 diagram types and three tasks (generation, coding, editing), enabling direct comparison of future text-to-diagram systems.
  • The editing results being far stronger than generation results suggests that interactive refinement over generated drafts is a more tractable path than one-shot perfect generation.
  • The inverse diagram-to-code capability opens the door to editing existing diagrams found in documents and slide decks, not only diagrams the system itself produced.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • An unstated consequence is that the benchmark's auto-generated queries may make the generation task easier than real user requests, since those queries were reverse-engineered from the target code; a human-requested test set would clarify whether the reported gains hold outside the benchmark distribution.
  • The same four-agent loop could plausibly transfer to other structured visual outputs such as SVG, UML, or circuit schematics, but the paper only demonstrates TikZ and DOT.
  • The reliance on a commercial LLM for data annotation and verification implies a reproducibility ceiling: the dataset and agent behavior are partly tied to a model the authors do not control.
  • A testable extension would be to use the Diagram-to-Code Agent as a self-training signal, letting the system generate new diagrams, convert them back to code, and use mismatches as synthetic training data.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper introduces DiagramGenBenchmark, a dataset and evaluation suite for text-to-diagram generation, diagram coding, and diagram editing across eight diagram types (flowchart, model architecture, mind map, bar chart, etc.), and presents DiagramAgent, a four-module framework (Plan Agent, Code Agent, Check Agent, Diagram-to-Code Agent) that generates, codes, and edits structured diagrams via LaTeX/TikZ or DOT code. The experiments compare DiagramAgent against 16 code-LLM baselines and 11 vision-language-model baselines, reporting large gains (e.g., Pass@1 58.15 for generation, 68.89 for coding, 98.00 for editing) together with ablations of the compiler-debugging and GPT-4o-verification components and a human evaluation.

Significance. If the reported gains are genuine, this is a valuable contribution: it defines a new task family, provides a reusable benchmark with three subtasks, and offers a modular agentic baseline that is reproducible from open models plus a closed verifier. The paper ships explicit prompts, data statistics, and ablations, and it makes falsifiable metric claims. However, the central comparative claim—that DiagramAgent significantly outperforms existing baselines—is not yet supported because the head-to-head comparisons are confounded by fine-tuning asymmetry and by GPT-4o involvement in both the benchmark construction and the evaluation pipeline. The benchmark itself may still be useful as a resource, but its validity as a measure of general user intent requires additional human-written references or a calibration study.

major comments (3)
  1. [Sec. 6 (Setup), Sec. 4.2, Eq. (6), Tables 2 and 6] The DiagramAgent Code Agent is fine-tuned for four epochs on the DiagramGenBenchmark training split, whereas all 16 baselines in Table 2 and all editing baselines in Table 6 are evaluated off-the-shelf. Consequently, the reported gaps (e.g., Pass@1 58.15 vs. 55.56 for DeepSeek-Coder in Table 2; 98.00 vs. 95.00 for DeepSeek V2.5 in Table 6) conflate in-distribution fine-tuning with the multi-agent framework. The paper must provide a controlled comparison—either fine-tuning the baselines on the same training data, or evaluating the fine-tuned Code Agent without the Plan/Check agent loop—before the claim of significant outperformance can be accepted.
  2. [Appendix A.2, Sec. 4.4, Figs. 8–13] The benchmark's natural-language instructions, expanded queries, and edit suggestions were all generated by GPT-4o, and the Check Agent uses GPT-4o for verification. This creates a systematic bias: the reference outputs and the verifier are drawn from the same model family, so the reported metrics may measure alignment with GPT-4o's output distribution rather than general diagram-generation ability. The paper does not discuss this risk. Please add a human-written test subset (or at least a manually verified subset) and report whether the relative rankings and absolute scores are stable when the references are not GPT-4o-generated.
  3. [Sec. 4.3–4.4, Table 4, Table 10 (Appendix E)] The Diagram-to-Code Agent is described as 'Qwen2-VL-7B in its default configuration,' yet the full DiagramAgent pipeline augments it with compiler debugging and GPT-4o verification, while the coding baselines are single-pass. Moreover, the ablation 'w/o GPT-4o & Compiler' in Table 10 still achieves Pass@1 of 52.59 versus 28.89 for the off-the-shelf Qwen2-VL baseline; this large unexplained gap indicates that the comparison isolates more than just the removed modules (e.g., prompt design, Plan Agent orchestration, or evaluation harness differences). The paper needs a clean ablation that varies only the framework components on the same base model and same inference-time budget.
minor comments (5)
  1. [Tables 2–7] All objective metrics are reported as point estimates without confidence intervals or significance tests; given the small test sets (270 generation/coding and 200 editing samples) and gaps of only a few points, please provide bootstrap intervals or significance tests.
  2. [Fig. 4 and Appendix D] The human evaluation reports mean scores from three raters but no inter-annotator agreement statistic (e.g., Krippendorff's alpha) and no per-model variance; please add these to support the claim of alignment between human and automated metrics.
  3. [Table 1] The 'Complete Query Length (tokens)' row for the editing column reports an average of 98 while the minimum is 115, which is impossible; the value likely belongs to a different column or needs correction.
  4. [Eq. (9)] The Check Agent operation is written as f_check(c) = f_debug(...) + f_verify(...), but f_debug and f_verify return errors and completeness judgments, not scalars; the '+' notation is formally unexplained and should be replaced with a clearer composition description.
  5. [References and typos] References [41] and [42] cite the same paper; please disambiguate. The Figure 3 caption contains 'inlcuding' for 'including,' and the Figure 4 caption mentions a 'Modify diagram generation' task that does not match the task names used elsewhere in the paper.

Circularity Check

0 steps flagged · score 0.0 of 10

No derivation-to-input circularity: the paper's claims are empirical benchmark results, and the self-referential elements (GPT-4o-generated queries, GPT-4o verification) are validity concerns rather than circular reductions.

full rationale

The paper contains no derivation chain that reduces to its inputs. The framework is defined by Eqs. (1)-(9), which merely formalize generation, coding, and editing as compositions of functions; no result is derived from these equations. The headline claims are empirical comparisons in Tables 2, 4, and 6. The Code Agent is trained on the benchmark training split (Eq. 6) and evaluated on a held-out test split, so its Pass@1 and related metrics are genuine predictions, not fitted values renamed as predictions. The benchmark construction is self-referential in a way that creates contamination risk: queries and expanded queries were generated by GPT-4o (Appendix A.2, Figures 7 and 8), and the Check Agent also uses GPT-4o (Sec. 4.4, Figure 13). This could inflate DiagramAgent's scores by rewarding alignment with GPT-4o's own text-code mapping, and the comparison is further confounded because baselines are evaluated zero-shot while DiagramAgent's Code Agent is fine-tuned. However, these are experimental-control and benchmark-validity caveats, not cases where a claimed result is equivalent to its input by construction. There are no load-bearing self-citations: the authors' own prior work [8, 15] appears only as general surveys in the introduction and related work. Therefore the circularity score is 0.

Assumptions & free parameters 0 free parameters · 4 assumptions · 0 invented entities

No new physical entities are introduced. The load-bearing assumptions are about the validity of auto-generated ground truth and the fairness of the model comparison.

assumptions (4)
  • domain assumption Compiled LaTeX/TikZ and DOT code faithfully represents the logical structure and content of a diagram
    All dataset construction and evaluation assume that compiling code to an image preserves the intended structure; used throughout Sections 5 and 6.
  • ad hoc to paper GPT-4o-generated instructions, expanded queries, and edit suggestions are representative of real user requests
    Queries and edits in DiagramGenBenchmark were produced by GPT-4o (Appendix A.1 and A.2); no human validation of this assumption is reported.
  • ad hoc to paper Off-the-shelf baselines are valid comparators for a model fine-tuned on the benchmark training set
    Experiment Setup (Section 6) fine-tunes DiagramAgent's Code Agent while evaluating baselines without fine-tuning; the comparison implicitly assumes this is fair.
  • domain assumption Pass@1, CodeBLEU, ROUGE-L, and image fidelity metrics capture diagram quality
    The paper uses these metrics without validating that they correlate with human judgment of logical structure; human evaluation is only a mean score without agreement statistics.

how reviews work

0 comments
Cite this review

Pith. "Pith review of From Words to Structured Visuals: A Benchmark and Framework for Text-to-Diagram Generation and Editing." pith.science (2026). https://pith.science/paper/47QNH2GZ

@misc{pith2026241111916,
  author       = {Pith},
  title        = {Pith review of: From Words to Structured Visuals: A Benchmark and Framework for Text-to-Diagram Generation and Editing},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/47QNH2GZ}},
  note         = {Machine review of arXiv:2411.11916}
}
read the original abstract

We introduce the task of text-to-diagram generation, which focuses on creating structured visual representations directly from textual descriptions. Existing approaches in text-to-image and text-to-code generation lack the logical organization and flexibility needed to produce accurate, editable diagrams, often resulting in outputs that are either unstructured or difficult to modify. To address this gap, we introduce DiagramGenBenchmark, a comprehensive evaluation framework encompassing eight distinct diagram categories, including flowcharts, model architecture diagrams, and mind maps. Additionally, we present DiagramAgent, an innovative framework with four core modules-Plan Agent, Code Agent, Check Agent, and Diagram-to-Code Agent-designed to facilitate both the generation and refinement of complex diagrams. Our extensive experiments, which combine objective metrics with human evaluations, demonstrate that DiagramAgent significantly outperforms existing baseline models in terms of accuracy, structural coherence, and modifiability. This work not only establishes a foundational benchmark for the text-to-diagram generation task but also introduces a powerful toolset to advance research and applications in this emerging area.

Figures

Figures reproduced from arXiv: 2411.11916 by the authors.

Figure 1
Figure 1. Challenges in Existing Text-to-Image and Text-to-Code Methods for Diagram Generation [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Workflow of DiagramAgent. The DiagramAgent handles diagram generation, coding, and editing tasks, processing the user query [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. provides example queries and diagrams, inlcuding model architecture, flowcharts, line charts, directed/undi￾rected graphs, tables, bar charts, and mind maps. As de￾tailed in [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (11 more)
Figure 4
Figure 4. Figure 4: Human evaluation results for different models on dia [PITH_FULL_IMAGE:figures/full_fig_p008_4.png]
Figure 5
Figure 5. Figure 5: DiagramGenBenchmark Data Curation Process [PITH_FULL_IMAGE:figures/full_fig_p012_5.png]
Figure 6
Figure 6. Figure 6: Data Distribution of DiagramGenBenchmark. [PITH_FULL_IMAGE:figures/full_fig_p012_6.png]
Figure 7
Figure 7. Figure 7: Prompt for Plan Agent: Analyzing and expanding user [PITH_FULL_IMAGE:figures/full_fig_p013_7.png]
Figure 8
Figure 8. Figure 8: Prompt for Expanding Drawing Query to Generate Com [PITH_FULL_IMAGE:figures/full_fig_p013_8.png]
Figure 10
Figure 10. Figure 10: Check Agent Prompt for Diagram Coding: Verifying [PITH_FULL_IMAGE:figures/full_fig_p014_10.png]
Figure 11
Figure 11. Figure 11: Code Agent Prompt for Diagram Generation: Generat [PITH_FULL_IMAGE:figures/full_fig_p015_11.png]
Figure 13
Figure 13. Figure 13: Check Agent: Using GPT-4o to perform error detection [PITH_FULL_IMAGE:figures/full_fig_p015_13.png]
Figure 14

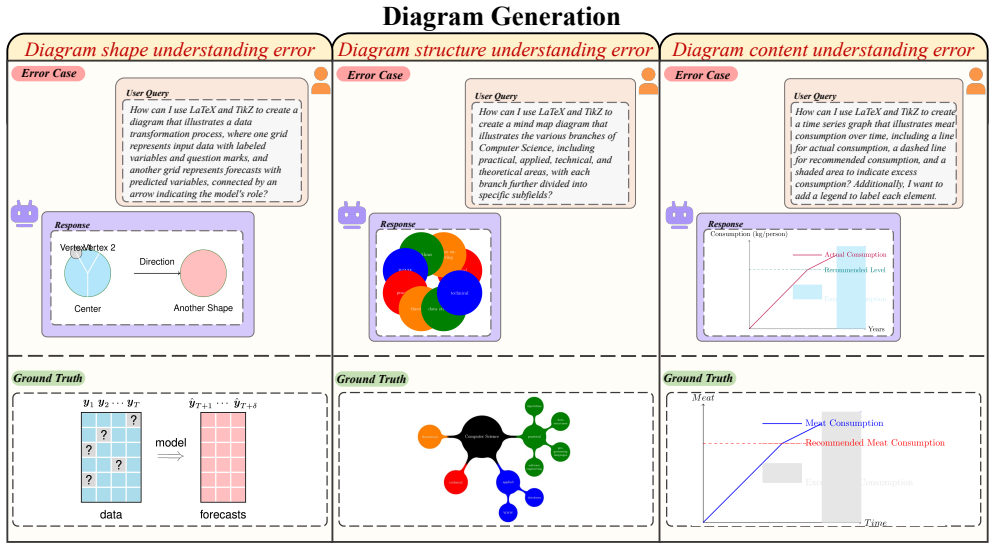

Figure 14. Figure 14: Common Error Types in the Diagram Generation: (Left) Shape Understanding Error, (Center) Structure Understanding Error, [PITH_FULL_IMAGE:figures/full_fig_p017_14.png]
Figure 15

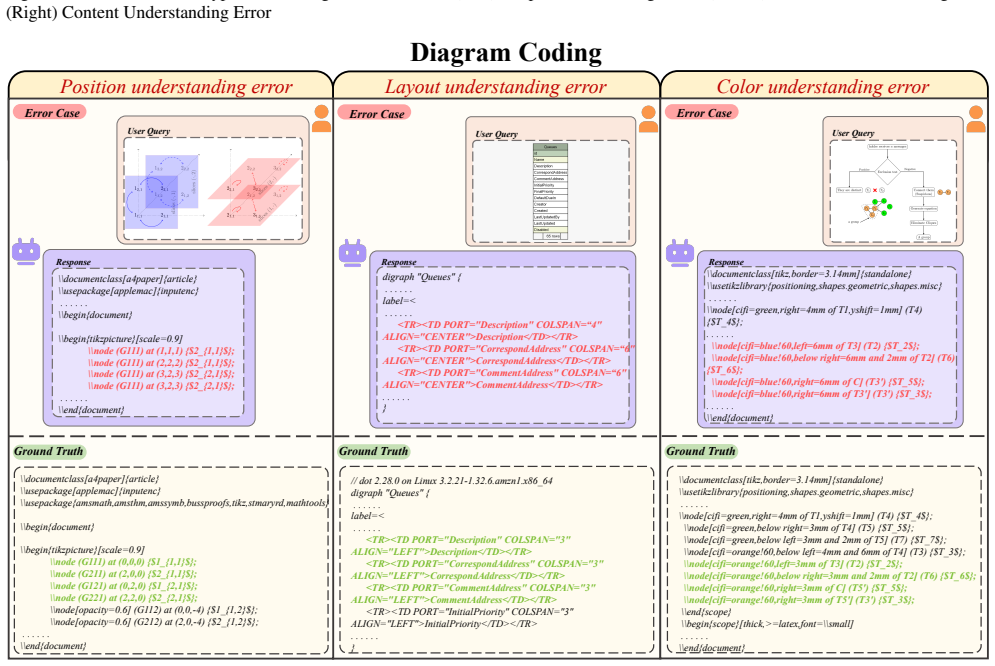

Figure 15. Figure 15: Common Error Types in the Diagram Coding: (Left) Position Understanding Error, (Center) Layout Understanding Error, [PITH_FULL_IMAGE:figures/full_fig_p017_15.png]
Figure 16

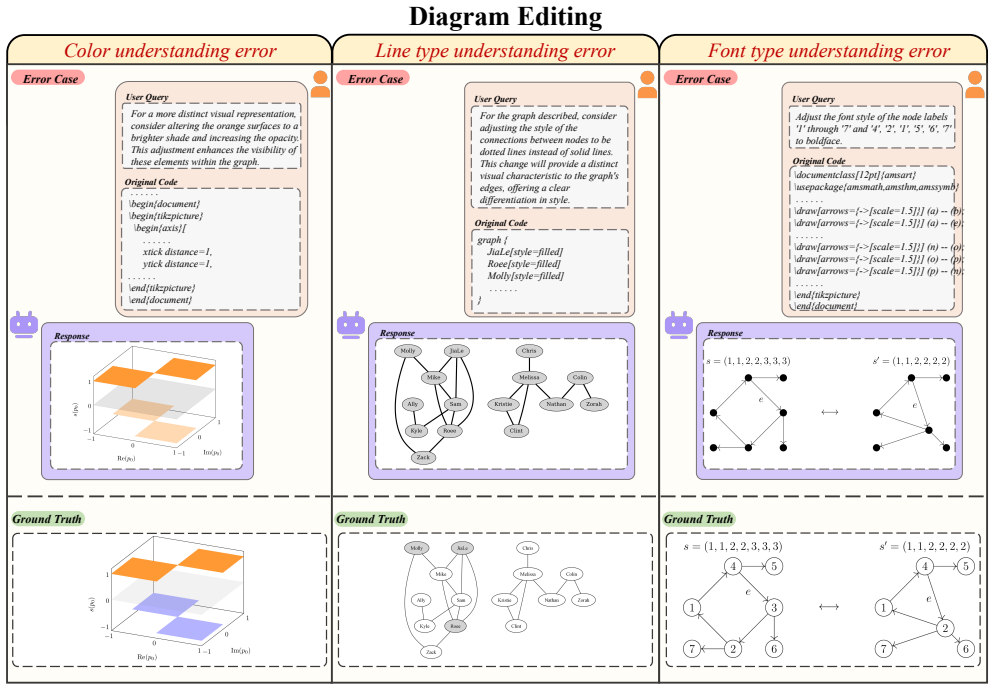

Figure 16. Figure 16: Common Error Types in the Diagram Editing: (Left) Color Understanding Error, (Center) Line Type Understanding Error, [PITH_FULL_IMAGE:figures/full_fig_p018_16.png]
