Approximating Spatial Distance Through Confront Networks: Application to the Segmentation of Medieval Avignon

T0 review · 4 major / 6 minor · reviewed 2026-08-12 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A graph built from medieval 'next-door' mentions reproduces city distances well enough to split Avignon into 31 lived neighborhoods without a single exact address.

desk verdict A useful graph-extraction pipeline for incomplete medieval land records, honestly presented but with a partly self-referential validation—worth refereeing, though the 0.80 correlation should not be read as independent confirmation. read the letter →

arxiv 2411.13134 v2 pith:T2EOQOSA submitted 2024-11-20 cs.SI

Margot Ferrand (AU , CIHAM) , Vincent Labatut (LIA) This is my paper · ORCID
classification cs.SI
keywords confrontnetworksspatialgraphsmedievalAvignonlandregistriescommunitydetectiondistancecorrelationhistoricalGISgraphextraction
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Medieval land registers rarely give addresses; they locate a property by naming its neighbors and surroundings—which house faces it, which street bounds it, what lies to its north. This paper argues that these relative mentions, organized into a graph, carry enough spatial information to approximate real distances and to split a city into coherent neighborhoods, without ever reconstructing the parcel plan. Using 14th-century registers from Avignon, the authors extract 16 graph variants and pick the one whose shortest-path distances best track measured spatial distances: a graph that keeps only flat (non-hierarchical) relationships, splits the longest streets into connected segments, and is enriched with secondary-source connections between streets and buildings. That graph reaches a Spearman correlation of 0.80 and, partitioned by Louvain community detection, yields 31 communities that line up with streets, markets, cemeteries, and parish boundaries in a way historians can interpret as lived neighborhoods. If the claim holds, historians can segment and analyze cities whose sources are partial and imprecise without first solving the usually impossible task of locating every parcel.

What carries the argument

The load-bearing object is the confront network: an undirected spatial graph whose vertices are properties and urban invariants (streets, gates, churches, walls, river) and whose edges are the relative locations recorded in terriers, normalized to seven relation types. The distance-correlation criterion $\rho_d$—Spearman's rank correlation between shortest-path (graph) distance and Euclidean (spatial) distance on the georeferenced subset—carries the method comparison; the paper's extraction variants are essentially attempts to make geodesic distance on the graph behave like Euclidean distance. The best variant, EFS_k, combines extended secondary data, flat relationships only, and splitting of the seven longest streets into artificially connected segments, which prevents long linear objects from acting as spatial shortcuts.

What would settle it

Take the EFS_k extraction, restrict the evaluation to a control set of properties whose medieval positions are independently fixed by surviving archaeology or standing landmarks (churches, gates, walls), and recompute the Spearman correlation; a large drop from 0.80 would show the reported spatial fidelity was an artifact of the confront-based georeferencing loop.

Watch

Extended reading notes

Core claim

The paper's central claim is that a confront network—a graph whose edges are the spatial relationships tenants themselves declared (x is north of y, x faces y, x is inside borough z)—is a legitimate stand-in for a map of the urban space, for the purpose of spatial segmentation. The authors define the quality of such a graph by two criteria: coverage (how many of the 3,021 recorded properties the graph retains) and reliability (Spearman rank correlation between graph distance and spatial distance over the 2,049 georeferenced properties). Comparing 16 extraction variants, they find that the best graph is not the one that uses all available information but the one that discards hierarchical containment edges, splits the longest streets, and adds relationships from secondary sources; this EFS_k variant reaches 0.80 correlation while keeping 69% of properties. Partitioning that graph with Louvain produces 31 communities with modularity 0.93, which the authors interpret as the lived neighborhoods of papal Avignon, grounded in spatial proximity and shared landmarks rather than administrative parish lines.

Load-bearing premise

The method's yardstick is not fully independent: the 2,049 property positions used to test distance accuracy were themselves inferred from the same neighbor relationships that build the graph, so part of the 0.80 match may be the method measuring its own input.

Editorial extensions

If this is right

  • Historians can segment an incompletely documented city without parcel-by-parcel georeferencing, as long as the registers contain explicit relative locations.
  • Discarding hierarchical containment edges and splitting long streets improves distance fidelity; keep-all-information graphs are spatially misleading, with the full graph reaching only 0.22 correlation versus 0.80 for EFS_k.
  • Secondary information about how streets connect to each other and to buildings is worth collecting: adding it raised correlation by 0.26 to 0.45 across comparable variants while also improving property coverage.
  • The 31 Louvain communities of the best graph form spatially coherent units that cross parish boundaries only at uncertain edges, and typically coalesce around a street, market, cemetery, or borough—consistent with neighborhoods as lived spaces, not administrative cells.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A transferable benchmark design: other cities with terrier-like registers, where cardinal relations may be rare, could reuse the same 'coverage plus distance correlation' selection protocol, but the optimal trade-off will likely shift with the relation types present in the source.
  • The 0.80 ceiling is probably not a limit of the method but of the noisy ground truth: the georeferenced properties were manually arranged using the same confronts that make the edges, so part of the measured correlation is circular; an independent control group of properties located via fixed landmarks would reveal the true floor.
  • The same graph could feed interpolation of missing absolute positions: instead of averaging neighbor coordinates, a graph neural network could use the edge semantics to predict locations, a perspective the authors mention; if that works, the confront network becomes a scaffold for full georeferencing, not just segmentation.
  • The finding that deleting information improves spatial fidelity is likely general: in any spatial graph, hubs representing broad regions collapse many real meters into two hops, so flat plus split representations are a safer default for distance-based analysis on relational sources.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 6 minor

Summary. The paper proposes a graph-based approach to representing medieval urban space from land registries, where properties are located only by relative spatial references ('confronts'). Sixteen variants of a confront-network extraction pipeline are compared on a dataset of papal-period Avignon, using two criteria: coverage (number of properties retained in the graph) and reliability (Spearman correlation between graph distance and Euclidean spatial distance). The method EFS_k (extended data, flat relationships, split longest streets) is selected, achieving ρ_d = 0.80, and Louvain community detection on that graph yields 31 communities that the authors interpret as lived neighborhoods. The data and code are made publicly available.

Significance. If the quantitative evaluation were independent, the paper would make a useful methodological contribution for historical spatial analysis when absolute coordinates are unavailable. Its strengths include the open data and code, the systematic comparison of extraction choices, and a careful qualitative historical discussion of the resulting communities. However, the central empirical claim — that the confront network approximates spatial distance with ρ_d = 0.80 — is compromised by the fact that the spatial yardstick used for evaluation was constructed from the same confront relations that generate the graph edges, and by the lack of baseline comparisons and uncertainty quantification. The ranking among extraction variants may still be informative, but the absolute fidelity claim needs re-basing.

major comments (4)
  1. [§3.4, §6.1] The evaluation yardstick for spatial distance is not independent of the graph construction. Section 3.4 states that the 2,049 georeferenced properties were 'arranged manually based on additional information, particularly confronts,' and that this localization is 'highly uncertain' because it relies on the localization of invariants 'which is often quite hypothetical.' The graph edges in Section 5 are extracted from exactly these confront relations. Consequently, the Spearman correlation ρ_d in Table 3 measures, at least in part, the internal consistency of the manual georeferencing procedure rather than the ability of the confront graph to recover an independently known spatial layout. The paper should either provide an independent validation set (e.g., coordinates of invariants derived from archaeological or planimetric sources that were not used in the confront extraction) or clearly reframe the claim as one of internal consistency rather than absolute spatial fidelity.
  2. [§6.4, Fig. 15] The value k = 7 for EFS_k is selected by maximizing the distance correlation on the same data that are then used to report ρ_d = 0.80 in Table 3. This is a post-selection maximum, and no confidence intervals, significance tests, or hold-out validation are provided. The comparison across methods in Section 6.6 therefore does not account for selection bias. The authors should provide uncertainty quantification (e.g., bootstrap confidence intervals for ρ_d) and a validation procedure that separates parameter selection from evaluation, or at minimum a sensitivity analysis over k showing that the reported advantage of EFS_k is robust.
  3. [§6.6] No baseline against simpler spatial graph models is reported. Without comparators such as a k-nearest-neighbor graph in Euclidean space, a graph based on shared parish or street membership, or a random-edge null model, the claim that the confront network 'approximates spatial distance' is not calibrated. A baseline would show whether the observed ρ_d = 0.80 is meaningful relative to what can be produced with the same amount of information. The authors should add at least one such baseline and report its distance correlation and coverage in Table 3 or in a separate comparison.
  4. [§7, §8] The community discussion in Section 7 is historically plausible and illustrates the qualitative value of the approach, but it is not an independent check on the quantitative distance-correlation claim. Since the communities are derived from the same confront graph that was evaluated circularly, the historical consistency reported in Section 7 does not correct the circularity identified above. The conclusion in Section 8 should not present the community analysis as confirmation of the quantitative fidelity of the graph; it should be framed strictly as a qualitative illustration.
minor comments (6)
  1. [Table 3] In the Full graph row, the proportion of properties is reported as 100.00%, but Section 3.2 states the database contains 3,021 properties, and the Full graph contains 2,693 property vertices; 2,693/3,021 ≈ 89.1%. Please reconcile the numbers or clarify the denominator used for the percentage.
  2. [§6.1] The text states that Kendall's τ and Spearman's ρ give 'qualitatively similar results' and that only Spearman results are shown, but no quantitative comparison is presented. A sentence with summary values or a supplementary figure would support this claim.
  3. [§5.1.2] The sentence 'we empirically determine that a lower threshold of 25 vertices is appropriate' does not specify the criterion used to choose this threshold; please state the metric or heuristic that led to 25.
  4. [§3.4] Typo: '162 our of 326 streets' should read '162 out of 326 streets.'
  5. [§2, §7.2.2] There are minor language issues: 'felt under their lordship' should be 'fell under their lordship,' and the stray 'extsuperscript' in Section 7.2.2 appears to be a LaTeX rendering artifact.
  6. [Figures 14 and 15] The axis labels and legend text in Figures 14 and 15 are very small; increasing the font size would improve readability.

Circularity Check

2 steps flagged · score 6.0 of 10

The headline ρd=0.80 is not an independent validation: the spatial yardstick was manually built from the same confronts that generate the graph edges (§3.4, §5, §6.1), and the k=7 variant was selected to maximize the same correlation on the same data (§6.4).

  1. fitted input called prediction [Section 3.4 (additional information), Section 5 (graph extraction), Section 6.1 (distance correlation)]
    "We matched the declared properties identified in our corpus with the finest spatial reference for which we had information (parish, borough, street), and then arranged them manually based on additional information, particularly confronts. Out of 3,021 properties, 2,049 have been georeferenced. However, this property localization is highly uncertain because it relies on the localization of all the invariants, which is often quite hypothetical."

    The graph edges are extracted from the same confront relations (Section 5 describes graph edges as reflecting the confronts), while Section 6.1 evaluates graph distance against the Euclidean distance between georeferenced objects. But Section 3.4 states that 2,049 properties were georeferenced by arranging them manually 'based on additional information, particularly confronts.' The two quantities being correlated therefore share the confronts as a common source: the Euclidean positions were chosen to be consistent with the confronts, and the graph distance is a function of the confronts. The absolute ρd values, including the reported 0.80, thus measure in part the internal consistency of the georeferencing procedure rather than an independent spatial ground truth.

  2. fitted input called prediction [Section 6.4 (k selection), Table 3, Figure 15]
    "Unlike with the methods based on vertex removal (·FW ·), estimating the best value of k is not a bi-objective optimization problem, because splitting an increasing number of streets does not affect the coverage (cf. Figure 15). Consequently, we just select the values that maximize distance correlation: k = 6 (RFS k) and k = 7 (EFS k)."

    The parameter k in EFS k was chosen by maximizing the very same Spearman correlation that is later reported as the method's reliability (Table 3 reports ρd = 0.80 for EFS k). Because there is no validation split, uncertainty estimate, or out-of-sample check, the headline number is the result of in-sample optimization over k, not an independent estimate of how well the graph approximates spatial distance. This compounds the non-independence of the yardstick identified in the first step.

full rationale

The central empirical claim is that the EFS_k confront network approximates spatial distance with Spearman correlation 0.80 and that this supports both the method selection and the subsequent community interpretation. That claim is only partially self-contained. The Euclidean spatial distance used as the yardstick is not an external ground truth: Section 3.4 explains that the 2,049 georeferenced properties were manually arranged using additional information, particularly the same confront relations from which the graph edges are built (Section 5). Correlating graph distance with this manual arrangement therefore measures, to a substantial degree, the internal consistency of the georeferencing procedure. The paper is transparent about the high uncertainty of the placement, which mitigates the severity, and the ranking among the 16 variants retains some validity because all variants are scored against the same fixed coordinates. However, the absolute fidelity claim is inflated. The selection of k by maximizing the same distance correlation on the same data further means the reported 0.80 is a tuned maximum, not a held-out prediction. The community-detection section is a qualitative application and does not add circularity, and the self-citation to the first author's thesis for the NLP tool is not load-bearing for the distance-correlation argument. Overall, the paper's central quantitative claim is plausible but partly self-referential; a score of 6 reflects this partial circularity rather than complete equivalence of the derivation to its inputs.

Assumptions & free parameters 2 free parameters · 5 assumptions · 0 invented entities

The paper's central claim rests on five unstated assumptions: the metric linking graph distance to Euclidean distance, the reliability of partly inferred ground-truth positions, the normalization of relation semantics, the treatment of artificial split edges, and the accuracy of the NLP extraction. None of these is formally verified inside the paper.

free parameters (2)
  • k (number of longest streets removed or split) = 6 for RFW_k/RFS_k; 7 for EFW_k/EFS_k
    Chosen by optimizing the Pareto front or maximizing distance correlation on the same dataset (Sections 6.3, 6.4, Appendix D.1).
  • Minimum component size threshold = 25
    Vertices in minor components are discarded below this empirically determined threshold (Section 5.1.2).
assumptions (5)
  • domain assumption Rank correlation between graph distance and Euclidean distance is an appropriate measure of how well a network approximates spatial distance.
    Used as the reliability criterion in Section 6.1; no justification that preserving rank order is the right objective for segmentation.
  • domain assumption The georeferenced positions in the database are accurate enough to serve as ground truth for spatial distance.
    Section 3.4 admits positions are often hypothetical and partly arranged from confronts, so this assumption is fragile.
  • domain assumption Different spatial relation types can be normalized to 7 unweighted undirected edge types without losing the spatial signal.
    Section 5.1.1 and Appendix B collapse 42 relation types; no weighting or directionality is used in graph distances.
  • domain assumption Artificial edges created when splitting streets preserve spatial continuity with the same reliability as source-derived edges.
    Section 5.2.1 describes iteratively removing degree-1 artificial vertices; these edges are treated equally in distance computations.
  • domain assumption The semi-automatic NLP extraction of entities and relations is accurate enough for the graph analysis.
    Section 3.1 summarizes the Auto-Annot pipeline with human verification; details are deferred to reference [13].

how reviews work

0 comments
Cite this review

Pith. "Pith review of Approximating Spatial Distance Through Confront Networks: Application to the Segmentation of Medieval Avignon." pith.science (2026). https://pith.science/paper/T2EOQOSA

@misc{pith2026241113134,
  author       = {Pith},
  title        = {Pith review of: Approximating Spatial Distance Through Confront Networks: Application to the Segmentation of Medieval Avignon},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/T2EOQOSA}},
  note         = {Machine review of arXiv:2411.13134}
}
read the original abstract

In historical studies, the older the sources, the more common it is to have access to data that are only partial, and/or unreliable or imprecise. This can make it difficult, or even impossible, to perform certain tasks of interest, such as the segmentation of some urban space based on the location of its constituting elements. Indeed, traditional approaches to tackle this specific task require knowing the position of all these elements before clustering them. Yet, alternative information is sometimes available, which can be leveraged to address this challenge. For instance, in the Middle Ages, land registries typically do not provide exact addresses, but rather locate spatial objects relative to each other, e.g. x being to the North of y. Spatial graphs are particularly adapted to model such spatial relationships, called confronts, which is why we propose their use over standard tabular databases. However, historical data are rich and allow extracting confront networks in many ways, making the process non-trivial. In this article, we propose several extraction methods and compare them to identify the most appropriate. We postulate that the best candidate must constitute an optimal trade-off between covering as much of the original data as possible, and providing the best graph-based approximation of spatial distance. Leveraging a dataset that describes Avignon during its papal period, we show empirically that the best results require ignoring some of the information present in the original historical sources, and that including additional information from secondary sources significantly improves the confront network. We illustrate the relevance of our method by partitioning the best graph that we extracted, and discussing its community structure in terms of urban space organization, from a historical perspective. Our data and source code are both publicly available online.

Figures

Figures reproduced from arXiv: 2411.13134 by the authors.

Figure 1
Figure 1. Top: Example of declaration retrieved from a terrier, Vaucluse Departmental Archives, 1G10 f.9v. It includes the original text (first frame) and its English translation (second frame). Each color represents a different piece of information: tenant (red), property (orange), location (blue, 5 different confronts here), and fees (green). Italics denote entities of interest. Diagram available at 10.5281/zenodo.14175830 … view at source ↗
Figure 2
Figure 2. Left: Density map of properties (declared and undeclared) in our dataset; location by interpolation using the grid method. Right: seven parishes of Avignon, and main geological landmarks. Plots available at 10.5281/zenodo.14175830 under CC-BY license. was notably limited by the natural landscape (such as the parish of Saint-Etienne). To locate ´ the properties in most of the terriers, the scribes use parish affiliat… view at source ↗
Figure 3
Figure 3. Straightforward extraction of a graph, from our database. Each colored shape represents [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
Figures from the paper (14 more)
Figure 4
Figure 4. Figure 4: The three strategies proposed to handle 1- and 2-dimensional objects such as the street [PITH_FULL_IMAGE:figures/full_fig_p013_4.png]
Figure 5
Figure 5. Figure 5: The two strategies proposed to handle hierarchical relationships, such as a parish contain [PITH_FULL_IMAGE:figures/full_fig_p014_5.png]
Figure 6
Figure 6. Figure 6: Extending the perimeter of the considered historical sources allows including additional [PITH_FULL_IMAGE:figures/full_fig_p015_6.png]
Figure 7
Figure 7. Figure 7: Left: Comparison of the methods from [PITH_FULL_IMAGE:figures/full_fig_p020_7.png]
Figure 8
Figure 8. Figure 8: Distribution of the communities over the 7 historical parishes of Avignon. Each vertex [PITH_FULL_IMAGE:figures/full_fig_p022_8.png]
Figure 9
Figure 9. Figure 9: Distribution of property location over communities, in terms of parochial membership [PITH_FULL_IMAGE:figures/full_fig_p023_9.png]
Figure 10
Figure 10. Figure 10: Simplified representation of the communities: each node represents a community from [PITH_FULL_IMAGE:figures/full_fig_p024_10.png]
Figure 11
Figure 11. Figure 11: Full graph extracted from our database. It contains all the available raw data (but no [PITH_FULL_IMAGE:figures/full_fig_p031_11.png]
Figure 12
Figure 12. Figure 12: Graphs extracted using the whole vertex approaches ( [PITH_FULL_IMAGE:figures/full_fig_p032_12.png]
Figure 13
Figure 13. Figure 13: Graphs extracted using the split vertex approaches ( [PITH_FULL_IMAGE:figures/full_fig_p033_13.png]
Figure 14
Figure 14. Figure 14: Selection of the optimal value of parameter [PITH_FULL_IMAGE:figures/full_fig_p034_14.png]
Figure 15
Figure 15. Figure 15: Evolution of the coverage (left) and distance correlation (right) as functions of the [PITH_FULL_IMAGE:figures/full_fig_p035_15.png]
Figure 16

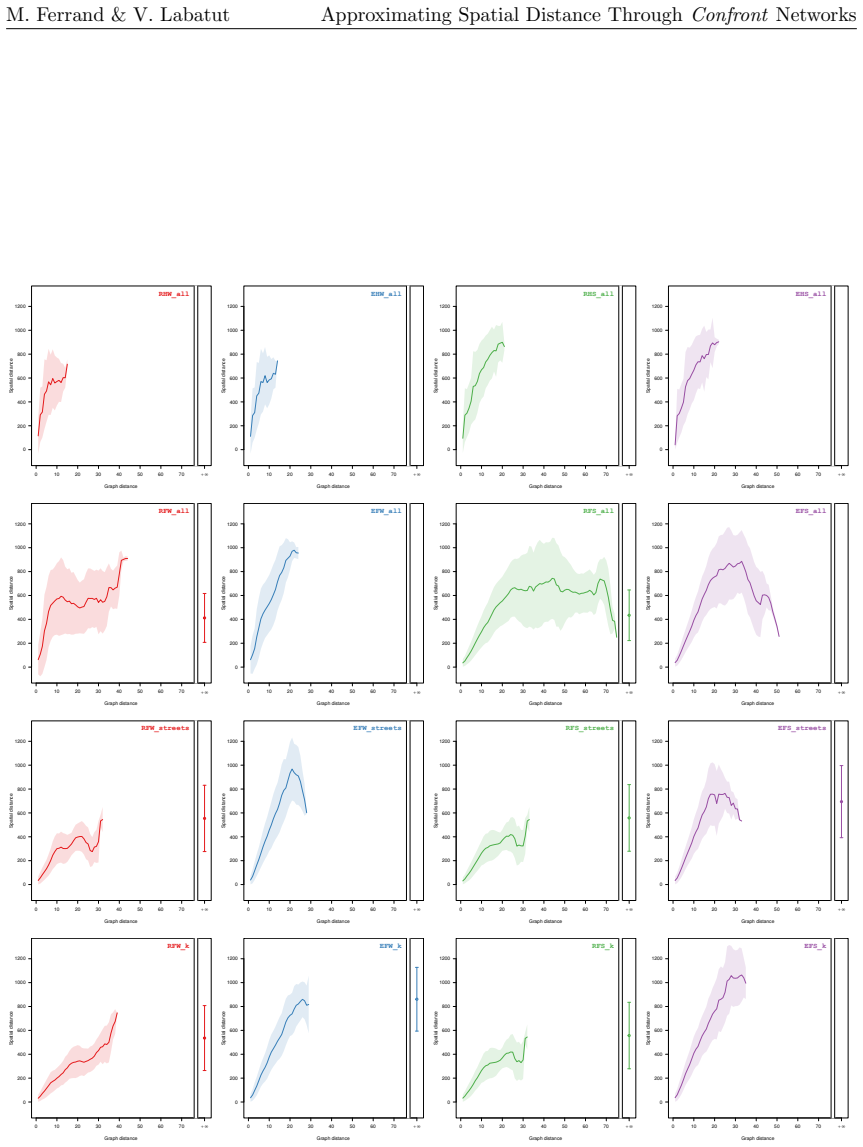

Figure 16. Figure 16: Comparison of graph and spatial distances, for all graphs. Figure available at [PITH_FULL_IMAGE:figures/full_fig_p036_16.png]
Figure 17
Figure 17. Figure 17: Two versions of the community network: each node represents a community from [PITH_FULL_IMAGE:figures/full_fig_p037_17.png]
