Self-embedding similitudes of Bedford-McMullen carpets with dependent ratios

Jian-Ci Xiao This is my paper

Pith reviewed 2026-05-23 08:36 UTC · model grok-4.3

classification 🧮 math.CA math.MG
keywords Bedford-McMullen carpetself-embedding similitudeoblique embeddingcontraction ratiologarithmic commensurabilitygeneralized Sierpiński carpetstrong separation condition
0
0 comments X

The pith

Non-degenerate Bedford-McMullen carpets admit no oblique self-embedding similitudes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proves that if a similitude maps a non-degenerate Bedford-McMullen carpet into itself, then the image of the x-axis under that map must lie parallel to one of the coordinate axes. This axis-alignment condition immediately yields a logarithmic commensurability statement for the contraction ratios appearing in the carpet's iterated function system. The argument completes an earlier analysis that had covered only the multiplicatively independent case and supplies a new proof route that does not examine tangent sets. In the purely self-similar setting the paper also exhibits a generalized Sierpiński carpet that does admit an oblique reflectional self-embedding, and it shows that any oblique rotational self-embedding on a strongly separated generalized Sierpiński carpet must have rotation-angle tangent equal to plus or minus one.

Core claim

Any similitude sending a non-degenerate Bedford-McMullen carpet into itself has the property that the image of the x-axis is parallel to a principal axis. This forces logarithmic commensurability of the carpet's contraction ratios.

What carries the argument

The non-obliqueness property of self-embedding similitudes, which forces the transformed x-axis to align with a coordinate axis.

If this is right

  • The logarithms of the contraction ratios of any self-embedding must be commensurable.
  • The classification of self-embeddings is now complete for both dependent and independent ratio cases.
  • Oblique rotational self-embeddings of strongly separated generalized Sierpiński carpets are restricted to angles whose tangent equals ±1.
  • A proof of non-obliqueness is available that does not rely on tangent-set analysis.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The axis-alignment requirement may impose similar rigidity on other families of self-affine sets.
  • The existence of an obliquely symmetric generalized Sierpiński carpet indicates that self-similarity alone permits more geometric flexibility than the Bedford-McMullen structure allows.
  • It would be natural to test whether the same non-obliqueness conclusion holds for additional classes of planar self-affine fractals.

Load-bearing premise

The carpet satisfies the non-degeneracy condition that keeps it from collapsing to lower dimension or trivial alignment.

What would settle it

An explicit non-degenerate Bedford-McMullen carpet together with an oblique similitude that maps the carpet to itself while sending the x-axis to a line not parallel to either coordinate axis.

Figures

Figures reproduced from arXiv: 2412.02123 by Jian-Ci Xiao.

Figure 1

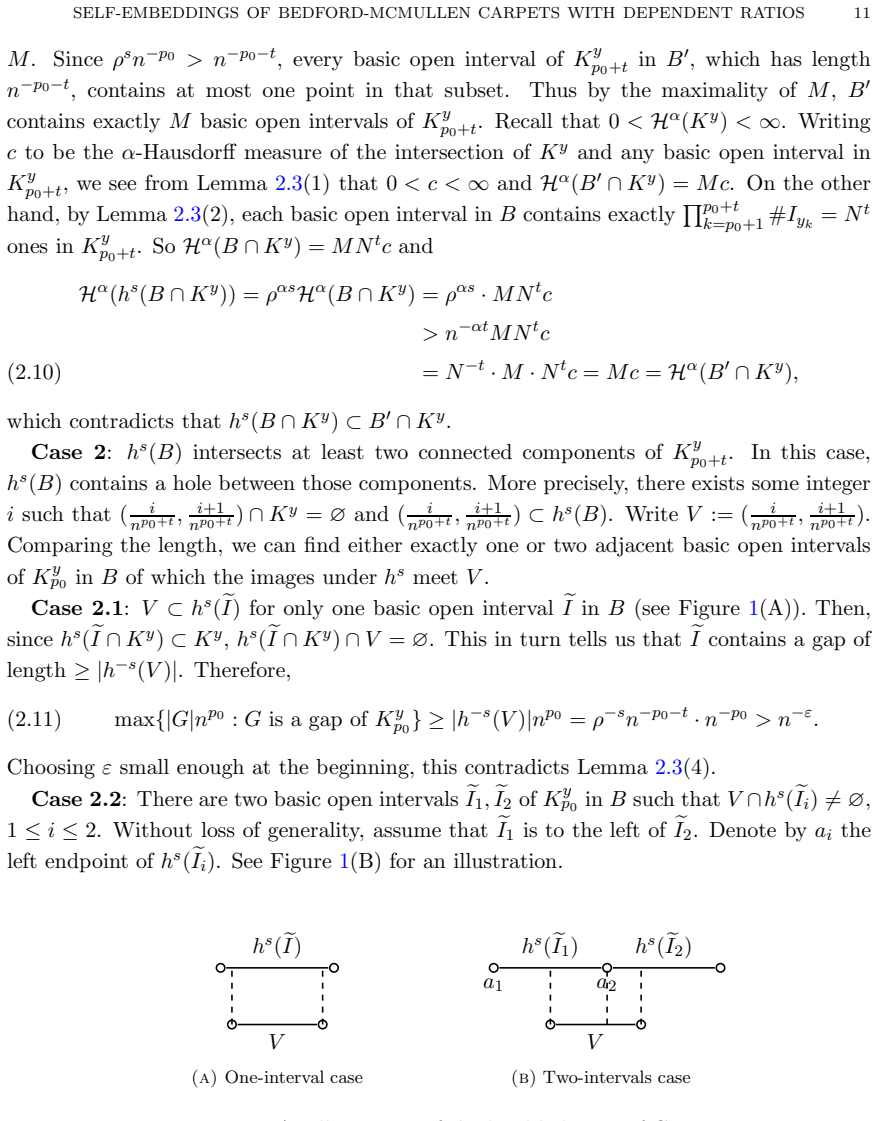

Figure 1. Figure 1: An illustration of the local behavior of Case 2 By Lemma 2.3(1), [PITH_FULL_IMAGE:figures/full_fig_p011_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: The evolution from Rk to f(Rk) to ϕ −1 Qk f(Rk) (color online) Write eak := ϕ −1 Qk f(ak). Since f(ak) ∈ Qk, eak ∈ [0, 1]2 . Fix a large k (will be specified later) so that mk−p nk−p ·max{u −1 , u} < λ and |ϕ −1 Qk f(ℓ k )| ≤ 2n −p √ λ 1+u2 (recall (3.2)). Let us truncate the parallelogram ϕ −1 Qk f(Rk) as S t∈Z Eet , where Eet := ϕ −1 Qk f(Rk) ∩ {x ∈ R 2 : π1(x) ∈ [−t, −t + 1]}. Note that for every t, |π2… view at source ↗
Figure 3
Figure 3. Figure 3: ϕ −1 Qk f(ℓ k ) + ξ0 is contained in the hole U + e (color online) Since ξ0 + ϕ −1 Qk f(ℓ k ) is a translated copy of ϕ −1 Qk f(ℓ k ) and is contained in ϕ −1 Qk f(Rk), f −1ϕQk (ξ0) + ℓ k is a translated copy of ℓ k and is contained in Rk. Since ℓ k is the bottom edge of the level-k rectangle Rk, ℓ k ∩ ϕRk (K) = ϕRk (K0 ). So there is y0 ∈ [0, 1] such that (f −1ϕQk (ξ0) + ℓ k ) ∩ ϕRk (K) = ϕRk (Ky0 × {y0})… view at source ↗
Figure 4
Figure 4. Figure 4: Length of horizontal slices of ϕ −1 Qk f(Rk) If Condition A holds for t0 = 1 and some suitable j0 then we are done. Otherwise, there exists some j∗ such that Ee1 ∩ (R × {j∗ m }) 6= ∅. Since |ϕ −1 Qk f(Rk) ∩ (R × {j∗ m })| ≤ Cn−pλ, picking k large at the beginning, it is not hard to check that Condition A holds for t∗ and j∗, where t∗ := min{t ≥ 2 : Eet ∩ (R × {j∗ m }) = ∅}. Remark 3.3. Note that in the pro… view at source ↗
Figure 5

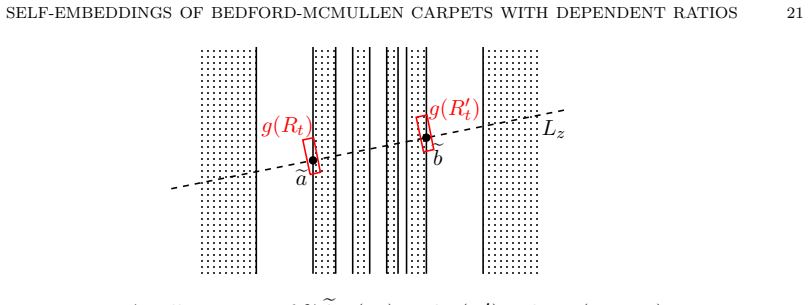

Figure 5. Figure 5: An illustration of ea,eb, g(Rt) and g(R′ t ), where (Kz + c) × R is supported in the shaded region. (color online) are −1 ≤ c ′ t , γ′ t ≤ 1 and −1 ≤ d ′ t ≤ 0 such that for all t ≥ k0, (4.12) x ′ = (gϕRt ) −1 (ea) + c ′ t d ′ t  = (gϕR′ t ) −1 (eb) + γ ′ t η ′ t  . Fix a large t ≥ k0 (will be specified later). Note that dt − d ′ t = π2(x − x ′ ) = max π2(K) − min π2(K) =: β > 0. So at least one of dt … view at source ↗
