User-Movement-Robust Virtual Reality Through Dual-Beam Reception in mmWave Networks

T0 review · 4 major / 6 minor · reviewed 2026-08-11 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read This paper claims that dual-beam analog reception at a VR headset, steering two receive beams toward two coordinated mmWave access points, cuts outage rates by up to 13% versus quasi-omni reception and by up to 17% versus single-beam…

desk verdict A useful, modest systems paper whose headline outage numbers hang on an un-derived, load-bearing misalignment formula (Eq. 17) that likely overstates accuracy for large head rotations. read the letter →

arxiv 2412.03364 v1 pith:6XTC5YGB submitted 2024-12-04 eess.SP

Rizqi Hersyandika , Qing Wang , Yang Miao , Sofie Pollin This is my paper · ORCID
classification eess.SP
keywords virtualrealitymillimeter-wavedual-beamreceptionanalogbeamformingcoordinatedmulti-pointbeammisalignmenthead-mounteddisplayoutagerate
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper proposes a way to keep millimeter-wave virtual-reality links alive when the user's head moves. Instead of receiving with one steerable beam or a fixed wide beam, the head-mounted display uses analog beamforming to create two simultaneous directional beams pointed at two coordinated access points. Simulated with real head-movement data from 360-degree video viewing, this dual-beam reception lowers outage rates by up to 13% compared with fixed quasi-omni reception and by up to 17% compared with a single steerable beam when the access points are separated by 140 degrees. The cost is a lower received signal level during non-outage periods when the two beams are steered far from boresight. If the approach holds, an HMD with a single RF chain can get spatial diversity without hybrid beamforming.

What carries the argument

The load-bearing object is the multi-beam receive beamformer built by combining per-AP analog beamforming weight vectors: $\hat{W}_L = \sum_{l=1}^L \sqrt{\eta_l} \hat{W}_l(\theta_l,\phi_l) / \sum_{l=1}^L |\sqrt{\eta_l} \hat{W}_l(\theta_l,\phi_l)|$, with one weight vector per served AP. This lets a uniform planar array at the HMD produce two directive receive beams from a single RF chain. The other central piece is the misalignment model, which expresses the combined effect of translation and rotation as $Q_{\mathrm{mis}} = 2Q - (Q_{\mathrm{trn}} + Q_{\mathrm{rot}})$ in spherical coordinates; the outage and signal-level results all depend on this composition rule.

What would settle it

Re-run the Section V simulation replacing Eq. (17) with a proper rotation-aware composition, such as rotating the initial orientation vector by the Euler rotation matrix and then computing angle differences with wrapping-aware subtraction; if the outage gap between dual-beam and single-beam reception shrinks or reverses on the same HMD trace, the headline claim fails.

Watch

Extended reading notes

Core claim

The central claim is that a single-RF-chain analog beamformer on a VR headset can form two receive beams at once by summing beamforming weight vectors, and that this dual-beam reception outperforms both fixed quasi-omni reception and steerable single-beam reception in mmWave coordinated multi-point networks. Using a 6DOF head-movement dataset from 360-degree VR viewing, the paper converts translation and rotation into azimuth and elevation misalignment angles, then simulates the line-of-sight channel between two serving access points and the HMD. Over a 60-second movement trace, the dual-beam HMD reduced outage rates by up to 13 percentage points versus quasi-omni reception with two serving access points and by up to 17 percentage points versus steerable single-beam reception with one serving access point when the two access points are separated by 140 degrees. Separating the access points more widely reduces rotation-induced outages, at the expense of lower received signal level during aligned periods because beams steered far from boresight have wider beamwidth and lower gain.

Load-bearing premise

The results rest on the misalignment composition rule in Eq. (17), which subtracts spherical-coordinate vectors directly; if that rule mis-handles angle wrapping or non-commuting rotations, the calculated outage rates and the reported reductions could change substantially.

Editorial extensions

If this is right

  • An HMD with a single RF chain can receive from two coordinated access points with array gain, not just omnidirectional coverage.
  • Widening the separation angle between two serving access points reduces outage from head rotation, at the cost of lower signal level during aligned periods.
  • Periodic beam re-alignment within each 320 ms time step maintains signal level whenever at least one serving access point stays in the HMD's field of view.
  • The dual-beam weight-combining formula extends directly to more than two access points, so the approach is not limited to one serving pair.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Because the dual-beam weight combination uses only analog phase shifts, the same idea should scale to three or more access points on the same HMD array; outages would drop further but per-beam gain would shrink, so an access-point selection algorithm could pick the best subset dynamically.
  • The observed trade-off between access-point separation and aligned-period signal level suggests an adaptive policy: widen effective beam separation when head rotation is fast, and narrow it when the user is still.
  • A testable extension is to allocate unequal power between the two beams, letting the HMD favor the access point with better alignment instead of the equal-power split used here; this could recover some of the lost aligned-period signal level at wide separation angles.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 6 minor

Summary. The paper proposes dual-beam analog reception at the HMD for mmWave coordinated multi-point (CoMP) VR networks. The HMD combines two analog beamforming weight vectors to steer toward two serving APs, and the paper models HMD 6DOF movement as translation and rotation to derive beam misalignment. Using an HMD movement dataset from three participants, the authors simulate the LoS channel and compare fixed quasi-omni reception, steered single-beam reception, and steered dual-beam reception. The central claim is that dual-beam reception reduces outage rates by up to 13% compared to quasi-omni reception with two serving APs and by up to 17% compared to single-beam reception with one serving AP at a 140° AP separation, at the cost of lower signal levels during aligned periods.

Significance. If the quantitative results were reliable, the paper would demonstrate a useful low-complexity enhancement: a single-RF-chain analog HMD can exploit spatial diversity in mmWave CoMP VR networks without the power and cost of multiple RF chains. The paper has notable strengths: it uses real 6DOF HMD movement data, the simulation is self-contained with no parameters fitted to the outcome, and the beamforming equations are transparent and reproducible. However, the load-bearing misalignment composition in Eq. (17) is unvalidated and mathematically questionable, and the outage metric and the small hand-picked participant subset do not statistically support the headline percentages. The qualitative conclusion that dual-beam reception can reduce rotation-induced outages is plausible, but the current quantitative claims are not yet supported.

major comments (4)
  1. [Section III.B, Eq. (17)] The misalignment composition Qmis = 2Q - (Qtrn + Qrot) is stated without derivation and is not a valid vector operation in spherical coordinates. After translation, the HMD-to-AP direction is Qtrn; a subsequent HMD rotation should transform that direction into the HMD local frame, for instance by applying the inverse rotation to Qtrn, with proper angle wrapping. The linear addition of angular differences in spherical coordinates is only valid for infinitesimal rotations, whereas the HMD dataset contains yaw motions up to approximately 180°. The formula also ignores wrapping, so a true misalignment of -10° could be represented as 350° if the azimuth is not wrapped. Since the channel gain in Eq. (4) and all outage and signal-level results in Figs. 6-8 depend on θmis and φmis obtained from Eq. (17), the headline 13% and 17% outage reductions are not supported until this formula is corrected and validated against a ground-truth rotation composition.
  2. [Section V.A and Figs. 6-7] The outage rate is computed from a binary field-of-view rule: an outage occurs when the HMD rotates beyond ±90° from an AP, with the assertion that mmWave diffraction over the head does not contribute. This rule is load-bearing for the outage metric, but no measurement, ray-tracing result, or reference is provided to support the binary cutoff. A more realistic angle-dependent blockage or gain model could change the relative ordering of the schemes, especially for APs near the 90° boundary. Please justify the field-of-view rule or evaluate sensitivity to the threshold, and clarify whether the outage periods in Fig. 6 are determined solely by this geometric rule or also by the receive signal level.
  3. [Section V.A and Section V.C] The evaluation uses 'all video themes collected from 3 participants' from the dataset, without reporting how these participants were selected, how the results are aggregated across participants and video themes, or any confidence intervals. Section V.C reports a single outage-rate curve (Fig. 7) and Rx-level distributions (Fig. 8), but the paper does not state whether these are averages over the three participants or over time. Given the small hand-picked sample, the quantitative claims of 'up to 13%' and 'up to 17%' should be accompanied by participant-level variability or a sensitivity analysis before they can be considered robust.
  4. [Section II, Eqs. (3)-(4), and Section V.A] The simulation assumes perfect channel estimation, a single dominant LoS path, and MRT precoding with perfect phase alignment. These assumptions are optimistic for a moving VR user, and the paper does not quantify their impact on the relative gains of dual-beam versus baseline reception. At minimum, the authors should explicitly state these as limitations, and ideally include a sensitivity analysis with imperfect CSI or a non-LoS component to show that the comparative conclusions are not an artifact of the idealized model.
minor comments (6)
  1. [Section III.B] The rotation convention is unclear: Eq. (15) uses row-vector multiplication Qx,y,z R, while Eqs. (11)-(14) define standard column-vector rotation matrices. Please state the convention and verify the order of yaw, pitch, and roll.
  2. [Section V.A] The dataset samples every ~40 ms but the simulation samples every 320 ms. Please justify the decimation and clarify whether the 320 ms interval includes any beam training or re-alignment delay.
  3. [Abstract and Section V.C] The phrases '13%' and '17% decrease' should state whether these are absolute percentage points or relative reductions in outage rate, since the two interpretations differ substantially.
  4. [Section V.C, Fig. 8] The violin plots need a caption explaining what quantity is plotted (for example, distribution over time or over participants) and the number of samples underlying each distribution.
  5. [Section IV.B, Eq. (24)] The normalization in Eq. (24) is written as a sum of magnitudes of complex vectors; since |√η_l W_l| = √η_l, the expression can be simplified. The power constraint on the combined weights should also be stated explicitly.
  6. [References] Reference [13] should include a URL or dataset identifier to support reproducibility of the movement emulation.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: the outage and signal-level results are computed directly from the stated geometry and beamforming equations, with no fitted parameters or load-bearing self-citations.

full rationale

The paper's derivation chain is fully self-contained in the relevant sense. The dual-beam weight vectors are constructed from the UPA steering equations (18)-(24), the channel gain follows from the standard beamforming-gain formula (23) evaluated at the angles produced by the misalignment model, and the received signal level and outage rate are then obtained by simulating that model over an external HMD movement dataset [13]. No parameter is fitted to the outage or Rx-level outcomes, and no result is imported from the authors' own prior work as a premise. The baseline comparisons (fixed quasi-omni reception and steerable single-beam reception) are independent configurations defined in Section V-A. The only questionable step identified by a skeptical reader is Eq. (17), which composes translation and rotation misalignments by linear subtraction in spherical coordinates. That is a modeling assumption whose correctness could affect the numerical results, but it is not circular: it does not encode the paper's conclusions, and replacing it with a different rotation-aware composition would be a validity correction rather than a demonstration that the outputs reduce to the inputs by construction. There are no self-citations used to justify the central mechanism, and the paper makes no uniqueness claim based on prior work by the same authors. Therefore the circularity score is 0.

Assumptions & free parameters 4 free parameters · 5 assumptions · 0 invented entities

The headline outage and signal-level results follow from a simplified LoS geometric model with perfect CSI, a hand-stated misalignment formula, a binary field-of-view outage rule, and hand-picked simulation settings. None of these assumptions is validated against measurements or sensitivity analysis, so the quantitative claims are conditional on this model.

free parameters (4)
  • Beam power coefficient η_l = 0.5 (η1 = η2 = 0.5)
    Hand-chosen equal power split in Eq. (24). The dual-beam gain pattern and all outage results depend on this split; no optimization or sensitivity analysis is given.
  • HMD movement sampling interval = 320 ms
    The 360° dataset is sampled every ~40 ms but the paper down-samples to 320 ms. This choice determines how often beam re-alignment is assumed and directly affects outage durations; no sensitivity analysis is provided.
  • Array sizes = UPA(8×8) for AP/HMD and UPA(2×4) for quasi-omni baseline
    The beamwidth, gain, and the fairness of the baseline comparison all depend on these hand-chosen array configurations.
  • Participant subset = 3 participants, unspecified which
    Only 3 of 50 subjects' movements are used, without justification. The chosen subset materially changes outage statistics, so the reported percentages are not demonstrated to be representative.
assumptions (5)
  • domain assumption Perfect channel estimation and TDD reciprocity between HMD and APs.
    Section II: 'We assume perfect channel estimation between HMD and AP-l' and uses ĥl = ĥUL_l for MRT precoding, ignoring estimation error and training overhead.
  • domain assumption Dominant LoS paths with free-space path loss only.
    Section II: 'we consider the dominant LoS paths'; Eq. (4) uses c/(4π f d) and no reflections, shadowing, or fading, so outage is driven entirely by geometry and view angle.
  • ad hoc to paper Misalignment composition formula Qmis = 2Q - (Qtrn + Qrot) in spherical coordinates.
    Section III.B Eq. (17) states this rule without derivation; direct subtraction of angles ignores angle wrapping and axis coupling, yet it sets the misalignment values used in all evaluations.
  • domain assumption Outage occurs when an AP leaves the HMD's ±90° field of view, with no head diffraction contribution.
    Section V.C: 'Outages occur when the HMD rotates beyond ±90° from an AP... mmWave diffraction over the head does not contribute to the Rx signal.' This binary criterion defines the outage metric.
  • domain assumption Distance between head center and VR antennas is negligible.
    Section III.B: 'assuming the distance between the head center to VR antennas is negligible compared to the head-to-AP distance'; this lets the model treat rotation as orientation-only changes.

how reviews work

0 comments
Cite this review

Pith. "Pith review of User-Movement-Robust Virtual Reality Through Dual-Beam Reception in mmWave Networks." pith.science (2026). https://pith.science/paper/6XTC5YGB

@misc{pith2026241203364,
  author       = {Pith},
  title        = {Pith review of: User-Movement-Robust Virtual Reality Through Dual-Beam Reception in mmWave Networks},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/6XTC5YGB}},
  note         = {Machine review of arXiv:2412.03364}
}
read the original abstract

Utilizing the mmWave band can potentially achieve the high data rate needed for realistic and seamless interaction within a virtual reality (VR) application. To this end, beamforming in both the access point (AP) and head-mounted display (HMD) sides is necessary. The main challenge in this use case is the specific and highly dynamic user movement, which causes beam misalignment, degrading the received signal level and potentially leading to outages. This study examines mmWave-based coordinated multi-point networks for VR applications, where two or multiple APs cooperatively transmit the signals to an HMD for connectivity diversity. Instead of using omnireception, we propose dual-beam reception based on the analog beamforming at the HMD, enhancing the receive beamforming gain towards serving APs while achieving diversity. Evaluation using actual HMD movement data demonstrates the effectiveness of our approach, showcasing a reduction in outage rates of up to 13% compared to quasi-omnidirectional reception with two serving APs, and a 17% decrease compared to steerable single-beam reception with a serving AP. Widening the separation angle between two APs can further reduce outage rates due to head rotation as rotations can still be tracked using the steerable multi-beam, albeit at the expense of received signal levels reduction during the non-outage period.

Figures

Figures reproduced from arXiv: 2412.03364 by the authors.

Figure 1
Figure 1. Dual-beam reception at HMD-VR in mmWave CoMP networks B. Contributions The contributions of this paper are listed as follows: • We introduce a dual-beam reception approach for VR applications, realized through analog beamforming using a uniform planar array (UPA) at the HMD. This approach enables highly directional receptions from multiple co￾ordinated serving APs, enhancing the channel gain and improving the robust… view at source ↗
Figure 2
Figure 2. The 6DOF head movement illustration changes its orientation with respect to the serving AP. We denote the position of HMD-k and AP-l in Cartesian coordi￾nates as Pkx,y,z = [pkx , pky , pkz ] and Plx,y,z = [plx , ply , plz ], respectively. The orientation vector between HMD-k and AP-l can be expressed as: Qr,θ,φ = [rkl, θkl, φkl]. (5) rkl denotes the HMD–AP distance, while θkl and φkl rep￾resent the HMD’s relative az… view at source ↗

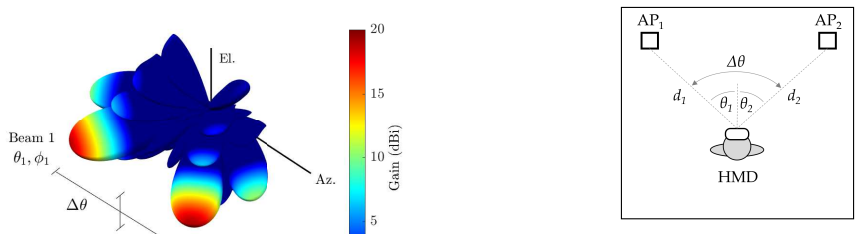

Figure 4
Figure 4. Simulation setup beam is steered at (θ2, φ2), generated using UPA(8×8). The separation in the azimuth and elevation directions are denoted as ∆θ = |θ2 − θ1| and ∆φ = |φ2 − φ1|. In this example, the power among the two beams is shared equally with η1 = η2 = 0.5, resulting in identical beamforming gain in both intended steering directions, g(θ1, φ1) = g(θ2, φ2). V. RESULTS AND ANALYSIS A. Simulation setup and HMD move… view at source ↗
Figures from the paper (3 more)
Figure 6
Figure 6. Figure 6: The impact of misalignment on the Rx. level [PITH_FULL_IMAGE:figures/full_fig_p005_6.png]
Figure 7
Figure 7. Figure 7: Outage rate due to HMD movement [PITH_FULL_IMAGE:figures/full_fig_p006_7.png]
Figure 8
Figure 8. Figure 8: Rx. level during the aligned (non-outage) period [PITH_FULL_IMAGE:figures/full_fig_p006_8.png]
