X-ray properties of coronal emission in radio quiet Active Galactic Nuclei

T0 review · 2 major / 5 minor · reviewed 2026-08-11 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read This review argues that the X-ray corona of radio-quiet AGN is a compact, dynamic, Comptonizing plasma whose observable properties trace the black hole's Eddington ratio.

desk verdict A solid, useful review that needs a revision pass: the Γ–λ_Edd relation is stated three different ways, and the inconsistency sits right at the center of the review's synthesis. read the letter →

arxiv 2412.11321 v2 pith:FUCAER2F submitted 2024-12-15 astro-ph.HE astro-ph.GA

Sibasish Laha (NASA-GSFC) , Claudio Ricci , John C. Mather , Ehud Behar , Luigi C. Gallo , Frederic Marin , Rostom Mbarek , Amelia Hankla This is my paper · ORCID
classification astro-ph.HEastro-ph.GA
keywords activegalacticnucleiX-raycoronaComptonizationEddingtonratiopolarizationreverberationmappingsupermassiveblackholesradio-quietAGN
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This review consolidates four decades of X-ray observations into a single physical picture: in radio-quiet active galactic nuclei, the corona is a compact region, typically smaller than about ten gravitational radii, filled with roughly $10^{9}$ K electrons that upscatter ultraviolet disk photons into the observed X-ray power law. The authors argue that this corona is a universal product of accretion onto supermassive black holes, with its photon index, cutoff energy, luminosity, and polarization all systematically linked to the Eddington ratio and to other AGN components such as the UV disk, the infrared torus, and the radio emission. The stakes are high because coronal X-rays make up 5–10 percent of the bolometric output of AGN, and the corona is the closest directly observable region to the black hole.

What carries the argument

The central physical mechanism is inverse Compton scattering: UV seed photons from the accretion disk are repeatedly scattered by hot electrons, producing a spectrum approximated by $F(E) \propto E^{-\Gamma} e^{-E/E_C}$, where $\Gamma$ encodes the electron temperature and optical depth and $E_C$ marks the high-energy cutoff. The accompanying compactness parameter $\ell = L\sigma_T/(R m_e c^3)$ controls electron–positron pair production, which acts as a thermostat that prevents runaway heating, and the hybrid thermal/non-thermal nature of the plasma sets the position of sources in the temperature–compactness plane. These tools convert spectral measurements into physical statements about coronal size, temperature, and geometry, while the empirical relations, such as $\alpha_{\rm OX}$ versus UV luminosity and $\Gamma$ versus $\lambda_{\rm Edd}$, tie the corona to the rest of the AGN system.

What would settle it

Catch a fresh X-ray eclipse in a bright radio-quiet AGN with simultaneous broad-band X-ray coverage, measure the eclipsing cloud's distance and velocity from its absorption lines, and derive the coronal size from the eclipse ingress and egress; if that size comes out larger than roughly 20 gravitational radii, the compact-corona synthesis would be contradicted.

Watch

Extended reading notes

Core claim

On its own terms, the paper establishes that the X-ray corona in radio-quiet AGN is a compact, dynamic, Comptonizing plasma: the size is bounded above by roughly 10 gravitational radii through variability timescales, reverberation lags, microlensing, and X-ray eclipses, and the geometry is constrained by X-ray polarization, which for NGC 4151 shows a degree of 4–8 percent that rules out a simple spherical or lamp-post corona and favors an extended structure parallel to the accretion disk. The spectral parameters, photon index $\Gamma$ and cutoff energy $E_C$, are tied to the Eddington ratio $\lambda_{\rm Edd}$: higher-accreting sources show steeper spectra and lower cutoff energies, consistent with a pair-production thermostat that keeps compact coronae from overheating. The review also gathers the empirical relations connecting coronal emission to the UV disk, the infrared torus, the optical lines, and the radio band, and it argues that the corona, not the jet, is the likely origin of the radio–X-ray correlation and of the high-energy neutrinos seen from NGC 1068.

Load-bearing premise

The coronal size estimates from X-ray eclipses assume the eclipsing clouds are gravitationally bound to the black hole and move on Keplerian orbits; if those clouds are at different distances or have non-Keplerian motion, the inferred sizes near 5–10 gravitational radii would be systematically wrong.

Editorial extensions

If this is right

  • If the corona is compact and dynamic, its size and motion can be tracked in real time through reverberation lags and X-ray eclipses, and its geometry can be constrained by X-ray polarization; the measured 4–8 percent polarization in NGC 4151 already excludes a simple spherical or lamp-post corona.
  • If the pair-production thermostat sets coronal temperature, then high-Eddington AGN should show steeper photon indices and lower cutoff energies, as observed, and the same physics should apply across black-hole mass scales, from stellar-mass binaries to supermassive AGN.
  • If the corona is also a synchrotron and neutrino source, then the observed radio–X-ray correlation in radio-quiet AGN and the neutrino excess from NGC 1068 can be attributed to the corona rather than to jets.
  • If changing-look AGN such as 1ES 1927+654 genuinely extinguish and then rebrighten their corona, then disk–corona coupling can be disrupted on months-to-years timescales, providing a natural laboratory for coronal energy-balance mechanisms.
  • If the collected empirical relations hold across luminosity and redshift, X-ray brightness and spectral slope can serve as proxies for bolometric luminosity and Eddington ratio in large AGN surveys.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A testable extension beyond the review: if the $\Gamma$–$\lambda_{\rm Edd}$ relation is calibrated with precise cutoff measurements from future hard-X-ray missions, coronal spectroscopy could become a tool for estimating Eddington ratios in heavily obscured AGN where the UV/optical disk is hidden.
  • The polarization results imply that the lamp-post geometry, widely used in reverberation and reflection models, is too simple; an editorial inference is that spectral-timing codes will need to incorporate extended, disk-hugging emissivity profiles to match future polarization and lag data.
  • The review's emphasis on magnetic reconnection as the energy source suggests a concrete prediction: the rate of coronal flares should track the magnetic flux threading the inner disk, which all-sky X-ray monitors could test by comparing flare statistics across Eddington ratio and black-hole mass.
  • Because the size estimates from eclipses, microlensing, and reverberation all agree near 5–10 gravitational radii, an inference is that a single well-observed eclipse with an independently measured cloud distance could become a decisive cross-check of the entire compact-corona picture.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 5 minor

Summary. This manuscript is a review of the X-ray coronal emission of radio-quiet AGN. It introduces the basic coronal physics (inverse Compton scattering, synchrotron emission, pair production), then reviews the spectral properties of the corona (photon index, high-energy cutoff, optical depth, luminosity), the coronal size and geometry constraints from spectral fitting, reverberation, microlensing, X-ray eclipses, and IXPE polarimetry, as well as X-ray variability and flares, the disk-corona connection, high-energy neutrinos, empirical relations (summarized in Table 1), open questions, and future observational and simulation prospects. The central synthesis is that the AGN corona is a ubiquitous, compact (typically less than about 10 gravitational radii), dynamic, Comptonizing plasma whose observed properties are systematically linked to the Eddington ratio and to other AGN components such as the UV disk, IR torus, and radio emission.

Significance. As a review article, the manuscript is useful and generally well organized. It brings together recent results from IXPE polarimetry, X-ray reverberation, microlensing, and neutrino observations, and it explicitly states several important caveats, including the Keplerian assumption in the eclipse-based size estimates and the detection-threshold nature of the low-luminosity limit. The figures are informative and the reference list is broad. The paper contains no new derivations or data analyses, so its value rests on the accuracy and internal consistency of the reported empirical relations; on that point the manuscript currently has a load-bearing inconsistency that needs to be resolved before publication.

major comments (2)
  1. [Section 2.6 and Table 1] The Gamma-lambda_Edd relation, which is a stated pillar of the review's synthesis, is presented inconsistently across the text, Table 1, and Figure 6. Section 2.6 states Gamma ~ 0.3 log lambda_Edd + 2 and says that sources with lambda_Edd > 0.3 have Gamma > 2, while Table 1 row (2a) gives Gamma = (0.41 +/- 0.09) log lambda_Edd + (2.17 +/- 0.07) for lambda_Edd > 0.01; evaluating the table relation at lambda_Edd = 0.3 (log lambda_Edd = -0.52) gives Gamma ~ 1.96, not >2. Row (2b) places a break at lambda_Edd = 0.01, whereas Section 2.4 and Figure 6 left place the break at lambda_Edd ~ 10^-3. The same subsection then cites Laurenti et al. (2022), Liu et al. (2021), and Kamraj et al. (2022) as finding no Gamma-lambda_Edd correlation. As written, a reader cannot determine which relation the review endorses. The authors should harmonize the text, table, and figure; specify the samples and break value; and explicitly discuss how the null results qualify the claimed positive correlation.
  2. [Table 1, rows (2a) and (2b)] Even taken at face value, the piecewise Gamma-lambda_Edd relation in Table 1 is discontinuous at the break. At lambda_Edd = 0.01 (log lambda_Edd = -2), row (2a) gives Gamma ~ 1.35 while row (2b) gives Gamma ~ 1.73, a gap of about 0.4. If the intent is a broken power law, the two segments should join at the break; if the two rows instead refer to different samples or different fitting methods, this should be stated explicitly. The current presentation makes the table internally inconsistent and weakens the claim that coronal properties are systematically tied to the Eddington ratio.
minor comments (5)
  1. [Table 1, row (1a)] The entry 'alpha_OX = (0.154 +/- -0.010) log L_2500 - (3.176 +/- 0.223)' contains an apparent typo: the uncertainty on the slope should not be written with a minus sign. This should be corrected to a conventional form such as (0.154 +/- 0.010).
  2. [Figure 4 caption] The caption repeats the sentence 'The vertical dotted line denotes the time when the X-rays revived.' The duplicate sentence should be removed.
  3. [Section 2.3] The text cites 'Masterson et al. 2025, Nature, in press' for the recurrent QPO in 1ES 1927+654, but this reference does not appear in the reference list. A complete citation should be added.
  4. [Section 2.2, item (4)] The eclipse-based size estimates explicitly assume that the absorbing clouds are gravitationally bound and in Keplerian orbits. While this assumption is stated, the abstract and Section 2.2 would benefit from a sentence noting that the compactness conclusion does not rest solely on the eclipse method, since the spectral, variability, reverberation, and microlensing methods independently point to sizes of about 5-10 R_G.
  5. [Table 1 footnote] The footnote 'Note that here X-ray, L_X-ray and L_2-10 keV has been interchangeably used' contains a subject-verb agreement error and would be clearer as 'have been used interchangeably.'

Circularity Check

0 steps flagged · score 0.0 of 10

Review compiles independent observational results; no derivation reduces to its own inputs.

full rationale

This manuscript is an invited review rather than a derivation paper. It presents no new model, fit, or prediction whose output is constructed from its own inputs. The compactness claim (corona < 10 R_G) rests on four independent methods—emissivity/reflection modeling, variability and reverberation, microlensing, and X-ray eclipses—each citing external observational analyses; the eclipse method's Keplerian cloud assumption is stated as a caveat and is not the sole support for compactness. The empirical relations in Section 2.6 and Table 1 (alpha_OX, Gamma-lambda_Edd, L_12mu-L_2-10keV, fundamental plane, Gudel-Benz, Iwasawa-Taniguchi) are quoted from prior independent samples and are not fitted or rederived here. Self-citations such as Ricci et al. (2017, 2018, 2023) and Laha et al. (2022) are used as literature support alongside many non-author works, and none is invoked to forbid alternatives or to supply a uniqueness theorem. The internal inconsistency between the text's Gamma ~ 0.3 log lambda_Edd + 2 statement and Table 1's row (2a) is a correctness/consistency concern, not circularity, because neither relation is an output of this review. No circular step can be exhibited with a quote, so the appropriate finding is no significant circularity.

Assumptions & free parameters 0 free parameters · 4 assumptions · 0 invented entities

The review makes no new measurements or fits. The central synthesis rests on the standard Comptonization model for coronal X-rays and on published empirical correlations. The illustrative COMPPS simulation in Figure 1 uses hand-chosen values (tau=0.8, seed temperature 10 eV) but they are not fitted to data and do not support any conclusion. No new entities are introduced.

assumptions (4)
  • domain assumption The X-ray continuum of AGN coronae is produced by inverse Compton scattering of UV seed photons by hot (T ~ 10^9 K) electrons.
    This is the standard model used throughout the review (Section 1.1) and underlies all interpretations of the power-law slope and cut-off.
  • domain assumption The high-energy cut-off (E_C) measured from NuSTAR and other hard X-ray data is related to coronal electron temperature as E_C ~ 2-3 kT_e.
    Used in Section 2.1 to convert measured cut-offs to temperatures and to interpret the anti-correlation between kT_e and tau.
  • domain assumption The radio emission in radio-quiet AGN at 5-200 GHz is predominantly coronal synchrotron emission rather than jet or star formation emission.
    This is needed for the Guedel-Benz relation and the mm-X-ray correlation discussed in Sections 2.6 and 1.1. The review itself notes caveats about synchrotron self-absorption.
  • domain assumption The empirical correlations in Table 1 (e.g., alpha_OX-L_UV, Gamma-lambda_Edd, L_12micrometer-L_2-10keV) are intrinsic and not driven by selection effects or common distance/luminosity dependence.
    The review's synthesis relies on these correlations as factual. Many of these are established in the literature but are not derived in this paper.

how reviews work

0 comments
Cite this review

Pith. "Pith review of X-ray properties of coronal emission in radio quiet Active Galactic Nuclei." pith.science (2026). https://pith.science/paper/FUCAER2F

@misc{pith2026241211321,
  author       = {Pith},
  title        = {Pith review of: X-ray properties of coronal emission in radio quiet Active Galactic Nuclei},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/FUCAER2F}},
  note         = {Machine review of arXiv:2412.11321}
}
abstract

Active galactic nuclei (AGN) are powerful sources of panchromatic radiation. All AGN emit in X-rays, contributing around $\sim 5-10\%$ of the AGN bolometric luminosity. The X-ray emitting region, popularly known as the corona, is geometrically and radiatively compact with a size typically $\lesssim 10 \, R_{\rm G}$ (gravitational radii). The rapid and extreme variability in X-rays also suggest that the corona must be a dynamic structure. Decades of X-ray studies have shed much light on the topic, but the nature and origin of AGN corona are still not clearly understood. This is mostly due to the complexities involved in several physical processes at play in the high-gravity, high-density and high-temperature region in the vicinity of the supermassive black hole (SMBH). It is still not clear how exactly the corona is energetically and physically sustained near a SMBH. The ubiquity of coronal emission in AGN points to their fundamental role in black hole accretion processes. In this review we discuss the X-ray observational properties of corona in radio quiet AGN.

Figures

Figures reproduced from arXiv: 2412.11321 by the authors.

Figure 1
Figure 1. AGN coronal typical parameters and spectra. Left Panel: [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Pair production acting as a thermostat for coronal plasmas. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Distribution of the X-ray spectral parameters of AGN coronal emission: [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (3 more)
Figure 4
Figure 4. Figure 4: The short and long term X-ray flares in AGN corona. [PITH_FULL_IMAGE:figures/full_fig_p007_4.png]
Figure 5
Figure 5. Figure 5: Relationship between AGN corona and its surroundings [PITH_FULL_IMAGE:figures/full_fig_p009_5.png]
Figure 6

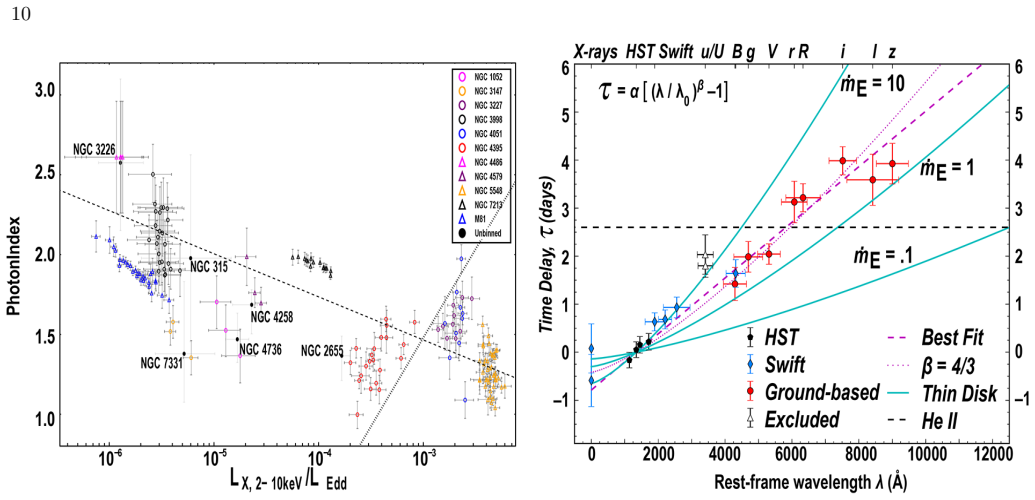

Figure 6. Figure 6: The relation between the coronal emission and AGN accretion: [PITH_FULL_IMAGE:figures/full_fig_p010_6.png]
