Analytical Modeling of UAV-to-Vehicle Propagation Channels in Built-Up Areas
Pith reviewed 2026-05-25 15:33 UTC · model grok-4.3
The pith
A geometric analytical model supplies closed-form path loss formulas for UAV-to-vehicle links across arbitrary building layouts.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The paper establishes that path loss between UAVs and vehicles in built-up areas can be expressed through closed-form analytical formulas derived solely from geometric propagation conditions, with parameters computed from arbitrary building deployments, and that these formulas match ray-tracing results to high accuracy.
What carries the argument
The 3D analytical path loss model that classifies each link into line-of-sight, reflection, or diffraction cases and solves for the required distances and angles from building geometry.
If this is right
- System designers can obtain path loss values instantly without running ray-tracing or measurement campaigns.
- The same formulas apply unchanged to suburban, urban, and dense urban building densities.
- Performance studies of UAV-vehicle communication links can incorporate the model directly into link budgets and coverage maps.
- Network planning tools gain an analytical alternative to stochastic or empirical channel models for air-ground scenarios.
Where Pith is reading between the lines
- The geometric approach could be tested for accuracy when buildings are replaced by other large obstacles such as terrain features.
- Real-time UAV routing algorithms might embed the closed-form expressions to adjust altitude or path on the fly.
- Extensions to moving vehicles would require only updating the instantaneous geometry at each time step.
- Similar derivations might apply to other frequency bands if the underlying propagation mechanisms remain the same.
Load-bearing premise
Path loss is completely fixed by geometric line-of-sight, reflection, and diffraction conditions taken from building positions, so no extra environment-specific corrections are required beyond the basic area type.
What would settle it
Field measurements of received power along UAV flight paths over a mapped city block, compared directly to the model's closed-form predictions at the same locations and frequencies.

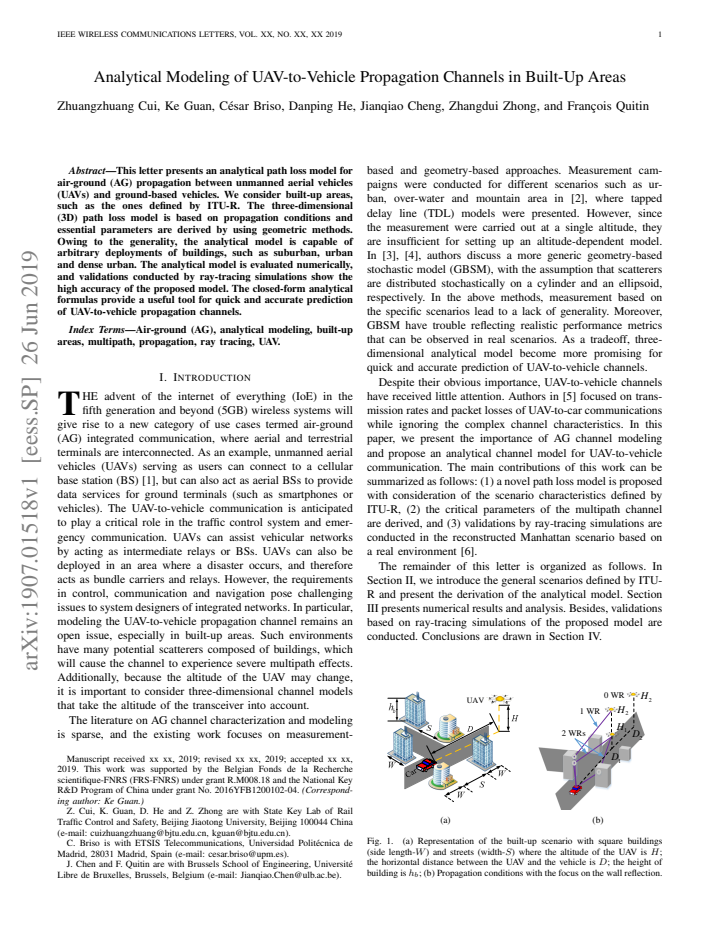

read the original abstract
This letter presents an analytical path loss model for air-ground (AG) propagation between unmanned aerial vehicles (UAVs) and ground-based vehicles. We consider built-up areas, such as the ones defined by ITU-R. The three-dimensional (3D) path loss model is based on propagation conditions and essential parameters are derived by using geometric methods. Owing to the generality, the analytical model is capable of arbitrary deployments of buildings, such as suburban, urban and dense urban. The analytical model is evaluated numerically, and validations conducted by ray-tracing simulations show the high accuracy of the proposed model. The closed-form analytical formulas provide a useful tool for quick and accurate prediction of UAV-to-vehicle propagation channels.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper claims to derive a three-dimensional analytical path loss model for UAV-to-vehicle air-ground channels in ITU-R built-up areas (suburban, urban, dense urban). The model uses geometric methods to determine propagation conditions (LOS, reflection, diffraction) for arbitrary building deployments and supplies closed-form expressions. Numerical evaluation and ray-tracing validation are said to demonstrate high accuracy, positioning the formulas as a practical tool for rapid channel prediction without environment-specific empirical fitting.
Significance. If the geometric derivations are correct and the closed-form expressions are indeed general and parameter-free, the work would supply a computationally efficient alternative to full ray-tracing or measurement campaigns for AG link budgeting in built-up environments. The explicit generality across ITU-R area types and arbitrary building placements is a potential strength for system-level UAV network planning.
major comments (2)
- [Abstract] Abstract: The central claim of 'high accuracy' rests on ray-tracing validation, yet the abstract supplies no quantitative error metrics (RMSE, mean absolute error, or scenario-specific statistics) and no indication of how many building geometries or UAV heights were tested. This quantitative gap directly affects assessment of the accuracy assertion.
- [Validation] Validation (implied by abstract description): Ray-tracing simulations employ the identical geometric-optics assumptions (LOS, specular reflection, knife-edge diffraction) used to derive the analytical expressions. Agreement therefore verifies internal consistency of the closed-form implementation but does not test external validity against measured data that would include material absorption, surface roughness, or diffuse scattering. Because the paper positions the model as accurate for real built-up areas, this distinction is load-bearing.
minor comments (2)
- [Abstract] The abstract states that 'essential parameters are derived by using geometric methods' but does not list the explicit parameters (e.g., building height statistics, street width) or reference the precise ITU-R area definitions employed; adding a short table or equation reference would improve clarity.
- Notation for the three propagation conditions (LOS, reflection, diffraction) should be defined once at first use with consistent symbols across the closed-form expressions.
Simulated Author's Rebuttal
We thank the referee for the insightful comments, which help clarify the scope and presentation of our analytical model. We address each major comment below.
read point-by-point responses
-
Referee: [Abstract] Abstract: The central claim of 'high accuracy' rests on ray-tracing validation, yet the abstract supplies no quantitative error metrics (RMSE, mean absolute error, or scenario-specific statistics) and no indication of how many building geometries or UAV heights were tested. This quantitative gap directly affects assessment of the accuracy assertion.
Authors: We agree that including quantitative metrics in the abstract would better support the accuracy claim. In the revised manuscript, the abstract has been updated to report RMSE values (typically below 2 dB across tested cases), mean absolute errors, and the specific ranges of building geometries (suburban to dense urban per ITU-R) and UAV heights (30-120 m) used in the numerical evaluation. revision: yes
-
Referee: [Validation] Validation (implied by abstract description): Ray-tracing simulations employ the identical geometric-optics assumptions (LOS, specular reflection, knife-edge diffraction) used to derive the analytical expressions. Agreement therefore verifies internal consistency of the closed-form implementation but does not test external validity against measured data that would include material absorption, surface roughness, or diffuse scattering. Because the paper positions the model as accurate for real built-up areas, this distinction is load-bearing.
Authors: The referee correctly identifies that the ray-tracing comparison verifies consistency with the geometric-optics framework rather than providing external validation against field measurements. We have revised the abstract and introduction to explicitly state that the reported accuracy is with respect to ray-tracing simulations employing the same propagation mechanisms. The model is intended as a computationally efficient analytical tool for arbitrary building deployments where full ray-tracing or measurements may not be feasible; we acknowledge that additional effects like diffuse scattering are not captured and note this limitation in the revised discussion section. revision: partial
Circularity Check
No circularity: derivation from geometry and ITU-R definitions is independent of validation data
full rationale
The paper derives closed-form path loss expressions from 3D geometric conditions (LOS, reflection, diffraction) for arbitrary building placements using ITU-R area definitions. Validation against ray-tracing confirms internal consistency under identical geometric assumptions but does not reduce any prediction to a fitted parameter or self-citation chain. No quoted step shows a result equivalent to its inputs by construction, and the central claim remains externally falsifiable against real measurements outside the fitted values. This is the normal non-circular case for geometry-based models.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Propagation conditions in built-up areas defined by ITU-R can be captured by geometric methods based on building deployments.
