A Magnon Band Analysis of GdRu2Si2 in the Field-Polarized State

T0 review · 3 major / 4 minor · reviewed 2026-08-10 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read The spin-wave spectrum of the skyrmion candidate GdRu2Si2 in its field-polarized phase is reproduced by eight bilinear Heisenberg exchange interactions, with no evidence for higher-order or anisotropic exchange.

desk verdict Valuable new magnon data and a useful fitting method, but the paper's central null result on higher-order exchange is not actually testable by the magnon band fit. read the letter →

arxiv 2501.01201 v1 pith:WHTFULYW submitted 2025-01-02 cond-mat.str-el

G. D. A. Wood , J. R. Stewart , D. A. Mayoh , J. A. M. Paddison , J. Bouaziz , S. M. Tobin , O. A. Petrenko , M. R. Lees
show 3 more authors
P. Manuel J. B. Staunton G. Balakrishnan
This is my paper · ORCID
classification cond-mat.str-el PACS 75.30.Ds75.40.Gb78.70.Nx
keywords GdRu2Si2magnondispersionlinearspinwavetheoryHeisenbergexchangeRKKYinteractionmulti-Qmagneticorderinelasticneutronscatteringskyrmioncandidate
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper measures the magnon dispersion of the centrosymmetric skyrmion candidate GdRu2Si2 in the field-polarized phase using inelastic neutron scattering, and shows that the spectrum can be accounted for by a Hamiltonian containing eight bilinear Heisenberg exchange interactions, the Zeeman term, and negligible single-ion anisotropy. The authors find no evidence for anisotropic or higher-order (e.g., biquadratic) exchange, and argue that if such terms exist they are limited to roughly 1 micro-eV. This result matters because anisotropic and higher-order exchange are usually invoked to stabilize the multi-Q and skyrmion states that this material hosts in zero field; the paper's finding sharpens the puzzle of what actually stabilizes those states. The fitted exchange parameters are consistent with long-ranged RKKY interactions and with ab initio calculations, and the dispersion's incommensurate minima point toward the propagation direction of the lower-field multi-Q order.

What carries the argument

The central object is the linear spin-wave dispersion $\hbar\omega(\mathbf{q}) = S[J(\mathbf{q})-J(0)] - g\mu_B B - 2KS$, obtained from a Holstein-Primakoff transformation of a Hamiltonian with bilinear Heisenberg exchange, Zeeman, and single-ion anisotropy terms. The paper introduces 'interaction invariant path analysis': reciprocal-space cuts are chosen along which a particular interaction, such as $J_2$ with $\delta=[1/2,1/2,1/2]$, is non-dispersive (its cosine terms cancel), so that other weaker interactions can be refined independently. This method guides the selection of fits, and the final $J_1$-$J_8$ model is fitted to the extracted band by least-squares minimization of $\hbar\omega(\mathbf{q})$.

What would settle it

A measurement of the magnon dispersion below 0.8 meV—for example with a cold-neutron triple-axis spectrometer as the authors propose—would settle the claim: if the bottom of the band deviates from the $J_1$-$J_8$ bilinear prediction, or if a fit with a biquadratic exchange term significantly outperforms the bilinear model, the central null claim is refuted. A simpler check on existing data is to add an $(\mathbf{S}_i\cdot\mathbf{S}_j)^2$ term to the fit and test whether the residuals drop meaningfully.

Watch

Extended reading notes

Core claim

Using time-of-flight inelastic neutron scattering on an isotopically enriched single crystal, the spin excitations of GdRu2Si2 in the field-polarized (forced ferromagnetic) phase were measured along a 90-degree arc of reciprocal space. After median-kernel filtering to extract the magnon band from strong absorption-limited noise, the dispersion was fitted with linear spin wave theory. A model with eight bilinear Heisenberg exchange interactions, $J_1$ through $J_8$ (with $J_2$ dominant at $-65.1$ $\mu$eV), plus a constant term consistent with the applied field, reproduces the measured dispersion. The key result is a null result: no anisotropic or higher-order exchange terms are required to fit the data, and the authors estimate that if present these terms are smaller than about $1$ $\mu$eV. The fitted model places the global dispersion minima at incommensurate wavevectors along the $[1,0,0]$ direction, consistent in direction with the magnetic propagation vector of the lower-field multi-Q state, although the exact minimum position is uncertain because the bottom of the band lies below the energy resolution.

Load-bearing premise

The null result for anisotropic and higher-order exchange relies on the measurement being sensitive enough to reveal such terms; the data are low signal-to-noise, median-filtered, and the dispersion is not resolved below about 0.8 meV, so terms below roughly 1 micro-eV would go undetected.

Editorial extensions

If this is right

  • If the Hamiltonian is correct, the spin dynamics of the field-polarized phase of GdRu2Si2 is governed by long-ranged bilinear RKKY exchange, and higher-order or anisotropic terms play no measurable role there.
  • The fitted exchange parameters support the Fermi-surface-based ab initio model cited in the paper, lending weight to the view that the exchange is RKKY-mediated.
  • The incommensurate minima of the dispersion along the [1,0,0] direction show that the tendency toward the lower-field multi-Q order is already present in the bilinear exchange; however, the exact minimum position differs from the observed propagation vector, suggesting that missing long-range exchange terms are important.
  • The absence of observable anisotropic or higher-order terms implies that the zero-field multi-Q state must be stabilized either by field- or temperature-dependent RKKY interactions tied to the Fermi surface, or by coupling to charge-density-wave modulations discussed in the paper.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A direct test of the null claim is to fit existing or future higher-resolution data with models that include a biquadratic term $(\mathbf{S}_i\cdot\mathbf{S}_j)^2$ or anisotropic exchange and compare the goodness of fit; a significant improvement would falsify the 'bilinear-only' conclusion.
  • The paper's own Curie-Weiss comparison shows the fitted model accounts for only about 72% of the net ferromagnetic molecular field, so the $J_1$-$J_8$ set is an effective truncation of a longer-range exchange tail; the 'no higher-order terms' conclusion should be read as applying to the resolvable portion of the spectrum, not as a complete Hamiltonian for the material.
  • The method of interaction invariant path analysis could be transferred to other strongly absorbing or low-signal magnets where full $\mathbf{S}(\mathbf{Q},\omega)$ fitting is impractical, and the authors note plans to extend it to non-linear invariant loops.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. This paper reports inelastic neutron scattering measurements of the magnon dispersion in the field-polarized phase of GdRu2Si2 at T = 25 K and B = 8.8 T. The authors fit the dispersion using linear spin-wave theory with an effective bilinear Heisenberg exchange model including interactions J1 through J8 (with J7 set to zero) plus a constant term C. They introduce a 'method of interaction invariant path analysis' to select reciprocal-space cuts that decorrelate the exchange parameters. The fitted model reproduces the main features of the measured dispersion and is qualitatively consistent with earlier ab initio calculations. The paper concludes that no anisotropic or higher-order exchange terms are required, and estimates that such terms are likely limited to about 1 micro-eV. The implications for the zero-field multi-Q ground state are discussed.

Significance. If the central null result were established, the paper would be significant: it would show that bilinear RKKY exchange alone describes the spin dynamics in the field-polarized state, and that higher-order exchange is negligible, which bears directly on the mechanism stabilizing multi-Q order in this material. The experimental dataset is valuable, and the interaction invariant path analysis provides a systematic way to reduce parameter correlations in magnon fits. The paper is commendably transparent about its limitations, including low signal-to-noise, median kernel filtering, and the unresolved bottom of the magnon band. However, as detailed in the major comments, the central null result is not actually testable with the present linear spin-wave analysis, so the paper's headline conclusion overreaches the data.

major comments (3)
  1. [Discussion; Eq. (2)] The statement in the abstract and Discussion that 'No evidence for anisotropic or higher-order-exchange terms beyond bilinear Heisenberg exchange is found,' and the quantitative bound that such terms are 'likely small and limited to ≲ 1 µeV,' are not supported by the analysis. In linear spin-wave theory around a field-polarized state, a biquadratic term B_ij (S_i·S_j)^2 expands to quadratic order as -2 B S^3 (a_i†a_i + a_j†a_j - a_i†a_j - a_j†a_i), which is exactly the same operator form as the quadratic part of a bilinear Heisenberg coupling J_ij with the replacement J_eff = J_ij + 2S^2 B_ij. With S = 7/2, 2S^2 = 24.5, so the fitted exchange constants in Table I are effective transverse couplings that cannot distinguish biquadratic exchange from bilinear exchange. A similar degeneracy holds for the longitudinal component of anisotropic exchange and for single-ion anisotropy, which enter only through the fitted constant C in Eq. (2), as the paper itself notes. Consequently, the observation that the dispersion can be fitted without higher-order terms is trivially true, and the bound of ≲1 µeV does not follow from the data. To support such a bound, the authors would need to compare the fitted effective J values with independently known bare J values and quantitatively estimate how much of the difference could be attributed to biquadratic terms; the paper does not do this.
  2. [Analysis; Table I] The inclusion of J8 is explicitly motivated by the need to place the global minima of the dispersion at q = [0.15, 0, 0], i.e., in the experimentally observed propagation direction. Therefore the agreement between the model's minimum and the lower-field propagation vector is a fitting constraint, not an independent prediction. The paper also notes that the minimum is at 0.15 r.l.u. rather than the observed q_e = [0.22, 0, 0]. This limits the strength of the claim that the model 'captures the salient features of the magnon dispersion, including global minima at incommensurate positions which are characteristic of the lower-field magnetism.'
  3. [Analysis; Supplemental Material] The paper does not provide a sensitivity analysis or a model comparison that would justify the quantitative bound on higher-order terms. The data have low signal-to-noise, are processed with a nonlinear median kernel filter, and the bottom of the band below ~0.8 meV is not resolved. Without fitting models that explicitly include biquadratic or anisotropic terms and assessing their statistical significance (e.g., via a likelihood-ratio test or error propagation), the estimate that such terms are ≲1 µeV is an assertion rather than a derived result. The paper should either remove this bound or replace it with a statement that the data are consistent with zero within the sensitivity of the measurement, and provide an estimate of that sensitivity.
minor comments (4)
  1. [Supplemental Material] The name of the spin-wave code is written inconsistently: 'Sun(n)y' in the main text and 'Su(n)ny' in the Supplemental Material. It is likely 'Sunny'; please standardize.
  2. [Supplemental Material] There is a typo in Section II: 'consistent the the S(Q,ω ) calculations' should be 'consistent with the S(Q,ω ) calculations'.
  3. [Introduction] The phrase 'Gd 3+ and Eu 2+ intermetallics' has spacing issues; please correct the formatting.
  4. [Conclusion] The sentence 'A Hamiltonian accounting for the dispersion relation has been derived with linear spin wave theory' could be phrased more clearly: the Hamiltonian was fitted to the dispersion, not derived from it.

Circularity Check

1 steps flagged · score 6.0 of 10

The bound on biquadratic and anisotropic exchange (≲1 µeV) is not derivable from the fitted magnon dispersion, because in linear spin-wave theory those terms are degenerate with renormalized bilinear couplings and a q-independent constant.

  1. self definitional [Discussion, paragraph beginning 'More generally, the model Hamiltonian...' (after Eq. (2) and Table I).]
    "Crucially, to model the magnon band, higher-order exchange interactions, such as anisotropic and biquadratic exchange, are not required. Therefore, if these terms do exist, then it is likely they are small and limited to ≲ 1µeV."

    The fitted quantity is ℏω(q)=S[J(q)-J(0)]-gµBB-2KS. Around the fully polarized state, a biquadratic bond term B(S_i·S_j)^2 produces, to quadratic order in Holstein-Primakoff bosons, -2BS^3(n_i+n_j)+2BS^3(a_i†a_j+a_j†a_i), which has the same relative diagonal/off-diagonal structure as J S_i·S_j. Hence the data determine J_eff = J + 2S^2 B (S=7/2) plus a constant C; an arbitrary B can be absorbed by re-fitting J. Likewise K(S^z)^2 and longitudinal anisotropic exchange only shift C, which the paper concedes 'it is not possible to disentangle constant contributions'. Therefore the model's adequacy is guaranteed for any B, and the inference that B ≲ 1 µeV does not follow from the fit; it is an artifact of assuming the bilinear ansatz.

full rationale

The Hamiltonian parameters J1–J8 are fitted to the measured ω(q), so the statement that the model 'accounts for' the spectra is a fit statement rather than an independent prediction; this alone is normal practice and not circular. The paper's genuinely unsupported step is the bound on higher-order and anisotropic exchange. In linear spin-wave theory around the field-polarized state, biquadratic exchange and the q-independent terms (single-ion anisotropy, longitudinal anisotropic exchange) are degenerate with renormalized bilinear couplings and a constant C; the paper's own Eq. (2) and its admission that constant contributions cannot be disentangled establish this. Consequently, the fitted bilinear model cannot rule out such terms, and the '≲1 µeV' estimate does not follow from the data. The ab initio comparison and Curie-Weiss temperature provide external anchors and partially support the fitted J values, and the J8 propagation-direction adjustment is transparently a fit constraint, not a hidden circularity. Self-citations to Refs. [29] and [54] involve overlapping authorship, but the underlying DFT and powder-neutron results are independent evidence, so self-citation is not the load-bearing circularity. Overall, one central inferential step reduces by construction, giving partial circularity.

Assumptions & free parameters 10 free parameters · 7 assumptions · 1 invented entities

The model uses ten effective numerical parameters (J1 through J8, C, and the undetermined single-ion anisotropy K), several assumptions about linear spin wave theory and the restricted Hamiltonian, and one newly proposed mechanism (field-dependent RKKY exchange) that is not independently tested. These are the costs the reader pays for the derived Hamiltonian.

free parameters (10)
  • J1 = -33.9 +/- 1.0 micro-eV
    First-nearest-neighbor Heisenberg exchange fitted to the magnon dispersion (Table I).
  • J2 = -65.1 +/- 0.7 micro-eV
    Dominant exchange interaction, inferred from the parabolic (1,-1,eta) cut and included in all models.
  • J3 = 13.6 +/- 0.7 micro-eV
    Fitted in-plane Heisenberg exchange (Table I).
  • J4 = -1.1 +/- 0.4 micro-eV
    Fitted exchange interaction with delta = [3/2, 1/2, 1/2].
  • J5 = 10.8 +/- 0.8 micro-eV
    Fitted exchange; its antiferromagnetic sign is required for the global minimum to sit at incommensurate positions.
  • J6 = 6.0 +/- 0.5 micro-eV
    Fitted exchange interaction with delta = [1, 2, 0].
  • J7 = 0 (fixed)
    Set to zero because the (1,-0.5,eta) J2-invariant cut is flat; not refined as a free parameter.
  • J8 = 3.0 +/- 0.4 micro-eV
    Included specifically so the dispersion minima lie at q = [0.15, 0, 0], the direction of lower-field magnetic propagation.
  • C = 0.94 +/- 0.01 meV
    Global constant in the dispersion fit; absorbs -g mu_B B, -2KS, and any unaccounted exchange terms.
  • K (single-ion anisotropy) = not determined (absorbed into C)
    Single-ion anisotropy appears in Eq. (1) but cannot be disentangled from C in Eq. (2), so it is effectively assumed negligible.
assumptions (7)
  • domain assumption Linear spin wave theory and the Holstein-Primakoff expansion are valid for the S=7/2 Gd3+ ferromagnet at 25 K.
    Invoked in Analysis, Eq. (2); assumes small spin fluctuations and ignores magnon-magnon interactions.
  • domain assumption The magnetic Hamiltonian is restricted to bilinear Heisenberg exchange, Zeeman coupling, and single-ion anisotropy.
    Equation (1) excludes Dzyaloshinskii-Moriya, biquadratic, and four-spin interactions from the outset, which underlies the central null conclusion.
  • domain assumption Median kernel filtering identifies pixels belonging to the magnon band.
    Supplemental Section I; assumes noise is sparse and the magnon band dominates non-zero median pixels.
  • ad hoc to paper J7 is negligible because the (1,-0.5,eta) cut is flat.
    Analysis and Fig. 2(d); the model omits J7 based on one invariant path, with no quantitative upper bound.
  • ad hoc to paper The unresolved bottom of the magnon band does not bias the fitted J1 through J8 beyond quoted errors.
    Discussion states the global minimum is inferred from higher-energy parts because elastic scattering obscures energies below 0.8 meV.
  • ad hoc to paper The refined constant C is consistent with -g mu_B B, with negligible single-ion anisotropy K and small unaccounted exchange.
    Discussion; C varies with the number of exchange terms and absorbs -2KS and missing interactions, so K is not independently determined.
  • domain assumption Dipolar interactions are negligible for the fitted dispersion.
    Supplemental Figure S6 shows changes of about 20 micro-eV, smaller than the resolution of the data.
invented entities (1)
  • Field- and temperature-dependent RKKY exchange J_ij(B,T)
    purpose: Explains why the field-polarized Hamiltonian does not reproduce the lower-field multi-Q order despite the absence of higher-order exchange.
    Proposed in the Discussion as a possibility, supported only by qualitative references to Fermi surface nesting and quantum oscillations; no direct measurement of field-dependent exchange is presented in this paper.

how reviews work

0 comments
Cite this review

Pith. "Pith review of A Magnon Band Analysis of GdRu2Si2 in the Field-Polarized State." pith.science (2026). https://pith.science/paper/WHTFULYW

@misc{pith2026250101201,
  author       = {Pith},
  title        = {Pith review of: A Magnon Band Analysis of GdRu2Si2 in the Field-Polarized State},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/WHTFULYW}},
  note         = {Machine review of arXiv:2501.01201}
}
read the original abstract

Understanding the formation of skyrmions in centrosymmetric materials is a problem of fundamental and technological interest. GdRu2Si2 is one such candidate material which has been shown to host a variety of multi-Q magnetic structures, including in zero-field. Here, inelastic neutron scattering is used to measure the spin excitations in the field-polarized phase of GdRu2Si2. Linear spin wave theory and a method of interaction invariant path analysis are used to derive a Hamiltonian accounting for the observed spectra, and comparisons to \textit{ab initio} calculations are made. No evidence for anisotropic or higher order-exchange terms beyond bilinear Heisenberg exchange is found. This is discussed in the context of the multi-Q states existing at lower fields, for which these types of terms have previously been conceived to be significant in the formation of multi-Q ground states.

Figures

Figures reproduced from arXiv: 2501.01201 by the authors.

Figure 1
Figure 1. FIG. 1. (a) Conventional unit cell of GdRu [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

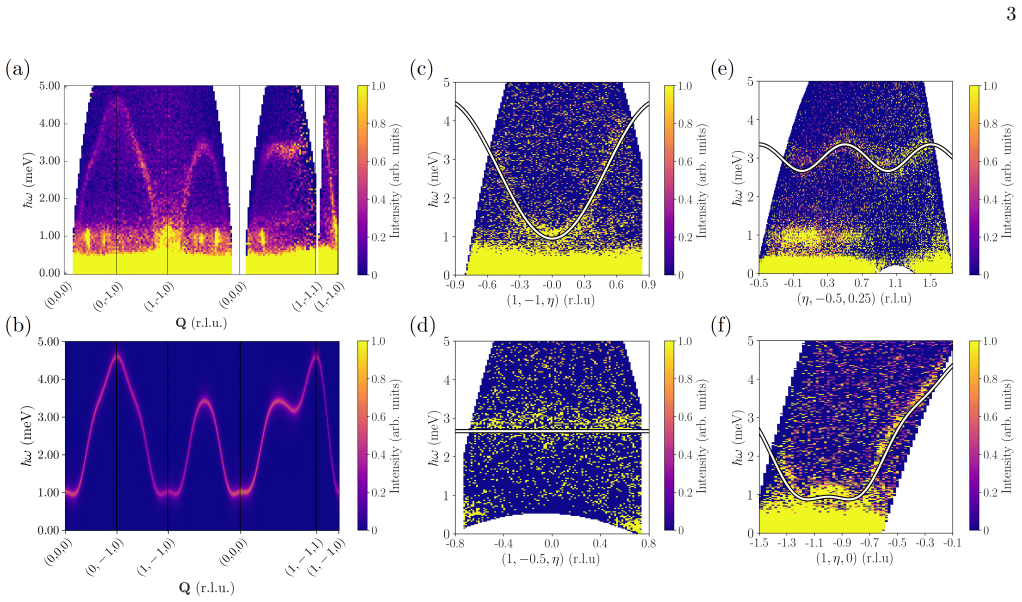

Figure 2. FIG. 2. Various momentum-resolved inelastic neutron scattering spectra of GdRu [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. FIG. 3. (a) Comparison of dispersions between the model [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
