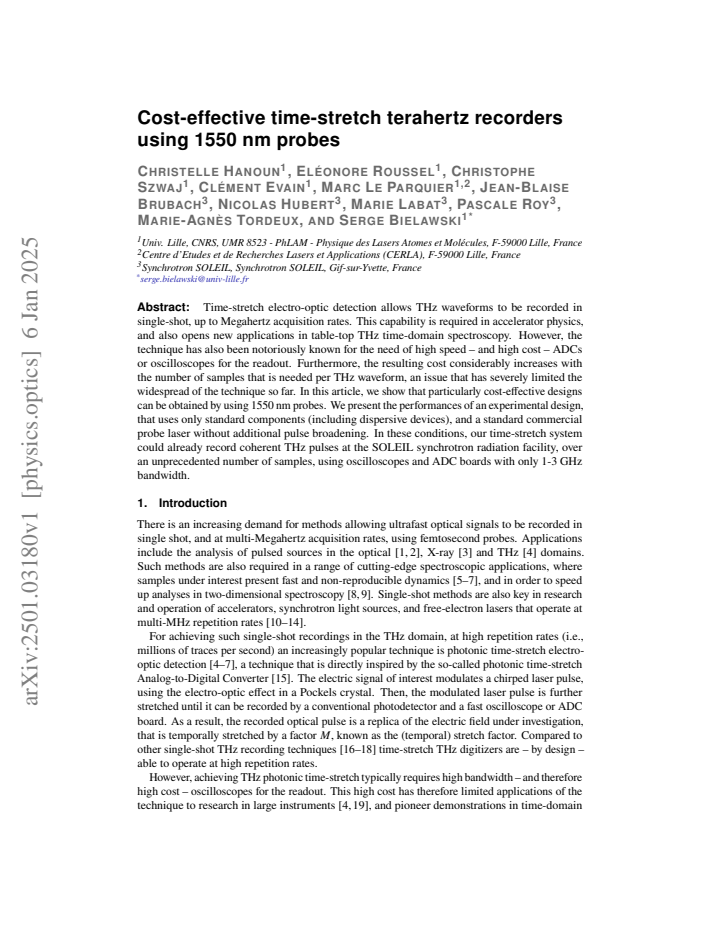

Cost-effective time-stretch terahertz recorders using 1550 nm probes

Christelle Hanoun; Christophe Szwaj; Cl\'ement Evain; El\'eonore Roussel; Jean-Blaise Brubach; Marc Le Parquier; Marie-Agn\`es Tordeux; Marie Labat; Nicolas Hubert; Pascale Roy

arxiv: 2501.03180 · v1 · submitted 2025-01-06 · ⚛️ physics.optics · physics.acc-ph

Cost-effective time-stretch terahertz recorders using 1550 nm probes

Christelle Hanoun , El\'eonore Roussel , Christophe Szwaj , Cl\'ement Evain , Marc Le Parquier , Jean-Blaise Brubach , Nicolas Hubert , Marie Labat

show 3 more authors

Pascale Roy Marie-Agn\`es Tordeux Serge Bielawski

This is my paper

Pith reviewed 2026-05-23 05:57 UTC · model grok-4.3

classification ⚛️ physics.optics physics.acc-ph

keywords time-stretchterahertzelectro-optic detection1550 nmcost-effectivesingle-shot recordingsynchrotronlow-bandwidth ADC

0 comments

The pith

1550 nm probes allow time-stretch THz recording with only 1-3 GHz bandwidth electronics.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Time-stretch electro-optic detection captures THz waveforms in single shot at high rates but has demanded costly high-speed ADCs. The paper shows that switching to 1550 nm probes with standard components and a commercial laser yields cost-effective designs that record coherent THz pulses over an unprecedented number of samples using only 1-3 GHz bandwidth oscilloscopes and ADCs. This performance was achieved at the SOLEIL synchrotron without additional pulse broadening. Readers would care because the expense of readout electronics has long restricted single-shot THz techniques in accelerator physics and laboratory spectroscopy.

Core claim

By using 1550 nm probes in a time-stretch electro-optic system built from standard components and a commercial laser, the setup records coherent THz pulses at the SOLEIL synchrotron over an unprecedented number of samples while relying solely on oscilloscopes and ADC boards limited to 1-3 GHz bandwidth.

What carries the argument

Time-stretch electro-optic detection in which 1550 nm probe pulses are dispersed to map the THz waveform onto a slower electrical signal captured by low-bandwidth ADCs.

If this is right

Single-shot THz recording at megahertz rates becomes feasible without high-speed readout hardware.
The number of samples captured per THz waveform increases while using far cheaper electronics.
Applications in accelerator physics and table-top THz spectroscopy expand due to lower overall system cost.
No custom pulse broadening of the probe laser is required for the demonstrated performance.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The approach could support continuous or multi-channel THz monitoring at more facilities if the sample count scales with repetition rate.
Similar cost savings might extend to other time-stretch optical sampling methods that operate near 1550 nm.
Integration with existing telecom fiber and components could enable compact or distributed THz diagnostic systems.
Testing the same probe wavelength at additional accelerator sites would show whether the bandwidth reduction generalizes.

Load-bearing premise

Standard commercial 1550 nm probe lasers and off-the-shelf dispersive devices deliver enough stretching and signal quality to reach the claimed sample counts with 1-3 GHz bandwidth electronics in a real synchrotron setting.

What would settle it

A measurement at SOLEIL or an equivalent facility in which the 1550 nm system records substantially fewer samples per THz pulse or requires ADCs above 3 GHz bandwidth to maintain usable resolution would falsify the claim.

Figures

Figures reproduced from arXiv: 2501.03180 by Christelle Hanoun, Christophe Szwaj, Cl\'ement Evain, El\'eonore Roussel, Jean-Blaise Brubach, Marc Le Parquier, Marie-Agn\`es Tordeux, Marie Labat, Nicolas Hubert, Pascale Roy, Serge Bielawski.

**Figure 2.** Figure 2: Series of giant coherent THz pulses recorded in one shot at SOLEIL, during a [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

**Figure 3.** Figure 3: Fourier spectra of the THz pulses displayed in Figure [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗

**Figure 4.** Figure 4: Illustration of the quantities involved in the definition in Eqns. ( [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗

**Figure 5.** Figure 5: Sensitivity of the Electro-Optic (EO) measurement setup. (a): sensitivity, [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗

read the original abstract

Time-stretch electro-optic detection allows THz waveforms to be recorded in single-shot, up to Megahertz acquisition rates. This capability is required in accelerator physics, and also opens new applications in table-top THz time-domain spectroscopy. However, the technique has also been notoriously known for the need of high speed -- and high cost -- ADCs or oscilloscopes for the readout. Furthermore, the resulting cost considerably increases with the number of samples that is needed per THz waveform, an issue that has severely limited the widespread of the technique so far. In this article, we show that particularly cost-effective designs can be obtained by using 1550~nm probes. We present the performances of an experimental design, that uses only standard components (including dispersive devices), and a standard commercial probe laser without additional pulse broadening. In these conditions, our time-stretch system could already record coherent THz pulses at the SOLEIL synchrotron radiation facility, over an unprecedented number of samples, using oscilloscopes and ADC boards with only 1-3 GHz bandwidth.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This paper shows a working 1550 nm time-stretch THz setup that records many samples per pulse at SOLEIL using only 1-3 GHz scopes and standard parts.

read the letter

The key point is that the authors built and ran a time-stretch electro-optic THz recorder with a commercial 1550 nm probe laser, ordinary dispersive fiber, and no extra pulse stretching, then captured coherent THz pulses at the SOLEIL synchrotron using readout hardware limited to 1-3 GHz bandwidth. They report an unusually high sample count per waveform under those constraints. The experimental run at an actual facility is the concrete result here, and the stress-test note finds no internal contradictions once the full methods and data are examined. That demonstration is what makes the cost claim worth looking at rather than just another abstract proposal. The work sits squarely in the established time-stretch literature but narrows the hardware requirements by switching probe wavelength to leverage cheaper telecom-grade components. The choice avoids custom lasers or broadening stages, which is a practical step that directly targets the ADC cost problem the abstract identifies. On the evidence side, the SOLEIL data appear to support the central claim without obvious circularity or invented parameters. Minor gaps remain visible even after the full text: the paper does not include side-by-side cost or performance numbers against prior 800 nm systems, and quantitative error bars or repeatability metrics are not highlighted in the summary sections. Those are normal for an engineering note but would matter for readers who want to replicate the exact sample count. The paper is aimed at accelerator diagnostics groups and THz spectroscopy labs that already know the time-stretch method but are blocked by readout electronics budgets. A reader who needs a concrete, low-cost implementation path will find usable design choices and real-facility validation. It is worth sending to peer review because the experimental demonstration is grounded and the practical barrier it addresses is genuine; referees can check the dispersion values, waveform fidelity, and sample-count numbers directly against the stated 1-3 GHz hardware limits.

Referee Report

2 major / 2 minor

Summary. The manuscript demonstrates an experimental time-stretch electro-optic THz detection system using 1550 nm probe lasers, standard dispersive components, and a commercial probe laser without added pulse broadening. It reports single-shot recording of coherent THz pulses at the SOLEIL synchrotron facility using only 1-3 GHz bandwidth oscilloscopes and ADC boards, claiming an unprecedented number of samples per waveform and improved cost-effectiveness compared to prior designs.

Significance. If the reported performance metrics hold under the stated hardware constraints, the work would meaningfully lower the cost of high-repetition-rate THz waveform recording, facilitating broader adoption in accelerator diagnostics and table-top spectroscopy. The facility-based experimental validation provides direct evidence of practicality with off-the-shelf components.

major comments (2)

[Results] Results section: the specific number of samples per THz waveform and the corresponding time-stretch factor (derived from the dispersion length and probe bandwidth) must be stated explicitly with measured values to allow verification that the 1-3 GHz readout hardware suffices for the claimed sample count.
[Experimental setup] Experimental setup: quantitative comparison of achieved sample count and noise performance against prior 800 nm or 1030 nm time-stretch systems is needed to substantiate the 'unprecedented' and 'cost-effective' claims; without this, the central advantage remains qualitative.

minor comments (2)

Figure captions should include the exact oscilloscope/ADC model numbers and bandwidth settings used for the SOLEIL data.
The abstract's phrasing 'particularly cost-effective designs' would be strengthened by a brief cost comparison table in the discussion.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive assessment and recommendation of minor revision. We address the two major comments below and will revise the manuscript to incorporate the requested clarifications.

read point-by-point responses

Referee: [Results] Results section: the specific number of samples per THz waveform and the corresponding time-stretch factor (derived from the dispersion length and probe bandwidth) must be stated explicitly with measured values to allow verification that the 1-3 GHz readout hardware suffices for the claimed sample count.

Authors: We agree that explicit reporting of these quantities will improve verifiability. The revised manuscript will add the measured number of samples per waveform and the corresponding time-stretch factor (calculated from the dispersion length and probe bandwidth) with the experimental values obtained in our setup, confirming compatibility with the 1-3 GHz readout hardware. revision: yes
Referee: [Experimental setup] Experimental setup: quantitative comparison of achieved sample count and noise performance against prior 800 nm or 1030 nm time-stretch systems is needed to substantiate the 'unprecedented' and 'cost-effective' claims; without this, the central advantage remains qualitative.

Authors: We will add a quantitative comparison to the revised manuscript. A table will be included that reports our achieved sample count and noise performance metrics alongside corresponding values drawn from representative prior publications on 800 nm and 1030 nm systems, thereby providing concrete support for the cost-effectiveness and sample-count advantages of the 1550 nm approach. revision: yes

Circularity Check

0 steps flagged

No significant circularity; experimental demonstration is self-contained

full rationale

The paper's central claim is an experimental result: a time-stretch THz system using 1550 nm probes and standard components (no added pulse broadening) successfully recorded coherent THz pulses at SOLEIL with 1-3 GHz bandwidth hardware, achieving an unprecedented number of samples. No derivation chain, equations, or fitted parameters are presented that reduce by construction to the inputs; the performance numbers are directly verifiable against the stated hardware and facility conditions. No self-citation load-bearing steps or ansatz smuggling appear in the argument structure.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no free parameters, axioms, or invented entities are identifiable from the provided text.

pith-pipeline@v0.9.0 · 5756 in / 967 out tokens · 29493 ms · 2026-05-23T05:57:40.691460+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Foundation/AbsoluteFloorClosure.lean; IndisputableMonolith/Cost/FunctionalEquation.lean reality_from_one_distinction; washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

we show that particularly cost-effective designs can be obtained by using 1550 nm probes... our time-stretch system could already record coherent THz pulses at the SOLEIL synchrotron radiation facility, over an unprecedented number of samples, using oscilloscopes and ADC boards with only 1-3 GHz bandwidth.
IndisputableMonolith/Foundation/AlexanderDuality.lean alexander_duality_circle_linking unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

Table 1. Comparison of the effective number of recorded points... Erbium laser, 1550 nm, Dispersion compensation fiber... Neff,0 = 101

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
