Arbitrary control of the flow of light using pseudomagnetic fields in photonic crystals at telecommunication wavelengths

T0 review · 2 major / 6 minor · reviewed 2026-08-10 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A systematic method uses nonuniform pseudomagnetic fields in silicon photonic crystals to bend and split light along designer paths, demonstrated by a low-loss S-bend and a 50:50 power splitter at telecom wavelengths.

desk verdict A solid experimental demonstration of PMF-based S-bend and splitter in silicon, with an overclaimed 'arbitrary control' narrative that needs an adiabaticity bound and a benchmark against ref. 29. read the letter →

arxiv 2501.04933 v1 pith:XJY3JZKN submitted 2025-01-09 physics.optics

Pan Hu , Lu Sun , Ce Chen , Jingchi Li , Xiong Ni , Xintao He , Jianwen Dong , Yikai Su This is my paper · ORCID
classification physics.optics
keywords pseudomagneticfieldsphotoniccrystalsLandaulevelssiliconphotonicsopticalroutingpowersplittertelecommunicationwavelengthPAM-4
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper proposes a systematic method for designing nonuniform pseudomagnetic fields (PMFs) in silicon photonic crystals, treating the local spatial-inversion-symmetry-breaking strength as an effective mass that acts like a magnetic vector potential. Because the field profile of the zeroth-order Landau level is determined by this mass profile through $\psi(x,y)\propto\exp(\int m(x,y)\,dx/v)$, any chosen light path or target field distribution can be translated into a concrete pattern of hole sizes in the crystal. The authors demonstrate the approach with a low-loss S-bend, a highly efficient 50:50 power splitter, and 140 Gb/s PAM-4 data transmission through both devices at telecom wavelengths. If the method holds, it would turn PMFs from a curiosity that produces straight chiral guiding or flat Landau levels into a practical tool for programmable routing and splitting in on-chip optical circuits.

What carries the argument

The load-bearing object is the position-dependent effective mass term $m(x,y)$ in the Dirac Hamiltonian, realized by the asymmetry of the two triangular holes (sizes $d_1$, $d_2$) in each honeycomb unit cell. The paper identifies $m(x,y)$ with the pseudomagnetic vector potential $A_z$, and derives the governing design identity $\psi(x,y)\propto\exp(\int m(x,y)\,dx/v)$, so the desired field profile fixes the mass distribution as $m(x,y)=v\,d(\ln\psi)/dx$. The zeroth-order Landau-level state, whose field is localized on the line $A_z=0$ and propagates along it, carries the routing and splitting; the relation between hole sizes and the mass term translates this abstract mass profile into a concrete photonic-crystal geometry.

What would settle it

Fabricate a PMF waveguide whose prescribed path has a curvature radius comparable to the lattice constant (or a mass gradient that changes sign over a few unit cells) and measure whether the transmitted beam follows the predicted $A_z=0$ curve; a systematic deviation, beam broadening, or a sharp rise in insertion loss would show the adiabatic zeroth-Landau-level model no longer applies.

Watch

Extended reading notes

Core claim

The central claim is that by varying the side lengths of the two triangular holes in every unit cell of a honeycomb photonic crystal, one can synthesize an arbitrary position-dependent mass term $m(x,y)$ in the Dirac Hamiltonian near the K and K' points. This mass term plays the role of the z-component of a magnetic vector potential, and its zero line $A_z=0$ is where the zeroth-order Landau-level wavefunction localizes; the wavefunction's transverse profile is $\psi(x,y)\propto\exp(\int m(x,y)\,dx/v)$. Inverting this relation gives $m(x,y)=v\,d(\ln\psi)/dx$, so specifying a desired field distribution determines the mass profile, and hence the hole sizes, everywhere. The paper proves the concept by experimentally demonstrating a low-loss S-bend (insertion loss < 1.83 dB) and a 50:50 power splitter (excess loss < 2.11 dB, imbalance < ±0.5 dB), and by transmitting 140 Gb/s PAM-4 signals with bit error rates below the HD-FEC threshold. The method does not break real time-reversal symmetry, and the transport is topologically protected because intervalley coupling is negligible.

Load-bearing premise

The design assumes the zeroth-order Landau-level wavefunction remains an accurate description when the effective mass varies in both directions with substantial gradients and curvature, so that light stays locked to the predefined $A_z=0$ line.

Editorial extensions

If this is right

  • Any continuous light path can be turned into a PMF design by choosing the zero-$A_z$ line, enabling arbitrarily shaped routing in a planar photonic circuit.
  • Light field distributions can be engineered directly: taking the $x$-derivative of a target $\psi$ gives the mass profile, allowing splitters with tailored splitting ratios and wavefront shapes.
  • PMF-based devices can be fabricated in CMOS-compatible silicon-on-insulator at telecom wavelengths with low excess loss, making them relevant for practical photonic integration.
  • The demonstrated robustness against intentionally introduced defects supports deployment of PMF devices in large-scale photonic circuits.
  • The successful 140 Gb/s PAM-4 transmission indicates PMF-based components are compatible with high-speed on-chip optical communication.
  • The method generalizes the PMF concept from straight chiral transport and Landau-level physics to a flexible design principle for functional nanophotonic devices.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Inference: The inverse relation $m=v\,d(\ln\psi)/dx$ suggests a general inverse-design recipe: any separable target field $\psi(x,y)$ could in principle be synthesized by independently tuning the mass profile in $x$ and $y$, potentially enabling wavefront shaping and mode converters beyond simple waveguide-style paths.
  • Inference: The adiabatic assumption constrains practical curvature; a bend sharper than those tested should cause coupling to higher Landau levels or intervalley scattering, and mapping that failure threshold would delineate the true design envelope of the method.
  • Inference: The same mass-to-hole-size mapping could be transferred to other symmetry-broken lattices or to acoustic and mechanical wave systems, extending the design method beyond photonics.
  • Inference: The demonstrated devices operate in a single pass; combining the mass-profile design with reconfigurable elements (e.g., thermo-optic tuning) could lead to dynamically programmable light paths, a step the paper does not explore.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 6 minor

Summary. The paper proposes a method for designing nonuniform pseudomagnetic fields (PMFs) in silicon photonic crystals at telecommunication wavelengths. The effective mass term m(x,y), induced by locally breaking spatial inversion symmetry in the honeycomb unit cell, is identified with the z-component of a synthetic vector potential, so that light is guided along the line Az=0. For a linear mass profile this reproduces the zeroth-order Landau level and straight-waveguide transport; for nonuniform profiles the authors use the relation ψ ∝ exp(∫ m dx/v) to design an S-bend and a 50:50 power splitter. Both devices are simulated with 3D FDTD, fabricated on SOI, and characterized experimentally, with insertion/excess losses below about 2 dB and splitter imbalance below ±0.5 dB. A 140 Gb/s PAM-4 transmission experiment is reported, and qualitative defect-robustness tests are described.

Significance. If the general design methodology is valid, it would advance PMF photonics from straight Landau-level waveguides toward flexible routing and splitting in integrated photonic circuits, which is a genuine step beyond prior demonstrations of Landau levels and chiral states. The paper's strengths are its concrete experimental validation, good agreement between 3D FDTD and measured transmission spectra, low loss and balanced splitting, and the high-speed data-transmission experiment. The inverse-design relation is used in a constructive way and is not circular, because the final devices are validated by FDTD and measurement. Nevertheless, the central 'arbitrary control' claim currently rests on an unquantified adiabatic approximation, and the evidence covers only two relatively mild nonuniform structures. These issues affect the generality of the method more than the correctness of the two demonstrated devices.

major comments (2)
  1. [§Results, Eq. (2) and inverse-design paragraph] The identity ψ(x,y) ∝ exp(∫^x m(x′,y) dx′/v), used both to describe the Landau-level state and to invert a desired field into a mass profile, is an exact solution of Eq. (1) only when ∂_y m = 0. Substituting this ansatz into Eq. (1) gives, in addition to ∂_x ln ψ = m/v, a consistency condition involving ∂_y ln ψ = (1/v)∫^x ∂_y m dx′; this condition can be satisfied for all x only if ∂_y m vanishes identically. Both nonuniform devices violate this condition: Region II of the S-bend has m = ax + by, and the splitter has m = v ∂_x ln ψ with a y-dependent two-peaked ψ. The residual is first order in ∂_y ln ψ and represents coupling to higher transverse (massive) modes, but the paper supplies no adiabaticity bound, no curvature limit, and no error estimate. Because the universal design method is the paper's central claim, the authors should quantify the validity range of the approximation, for example by projecting the designed state onto eigenstates of the local Hamiltonian or by computing the overlap with higher Landau levels, and should compare those estimates with FDTD for stronger y-gradients and larger curvatures.
  2. [§Device design and experimental demonstration, Figs. 2–3] The phrase 'arbitrary control' is supported by only two device classes, both with mild nonuniformity. The S-bend is a single smooth curve with b/a = 1/10, and the splitter target is a pair of Gaussian wave packets whose separation grows linearly with propagation distance. The paper should state the class of propagation paths and target field distributions for which the inverse-design method is expected to work, and demonstrate at least one case with larger curvature or a non-separable target field. Without such a demonstration, the 'systematic and universal' methodology remains a conjecture rather than an established property of the design procedure.
minor comments (6)
  1. [Throughout] The manuscript contains several typographical and grammatical errors, including 'an universal', 'the flo w of light', and 'synthe sizing'; a careful copyedit is needed.
  2. [Eq. (2) and surrounding text] Equation (2) is rendered with garbled symbols in the submitted text, and the relation between the scalar factor exp(∫ m dx/v), the spinor components, and the k_y dependence is not fully defined. Please provide a clean equation with all variables (v, a, k_y) and state explicitly which component of the spinor is being plotted.
  3. [§Results, after Eq. (1)] The identification Az = m(r) and the statement kz = 0 for the 2D PhC are made quickly; the gauge convention and the sign relating m to Az should be stated explicitly, since the inverse-design relation changes sign if the opposite valley or gauge is used.
  4. [§Device design and experimental demonstration] The key mapping from the hole side lengths d1 and d2 to the effective mass m is only referenced to supplementary text S2; the main text should include at least the functional form or a table of the calibration so that the transferability of the mapping from band structure to fabricated devices can be assessed by the reader.
  5. [§Results, defect-robustness paragraph] The robustness claim is qualitative: the reader is told only that 'no severe discrepancies' were observed in supplementary text S7. Please report the defect geometry, the number and position of defects, and the measured transmission differences, ideally compared with a non-topological control structure, so that the claim can be evaluated.
  6. [§Discussion and Introduction] The assertion that this is 'the first time' a systematic method is proposed for synthesizing PMFs to control light should be tempered, because refs. 29, 41, and 44 already address nonuniform PMFs and Landau-level transport; the novelty claim should be limited to the specific inverse-design procedure demonstrated here.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity; the m–ψ relation is used as an inverse-design construction, and the fabricated devices are validated by independent FDTD simulations and transmission measurements.

full rationale

The paper derives the effective Dirac Hamiltonian with a position-dependent mass term m(r) from the k·p approximation of the honeycomb photonic crystal, and obtains the zeroth-order Landau-level wavefunction ψ ∝ exp(∫ m dx / v) for one-dimensional mass profiles (Eq. 2). The S-bend design then chooses m(x,y) so that the Az = 0 curve coincides with the desired optical path; this is an explicit construction, not a fitted parameter disguised as a prediction. The power-splitter design starts from a target field ψ(x,y) and sets m = v ∂_x ln ψ, which is an inverse-design identity rather than an empirical fit. The central claim is independently checked: 3D FDTD simulations and fabricated-device transmission spectra, including a 140 Gb/s PAM-4 experiment, provide external validation that does not feed fitted constants back into the theory. The paper does invoke prior work, including some papers by the same groups, for the standard k·p description and valley-photonic background, but these citations are supporting textbook-level formalism and are not load-bearing uniqueness claims. The remaining concern is that the simple relation ψ ∝ exp(∫ m dx / v) is not exact when m depends on both x and y, so the splitter design relies on a slow-variation approximation; that is a correctness or accuracy risk, not circularity. Overall, no circular step is present.

Assumptions & free parameters 4 free parameters · 5 assumptions · 0 invented entities

The central claim rests on standard Dirac physics of honeycomb lattices plus a calibration between hole asymmetry and effective mass. The only hand-set numbers are the geometric design parameters and the target field distribution used as the input of the inverse design; none of these are fitted to the measured device performance.

free parameters (4)
  • mass profile slope a (and b for S-bend) = not specified (hole size step 14.7 nm per cell)
    Design parameters chosen by hand that set the PMF strength, confinement width, and bending radius; they are not fitted to target performance.
  • hole-size variation step (straight/S-bend) = 14.7 nm
    Chosen step to discretize the continuous linear mass profile m(x)=ax.
  • hole-size variation step (splitter) = 6.9 nm
    Discretization step for the mass profile derived from the target Gaussian field distribution.
  • target field distribution (Gaussian positions/widths) for the splitter = not given numerically
    The designer-specified output field whose inverse determines m(x,y); a free design choice.
assumptions (5)
  • domain assumption k.p effective Hamiltonian H = v(k_x sigma_x + k_y sigma_y) + m(r) sigma_z near K/K' points of the honeycomb PhC.
    Used in Eq. 1 to map the mass term to a pseudomagnetic vector potential; assumes the two-band Dirac model is valid for the lowest TE bands.
  • domain assumption m(r) varies slowly compared to the lattice constant so that the position-dependent mass Hamiltonian remains locally valid.
    Required for the adiabatic following of the zeroth Landau level along the Az=0 line and for the inverse design of the splitter.
  • domain assumption The zeroth-order Landau level state is given by psi proportional to exp(integral m(x) dx / v) for a 1D mass profile and by the analogous separable form for m(x,y).
    Standard solution of the Dirac equation with a vector potential; used to derive the field distribution and to invert m from the desired psi.
  • domain assumption Negligible intervalley coupling and negligible mixing with higher Landau levels.
    Invoked to claim topological protection and to justify that the single-band Landau-level description explains the device performance.
  • ad hoc to paper The effective-mass versus hole-size mapping (d1-d2) to m is computed once from band structure and is transferable to every local cell.
    Reported in supplementary S2; the paper does not present the full calibration curve in the main text, so this transferability is an assumption of the implementation.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Arbitrary control of the flow of light using pseudomagnetic fields in photonic crystals at telecommunication wavelengths." pith.science (2026). https://pith.science/paper/XJY3JZKN

@misc{pith2026250104933,
  author       = {Pith},
  title        = {Pith review of: Arbitrary control of the flow of light using pseudomagnetic fields in photonic crystals at telecommunication wavelengths},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/XJY3JZKN}},
  note         = {Machine review of arXiv:2501.04933}
}
read the original abstract

In photonics, the idea of controlling light in a similar way that magnetic fields control electrons has always been attractive. It can be realized by synthesizing pseudomagnetic fields (PMFs) in photonic crystals (PhCs). Previous works mainly focus on the Landau levels and the robust transport of the chiral states. More versatile control over light using complex nonuniform PMFs such as the flexible splitting and routing of light has been elusive, which hinders their application in practical photonic integrated circuits. Here we propose an universal and systematic methodology to design nonuniform PMFs and arbitrarily control the flow of light in silicon PhCs at telecommunication wavelengths. As proofs of concept, a low-loss S-bend and a highly efficient 50:50 power splitter based on PMFs are experimentally demonstrated. A high-speed data transmission experiment is performed on these devices to prove their applicability in real communication systems. The proposed method offers a new paradigm for the exploration of fundamental physics and the development of novel nanophotonic devices.

Figures

Figures reproduced from arXiv: 2501.04933 by the authors.

Figure 1
Figure 1. Realization of PMFs in PhCs. (A) Schematic (left) and band diagram (right) of the pristine PhC with a honeycomb lattice. The rhombic unit cell is encircled by the red dashed line. The first Brillouin zone is shown in the inset of the band diagram. (B and C) Schematics of the PhCs (top), band diagrams of the supercells encircled by the red dashed line (middle/bottom left) and mode profiles corresponding to the blue s… view at source ↗
Figure 2

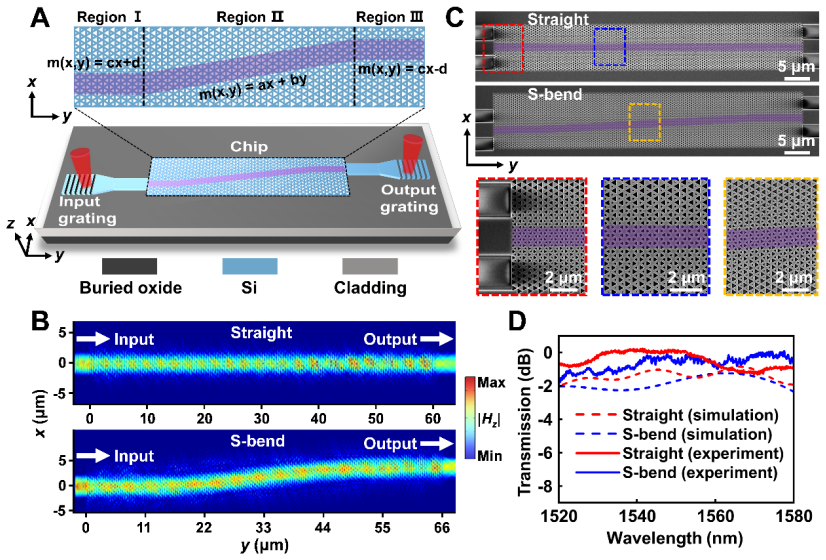

Figure 2. Demonstration of a straight waveguide and a S-bend based on PMFs. (A) Schematic of the S-bend implemented on a SOI platform. The purple shaded area indicates the propagation path of light. Light is coupled into and out of the chip by grating couplers. (B) Simulated propagation profiles for the straight waveguide with m(x) = ax (top) and the S-bend with a nonuniform PMF (bottom) at a central wavelength of 1550 nm. (C… view at source ↗

Discussion (0). Continue with ORCID to comment.

Reference graph

Works this paper leans on

54 extracted references · 54 canonical work pages

  1. [1]

    Landau, Diamagnetismus der metalle

    L. Landau, Diamagnetismus der metalle. Z. Rhys. 64, 629-637 (1930)

    work page 1930

  2. [2]

    K. V. Klitzing, G. Dorda, M. Pepper, New method for high-accuracy determination of the fine-structure constant based on 1uantized Hall resistance. Phys. Rev. Lett. 45, 494 (1980)

    work page 1980

  3. [3]

    D. J. Thouless, M. Kohmoto, M. P. Nightingale, M. D Nijs, Quantized Hall conductance in a two-dimensional periodic potential. Phys. Rev. Lett. 49, 405 (1982)

    work page 1982

  4. [4]

    Zhang, J

    S.-C. Zhang, J. Hu, A four-dimensional generalization of the quantum Hall effect. Science 294, 823-828 (2001)

    work page 2001

  5. [5]

    octonions

    B. A. Bernevig, J. Hu, N. Toumbas, S.-C. Zhang, Eight-dimensional quantum Hall effect and "octonions". Phys. Rev. Lett. 91, 236803 (2003)

    work page 2003

  6. [6]

    B. A. Bernevig, S.-C. Zhang, Quantum spin Hall effect. Phys. Rev. Lett. 96, 106802 (2006)

    work page 2006

  7. [7]

    Li, S.-C
