arxiv: 2501.11722 · v4 · submitted 2025-01-20 · ⚛️ physics.atom-ph

Anomalous suppression of spin-exchange relaxation in alignment signals in cesium in ultra-weak magnetic fields

Mikhail V. Petrenko , Anton K. Vershovskii This is my paper

Pith reviewed 2026-05-23 05:08 UTC · model grok-4.3

classification ⚛️ physics.atom-ph
keywords cesiumatomic alignmentspin-exchange relaxationSERF effectzero magnetic fieldoptical pumpingultra-weak fieldsatomic moments
0
0 comments X

The pith

Certain alignment components in cesium show spin-exchange relaxation suppression at zero magnetic field.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines the dynamics of atomic alignment in cesium pumped by linearly polarized resonant light in ultra-weak magnetic fields. It shows that some alignment components relax without dependence on spin-exchange broadening. This produces a suppression effect at zero field that resembles the SERF effect in orientation signals, even though angular momentum conservation does not guarantee the same protection for alignment. The work includes a comparison to theoretical SERF resonances for orientation and offers a qualitative explanation for the observations. The result bears on general relaxation theory in atomic systems.

Core claim

The study detects suppression of spin-exchange relaxation in alignment signals of cesium in zero magnetic fields. Certain alignment components exhibit relaxation rates independent of spin-exchange broadening. This occurs despite the fact that the angular momentum conservation law sustaining orientation in SERF mode does not apply to alignment. A qualitative explanation links the data to zero-field conditions, with parameters compared to calculated SERF resonances in orientation.

What carries the argument

Alignment components of the atomic magnetic moment whose relaxation decouples from spin-exchange collisions at zero field.

If this is right

  • Alignment signals can maintain narrow linewidths under zero-field conditions without the orientation-specific conservation law.
  • Relaxation models must incorporate zero-field suppression for alignment in addition to orientation.
  • The effect permits direct comparison of alignment and orientation resonance parameters in the same setup.
  • Precision measurements in ultra-weak fields may exploit alignment components for reduced broadening.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The suppression could appear in other alkali atoms or under varied polarization schemes, warranting targeted tests.
  • Zero-field relaxation theories for higher multipole moments may need revision if the mechanism generalizes.
  • Controlled introduction of field gradients could isolate the intrinsic effect from averaging artifacts.
  • Applications in atomic sensors might combine alignment and orientation signals at null field for enhanced stability.

Load-bearing premise

The observed suppression arises from a mechanism analogous to SERF rather than from unaccounted experimental factors such as field inhomogeneity, light intensity gradients, or competing relaxation channels.

What would settle it

A direct comparison of alignment relaxation rates at exact zero field versus a small applied uniform field, combined with checks for residual inhomogeneity, would confirm or refute whether the suppression is intrinsically zero-field and mechanism-driven.

Figures

Figures reproduced from arXiv: 2501.11722 by Anton K. Vershovskii, Mikhail V. Petrenko.

Figure 1
Figure 1. Figure 1: Calculated dependencies of the alignment balanced signals [ [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

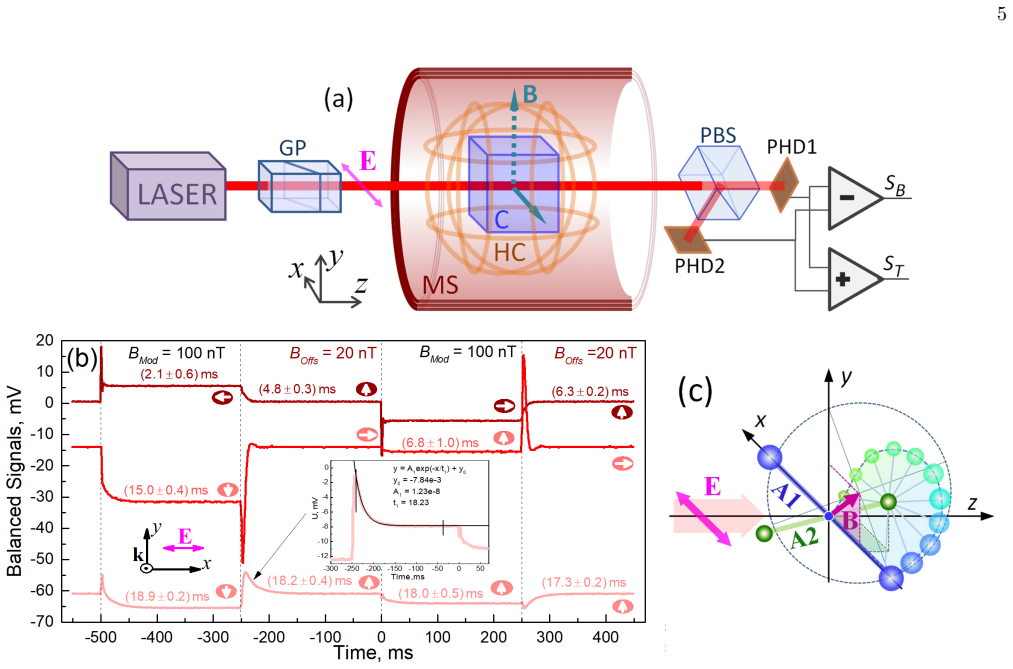

Figure 2
Figure 2. Figure 2: (a) Experimental setup: MS – magnetic shield, GP – Glan prism, HC – Helmholtz coils system, C – cell, PBS [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

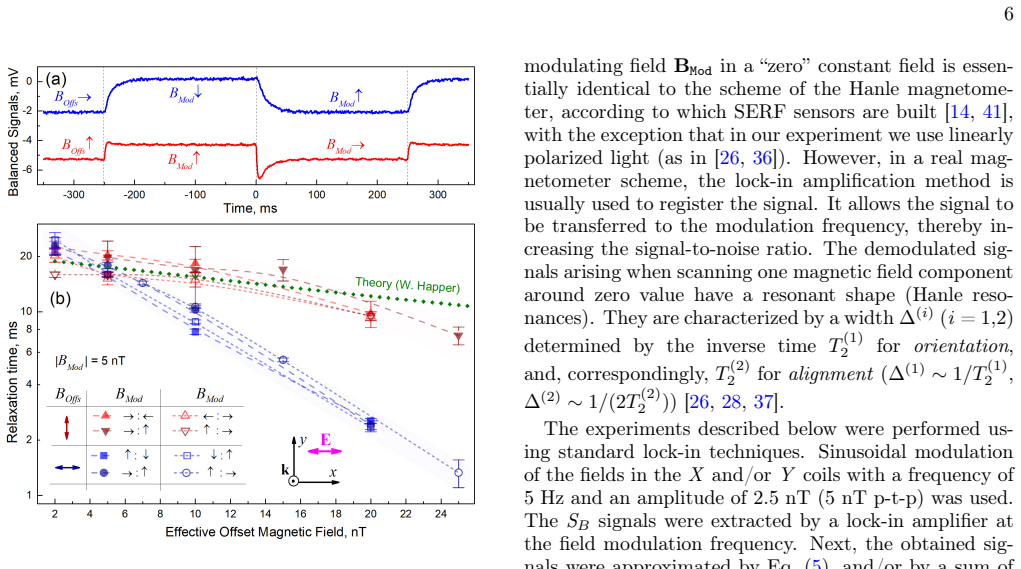

Figure 3
Figure 3. Figure 3: (a) Examples of signal recordings made during mag [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

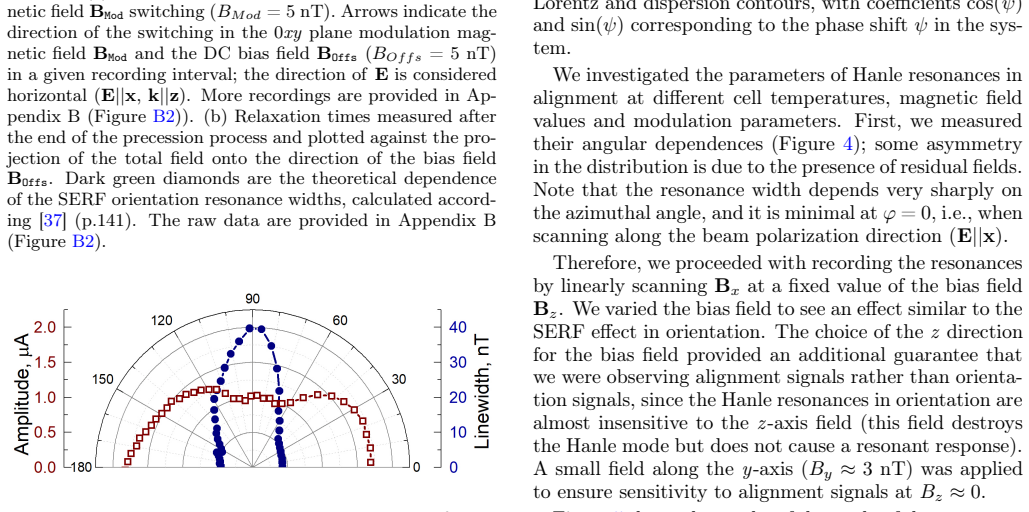

Figure 4
Figure 4. Figure 4: Parameters of alignment signals at T = 107oC un￾der modulation and scanning of the B field in the 0xy plane depending on the azimuth angle φ: open squares are the res￾onance amplitudes, closed circles are the resonance widths (HWHM). of the BMod field in the 0xy plane by π/2 (x ⇔ y) (as in [38]). Figure 3b shows the relaxation times measured after the end of the transient (precession) period. The projectio… view at source ↗

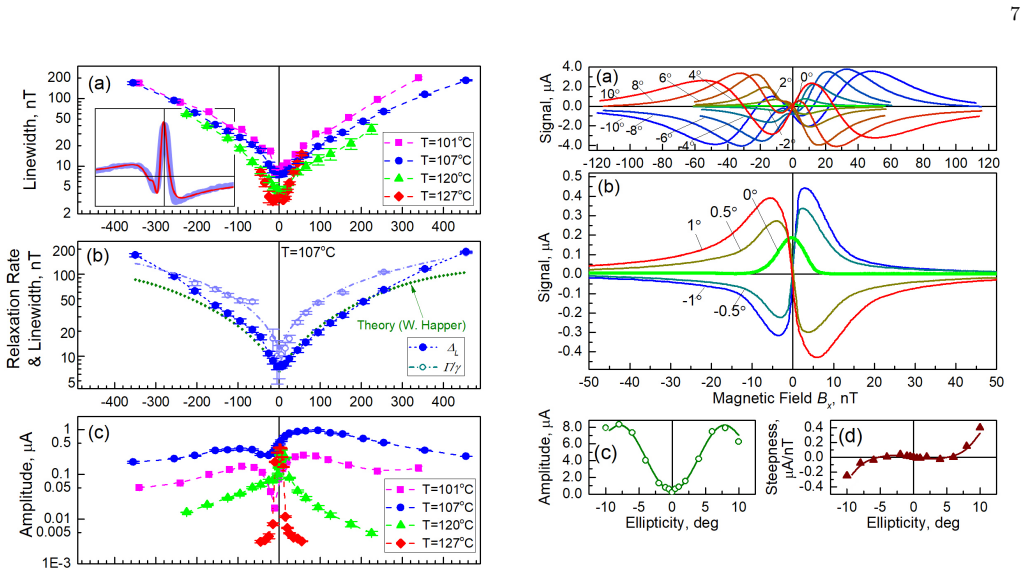

Figure 6
Figure 6. Figure 6: Recordings of demodulated SB signals depending on the Bx field at different degrees of laser light ellipticity: (a) ellipticity varies within the range of -10 – +10o , (b) – within the range of -1 – +1o , (c) the signal amplitudes, (d) their steepness at Bx = 0; the lines in (c),(d) are polynomial approximations. times T (2) 1 ≈ T (2) 2 ≈ 1/ωL when the field B in the 0xy plane is switched on. Initially (in… view at source ↗

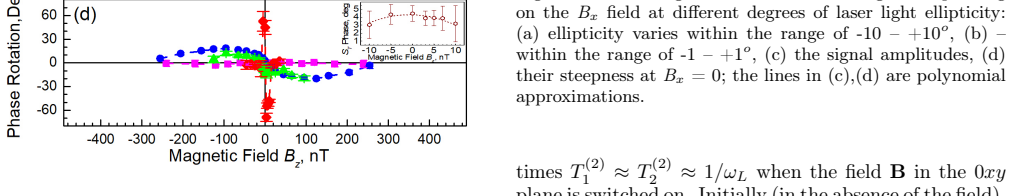

Figure 5
Figure 5. Figure 5: Parameters of alignment signals under modulation [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

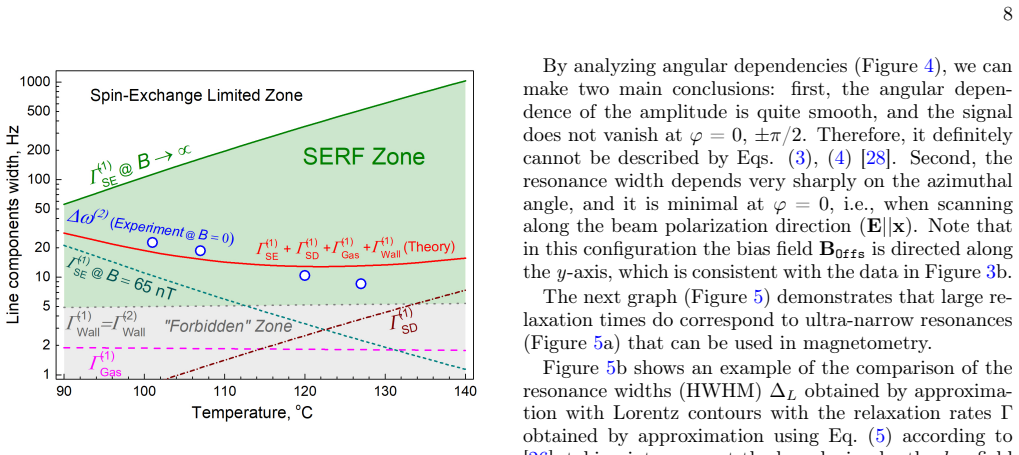

Figure 7
Figure 7. Figure 7: Calculated according to Seltzer_2008 relaxation [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
read the original abstract

The results of a study of the dynamics of atomic moments alignment in cesium under optical pumping by linearly polarized resonant light in ultra-weak magnetic field are presented. It is shown that there are alignment components whose relaxation does not depend on spin-exchange broadening. The effect of suppression of spin-exchange relaxation in zero magnetic fields is detected, which is similar in its manifestations to the SERF (Spin-Exchange Relaxation Free) effect observed in orientation signals. This observation is interesting from the standpoint of general theory, since the law of conservation of angular momentum responsible for maintaining orientation in the SERF mode should not guarantee the preservation of alignment under the same conditions. A comparison with theoretically calculated parameters of SERF resonances in orientation is given. A qualitative explanation of the observed effect is presented.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript reports an experimental study of alignment dynamics in cesium atoms optically pumped by linearly polarized resonant light in ultra-weak magnetic fields. It claims detection of alignment components whose relaxation is independent of spin-exchange broadening, and an anomalous suppression of spin-exchange relaxation at zero field that manifests similarly to the SERF effect in orientation signals. A qualitative explanation is offered, noting that angular-momentum conservation does not protect alignment, together with a comparison to calculated SERF parameters for orientation.

Significance. If the claimed suppression is experimentally robust and mechanistically distinct from artifacts, the result would be noteworthy for atomic physics and SERF-based magnetometry, as it would indicate a relaxation-suppression channel for alignment that operates outside the angular-momentum conservation argument standardly invoked for orientation. The work could stimulate theoretical extensions of SERF physics. At present, however, the absence of quantitative data, error analysis, or explicit controls limits assessment of whether the observation genuinely extends SERF concepts or arises from unaccounted experimental factors.

major comments (2)
  1. [Abstract] Abstract: the central experimental claim—that suppression of spin-exchange relaxation is detected in alignment signals at B=0—is presented without any reported relaxation rates, error bars, density dependence, or quantitative comparison to theory, preventing evaluation of whether the data support the claimed mechanism or are consistent with residual gradients or competing channels.
  2. [Abstract] Abstract: the assertion that the observed narrowing arises from a SERF-like spin-exchange suppression (rather than field inhomogeneity, intensity gradients, or density-independent relaxation) rests on a qualitative argument; no explicit test (e.g., relaxation rate versus density at B=0 or modeled gradient contribution) is described, leaving the data-to-mechanism link unverified.
minor comments (1)
  1. The manuscript would be strengthened by inclusion of at least one figure or table showing measured relaxation rates versus magnetic field or atomic density, with explicit comparison to the orientation SERF parameters mentioned.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful review and constructive comments on our manuscript. The points raised concern the level of quantitative detail in the abstract and the strength of evidence linking the observations to a SERF-like mechanism rather than experimental artifacts. We respond to each comment below and indicate where revisions will be made.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central experimental claim—that suppression of spin-exchange relaxation is detected in alignment signals at B=0—is presented without any reported relaxation rates, error bars, density dependence, or quantitative comparison to theory, preventing evaluation of whether the data support the claimed mechanism or are consistent with residual gradients or competing channels.

    Authors: The abstract is a concise summary; the full manuscript presents the experimental data through figures showing the field-dependent narrowing of alignment signals. We agree that the abstract would benefit from explicit quantitative elements to allow immediate assessment. We will revise the abstract to report key measured relaxation rates (with error estimates) at B=0 versus finite fields and note the observed density range. revision: yes

  2. Referee: [Abstract] Abstract: the assertion that the observed narrowing arises from a SERF-like spin-exchange suppression (rather than field inhomogeneity, intensity gradients, or density-independent relaxation) rests on a qualitative argument; no explicit test (e.g., relaxation rate versus density at B=0 or modeled gradient contribution) is described, leaving the data-to-mechanism link unverified.

    Authors: The explanation is qualitative because angular-momentum conservation does not protect alignment, yet the data show clear suppression at B=0. The manuscript does not contain an explicit relaxation-rate-versus-density scan at exactly B=0 or a quantitative gradient model. We will expand the discussion to address why residual gradients and intensity effects are unlikely under the reported conditions and will add any available supporting density data if it strengthens the case; a full quantitative test would require new measurements. revision: partial

Circularity Check

0 steps flagged

Experimental observation; no derivation chain reduces to inputs or self-citations

full rationale

The paper reports experimental measurements of alignment relaxation rates in cesium under optical pumping in ultra-weak fields. The central claim is the detection of zero-field suppression of spin-exchange relaxation for certain alignment components, presented as an observation rather than a derived result. No equations or fitting procedures are described that would make a 'prediction' equivalent to a fitted input by construction. The qualitative explanation offered does not invoke self-citations as load-bearing uniqueness theorems or smuggle ansatzes. Self-citations, if present, are not required to establish the reported data-to-effect link. The result is therefore self-contained against external benchmarks as an empirical finding.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard domain assumptions about optical pumping and spin-exchange collisions in alkali atoms; no free parameters or new entities are introduced in the abstract.

axioms (1)
  • domain assumption Standard atomic physics model of optical pumping by linearly polarized light and spin-exchange collisions in cesium vapor
    Invoked to define alignment signals and their expected relaxation behavior.
