REVIEW 3 major objections 6 minor 34 references
ARM-IRL: Adaptive Resilience Metric Quantification Using Inverse Reinforcement Learning
T0 review · 3 major / 6 minor · reviewed 2026-08-10 · deepseek-v4-flash
Pith's one-line read The paper claims that adversarial inverse reinforcement learning can turn heuristic expert demonstrations into a state-dependent adaptive resilience metric that outperforms a fixed-reward forward RL baseline on cyber-physical restoration…
desk verdict AIRL applied to learn resilience rewards in power distribution is a plausible engineering contribution, but the 'adaptive resilience metric' label overreaches: the learned reward is never validated independently of the heuristic demonstrations that produced it. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The load-bearing mechanism is adversarial inverse reinforcement learning (AIRL), a GAN-style method that learns the reward function while training a policy. A discriminator network is trained to distinguish expert state-action pairs from generator rollouts, and the generator, a PPO policy, is trained to maximize the reward implied by the discriminator; the discriminator's output is interpreted as the resilience metric. AIRL's design choice of parameterizing the reward as a function of state rather than action is what the paper credits for producing a disentangled reward that is less tied to environment dynamics. Expert demonstrations come from two heuristic sources: Algorithm 2, which reroutes traffic around compromised routers by choosing the next hop with the lowest packet drop rate, and a spanning-tree search method that produces switching sequences for distribution network reconfiguration.
What would settle it
Run the same AIRL pipeline with demonstrations from a different expert source—for example, recorded operator decisions or a high-fidelity network emulator—and compare the learned reward surfaces and policy episode lengths. If the AIRL policy no longer beats PPO, or the reward function changes drastically with the demonstrator, then the adaptive resilience metric is an artifact of the particular heuristic rather than a general resilience objective.
Extended reading notes
Core claim
The central claim, stated on the paper's own terms, is that AIRL can learn an adaptive resilience metric—a state- and time-dependent reward function represented by a neural network—from heuristic expert demonstrations, and that the resulting policy performs better than forward RL. Across the rerouting, reconfiguration, and combined cyber-physical problems, the AIRL-trained agent reduces the average number of steps to reach the goal state compared with a PPO baseline, and it does so with fewer transition samples than GAIL. The learned reward functions can be visualized against selected state-action pairs, showing, for example, that the reward for a router action rises as the packet drop rate of a compromised router increases, and that the reconfiguration reward grows as more critical loads are restored. The paper also reports that AIRL is more robust than GAIL in the combined cyber-physical setting, where GAIL's performance deteriorates.
Load-bearing premise
The load-bearing premise is that the heuristic algorithms used to generate expert demonstrations are a faithful stand-in for a real operator's resilience objectives; if those demonstrations do not encode true resilience preferences, the learned reward is an artifact of the heuristics rather than a valid resilience metric.
Editorial extensions
If this is right
- If the learned reward is a valid adaptive resilience metric, grid operators can obtain response policies from demonstrations without committing to a fixed weighted sum of resilience indices.
- AIRL's sample efficiency relative to GAIL means the approach can be applied to larger feeder and communication networks where collecting expert trajectories is expensive.
- The learned reward can be visualized as a function of state and action, offering operators a view of what the agent treats as resilient behavior rather than a black-box policy.
- The same AIRL framework extends to other cyber-physical control problems, such as volt-var control, automatic generation control, and automatic voltage regulation, as the conclusion states.
- The combined cyber-physical MDP shows that a single learned reward can coordinate actions across two asynchronous simulators to reach a joint goal.
Reading between the lines
- This is an extension of the disentanglement claim: if the learned reward is truly a function of state only, it should transfer to larger network topologies without retraining; the paper does not test this directly.
- Because the 'expert' is a heuristic, the learned metric inherits the heuristic's notion of resilient behavior; a practical validation—again beyond the paper—would retrain on logged operator actions from a utility and compare the reward surfaces.
- The comparison with PPO is not purely algorithmic: PPO is both the baseline and the generator inside AIRL, so part of the gain may come from the learned reward shaping PPO's exploration rather than from AIRL's training objective alone; this is an interpretation, not a paper claim.
Signed reviews
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes ARM-IRL, an approach that uses adversarial inverse reinforcement learning (AIRL) to learn an "adaptive resilience metric" in the form of a reward function from expert demonstrations, and then uses the learned reward to train a restoration policy. The method is evaluated on three cyber-physical tasks: communication network rerouting, distribution feeder reconfiguration, and a combined cyber-physical critical-load restoration problem on an IEEE 123-bus system with a SimPy/OpenDSS co-simulation environment. The reported results show that policies trained with AIRL achieve lower average episode lengths than forward RL (PPO), GAIL, DAgger, behavioral cloning, and random baselines in these tasks. The paper also visualizes the learned reward functions as functions of selected state and action pairs.
Significance. If the central claim were established, the work would provide a useful data-driven alternative to static, hand-weighted resilience metrics for power distribution cyber-physical systems. The authors build a nontrivial co-simulation environment, provide a Code Ocean repository, and compare several imitation and inverse RL methods, which is a strength. However, the evidence supports the weaker claim that AIRL can imitate heuristic expert demonstrations and reduce episode length; it does not establish that the learned reward is a valid resilience metric, because the identification step is never tested. The paper is therefore more a demonstration of AIRL for these restoration tasks than a validated resilience-quantification method.
major comments (3)
- [§IV.B.5 and §VI] The central claim that the reward recovered by AIRL is an "adaptive resilience metric" is not tested. As the paper itself notes in §IV.B.5, AIRL recovers the reward only up to potential-based shaping, so many reward functions can rationalize the same expert demonstrations. All of the quantitative evidence in Figs. 9, 11, and 15 is average episode length on the same training distribution, which can be explained by imitation of the heuristic demonstrations alone. To support the metric claim, the learned reward would need to be validated externally, for example by transfer to held-out threat types, contingencies, load profiles, or by comparison against a separately defined resilience index. Without such a test, the paper supports an imitation-learning result, not a resilience-metric result.
- [§V.B and §VII] The expert demonstrations are generated by the authors' own heuristics — Algorithm 2 for rerouting and spanning-tree search [32] for reconfiguration — and §VII concedes that these heuristics "might not be optimal" in the combined cyber-physical environment. Since IRL assumes the demonstrations come from an optimal policy (Eq. 4), the learned reward is, by construction, an encoding of those heuristics rather than an independently grounded model of operator resilience objectives. This is a load-bearing issue for the title and abstract claims, and it is not resolved by the sentence in §VII that real operator demonstrations could be incorporated in the future.

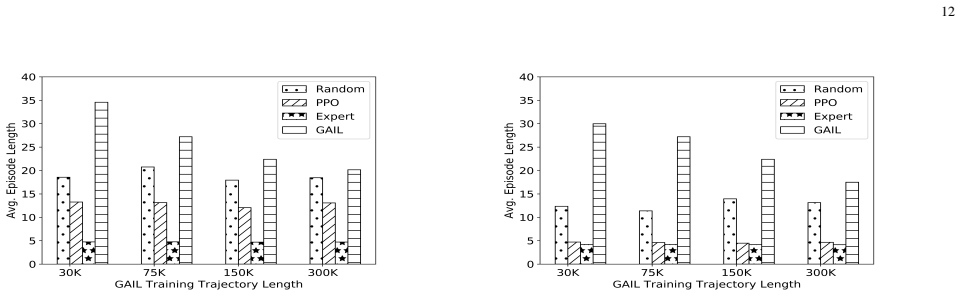

- [§VI, Figs. 7, 9, 11, and 15] The empirical comparison lacks the statistical detail needed to support the reported gains. The figures plot average episode length with no variance, no number of seeds, and no confidence intervals, and the baseline label "random PPO agents" is ambiguous: it is not clear whether the PPO policy is random before training, trained with random weights, or evaluated with random exploration. Hyperparameters for the PPO generator and for the other baselines are not specified, and the sample counts ("30K transition trajectories", "150K transition samples") are used inconsistently. The claim that AIRL "is better than the expert" in §VI.C.4 appears to rest on a single scalar comparison without uncertainty quantification.
minor comments (6)
- [References] Reference [18] appears to be identical to reference [1]; the duplicate should be removed and the in-text citation corrected.
- [§V.A and Fig. 2] The component labeled "Optimization Solver/Outing" appears to contain a typo; "Outing" should likely be "Routing" or a similarly meaningful word.
- [§VI.A.4] The text alternates among "transition trajectories", "transition samples", and "training samples"; these terms should be used consistently so the reader can compare sample counts across methods.
- [Table I] The table header is confusing: the columns labeled "R1,R2" contain encoded action values rather than clear column names; please add explicit column headings and a description of the encoding.
- [Fig. 10] The captions for Fig. 10 describe reward surfaces but do not state which network size, training run, or training sample count produced the visualized reward function; this information is needed for reproducibility.
- [§III.A and Eq. (3)] In Eq. (3), the index i is not defined, and the text does not say which candidate metrics R_i are included in the linear adaptive resilience metric; please define the index and the candidate set.
Circularity Check
No significant circularity: the reported episode-length gains are independent empirical comparisons, and the learned reward is explicitly a fitted quantity whose heuristic dependence is acknowledged as a limitation rather than hidden as a prediction.
full rationale
The paper's derivation chain is: heuristic expert demonstrations (Alg. 2 for rerouting, spanning-tree search [32] for reconfiguration) feed AIRL, which learns a reward function; that reward is then used to train a PPO policy; the policy is evaluated by average episode length against PPO, GAIL, DAgger, behavioral cloning, and random baselines. The episode-length comparisons are genuine empirical measurements on the same task distribution and do not reduce by construction to the training demonstrations; the paper even reports learned policies outperforming the expert (Sec. VI.C.4: 'Training AIRL with 150K transition samples, the performance is better than the expert'). The 'adaptive resilience metric' is the reward network output by AIRL, so its content is necessarily tied to the heuristic demonstrations used to fit it; however, the paper presents this as a learned quantity and explicitly acknowledges in Sec. VII that the heuristic and spanning-tree demonstrations 'might not be optimal while considering the combined cyber-physical environment.' That is a stated external-validity limitation, not a circular step: no equation is defined in terms of the target claim, no fitted parameter is renamed as a prediction of the same quantity, and no load-bearing conclusion depends on an unverified self-citation. AIRL's reward-recovery background is cited to Fu et al. [30], and the same authors' prior work [24] supplies only the simulator interface. The central performance claim is therefore self-contained against the baselines used.
Assumptions & free parameters
free parameters (4)
- Goal packet threshold N_g =
5
- Physical reward constants in Eq. (1) =
20 and -1
- Combined reward constants in Eq. (2) =
Rc+Rp, Rp, Rc
- Discriminator network architecture =
2 hidden layers, 32 neurons each
assumptions (4)
- domain assumption Expert demonstrations generated by heuristic algorithms (Alg. 2 for rerouting, spanning tree search [32] for reconfiguration) represent near-optimal expert behavior.
- domain assumption Average episode length is a valid measure of resilience and performance for these tasks.
- domain assumption The SimPy-based cyber network model accurately captures packet drop and delay dynamics relevant to resilience.
- ad hoc to paper The learned reward function is a resilience metric that can generalize across states and scenarios.
Cite this review
Pith. "Pith review of ARM-IRL: Adaptive Resilience Metric Quantification Using Inverse Reinforcement Learning." pith.science (2026). https://pith.science/paper/BVNYLFZO
@misc{pith2026250112362,
author = {Pith},
title = {Pith review of: ARM-IRL: Adaptive Resilience Metric Quantification Using Inverse Reinforcement Learning},
year = {2026},
howpublished = {\url{https://pith.science/paper/BVNYLFZO}},
note = {Machine review of arXiv:2501.12362}
}
read the original abstract
Resilience of safety-critical systems is gaining importance, particularly with the increasing number of cyber and physical threats. Cyber-physical threats are becoming increasingly prevalent, as digital systems are ubiquitous in critical infrastructure. The challenge with determining the resilience of cyber-physical systems is identifying a set of resilience metrics that can adapt to the changing states of the system. A static resilience metric can lead to an inaccurate estimation of system state, and can result in unintended consequences against cyber threats. In this work, we propose a data-driven method for adaptive resilience metric learning. The primary goal is to learn a single resilience metric by formulating an inverse reinforcement learning problem that learns a reward or objective from a set of control actions from an expert. It learns the structure or parameters of the reward function based on information provided by expert demonstrations. Most prior work has considered static weights or theories from fuzzy logic to formulate a single resilience metric. Instead, this work learns the resilience metric, represented as reward function, using adversarial inverse reinforcement learning, to determine the optimal policy through training the generator discriminator in parallel. We evaluate our proposed technique in scenarios such as optimal communication network rerouting, power distribution network reconfiguration, and a combined cyber-physical restoration of critical load using the IEEE 123-bus system.
Figures
Figures from the paper (12 more)
Reference graph
Works this paper leans on
-
[32]
Distribution system restoration with microgrids using spanning tree search,
J. Li, X.-Y . Ma, C.-C. Liu, and K. P. Schneider, “Distribution system restoration with microgrids using spanning tree search,” IEEE Transac- tions on Power Systems , vol. 29, no. 6, pp. 3021–3029, 2014
work page 2014
-
[2]
Power system resilience: Current practices, challenges, and future directions,
N. Bhusal, M. Abdelmalak, M. Kamruzzaman, and M. Benidris, “Power system resilience: Current practices, challenges, and future directions,” IEEE Access, vol. 8, pp. 18 064–18 086, 2020
2020
-
[3]
Enabling systems engineers and program managers to select the most useful assessment methods,
D. J. Bordeau, R. D. Graubart, R. M. McQuaid, and J. Woodill, “Enabling systems engineers and program managers to select the most useful assessment methods,” Sept 2018
work page 2018
-
[4]
Cyber resiliency metrics and scoring in practice,
——, “Cyber resiliency metrics and scoring in practice,” Sept 2018
work page 2018
-
[5]
Resilience metrics for cyber systems,
I. Linkov, D. A. Eisenberg, K. Plourde, T. P. Seager, J. Allen, and A. Kott, “Resilience metrics for cyber systems,” Environment Systems and Decisions, vol. 33, pp. 471–476, 2013
work page 2013
-
[6]
Cp-tram: Cyber-physical transmission resiliency assessment metric,
Tushar, V . Venkataramanan, A. Srivastava, and A. Hahn, “Cp-tram: Cyber-physical transmission resiliency assessment metric,” IEEE Trans- actions on Smart Grid , vol. 11, no. 6, pp. 5114–5123, 2020
work page 2020
-
[7]
CP-SAM: Cyber- physical security assessment metric for monitoring microgrid resiliency,
V . Venkataramanan, A. Hahn, and A. Srivastava, “CP-SAM: Cyber- physical security assessment metric for monitoring microgrid resiliency,” IEEE Transactions on Smart Grid , vol. 11, no. 2, pp. 1055–1065, 2020
work page 2020
-
[8]
Scalabil- ity in Multiobjective Optimization (Dagstuhl Seminar 20031),
C. M. Fonseca, K. Klamroth, G. Rudolph, and M. M. Wiecek, “Scalabil- ity in Multiobjective Optimization (Dagstuhl Seminar 20031),” Dagstuhl Reports, vol. 10, no. 1, pp. 52–129, 2020
work page 2020
Show all 34 references
-
[9]
Reinforcement learning for feedback-enabled cyber resilience,
Y . Huang, L. Huang, and Q. Zhu, “Reinforcement learning for feedback-enabled cyber resilience,” 2021. [Online]. Available: https://arxiv.org/abs/2107.00783
2021 arXiv
-
[10]
To improve cyber resilience, measure it,
A. Kott and I. Linkov, “To improve cyber resilience, measure it,” Computer, vol. 54, no. 2, pp. 80–85, 2021
2021
-
[11]
Metrics and quantification of operational and infrastruc- ture resilience in power systems,
M. Panteli, P. Mancarella, D. N. Trakas, E. Kyriakides, and N. D. Hatziargyriou, “Metrics and quantification of operational and infrastruc- ture resilience in power systems,” IEEE Transactions on Power Systems, vol. 32, no. 6, pp. 4732–4742, 2017
2017
-
[12]
Microgrids as a resilience resource and strategies used by microgrids for enhancing resilience,
A. Hussain, V .-H. Bui, and H.-M. Kim, “Microgrids as a resilience resource and strategies used by microgrids for enhancing resilience,” Applied Energy, vol. 240, pp. 56–72, 2019
2019
-
[13]
Resilient scheduling of networked microgrids against real-time fail- ures,
H. S. Fesagandis, M. Jalali, K. Zare, M. Abapour, and H. Karimipour, “Resilient scheduling of networked microgrids against real-time fail- ures,” IEEE Access, vol. 9, pp. 21 443–21 456, 2021
2021
-
[14]
Quantitative analysis of power systems resilience: Standardization, categorizations, and challenges,
A. Umunnakwe, H. Huang, K. Oikonomou, and K. Davis, “Quantitative analysis of power systems resilience: Standardization, categorizations, and challenges,” Renewable and Sustainable Energy Reviews , vol. 149, p. 111252, 2021
2021
-
[15]
Quantifying the system-level resilience of thermal power generation to extreme temper- atures and water scarcity,
Y . Zhou, M. Panteli, B. Wang, and P. Mancarella, “Quantifying the system-level resilience of thermal power generation to extreme temper- atures and water scarcity,” IEEE Systems Journal , vol. 14, no. 1, pp. 749–759, 2020
2020
-
[16]
Optimizing dynamics of integrated food–energy–water systems under the risk of climate change,
M. Memarzadeh, S. Moura, and A. Horvath, “Optimizing dynamics of integrated food–energy–water systems under the risk of climate change,” Environmental Research Letters, vol. 14, no. 7, p. 074010, jul
-
[17]
Performance- based cyber resilience metrics: An applied demonstration toward moving target defense,
S. Hossain-McKenzie, C. Lai, A. Chavez, and E. Vugrin, “Performance- based cyber resilience metrics: An applied demonstration toward moving target defense,” in IECON 2018 - 44th Annual Conference of the IEEE Industrial Electronics Society , 2018, pp. 766–773
2018
-
[18]
Resilience of cyber-physical systems: an experimental appraisal of quantitative measures,
G. Murino, A. Armando, and A. Tacchella, “Resilience of cyber-physical systems: an experimental appraisal of quantitative measures,” in 2019 11th International Conference on Cyber Conflict , vol. 900, pp. 1–19
2019
-
[19]
To- wards a resilience metric framework for cyber-physical systems,
I. Friedberg, K. McLaughlin, P. Smith, and M. Wurzenberger, “To- wards a resilience metric framework for cyber-physical systems,” in Proceedings of the 4th International Symposium for ICS & SCADA Cyber Security Research 2016 , ser. ICS-CSR ’16. Swindon, GBR: BCS Learning & Dev...
2016
-
[20]
Emotional deep learning programming controller for automatic voltage control of power systems,
L. Yin, C. Zhang, Y . Wang, F. Gao, J. Yu, and L. Cheng, “Emotional deep learning programming controller for automatic voltage control of power systems,” IEEE Access, vol. 9, pp. 31 880–31 891, 2021
2021
-
[21]
A data-driven method for fast ac optimal power flow solutions via deep reinforcement learning,
Y . Zhou, B. Zhang, C. Xu, T. Lan, R. Diao, D. Shi, Z. Wang, and W.-J. Lee, “A data-driven method for fast ac optimal power flow solutions via deep reinforcement learning,” Journal of Modern Power Systems and Clean Energy, vol. 8, no. 6, pp. 1128–1139, 2020
2020
-
[22]
Online learning and distributed control for residential demand response,
X. Chen, Y . Li, J. Shimada, and N. Li, “Online learning and distributed control for residential demand response,” IEEE Transactions on Smart Grid, vol. 12, no. 6, pp. 4843–4853, 2021
2021
-
[23]
Self-organizing map-based resilience quan- tification and resilient control of distribution systems under extreme events,
K. Utkarsh and F. Ding, “Self-organizing map-based resilience quan- tification and resilient control of distribution systems under extreme events,” IEEE Transactions on Smart Grid , vol. 13, no. 3, pp. 1923– 1937, 2022
1923
-
[24]
Reinforcement learning environment for cyber-resilient power distribution system,
A. Sahu, V . Venkataramanan, and R. Macwan, “Reinforcement learning environment for cyber-resilient power distribution system,”IEEE Access, pp. 1–1, 2023
2023
-
[25]
An irl approach for cyber-physical attack intention prediction and recovery,
M. Elnaggar and N. Bezzo, “An irl approach for cyber-physical attack intention prediction and recovery,” in 2018 Annual American Control Conference (ACC), 2018, pp. 222–227. 13
2018
-
[26]
A survey of inverse reinforcement learning,
S. Adams, T. Cody, and P. Beling, “A survey of inverse reinforcement learning,” Artificial Intelligence Review , 02 2022
2022
-
[27]
Bayesian inverse reinforcement learn- ing,
D. Ramachandran and E. Amir, “Bayesian inverse reinforcement learn- ing,” in Proceedings of the 20th International Joint Conference on Artifical Intelligence, ser. IJCAI’07. San Francisco, CA, USA: Morgan Kaufmann Publishers Inc., 2007, p. 2586–2591
2007
-
[28]
A reduction of imitation learning and structured prediction to no-regret online learning,
S. Ross, G. J. Gordon, and J. A. Bagnell, “A reduction of imitation learning and structured prediction to no-regret online learning,” 2010. [Online]. Available: https://arxiv.org/abs/1011.0686
2010 arXiv
-
[29]
Generative adversarial imitation learning,
J. Ho and S. Ermon, “Generative adversarial imitation learning,” 2016. [Online]. Available: https://arxiv.org/abs/1606.03476
2016 arXiv
-
[30]
Learning robust rewards with adversarial inverse reinforcement learning,
J. Fu, K. Luo, and S. Levine, “Learning robust rewards with adversarial inverse reinforcement learning,” 2017. [Online]. Available: https://arxiv.org/abs/1710.11248
2017 arXiv
-
[31]
ARM-IRL: Adaptive Resilience Metric Quantification Using Inverse Reinforcement Learning,
A. Sahu, “ARM-IRL: Adaptive Resilience Metric Quantification Using Inverse Reinforcement Learning,” Apr 2024. [Online]. Available: https://codeocean.com/capsule/4520283/tree
2024
-
[33]
Con- vex neural networks,
Y . Bengio, N. Roux, P. Vincent, O. Delalleau, and P. Marcotte, “Con- vex neural networks,” in Advances in Neural Information Processing Systems, Y . Weiss, B. Sch¨olkopf, and J. Platt, Eds. MIT Press, 2005. Abhijeet Sahu received the M.S and Ph.D. degrees in electrical engine...
2005
-
[2011]
He is currently a Senior Research Engineer working in cybersecurity at the National Renewable Energy Laboratory (NREL). His research interests include network security, cyber-physical modeling for intrusion detection and response, and artificial intelligence for cyber-physical...
2015
-
[2019]
Available: https://doi.org/10.1088/1748-9326/ab2104
[Online]. Available: https://doi.org/10.1088/1748-9326/ab2104
