Efficient Read-Port-Count Reduction Schemes for the Centralized Physical Register File in a Superscalar Microprocessor

T0 review · 4 major / 6 minor · reviewed 2026-08-09 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read A superscalar integer register file can shed nine of its seventeen read ports for a 0.1% geomean IPC loss.

desk verdict A plausible but under-validated recipe for halving PRF read ports at ~0.1% geomean IPC cost; the headline number rests on an unverified timing assumption and a single unnamed simulator. read the letter →

arxiv 2502.00147 v1 pith:WFHRAL7J submitted 2025-01-31 cs.AR

Denis Los This is my paper · ORCID
classification cs.AR
keywords physicalregisterfileread-portreductionuniformsymmetricschemesportarbitrationlogicsuperscalarmicroprocessorout-of-orderexecutionSPECrateCPU2017criticalpathestimation
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tries to establish that the centralized integer physical register file in a superscalar, out-of-order x86-64 core can be built with far fewer read ports than conventional design allocates, without meaningfully slowing the machine. The author reports cutting the read-port count from 17 to 8, removing all dedicated ports for load, store-address, and store-data units, while losing only 0.1% geomean IPC across the SPECrate CPU 2017 Integer suite, provided the remaining ports are shared according to a particular class of connection schemes called uniform symmetric schemes. Because register-file area and power scale roughly quadratically with port count, a near-performance-neutral port reduction of this size would make the technique directly valuable for energy- and area-constrained cores. The paper also contributes a microarchitecture-time method for estimating the critical path of the port arbitration logic, so that schemes can be compared for complexity before circuit synthesis.

What carries the argument

The central object is the mask: a row of the connection matrix that lists which of the remaining read ports an operand of a memory-access functional unit may use. A uniform symmetric scheme is one whose masks are pairwise non-intersecting, whose union covers all remaining read ports, and in which every mask contains the same number of functional connections; for 8 remaining ports, this number must be 1, 2, or 4. These constraints make the arbitration logic's critical path depend only on the connection count, measured by the paper as 2, 5, and 9 time units via Minimum Conjunctive and Disjunctive Normal Form minimization, and leave the designer free to choose which specific masks to use. The paper's constructive rules then select masks and assign them to operands using baseline operand-utilization distributions: place the least-loaded masks on the most-used operands, balance expected mask occupancy, and group operands so that frequent operands do not share a mask.

What would settle it

Simulate the reduced machine with the two-connection scheme and count, per cycle, how often a requested memory-operand read is canceled because its shared port is taken; compare those actual conflict counts with the expected occupancies the paper derives from Figures 8 and 9. If a workload shows systematically higher conflicts than predicted, or if re-deriving masks from measured post-reduction utilizations yields a lower-loss scheme, the static-utilization assumption fails.

Watch

Extended reading notes

Core claim

The paper's central finding is that, on a modeled 9-unit, single-thread out-of-order core with a 180-entry integer physical register file, read ports can be cut from 17 to 8 with almost no average performance loss if the remaining ports are shared using uniform symmetric schemes. Three concrete schemes are constructed: a one-connection-per-mask scheme with an estimated arbitration critical path of 2 time units and a -1.6% geomean IPC change, a two-connection scheme with a 5-time-unit critical path and -0.2% IPC, and a four-connection scheme with a 9-time-unit critical path and -0.1% IPC. The worst-case individual-workload degradations are -14% IPC for the two-connection scheme and -5% IPC for the four-connection scheme. The paper argues that the key to this result is not merely removing ports but choosing masks that are non-intersecting, cover all remaining ports, and are matched to measured operand-utilization frequencies.

Load-bearing premise

The whole construction assumes that the operand-utilization distributions measured on the unmodified machine (Figures 8 and 9) remain valid after read ports are removed, so that masks chosen to minimize expected conflicts on the baseline also minimize actual conflicts in the reduced scheme.

Editorial extensions

If this is right

  • A designer who accepts a 0.1% geomean loss on integer workloads can halve the read-port count of a centralized integer physical register file, cutting the dominant area and power driver of the structure without adding pipeline stages.
  • The complexity estimate gives a way to compare candidate reduction schemes at the microarchitectural design stage, before circuit synthesis, because all uniform symmetric schemes with the same connection count have the same estimated critical path.
  • The scheme choice reduces to a small, enumerable design space: with 8 remaining ports, only masks of size 1, 2, or 4 need be considered, and the heuristic picks among them from workload profiles.
  • Since the worst-case workloads still lose up to 14% IPC (two-connection scheme) or 5% IPC (four-connection scheme), the method is not uniformly free; a designer must check individual workloads, not just the geomean.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the construction were extended to workload mixes outside SPECrate CPU 2017 Integer, the absolute degradations would likely change, because the mask assignment is tuned to the measured operand utilizations; re-deriving masks per target workload is the natural generalization.
  • The paper's static-utilization assumption is testable: one could collect actual operand-request frequencies from the reduced-port machine and compare them with Figures 8 and 9, and a material shift would mean the heuristic should be iterated rather than applied once.
  • The same mask framework could be applied to write-port reduction or to banked register files, since the conflict and occupancy reasoning does not depend on read ports specifically.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 6 minor

Summary. The paper proposes a method for reducing the number of read ports of a centralized integer physical register file from 17 to 8 in a superscalar out-of-order processor. The scheme shares the remaining 8 read ports among 4 ALUs and 5 load/store functional units, using statically assigned priorities and an interconnection matrix that defines which memory-access operands may use which read ports. The authors introduce the class of "uniform symmetric" schemes, a complexity metric based on the minimal MCNF/MDNF depth of the port-arbitration logic, and a heuristic algorithm that assigns masks to memory-access operands according to operand-utilization statistics. They report geomean IPC degradations of -1.6%, -0.2%, and -0.1% on SPECrate CPU 2017 Integer workloads for schemes with 1, 2, and 4 connections per mask, respectively.

Significance. If the headline result is reliable, the paper is practically significant: reducing the integer PRF read-port count by roughly a factor of two with a geomean IPC loss of only 0.1% would be an attractive power/area optimization for superscalar cores. The paper's main strengths are its explicit, reproducible construction procedure and the clear matrix notation for describing port-sharing schemes. The work is also timely in that it addresses the often-overlooked latency of port-arbitration logic. However, the central empirical claim currently rests on an unidentified simulator with no per-benchmark results, and the complexity metric is asserted rather than validated against a cycle budget or synthesis. The evaluation also uses the same SPECrate workloads that were used to derive the heuristic rules, creating a real overfitting risk. With additional verification and calibration, the approach could be a solid contribution; in its present form the evidence is insufficient to support the drop-in performance claim.

major comments (4)
  1. [Section III, Fig. 13] The central empirical claim, a geomean IPC degradation of only -0.1% for the 4-connection scheme, is supported only by a single aggregate number from an unidentified cycle-accurate x86-64 simulator. The paper reports no per-workload IPC table, no run-to-run variance, no configuration file, and no validation of the simulator against hardware or a published simulator. Since the same paper reports a worst-case workload degradation of -5% for this scheme, the aggregate alone does not establish near-neutral performance; full per-benchmark results and simulator details are needed.
  2. [Section V] The complexity metric is load-bearing for the drop-in claim, but it is asserted rather than validated. The statement that MCNF/MDNF representations give the minimal critical path for two-input AND/OR/negation trees is not proved, and MCNF/MDNF minimization does not generally minimize logic depth after technology mapping or under fan-out constraints. Moreover, the paper explicitly acknowledges that the metric gives no absolute threshold; the 9-time-unit estimate for the 4-connection scheme in Section VI is never calibrated to the baseline cycle or to a synthesized netlist. Without such calibration, the simulation result of -0.1% IPC cannot be taken as the end-to-end performance change, because an arbitration path longer than the cycle would require an extra pipeline stage.
  3. [Section VI] The mask-selection and operand-grouping heuristics are derived from operand-utilization distributions (Figs. 8-9) measured on the same SPECrate CPU 2017 Integer workloads used for the reported -0.1% geomean degradation. This makes the evaluation a test on the tuning set: the scheme is optimized for exactly the workloads on which it is scored. The paper does not test robustness to other workloads or to changes in operand utilization after ports are removed, even though conflicts themselves can change issue behavior and operand frequencies.
  4. [Section VI] The paper claims that masks with pairwise-disjoint masks and full coverage minimize both arbitration complexity and performance loss, and that all uniform symmetric schemes with a fixed connection count have equal complexity. The examples in Figs. 2-4 illustrate the idea, but no proof or exhaustive enumeration is given that these conditions are sufficient or necessary. This is important because the construction algorithm relies on that equality to select masks by occupancy alone.
minor comments (6)
  1. [Section IV] The phrase "real-port-count reduction schemes" should be "read-port-count reduction schemes."
  2. [Section II] The sentence "the order common approaches are..." should read "the other common approaches are..."; the English throughout would benefit from a careful proofreading pass.
  3. [Figure 13] The bar chart lacks axis labels and numeric values; a table with per-workload IPC degradation and the geomean would be much more informative.
  4. [Section V] The terms "time quantum" and "time unit" are used interchangeably; define one term and use it consistently.
  5. [Section VI] The scheme in Fig. 5 is called a uniform symmetric scheme but is not one of the constructed "efficient" schemes; labeling it as a baseline or non-efficient uniform symmetric scheme would avoid confusion.
  6. [Abstract and Conclusion] No power or area estimates are reported despite the abstract framing the work around power consumption; adding CACTI-based estimates or at least a qualitative discussion of the expected area/power impact would strengthen the efficiency claim.

Circularity Check

0 steps flagged · score 2.0 of 10

No circular derivation: the 0.1% IPC figure is a simulator measurement of concrete schemes; the mask-selection loop is an in-sample generalizability caveat rather than a by-construction reduction, and the only self-citation is non-load-bearing.

full rationale

The paper's claimed derivation chain runs from the S-matrix representation (Section IV) through a high-level complexity estimate based on MCNF/MDNF depth (Section V) to heuristic mask-selection rules built from operand-utilization statistics (Section VI), and finally to cycle-accurate simulated IPC results on SPECrate CPU 2017 Integer. The 0.1% geomean degradation is not obtained by substituting the design heuristic's expected-occupancy calculation for the IPC result; the simulator evaluates the concrete connection matrices in Figures 10-12, so the reported performance is an independently simulated quantity rather than the optimization objective itself. The complexity estimates of 2, 5, and 9 time units are explicitly acknowledged in Section V as not providing an absolute cycle threshold, so the drop-in timing assumption is unverified but not circular. The heuristic rules do fit masks to operand-utilization distributions measured on the same benchmark suite used for the headline result, and no held-out workload or sensitivity analysis is provided; this is a real external-validity limitation and a reason not to read the 0.1% figure as a generalizable prediction, but it does not make the result equivalent to its inputs by construction. The only self-citation is reference [15], a related-work pointer to prior register-cache work; it is not load-bearing. No pattern 1-6 circularity is exhibited.

Assumptions & free parameters 3 free parameters · 4 assumptions · 0 invented entities

The central claim rests on a small set of hand-chosen design parameters, notably the port priority order, the number of connections per mask, and the mask-to-operand assignment. The key axioms are the MCNF/MDNF critical-path equivalence, the stability of baseline utilization statistics, and the fidelity of the unnamed simulator.

free parameters (3)
  • Port priority order = ALU > load > STA > STD
    Statically assigned in Section IV to resolve read-port conflicts; no sensitivity analysis is given for this ordering.
  • Connections per mask = 1, 2, or 4
    Chosen from divisors of the 8 remaining read ports; only 1, 2, and 4 are evaluated, and 4 is used for the headline 0.1% result.
  • Mask assignment groups = Groups listed in Section VI, e.g., load-base with STA-index
    Mask-to-operand assignment is tuned to balance expected occupancy using measured operand utilization from the SPECrate workloads.
assumptions (4)
  • ad hoc to paper The critical path of port arbitration equals the minimal depth of MCNF/MDNF binary trees over unit-delay two-input AND/OR gates and zero-delay negations.
    Section V introduces this equivalence as the basis for the complexity metric, but no proof or synthesis calibration is provided.
  • domain assumption Baseline operand utilization statistics remain valid when read ports are reduced and conflicts occur.
    Section VI uses the baseline utilization distributions from Figures 8 and 9 to choose masks, assuming conflicts do not materially change those distributions.
  • domain assumption The cycle-accurate x86-64 simulator correctly models the described core and the SPECrate workloads.
    Section III describes the simulator only generically; no simulator name, validation, or comparison against real hardware is provided.
  • ad hoc to paper Masks with no intersections and full coverage minimize both arbitration complexity and performance loss.
    Section VI states this as the basis for the uniform symmetric design rules, with heuristic rather than formal justification.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Efficient Read-Port-Count Reduction Schemes for the Centralized Physical Register File in a Superscalar Microprocessor." pith.science (2026). https://pith.science/paper/WFHRAL7J

@misc{pith2026250200147,
  author       = {Pith},
  title        = {Pith review of: Efficient Read-Port-Count Reduction Schemes for the Centralized Physical Register File in a Superscalar Microprocessor},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/WFHRAL7J}},
  note         = {Machine review of arXiv:2502.00147}
}
read the original abstract

The physical register file supports increasing the execution width and depth of a superscalar microprocessor to exploit more instruction-level parallelism. The efficient design of the physical register file is critical since its resources, such as the number of read and write ports, have a significant impact on CPU power consumption. Reducing the number of ports to the physical register file is a well-known direction for optimization. For port-count reduction schemes, balancing the trade-off between the scheme's complexity and performance is crucial. In our work, we introduce a high-level analysis method to estimate the complexity of the schemes during microarchitectural design. Moreover, we explore the structure of different port-count reduction schemes and introduce a practical approach to constructing low-complexity read-portcount reduction schemes for the centralized integer physical register file. We show that the read-port-count reduction schemes designed with this approach can reduce the number of read ports by a factor of two (from 17 to 8 read ports) with the Geomean performance degradation of only 0.1% IPC across the SPECrate CPU 2017 Integer workloads.

Figures

Figures reproduced from arXiv: 2502.00147 by the authors.

Figure 1

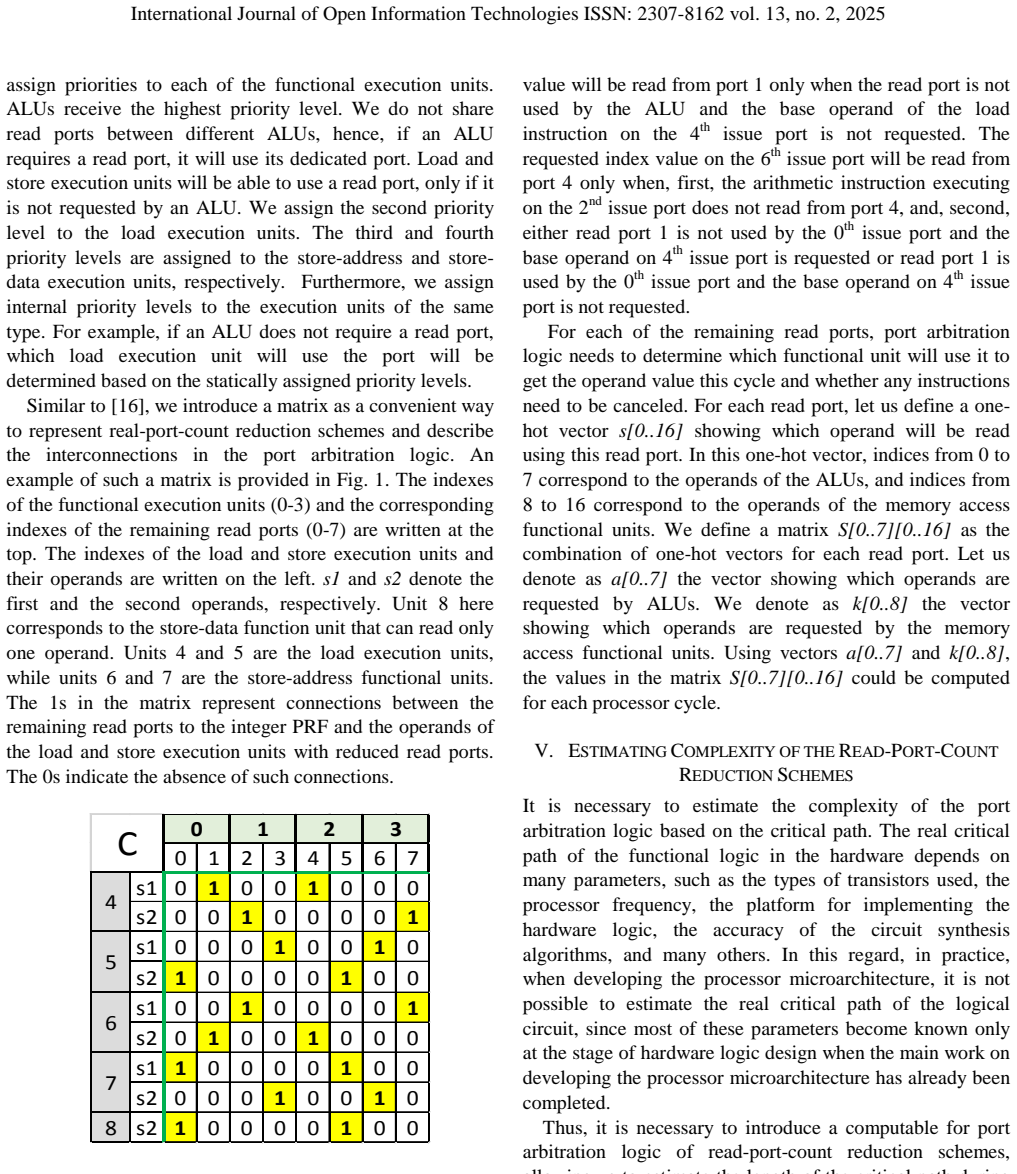

Figure 1. Example of the matrix representing the read-port￾count reduction scheme For example, for the scheme in [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

Discussion (0). Continue with ORCID to comment.

Reference graph

Works this paper leans on

33 extracted references · 31 canonical work pages

  1. [1]

    We introduce a practical high -level analysis method to estimate the complexity of read -port-count reduction schemes during the microarchitectural design

    work page

  2. [2]

    We introduce a subset of read -port-count reduction schemes called uniform symmetric schemes and show the benefits of utilizing such schemes

    work page

  3. [3]

    We propose a set of practical rules to construct efficient uniform symmetric read -port-count reduction schemes that minimize the number of conflicts for read ports. II. R ELATED WORK As we mentioned, there is a large scope of work dedicated to designing efficient CPU register files. A great survey on the relevant techniques has been conducted in [4]. In ...

    work page 2017

  4. [4]

    For each calculated element of the matrix S, construct a logical function

    work page

  5. [5]

    Using one of the minimization algorithms, construct the MCNF and MDNF for elements from S

    work page

  6. [6]

    Represent the MCNF and MDNF as binary trees and determine the depth of each of them

    work page

  7. [7]

    Select the minimum depth from the MCNF and MDNF representations. With the help of this proposed algorithm, it is possible to estimate the complexity of the port arbitration control logic of read-port-count reduction schemes and compare different schemes with each other. However, by itself, this metric does not give an absolute threshold value, the excess ...

    work page 2025

  8. [8]

    The union of masks yields a unit row vector of the size equal to the number of non-reduced available read ports

    work page

Show all 33 references
  1. [9]

    Note that in general, this does not mean geometric symmetry in the representation matrix of read-port-count reduction schemes

    The masks do not intersect with each other We will call read -port-count reduction schemes the masks of which satisfy the above conditions symmetric. Note that in general, this does not mean geometric symmetry in the representation matrix of read-port-count reduction schemes. ...

    2025

  2. [10]

    The base operand of load instruc tions and the index operand of STA instructions

  3. [11]

    The index operand of load instructions and the base operand of STA instructions

  4. [12]

    Thus, t he complete heuristic algorithm for constructing efficient uniform symmetric read -port-count reduction schemes consists of the following stages:

    The index operand of load instructions, the base operand of STA instructions, and the operand of STD instructions. Thus, t he complete heuristic algorithm for constructing efficient uniform symmetric read -port-count reduction schemes consists of the following stages:

  5. [13]

    Obtain the distribution of read port utilization for the operands of arithmetic instructions and operands of memory access instructions for the target workloads

  6. [14]

    According to the proposed rules, determine the set of scheme masks for a given number of functional connections

  7. [15]

    Using the proposed heuristic algorithm, uniform symmetric read -port-count reduction schemes were constructed for the number of functional connections 1, 2, and 4

    Based on the proposed distribution of operands by groups, match the found masks to t he operands of memory access instructions, minimizing the mathematical expectation of the number of conflicts for read ports. Using the proposed heuristic algorithm, uniform symmetric read -po...
