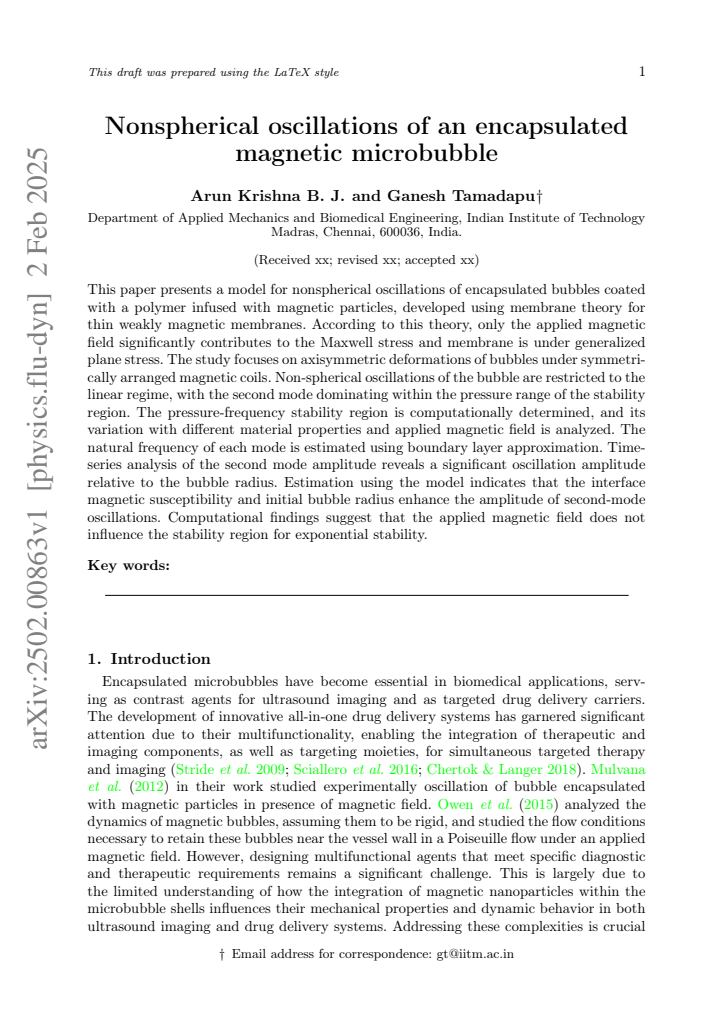

Nonspherical oscillations of an encapsulated magnetic microbubble

Arun Krishna B. J. , Ganesh Tamadapu This is my paper

Pith reviewed 2026-05-23 04:18 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn
keywords encapsulated magnetic microbubblesnonspherical oscillationsmembrane theorystability regionMaxwell stressaxisymmetric deformationspolymer coatingmagnetic particles
0
0 comments X

The pith

The applied magnetic field does not influence the stability region for encapsulated magnetic microbubbles.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a model for nonspherical oscillations of encapsulated magnetic microbubbles using membrane theory for thin weakly magnetic membranes. The model assumes generalized plane stress where only the applied magnetic field contributes to Maxwell stress. It computes the pressure-frequency stability region for axisymmetric linear oscillations and finds that the second mode dominates. Computational results indicate that varying the applied magnetic field does not change the stability region, although material properties and magnetic susceptibility do affect oscillation amplitudes. A reader would care if designing magnetic bubbles for applications where stability under magnetic influence is key.

Core claim

The study focuses on axisymmetric deformations under symmetrically arranged magnetic coils and restricts non-spherical oscillations to the linear regime. The pressure-frequency stability region is computationally determined and its variation with material properties and applied magnetic field is analyzed. The natural frequency of each mode is estimated using boundary layer approximation. Time-series analysis of the second mode amplitude reveals a significant oscillation amplitude relative to the bubble radius. Estimation indicates that the interface magnetic susceptibility and initial bubble radius enhance the amplitude of second-mode oscillations. Computational findings suggest that the 0.1

What carries the argument

Membrane theory for thin weakly magnetic membranes under generalized plane stress, with Maxwell stress contributed only by the applied magnetic field.

Load-bearing premise

The membrane is under generalized plane stress and only the applied magnetic field contributes to the Maxwell stress.

What would settle it

Observing whether the pressure-frequency stability boundaries change when an external magnetic field is applied in experiments with real encapsulated magnetic microbubbles.

Figures

Figures reproduced from arXiv: 2502.00863 by Arun Krishna B. J., Ganesh Tamadapu.

Figure 1
Figure 1. Figure 1: (a) Deformed and (b) undeformed configurations of a bubble surface. [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Two coils placed symmetrically about e1−e2 plane carrying currents in opposite direction as har = H2 r 2a (3 cos2 θ − 1), haθ = H2 r 2a (−3 sin θ cos θ). (2.32) In-spherical co-ordinates the magnetic forces become, F mag r = (µoχ∇ha · ha)r = µoχ  har ∂har ∂r + haθ r ∂har ∂θ − h 2 aθ r  = µoχ H2 2 r 4a 2 (3 cos2 θ + 1), F mag θ = (µoχ∇ha · ha)θ = µoχ  har ∂haθ ∂r + haθ r ∂haθ ∂θ + harhaθ r  = µoχ H2 2 r… view at source ↗
Figure 3
Figure 3. Figure 3: Convergence of stability diagram with number of modes and results of linear [PITH_FULL_IMAGE:figures/full_fig_p015_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: (a) Variation of natural frequency with mode numbers plot [PITH_FULL_IMAGE:figures/full_fig_p016_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: (a) Variation of natural frequency with mode numbers for shear modulus [PITH_FULL_IMAGE:figures/full_fig_p016_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Plots for an undeformed bubble radius R0 = 10 µm with different values of surface encapsulation shear modulus c1. (a) Variation of natural frequency with mode numbers. (b) Critical excitation pressure (ϵp) versus driving frequency (ωd) curves representing the stability boundaries. occurs because, in the absence of initial disturbances in the shape modes, the a2 mode is initially dominant. The amplitude of … view at source ↗
Figure 7
Figure 7. Figure 7: Variation of radial mode amplitude R(t) and second mode amplitude a2(t) with time for a bubble of initial radius R0 = 10 µm at various values of encapsulation susceptibility. The simulations are conducted at ωd = 1 MHz and ϵp = 0.5. contains c1 and R¨ contains −ϵp. So, lower pressure amplitude ϵp is enough to cause exponential blow up at higher c1. 5.2. Time-series of mode shapes Radial and shape oscillati… view at source ↗
Figure 8
Figure 8. Figure 8: Variation of radial mode amplitude R(t) and second mode amplitude a2(t) with time for a bubble encapsulation of susceptibility χ = 1 at different values of undeformed bubble radius R0. The simulations are conducted at ωd = 1 MHz and ϵp = 0.5. 5.2.1. Variation with magnetic susceptibility Simulations are conducted with the following parameters: R0 = 10 µm, c1 = 0.1 N m−1 , c2 = 0.12 N m−1 , N1 = 1000 turns,… view at source ↗
read the original abstract

This paper presents a model for nonspherical oscillations of encapsulated bubbles coated with a polymer infused with magnetic particles, developed using membrane theory for thin weakly magnetic membranes. According to this theory, only the applied magnetic field significantly contributes to the Maxwell stress and membrane is under generalized plane stress. The study focuses on axisymmetric deformations of bubbles under symmetrically arranged magnetic coils. Non-spherical oscillations of the bubble are restricted to the linear regime, with the second mode dominating within the pressure range of the stability region. The pressure-frequency stability region is computationally determined, and its variation with different material properties and applied magnetic field is analyzed. The natural frequency of each mode is estimated using boundary layer approximation. Time-series analysis of the second mode amplitude reveals a significant oscillation amplitude relative to the bubble radius. Estimation using the model indicates that the interface magnetic susceptibility and initial bubble radius enhance the amplitude of second-mode oscillations. Computational findings suggest that the applied magnetic field does not influence the stability region for exponential stability.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript develops a model for nonspherical linear oscillations of encapsulated magnetic microbubbles coated with polymer infused with magnetic particles, using membrane theory under generalized plane stress where only the applied magnetic field contributes to Maxwell stress. It restricts analysis to axisymmetric deformations and the linear regime (second mode dominant), computationally determines the pressure-frequency stability region for exponential stability via numerical continuation, estimates natural frequencies with a boundary-layer approximation, analyzes time series of second-mode amplitude, and reports that the applied magnetic field does not influence the stability region while interface magnetic susceptibility and initial bubble radius enhance oscillation amplitudes.

Significance. If the modeling assumptions and numerical results hold, the finding of magnetic-field independence for the stability region could be relevant for applications of magnetic microbubbles in fluid dynamics. The computational determination of stability boundaries and boundary-layer frequency estimates are positive technical elements, but the absence of shown derivations, error estimates, or validation against nonlinear simulations limits the strength of the contribution.

major comments (2)
  1. [Abstract] Abstract (computational findings paragraph): the conclusion that the applied magnetic field does not influence the stability region for exponential stability rests directly on the modeling choice that only the applied field enters the Maxwell stress under generalized plane stress; without a comparison to the full Maxwell stress (including particle-induced terms) or an alternative stress state, the eigenvalue problem for stability could shift and the reported independence is not shown to be robust.
  2. [Abstract] Abstract: central claims on the stability region, natural frequencies, and amplitude scaling lack any shown derivation steps, error estimates, or validation against full nonlinear simulations, so the accuracy of the numerical continuation and boundary-layer results cannot be assessed from the provided information.
minor comments (1)
  1. [Abstract] Abstract: grammatical phrasing 'and membrane is under generalized plane stress' should be 'and the membrane is under generalized plane stress'.

Simulated Author's Rebuttal

2 responses · 0 unresolved

Thank you for the opportunity to respond to the referee's report. We address the major comments point by point below, providing clarifications and indicating revisions where appropriate.

read point-by-point responses

  1. Referee: [Abstract] Abstract (computational findings paragraph): the conclusion that the applied magnetic field does not influence the stability region for exponential stability rests directly on the modeling choice that only the applied field enters the Maxwell stress under generalized plane stress; without a comparison to the full Maxwell stress (including particle-induced terms) or an alternative stress state, the eigenvalue problem for stability could shift and the reported independence is not shown to be robust.

    Authors: We thank the referee for highlighting this important point. The independence result is indeed tied to our modeling assumption, as stated in the manuscript, that under generalized plane stress for a thin weakly magnetic membrane, only the applied field contributes significantly to the Maxwell stress. This is based on the physical setup with symmetrically arranged coils and the membrane properties. To strengthen the presentation, we will revise the abstract and add a dedicated discussion section explaining the rationale for this approximation and acknowledging that a full Maxwell stress treatment (including induced fields from the particles) might alter the stability boundaries. This will make the scope of the claim clearer without changing the core analysis. revision: partial

  2. Referee: [Abstract] Abstract: central claims on the stability region, natural frequencies, and amplitude scaling lack any shown derivation steps, error estimates, or validation against full nonlinear simulations, so the accuracy of the numerical continuation and boundary-layer results cannot be assessed from the provided information.

    Authors: The derivations for the linear membrane model, the eigenvalue problem for stability via numerical continuation, and the boundary-layer approximation for natural frequencies are detailed in the methods and results sections of the full manuscript. However, we agree that the abstract could better indicate these. In revision, we will modify the abstract to briefly reference the numerical methods used and include a statement on the linear regime limitations. Error estimates for the boundary-layer approximation can be added in the text. Full validation against nonlinear simulations is beyond the scope of this linear analysis paper but will be noted as future work. revision: partial

Circularity Check

0 steps flagged

No circularity: stability region obtained by direct numerical continuation under explicit modeling assumptions.

full rationale

The paper states its core modeling choices (membrane theory under generalized plane stress with only applied field contributing to Maxwell stress) upfront and then computes the pressure-frequency stability region via numerical continuation of the linearized system. Natural frequencies are estimated separately via boundary-layer approximation. No quoted step shows a 'prediction' reducing to a fitted parameter by construction, no self-citation chain is load-bearing for the independence claim, and no ansatz is smuggled via prior work. The reported lack of magnetic-field influence on the stability region is therefore a computational output of the chosen equations rather than a definitional tautology.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The model rests on standard thin-shell assumptions plus two domain-specific choices whose independent support is not shown in the abstract.

free parameters (2)
  • interface magnetic susceptibility
    Fitted or chosen to match material; directly scales reported amplitude.
  • initial bubble radius
    Enters amplitude scaling; treated as a free geometric parameter.
axioms (2)
  • domain assumption Only the applied magnetic field contributes to Maxwell stress; internal fields neglected.
    Stated in the membrane-theory paragraph of the abstract.
  • domain assumption Deformations remain in the linear regime.
    Explicitly restricts analysis to linear oscillations.
