arxiv: 2502.05762 · v3 · submitted 2025-02-09 · 📡 eess.AS

Non-invasive electromyographic speech neuroprosthesis: a geometric perspective

Harshavardhana T. Gowda , Lee M. Miller This is my paper

Pith reviewed 2026-05-23 03:38 UTC · model grok-4.3

classification 📡 eess.AS
keywords electromyographysilent speechneuroprosthesissequence-to-sequencephonemic translationEMG-to-textnon-invasive interface
0
0 comments X

The pith

Surface EMG signals recorded during silent articulation translate directly to phonemic text sequences without audio data or time alignment.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a neuromuscular interface that records surface electromyographic signals from the face and neck while participants silently articulate speech. It introduces an efficient representation for these high-dimensional signals to support direct sequence-to-sequence mapping onto phonemic text output. This bypasses the audio targets and alignment steps used in earlier approaches. The method targets restoration of communication for individuals who can no longer produce intelligible speech. A geometric perspective shapes the signal representation chosen for the translation task.

Core claim

We propose an efficient representation of high-dimensional EMG signals and demonstrate direct sequence-to-sequence EMG-to-text conversion at the phonemic level without relying on time-aligned audio.

What carries the argument

Efficient representation of high-dimensional EMG signals enabling direct phonemic sequence-to-sequence translation from silent articulations.

If this is right

  • The interface can be trained and used without any audible speech or audio recordings.
  • Communication restoration becomes possible for laryngectomy, stroke, or neuromuscular patients who cannot vocalize.
  • Translation occurs directly at the phonemic level to produce text sequences.
  • Multiple surface sites on face and neck supply the necessary articulatory information.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The geometric framing may allow the representation to generalize across different speakers or recording conditions.
  • Real-time versions of the mapping could support conversational use rather than offline processing.
  • The same signal representation might extend to hybrid interfaces that combine EMG with other non-invasive recordings.

Load-bearing premise

Surface EMG signals from silent articulation contain enough information for accurate phoneme-level sequence translation without any audio reference or alignment.

What would settle it

A held-out test set of silent EMG recordings where the sequence-to-sequence model produces phoneme output no better than chance level.

Figures

Figures reproduced from arXiv: 2502.05762 by Harshavardhana T. Gowda, Lee M. Miller.

Figure 1
Figure 1. Figure 1: LEFT: EMG-to-phoneme translation pipeline. Bandpass-filtered and z-normalized EMG signals are converted into SPD edge matrices E(τ ), which are approximately diagonalized to σ(τ ) and passed through a BiGRU. The model outputs phoneme probabilities P(τ ) every 20 ms. The most probable phoneme sequence is decoded using beam search. RIGHT: Illustration of the geometry of SPD matrices in 3D. Edge matrices from… view at source ↗
Figure 2

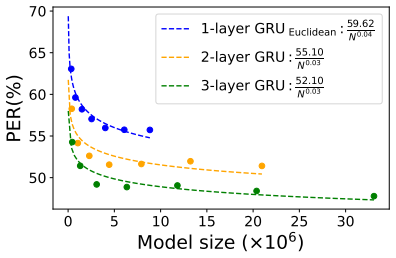

Figure 2. Figure 2: Model size versus PER for EMG-to-phoneme translation. [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: LEFT: Electrode placement on the left side of the neck. MIDDLE: Electrode placement on the right side of the neck. RIGHT: Electrode placement on the left cheek. signals: the surface EMG measurement arises from an additive superposition of motor unit action potentials, resulting in a structure that is naturally well-represented in an eigenbasis. This contrasts with modalities like speech, which are better m… view at source ↗
Figure 4
Figure 4. Figure 4: Results for individual subjects in EMG2QWERTY dataset. Each dot represents an individual test subject, with connecting lines indicating within-subject performance across different models. The boxplots summarize the median and interquartile range of the results. Our method improves performance for all subjects except USER6. 11 [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗
read the original abstract

We present a neuromuscular speech interface that translates silently voiced articulations directly into text. We record surface electromyographic (EMG) signals from multiple articulatory sites on the face and neck as participants silently articulate speech, enabling direct EMG-to-text translation. Such an interface has the potential to restore communication for individuals who have lost the ability to produce intelligible speech due to laryngectomy, neuromuscular disease, stroke, or trauma-induced damage (e.g., radiotherapy toxicity) to the speech articulators. Prior work has largely focused on mapping EMG collected during audible articulation to time-aligned audio targets or transferring these targets to silent EMG recordings, which inherently requires audio and limits applicability to patients who can no longer speak. In contrast, we propose an efficient representation of high-dimensional EMG signals and demonstrate direct sequence-to-sequence EMG-to-text conversion at the phonemic level without relying on time-aligned audio.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript proposes a neuromuscular speech interface that records surface EMG signals from multiple sites on the face and neck during silent articulation and translates them directly into phonemic text sequences via a sequence-to-sequence model. The key technical contribution is an efficient geometric representation of the high-dimensional EMG signals that enables this mapping without time-aligned audio or audible speech data, addressing limitations of prior work that relies on audio supervision.

Significance. If the empirical results hold, the work would be significant for assistive communication technologies, as it targets patient populations (e.g., post-laryngectomy) for whom audio-based supervision is impossible. The geometric framing of EMG representation is presented as the mechanism that makes direct phoneme-level seq2seq feasible from silent recordings alone.

minor comments (3)
  1. [Abstract] Abstract: the phrase 'efficient representation of high-dimensional EMG signals' is used without naming the geometric construction; a one-sentence definition or reference to the relevant section would improve immediate clarity.
  2. [Methods (assumed section describing the model)] The manuscript would benefit from an explicit statement of the loss function and decoding procedure used for the phoneme-level seq2seq model, as these details are central to reproducibility of the claimed direct mapping.
  3. [Figures] Figure captions and axis labels should be expanded to indicate whether EMG channels are raw, filtered, or already projected into the geometric representation.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary and significance assessment of our work, as well as the recommendation for minor revision. We note that the report contains no specific major comments requiring point-by-point response.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The manuscript presents an empirical pipeline for direct EMG-to-text sequence-to-sequence mapping at the phonemic level using silent articulations, with a geometric representation of high-dimensional signals as the enabling mechanism. No equations, derivations, fitted parameters renamed as predictions, or load-bearing self-citations appear in the provided abstract or described pipeline that reduce the central claim to its own inputs by construction. The approach is framed as a data-driven demonstration whose validity rests on external test performance rather than an internal mathematical loop, making the derivation self-contained against the stated assumptions.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no free parameters, axioms, or invented entities are identifiable from the provided text.

pith-pipeline@v0.9.0 · 5680 in / 952 out tokens · 26623 ms · 2026-05-23T03:38:03.655730+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

26 extracted references · 26 canonical work pages · 1 internal anchor

  1. [1]

    A high-performance speech neuroprosthesis.Nature, 620(7976):1031–1036, 2023

    Francis R Willett, Erin M Kunz, Chaofei Fan, Donald T Avansino, Guy H Wilson, Eun Young Choi, Foram Kamdar, Matthew F Glasser, Leigh R Hochberg, Shaul Druckmann, et al. A high-performance speech neuroprosthesis.Nature, 620(7976):1031–1036, 2023

    work page 2023

  2. [2]

    A high-performance neuroprosthesis for speech decoding and avatar control.Nature, 620(7976):1037–1046, 2023

    Sean L Metzger, Kaylo T Littlejohn, Alexander B Silva, David A Moses, Margaret P Seaton, Ran Wang, Maximilian E Dougherty, Jessie R Liu, Peter Wu, Michael A Berger, et al. A high-performance neuroprosthesis for speech decoding and avatar control.Nature, 620(7976):1037–1046, 2023

    work page 2023

  3. [3]

    Decoding speech perception from non-invasive brain recordings.Nature Machine Intelligence, 5(10):1097–1107, 2023

    Alexandre Défossez, Charlotte Caucheteux, Jérémy Rapin, Ori Kabeli, and Jean-Rémi King. Decoding speech perception from non-invasive brain recordings.Nature Machine Intelligence, 5(10):1097–1107, 2023

    work page 2023

  4. [4]

    Digital voicing of silent speech

    David Gaddy and Dan Klein. Digital voicing of silent speech. InProceedings of the 2020 Conference on Empirical Methods in Natural Language Processing (EMNLP), pages 5521–5530, 2020

    work page 2020

  5. [5]

    An improved model for voicing silent speech

    David Gaddy and Dan Klein. An improved model for voicing silent speech. InProceedings of the 59th Annual Meeting of the Association for Computational Linguistics and the 11th International Joint Conference on Natural Language Processing (V olume 2: Short Papers), pages 175–181, 2021

    work page 2021

  6. [6]

    Connectionist temporal classification: labelling unsegmented sequence data with recurrent neural networks

    Alex Graves, Santiago Fernández, Faustino Gomez, and Jürgen Schmidhuber. Connectionist temporal classification: labelling unsegmented sequence data with recurrent neural networks. InProceedings of the 23rd international conference on Machine learning, pages 369–376, 2006. 5

    work page 2006

  7. [7]

    Geometry of orofacial neuromuscu- lar signals: speech articulation decoding using surface electromyography.Journal of Neural Engineering, 2024

    Harshavardhana T Gowda, Zachary D McNaughton, and Lee M Miller. Geometry of orofacial neuromuscu- lar signals: speech articulation decoding using surface electromyography.Journal of Neural Engineering, 2024

    work page 2024

  8. [8]

    Towards continuous speech recognition using surface electromyography

    Szu-Chen Jou, Tanja Schultz, Matthias Walliczek, Florian Kraft, and Alex Waibel. Towards continuous speech recognition using surface electromyography. InNinth International Conference on Spoken Language Processing, 2006

    work page 2006

  9. [9]

    Non- invasive silent speech recognition in multiple sclerosis with dysphonia

    Arnav Kapur, Utkarsh Sarawgi, Eric Wadkins, Matthew Wu, Nora Hollenstein, and Pattie Maes. Non- invasive silent speech recognition in multiple sclerosis with dysphonia. InMachine Learning for Health Workshop, pages 25–38. PMLR, 2020

    work page 2020

  10. [10]

    Development of semg sensors and algorithms for silent speech recognition.Journal of neural engineering, 15(4):046031, 2018

    Geoffrey S Meltzner, James T Heaton, Yunbin Deng, Gianluca De Luca, Serge H Roy, and Joshua C Kline. Development of semg sensors and algorithms for silent speech recognition.Journal of neural engineering, 15(4):046031, 2018

    work page 2018

  11. [11]

    Toth, Michael Wand, and Tanja Schultz

    Arthur R. Toth, Michael Wand, and Tanja Schultz. Synthesizing speech from electromyography using voice transformation techniques. InInterspeech 2009, pages 652–655, 2009

    work page 2009

  12. [12]

    Emg-to-speech: Direct generation of speech from facial electromyo- graphic signals.IEEE/ACM Transactions on Audio, Speech, and Language Processing, 25(12):2375–2385, 2017

    Matthias Janke and Lorenz Diener. Emg-to-speech: Direct generation of speech from facial electromyo- graphic signals.IEEE/ACM Transactions on Audio, Speech, and Language Processing, 25(12):2375–2385, 2017

    work page 2017

  13. [13]

    Session-independent array-based emg-to- speech conversion using convolutional neural networks

    Lorenz Diener, Gerrit Felsch, Miguel Angrick, and Tanja Schultz. Session-independent array-based emg-to- speech conversion using convolutional neural networks. InSpeech Communication; 13th ITG-Symposium, pages 1–5, 2018

    work page 2018

  14. [14]

    Riemannian geometry of symmetric positive definite matrices via cholesky decomposition

    Zhenhua Lin. Riemannian geometry of symmetric positive definite matrices via cholesky decomposition. SIAM Journal on Matrix Analysis and Applications, 40(4):1353–1370, 2019

    work page 2019

  15. [15]

    Empirical Evaluation of Gated Recurrent Neural Networks on Sequence Modeling

    Junyoung Chung, Caglar Gulcehre, KyungHyun Cho, and Yoshua Bengio. Empirical evaluation of gated recurrent neural networks on sequence modeling.arXiv preprint arXiv:1412.3555, 2014

    work page internal anchor Pith review Pith/arXiv arXiv 2014

  16. [16]

    emg2qwerty: A large dataset with baselines for touch typing using surface electromyography

    Viswanath Sivakumar, Jeffrey Seely, Alan Du, Sean R Bittner, Adam Berenzweig, Anuoluwapo Bolarinwa, Alexandre Gramfort, and Michael I Mandel. emg2qwerty: A large dataset with baselines for touch typing using surface electromyography. InThe Thirty-eight Conference on Neural Information Processing Systems Datasets and Benchmarks Track, 2024

    work page 2024

  17. [17]

    Mehryar Mohri, Fernando C. N. Pereira, and Michael Riley. Speech recognition with weighted finite-state transducers. InHandbook on Speech Processing and Speech Communication, Part E: Speech recognition. 2008

    work page 2008

  18. [18]

    Training compute-optimal large language models

    Jordan Hoffmann, Sebastian Borgeaud, Arthur Mensch, Elena Buchatskaya, Trevor Cai, Eliza Rutherford, Diego de Las Casas, Lisa Anne Hendricks, Johannes Welbl, Aidan Clark, et al. Training compute-optimal large language models. InProceedings of the 36th International Conference on Neural Information Processing Systems, pages 30016–30030, 2022

    work page 2022

  19. [19]

    Topology of surface electromyogram signals: hand gesture decoding on riemannian manifolds.Journal of Neural Engineering, 2024

    Harshavardhana T Gowda and Lee M Miller. Topology of surface electromyogram signals: hand gesture decoding on riemannian manifolds.Journal of Neural Engineering, 2024

    work page 2024

  20. [20]

    Multiclass brain–computer interface classification by riemannian geometry.IEEE Transactions on Biomedical Engineering, 59(4):920– 928, 2011

    Alexandre Barachant, Stéphane Bonnet, Marco Congedo, and Christian Jutten. Multiclass brain–computer interface classification by riemannian geometry.IEEE Transactions on Biomedical Engineering, 59(4):920– 928, 2011

    work page 2011

  21. [21]

    Classification of covariance matrices using a riemannian-based kernel for bci applications.Neurocomput., 112:172–178, July 2013

    Alexandre Barachant, StéPhane Bonnet, Marco Congedo, and Christian Jutten. Classification of covariance matrices using a riemannian-based kernel for bci applications.Neurocomput., 112:172–178, July 2013

    work page 2013

  22. [22]

    Engemann.Manifold- regression to predict from MEG/EEG brain signals without source modeling

    David Sabbagh, Pierre Ablin, Gaël Varoquaux, Alexandre Gramfort, and Denis A. Engemann.Manifold- regression to predict from MEG/EEG brain signals without source modeling. Curran Associates Inc., Red Hook, NY , USA, 2019

    work page 2019

  23. [23]

    Librispeech: An asr corpus based on public domain audio books

    Vassil Panayotov, Guoguo Chen, Daniel Povey, and Sanjeev Khudanpur. Librispeech: An asr corpus based on public domain audio books. In2015 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), pages 5206–5210, 2015

    work page 2015

  24. [24]

    KenLM: Faster and smaller language model queries

    Kenneth Heafield. KenLM: Faster and smaller language model queries. In Chris Callison-Burch, Philipp Koehn, Christof Monz, and Omar F. Zaidan, editors,Proceedings of the Sixth Workshop on Statistical Machine Translation, pages 187–197, Edinburgh, Scotland, July 2011. Association for Computational Linguistics. 6 A Background on Riemannian geometry of SPD m...

    work page 2011

  25. [25]

    In the above equation, ⌊L(τ)⌋ is the strictly lower triangular part of the matrix L(τ), and D(L(τ)) is the diagonal part of the matrixL(τ)

    The Fréchet meanFon the manifold of SPD matrices is calculated as F=F CHOLESKY F T CHOLESKY . In the above equation, ⌊L(τ)⌋ is the strictly lower triangular part of the matrix L(τ), and D(L(τ)) is the diagonal part of the matrixL(τ). Previous work in [19] demonstrated the effectiveness of SPD matrices in decodingdiscretehand gestures from EMG signals coll...

    work page

  26. [26]

    was subtracted from all other EMG data channels. The resulting signals were then bandpass filtered using a third-order Butterworth filter between 80 and 1000 Hz and segmented according to sentence start and end times based on synchronized timestamps. The segmented sentences were subsequently z-normalized along the time dimension for each channel. The prep...

    work page
