Phylogenetic latent space models for network data
Pith reviewed 2026-05-23 02:55 UTC · model grok-4.3
The pith
Node latent features in network models are generated by a tree-parametrized branching Brownian motion, allowing Bayesian recovery of nested modular hierarchies.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
We pursue this direction by bridging latent variable representations of network data with concepts from phylogenetic inference to design a novel latent space model that explicitly characterizes the generative process of the node feature vectors through a branching Brownian motion, with branching structure parametrized by a tree. This tree constitutes the main object of interest and is learned under a Bayesian perspective leveraging priors inherited from phylogenetic literature to infer tree-based modular hierarchies across nodes, which explain heterogeneous multiscale patterns in the network. Identifiability results are derived along with posterior consistency theory.
What carries the argument
The phylogenetic tree that parametrizes the branching structure of the Brownian motion generating the node feature vectors.
If this is right
- The inferred tree supplies an explicit generative hierarchy that accounts for heterogeneous multiscale patterns across the network.
- Borrowing of information occurs across node features according to their positions on the shared tree, improving estimation when nodes share deep branches.
- The model yields identifiable parameters and posterior consistency guarantees for the tree under the stated generative assumptions.

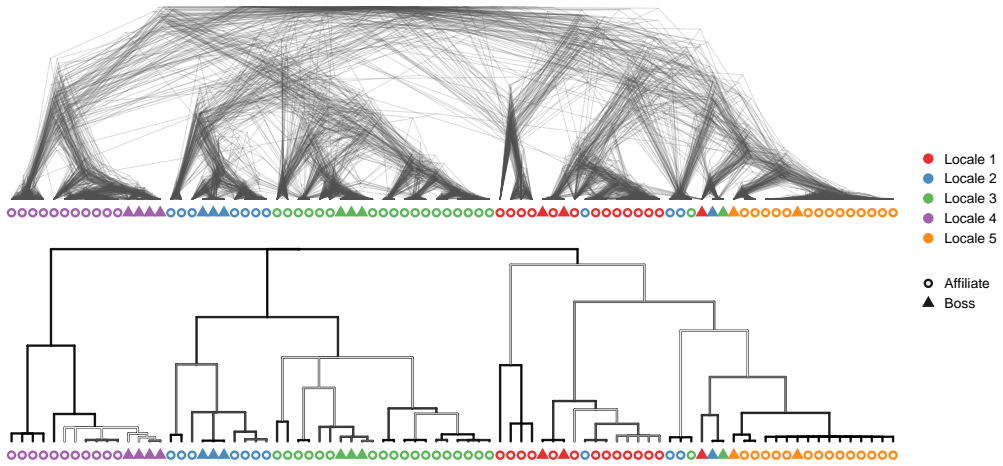

- Applications recover core modular structures in criminology and neuroscience networks that remain hidden to standard latent space alternatives.
Where Pith is reading between the lines
- The same tree representation could be used to predict missing links by propagating similarity along shared branches rather than through independent embeddings.
- Extensions to other branching processes on trees might capture different patterns of dependence without changing the overall hierarchical inference strategy.
- The approach offers a route to hierarchical community detection that is generative rather than post-hoc clustering of embeddings.
Load-bearing premise
Node feature vectors are generated through a branching Brownian motion whose branching structure is parametrized by a tree.
What would settle it

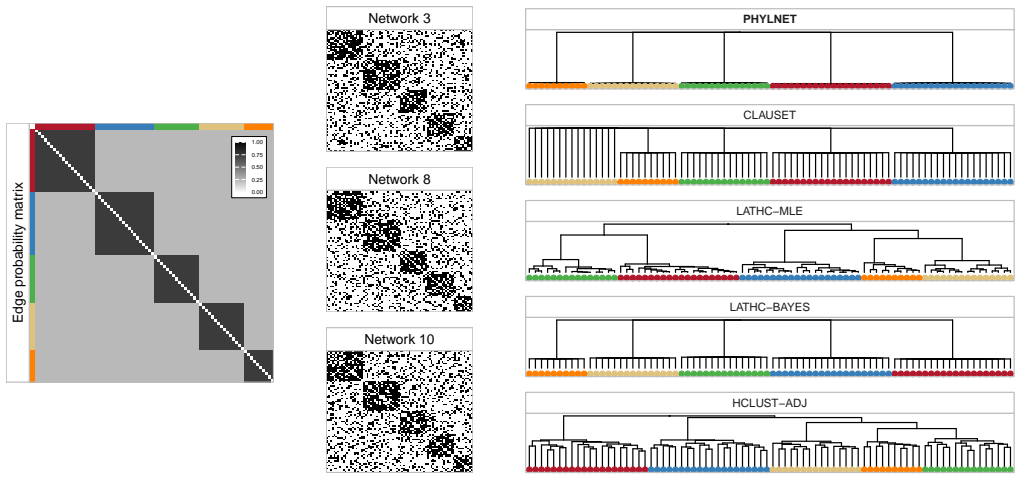

Simulations in which the true generative process is a branching Brownian motion on a known tree but the posterior on the tree fails to concentrate around the true structure as sample size grows, or real-data fits in which the inferred tree yields no improvement in held-out edge prediction over a standard latent space model without tree structure.
Figures

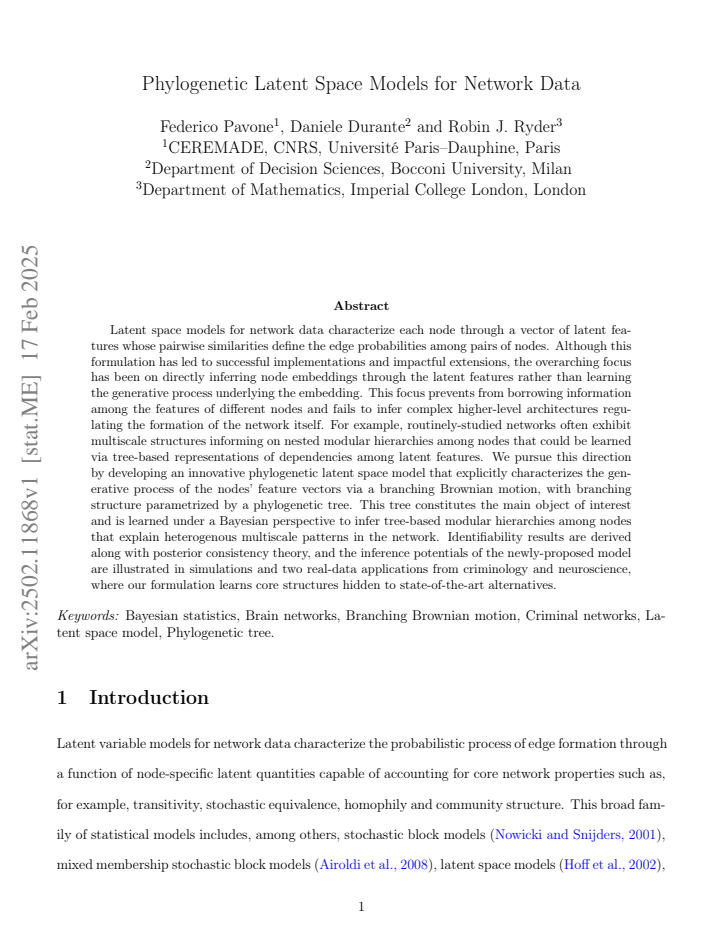

read the original abstract
Latent space models for network data characterize each node through a vector of latent features whose pairwise similarities define the edge probabilities among the pairs of nodes. Although this formulation has led to successful implementations, the overarching focus has been on directly inferring node embeddings through the latent features, rather than learning the generative process underlying these embeddings. This focus prevents borrowing information across the node features and limits the ability to infer higher-level architectures governing network formation. For example, routinely-studied networks often exhibit multiscale structures informing on nested modular hierarchies among nodes, which could be learned via tree-based representations of dependencies among the latent features. We pursue this direction by bridging latent variable representations of network data with concepts from phylogenetic inference to design a novel latent space model that explicitly characterizes the generative process of the node feature vectors through a branching Brownian motion, with branching structure parametrized by a tree. This tree constitutes the main object of interest and is learned under a Bayesian perspective leveraging priors inherited from phylogenetic literature to infer tree-based modular hierarchies across nodes, which explain heterogeneous multiscale patterns in the network. Identifiability results are derived along with posterior consistency theory. The inference potentials of our model are illustrated in simulations and two real-data applications from criminology and neuroscience, where our formulation learns core structures hidden to state-of-the-art alternatives.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper introduces a latent space model for networks in which node feature vectors are generated by a branching Brownian motion whose branching structure is parametrized by a tree. The tree is the central inferential target and is learned in a Bayesian framework that imports priors from the phylogenetic literature in order to recover multiscale modular hierarchies. The manuscript asserts that identifiability results and posterior consistency theory have been derived for this model and illustrates the approach on simulations together with criminology and neuroscience data sets.
Significance. If the claimed identifiability and consistency results hold under the stated generative model, the work would supply a principled route to inferring hierarchical structure in networks that standard latent-space formulations do not target. The explicit use of phylogenetic priors and the focus on the tree as the primary object of inference constitute a distinctive methodological bridge between network analysis and phylogenetic statistics, with potential applicability in domains that exhibit nested modular organization.
major comments (1)
- [Abstract] Abstract: the manuscript asserts that identifiability results and posterior consistency theory have been derived, yet the specific assumptions, the derivation steps, any lemmas or theorems, and the precise conditions under which these results hold are not visible in the provided text. Because these theoretical claims are load-bearing for the central contribution, their absence prevents verification of the soundness of the model.
Simulated Author's Rebuttal
We thank the referee for highlighting the need for greater visibility of the theoretical results. We address this point directly below and will revise the manuscript accordingly.
read point-by-point responses
-
Referee: [Abstract] Abstract: the manuscript asserts that identifiability results and posterior consistency theory have been derived, yet the specific assumptions, the derivation steps, any lemmas or theorems, and the precise conditions under which these results hold are not visible in the provided text. Because these theoretical claims are load-bearing for the central contribution, their absence prevents verification of the soundness of the model.
Authors: We agree that the abstract states the existence of these results at a high level without enumerating assumptions or theorem statements. The full manuscript contains a dedicated theoretical development: Section 3 states the model assumptions (including the branching Brownian motion covariance structure, fixed embedding dimension, and the tree prior), Lemma 1 establishes identifiability of the tree topology and branch lengths from the observed network, and Theorem 2 proves posterior consistency under the stated prior and likelihood. The proofs appear in the supplement. To make these results immediately verifiable from the main text, we will (i) expand the abstract to reference the key conditions, (ii) insert a concise statement of the main theorem in the introduction, and (iii) move the lemma and theorem statements from the supplement into the main body where space permits. These changes will be implemented in the revision. revision: yes
Circularity Check
No significant circularity detected
full rationale
The paper proposes a new generative model in which node features arise from a branching Brownian motion whose tree structure is the primary inferential target, with identifiability and posterior consistency derived directly from that model and standard Bayesian phylogenetic priors. No equation or claim reduces by construction to a fitted parameter from the same data, no uniqueness result is imported solely via self-citation, and the central derivation chain remains independent of the target quantities. The analysis is therefore self-contained.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Node feature vectors arise from a branching Brownian motion whose branching structure is a tree
Reference graph
Works this paper leans on
-
[1]
, " * write output.state after.block = add.period write newline
ENTRY address author booktitle chapter edition editor howpublished institution journal key month note number organization pages publisher school series title type volume year label extra.label sort.label short.list INTEGERS output.state before.all mid.sentence after.sentence after.block FUNCTION init.state.consts #0 'before.all := #1 'mid.sentence := #2 '...
-
[2]
" write newline "" before.all 'output.state := FUNCTION n.dashify 't := "" t empty not t #1 #1 substring "-" = t #1 #2 substring "--" = not "--" * t #2 global.max substring 't := t #1 #1 substring "-" = "-" * t #2 global.max substring 't := while if t #1 #1 substring * t #2 global.max substring 't := if while FUNCTION word.in bbl.in " " * FUNCTION format....
-
[3]
@esa ( ) , n @biblabelnum##1 ##1
\@ifclassloaded aguplus natbib The aguplus class already includes natbib coding, so you should not add it explicitly Type <Return> for now, but then later remove the command natbib from the document \@ifclassloaded nlinproc natbib The nlinproc class already includes natbib coding, so you should not add it explicitly Type <Return> for now, but then later r...
-
[4]
@stdbsttrue NAT@ctr \@lbibitem[ NAT@ctr ] \@lbibitem[#1]#2 \@ifundefined b@#2\@extra@b@citeb @num @parse #2 [ @natanchorstart #2 \@biblabel @num @natanchorend] @ifcmd#1()()\@nil #2 @lbibitem\@undefined @lbibitem\@lbibitem \@lbibitem[#1]#2 @lbibitem[#1] #2 @ @@label #2 @stdbst @stdbstfalse @stdbst @filesw \@auxout @numberstrue [2] \@ifundefined b@#1\@extra...
-
[5]
@open @close @open @close and [1] URL: #1 \@ifundefined chapter * \@mkboth \@ifundefined NAT@sectionbib * \@mkboth * \@mkboth\@gobbletwo \@ifclassloaded amsart * \@ifclassloaded amsbook * \@ifundefined bib@heading @heading NAT@ctr thebibliography [1] @ \@biblabel NAT@ctr \@bibsetup #1 NAT@ctr 0 @openbib .11em \@plus.33em \@minus.07em 4000 4000 `\.=1000 \@...
-
[6]
M., Blei, D., Fienberg, S., and Xing, E
Airoldi, E. M., Blei, D., Fienberg, S., and Xing, E. (2008), Mixed membership stochastic blockmodels, Journal of Machine Learning Research, 9, 1981--2014
work page 2008
-
[7]
Aldous, D. J. (2001), Stochastic models and descriptive statistics for phylogenetic trees, from Yule to today , Statistical Science, 16, 23--34
work page 2001
-
[8]
(2008), A tutorial on adaptive MCMC , Statistics and Computing, 18, 343--373
Andrieu, C., and Thoms, J. (2008), A tutorial on adaptive MCMC , Statistics and Computing, 18, 343--373
work page 2008
-
[9]
Arroyo, J., Athreya, A., Cape, J., Chen, G., Priebe, C. E., and Vogelstein, J. T. (2021), Inference for multiple heterogeneous networks with a common invariant subspace, Journal of Machine Learning Research, 22, 6303--6351
work page 2021
-
[10]
Athreya, A., Fishkind, D. E., Tang, M., Priebe, C. E., Park, Y., Vogelstein, J. T., Levin, K., Lyzinski, V., Qin, Y., and Sussman, D. L. (2018), Statistical inference on random dot product graphs: a survey, Journal of Machine Learning Research, 18, 1--92
work page 2018
-
[11]
Betzel, R. F., and Bassett, D. S. (2017), Multi-scale brain networks, Neuroimage, 160, 73--83
work page 2017
-
[12]
(2010), The human parahippocampal region: I
Blaizot, X., Mansilla, F., Insausti, A., Constans, J., Salinas-Alaman, A., Pro-Sistiaga, P., Mohedano-Moriano, A., and Insausti, R. (2010), The human parahippocampal region: I. Temporal pole cytoarchitectonic and MRI correlation, Cerebral Cortex, 20, 2198--2212
work page 2010
-
[13]
B \"o cker, S., Canzar, S., and Klau, G. W. (2013), The generalized Robinson-Foulds metric , in Algorithms in Bioinformatics: 13th International Workshop, WABI 2013, Sophia Antipolis, France, September 2-4, 2013. Proceedings 13, Springer, pp. 156--169
work page 2013
-
[14]
Borgatti, S. P., Everett, M. G., and Shirey, P. R. (1990), LS sets, lambda sets and other cohesive subsets, Social Networks, 12, 337--357
work page 1990
-
[15]
Borgs, C., Chayes, J. T., Cohn, H., and Holden, N. (2018), Sparse exchangeable graphs and their limits via graphon processes, Journal of Machine Learning Research, 18, 1--71
work page 2018
-
[16]
Bouckaert, R. R. (2010), DensiTree: Making sense of sets of phylogenetic trees , Bioinformatics, 26, 1372--1373
work page 2010
-
[17]
Bright, D., Brewer, R., and Morselli, C. (2022), Using social network analysis to study crime: Navigating the challenges of criminal justice records, Social Networks, 69, 235--250
work page 2022
-
[18]
D., Kopp, E., Pellard, T., Ryder, R
Buckley, C. D., Kopp, E., Pellard, T., Ryder, R. J., and Jacques, G. (2025), Contrasting modes of cultural evolution: Kra-Dai languages and weaving technologies, https://osf.io/preprints/osf/8pz67\_v1
work page 2025
-
[19]
Bullmore, E., and Sporns, O. (2009), Complex brain networks: Graph theoretical analysis of structural and functional systems , Nature Reviews Neuroscience, 10, 186--198
work page 2009
-
[20]
Bullmore, E.--- (2012), The economy of brain network organization, Nature Reviews Neuroscience, 13, 336--349
work page 2012
-
[21]
(2017), Communities in criminal networks: A case study, Social Networks, 48, 116--125
Calderoni, F., Brunetto, D., and Piccardi, C. (2017), Communities in criminal networks: A case study, Social Networks, 48, 116--125
work page 2017
-
[22]
Campana, P., and Varese, F. (2022), Studying organized crime networks: Data sources, boundaries and the limits of structural measures, Social Networks, 69, 149--159
work page 2022
-
[23]
Caron, F., and Fox, E. B. (2017), Sparse graphs using exchangeable random measures, Journal of the Royal Statistical Society Series B: Statistical Methodology, 79, 1295--1366
work page 2017
-
[24]
Catino, M. (2014), How Do Mafias Organize?: Conflict and Violence in Three Mafia Organizations, European Journal of Sociology/Archives Europ \'e ennes de Sociologie , 55, 177--220
work page 2014
-
[25]
Chen, M.-H., Kuo, L., and Lewis, P. O. (2014), Bayesian Phylogenetics: Methods, Algorithms, and Applications , CRC Press
work page 2014
-
[26]
Clauset, A., Moore, C., and Newman, M. E. (2008), Hierarchical structure and the prediction of missing links in networks, Nature, 453, 98--101
work page 2008
-
[27]
A., Divi \'a k, T., Bright, D., and Koskinen, J
Coutinho, J. A., Divi \'a k, T., Bright, D., and Koskinen, J. (2020), Multilevel determinants of collaboration between organised criminal groups, Social Networks, 63, 56--69
work page 2020
-
[28]
C., Jbabdi, S., Yan, C.-G., Vogelstein, J
Craddock, R. C., Jbabdi, S., Yan, C.-G., Vogelstein, J. T., Castellanos, F. X., Di Martino, A., Kelly, C., Heberlein, K., Colcombe, S., and Milham, M. P. (2013), Imaging human connectomes at the macroscale, Nature Methods, 10, 524--539
work page 2013
-
[29]
S., S \'e gonne, F., Fischl, B., Quinn, B
Desikan, R. S., S \'e gonne, F., Fischl, B., Quinn, B. T., Dickerson, B. C., Blacker, D., Buckner, R. L., Dale, A. M., Maguire, R. P., Hyman, B. T. et al. (2006), An automated labeling system for subdividing the human cerebral cortex on MRI scans into gyral based regions of interest , NeuroImage, 31, 968--980
work page 2006
-
[30]
Divi \'a k, T. (2022), Key aspects of covert networks data collection: Problems, challenges, and opportunities, Social Networks, 69, 160--169
work page 2022
-
[31]
Doob, J. L. (1949), Application of the theory of martingales, Le Calcul Des Probabilit\'es et Ses Applications , 23--27
work page 1949
-
[32]
Durante, D., and Dunson, D. B. (2014), Nonparametric Bayes dynamic modelling of relational data , Biometrika, 101, 883--898
work page 2014
-
[33]
Durante, D., Dunson, D. B., and Vogelstein, J. T. (2017), Nonparametric Bayes modeling of populations of networks , Journal of the American Statistical Association, 112, 1516--1530
work page 2017
-
[34]
Eastman, J. M., Alfaro, M. E., Joyce, P., Hipp, A. L., and Harmon, L. J. (2011), A novel comparative method for identifying shifts in the rate of character evolution on trees, Evolution, 65, 3578--3589
work page 2011
-
[35]
Esfahlani, F. Z., Jo, Y., Puxeddu, M. G., Merritt, H., Tanner, J. C., Greenwell, S., Patel, R., Faskowitz, J., and Betzel, R. F. (2021), Modularity maximization as a flexible and generic framework for brain network exploratory analysis, Neuroimage, 244, 118607
work page 2021
-
[36]
Evans, C. L., Greenhill, S. J., Watts, J., List, J.-M., Botero, C. A., Gray, R. D., and Kirby, K. R. (2021), The uses and abuses of tree thinking in cultural evolution, Philosophical Transactions of the Royal Society B, 376, 20200056
work page 2021
-
[37]
Felsenstein, J. (1981), Evolutionary trees from DNA sequences: A maximum likelihood approach , Journal of Molecular Evolution, 17, 368--376
work page 1981
-
[38]
--- (1985), Phylogenies and the comparative method, The American Naturalist, 125, 1--15
work page 1985
-
[39]
2, Sinauer Associates Sunderland, MA
--- (2004), Inferring Phylogenies , vol. 2, Sinauer Associates Sunderland, MA
work page 2004
-
[40]
Fosdick, B. K., McCormick, T. H., Murphy, T. B., Ng, T. L. J., and Westling, T. (2019), Multiresolution network models, Journal of Computational and Graphical Statistics, 28, 185--196
work page 2019
-
[41]
Freeman, L. C. (1992), The sociological concept of "group": An empirical test of two models, American Journal of Sociology, 98, 152--166
work page 1992
-
[42]
Fruchterman, T. M., and Reingold, E. M. (1991), Graph drawing by force-directed placement, Software: Practice and Experience, 21, 1129--1164
work page 1991
-
[43]
(2017), Fundamentals of Nonparametric Bayesian Inference, vol
Ghosal, S., and Van der Vaart, A. (2017), Fundamentals of Nonparametric Bayesian Inference, vol. 44, Cambridge University Press
work page 2017
-
[44]
Gollini, I., and Murphy, T. B. (2016), Joint modeling of multiple network views, Journal of Computational and Graphical Statistics, 25, 246--265
work page 2016
-
[45]
Gosztolai, A., and Arnaudon, A. (2021), Unfolding the multiscale structure of networks with dynamical Ollivier-Ricci curvature, Nature Communications, 12, 4561
work page 2021
-
[46]
Handcock, M. S., Raftery, A. E., and Tantrum, J. M. (2007), Model-based clustering for social networks, Journal of the Royal Statistical Society: Series A (Statistics in Society), 170, 301--354
work page 2007
-
[47]
Harris, T. E. (1963), The Theory of Branching Processes, vol. 6, Springer Berlin
work page 1963
-
[48]
L., Wells, J., Liu, W.-M., and Tarazaga, P
Hayden, T. L., Wells, J., Liu, W.-M., and Tarazaga, P. (1991), The cone of distance matrices, Linear Algebra and its Applications, 144, 153--169
work page 1991
-
[49]
Herlau, T., M rup, M., Schmidt, M. N., and Hansen, L. K. (2012), Detecting hierarchical structure in networks, in Proceedings of Cognitive Information Processing (CIP), pp. 1--6
work page 2012
-
[50]
Hillis, D. M., Huelsenbeck, J. P., and Swofford, D. L. (1994), Hobgoblin of phylogenetics? Nature, 369, 363--364
work page 1994
-
[51]
Hoff, P. D., Raftery, A. E., and Handcock, M. S. (2002), Latent space approaches to social network analysis, Journal of the American Statistical Association, 97, 1090--1098
work page 2002
-
[52]
Hoffmann, K., Bouckaert, R., Greenhill, S. J., and K \"u hnert, D. (2021), Bayesian phylogenetic analysis of linguistic data using BEAST, Journal of Language Evolution, 6, 119--135
work page 2021
- [53]
-
[54]
Kelly, L. J., Ryder, R. J., and Clart \'e , G. (2023), Lagged couplings diagnose Markov chain Monte Carlo phylogenetic inference , The Annals of Applied Statistics, 17, 1419--1443
work page 2023
-
[55]
Kiar, G., Bridgeford, E. W., Roncai, W. R. G., for Reliability, C., (CoRR), R., Chandrashekhar, V., Mhembere, D., Ryman, S., Zuo, X.-N., Margulies, D. S., Craddock, R. C. et al. (2017), A high-throughput pipeline identifies robust connectomes but troublesome variability, Biorxiv, 188706
work page 2017
-
[56]
(2010), Hyperbolic geometry of complex networks, Physical Review E, 82, 036106
Krioukov, D., Papadopoulos, F., Kitsak, M., Vahdat, A., and Bogu\ n \'a , M. (2010), Hyperbolic geometry of complex networks, Physical Review E, 82, 036106
work page 2010
-
[57]
Krivitsky, P. N., and Handcock, M. S. (2008), Fitting position latent cluster models for social networks with latentnet, Journal of Statistical Software, 24
work page 2008
-
[58]
Krivitsky, P. N., Handcock, M. S., Raftery, A. E., and Hoff, P. D. (2009), Representing degree distributions, clustering, and homophily in social networks with latent cluster random effects models, Social Networks, 31, 204--213
work page 2009
-
[59]
Kuhner, M. K., and Felsenstein, J. (1994), A simulation comparison of phylogeny algorithms under equal and unequal evolutionary rates. Molecular Biology and Evolution, 11, 459--468
work page 1994
-
[60]
Legramanti, S., Rigon, T., Durante, D., and Dunson, D. B. (2022), Extended stochastic block models with application to criminal networks, The Annals of Applied Statistics, 16, 2369--2395
work page 2022
-
[61]
Lu, C., Durante, D., and Friel, N. (2025), Zero-inflated stochastic block modeling of efficiency-security tradeoffs in weighted criminal networks, Journal of the Royal Statistical Society Series A: Statistics in Society, In Press
work page 2025
-
[62]
Lubold, S., Chandrasekhar, A. G., and McCormick, T. H. (2023), Identifying the latent space geometry of network models through analysis of curvature, Journal of the Royal Statistical Society Series B: Statistical Methodology, 85, 240--292
work page 2023
-
[63]
MacDonald, P. W., Levina, E., and Zhu, J. (2022), Latent space models for multiplex networks with shared structure, Biometrika, 109, 683--706
work page 2022
-
[64]
(2013), Euclidean embeddings of finite metric spaces, Discrete Mathematics, 313, 2848--2856
Maehara, H. (2013), Euclidean embeddings of finite metric spaces, Discrete Mathematics, 313, 2848--2856
work page 2013
-
[65]
May, M. R., and Moore, B. R. (2020), A Bayesian approach for inferring the impact of a discrete character on rates of continuous-character evolution in the presence of background-rate variation, Systematic Biology, 69, 530--544
work page 2020
-
[66]
Meunier, D., Lambiotte, R., and Bullmore, E. T. (2010), Modular and hierarchically modular organization of brain networks, Frontiers in Neuroscience, 4, 200
work page 2010
-
[67]
Nowicki, K., and Snijders, T. A. B. (2001), Estimation and prediction for stochastic blockstructures, Journal of the American Statistical Association, 96, 1077--1087
work page 2001
-
[68]
Paoli, L. (2007), Mafia and organised crime in Italy: the unacknowledged successes of law enforcement, West European Politics, 30, 854--880
work page 2007
-
[69]
(2003), Hierarchical organization in complex networks, Physical Review E, 67, 026112
Ravasz, E., and Barab \'a si, A.-L. (2003), Hierarchical organization in complex networks, Physical Review E, 67, 026112
work page 2003
-
[70]
Ross, S. M. (2014), Introduction to Probability Models, Academic Press
work page 2014
-
[71]
M., Kemp, C., Mansinghka, V., and Tenenbaum, J
Roy, D. M., Kemp, C., Mansinghka, V., and Tenenbaum, J. (2006), Learning annotated hierarchies from relational data, Advances in Neural Information Processing Systems (NeurIPS), 19
work page 2006
-
[72]
Roy, D. M., and Teh, Y. (2008), The Mondrian process , Advances in Neural Information Processing Systems (NeurIPS), 21
work page 2008
-
[73]
Rubinov, M., and Sporns, O. (2010), Complex network measures of brain connectivity: uses and interpretations, Neuroimage, 52, 1059--1069
work page 2010
-
[74]
Ryder, R. J. (2025), Bayesian Methods in Historical Linguistics: a Workflow, Proceedings of the COMPAS 2024 conference
work page 2025
-
[75]
Salter-Townshend, M., and McCormick, T. H. (2017), Latent space models for multiview network data, The Annals of Applied Statistics, 11, 1217
work page 2017
-
[76]
Sarkar, P., and Moore, A. W. (2006), Dynamic social network analysis using latent space models, Advances in Neural Information Processing Systems (NeurIPS), 18, 1145
work page 2006
-
[77]
Schoenberg, I. J. (1935), Remarks to Maurice Fr\'eechet's article ``Sur la d\'efinition axiomatique d'une classe d'espace distances vectoriellement applicable sur l'espace de Hilbert'' , Annals of Mathematics, 724--732
work page 1935
-
[78]
--- (1937), On certain metric spaces arising from Euclidean spaces by a change of metric and their imbedding in Hilbert space , Annals of Mathematics, 38, 787--793
work page 1937
-
[79]
Schweinberger, M., and Snijders, T. A. (2003), Settings in social networks: A measurement model , Sociological Methodology, 33, 307--341
work page 2003
-
[80]
Sewell, D. K., and Chen, Y. (2015), Latent space models for dynamic networks, Journal of the American Statistical Association, 110, 1646--1657
work page 2015
