Partial Orders for Precise and Efficient Dynamic Deadlock Prediction

Bas van den Heuvel , Martin Sulzmann , Peter Thiemann This is my paper

Pith reviewed 2026-05-23 02:45 UTC · model grok-4.3

classification 💻 cs.PL
keywords deadlock predictionpartial ordersdynamic analysisconcurrent programslock acquisitionssoundnesscompletenessexecution traces
0
0 comments X

The pith

A new partial order on lock acquisitions from one trace predicts deadlocks without false positives.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Standard dynamic deadlock detection from a single execution trace flags many cyclic lock patterns that can never occur under any scheduler. The paper defines the TRW partial order over lock acquisitions to filter those infeasible patterns: only unordered acquisitions that are not preceded by other deadlock patterns count as real deadlocks. It proves this TRW order is sound, meaning every reported deadlock is feasible. A slightly weakened variant is also complete, catching every possible deadlock. Both orders are computed directly from the trace in linear time and match on all deadlocks found across a large benchmark suite.

Core claim

Lock acquisitions must be unordered under the TRW partial order and must not be preceded by other deadlock patterns in order to identify true deadlocks. The TRW partial order is sound: it never reports a deadlock that cannot manifest. A weakened variant of TRW is complete: it misses no deadlocks. Both partial orders are derived from a single trace and run efficiently.

What carries the argument

The TRW partial order, which imposes ordering constraints on lock acquisitions observed in one execution trace to separate feasible from infeasible interleavings.

If this is right

  • Dynamic deadlock detectors can report only feasible deadlocks without requiring multiple traces or exhaustive search.
  • The same deadlocks are reported as prior methods, but with a soundness guarantee instead of possible false alarms.
  • The weakened TRW variant guarantees completeness while remaining efficient to compute from the trace.
  • Reporting the same deadlocks on benchmarks shows the partial-order filter preserves detection power in practice.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same trace-derived ordering technique might apply to predicting other schedule-dependent bugs such as atomicity violations.
  • Runtime monitors could use the TRW order on the fly to avoid schedules that would realize predicted deadlocks.
  • The method's reliance on a single trace leaves open whether certain classes of programs require multiple traces to expose all ordering constraints.

Load-bearing premise

A single execution trace contains enough ordering information to derive a partial order that correctly separates lock acquisitions that any scheduler can produce from those it cannot.

What would settle it

An execution trace from a program that contains a deadlock under some schedule, yet the TRW order on that trace reports no deadlock or reports one that never occurs.

Figures

Figures reproduced from arXiv: 2502.20070 by Bas van den Heuvel, Martin Sulzmann, Peter Thiemann.

Figure 1

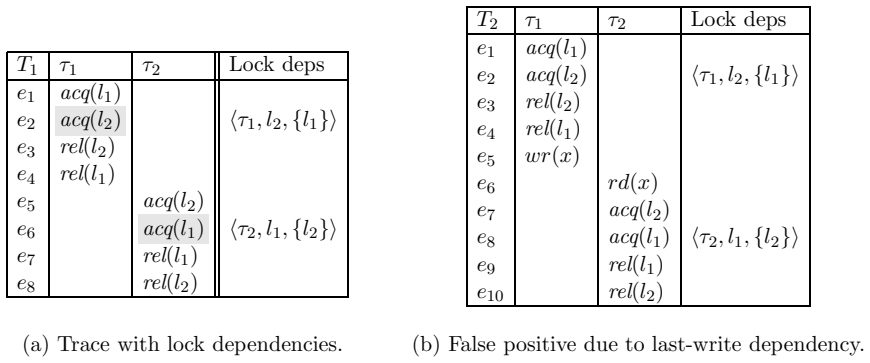

Figure 1. Figure 1: Traces with potential deadlocks. [DP-Cycle] The acquired lock l2 of the first dependency is in the lockset {l2} of the second dependency, and the acquired lock l1 of the second dependency is in the lockset {l1} of the first dependency. [DP-Guard] The underlying locksets {l1} and {l2} are disjoint. Condition [DP-Guard] ensures that the deadlocked situation shown by the reordered pre￾fix [e1, e5] can be reac… view at source ↗
Figure 2

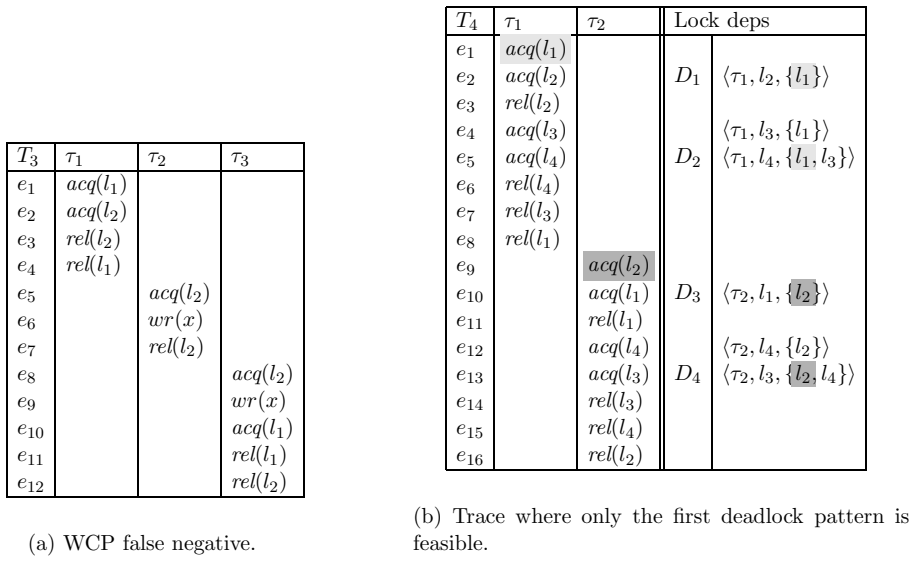

Figure 2. Figure 2: Partial orders for deadlock prediction. program trace. Ideally, this partial order captures the inter-event dependencies imposed be the trace and its semantics, making it possible to reason about correctly reordered traces without exploring all possible interleavings. This way, e.g., a partial order may order a read after its last write, or order the events within the same thread. Unordered events are then… view at source ↗
Figure 3

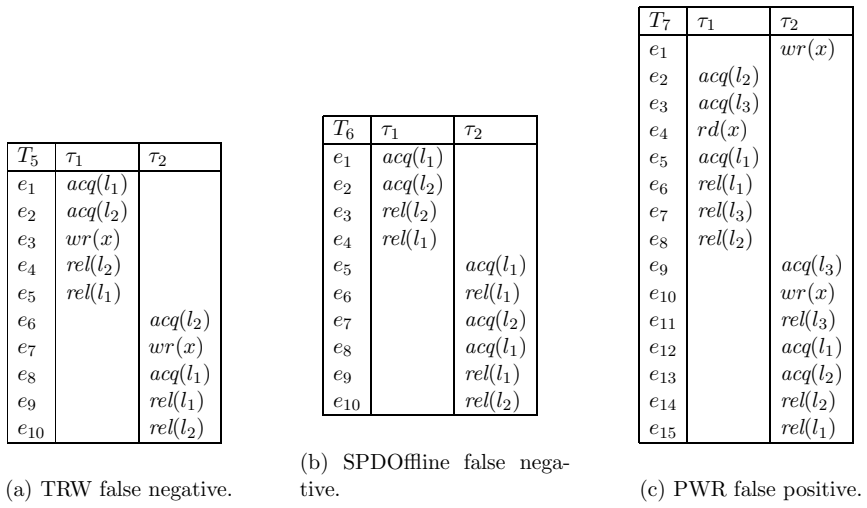

Figure 3. Figure 3: TRW versus SPDOffline versus PWR. Hence, the cyclic lock-dependency chain between D2 and D4 is not reachable, as it is blocked by the earlier cyclic lock-dependency chain between D1 and D3. To rule out such cases, we impose the following condition that imposes an order among deadlock patterns: [DP-Block] A deadlock pattern is not ordered after any other deadlock patterns. In Section 4, we show that conditi… view at source ↗
Figure 4

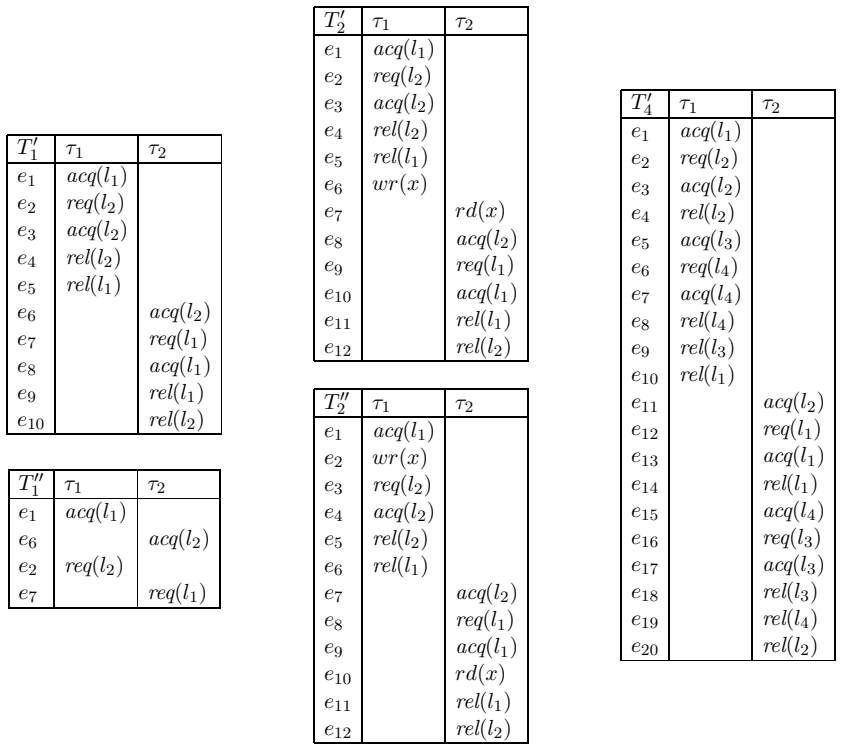

Figure 4. Figure 4: Example traces, with selected requests included (cf. Figu [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗
Figure 5

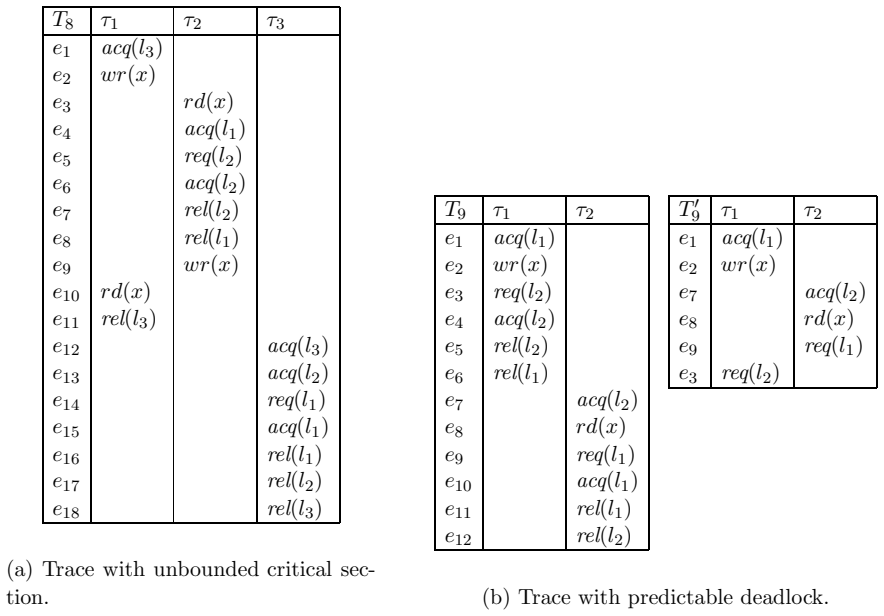

Figure 5. Figure 5: Traces highlighting technical aspects of soundness and c [PITH_FULL_IMAGE:figures/full_fig_p015_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Standard versus abstract lock dependencies. [PITH_FULL_IMAGE:figures/full_fig_p018_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Ordering conflicting write-write memory operations is critic [PITH_FULL_IMAGE:figures/full_fig_p036_7.png] view at source ↗

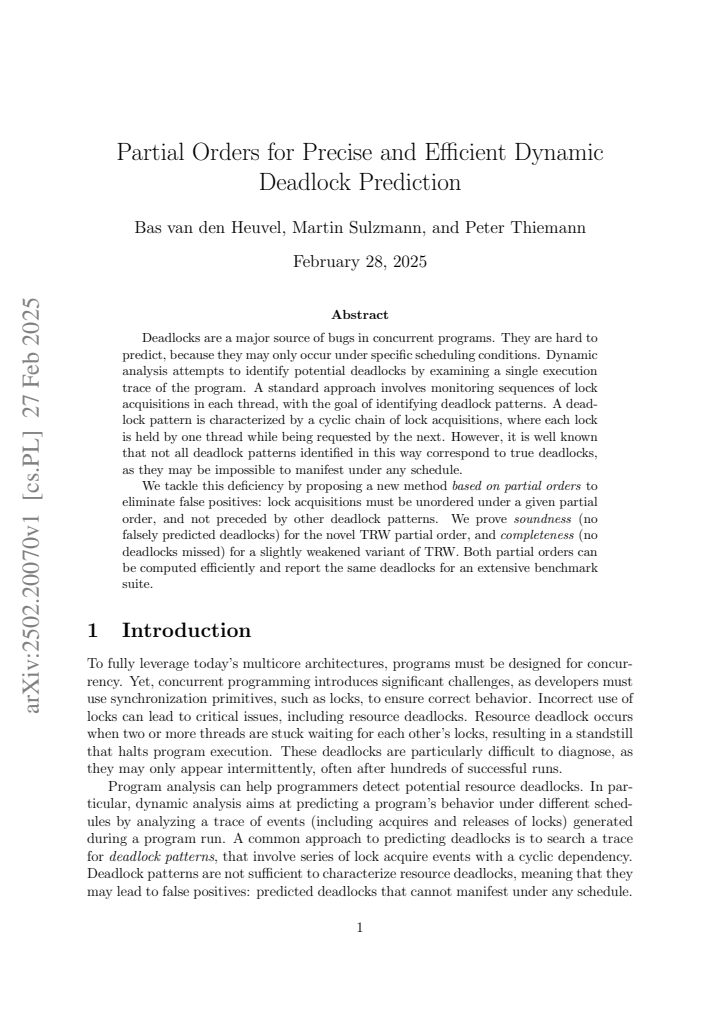

read the original abstract

Deadlocks are a major source of bugs in concurrent programs. They are hard to predict, because they may only occur under specific scheduling conditions. Dynamic analysis attempts to identify potential deadlocks by examining a single execution trace of the program. A standard approach involves monitoring sequences of lock acquisitions in each thread, with the goal of identifying deadlock patterns. A deadlock pattern is characterized by a cyclic chain of lock acquisitions, where each lock is held by one thread while being requested by the next. However, it is well known that not all deadlock patterns identified in this way correspond to true deadlocks, as they may be impossible to manifest under any schedule. We tackle this deficiency by proposing a new method based on partial orders to eliminate false positives: lock acquisitions must be unordered under a given partial order, and not preceded by other deadlock patterns. We prove soundness (no falsely predicted deadlocks) for the novel TRW partial order, and completeness (no deadlocks missed) for a slightly weakened variant of TRW. Both partial orders can be computed efficiently and report the same deadlocks for an extensive benchmark suite.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper introduces the TRW partial order (and a weakened variant) derived from a single execution trace to filter cyclic lock-acquisition patterns in dynamic deadlock prediction. It claims to prove that TRW is sound (no false-positive deadlocks reported) while the weakened variant is complete (no real deadlocks missed), that both orders are efficiently computable, and that they report identical deadlocks on an extensive benchmark suite.

Significance. If the stated soundness and completeness results hold, the work supplies a formal, parameter-free method that improves precision over standard dynamic deadlock detectors without sacrificing recall in the weakened case. The combination of proofs, efficient algorithms, and benchmark agreement would constitute a useful advance for concurrency analysis tools.

minor comments (3)
  1. [§4] The abstract states that soundness and completeness proofs exist; the main text should include a high-level proof sketch or key lemmas (e.g., in §4) so readers can assess the central claims without reading an appendix.
  2. [Evaluation] The claim that the two orders 'report the same deadlocks' on the benchmark suite should be supported by a table or figure showing per-benchmark counts rather than a single aggregate statement.
  3. [§3] Notation for the TRW relation (e.g., how 'unordered' and 'not preceded by other patterns' are combined) would benefit from a small worked example immediately after the definition.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive summary of our work and for recommending minor revision. No major comments were listed in the report, so we have no specific points to address point-by-point.

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper introduces a novel TRW partial order derived from execution traces, then states formal proofs of soundness (no false deadlocks) for TRW and completeness for a weakened variant. These proofs are presented as independent derivations from the order definitions and trace properties, with no reduction to fitted parameters, self-citations as load-bearing premises, or renaming of prior results. The central claims rest on explicit mathematical arguments and benchmark equivalence rather than any self-referential construction, satisfying the criteria for a self-contained derivation.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The soundness and completeness claims rest on the definition of the TRW partial order and the assumption that it can be computed from trace data; no free parameters or invented physical entities are apparent from the abstract.

axioms (1)
  • domain assumption Lock acquisitions observed in a trace can be related by a partial order that reflects possible reorderings under different schedulers.
    This is the core modeling choice that allows the partial order to eliminate false positives.
invented entities (1)
  • TRW partial order no independent evidence
    purpose: To decide whether lock acquisitions in a candidate deadlock cycle are unordered.
    Newly introduced construct whose properties are proved in the paper.
