arxiv: 2503.07689 · v2 · submitted 2025-03-10 · ❄️ cond-mat.str-el

Quantum phase diagram of the spin-frac{1}{2} Heisenberg antiferromagnet on the square-kagome lattice: a tensor network study

Saeed S. Jahromi , Yasir Iqbal This is my paper

Pith reviewed 2026-05-23 00:39 UTC · model grok-4.3

classification ❄️ cond-mat.str-el
keywords square-kagome latticeHeisenberg antiferromagnetvalence-bond crystalquantum phase diagramtensor networksfrustrated magnetismspin-1/2 model
0
0 comments X

The pith

The square-kagome Heisenberg antiferromagnet hosts four distinct valence-bond crystal phases at intermediate couplings.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper maps the full ground-state phase diagram of the spin-1/2 antiferromagnetic Heisenberg model on the square-kagome lattice by tuning the ratio of couplings on triangular and square plaquettes. Using infinite projected entangled-pair states, it identifies four nonmagnetic phases in the intermediate regime, each distinguished by unique patterns of strong and weak spin correlations that mark them as valence-bond crystals. Phase boundaries are located with correlation functions, entanglement measures, and spin gaps extracted from finite-field runs. At higher couplings the system enters ferrimagnetic order. These findings clarify previous uncertainties about the model's behavior.

Core claim

By varying the ratio of exchange interactions, the model exhibits four symmetry-distinct valence-bond crystal phases characterized by different arrangements of strong and weak bonds, separated from ferrimagnetic states at larger ratios.

What carries the argument

infinite projected entangled-pair states (iPEPS) ansatz, used to compute bond-resolved spin-spin correlations that reveal the symmetry-inequivalent patterns defining each VBC.

Load-bearing premise

The extrapolated iPEPS wavefunction accurately captures the thermodynamic-limit ground state without artifacts from finite bond dimension affecting the observed correlation patterns.

What would settle it

A calculation with significantly larger bond dimension that finds merging of the four phases into fewer distinct correlation patterns would falsify the claim of four separate VBCs.

Figures

Figures reproduced from arXiv: 2503.07689 by Saeed S. Jahromi, Yasir Iqbal.

Figure 1
Figure 1. Figure 1: FIG. 1. (a) The translation invariant unit cell of the square-kagome [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Quantum phase diagram of the [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

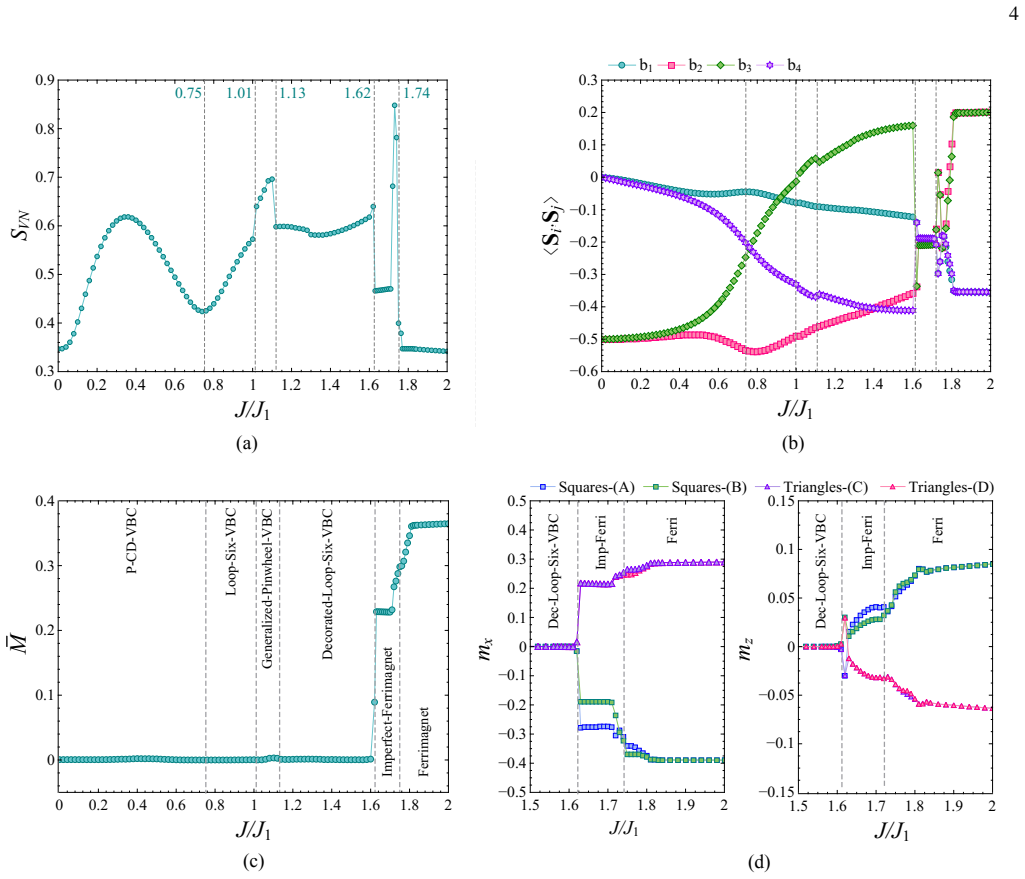

Figure 3. Figure 3: FIG. 3. (a) The bond entanglement entropy, computed from singular value bond matrices of the iPEPS simple update. Vertical dashed lines [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Scaling of the energy per site versus the inverse bond dimen [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

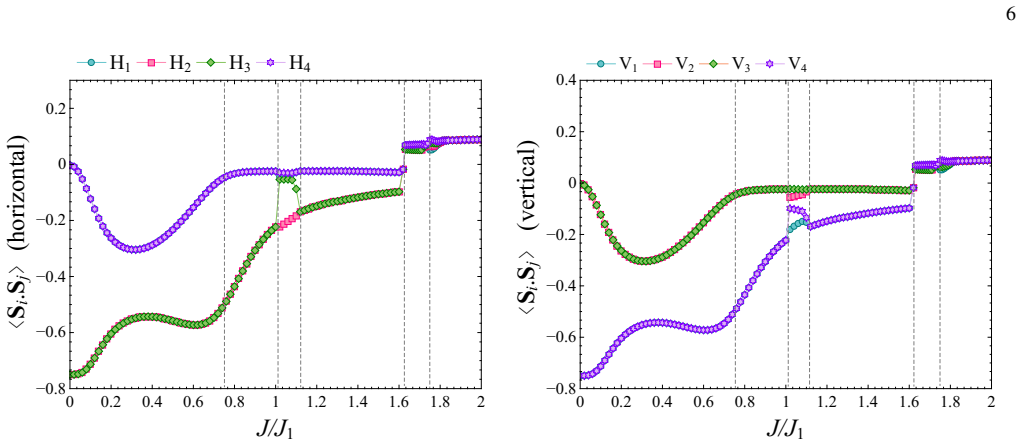

Figure 5. Figure 5: FIG. 5. The crossed-dimer spin-spin correlation on the horizontal and vertical diamonds of the square-kagome lattice. The [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6

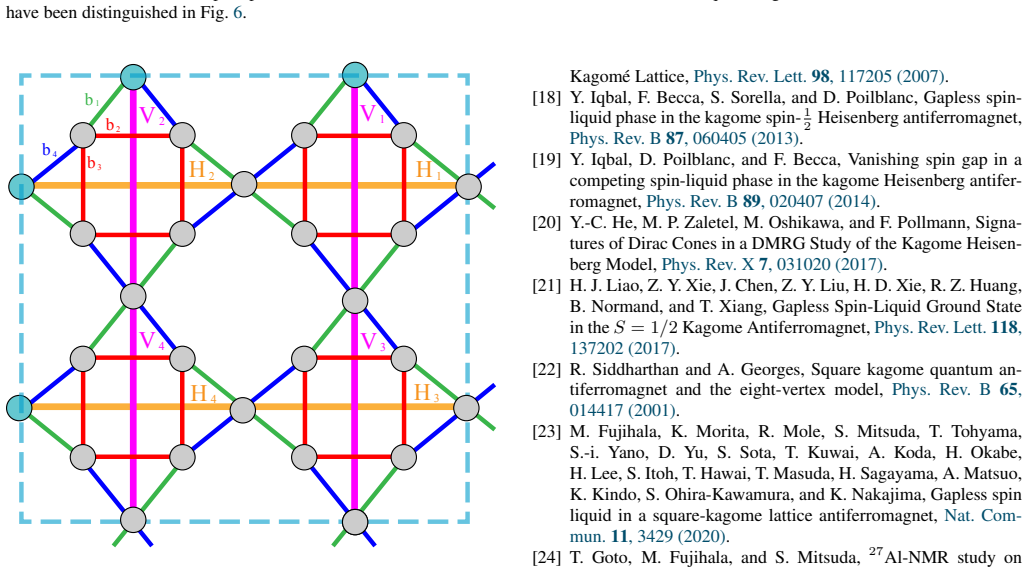

Figure 6. Figure 6: FIG. 6. (a) The 24-site unit cell of the square-kagome lattice with [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
read the original abstract

We study the ground-state phase diagram of the spin-$1/2$ antiferromagnetic Heisenberg model on the square-kagome lattice using infinite projected entangled-pair states (iPEPS). By systematically varying the ratio of exchange couplings on triangular and square plaquettes, we establish a complete quantum phase diagram in the thermodynamic limit. In the intermediate-coupling regime, we identify four distinct nonmagnetic phases that are unambiguously characterized as valence-bond crystals (VBCs) by their symmetry-inequivalent patterns of strong and weak spin-spin correlations. These include a plaquette crossed-dimer VBC, a loop-six VBC stabilized around the isotropic point, a generalized pinwheel VBC with reduced rotational symmetry, and a decorated loop-six VBC proximate to ferrimagnetic order. We determine the phase boundaries using a combination of bond-resolved correlation functions, entanglement entropy, and magnetization. For transitions not accompanied by sharp entanglement signatures, we extract the spin gap from finite-field simulations, allowing us to distinguish gapped and gapless VBC phases. At larger coupling ratios, the system undergoes transitions into imperfect and perfect ferrimagnetic states. Our results resolve long-standing ambiguities in the square-kagome Heisenberg model and provide a quantitatively reliable reference for future theoretical and experimental studies of frustrated quantum magnets.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript uses infinite projected entangled-pair states (iPEPS) to determine the ground-state phase diagram of the spin-1/2 antiferromagnetic Heisenberg model on the square-kagome lattice as a function of the ratio between triangular and square plaquette couplings. In the intermediate-coupling regime it reports four distinct nonmagnetic phases, each identified as a valence-bond crystal (VBC) on the basis of symmetry-inequivalent patterns of strong and weak bond-resolved spin-spin correlations; these are supplemented by entanglement-entropy and finite-field gap data to locate boundaries and to distinguish gapped from gapless VBCs. At larger coupling ratios the system enters imperfect and perfect ferrimagnetic states.

Significance. A converged iPEPS phase diagram for this lattice would resolve long-standing ambiguities in the square-kagome Heisenberg model and supply a quantitative benchmark for both theory and experiment. The thermodynamic-limit access afforded by iPEPS is a clear methodological strength, provided the reported correlation patterns survive bond-dimension extrapolation.

major comments (2)
  1. [§4] §4 (VBC identification): the central claim that four phases are 'unambiguously characterized as VBCs by their symmetry-inequivalent patterns of strong and weak spin-spin correlations' rests on finite-D iPEPS data. No explicit D→∞ extrapolation of the bond-resolved correlation functions or of the entanglement entropy is shown for the four candidate VBCs; without this, it remains possible that the observed inequivalent patterns are truncation artifacts, especially near the reported phase boundaries where the spin gap is small.
  2. [§3.2] §3.2 (finite-field gap extraction): the distinction between gapped and gapless VBC phases is made by extracting the spin gap from magnetization curves at finite magnetic field. The procedure for extrapolating these gaps to D→∞ and to zero field is not detailed; a systematic finite-D scaling analysis of the gap would be required to confirm that the reported gapped/gapless assignments are not affected by the same truncation bias that may affect the correlation patterns.
minor comments (2)
  1. [Figure 2] Figure 2: the color scale for the bond-resolved correlations should be stated explicitly so that the reader can judge the contrast between 'strong' and 'weak' bonds used to label the four VBCs.
  2. [Introduction] The definition of the 'isotropic point' (J△/J□ = 1) is used without a numerical value; adding the precise ratio in the text would remove ambiguity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading and constructive comments, which help strengthen the presentation of our iPEPS results. We address each major comment below and will incorporate the requested analyses into the revised manuscript.

read point-by-point responses

  1. Referee: [§4] §4 (VBC identification): the central claim that four phases are 'unambiguously characterized as VBCs by their symmetry-inequivalent patterns of strong and weak spin-spin correlations' rests on finite-D iPEPS data. No explicit D→∞ extrapolation of the bond-resolved correlation functions or of the entanglement entropy is shown for the four candidate VBCs; without this, it remains possible that the observed inequivalent patterns are truncation artifacts, especially near the reported phase boundaries where the spin gap is small.

    Authors: We agree that explicit D→∞ extrapolations of the bond-resolved spin-spin correlations and entanglement entropy for the four VBC phases would strengthen the claim against possible truncation artifacts. Although the patterns were observed to be stable across the bond dimensions employed in our calculations, the original manuscript did not include the full extrapolation plots. In the revised version we will add these extrapolations for each VBC phase, including data near the phase boundaries, to demonstrate that the symmetry-inequivalent bond patterns persist in the infinite-D limit. revision: yes

  2. Referee: [§3.2] §3.2 (finite-field gap extraction): the distinction between gapped and gapless VBC phases is made by extracting the spin gap from magnetization curves at finite magnetic field. The procedure for extrapolating these gaps to D→∞ and to zero field is not detailed; a systematic finite-D scaling analysis of the gap would be required to confirm that the reported gapped/gapless assignments are not affected by the same truncation bias that may affect the correlation patterns.

    Authors: We acknowledge that the extrapolation procedure for the spin gaps extracted from finite-field magnetization curves was not described in sufficient detail. In the revised manuscript we will include a systematic finite-D scaling analysis, presenting the gap values versus 1/D together with the fitting procedures used to extrapolate both to D→∞ and to zero field. This will confirm that the gapped versus gapless assignments remain robust. revision: yes

Circularity Check

0 steps flagged

No significant circularity in numerical phase-diagram study

full rationale

The paper performs a direct iPEPS variational study of the Heisenberg model on the square-kagome lattice by varying the external coupling ratio J and extracting observables (bond-resolved correlations, entanglement entropy, magnetization, finite-field gaps). Phase identification follows from these computed quantities without any reduction of a claimed prediction to a fitted parameter, without self-definitional equations, and without load-bearing self-citations that substitute for independent verification. The central claim (four distinct VBCs distinguished by symmetry-inequivalent correlation patterns) is obtained by explicit computation rather than by construction from the inputs. This is the normal, non-circular outcome for a parameter-sweep numerical exploration.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that iPEPS accurately captures 2D quantum ground states and that correlation patterns suffice to label distinct symmetry-broken VBC phases; no free parameters are fitted to data in the reported sense, but the bond dimension acts as a controllable truncation.

free parameters (1)
  • iPEPS bond dimension
    Truncation parameter whose extrapolation is required for thermodynamic-limit claims; value not reported in abstract.
axioms (1)
  • domain assumption The infinite projected entangled-pair state ansatz converges to the true ground state of local 2D Hamiltonians when bond dimension is increased sufficiently.
    Invoked implicitly by the use of iPEPS to determine the phase diagram in the thermodynamic limit.
