The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper examines elongated bubble centring, a counter-buoyant effect in horizontal gas-liquid slug flow, and links it to liquid viscosity. Photographic data from high-viscosity liquids (1 to 1960 mPa-s) in pipes 20 to 50.8 mm across show centring increasing in proportion to viscosity, measured at bubble nose, body, and tail over wide flow rates. Full and nearly symmetric centring occurs even at low inertial supply, unlike water cases. Four hypotheses address the mechanism, including film laminarity, boundary layer differentiation of film flow, wedge theory for partial centring, and a transition framework with centring plus coalescence; one hypothesis is checked with a calibrated case.

What carries the argument

Elongated bubble centring, the counter-buoyant positioning of gas bubbles along the pipe axis in horizontal flow, whose degree scales with liquid viscosity via photographic measurements and supports new flow-transition hypotheses.

What would settle it

New measurements in high-viscosity liquids showing centring degree independent of viscosity or full centring only at high inertia would contradict the proportionality and low-inertia claims.

Watch

Extended reading notes

Core claim

Elongated bubble centring increases generally in proportion to liquid viscosity in horizontal slug flow. This holds for a wide range of operational rates as shown by measurements at the bubble nose, body, and tail. Full and nearly-symmetric centring can occur in high-viscosity liquid flows, including at relatively low inertial supply, which contradicts observations in water-based systems. The paper formulates four hypotheses on the mechanistic nature: film region laminarity as a modulator, boundary layer theory to differentiate an outer-layer relative-motion-dominated film flow, wedge theory as a plausible alternative for partial centring, and a novel framework for the slug-annular flow with

Load-bearing premise

The photographic data from the three experimental sets capture the centring positions without bias from setup, image processing, or condition selection.

Editorial extensions

If this is right

  • Centring degree scales proportionally with viscosity across the tested pipe diameters and flow rates.
  • Full centring is possible at low inertial supply in high-viscosity liquids.
  • Boundary layer theory identifies a dynamical environment where centring can initiate via outer-layer film motion.
  • Slug-annular transition occurs through the two sequential mechanisms of centring then coalescence.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Pipeline design for viscous liquids may need revised buoyancy corrections because centring reduces effective gravity-driven effects.
  • Varying film Reynolds number in targeted tests could isolate whether laminarity modulates centring as hypothesized.
  • The wedge theory for partial centring may link to symmetry-breaking in other multiphase or stratified flows.
  • The transition framework could be checked against existing flow-pattern maps to refine slug-annular boundaries.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

0 major / 3 minor

Summary. The paper empirically analyzes elongated bubble centring in horizontal gas-liquid slug flow using high-viscosity liquids from three photographic data sets (μ_L ∈ [1,960] mPa·s, D ∈ [20,50.8] mm). It reports that centring degree increases proportionally with viscosity at bubble nose, body and tail locations across a wide range of rates, that full/nearly-symmetric centring occurs at low inertia (contrary to water-based cases), and that four mechanistic hypotheses (film laminarity, boundary-layer differentiation, wedge theory, and a two-mechanism slug-annular transition framework) are formulated, with the boundary-layer hypothesis tested in a calibrated HVL case.

Significance. If the empirical proportionality and full-centring observations hold, the work supplies useful data on viscosity-driven phenomena in slug flow that are relevant to viscous multiphase transport. The qualitative hypotheses provide a plausible organizing framework for centring and transition mechanisms, though they remain unproven.

minor comments (3)
  1. Abstract: the claim of measurements 'at bubble nose, body and tail' would be strengthened by stating the number of conditions or images per location and any quantitative centring metric (e.g., eccentricity or offset distance).
  2. Theory section: the boundary-layer calculation for the calibrated HVL case should explicitly state which quantities are predicted versus adjusted via the calibration parameters listed in the axiom ledger.
  3. The four hypotheses are introduced as 'qualitative advancements' but their relation to the cited 'recent modelling efforts' is not detailed; a short comparison table or explicit contrasts would improve clarity.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their careful reading and positive assessment of our manuscript on elongated bubble centring in high-viscosity liquids. The recommendation for minor revision is noted; we will incorporate any editorial or minor clarifications in the revised version.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity identified

full rationale

The paper's central claims rest on empirical measurements extracted from three photographic data sets (μ_L range [1,960] mPa·s, D range [20,50.8] mm), establishing a general proportionality between centring degree and liquid viscosity at nose/body/tail locations, plus qualitative formulation of four mechanistic hypotheses. The boundary-layer investigation uses a single calibrated HVL case but presents no equations or predictions that reduce by construction to the calibration inputs themselves. No self-definitional steps, fitted-input-as-prediction reductions, or load-bearing self-citation chains are exhibited in the abstract or described structure. The derivation chain is therefore self-contained against the external photographic data.

Assumptions & free parameters 1 free parameters · 1 assumptions · 0 invented entities

Based solely on abstract; limited visibility into what is postulated versus derived from data. The calibrated case implies some fitting but specifics unavailable.

free parameters (1)
  • calibration parameters for HVL slug flow case
    Paper references a calibrated case of HVL slug flow to investigate boundary layer theory, implying parameters adjusted to match observations.
assumptions (1)
  • domain assumption Photographic measurements at nose, body and tail accurately quantify the degree of centring without systematic bias
    Central to extracting the proportionality to viscosity from the three data sets.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Elongated bubble centring and high-viscosity liquids in horizontal gas-liquid slug flow: Empirical analyses and novel theory." pith.science (2026). https://pith.science/paper/2503.08329

@misc{pith2026250308329,
  author       = {Pith},
  title        = {Pith review of: Elongated bubble centring and high-viscosity liquids in horizontal gas-liquid slug flow: Empirical analyses and novel theory},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/2503.08329}},
  note         = {Machine review of arXiv:2503.08329}
}
abstract

Elongated bubble centring$\unicode{x2013}$an obscure counter-buoyant phenomenon encountered in horizontal gas-liquid slug flow$\unicode{x2013}$is correlated with liquid viscosity and their connection is theorized. Extracting from three sets of high-viscosity liquid (HVL) photographic data with $\mu_{\scriptscriptstyle L}$$\in$[1,960]mPa-s and $D$$\in$[20,50.8]mm, the degree of incurred centring is found to increase, generally, in proportion to $\mu_{\scriptscriptstyle L}$ for a wide range of operational rates as evidenced through measurements at bubble nose, body and tail. It is demonstrated that full and nearly-symmetric centring can occur in HVL-containing flows$\unicode{x2013}$the former at relatively low inertial supply in contradiction to water-based dynamics. Qualitative advancements regarding the mechanistic nature of bubble centring and its plausible function within flow pattern transition theory are presented. Elaborating on recent modelling efforts, four distinct hypotheses are formulated: 1) film region laminarity as a modulator for centring; 2) boundary layer theory in slug flow to differentiate an outer-layer, relative motion-dominated film flow necessary for the initiation of centring; 3) wedge theory$\unicode{x2013}$a plausible alternative mechanism for partial-centring; and 4) a novel framework for the slug-annular transition composed of two unique mechanisms$\unicode{x2013}$centring and coalescence. The postulated boundary layer theory is investigated using a calibrated case of HVL slug flow and a dynamical environment conducive to centring mechanism proliferation is calculated.

Figures

Figures reproduced from arXiv: 2503.08329 by the authors.

Figure 1

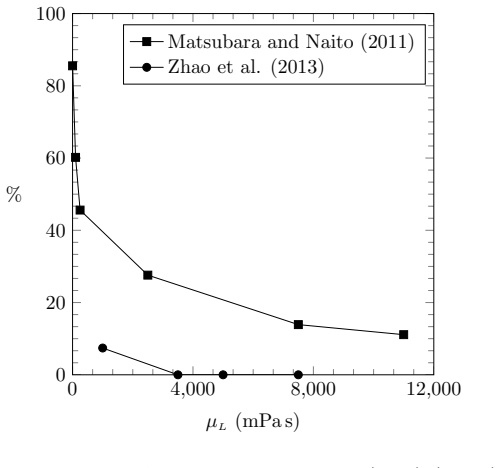

Figure 1. Predictive capability of the Taitel and Dukler (1976) (TD76) flow pattern transition model applied to HVL data from Matsubara and Naito (2011) and Zhao et al. (2013). %-values represent portion of total flow pattern points correctly determined. an obscure flow event known as elongated bubble centring will prove itself an invaluable keystone in the course of this transformation. Bubble centring is a counterintuitive … view at source ↗
Figure 2
Figure 2. Simplistic depiction of a centred elongated bubble (nose region) in horizontal [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
Figure 3
Figure 3. Bubble centring metrics a) in the body λB = P i λBi/3 and b) at the tail λT . No-centring: null or negligible λ ◦ 1D Partial-centring: non-negligible λ ◦ 1D and null or negligible λ ◦ T Full-centring: non-negligible λ ◦ 1D, λ ◦ B and λ ◦ T Perfect-centring: non-negligible λ ◦ 1D, λ ◦ B and λ ◦ T with equivalent spacing beneath the bubble—radial symmetry8 The downstream delimiter is selected to be λ ◦ 1D, rather than… view at source ↗
Figures from the paper (21 more)
Figure 4
Figure 4. Figure 4: Elongated bubble nose region images from [PITH_FULL_IMAGE:figures/full_fig_p012_4.png]
Figure 5
Figure 5. Figure 5: Raw, unaltered images of elongated bubbles from [PITH_FULL_IMAGE:figures/full_fig_p014_5.png]
Figure 6
Figure 6. Figure 6: Hypothetical depiction of optical phenomenon observed in [PITH_FULL_IMAGE:figures/full_fig_p015_6.png]
Figure 7
Figure 7. Figure 7: Elongated bubble photos from Kim et al. (2020) (K20 dataset) spliced together to form coherent illustrations. Middle dividers and thus total bubble length are not to-scale; left and right dividers are approximately scaled. Case Ω.1: µL = 510mPa s. Case Ω.2: µL = 680mPa…
Figure 8
Figure 8. Figure 8: Bubble centring data extracted from Naidek et al. (2023) (N23 dataset): Normalized λ1D (%) as a function of µL for fixed values of Fr . generalized proclivity with a superimposed essence of enhanced variability. To understand this important feature, the undulating natu…

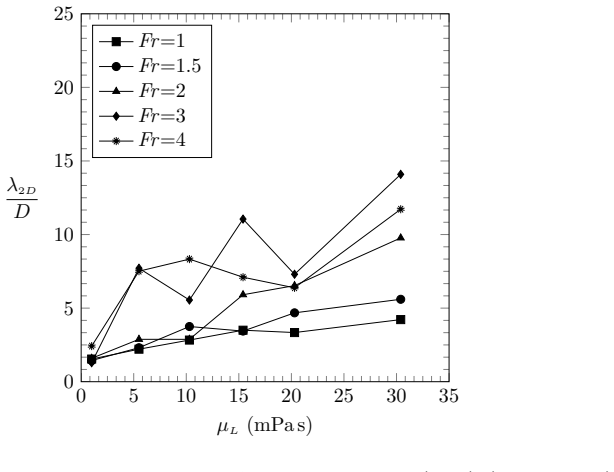

Figure 9
Figure 9. Figure 9: Bubble centring data extracted from Naidek et al. (2023) (N23 dataset): Normalized λ2D (%) as a function of µL for fixed values of Fr . owing to this concept, µL-λK curves are expected to flatten somewhat—while maintaining positive proportionality—as centring metric lo…

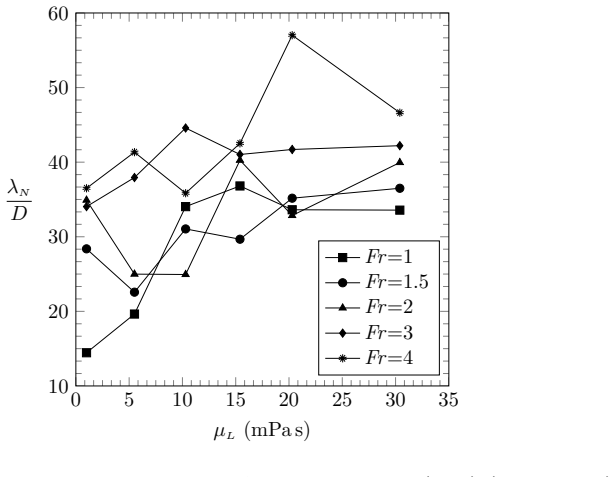

Figure 10
Figure 10. Figure 10: Bubble centring data extracted from Naidek et al. (2023) (N23 dataset): Normalized λN (%) as a function of µL for fixed values of Fr . images solely using (Fr , µL) labels.15 As alluded to earlier, λT -values measured from N23 photos are relatively small, exclusively …
Figure 11
Figure 11. Figure 11: Long bubble centring data extracted from [PITH_FULL_IMAGE:figures/full_fig_p023_11.png]
Figure 12
Figure 12. Figure 12: Long bubble centring data extracted from [PITH_FULL_IMAGE:figures/full_fig_p026_12.png]
Figure 13
Figure 13. Figure 13: Correlative modelling results for Naidek et al. (2023) (N23) bubble centring data (values given in %): λ ◦ K = λK/D vs x = FrµL/µG for a) λ ◦ 1D, b) λ ◦ 2D, and c) λ ◦ N . Solid lines: modelling predictions; discrete points: extracted experimental measurements. be inv…
Figure 14
Figure 14. Figure 14: Predicted versus observed values of all λ ◦ 1D, λ ◦ 2D and λ ◦ N bubble centring measurements from Naidek et al. (2023) (N23) dataset overlaid with 0%, ±20% and ±30% error lines. at 46.7% and 63.3%; and λ ◦ N at 73.3% and 86.7%, respectively. Considering that long bub…
Figure 15
Figure 15. Figure 15: Illustration of a novel hypothesis for partial-centring in horizontal slug flow: film [PITH_FULL_IMAGE:figures/full_fig_p036_15.png]
Figure 16
Figure 16. Figure 16: Boundary layer (BL) theory for horizontal gas-liquid slug flow. Depicted are two [PITH_FULL_IMAGE:figures/full_fig_p041_16.png]
Figure 17
Figure 17. Figure 17: Cross-sectional evolution of hypothetical film region boundary layer at four [PITH_FULL_IMAGE:figures/full_fig_p043_17.png]
Figure 18
Figure 18. Figure 18: Theoretical depiction of slug flow boundary layer development in time and [PITH_FULL_IMAGE:figures/full_fig_p044_18.png]
Figure 19
Figure 19. Figure 19: Slug flow boundary layer theory applied to HVL case from [PITH_FULL_IMAGE:figures/full_fig_p049_19.png]
Figure 20
Figure 20. Figure 20: Depiction of the wedge theory for partial-centring, comprised of three [PITH_FULL_IMAGE:figures/full_fig_p050_20.png]
Figure 21
Figure 21. Figure 21: HVL flow pattern data from Gokcal et al. (2008) (G08) overlaid with predictions from the Barnea (1987) (B87) mechanistic transition model. Above legend corresponds to experimental points; directly labelled regions correspond to model predictions. SL=slug; EB=elongated…
Figure 22
Figure 22. Figure 22: HVL flow pattern data from Gokcal et al. (2008) (G08) overlaid with predictions from the Zhang et al. (2003) (Z03) mechanistic transition model and its modified form (Z03M) from G08. Dashed lines represent Z03; solid lines represent Z03M. Above legend corresponds to e…
Figure 23
Figure 23. Figure 23: Percentage of total experimental slug (SL) and annular (AN) flow-points from [PITH_FULL_IMAGE:figures/full_fig_p055_23.png]
Figure 24
Figure 24. Figure 24: Illustration of novel mechanistic framework for the slug-annular transition, [PITH_FULL_IMAGE:figures/full_fig_p056_24.png]
