arxiv: 2503.15982 · v1 · submitted 2025-03-20 · ⚛️ physics.flu-dyn

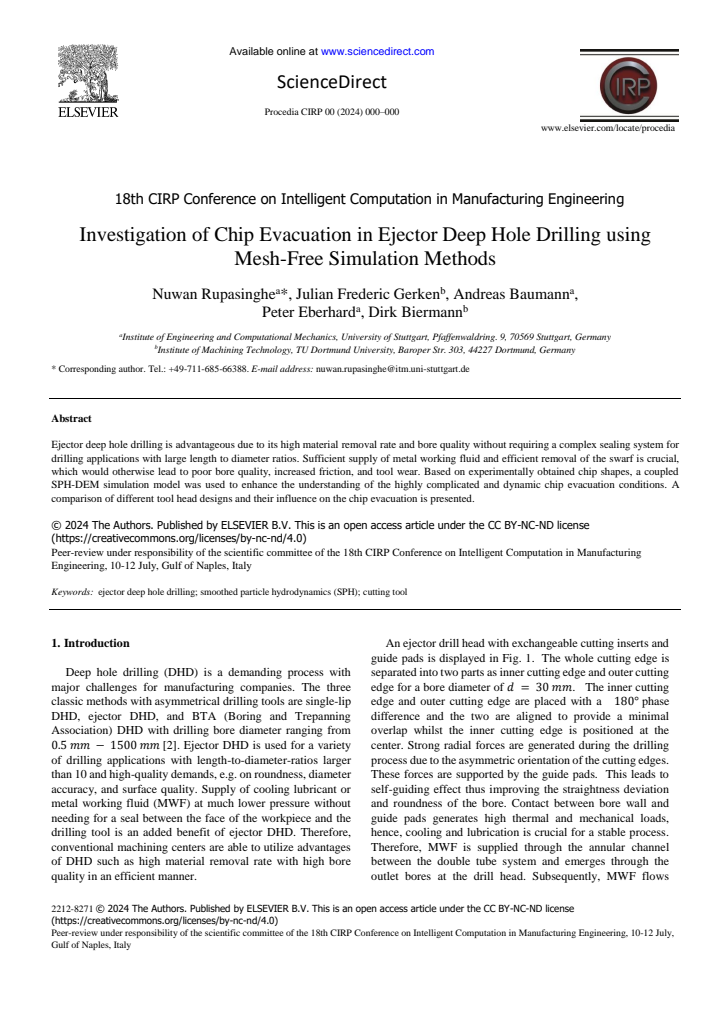

Investigation of Chip Evacuation in Ejector Deep Hole Drilling using Mesh-Free Simulation Methods

Nuwan Rupasinghe , Julian Frederic Gerken , Andreas Baumann , Peter Eberhard , Dirk Biermann This is my paper

Pith reviewed 2026-05-22 23:42 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn
keywords ejector deep hole drillingchip evacuationSPH-DEM simulationmesh-free methodstool head designmetal working fluidswarf removalfluid-particle interaction
0
0 comments X

The pith

A coupled SPH-DEM model calibrated on experimental chip shapes shows how tool head designs change chip evacuation in ejector deep hole drilling.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to model the fluid-driven removal of metal chips from deep bores using ejector drilling, where poor evacuation quickly degrades bore quality and accelerates tool wear. It builds a mesh-free simulation that treats the cutting fluid as smoothed particles and the chips as discrete elements, with the particle shapes taken directly from experiments. The model then runs the same conditions on several tool head geometries to expose differences in how chips are flushed out. A sympathetic reader would care because the approach supplies a practical way to test design changes that are otherwise hard to observe inside a working tool.

Core claim

Based on experimentally obtained chip shapes, a coupled SPH-DEM simulation model was used to enhance the understanding of the highly complicated and dynamic chip evacuation conditions. A comparison of different tool head designs and their influence on the chip evacuation is presented.

What carries the argument

Coupled SPH-DEM simulation model that treats the metal-working fluid with smoothed particle hydrodynamics and the chips with the discrete element method, using measured chip geometries as input.

If this is right

  • Tool head geometry directly alters the paths and clearance rates of chips carried by the fluid.
  • Designs that promote faster chip removal reduce the chance of accumulation that raises friction and shortens tool life.
  • The same simulation framework can be reapplied to evaluate further head variants without building physical prototypes for each one.
  • Improved evacuation performance supports higher material removal rates while maintaining bore quality in long, small-diameter holes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The particle-based approach could be reused to study chip behavior in other fluid-assisted machining operations such as gun drilling or milling with coolant.
  • Coupling the model with thermal fields would allow checks on whether heat-induced chip softening changes evacuation outcomes.
  • Embedding the simulation inside a control loop might enable real-time adjustment of fluid pressure when evacuation begins to degrade.

Load-bearing premise

The experimentally obtained chip shapes and the chosen SPH-DEM coupling parameters accurately represent the real fluid-chip interactions and flow conditions inside the ejector drilling tool.

What would settle it

High-speed video or internal flow measurements inside an operating ejector tool that show chip trajectories and clearance rates matching or diverging from the simulated patterns for the same tool heads and fluid supply.

read the original abstract

Ejector deep hole drilling is advantageous due to its high material removal rate and bore quality without requiring a complex sealing system for drilling applications with large length to diameter ratios. Sufficient supply of metal working fluid and efficient removal of the swarf is crucial, which would otherwise lead to poor bore quality, increased friction, and tool wear. Based on experimentally obtained chip shapes, a coupled SPH-DEM simulation model was used to enhance the understanding of the highly complicated and dynamic chip evacuation conditions. A comparison of different tool head designs and their influence on the chip evacuation is presented.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript uses experimentally measured chip shapes to initialize a coupled SPH-DEM simulation of chip evacuation inside an ejector deep-hole drilling tool. The central claim is that this approach enhances understanding of the dynamic fluid-chip interactions and enables a comparison of how different tool-head geometries affect evacuation performance.

Significance. Mesh-free methods are appropriate for the free-surface and particle-laden flows in ejector drilling. If the model were shown to reproduce measured chip trajectories and mass-flow rates, the work could supply design guidance for tool heads that reduce clogging and wear. At present the absence of any quantitative validation metrics prevents that utility from being realized.

major comments (2)
  1. [Abstract] Abstract: the claim that the SPH-DEM model 'enhances the understanding' of chip evacuation is load-bearing for the paper, yet no error norms, trajectory overlays, or mass-flow-rate comparisons between simulation and experiment are reported anywhere in the manuscript.
  2. [Methods / Results] The central assumption that the experimentally supplied chip shapes together with the chosen SPH-DEM coupling parameters faithfully reproduce two-way fluid-particle transport inside the tool is never tested; without a sensitivity study on coupling coefficients or a direct validation against measured evacuation rates, the tool-head comparison cannot be considered reliable.
minor comments (2)
  1. Figure captions should explicitly state whether each panel shows experimental data, simulation results, or both, and should include scale bars and flow-direction arrows.
  2. Notation for the SPH smoothing length, DEM contact stiffness, and fluid viscosity should be defined once in a nomenclature table or at first use.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the detailed review and for emphasizing the need for validation. We respond to each major comment below, acknowledging where the manuscript is limited by the scope of the available experimental data.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that the SPH-DEM model 'enhances the understanding' of chip evacuation is load-bearing for the paper, yet no error norms, trajectory overlays, or mass-flow-rate comparisons between simulation and experiment are reported anywhere in the manuscript.

    Authors: The experimental component of the work supplied only chip geometries measured outside the tool; no in-tool trajectory or mass-flow data exist for direct comparison. We will revise the abstract to replace the phrase 'enhances the understanding' with a more precise statement that the simulations illustrate relative differences in chip transport for the tested tool-head geometries under the adopted modeling assumptions. revision: yes

  2. Referee: [Methods / Results] The central assumption that the experimentally supplied chip shapes together with the chosen SPH-DEM coupling parameters faithfully reproduce two-way fluid-particle transport inside the tool is never tested; without a sensitivity study on coupling coefficients or a direct validation against measured evacuation rates, the tool-head comparison cannot be considered reliable.

    Authors: We agree that neither a sensitivity study on the coupling coefficients nor a quantitative validation against internal evacuation rates was performed. The tool-head comparison is therefore presented only as a relative ranking under fixed modeling choices. We will expand the Methods and Discussion sections to document the parameter selection rationale and to state explicitly that absolute performance predictions would require additional experimental validation. revision: partial

standing simulated objections not resolved
  • Quantitative validation of simulated chip trajectories and mass-flow rates against experiment, because the experimental campaign provided only external chip shapes and no internal flow measurements.

Circularity Check

0 steps flagged

No circularity: simulation initialized from external experimental chip shapes

full rationale

The paper initializes a coupled SPH-DEM model directly from experimentally measured chip shapes and uses it to compare tool-head designs. No equations, fitted parameters, or self-citations are shown that reduce any reported result to the inputs by construction. The derivation chain therefore remains independent of the target outputs and receives a score of 0.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review yields no explicit free parameters, axioms, or invented entities; simulation relies on standard SPH and DEM formulations plus experimental input shapes.
