arxiv: 2503.17986 · v1 · submitted 2025-03-23 · ⚛️ physics.optics · physics.app-ph

Subvolt high-speed free-space modulator with electro-optic metasurface

Go Soma , Koto Ariu , Seidai Karakida , Yusuke Tsubai , Takuo Tanemura This is my paper

Pith reviewed 2026-05-22 22:32 UTC · model grok-4.3

classification ⚛️ physics.optics physics.app-ph
keywords electro-optic metasurfacequasi-bound state in the continuumfree-space optical modulatorsubvolt modulationsilicon-organic hybridhigh-speed modulationCMOS-compatible voltage
0
0 comments X

The pith

A high-Q resonance in a silicon-organic metasurface traps light to enable subvolt free-space modulation at gigabit speeds.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that a dimerized-grating silicon metasurface embedding an organic electro-optic material can trap normally incident light inside a submicrometer slot by means of a high-Q quasi-bound state in the continuum. This confinement produces efficient phase or amplitude modulation at driving voltages of 0.2 V for 50 Mbps transmission and 1 V for 1.6 Gbps transmission. Because these voltages match standard CMOS levels, the approach removes the main barrier that has kept ultrathin metasurface modulators from practical use in free-space links, LiDAR, and optical computing.

Core claim

Active metasurfaces that incorporate electro-optic materials have been limited by short interaction lengths that force driving voltages above tens of volts. By designing dimerized-grating nanostructures that support a high-Q quasi-bound state in the continuum, normally incident light is trapped inside a submicrometer-scale silicon slot filled with organic EO material, yielding modulation depths sufficient for 50 Mbps at 0.2 V and 1.6 Gbps at 1 V while remaining compatible with CMOS voltage rails.

What carries the argument

high-Q quasi-bound state in the continuum formed by dimerized-grating silicon-organic-hybrid nanostructures that confines light to the EO-filled slot region

If this is right

  • Data transmission reaches 50 Mbps with only 0.2 V applied across the metasurface.
  • The same device supports 1.6 Gbps when driven at 1 V.
  • All reported operating voltages lie within standard CMOS supply ranges.
  • The architecture opens a route to energy-efficient active metasurfaces for free-space communication, sensing, and computing.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Integration with existing silicon electronics could produce compact, low-power free-space optical transmitters without separate high-voltage drivers.
  • The same light-trapping principle might be adapted to other EO materials or wavelengths to address different speed or loss requirements.
  • If the resonance remains stable under thermal or environmental variation, the modulators could be deployed in outdoor or mobile platforms where power budgets are tight.

Load-bearing premise

The fabricated nanostructures produce the claimed high-Q resonance and light-trapping efficiency without major losses from fabrication errors, material absorption, or misalignment.

What would settle it

Direct measurement of the resonance linewidth or modulation depth at 0.2 V drive that falls well below the values needed to reach the reported data rates.

Figures

Figures reproduced from arXiv: 2503.17986 by Go Soma, Koto Ariu, Seidai Karakida, Takuo Tanemura, Yusuke Tsubai.

Figure 1
Figure 1. Figure 1: Metasurface modulator with an all-dielectric SOH dimerized resonator. a [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Passive characterization of the fabricated devices. a [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

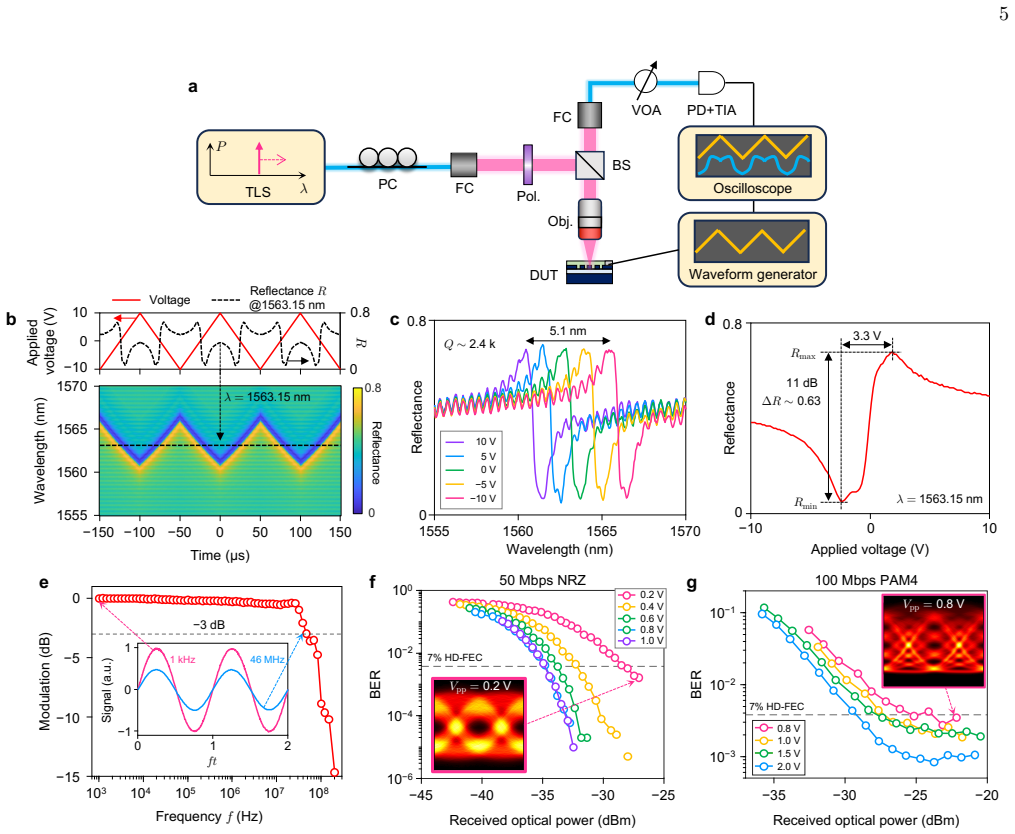

Figure 3
Figure 3. Figure 3: Active modulation of free-space light. a [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: High-speed modulation using an ultra-small DBR-integrated device. a [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗

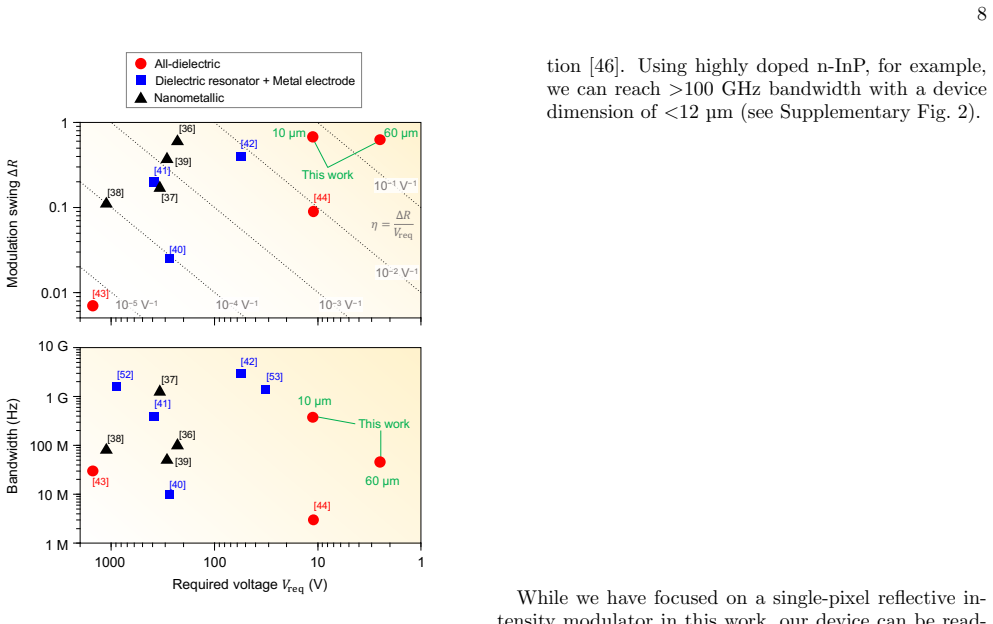

Figure 5
Figure 5. Figure 5: Benchmark comparison of this work against [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
read the original abstract

Active metasurfaces incorporating electro-optic (EO) materials enable high-speed free-space optical modulators that show great promise for a wide range of emerging applications, including free-space optical communication, light detection and ranging, and optical computing. However, the limited light-matter interaction lengths in ultrathin metasurfaces typically require high driving voltages exceeding tens of volts. Here we present ultralow-voltage, high-speed free-space optical modulators based on silicon-organic-hybrid metasurfaces with dimerized-grating-based nanostructures. By exploiting a high-Q quasi-bound state in the continuum, normally incident light is effectively trapped within a submicrometer-scale silicon slot region embedded with organic EO material. Consequently, highly efficient modulation is obtained, enabling data transmission at 50 Mbps and 1.6 Gbps with driving voltages of only 0.2 V and 1 V, respectively. These unprecedented metasurface modulators operating at complementary metal-oxide-semiconductor (CMOS)-compatible voltage levels provide the pathway toward energy-efficient high-speed active metasurface devices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports the design, fabrication, and characterization of a silicon-organic-hybrid metasurface free-space optical modulator. By using dimerized-grating nanostructures to support a high-Q quasi-bound state in the continuum, normally incident light is trapped in a sub-micrometer silicon slot filled with an organic electro-optic material, enabling data transmission at 50 Mbps with 0.2 V drive and 1.6 Gbps with 1 V drive.

Significance. If the experimental results are robust, the work would establish a route to CMOS-compatible voltage levels in ultrathin active metasurfaces, which has been a longstanding barrier for free-space EO modulators. The quasi-BIC approach for enhancing light-matter interaction in sub-micron EO regions is a concrete advance with potential relevance to optical interconnects and computing.

major comments (2)
  1. [Results and Discussion] The central experimental claim (0.2 V / 50 Mbps and 1 V / 1.6 Gbps) rests on the fabricated device realizing the simulated high-Q resonance and field overlap. The manuscript must provide direct comparison of measured resonance linewidth, Q-factor, and modulation depth versus the design values, including error bars and device-to-device statistics, to rule out degradation from sidewall roughness, slot-width variation, or material absorption.
  2. [Methods] Fabrication details (e.g., etching uniformity, organic-material infiltration yield, electrode alignment) and any post-fabrication characterization (SEM, AFM) are needed to quantify how closely the realized geometry matches the ideal dimerized-grating parameters used in the quasi-BIC simulation.
minor comments (2)
  1. Figure captions should explicitly state the driving voltage and bit rate for each eye diagram or modulation trace.
  2. The abstract and introduction use “subvolt” and “ultralow-voltage” interchangeably; consistent terminology would improve clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive review and positive assessment of the significance of our work. We address each major comment below and will revise the manuscript to incorporate the requested information.

read point-by-point responses

  1. Referee: [Results and Discussion] The central experimental claim (0.2 V / 50 Mbps and 1 V / 1.6 Gbps) rests on the fabricated device realizing the simulated high-Q resonance and field overlap. The manuscript must provide direct comparison of measured resonance linewidth, Q-factor, and modulation depth versus the design values, including error bars and device-to-device statistics, to rule out degradation from sidewall roughness, slot-width variation, or material absorption.

    Authors: We agree that a direct comparison of measured versus simulated resonance properties is necessary to substantiate the experimental claims. In the revised manuscript, we will add a dedicated subsection and figure in Results and Discussion that overlays measured transmission spectra with simulations, reports extracted linewidths and Q-factors (with error bars from repeated spectral scans), and shows modulation depth versus voltage. Device-to-device statistics from multiple devices will be included to quantify reproducibility and address possible fabrication-induced effects such as sidewall roughness or slot-width variation. revision: yes

  2. Referee: [Methods] Fabrication details (e.g., etching uniformity, organic-material infiltration yield, electrode alignment) and any post-fabrication characterization (SEM, AFM) are needed to quantify how closely the realized geometry matches the ideal dimerized-grating parameters used in the quasi-BIC simulation.

    Authors: We will expand the Methods section with additional fabrication details, including etching uniformity metrics, organic-material infiltration yield across devices, and electrode alignment tolerances. We will also include representative SEM and AFM images accompanied by quantitative measurements of grating dimensions, slot width, and surface roughness, with direct numerical comparison to the ideal parameters employed in the quasi-BIC simulations. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental demonstration without derivation chain

full rationale

The paper reports fabrication and measured performance of a silicon-organic-hybrid metasurface modulator exploiting a quasi-BIC resonance. No equations, parameter fitting, predictions, or first-principles derivations are described in the provided text. The central claims rest on experimental results (modulation depths at stated voltages and bit rates), which are not shown to reduce to inputs by construction. This matches the reader's assessment of score 1.0 and qualifies as a self-contained experimental report with no load-bearing circular steps.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no free parameters, axioms, or invented entities can be identified from the provided text.
