Probing viscous regimes of spin transport with local magnetometry

T0 review · reviewed 2026-08-16 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Viscous (hydrodynamic) spin transport produces a sharp, height-dependent peak in the stray magnetic field near a spin injector, a signature that diffusive transport lacks.

desk verdict The viscosity-induced stray-field peak looks real; the paper's main problems are quantitative (missing l_v and SNR estimates), not the dropped harmonic modes. read the letter →

arxiv 2504.12396 v1 pith:USJWU73J submitted 2025-04-16 cond-mat.str-el

Jun Ho Son This is my paper · ORCID
classification cond-mat.str-el
keywords spintransportmagneticfieldhydrodynamicinsulatorlocalregime
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Imagine a thin magnetic film, like the garnet used in microwave devices, with a tiny platinum wire on top. When an electric current runs through the wire, the wire's strong spin-orbit interaction injects a flow of spins downward into the film. Those spins spread sideways, carrying spin angular momentum. Scientists have used this kind of injection to study how spins diffuse through magnetic insulators.

The paper asks what happens if the flowing spins collide with each other so often that they behave like a viscous liquid, rather than spreading diffusively. This is the 'hydrodynamic' regime, already known for electrons in clean metals. The author solves the equations for both ordinary diffusion and viscous flow, using the same mathematics as for fluids and heat.

The key result is in the magnetic field just above the film. A spinning electron creates a small magnetic field, and measuring that field maps out where the spins are. In ordinary diffusion, the out-of-plane field rises smoothly near the injector and then falls off. In the viscous regime, the field develops a sharp extra peak very close to the injector, because the viscosity resists the abrupt turn the spin current makes. The peak's height and position depend strongly on how far the magnetic sensor sits above the film, which makes it a distinctive signature.

The author suggests that nitrogen-vacancy centers in diamond, tiny quantum sensors that can be scanned over a surface, could see this peak. If it is observed, it would show that spin transport in that material is hydrodynamic, a property relevant to exotic magnets and possibly quantum spin liquids.

Extended reading notes

Core claim

In the hydrodynamic (viscous) regime, B_perp(x) acquires a sharp near-injector peak whose height scales as l_v^2/z_NV^2 and whose position is set by z_NV (maximum at x around 0.58 z_NV), a feature absent in purely diffusive transport; see Eq. (28) and Fig. 4.

Load-bearing premise

The spin current is carried predominantly by momentum, so the diffusive term in Eq. (6) is negligible, and the Gurzhi length l_v in candidate materials (YIG, Kagome spin liquids) is at least comparable to the NV-sample distance z_NV. The paper gives no estimate of l_v for these materials, so the magnitude of the predicted peak, which scales as l_v^2/z_NV^2, is unquantified.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Assumptions & free parameters 2 free parameters · 6 assumptions · 0 invented entities

The central prediction depends on the hydrodynamic model assumptions (linearized Navier-Stokes, CT symmetry, no diffusive term) and on the unknown Gurzhi length l_v. No new microscopic entities are introduced.

free parameters (2)
  • Gurzhi length l_v = unknown; 100-200 nm assumed in plots
    Strengthens viscosity effects; the predicted peak height scales as l_v^2. The paper gives no experimental estimate for spin transport in magnetic insulators, so the detectability prediction is conditional on this untested parameter.
  • 2D anisotropy ratios r_sigma and r_eta = ranges 0.025 to 0.4 explored
    In the 2D hydrodynamic regime, the peak strength varies with these ratios; they are treated as free tuning parameters and not tied to specific materials.
assumptions (6)
  • domain assumption The linearized Navier-Stokes constitutive relations (Eq. 6) describe spin transport.
    Pulled from electron hydrodynamics; assumed to hold for spin currents in magnetic insulators.
  • ad hoc to paper The diffusive spin-current term sigma_{s,d} grad mu is negligible in the hydrodynamic regime.
    Stated in Sec. II B after Eq. (6); without a quantitative estimate, this is an assumption tailored to expose viscous effects.
  • ad hoc to paper The harmonic (Laplacian equals zero) sector of the decoupled fourth-order equations can be neglected.
    In Sec. IV A, 'Neglecting the overall Laplacian in each equations'; the general solution of Eq. (24) includes harmonic modes, and the paper drops them without proof that boundary conditions are unaffected.
  • domain assumption CT (spin-flip times time-reversal) symmetry constrains the constitutive relations.
    Argued in Appendix A; needed for the linear-in-P spin current term.
  • domain assumption The film temperature is spatially uniform, so energy conservation can be dropped.
    Stated in Sec. II B; reasonable for thin films coupled to a substrate.
  • domain assumption delta n_sx = C_s mu_sx with constant C_s.
    Standard linear-response assumption, justified at low bias.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Probing viscous regimes of spin transport with local magnetometry." pith.science (2026). https://pith.science/paper/USJWU73J

@misc{pith2026250412396,
  author       = {Pith},
  title        = {Pith review of: Probing viscous regimes of spin transport with local magnetometry},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/USJWU73J}},
  note         = {Machine review of arXiv:2504.12396}
}
read the original abstract

It is now well-established, both theoretically and experimentally, that charge transport of metals can be in a hydrodynamic regime in which frequent electron-electron collisions play a significant role. Meanwhile, recent experiments have demonstrated that it is possible to inject spin currents into magnetic insulator films and explore the DC transport properties of spins. Inspired by these developments, we investigate the effect of viscosity, which naturally arises in the hydrodynamic regime, on DC spin transport. We show that viscosity gives rise to a sharp peak in the spatial profile of the out-of-plane stray magnetic field near the spin current injector. We propose that local magnetometers such as SQUIDs and nitrogen-vacancy centers can detect this viscosity-induced structure in the stray magnetic field. We also discuss the relevance of our results to yittrium iron garnet, a ferromagnetic insulator, and to Kagome spin liquids.

Figures

Figures reproduced from arXiv: 2504.12396 by the authors.

Figure 1
Figure 1. (a) Illustration of the proposed setup and our result. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. B⊥,zNV (x) as a function of distance x away from the in￾jector in the diffusive regime. (a) B⊥ close to the injector (b) B⊥ far away from the injector. Parameter values utilized to generate the two plots are: rσ = 1, ξs = 5µm, and w = 100nm. C. Numerical result While the asymptotic analysis of B⊥(x, zNV) allows us to fairly convincingly infer its shape, for a more sure-fire check, we turn to numerics. We numerically… view at source ↗
Figure 3
Figure 3. Current profile near the spin-current injector at [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figures from the paper (3 more)
Figure 4
Figure 4. Figure 4: B⊥ as a function of distance from the injector x; ξs,eff = 50µm, w = 100nm, and finally lv = 200nm. of our interest: B⊥,zNV (x) = − µ0CsIs 2πσs,eff  1 − l 2 v ξ −2 s,eff Z ∞ 0 dk (2k 2 l 2 v + 1)k sin kxe−kzNV qs [1 − e−2qsw]  1 − e −(k+qs)w k + qs + e −2qsw − e −(k…
Figure 5

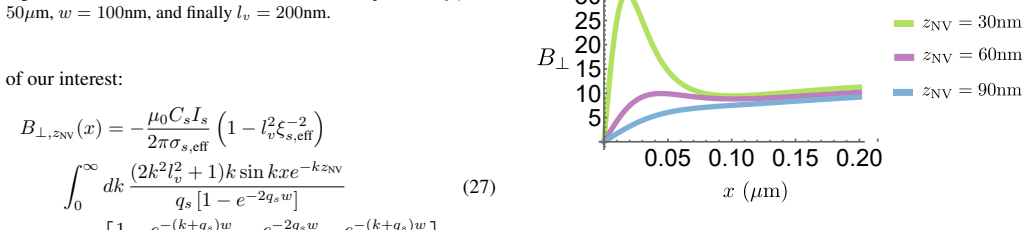

Figure 5. Figure 5: B⊥ as a function of distance from the injector x ob￾tained using the no-slip boundary condition; (a) w = 100nm (b) w = 200nm different boundary conditions, we now turn to numerical sim￾ulation. We show the numerical result for no-stress boundary con￾dition in [PITH_FU…
Figure 6
Figure 6. Figure 6: B⊥,zNV (x) numerically obtained in the 2D hydrodynamic regime at (a) (rσ, rη) = (0.025, 0.025) (b) (rσ, rη) = (0.4, 0.025) (c) (rσ, rη) = (0.025, 0.4) (d) (rσ, rη) = (0.4, 0.4). The no-slip boundary condition, lv = 100nm, w = 200nm, ξs,eff = 5µm are used for all plots.…
