The pith

A single ultrasonic transducer can create multiple distinct audible sound zones by modulating different audio signals on separate carrier frequencies.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Advanced sound zone control has required arrays of loudspeakers to isolate audio for different listeners. This work proposes that a single parametric loudspeaker can achieve similar isolation by using multiple ultrasonic carriers. Distinct audio signals are modulated onto carriers at different frequencies and combined into one signal. The air's nonlinear response demodulates them into virtual channels that existing control algorithms can use. This could make personal sound zones practical in settings where multiple speakers are impractical.

Core claim

The multi-carrier parametric loudspeaker enables sound zone control using only a single loudspeaker by modulating distinct audio signals onto separate ultrasonic carrier waves at different frequencies and combining them into a single composite signal that is emitted by a single-channel ultrasonic transducer, allowing the audio signals to interact via nonlinear demodulation in air to virtually form multi-channel outputs.

What carries the argument

Multi-carrier parametric loudspeaker (MCPL) that creates virtual multi-channel outputs through frequency-separated ultrasonic modulation and air nonlinearity.

If this is right

  • Existing sound zone control algorithms designed for multi-channel arrays can be applied directly to the single-loudspeaker setup.
  • High-contrast personal sound zones can be achieved without the need for massive loudspeaker arrays.
  • Sound zone control systems can be simplified to a single transducer while maintaining performance.
  • The approach opens possibilities for compact implementations in vehicles or personal devices.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Real-world deployment might require calibration for varying air conditions that affect the nonlinear demodulation.
  • This virtual channel creation could extend to other audio processing tasks that rely on multi-channel assumptions.
  • Integration with existing hardware might reduce costs and space requirements in consumer audio products.
  • Further research could explore optimal frequency spacing to maximize channel independence.

Load-bearing premise

The nonlinear demodulation in air creates virtual channels that are sufficiently independent and equivalent to physical multi-channel loudspeaker outputs for applying sound zone control algorithms.

What would settle it

Measurements showing that the demodulated audio signals do not allow existing SZC algorithms to produce high-contrast zones, due to excessive crosstalk or dependency between the virtual channels.

Figures

Figures reproduced from arXiv: 2504.17440 by Feng Niu, Jia-Xin Zhong, Jing Lu, Shaozhe Li, Tao Zhuang.

Figure 1
Figure 1. Figure 1: (a) Sketch of a circular MCPL positioned on the [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

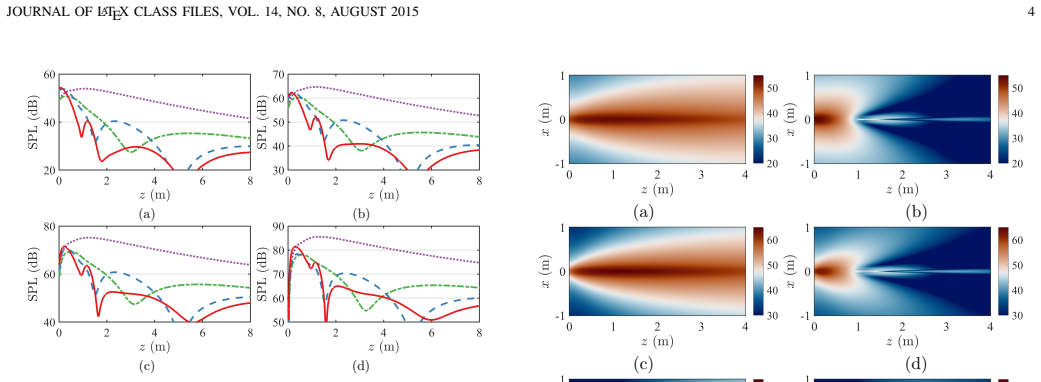

Figure 2. Figure 2: The axial audio sound generated by : the conventional PL and the proposed single-channel MCPL with : 2 carriers, : 3 carriers and : 4 carriers. The audio frequency is set as (a) 500 Hz, (b) 1 kHz, (c) 2 kHz and (d) 4 kHz. (a) (b) (c) (d) [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 4

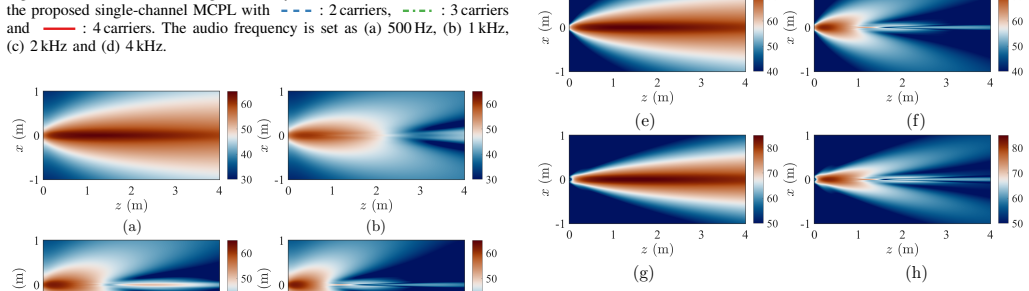

Figure 4. Figure 4: The audio sound distribution on the Oxz plane generated by the conventional PL (left column) and the proposed single-channel MCPL (right column). The audio frequency is: (a), (b), 500 Hz; (c), (d), 1 kHz; (e), (f), 2 kHz and (g), (h), 4 kHz. air, allowing for more effective manipulation of the audio sound field. Notably, the single-channel MCPL requires mul￾tiple carriers modulation only in signal processi… view at source ↗
