Encode the $\forall\exists$ Relational Hoare Logic into Standard Hoare Logic

T0 review · 2 major / 6 minor · reviewed 2026-08-16 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A single assertion encoding reduces ∀∃ relational Hoare logic to standard Hoare logic, proved under a relaxed refinement semantics.

desk verdict A clean, machine-checked encoding of a relaxed ∀∃ relational Hoare logic into standard Hoare logic; the title overstates the semantics, but the contribution is real and worth reviewing. read the letter →

arxiv 2504.17444 v2 pith:GIKNCCLI submitted 2025-04-24 cs.PL

Shushu Wu , Xiwei Wu , Qinxiang Cao This is my paper · ORCID
classification cs.PL MSC 68Q6003B70
keywords relationalHoarelogicprogramrefinementnondeterminismassertionencodingweakestpreconditionconfigurationprogram-as-resourceassertionsexecutionpredicate
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper claims that the $\forall\exists$ relational Hoare logic used to prove refinement of nondeterministic programs can be embedded faithfully in ordinary standard Hoare logic, with no ghost states or invariant machinery. The key move is to redefine relational-triple validity using configuration refinement, a denotational inclusion of possible outcomes, instead of multi-step small-step transitions, and then to encode each program-as-resource assertion as a unary assertion over low-level states that existentially abstracts the high-level state and remaining high-level program. The main theorem states that a relational triple is valid exactly when every encoded standard triple, universally parameterized by a high-level postcondition $X$, is $\forall$-valid. A syntactic form of the encoding uses a pure execution predicate $\mathrm{Exec}_X(P^H,c^H)$ that the low-level proof can carry along with ordinary Hoare rules, so relational proof rules become derivable standard rules. If the encoding is right, existing standard-Hoare verification infrastructure can prove refinement without building or re-verifying a second program logic.

What carries the argument

The load-bearing object is configuration refinement: $(\sigma_1,c_1)\hookrightarrow(\sigma_2,c_2)$ holds exactly when every terminal state reachable from $(\sigma_2,c_2)$ by denotational semantics is reachable from $(\sigma_1,c_1)$. Its decomposition theorem is what makes the encoding work: $(\sigma_1,c_1)\hookrightarrow(\sigma_2,c_2)$ is equivalent to $\forall X\subseteq\Sigma^H.\ \sigma_1\models\mathrm{wlp}(c_1,X)\Rightarrow \sigma_2\models\mathrm{wlp}(c_2,X)$. Because a refinement step becomes a universal implication over weakest preconditions, the existential 'choose a matching high-level execution' can be absorbed into the assertion encoding $\llbracket\cdot\rrbracket_X$. The syntactic encoding introduces the pure execution predicate $\mathrm{Exec}_X(P^H,c^H)$, read as 'there is a high-level state satisfying $P^H$ from which every $c^H$ outcome satisfies $X$'; proof rules update this predicate to emulate high-level evaluation steps.

What would settle it

Run the paper's own counterexample: under the original multi-step semantics, the triple $\langle x = y \land [\mathbf{skip}]\rangle\, x := x+1\,\langle x = y \land [y := y-1]\rangle$ is invalid because there is no small-step path from the initial configuration to the final configuration, while the configuration-refinement definition declares it valid and Theorem 4 proves the encoded standard triple.

Watch

Extended reading notes

Core claim

The central discovery is Theorem 4: for any low-level statement $c^L$ and program-as-resource assertions $\mathcal{P},\mathcal{Q}$, the relational triple $\langle\mathcal{P}\rangle\,c^L\,\langle\mathcal{Q}\rangle$ is valid if and only if, for every high-level state set $X$, the standard triple $\{\llbracket\mathcal{P}\rrbracket_X\}\,c^L\,\{\llbracket\mathcal{Q}\rrbracket_X\}$ is $\forall$-valid. The encoding is $\sigma^L \models \llbracket\mathcal{P}\rrbracket_X$ iff there exist $\sigma^H,c^H$ with $(\sigma^L,\sigma^H,c^H)\models\mathcal{P}$ and $\sigma^H\models\mathrm{wlp}(c^H,X)$. This turns the existential choice inside a relational proof into an existential quantifier inside an assertion, which standard Hoare logic can handle. The equivalence is proved under Definition 9, where the high-level update relation is configuration refinement rather than multi-step transition; the authors explicitly note that this relaxed validity makes some previously invalid triples valid, while preserving the intended refinement reading when the postcondition program is $\mathbf{skip}$.

Load-bearing premise

The central equivalence assumes the relaxed definition of relational validity via configuration refinement; under the original multi-step-transition semantics, the theorem as stated is not expected to hold.

Editorial extensions

If this is right

  • Any verification infrastructure for standard Hoare logic can prove refinement triples by adding the execution predicate, without re-proving soundness of a second logic.
  • Relational proof rules for sequencing, loops, nondeterministic choice, and the two vertical-composition rules become derivable standard rules, so relational proof steps correspond one-for-one to standard proof steps.
  • The placeholder $X$ is inert in practice: proofs operate on $\mathrm{Exec}_X(P^H,c^H)$ by update rules, so users never need to construct $X$ explicitly.
  • The encoding extends to function calls, error behaviour, and separation-logic frame reasoning while preserving the same equivalence.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The relaxed validity trades exact trace alignment for denotational behaviour: refinement conclusions are about possible final results, not about matching every small step; full refinement still requires the postcondition program to be $\mathbf{skip}$, but intermediate continuations in assertions are interpreted coarser than before.
  • A testable extension is to specialize the universal placeholder $X$ to the weakest precondition of a concrete high-level postcondition, yielding a proof rule for known input-output refinement that may recover exact small-step validity when the high-level language is deterministic.
  • The encoding suggests that adding an execution predicate to an existing unary verifier is a modular route to refinement checking; one could compare proof effort and automation against ghost-state-based refinement logics on the heap-manipulating case studies.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 6 minor

Summary. The paper proposes an encoding theory that reduces a programs-as-resources relational Hoare logic for nondeterministic programs to standard (unary) Hoare logic. It redefines relational triple validity using a configuration-refinement relation based on denotational semantics rather than multi-step transitions, then defines an assertion encoding L·M_X via weakest preconditions. Theorem 4 states that a relational triple is valid under this relaxed semantics iff, for every high-level postcondition X, the encoded standard Hoare triple is ∀-valid. The paper also gives a syntactic encoding using an execution predicate Exec_X, presents proof rules for this predicate, shows how relational proof rules become standard proof rules, and reports machine-checked Rocq formalization plus case studies including mergesort, BST, DFS, and KMP.

Significance. Within its redefined semantics, the encoding is elegant and theoretically useful: it avoids ghost-state and invariant machinery, and it allows standard Hoare logic proof infrastructure to be reused for refinement proofs. The paper's strengths include a semantic proof of the central equivalence, a machine-checked Rocq formalization with a Zenodo artifact, and substantial case studies. The authors are also transparent in Section 8 that configuration refinement is a weakening of multi-step validity and that some previously invalid triples become valid. The main limitation is that Theorem 4 does not encode the original Definition 1 semantics; because the encoded standard triple does not depend on the relational semantics, the equivalence is exact only for the relaxed logic. For final refinement judgments with [skip] postconditions, Proposition 10 recovers the original meaning, but intermediate judgments in relational proofs are broader, so the advertised scope of the title and abstract should be adjusted.

major comments (2)
  1. [§3 (Definition 9), §4 (Theorem 4), §8] Theorem 4 is proved for the relaxed validity based on configuration refinement ↩→, not for the original multi-step validity of Definition 1. The example in Section 8, ⟨x = y ∧ [skip]⟩ x := x+1 ⟨x = y ∧ [y := y−1]⟩, is valid under Definition 9 but invalid under Definition 1, and since the encoded standard triple is ∀-valid independently of which relational semantics is fixed, the theorem would be false for Definition 1. This gap is load-bearing for the paper's central claim: the title and abstract present the result as an encoding of the ∀∃ relational Hoare logic, and intermediate rules such as Rel-Seq and High-Focus can derive triples that are valid only under the relaxed semantics. Proposition 10 rescues only the fragment whose postcondition is [skip]. I request that the paper be explicitly rescoped—in the title, abstract, and introduction—to the configuration-refinement-based validity, with a precise statement that the original multi-step semantics is encoded only for the [skip]-postcondition refinement fragment.
  2. [§4.2 (Theorem 4), §5.2 (Definition 17)] The theorem's right-hand side universally quantifies over an arbitrary subset X of high-level states, and the assertion encoding L·M_X and Exec_X are parameterized by this second-order object. The paper argues in Section 8 that X is a mere placeholder and compares it to logical variables in VST specifications, but VST-style logical variables range over data values, not over sets of states. The text should state more precisely that using the encoding in a concrete standard Hoare logic requires either a schematic meta-level variable X or an assertion language extended with a family of predicates indexed by X; otherwise the reduction is a meta-theorem rather than a syntactic judgment in the underlying object logic. This is a clarification of the practical scope of the reduction rather than a challenge to the semantic argument.
minor comments (6)
  1. [§4.2 and Appendix B (Theorem 4 proof, ⇐ direction)] In the sentence 'That is for any σH3 such that (σH2,σH3)∈JcH2Knrm, we have (σH1,σH3)∈JcH2Knrm', the second occurrence of JcH2Knrm should be JcH1Knrm; the same typo appears in the appendix proof.
  2. [§5.2 vs. Appendix C.2] The numbering 'Definition 17' is used twice: once for the syntactic encoding in Section 5.2 and once for the semantic interpretation of the execution predicate in Appendix C.2. Please renumber so that cross-references are unambiguous.
  3. [§7.1 (Figure 10)] The high-level mergeH code is misparenthesized and hard to parse; the two branches of the choice construct are not clearly delimited. Please rewrite the pseudocode with explicit begin/end or indentation for each branch.
  4. [§5.1 (Theorem 16(d), proof)] The proof of the disjunction case begins with 'we have ∃𝑎.∃σH cH...' even though no existential variable 𝑎 is involved in that case; remove the stray ∃𝑎 or correct the formula to match the disjunction case.
  5. [§6.1 (Figure 9, Exec-Nondet)] The side condition of Exec-Nondet is written as 'P_H[v/x] ⇒ e1≤v≤e2' without explicit quantification over v. State whether this is meant universally over all v or for the value chosen by the nondeterministic assignment, since this affects how the rule is applied.
  6. [Abstract and §1] The phrase 'without requiring modifications to the logic framework' is stronger than what is demonstrated: the paper introduces the Exec_X predicate and its update rules into the assertion language and proof system. Suggest wording such as 'without changing the core standard Hoare rules or re-verifying their soundness.'

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: Theorem 4 is a direct semantic correspondence proved from independent definitions, with only a disclosed scope limitation regarding the redefined validity relation.

full rationale

The derivation in Theorem 4 is self-contained: Definition 9 (relaxed relational validity via configuration refinement) and Definition 15 (assertion encoding via weakest preconditions) are independent semantic definitions, and the equivalence is proved by expanding configuration refinement (Def. 7) through weakest preconditions (Def. 12), using Theorem 11 and the set-theoretic Proposition 13/14. The high-level program does not appear in the assumptions in a way that forces the conclusion; the placeholder X is instantiated in the reverse direction with the terminal-state set of the initial high-level configuration, which is a legitimate proof technique rather than a circular step. The main proof rules (Low-Focus, High-Focus, Rel-Wh, Choice) are re-derived as standard Hoare rules from the encoding, not assumed as the target. Self-citations (e.g., the QCP tool [47] and the Rocq artifact [46]) are used as implementation and formalization evidence, not as load-bearing justification for the encoding theorem. The paper explicitly discloses in Sec. 8 that it redefines relational triple validity using configuration refinement instead of multi-step transitions, giving the example ⟨x = y ∧ [skip]⟩ x := x+1 ⟨x = y ∧ [y := y-1]⟩; therefore Theorem 4 is an exact correspondence for the relaxed judgment of Definition 9, not for the original multi-step Definition 1. This is a scope limitation openly acknowledged by the authors, not a circular reduction of the theorem to its own inputs.

Assumptions & free parameters 0 free parameters · 3 assumptions · 0 invented entities

The central encoding theorem rests on the semantic framework (denotational semantics) and on the newly introduced configuration refinement relation. No free parameters are fitted; no new physical or logical entities are postulated beyond the definition of the execution predicate.

assumptions (3)
  • domain assumption Programs are equipped with denotational semantics JcK_nrm (Definition 6).
    The entire development, including configuration refinement and weakest preconditions, is built on denotational semantics. The paper states this at the start of Sec. 3.
  • domain assumption Small-step multi-step transitions and denotational semantics characterize the same high-level behavior (Proposition 5).
    Used to connect the relational triple's small-step formulation to the denotational one; the authors assume this consistency.
  • ad hoc to paper The relaxed configuration refinement relation ↩→ is an adequate substitute for multi-step transitions in the definition of valid relational triples (Definition 9).
    This is the key weakening the paper introduces. It makes some previously invalid triples valid (Sec. 8), and the encoding theorem is proved with respect to this weakened semantics.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Encode the $\forall\exists$ Relational Hoare Logic into Standard Hoare Logic." pith.science (2026). https://pith.science/paper/GIKNCCLI

@misc{pith2026250417444,
  author       = {Pith},
  title        = {Pith review of: Encode the $\forall\exists$ Relational Hoare Logic into Standard Hoare Logic},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/GIKNCCLI}},
  note         = {Machine review of arXiv:2504.17444}
}
abstract

Verifying a real-world program's functional correctness can be decomposed into (1) a refinement proof showing that the program implements a more abstract high-level program and (2) an algorithm correctness proof at the high level. Relational Hoare logic serves as a powerful tool to establish refinement but often necessitates formalization beyond standard Hoare logic. Particularly in the nondeterministic setting, the $\forall\exists$ relational Hoare logic is required. Existing approaches encode this logic into a Hoare logic with ghost states and invariants, yet these extensions significantly increase formalization complexity and soundness proof overhead. This paper proposes a generic encoding theory that reduces the $\forall\exists$ relational Hoare logic to standard (unary) Hoare logic. Precisely, we propose to redefine the validity of relational Hoare triples while preserving the original proof rules and then encapsulate the $\forall\exists$ pattern within assertions. We have proved that the validity of encoded standard Hoare triples is equivalent to the validity of the desired relational Hoare triples. Moreover, the encoding theory demonstrates how common relational Hoare logic proof rules are indeed special cases of standard Hoare logic proof rules, and relational proof steps correspond to standard proof steps. Our theory enables standard Hoare logic to prove $\forall\exists$ relational properties by defining a predicate Exec, without requiring modifications to the logic framework or re-verification of soundness.

Figures

Figures reproduced from arXiv: 2504.17444 by the authors.

Figure 1
Figure 1. Relational Hoare Triples 1 L ≾ ≾ 1 H 2 L 2 H [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 3
Figure 3. The bitmask/set example: a low-level program uses bitmask operations to record constants, a high-level [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

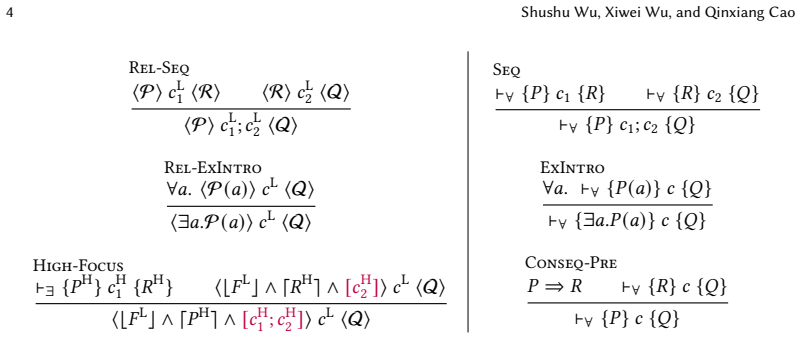

Figure 4
Figure 4. Proof Rules in Relational and Standard Hoare logic [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figures from the paper (9 more)
Figure 5
Figure 5. Figure 5: Relational and standard proofs for the bitmask/set example. [PITH_FULL_IMAGE:figures/full_fig_p005_5.png]
Figure 6
Figure 6. Figure 6: Core Relational Proof Rules 2.1 High-level Programs as Resources Treating high-level programs as resources involves extending a binary assertion P ⊆ Σ L ×Σ H with a high-level program 𝑐 H ∈ ProgH. Here, Σ L and Σ H represent the set of low-level program states and the …
Figure 7
Figure 7. Figure 7: State Transition Relation. It is worth noting that the reverse implication does not necessarily hold. For instance, we can show that (x = 0,skip) ↩→ (x = 1, x := x − 1), whereas there is no multi-step transition from the left configuration to the right one. Based on co…
Figure 8
Figure 8. Figure 8: Low-level Dependent Relational rules and their corresponding encoded rules [PITH_FULL_IMAGE:figures/full_fig_p015_8.png]
Figure 9
Figure 9. Figure 9: Proof rules for Evaluating High-level Programs [PITH_FULL_IMAGE:figures/full_fig_p016_9.png]
Figure 10
Figure 10. Figure 10: The merge example: the low-level program (left) merges two singly linked lists using explicit pointer [PITH_FULL_IMAGE:figures/full_fig_p020_10.png]
Figure 11
Figure 11. Figure 11: Relational Hoare Triples Subsequent frameworks [19, 38, 39] leverage this (∀∃)𝜔 Hoare logic to encode the ∀∃ relational Hoare logic for verifying program refinement. A common strategy is to instantiate the ghost state as a high-level program configuration and set the …
Figure 12
Figure 12. Figure 12: Implementations of recording a collection with arrays [PITH_FULL_IMAGE:figures/full_fig_p035_12.png]
Figure 13

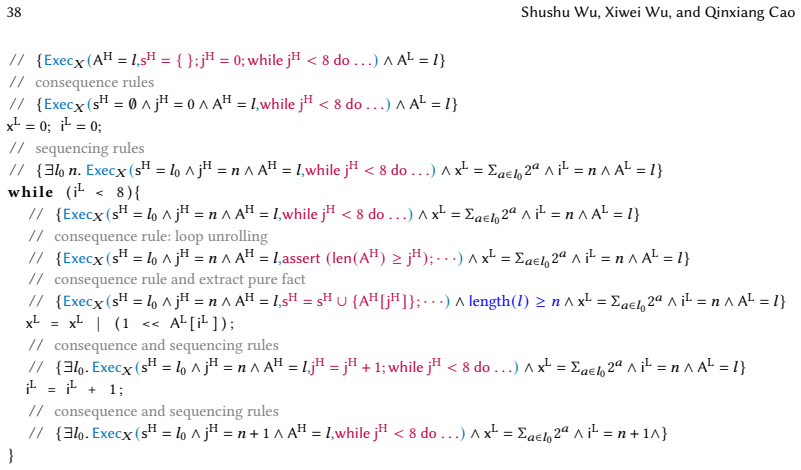

Figure 13. Figure 13: Refinement Proof Based on Standard Hoare triples [PITH_FULL_IMAGE:figures/full_fig_p038_13.png]
