pith. sign in

arxiv: 2504.18389 · v2 · submitted 2025-04-25 · ⚛️ physics.optics

A method for optically trapping nanospheres at micron range from a tilted mirror

Alexey Grinin , Andrew Dana , Mark Nguyen , Eduardo Alejandro , Andrew A. Geraci This is my paper

Pith reviewed 2026-05-22 18:43 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords optical trappingnanospheresstanding wavetilted mirroroptical tweezersparametric coolingsurface force sensing
0
0 comments X

The pith

Translating a tilted mirror into a single-beam optical tweezer creates stable standing-wave traps for nanospheres at sub-micron distances from the surface.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes and demonstrates a method to trap dielectric nanospheres at sub-micron distances from a reflective surface by moving a tilted mirror into the focus of a single-beam optical tweezer. Interference between the incident and reflected beams forms an off-axis standing-wave configuration with tunable potential minima close to the surface. The approach is validated by transitioning a 170 nm silica sphere from a single-beam trap into the first or second standing-wave minimum at 0.55 μm or 1.61 μm from the surface. Parametric feedback cooling of all three degrees of freedom is performed in high vacuum, supporting applications in surface force sensing.

Core claim

By translating a tilted mirror towards the focus of a single-beam optical tweezer, the optical trap transitions into an off-axis standing-wave configuration due to interference between the incident and reflected beams. Stable potential minima emerge within a finite overlap region close to the surface, with their number, shape, and distance from the surface tunable via the incidence angle, waist, and polarization of the incoming beam. This enables deterministic selection of trapping sites as the system transitions from the single-beam trap to the standing-wave trap.

What carries the argument

The off-axis standing-wave configuration formed by interference between the incident beam and its reflection from the tilted mirror, which produces tunable potential minima at sub-micron distances from the surface.

Load-bearing premise

Interference between the incident and reflected beams produces stable potential minima at the reported distances without dominant destabilizing effects from surface scattering, absorption, or additional forces.

What would settle it

An observation that a 170 nm silica sphere cannot be stably trapped or cooled at 0.55 μm or 1.61 μm from the surface when the mirror is translated to the predicted position, or that the measured trap positions deviate substantially from the standing-wave model.

Figures

Figures reproduced from arXiv: 2504.18389 by Alexey Grinin, Andrew A. Geraci, Andrew Dana, Eduardo Alejandro, Mark Nguyen.

Figure 1
Figure 1. Figure 1: FIG. 1: (a) Calculated optical potential in the [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2: Contour plots of the optical potential depth generated by a TEM [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

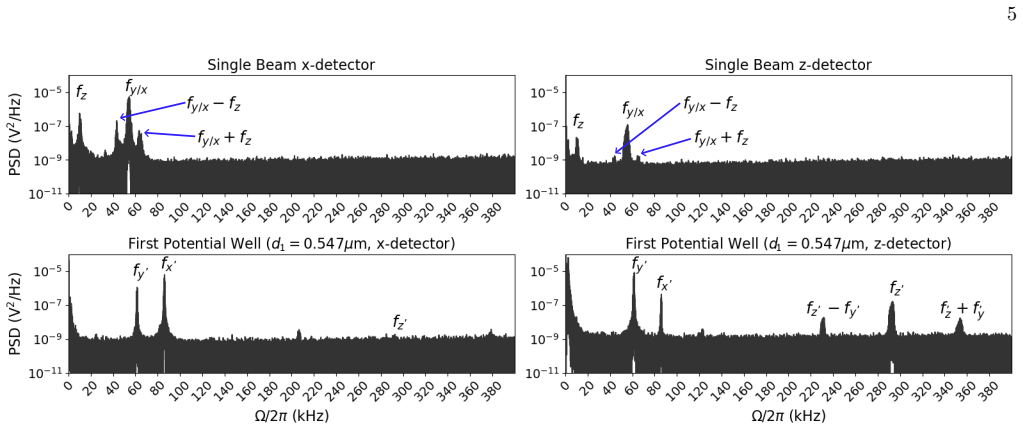

Figure 3. Figure 3: FIG. 3: Power spectral density (PSD) from both detectors for a 170 nm diameter silica sphere trapped in the single [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5: Frequency versus linear polarization of the [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4: Frequency versus focus location relative to the [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 7

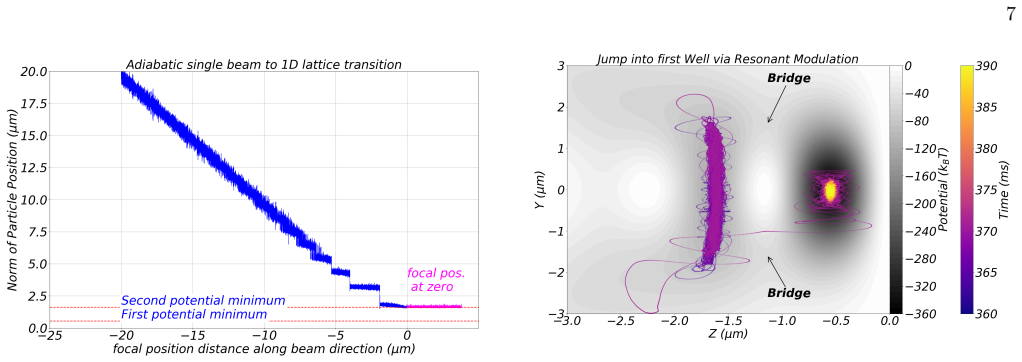

Figure 7. Figure 7: FIG. 7: Particle trajectory for a controlled transition [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8: PSD for a 170nm diameter silica sphere in the [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 9

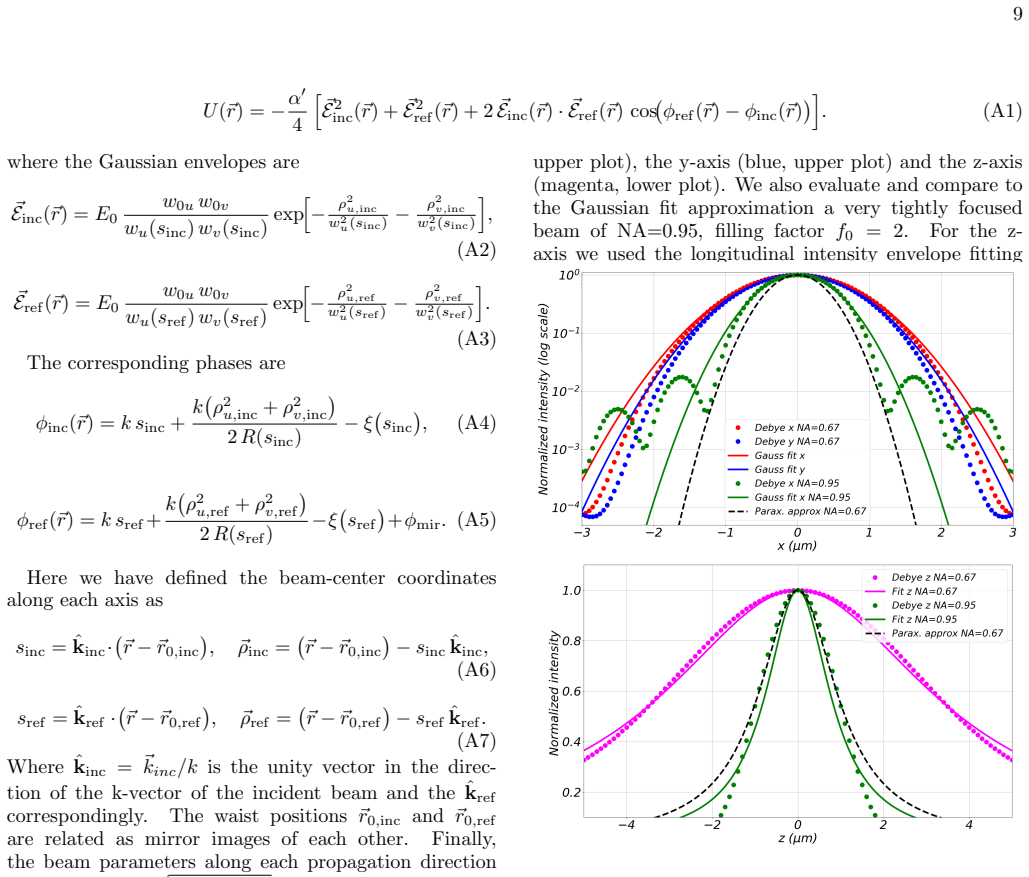

Figure 9. Figure 9: FIG. 9: Normalized intensity as a function of the radial [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
read the original abstract

We propose and experimentally demonstrate a novel optical method for trapping and cooling dielectric nanospheres at (sub)-micron distances from a reflective metallic surface. By translating a tilted mirror towards the focus of a single-beam optical tweezer, the optical trap transitions into an off-axis standing-wave configuration due to interference between the incident and reflected beams. Stable potential minima emerge within a finite overlap region close to the surface, with their number, shape, and distance from the surface tunable via the incidence angle, waist, and polarization of the incoming beam. This configuration enables deterministic selection of trapping sites as the system transitions from the single-beam trap to the off-axis standing wave trap. We validate this approach using a $170$ nm diameter silica sphere in a single-beam trap with a $1.5$ $\mu$m waist and transitioning it into the second or first potential minimum of the standing wave trap, located $1.61$ $\mu$m or $0.55$ $\mu$m from the surface, respectively. The experimental results align well with our theoretical model, supported by numerical simulations of the Langevin equations of motion. Additionally, we perform parametric feedback cooling of all three motional degrees of freedom in a high-vacuum environment. This method provides a robust platform for ultra-sensitive scanning surface force sensing at micron distances from a reflective surface in high vacuum and may open new pathways for short-range gravity or Casimir effect measurements.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript proposes and demonstrates a method to trap dielectric nanospheres at sub-micron distances from a reflective surface by translating a tilted mirror into the focus of a single-beam optical tweezer, thereby creating an off-axis standing-wave trap via interference between the incident and reflected beams. The authors report stable trapping of a 170 nm silica sphere at the first or second potential minimum (0.55 μm or 1.61 μm from the surface) with a 1.5 μm waist beam, showing alignment between experiment, a theoretical model, and Langevin-equation simulations of particle motion; they further implement parametric feedback cooling of all three degrees of freedom in high vacuum and suggest applications to surface-force sensing and short-range force measurements.

Significance. If the central claim holds, the approach supplies a practical route to deterministic, tunable optical trapping near reflective surfaces in vacuum, which could enable scanning probe measurements of Casimir forces or short-range gravity at micron scales. The explicit use of independent Langevin simulations to corroborate the observed equilibrium positions and the experimental transition from single-beam to standing-wave trapping constitute reproducible checks that strengthen the work.

major comments (1)
  1. [Abstract and experimental validation section] Abstract and experimental validation section: the reported agreement between the observed trapping positions (0.55 μm and 1.61 μm) and the interference minima is presented without quantitative bounds on non-optical contributions (van der Waals, electrostatic, or surface-scattering forces). A control measurement—e.g., on a non-reflective substrate or with varied polarization—would be required to establish that the optical potential dominates at these distances; without it the alignment with the model remains suggestive rather than conclusive.
minor comments (1)
  1. [Abstract] The abstract states that results 'align well' with the model but supplies no error bars, number of trials, or data-exclusion criteria; adding these would improve reproducibility.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for the constructive major comment. We address the point below and indicate the revisions we will make.

read point-by-point responses

  1. Referee: Abstract and experimental validation section: the reported agreement between the observed trapping positions (0.55 μm and 1.61 μm) and the interference minima is presented without quantitative bounds on non-optical contributions (van der Waals, electrostatic, or surface-scattering forces). A control measurement—e.g., on a non-reflective substrate or with varied polarization—would be required to establish that the optical potential dominates at these distances; without it the alignment with the model remains suggestive rather than conclusive.

    Authors: We thank the referee for highlighting this important point. While the observed positions match the calculated optical interference minima and the transition from single-beam to standing-wave trapping is reproduced by Langevin simulations, we agree that explicit bounds on non-optical forces would make the claim more conclusive. In the revised manuscript we will add quantitative estimates (using the Derjaguin approximation for van der Waals forces and typical surface-charge values for electrostatic forces) showing that these contributions are at least an order of magnitude smaller than the optical gradient force at 0.55 μm and 1.61 μm for our 1.5 μm waist beam. We already vary incidence angle and polarization in the experiment; these changes shift the trapping sites exactly as predicted by the optical model alone. A control on a non-reflective substrate is not feasible because the standing-wave trap requires reflection from the metallic surface. We will expand the experimental validation section with the force estimates and a discussion of why surface forces cannot account for the observed angle-dependent positions. revision: partial

Circularity Check

0 steps flagged

No circularity: experimental validation and Langevin simulations are independent of the optical model inputs.

full rationale

The paper derives the standing-wave potential minima from standard interference between incident and reflected beams, with positions set by incidence angle, waist, and polarization. These positions (0.55 μm and 1.61 μm) are computed from the geometry and wavelength rather than fitted to the trapping data. The central claim is then tested by direct experiment: a 170 nm sphere is translated from a single-beam trap into the calculated minima, with observed behavior compared to separate numerical integration of the Langevin equations. No parameter is fitted to the target distances or stiffnesses and then re-labeled as a prediction; the model is not self-referential, and no self-citation supplies a uniqueness theorem or ansatz that would close the loop. Surface-force assumptions are stated as perturbative but are not required for the derivation itself; they are external to the optical-potential calculation. The derivation chain therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The approach relies on standard optical interference and ray optics principles plus experimental tuning parameters rather than new postulates or fitted constants beyond the reported beam waist and angle choices.

free parameters (2)
  • beam waist
    Experimental parameter set to 1.5 μm to define the single-beam trap before transition.
  • incidence angle
    Tunable experimental parameter used to control the position and shape of standing-wave minima.
axioms (1)
  • domain assumption Interference between the incident and reflected beams creates stable potential minima near the surface.
    Invoked in the description of the transition to off-axis standing-wave configuration.

pith-pipeline@v0.9.0 · 5795 in / 1472 out tokens · 62437 ms · 2026-05-22T18:43:53.501707+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

32 extracted references · 32 canonical work pages · 3 internal anchors

  1. [1]

    Figure 6 illustrates the sim- ulated particle dynamics during an adiabatic transition from a single-beam trap to a one-dimensional optical lat- tice

    Adiabatic Transition and Trapping in the Second Potential Well In our first simulation, we confirm the experimental observation that the particle consistently gets trapped in the second potential minimum upon transition from the single beam tweezer. Figure 6 illustrates the sim- ulated particle dynamics during an adiabatic transition from a single-beam tr...

    work page

  2. [2]

    By applying parametric modulation (heating) at a resonance frequency, the particle can be transferred to the first potential well

    Controlled Transition via Resonant Modulation Although the particle naturally settles in the most dis- tant stable potential well, this is not a practical limita- tion. By applying parametric modulation (heating) at a resonance frequency, the particle can be transferred to the first potential well. In this method, a sinusoidal modulation of the laser powe...

    work page doi:10.37807/gbmf12328 2023

  3. [3]

    Millen, T

    J. Millen, T. S. Monteiro, R. Pettit, and A. N. Vami- vakas, Optomechanics with levitated particles, Reports on Progress in Physics 83, 026401 (2020). 10

    work page 2020

  4. [4]

    Aspelmeyer , author L

    C. Gonzalez-Ballestero, M. Aspelmeyer, L. Novotny, R. Quidant, and O. Romero-Isart, Levitodynam- ics: Levitation and control of microscopic ob- jects in vacuum, Science 374, eabg3027 (2021), https://www.science.org/doi/pdf/10.1126/science.abg3027

    work page doi:10.1126/science.abg3027 2021

  5. [5]

    Dania, D

    L. Dania, D. S. Bykov, F. Goschin, M. Teller, A. Kassid, and T. E. Northup, Ultrahigh quality factor of a levitated nanomechanical oscillator, Phys. Rev. Lett. 132, 133602 (2024)

    work page 2024

  6. [6]

    Deli´ c, M

    U. Deli´ c, M. Reisenbauer, K. Dare, D. Grass, V. Vuleti´ c, N. Kiesel, and M. Aspelmeyer, Cooling of a levitated nanoparticle to the motional quantum ground state, Sci- ence 367, 892 (2020)

    work page 2020

  7. [7]

    Ranfagni, K

    A. Ranfagni, K. Børkje, F. Marino, and F. Marin, Two- dimensional quantum motion of a levitated nanosphere, Phys. Rev. Res. 4, 033051 (2022)

    work page 2022

  8. [8]

    Tebbenjohanns, M

    F. Tebbenjohanns, M. L. Mattana, M. Rossi, M. Frim- mer, and L. Novotny, Quantum control of a nanoparticle optically levitated in cryogenic free space, Nature 595, 378 (2021)

    work page 2021

  9. [9]

    Piotrowski, D

    J. Piotrowski, D. Windey, J. Vijayan, C. Gonzalez- Ballestero, A. d. l. R. Sommer, N. Meyer, R. Quidant, O. Romero-Isart, R. Reimann, and L. Novotny, Simulta- neous ground-state cooling of two mechanical modes of a levitated nanoparticle, Nature Phys. 19, 1009 (2023), arXiv:2209.15326 [quant-ph]

    work page arXiv 2023

  10. [10]

    Zeptonewton force sensing with nanospheres in an optical lattice

    G. Ranjit, M. Cunningham, K. Casey, and A. A. Geraci, Zeptonewton force sensing with nanospheres in an optical lattice, Phys. Rev. A 93, 053801 (2016), arXiv:1603.02122 [physics.optics]

    work page internal anchor Pith review Pith/arXiv arXiv 2016

  11. [11]

    Geraci and H

    A. Geraci and H. Goldman, Sensing short range forces with a nanosphere matter-wave interferometer, Phys. Rev. D 92, 062002 (2015)

    work page 2015

  12. [12]

    Monteiro, S

    F. Monteiro, S. Ghosh, A. G. Fine, and D. C. Moore, Op- tical levitation of 10-ng spheres with nano- g acceleration sensitivity, Phys. Rev. A 96, 063841 (2017)

    work page 2017

  13. [13]

    Hebestreit, M

    E. Hebestreit, M. Frimmer, R. Reimann, and L. Novotny, Sensing static forces with free-falling nanoparticles, Phys. Rev. Lett. 121, 063602 (2018)

    work page 2018

  14. [14]

    T. M. Hoang, Y. Ma, J. Ahn, J. Bang, F. Robicheaux, Z.- Q. Yin, and T. Li, Torsional optomechanics of a levitated nonspherical nanoparticle, Phys. Rev. Lett. 117, 123604 (2016)

    work page 2016

  15. [15]

    J. Ahn, Z. Xu, J. Bang, Y.-H. Deng, T. M. Hoang, Q. Han, R.-M. Ma, and T. Li, Optically levitated nan- odumbbell torsion balance and ghz nanomechanical ro- tor, Phys. Rev. Lett. 121, 033603 (2018)

    work page 2018

  16. [16]

    Reimann, M

    R. Reimann, M. Doderer, E. Hebestreit, R. Diehl, M. Frimmer, D. Windey, F. Tebbenjohanns, and L. Novotny, Ghz rotation of an optically trapped nanoparticle in vacuum, Phys. Rev. Lett. 121, 033602 (2018)

    work page 2018

  17. [17]

    Monteiro, S

    F. Monteiro, S. Ghosh, E. C. van Assendelft, and D. C. Moore, Optical rotation of levitated spheres in high vac- uum, Phys. Rev. A 97, 051802 (2018)

    work page 2018

  18. [18]

    Romero-Isart, A

    O. Romero-Isart, A. C. Pflanzer, F. Blaser, R. Kaltenbaek, N. Kiesel, M. Aspelmeyer, and J. I. Cirac, Large quantum superpositions and interference of massive nanometer-sized objects, Phys. Rev. Lett. 107, 020405 (2011)

    work page 2011

  19. [19]

    D. E. Chang, C. A. Regal, S. B. Papp, D. J. Wilson, J. Ye, O. Painter, H. J. Kimble, and P. Zoller, Cavity opto-mechanics using an op- tically levitated nanosphere, Proceedings of the National Academy of Sciences 107, 1005 (2010), https://www.pnas.org/content/107/3/1005.full.pdf

    work page 2010

  20. [20]

    Windey, C

    D. Windey, C. Gonzalez-Ballestero, P. Maurer, L. Novotny, O. Romero-Isart, and R. Reimann, Cavity-based 3d cooling of a levitated nanoparticle via coherent scattering, Phys. Rev. Lett. 122, 123601 (2019)

    work page 2019

  21. [21]

    U. c. v. Deli´ c, M. Reisenbauer, D. Grass, N. Kiesel, V. Vuleti´ c, and M. Aspelmeyer, Cavity cooling of a levi- tated nanosphere by coherent scattering, Phys. Rev. Lett. 122, 123602 (2019)

    work page 2019

  22. [22]

    Ranjit, C

    G. Ranjit, C. Montoya, and A. A. Geraci, Cold atoms as a coolant for levitated optomechanical systems, Phys. Rev. A 91, 013416 (2015)

    work page 2015

  23. [23]

    A. A. Geraci, S. B. Papp, and J. Kitching, Short- range force detection using optically cooled levitated microspheres, Phys. Rev. Lett. 105, 101101 (2010), arXiv:1006.0261 [hep-ph]

    work page internal anchor Pith review Pith/arXiv arXiv 2010

  24. [24]

    Montoya, E

    C. Montoya, E. Alejandro, W. Eom, D. Grass, N. Clarisse, A. Witherspoon, and A. A. Geraci, Scanning force sensing at micrometer distances from a conductive surface with nanospheres in an optical lattice, Appl. Opt. 61, 3486 (2022)

    work page 2022

  25. [25]

    Magrini, R

    L. Magrini, R. A. Norte, R. Riedinger, I. Marinkovi´ c, D. Grass, U. Deli´ c, S. Gr¨ oblacher, S. Hong, and M. As- pelmeyer, Near-field coupling of a levitated nanoparticle to a photonic crystal cavity, Optica 5, 1597 (2018)

    work page 2018

  26. [26]

    Diehl, E

    R. Diehl, E. Hebestreit, R. Reimann, F. Tebbenjohanns, M. Frimmer, and L. Novotny, Optical levitation and feed- back cooling of a nanoparticle at subwavelength distances from a membrane, Phys. Rev. A 98, 013851 (2018)

    work page 2018

  27. [27]

    Winstone, R

    G. Winstone, R. Bennett, M. Rademacher, M. Rashid, S. Buhmann, and H. Ulbricht, Direct measurement of the electrostatic image force of a levitated charged nanopar- ticle close to a surface, Phys. Rev. A 98, 053831 (2018)

    work page 2018

  28. [28]

    Novotny and B

    L. Novotny and B. Hecht, Principles of Nano-Optics (Cambridge University Press, 2006)

    work page 2006

  29. [29]

    Weisman, C

    E. Weisman, C. K. Galla, C. Montoya, E. Alejan- dro, J. Lim, M. Beck, G. P. Winstone, A. Grinin, W. Eom, and A. A. Geraci, An apparatus for in-vacuum loading of nanoparticles into an optical trap (2022), arXiv:2208.02102 [quant-ph]

    work page arXiv 2022

  30. [30]

    Tebbenjohanns, M

    F. Tebbenjohanns, M. Frimmer, and L. Novotny, Optimal position detection of a dipolar scatterer in a focused field, Phys. Rev. A 100, 043821 (2019)

    work page 2019

  31. [31]

    V. Jain, J. Gieseler, C. Moritz, C. Dellago, R. Quidant, and L. Novotny, Direct measurement of photon recoil from a levitated nanoparticle, Phys. Rev. Lett. 116, 243601 (2016), arXiv:1603.03420 [physics.optics]

    work page internal anchor Pith review Pith/arXiv arXiv 2016

  32. [32]

    Gieseler, B

    J. Gieseler, B. Deutsch, R. Quidant, and L. Novotny, Subkelvin parametric feedback cooling of a laser-trapped nanoparticle, Phys. Rev. Lett. 109, 103603 (2012)

    work page 2012
