Machine-learning-based methods can be developed for the reconstruction of clusters in segmented detectors for high energy physics experiments. Convolutional neural networks with autoencoder architecture trained on labeled data from a simulated dataset reconstruct events by providing information about the hit point and energy of each particle that has entered the detector. The correct reconstruction of the positionand the energy of the incident particles is crucial for the accurate events reconstruction. The presented method shows the ability to reconstruct the impact point within the same segment as the true position and determines the particle energy with good precision. It can be applied in a wide range of cases of event reconstruction where the good separation of overlapping signals plays a key role in the data analysis.

Figures

Figures reproduced from arXiv: 2505.24740 by the authors.

**Figure 1.** To perform event reconstruction and evaluate its precision we developed several CNNs with autoencoder architecture. All models have similar architectures, consisting of an encoder and a decoder part. The encoder consists of several 2D convolution layers with a decreasing number of filters with a decreasing kernel size. Dropout layers are used between the convolution layers. The decoder features a mirrored structur… view at source ↗

**Figure 1.** Up, left: A simulated event in a 29×29 crystal calorimeter containing several clusters created by photons entering the detector. The value for each crystal represents the energy accumulated in the corresponding channel for the whole duration of the event. Up, right: The label, assigned to the event. Each crystal is divided in 16 smaller bins. The ones where a photon has hit the detector have the value of the photon’… view at source ↗

**Figure 2.** Structure of the hidden layers in the two tested models. Both models consist of an encoder and [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

Figures from the paper (2 more)

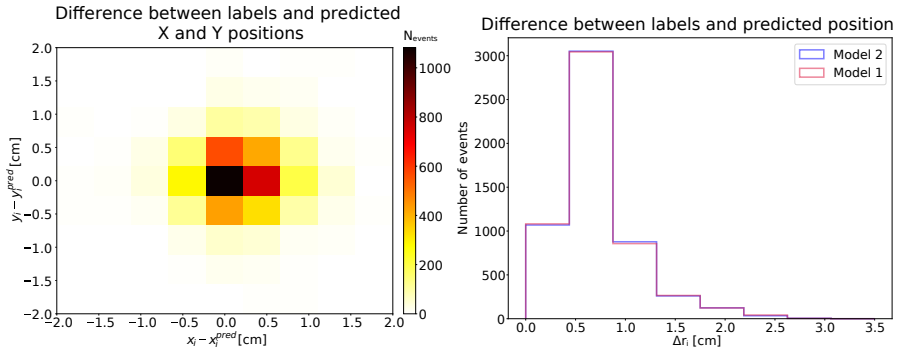

**Figure 3.** Figure 3: Difference between the true and the predicted position for all found clusters in the test dataset. [PITH_FULL_IMAGE:figures/full_fig_p005_3.png]

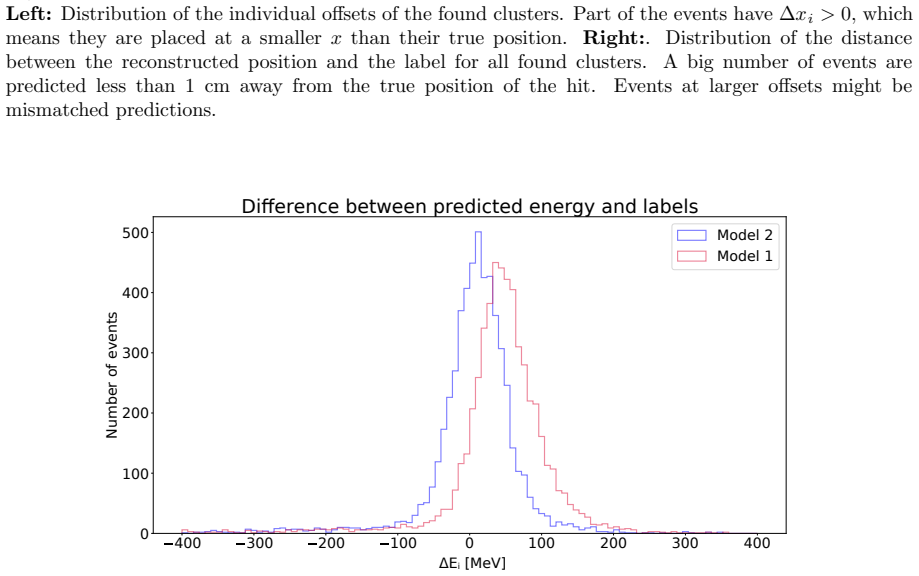

**Figure 4.** Figure 4: Difference between the true and the predicted values for the energy of the particles the identified [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]
