Characterization of the VKI Plasmatron subsonic ICP jet combining optical emission spectroscopy, intrusive measurements, and CFD simulations

T0 review · 4 major / 7 minor · reviewed 2026-08-07 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Two measured free-jet quantities, temperature and dynamic pressure, plus a quasi-one-dimensional stagnation-line solver, reproduce intrusive heat-flux measurements across a range of plasma wind tunnel conditions.

desk verdict Careful OES-based characterization with a genuinely forward stagnation-line procedure, but the CF-ICP-derived inlet-location correlation needs a sensitivity study before the 'measured data only' claim is fully secure. read the letter →

arxiv 2506.02469 v1 pith:YCQVLEVQ submitted 2025-06-03 physics.flu-dyn

Andrea Fagnani , Bernd Helber , Damien Le Quang , Alessandro Turchi , Jimmy Freitas Monteiro , Annick Hubin , Olivier Chazot This is my paper
classification physics.flu-dyn
keywords plasmawindtunnelinductivelycoupledopticalemissionspectroscopyfree-jetenthalpystagnationlineflowcold-wallheatfluxlocalthermodynamicequilibriumcatalyticrecombination
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper proposes that the subsonic plasma jet in a 1.2 MW inductively coupled plasma wind tunnel can be characterized without the usual inverse heat-transfer rebuilding or tunable catalytic-efficiency parameters. The authors use spatially resolved ultraviolet-to-near-infrared optical emission spectroscopy to show that the free jet is in local thermodynamic equilibrium below about 7000 K at the probe location, so the flow enthalpy can be read directly from the measured temperature. Combining that temperature with a Pitot-derived dynamic pressure, they impose two boundary conditions on a quasi-one-dimensional Navier-Stokes computation of the stagnation line and find that the predicted cold-wall heat flux brackets the intrusive measurements for both probe radii. The agreement holds for free-jet enthalpies between roughly 20 and 40 MJ/kg and for copper recombination coefficients in the range commonly reported in the literature, offering a framework that is independent of the catalyst assumptions that limit the traditional method.

What carries the argument

The load-bearing object is a forward stagnation-line computation built on the quasi-one-dimensional form of the Navier-Stokes equations in conservation form, which needs fewer inputs than the boundary-layer approach: at an inlet point chosen far enough upstream that the radial velocity gradient and its axial derivative are negligible, the only boundary conditions are the free-jet temperature, chamber pressure, and free-jet velocity. The temperature comes from absolute emission spectra after Abel inversion, using the oxygen 777 nm triplet as the reference line, and the velocity comes from the measured dynamic pressure with a low-Reynolds-number correction. The location of the inlet point, $\delta_u^*$, is taken from a correlation computed with the two-dimensional magnetohydrodynamics solver, and the procedure is verified against that solver, showing the thermal boundary layer is reproduced within about 1 percent and the velocity gradient within about 10 percent. The computation also yields a boundary-layer-edge radial velocity gradient that is nearly insensitive to the wall recombination coefficient, which the paper identifies as the quantity needed for local heat-transfer simulation.

What would settle it

A direct test would be to measure the axial velocity profile along the stagnation line upstream of a probe without relying on the Pitot conversion, for example by laser Doppler or particle imaging velocimetry in the plasma, and compare it with the profile the forward computation produces from the $\delta_u^*$ correlation; if the true $\delta_u^*$ at a given free-jet velocity differs substantially from the correlation, the computed heat flux should move outside the experimental envelope. A cheaper version is a sensitivity sweep: re-run the procedure with $\delta_u^*$ varied by the known velocity uncertainty and check whether the predicted heat-flux range still contains the measured values, especially at 100 mbar and enthalpies below 20 MJ/kg where the paper already reports degraded agreement.

Watch

Extended reading notes

Core claim

On its own terms, the central discovery is that the stagnation-line flow and the cold-wall heat flux on a hemispherical copper probe can be computed forward from only two experimentally measured free-jet quantities, the centerline temperature inferred from the oxygen 777 nm emission and the dynamic pressure from a Pitot probe, together with the chamber pressure and probe geometry. The paper argues that the traditional inverse boundary-layer rebuilding method overpredicts the gas enthalpy at 100 mbar for the standard catalytic-efficiency assumptions, while the forward quasi-one-dimensional computation reproduces the measured heat-flux-versus-enthalpy trends at 50 and 100 mbar, for 30 and 50 mm probes, with the data mostly falling inside the 0.01 to 0.1 recombination-coefficient envelope. A supporting observation is that the equilibrium heat flux nearly equals the non-equilibrium fully catalytic heat flux at these conditions, so the earlier disagreement with the two-dimensional magnetohydrodynamics solver is attributed to that solver under-predicting the axial velocity rather than to wall catalysis.

Load-bearing premise

The forward procedure assumes a distance from the probe, $\delta_u^*$, where the measured free-jet conditions are imposed, and that distance is taken from a numerical solver that the paper itself finds under-predicts the jet velocity; if this distance is biased, the whole computation shifts and the reported agreement with heat-flux measurements could be lost.

Editorial extensions

If this is right

  • Free-jet enthalpy maps can be built from optical emission spectroscopy temperature alone, giving experimental $h_s$ versus $\dot{q}_{cw}$ and $h_s$ versus $p_{dyn}$ data for benchmarking models.
  • The strong dependence of the traditional inverse rebuilding procedure on the reference copper recombination coefficient is bypassed; the forward method brackets measurements with the literature range $0.01<\gamma_{ref}<0.1$.
  • The boundary-layer-edge radial velocity gradient, a key quantity for local heat-transfer simulation, can be extracted without knowing the wall catalytic efficiency.
  • The observed under-prediction of dynamic pressure by the two-dimensional magnetohydrodynamics solver implies that improving the velocity prediction in that solver is the main route to extending this characterization away from the stagnation line.
  • Within the tested envelope the approach works for two probe radii, so it can be used to define consistent test conditions for material response studies.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the $\delta_u^*$ correlation from the two-dimensional solver carries a bias, the imposed inlet location shifts along the jet; a sensitivity study of the predicted heat flux to $\delta_u^*$ would show how much of the reported agreement depends on that correlation.
  • The same two-input forward framework could be applied to other test gases and probe geometries, provided the equilibrium assumption remains valid at the chosen free-jet point; this is a direct extension the paper does not demonstrate.
  • Combining the forward stagnation-line computation with a velocity measurement technique that does not rely on the Pitot correction, for example laser Doppler or particle imaging velocimetry, would provide an independent check of the dynamic-pressure-to-velocity conversion and could extend the method to lower enthalpies where jet decay degraded the agreement.
  • The paper's restriction to temperatures below 7000 K is tied to the LTE spectral fits, so extending the characterization to higher-power conditions will require modeling the observed non-equilibrium molecular emission rather than a single-temperature fit.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 7 minor

Summary. This paper presents a combined experimental and numerical characterization of the subsonic air plasma jet in the VKI Plasmatron at 50 and 100 mbar and 150-300 kW. Spatially resolved OES yields radial temperature profiles from atomic lines, Boltzmann plots, and spectral fits, together with electron densities from H-beta Stark broadening; the diagnostics are mutually consistent below about 7000 K, supporting LTE and allowing inference of the free-jet enthalpy. The OES data are compared with CF-ICP simulations, whose power efficiency is tuned to match the measured temperature, and with the traditional inverse heat-flux rebuilding procedure, exposing discrepancies in velocity and enthalpy. A forward procedure is then proposed: measured free-jet temperature and dynamic pressure are imposed as inlet conditions for the quasi-1D STAGLINE solver, with the inlet distance delta*u taken from a CF-ICP correlation. The computed cold-wall heat-flux envelopes agree with intrusive measurements for enthalpies above about 20 MJ/kg at 100 mbar and over the full tested range at 50 mbar, for recombination coefficients between 0.01 and 0.1.

Significance. If the forward procedure is robust, it provides a valuable alternative to inverse enthalpy rebuilding for ICP ground testing, reducing reliance on assumed catalytic efficiencies and yielding boundary-layer edge velocity gradients useful for LHTS scaling. The OES dataset is a genuine strength: the calibration chain, Abel inversion, and internal consistency checks (line-to-line agreement, oxygen Boltzmann plots, H-beta electron densities) are carefully documented. The main risk is that the heat-flux agreement is demonstrated with one particular CF-ICP-derived inlet-location correlation, and the paper does not quantify the sensitivity of the result to that correlation; the 'measured data only' claim is therefore not yet fully secured. A sensitivity study is within the scope of the manuscript and should be required before publication.

major comments (4)
  1. [Section 7.1 and Fig. 12(c)] The claim that the forward procedure uses only measured free-jet temperature and dynamic pressure is not supported as written, because the inlet location delta*u(us) comes from a CF-ICP correlation. Section 6.2 reports that CF-ICP underpredicts the axial velocity for a given free-jet enthalpy, and Section 7.1 explicitly concedes that delta*u may be mispredicted; a biased delta*u shifts the STAGLINE inlet along the jet, altering the inviscid deceleration length and potentially the BL-edge velocity gradient and cold-wall heat flux. Appendix A verifies only that STAGLINE reproduces CF-ICP at one condition (50 mbar, 100 kW), which is not a sensitivity test of the delta*u choice. Please add a sensitivity study varying delta*u by an amount consistent with the CF-ICP velocity mismatch and the dynamic-pressure uncertainty, and report the resulting change in the Fig. 13 heat-flux envelope.
  2. [Section 7.2 and Fig. 13] The claimed agreement at 100 mbar is restricted to hs > 20 MJ/kg, and the paper attributes the failure below this threshold to jet-decay effects not represented in the quasi-1D formulation. This is the same regime in which Fig. 12(c) shows delta*u to be largest (low us), so the limitation and the delta*u uncertainty are confounded; without a quantitative bound on how much the heat-flux envelope shifts when delta*u is varied, the conclusion that the procedure agrees with intrusive heat-flux measurements across the reported range is not fully established.
  3. [Section 3.2 and Eq. (3)] The +/-5 Pa uncertainty in pdyn is a large relative error at the low end of the data (e.g., pdyn = 15 Pa at 100 mbar, 148 kW in Table B.3), yet the paper does not propagate this uncertainty through Eq. (3) into us and hence into delta*u and the heat-flux envelope. The sensitivity study should include this propagation, as it directly affects the inlet-location correlation and the low-enthalpy regime where agreement is already limited.
  4. [Section 6.1 and Section 7.1] The delta*u(us) correlation is generated with CF-ICP simulations whose numerical power efficiency is tuned to match the OES free-jet temperature; because the same OES temperature defines the inferred enthalpy hs in the forward procedure, the heat-flux comparison in Fig. 13 is not a fully independent test of the measured-only method. This indirect circularity should be addressed, for example by recomputing delta*u with a fixed power efficiency or by measuring the location experimentally, e.g., from Pitot pressure profiles at two axial stations.
minor comments (7)
  1. [Section 4.1] The phrase 'region region' is duplicated in the sentence describing the boundary layer; remove the repetition.
  2. [Footnote 1] The word 'affliation' should be 'affiliation'.
  3. [Section 3.4] The words 'Reseach Center' should be 'Research Center'.
  4. [Appendix A] The word 'multidimentional' should be 'multidimensional'.
  5. [Fig. 13] The figure shows only fitted trend lines without uncertainty bands; adding representative error bars for the experimental heat flux and enthalpy would make the claimed compatibility easier to assess.
  6. [Section 6.2] The sentence 'the numerical power efficiency is not considered here' is confusing because Fig. 9 explicitly uses eta_sim to match the OES temperature; clarify that Fig. 10 compares data and simulation at matched free-jet enthalpy rather than matched input power.
  7. [Table C.4] The header 'Acc.˚A' appears garbled; the accuracy column should be formatted properly.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the heat-flux comparison is an independent output of STAGLINE, and the CF-ICP-derived inlet correlation is a model input rather than a fitted target.

full rationale

The paper's central comparison is the STAGLINE heat-flux envelope against intrusive calorimeter measurements (Sec. 7.2). The STAGLINE inputs are the measured free-jet temperature Ts and the velocity us obtained from measured dynamic pressure, plus the inlet distance delta*u taken from a CF-ICP correlation (Sec. 7.1). CF-ICP's electrical power is tuned in Sec. 6.1 to match the OES temperature at z = 385 mm, so the delta*u(us) correlation is partly influenced by that fit. However, the measured cold-wall heat flux is never used to adjust any parameter in the forward procedure; the heat flux is a physical output of the stagnation-line calculation, not a quantity that is fitted or defined in terms of the inputs. The enthalpy hs = h_LTE(Ts, pc) is a definitional mapping from the measured temperature under the stated LTE assumption and is used only as a plotting and comparison variable, not as a derived prediction. Appendix A verifies STAGLINE against CF-ICP by feeding STAGLINE with CF-ICP-derived values of Ts, us, and delta*u; this is an internal consistency check, and the paper correctly labels it as a numerical verification rather than experimental validation. The main limitation, acknowledged in Sec. 7.1, is that CF-ICP underpredicts axial velocity for a given enthalpy and that delta*u may therefore be mispredicted; this is an unquantified sensitivity risk, not a circularity. No equation in the paper reduces to an input by construction, and no load-bearing argument relies on a self-citation. The result is therefore self-contained with respect to the circularity concerns considered here.

Assumptions & free parameters 2 free parameters · 6 assumptions · 0 invented entities

The central claim relies on standard plasma diagnostics and the new STAGLINE procedure. The main non-standard input is the delta*u correlation from CF-ICP, which carries the fitted power efficiency and the velocity underprediction. No new physical entities are postulated.

free parameters (2)
  • Numerical power efficiency eta_sim = 36-39% at 100 mbar; 36-39% at 50 mbar
    Chosen so CF-ICP centerline temperature matches OES measurement at z=385 mm, r=0 (Sec. 6.1). Used to generate CF-ICP solutions, including the delta*u correlation used in the forward procedure.
  • LTE temperature cutoff = 7000 K
    Analysis restricted to temperatures below 7000 K because NEQAIR LTE spectral fits deviate from O777 line temperatures above this value (Sec. 5). This post hoc selection limits the validation range.
assumptions (6)
  • domain assumption LTE at the free-jet point
    Used to infer enthalpy from OES temperature (Sec. 6.2) and to compute gas properties. Supported by OES self-consistency below 7000 K, but not proven.
  • domain assumption Axisymmetric, optically thin plasma for Abel inversion
    Required to convert line-of-sight radiance to local emission intensity (Sec. 3.4).
  • domain assumption Quasi-1D NS with beta=0 and beta'=0 at inlet
    STAGLINE solves stagnation-line equations with inlet conditions imposed at delta*u where the radial velocity gradient and its derivative vanish (Sec. 7.1).
  • ad hoc to paper delta*u(us) correlation from CF-ICP
    The inlet location is obtained from a correlation computed with CF-ICP, which is itself tuned to match OES temperature and underpredicts velocity (Sec. 6.2, 7.1). This is a modeling input specific to this paper.
  • domain assumption CEQ heat flux equals CNEQ with gamma_w=1
    Used in Sec. 6.2 and Appendix A to argue CF-ICP should overpredict heat flux if velocity were correct. Verified numerically for one condition.
  • standard math Homann low-Reynolds correction for Pitot probe
    Used to convert measured dynamic pressure to free-jet velocity (eq. 3).

how reviews work

0 comments
Cite this review

Pith. "Pith review of Characterization of the VKI Plasmatron subsonic ICP jet combining optical emission spectroscopy, intrusive measurements, and CFD simulations." pith.science (2026). https://pith.science/paper/YCQVLEVQ

@misc{pith2026250602469,
  author       = {Pith},
  title        = {Pith review of: Characterization of the VKI Plasmatron subsonic ICP jet combining optical emission spectroscopy, intrusive measurements, and CFD simulations},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/YCQVLEVQ}},
  note         = {Machine review of arXiv:2506.02469}
}
read the original abstract

This paper addresses the characterization of the subsonic flow in the 1.2~MW Inductively Coupled Plasma (ICP) wind tunnel at the von Karman Institute for Fluid Dynamics (VKI), targeting chamber pressures of 50 and 100~mbar, and input electric powers between 150 and 300~kW. Ultraviolet to near-infrared optical emission spectroscopy measurements of the free-jet flow are carried out with an updated experimental set-up, calibration procedure, and data processing, providing high-quality absolute spatially-resolved emission spectra. Emission measurements agree with thermochemical equilibrium predictions within a range of conditions, allowing to extract experimental maps of cold-wall heat flux and dynamic pressure against the inferred free-jet enthalpy. A detailed comparison with the characterization methodology traditionally employed is presented, highlighting the need for an improved modeling strategy. Using the measured free-jet temperature and dynamic pressure only, a forward procedure for the computation of the stagnation line flow is proposed. The latter agrees with intrusive heat flux measurements through a range of test conditions, and for values of the recombination coefficient of the reference copper probe commonly found in the literature. Results demonstrate that a consistent framework between numerical simulations and experimental data can be achieved, defining an improved framework for the characterization of the subsonic ICP jet.

Figures

Figures reproduced from arXiv: 2506.02469 by the authors.

Figure 1
Figure 1. Schematic of the experimental set-up designed for this work, showing the VKI Plas [PITH_FULL_IMAGE:figures/full_fig_p008_1.png] view at source ↗
Figure 2
Figure 2. CF-ICP-PR temperature field computed for [PITH_FULL_IMAGE:figures/full_fig_p012_2.png] view at source ↗
Figure 3
Figure 3. (a) Sketch of representative velocity or temperature profiles for flow conditions with [PITH_FULL_IMAGE:figures/full_fig_p013_3.png] view at source ↗
Figures from the paper (10 more)
Figure 4
Figure 4. Figure 4: Example of measured spatially resolved spectral radiance (a) and rebuilt spectral [PITH_FULL_IMAGE:figures/full_fig_p015_4.png]
Figure 5
Figure 5. Figure 5: (a, b) Example of measured spatial LTE temperature profiles from the atomic lines at [PITH_FULL_IMAGE:figures/full_fig_p017_5.png]
Figure 6

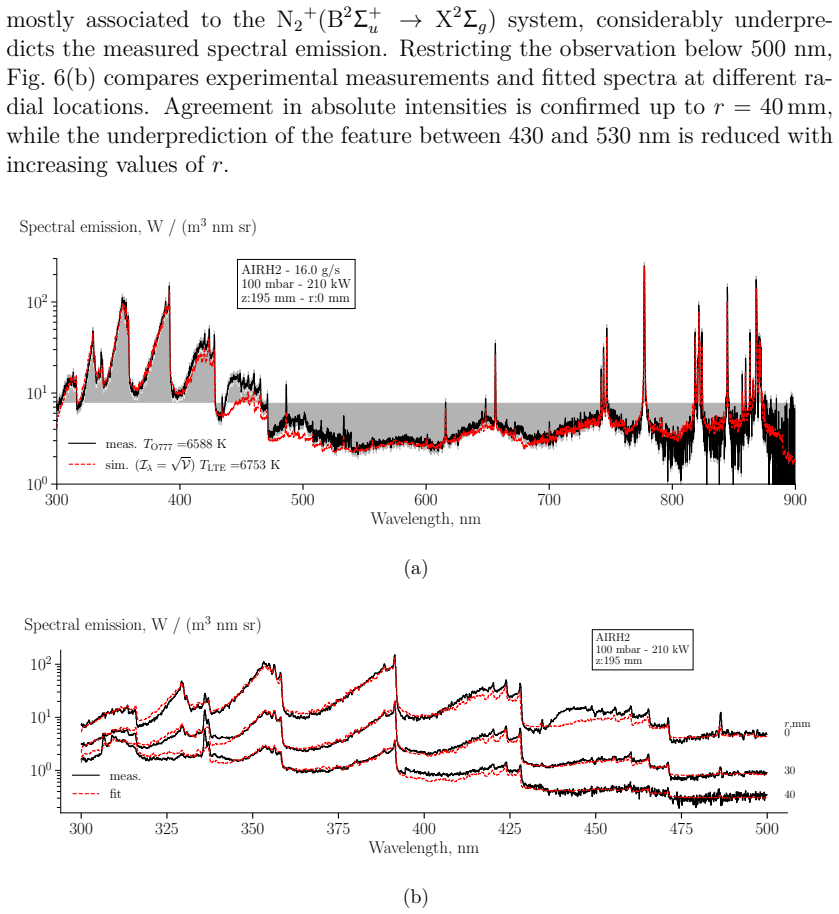

Figure 6. Figure 6: Comparison between measured and simulated LTE spectral emission intensity for the [PITH_FULL_IMAGE:figures/full_fig_p018_6.png]
Figure 7
Figure 7. Figure 7: Comparison between radial temperature profiles obtained from the O777 lines and [PITH_FULL_IMAGE:figures/full_fig_p019_7.png]
Figure 8
Figure 8. Figure 8: (a) Normalized spectral image of the Hβ transition around λ0 = 486.1 nm for pc = 100 mbar, Pel = 290 kW and z = 195 mm. (b) Subtraction of the baseline spectrum measured in synthetic air (AIRS) at r = 0 mm. (c) Hβ lineshapes as a function of the radial position after A…
Figure 9
Figure 9. Figure 9: Comparison between the experimental temperature profiles and the ones simulated [PITH_FULL_IMAGE:figures/full_fig_p023_9.png]
Figure 10
Figure 10. Figure 10: Experimental cold-wall heat flux (for HS50 and HS30 geometries), dynamic pressure [PITH_FULL_IMAGE:figures/full_fig_p025_10.png]
Figure 11
Figure 11. Figure 11: Comparison between measured free-jet enthalpy vs cold-wall heat flux and rebuilt [PITH_FULL_IMAGE:figures/full_fig_p027_11.png]
Figure 12
Figure 12. Figure 12: Example of temperature (a) and velocity (b) profiles as a function of the distance [PITH_FULL_IMAGE:figures/full_fig_p029_12.png]
Figure 13
Figure 13. Figure 13: Measured hs − q˙cw trends lie within the 0 < γref < 1 envelope predicted with the new procedure (SL FW) starting from the measured T s and us at δ ∗ u , except below 20 MJ/kg at 100 mbar. The relevance of jet decay effects is believed to degrade the accuracy at low fr…
