arxiv: 2506.09685 · v2 · submitted 2025-06-11 · 📡 eess.SY · cs.SY

Bridging Continuous-time LQR and Reinforcement Learning via Gradient Flow of the Bellman Error

Armin Gie{\ss}ler , Albertus Johannes Malan , S\"oren Hohmann This is my paper

Pith reviewed 2026-05-19 09:49 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords LQRBellman errorgradient flowoptimal feedbackreinforcement learningstabilizing policiescontinuous-time controlRiccati equation
0
0 comments X

The pith

A gradient flow on the continuous-time Bellman error finds the optimal LQR feedback gain while keeping every policy along the path stabilizing.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a continuous-time method to compute the optimal feedback gain for the infinite-horizon linear quadratic regulator problem. It introduces a Bellman error drawn from the Hamilton-Jacobi-Bellman equation that quantifies the suboptimality of any stabilizing feedback policy and is expressed directly in terms of the gain matrix. The authors establish that this error is smooth and coercive over the stability region and possesses a unique stationary point at the optimal gain. They obtain a closed-form expression for its gradient, which defines an ordinary differential equation whose solutions converge to the optimum. The flow stays inside the set of stabilizing policies at every instant, providing a bridge between classical LQR theory and reinforcement learning ideas through the use of Lyapunov equations.

Core claim

The central claim is that the continuous-time Bellman error, parametrized by the feedback gain, is coercive with a unique stationary point inside the stability region; its closed-form gradient induces a gradient flow that converges globally to the optimal stabilizing feedback from any initial stabilizing gain, with the entire trajectory consisting exclusively of stabilizing policies.

What carries the argument

The continuous-time Bellman error derived from the HJB equation and parametrized by the feedback gain, whose gradient generates the ODE flow that solves the LQR problem.

Load-bearing premise

The continuous-time Bellman error is coercive and has a unique stationary point inside the stability region.

What would settle it

A concrete linear system and initial stabilizing gain for which the gradient flow diverges, oscillates, or converges to a non-optimal point would disprove the global convergence claim.

Figures

Figures reproduced from arXiv: 2506.09685 by Albertus Johannes Malan, Armin Gie{\ss}ler, S\"oren Hohmann.

Figure 1
Figure 1. Figure 1: Contour plot of the Bellman error eK -4 -2 0 2 4 K1 -4 -2 0 2 4 K2 100 102 K fK ! fK$ K$ [PITH_FULL_IMAGE:figures/full_fig_p007_1.png] view at source ↗

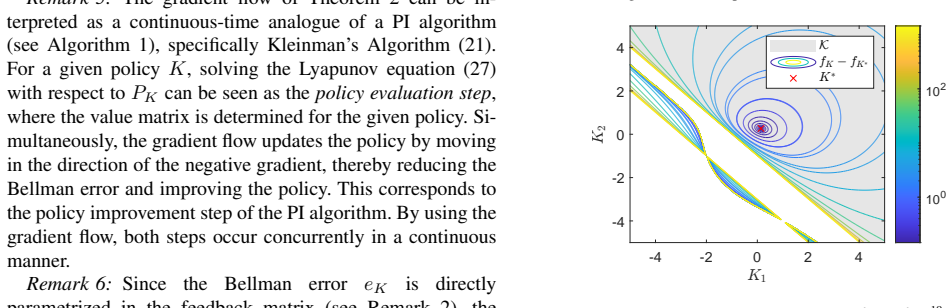

Figure 2
Figure 2. Figure 2: Contour plot of the LQR cost fK − fK∗ 19 fK =2 K 3 1 + 2K 2 1K2 + 5K 2 1 + 2K1K 2 2 + 4K1K2 + 4K1 + 2K 3 2 + 7K 2 2 + 2K2 + 5 / [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗

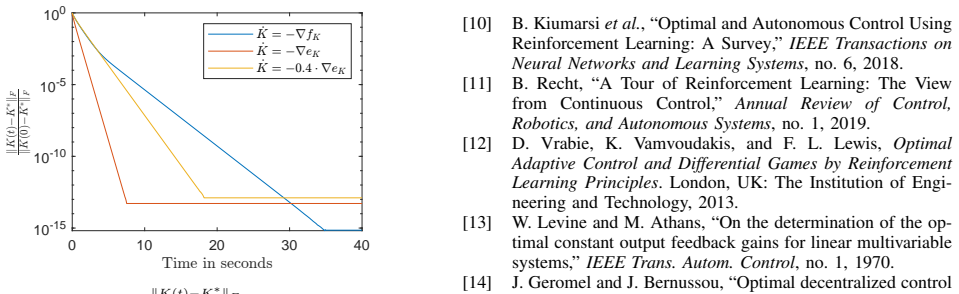

Figure 3
Figure 3. Figure 3: Plot of the residuals ∥K(t)−K∗∥F ∥K(0)−K∗∥F for the gradient flow of the LQR cost fK and the Bellman error eK the given system (68), the gradient flows of the Bellman error eK converge faster than that of the LQR cost fK. Due to numerical limitations, the residuals of the gradient flows stabilize at different values. V. CONCLUSION In this paper, we introduced a novel continuous-time Bellman error for the L… view at source ↗
read the original abstract

In this paper, we present a novel method for computing the optimal feedback gain of the infinite-horizon Linear Quadratic Regulator (LQR) problem via an ordinary differential equation. We introduce a novel continuous-time Bellman error, derived from the Hamilton-Jacobi-Bellman (HJB) equation, which quantifies the suboptimality of stabilizing policies and is parametrized in terms of the feedback gain. We analyze its properties, including its effective domain, smoothness, coerciveness and show the existence of a unique stationary point within the stability region. Furthermore, we derive a closed-form gradient expression of the Bellman error that induces a gradient flow. This converges to the optimal feedback and generates a unique trajectory which exclusively comprises stabilizing feedback policies. Additionally, this work advances interesting connections between LQR theory and Reinforcement Learning (RL) by redefining suboptimality of the Algebraic Riccati Equation (ARE) as a Bellman error, adapting a state-independent formulation, and leveraging Lyapunov equations to overcome the infinite-horizon challenge. We validate our method in a simulation and compare it to the state of the art.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript introduces a continuous-time Bellman error for the infinite-horizon LQR problem, parametrized by the feedback gain K. It establishes properties such as smoothness, coerciveness, and a unique stationary point within the stability region. A closed-form gradient is derived, leading to a gradient flow ODE that is claimed to converge to the optimal gain while generating trajectories consisting only of stabilizing policies. The approach is positioned as a bridge between LQR theory and reinforcement learning via redefinition of ARE suboptimality, with numerical validation provided.

Significance. If the theoretical claims hold, particularly the global convergence and invariance properties of the flow, this could provide a new dynamical-systems method for solving the ARE, with potential implications for continuous-time RL algorithms. The use of Lyapunov equations to handle the infinite horizon and the state-independent formulation are notable connections. The simulation results indicate practical feasibility, but the contribution hinges on rigorous establishment of the flow's global behavior.

major comments (1)
  1. [§4] §4 (Gradient Flow and Convergence): The central claim that the ODE generates a unique trajectory exclusively comprising stabilizing feedback policies requires an invariance argument for the open set of stabilizing gains. While coerciveness and uniqueness of the stationary point inside the stability region are shown, the manuscript does not explicitly analyze the vector field's behavior near the stability boundary (where the Lyapunov solution ceases to exist) to ensure trajectories cannot escape in finite time. This is load-bearing for the assertion of global convergence from arbitrary stabilizing initial conditions.
minor comments (2)
  1. [§3] Notation in §3: The continuous-time Bellman error definition could more explicitly distinguish the state-independent formulation from standard state-dependent versions to aid readability.
  2. [Simulation] Simulation section: The comparison to state-of-the-art methods would be strengthened by reporting quantitative metrics such as convergence time or final cost error alongside the qualitative plots.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for identifying this important point regarding the invariance of the stabilizing set. We address the comment directly below and have incorporated a strengthened analysis in the revision.

read point-by-point responses

  1. Referee: [§4] §4 (Gradient Flow and Convergence): The central claim that the ODE generates a unique trajectory exclusively comprising stabilizing feedback policies requires an invariance argument for the open set of stabilizing gains. While coerciveness and uniqueness of the stationary point inside the stability region are shown, the manuscript does not explicitly analyze the vector field's behavior near the stability boundary (where the Lyapunov solution ceases to exist) to ensure trajectories cannot escape in finite time. This is load-bearing for the assertion of global convergence from arbitrary stabilizing initial conditions.

    Authors: We agree that an explicit invariance argument is necessary for rigor and thank the referee for this observation. In the revised manuscript we have added a new lemma in §4 that directly addresses the vector-field behavior at the boundary. Because the continuous-time Bellman error is shown to be coercive on the open stability set (i.e., J(K) → +∞ as K approaches any point on the boundary where the Lyapunov equation ceases to admit a positive-definite solution), every sublevel set {K : J(K) ≤ c} is compact and lies strictly inside the stability region. The gradient flow is the negative gradient of this smooth, coercive function; consequently, the flow cannot reach the boundary in finite time, as that would require J to become infinite while decreasing along trajectories. We supply a self-contained proof that the open stability set is forward-invariant under the flow and that solutions exist globally for any initial stabilizing gain. Global convergence to the unique stationary point then follows from standard Lyapunov arguments on the compact sublevel sets. This addition makes the invariance claim fully rigorous without altering any other results. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation rests on standard HJB and Lyapunov equations without self-referential reduction.

full rationale

The paper begins from the established continuous-time Hamilton-Jacobi-Bellman equation and the infinite-horizon Lyapunov equation for LQR cost, both of which are classical results external to this manuscript. The continuous-time Bellman error is introduced as a direct re-expression of ARE suboptimality for a stabilizing gain K; its gradient is then computed in closed form and the resulting ODE is analyzed for coerciveness and a unique critical point inside the stability region. None of these steps equates the target convergence result to its own inputs by construction, nor does any load-bearing premise collapse to a self-citation whose validity depends on the present paper. The claimed invariance of the stabilizing-gain set under the flow is asserted via the derived vector field, but this is an independent analytic claim rather than a definitional tautology. The overall chain therefore remains non-circular.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 1 invented entities

The central claim rests on standard optimal-control background plus the newly introduced Bellman error; no free parameters are indicated and the invented entity is the error measure itself.

axioms (2)
  • standard math The Hamilton-Jacobi-Bellman equation governs the optimal value function for the LQR problem.
    Invoked to derive the continuous-time Bellman error from the HJB PDE.
  • domain assumption Lyapunov equations yield the infinite-horizon quadratic cost for any stabilizing linear feedback.
    Used to overcome the infinite-horizon difficulty when adapting the formulation to reinforcement learning.
invented entities (1)
  • Continuous-time Bellman error parametrized by feedback gain no independent evidence
    purpose: Quantifies suboptimality of any stabilizing policy and supplies the objective whose gradient induces the stabilizing flow.
    Newly defined in the paper as the central object bridging LQR and RL.
