Sub-Parsec Acceleration and Collimation of NGC 4261's Twin Jets

T0 review · 4 major / 5 minor · reviewed 2026-08-07 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read The twin jets of NGC 4261 accelerate to relativistic speeds and change their collimation shape in the same sub-parsec region, providing the first evidence for a co-spatial acceleration and collimation zone in this low-luminosity AGN.

desk verdict Solid collimation result, plausible but model-dependent kinematics; the co-spatial ACZ claim needs a quantitative FFA check before it carries the weight the abstract gives it. read the letter →

arxiv 2506.13093 v2 pith:MROYUL7B submitted 2025-06-16 astro-ph.GA astro-ph.HE

Xi Yan , Lang Cui , Kazuhiro Hada , Sandor Frey , Ru-sen Lu , Liang Chen , Wancheng Xu , Elika P. Fariyanto
show 1 more author
Luis C. Ho
This is my paper
classification astro-ph.GAastro-ph.HE
keywords low-luminosityactivegalacticnucleirelativisticjetsverylongbaselineinterferometryhighangularresolutionNGC4261jetaccelerationcollimationDopplerboosting
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper argues that the two-sided relativistic jet of the nearby galaxy NGC 4261 undergoes most of its acceleration in exactly the same sub-parsec region where its shape changes from a parabola to a cone. Using archival Very Long Baseline Array images between 1.4 and 43 GHz, the authors measure the jet width on both sides and the jet-to-counterjet brightness ratio, from which they reconstruct the jet's speed out to about 20,000 Schwarzschild radii. They find the jet accelerates from roughly 0.3 c near 1,000 Schwarzschild radii to a maximum Lorentz factor of about 2.6 near 8,000 Schwarzschild radii, then slowly decelerates. Because this acceleration region overlaps the parabolic-to-conical collimation break at about 1.2 pc on the approaching side and 0.97 pc on the receding side, they conclude that acceleration and collimation are co-spatial and causally connected, forming a compact acceleration and collimation zone (ACZ). If correct, NGC 4261 becomes the third low-luminosity AGN, after M87 and NGC 315, with direct evidence that both processes act together, which matters for testing magnetohydrodynamic jet-launching models.

What carries the argument

The central object is the jet-to-counterjet brightness ratio $R_B = I_{\rm jet}/I_{\rm cjet}$ combined with the spectral index $\alpha$ and the assumed viewing angle $\phi_{\rm view}=68^\circ\pm4^\circ$, converted into an intrinsic speed $\beta_{\rm int}$ through the Doppler-boosting formula (Eq. 2). The collimation side is carried by the deconvolved jet width $W(r)$ fitted with a broken power law whose break radius $r_b$ locates the parabolic-to-conical transition; a possible dip in the unbinned width profile at the transition is read as a hint of a recollimation shock. These two independent measurements, kinematic via brightness ratio and structural via width profile, are brought together by comparing $r_b$ with the radius where $\Gamma\beta_{\rm int}$ peaks, establishing the co-spatial ACZ.

What would settle it

Measure the jet-to-counterjet brightness ratio at 22 and 43 GHz with a high-sensitivity array such as the Very Long Baseline Array or the Global mm-VLBI Array: at these frequencies free-free absorption is negligible, so if the ratio implies a different acceleration pattern from the one derived at 1.4--8.4 GHz, the Doppler-boosting assumption breaks down. Alternatively, a direct measurement of the jet viewing angle that falls outside 64--72 degrees would shift the entire speed curve and could erase the coincidence with the collimation break.

Watch

Extended reading notes

Core claim

NGC 4261's twin jets accelerate to relativistic speeds and change their collimation geometry in the same sub-parsec volume, providing the first robust evidence for a co-spatial acceleration and collimation zone in this source. The paper derives the collimation profile from deconvolved VLBA jet widths and model-fitted component sizes, finding a clear break from a parabolic width profile ($W \propto r^{0.48\text{--}0.51}$) to a conical one ($W \propto r^{1.06\text{--}1.15}$) at about $8.1\times10^{3} R_{\rm s}$ (1.23 pc) on the approaching side and $6.4\times10^{3} R_{\rm s}$ (0.97 pc) on the counterjet side. Using the jet-to-counterjet brightness ratio with the spectral index and a viewing angle of $68^\circ \pm 4^\circ$, it reconstructs an intrinsic-speed field showing overall acceleration from about $0.3c$ at $\sim10^{3} R_{\rm s}$ to $\Gamma_{\max} \approx 2.6$ near $8\times10^{3} R_{\rm s}$, followed by deceleration to sub-relativistic speeds. The spatial coincidence of the acceleration and collimation break, together with the fulfilment of the condition $\Gamma\,\phi_{\rm open}/2 \lesssim \sqrt{\sigma_m}$, is interpreted as evidence that the jet is accelerated by magnetic-to-kinetic energy conversion while being confined by external pressure, in a zone confined to $r \lesssim 1.5$ pc, well inside the Bondi radius of about 99 pc. The authors note that NGC 4261 may be a scaled-down analogue of M87's ACZ, with a lower maximum Lorentz factor suggesting a less magnetized jet base.

Load-bearing premise

The derived velocity field assumes that the brighter jet is brighter only because of Doppler boosting: no significant free-free or synchrotron self-absorption contaminates the jet-to-counterjet brightness ratio in the regions used, and the jet keeps a single viewing angle of 68 degrees plus or minus 4 degrees.

Editorial extensions

If this is right

  • NGC 4261 becomes the fifth radio-loud AGN, and the third low-luminosity AGN after M87 and NGC 315, with evidence that jet acceleration and collimation occur simultaneously.
  • The ACZ lies at $r \lesssim 1.5$ pc (about $10^{4} R_{\rm s}$), far inside the Bondi radius of roughly 99 pc, implying that the jet is collimated by external pressure from an advection-dominated accretion flow or disk wind rather than by the Bondi-scale environment.
  • The modest maximum Lorentz factor $\Gamma_{\max} \approx 2.6$ combined with a shallow acceleration profile $\Gamma \propto r^{0.21}$ in the inner region suggests the jet base is only weakly magnetized, similar to NGC 315 and unlike M87.
  • Downstream of the collimation break, the jet decelerates to 0.3--0.5 c at $(2\text{--}3)\times10^{4} R_{\rm s}$, indicating in-situ dissipation or a recollimation shock, possibly seen as a width dip in the transition zone.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The brightness-ratio method used here offers a way to measure acceleration zones in other two-sided jets that lack long monitoring campaigns; if applied to a larger sample, it could test whether sub-parsec ACZs are generic in low-luminosity AGN rather than rare.
  • The frequency-independent behaviour of the brightness-ratio radial profile claimed by the paper suggests that a single well-calibrated epoch at several frequencies could anchor the velocity field, which would make ACZ surveys much cheaper; this is an extension the authors do not explicitly develop.
  • If the tentative recollimation-shock signature at the transition is real, the deceleration-reacceleration pattern in the speed field may be the kinematic fingerprint of a standing shock, a prediction that future millimeter-VLBI imaging of the same region could check.
  • A direct test worth pursuing is combining brightness-ratio speeds with actual multi-epoch proper motions of individual jet components on the same scales; this would tell whether the velocity field is steady or time-variable.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The manuscript analyzes archival VLBA observations of the nearby LLAGN NGC 4261 at 1.4–43 GHz to investigate the jet collimation profile and velocity field on sub-parsec scales. The authors combine deconvolved jet widths, model-fitted component sizes, and multifrequency core-size measurements to infer a parabolic-to-conical structural transition in both the jet and counterjet, at (1.23±0.24) pc and (0.97±0.29) pc respectively, corresponding to ~(6–8)×10^3 Schwarzschild radii. Using the jet-to-counterjet brightness ratio and spectral indices under a Doppler-boosting assumption (Eq. 2), they derive an intrinsic velocity field showing overall acceleration to a maximum Lorentz factor Γmax≈2.6 near the collimation break, followed by gradual deceleration. They interpret the spatial coincidence of acceleration and collimation as evidence for a co-spatial sub-parsec acceleration and collimation zone (ACZ), and compare the source with M 87 and NGC 1052. The paper also reports proper motions from radial intensity profiles and discusses possible recollimation signatures.

Significance. If the kinematic interpretation holds, this would add NGC 4261 as the fifth AGN (third LLAGN) with observational evidence for a co-spatial ACZ, strengthening the comparative study of jet acceleration and collimation across the AGN population. The collimation analysis is a genuine strength: the parabolic-to-conical transition is derived from two independent width methods (deconvolved transverse profiles and model-fitted component sizes), is consistent with previous work by Nakahara et al. (2018) and Yan et al. (2023), and is supported by well-documented fits with reduced χ² near unity. The archival data are carefully tabulated, and the authors are explicit about caveats such as low signal-to-noise, beam effects, and limited physical coverage. However, the central claim of a co-spatial ACZ rests on the velocity field, which depends on the assumption that the measured brightness asymmetry is purely Doppler in origin. The paper provides only a qualitative frequency-independence argument against free-free absorption and synchrotron self-absorption, and does not quantitatively demonstrate that residual opacity in the counterjet cannot mimic the inferred acceleration pattern.

major comments (4)
  1. [§3.2.1/§3.2.2, Eq. (2)] The reconstruction of the intrinsic speed β_int assumes that the jet-to-counterjet brightness ratio R_B is entirely due to Doppler boosting, with negligible free-free absorption (FFA) and synchrotron self-absorption (SSA) in the measured region. The only support offered is the qualitative frequency independence of R_B in Fig. 5, whereas the counterjet is known to suffer FFA near the base (§3.1, Fig. 1, Appendix D). Because the R_B peak at ~4–5 mas sets Γmax≈2.6 and drives the acceleration/deceleration pattern, a residual frequency-dependent FFA screen on the counterjet could mimic the inferred acceleration. I request a quantitative test — for example, fitting a free-free absorption model to the multifrequency R_B values, or showing that the spectral turnovers of the jet and counterjet are consistent with zero extra opacity — before the co-spatial ACZ claim can be accepted.
  2. [§3.2.2] The velocity field for epochs without spectral maps is derived using the average spectral index <α> = −0.95 ± 0.47 obtained from the same dataset, and binned values with <α> > −0.5 are excluded. This introduces a mild self-reference and a potential selection bias. The authors should demonstrate that the inferred acceleration and Γmax are robust to (i) using different spectral index values within the quoted uncertainty and (ii) including the excluded bins. If the acceleration pattern changes under these tests, the co-spatial ACZ claim would need to be softened.
  3. [§3.2.2 / Figure 7] The claim of an overall acceleration from ~10^3 to ~8×10^3 R_s rests largely on the brightness-ratio peak at ~4–5 mas and the subsequent dip and rise. The paper’s own caveats in §4.4.2 note low S/N and beam-shape effects, but no quantitative estimate is given for how opacity, beam-smearing, or local intensity enhancements would alter the R_B profile. Without such an estimate, the peak could reflect a local emission feature rather than a relativistic-speed maximum. The collimation break is robust, but the kinematic part of the ACZ conclusion is not.
  4. [§4.2] The causality argument Γ φ_open / 2 ≤ sqrt(σ_m) assumes σ_m ≥ 1 and φ_open ≲ 5°, but the magnetization parameter is not independently constrained. This is an interpretive step rather than a measurement, and the conclusion of a causally connected ACZ should be presented with that dependence made explicit. A sensitivity check using a range of σ_m would clarify how much of the ACZ claim rests on this assumption.
minor comments (5)
  1. [§3.1.1, Eq. (1)] The broken power-law fit fixes the sharpness parameter at s=10 following N18; a sentence reporting the sensitivity of the fitted break location and indices to s (e.g., s=5 or s=20) would strengthen confidence in the collimation results.
  2. [§3.2.1 / Figure 5] The colored solid sticks on the horizontal axes of the right panel are described only in the caption; the text should explicitly define that the brightness-ratio measurements are restricted to regions to the right of these sticks, and the excluded inner region should be marked consistently in the left panel.
  3. [Appendix C, Eq. (C1)] The sign convention in Eq. (C1) should be stated explicitly for the counterjet: the reader cannot tell from the formula alone whether the plus sign applies to the receding or approaching side, and the paper’s Table 6 reports positive β_int for both sides.
  4. [§3.1.2] The simple power-law fits to the model-fitted width data have reduced χ² of 2.6 and 3.2, which are not ideal; a sentence acknowledging this scatter and its possible origin (e.g., component identification or intrinsic width variations) would be helpful.
  5. [§4.4.4] Minor language issue: “will play an unique role” should be “will play a unique role”; similar small grammatical fixes are needed in a few other places throughout the text.

Circularity Check

0 steps flagged · score 1.0 of 10

No significant circularity; the acceleration and collimation results are derived from independent observables, with only mild non-load-bearing self-citations.

full rationale

The paper's central claim of a co-spatial acceleration and collimation zone rests on two independent measurements: the jet width profile (Section 3.1) and the jet-to-counterjet brightness ratio (Section 3.2). The collimation break is obtained by fitting a broken power law to deconvolved widths, using new archival data alongside Y23 points. The velocity field is derived from Eq. (2), the standard Doppler-boosting formula, which converts measured brightness ratios and spectral indices into intrinsic speeds; the acceleration pattern is not imposed as an input. The paper explicitly acknowledges that the velocity pattern is governed by RB variations, which is a measurement property rather than a fitted prediction. The average spectral index (-0.95±0.47) adopted for epochs without spectral information is a measured sample mean from the same source, used as an input with propagated uncertainty, not a quantity claimed to be predicted. Self-citations (Y23 for prior collimation and kinematic data, Yan & Lu 2024 for the viewing angle) provide inputs and comparison points, but the new brightness-ratio analysis and multi-frequency width measurements carry the load, so the cited results are not load-bearing. No uniqueness theorem or ansatz is imported from the authors' prior work. The paper also discloses limitations (Section 4.4) regarding uv coverage, S/N, and the FFA/SSA-affected inner region, and it excludes those regions when measuring RB; these are correctness caveats, not circular steps. Overall, no circular step could be identified.

Assumptions & free parameters 11 free parameters · 7 assumptions · 0 invented entities

The central claim rests on a standard set of external measurements (distance, black hole mass, viewing angle, core shifts) and on fit parameters of the width and velocity profiles. No new particles, forces, or conserved quantities are introduced; the ACZ is an observational classification of a region already known from prior work. The main internal assumption is the Doppler interpretation of the brightness ratio.

free parameters (11)
  • W0 (jet width at break) = 631 +/- 117 Rs
    Fitted normalization at the break in Eq. (1) for the approaching jet; enters the collimation profile and the shape of the ACZ boundary.
  • rb (jet break radius) = (8.1 +/- 1.6) x 10^3 Rs = 1.23 +/- 0.24 pc
    Fitted parabolic-to-conical transition location for the approaching jet; a central result for the co-spatial ACZ claim.
  • ku (jet upstream width index) = 0.48 +/- 0.07
    Fitted width slope upstream of the break, indicating a parabolic geometry.
  • kd (jet downstream width index) = 1.15 +/- 0.05
    Fitted width slope downstream of the break, indicating conical expansion.
  • W0 (counterjet width at break) = 812 +/- 195 Rs
    Fitted normalization at the break for the counterjet width profile.
  • rb (counterjet break radius) = (6.4 +/- 1.9) x 10^3 Rs = 0.97 +/- 0.29 pc
    Fitted transition location on the receding side; agrees with the jet break within uncertainties.
  • ku (counterjet upstream width index) = 0.51 +/- 0.07
    Fitted upstream slope for the counterjet width profile.
  • kd (counterjet downstream width index) = 1.06 +/- 0.02
    Fitted downstream slope for the counterjet, indicating conical geometry.
  • Sharpness parameter s of broken power law = 10 (fixed)
    Fixed rather than fitted, following N18; affects transition sharpness but not the qualitative parabolic-to-conical result.
  • Lorentz factor acceleration index q = 0.21 +/- 0.04
    Power-law index of Gamma versus r fitted over (1-3) x 10^3 Rs after excluding deviating points; used to characterize the slow acceleration.
  • Average spectral index for epochs without spectral maps = -0.95 +/- 0.47
    Derived from binned spectral indices and adopted for 1995 and 1999 data lacking spectral information; enters Eq. (2) for those epochs.
assumptions (7)
  • domain assumption The twin jets are intrinsically symmetric and the brightness difference is entirely due to Doppler beaming (Eq. 2).
    Stated at the start of Section 3.2.2; no independent check is provided and intrinsic asymmetry or residual absorption would bias the derived speeds.
  • domain assumption Free-free absorption and synchrotron self-absorption are negligible in the regions where the brightness ratio is measured.
    Section 3.2.1 excludes the inner FFA/SSA-affected zone and retains only regions with optically thin spectra; the 2.3 GHz 2002 data are excluded because they are not optically thin beyond 10 mas.
  • domain assumption A single jet viewing angle of 68 +/- 4 degrees applies along the whole sub-parsec jet.
    Adopted in Section 1 from Piner et al. 2001 and Yan & Lu 2024; used to deproject distances and to convert brightness ratio to speed.
  • domain assumption The adopted distance (31.6 Mpc) and black hole mass (1.62 x 10^9 solar masses) are correct.
    Section 1; the conversion 1 mas about 0.15 pc about 988 Schwarzschild radii relies on these literature values.
  • domain assumption The core-shift measurements of Haga et al. (2015) correctly locate the black hole position at all frequencies.
    Sections 3.1.1 and 3.2.1 shift every image using these core shifts; an error shifts both the width profile and the velocity field together.
  • ad hoc to paper A broken power law with fixed sharpness s=10 is an adequate description of the width profile (Eq. 1).
    Adopted from N18; the break parameters depend on this functional choice and are not derived from a first-principles jet model.
  • ad hoc to paper The magnetization parameter satisfies sigma_m >= 1 when testing the causality condition Gamma * phi_open / 2 <= sqrt(sigma_m).
    Section 4.2 explicitly assumes sigma_m >= 1 to argue for magnetic acceleration; no direct measurement of the magnetization is available.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Sub-Parsec Acceleration and Collimation of NGC 4261's Twin Jets." pith.science (2026). https://pith.science/paper/MROYUL7B

@misc{pith2026250613093,
  author       = {Pith},
  title        = {Pith review of: Sub-Parsec Acceleration and Collimation of NGC 4261's Twin Jets},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/MROYUL7B}},
  note         = {Machine review of arXiv:2506.13093}
}
abstract

We report the first robust evidence for a co-spatial sub-parsec acceleration and collimation zone (ACZ) in the twin jets of the nearby low-luminosity active galactic nucleus (LLAGN) NGC 4261. This result is derived from multifrequency Very Long Baseline Array imaging, combined with the frequency-dependent properties of the radio core (core shift and core size) and jet kinematics determined from the jet-to-counterjet brightness ratio. By applying multiple analysis methods and incorporating results from the literature, we identify a parabolic-to-conical structural transition in both the jet and counterjet, with the transition occurring at $(1.23\pm0.24)$ pc or $(8.1\pm1.6)\times10^3 R_{\rm s}$ (Schwarzschild radii) for the jet and $(0.97\pm0.29)$ pc or $(6.4\pm1.9)\times10^3 R_{\rm s}$ for the counterjet. We also derive the jet velocity field at distances of $\sim (10^3-2\times10^4) R_{\rm s}$. While local kinematic variations are present, the jet shows an overall acceleration to relativistic speeds from $\sim 10^3$ to $\sim8\times10^3 R_{\rm s}$, with a maximum Lorentz factor of $\Gamma_{\rm max} \approx 2.6$. Beyond this region, the jet gradually decelerates to sub-relativistic speeds. These findings support the existence of a sub-parsec-scale ($\lesssim 1.5$ pc) ACZ in NGC 4261, where the jet is accelerated via magnetic-to-kinetic energy conversion while being confined by external pressure. A brief comparison with M 87 suggests that the ACZ in NGC 4261 may represent a scaled-down analogue of that in M 87. These results point towards a potential diversity in jet ACZ properties, emphasizing the importance of extending such studies to a broader AGN population to elucidate the physical mechanisms at play.

Figures

Figures reproduced from arXiv: 2506.13093 by the authors.

Figure 1
Figure 1. Top panels: uniformly weighted CLEAN images of the NGC 4261 jet observed with VLBA at 5.0 and 8.4 GHz. Contours start from the 3σ image rms noise (see [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

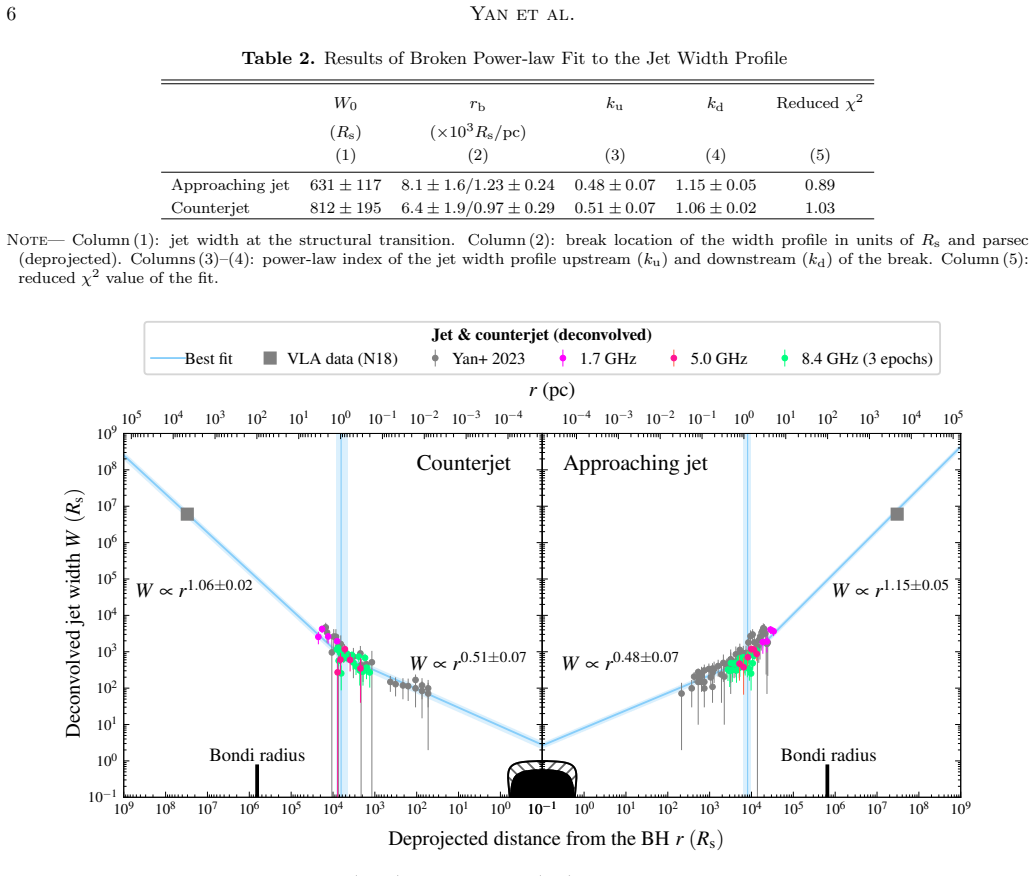

Figure 2. Deconvolved widths of the jet (right) and counterjet (left) in NGC 4261 as functions of deprojected distance from the central black hole, adopting a jet viewing angle of ϕview = 68◦ ± 4 ◦ (see Section 1). Gray data points are adopted from Y23. To show the evolution of the jet width on the kiloparsec scales, a VLA measurement from N18 is also included. The best-fit broken power-law functions are overlaid, with their … view at source ↗
Figure 3
Figure 3. Model-fitted widths of the core, jet, and coun￾terjet components in NGC 4261 as a function of depro￾jected distance from the central black hole, obtained at 1.7/5.0/8.4 GHz in this work (see [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figures from the paper (9 more)
Figure 4
Figure 4. Figure 4: A representative 5 GHz image of NGC 4261 (left) illustrating how the radial intensity profile (middle) and the jet-to-counterjet brightness ratio (right) are derived. The ridgeline in the CLEAN image represents the maximum intensity along each slice perpendicular to th…
Figure 5
Figure 5. Figure 5: Jet-to-counterjet brightness ratio (left) and spectral distribution of the twin jets (right) in NGC 4261 as a function of projected distance from the central black hole. The colored solid sticks on the horizontal axes in the right panel indicate the regions (to the rig…
Figure 6
Figure 6. Figure 6: Using the binned jet-to-counterjet brightness ratio (top) and spectral index (middle), the intrinsic speed of the NGC 4261 jet (bottom) is derived. In the middle plots, the gray dashed line and shaded area represent the average spectral index and its uncertainty, respe…
Figure 7
Figure 7. Figure 7: shows the intrinsic speed of the NGC 4261 jet as a function of deprojected distance from the cen￾tral black hole. In particular, the intrinsic speed derived from the jet’s radial intensity profile is also included (see Appendix C). Moreover, we incorporate kinematic re…
Figure 8
Figure 8. Figure 8: Four-velocity of the NGC 4261 jet as a function of deprojected distance from the central black hole, derived from the intrinsic speed as detailed in Section 3.2. This plot includes the twin jets, with 4 data points corresponding to the counterjet (see [PITH_FULL_IMAGE…
Figure 9
Figure 9. Figure 9: Uniformly weighted CLEAN images of the NGC 4261 jet observed with VLBA at 1.4, 1.7, 2.3, 4.8, 8.3, and 8.4 GHz. Contours start from the 3σ image rms noise (see [PITH_FULL_IMAGE:figures/full_fig_p020_9.png]
Figure 10
Figure 10. Figure 10: Similar to [PITH_FULL_IMAGE:figures/full_fig_p021_10.png]
Figure 11

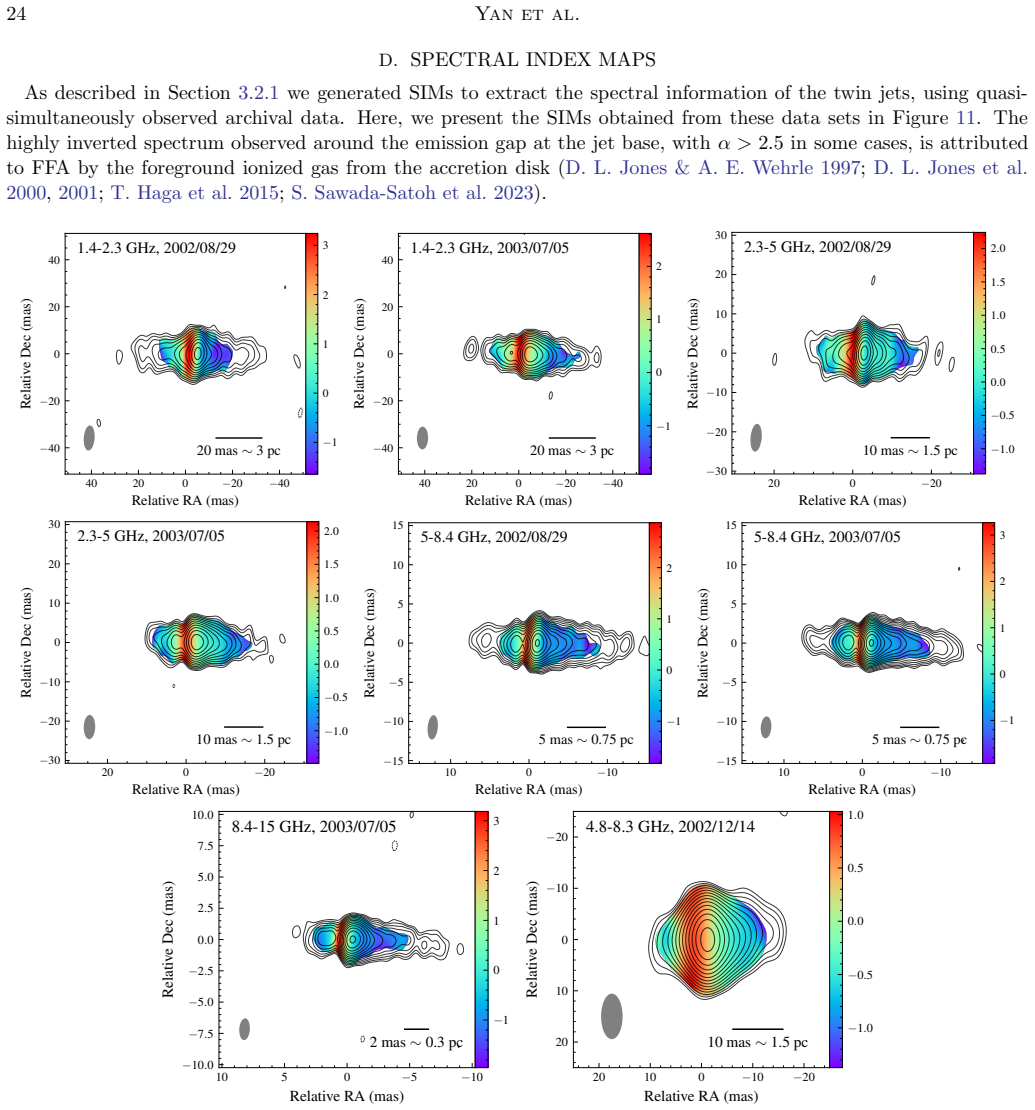

Figure 11. Figure 11: SIMs at different frequency pairs of NGC 4261. For each pair, the SIM is overlaid on the contours of the low￾er-frequency image. Note that the coordinate origin is set to the putative location of the central SMBH using the core shifts measured by T. Haga et al. (2015)…
Figure 12
Figure 12. Figure 12: Unbinned width profile of the approaching jet in NGC 4261, derived from the 8.4 GHz data (1999/02/26) and 1.7 GHz data (1995/04/01). A dip is seen in the structural transition zone, potentially indicating a recollimation feature [PITH_FULL_IMAGE:figures/full_fig_p025…
